SGB: [iceboy] #3

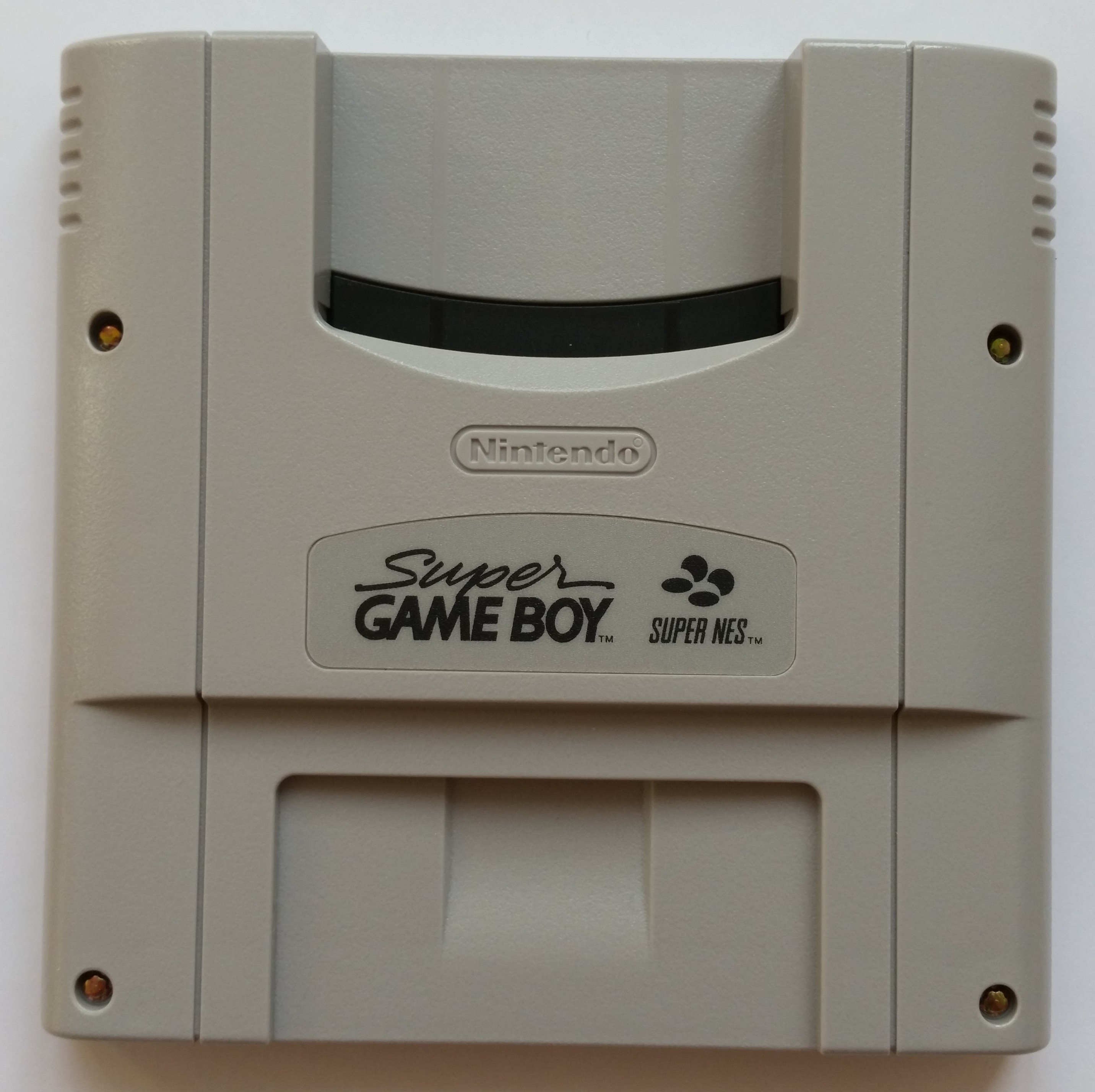

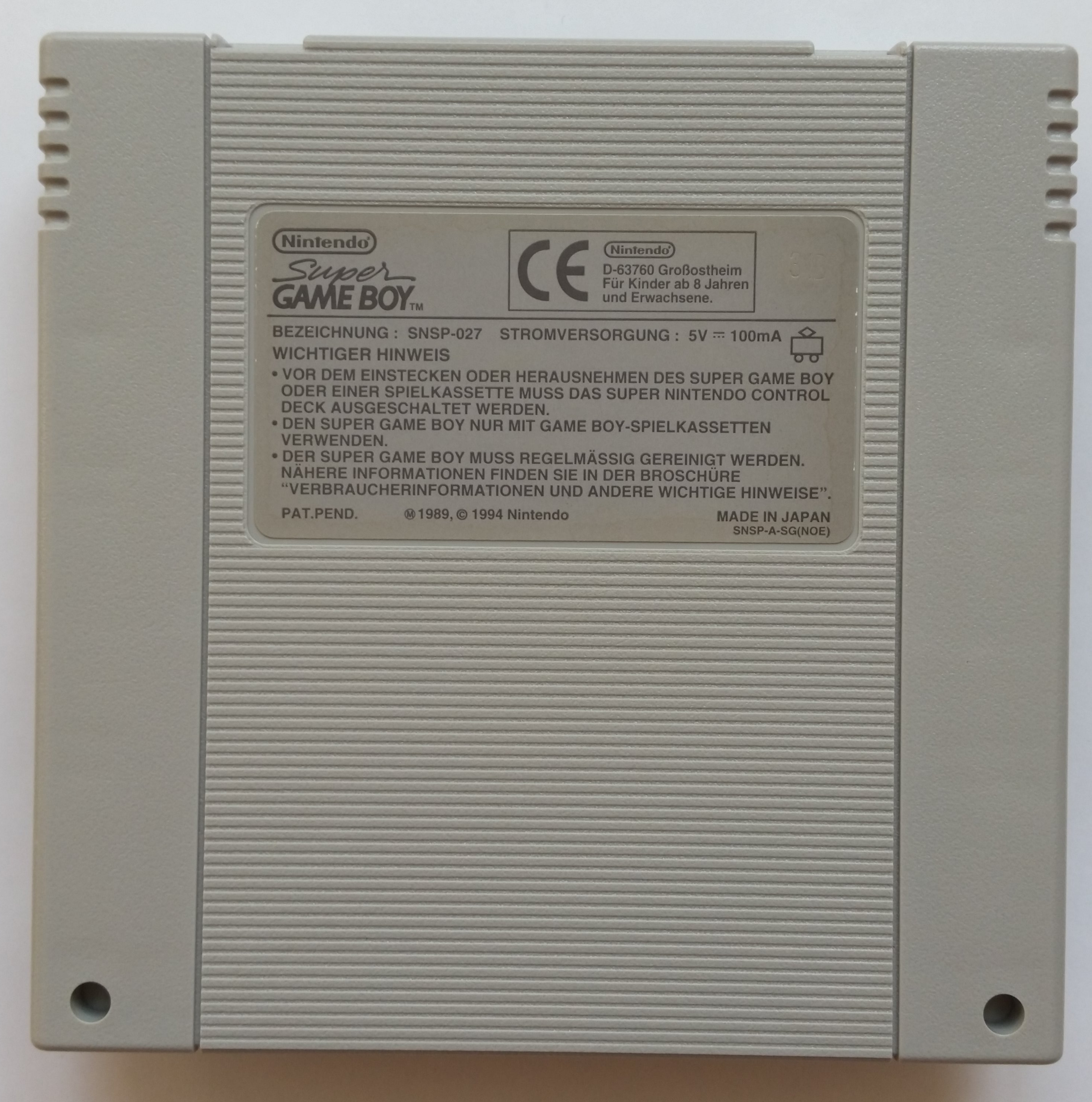

Front side of Super Game BoyBack side of Super Game Boy

Stamp on sticker
34B

Mainboard

Front side of Super Game Boy circuit boardBack side of Super Game Boy circuit board

Board type
SGB-R-10
Manufacture date
June/1994
Circled letter(s) on board
Ca
Letter at top right
F

Chips

 ChipTypeManufacturerDateLabel
U1CPUSGB-CPU 01SharpWeek 27/1994
SGB-CPU 01
© 1994 Nintendo
Ⓜ 1989 Nintendo
JAPAN
9427 7 D
U2Host interfaceICD2-R?Week 25/1994
Nintendo
ICD2-R
425 167
U3Work RAMLH52A64N-YLCrosslink SemiconductorWeek 27/1994
LH52A64N-YL
Xlink
JAPAN
H427 0B C
U4Video RAMLH52A64N-YLCrosslink SemiconductorWeek 27/1994
LH52A64N-YL
Xlink
JAPAN
H427 0B C
U5ROMSYS-SGB-2SharpWeek 23/1994
SYS-SGB-2
© 1994 Nintendo
9423 E
U6CICF413ASharpWeek 25/1994
F413A
© 1992
Nintendo
9425 a

Notes

none

Misc

CPU works
yes
