SGB2: [iceboy] #3

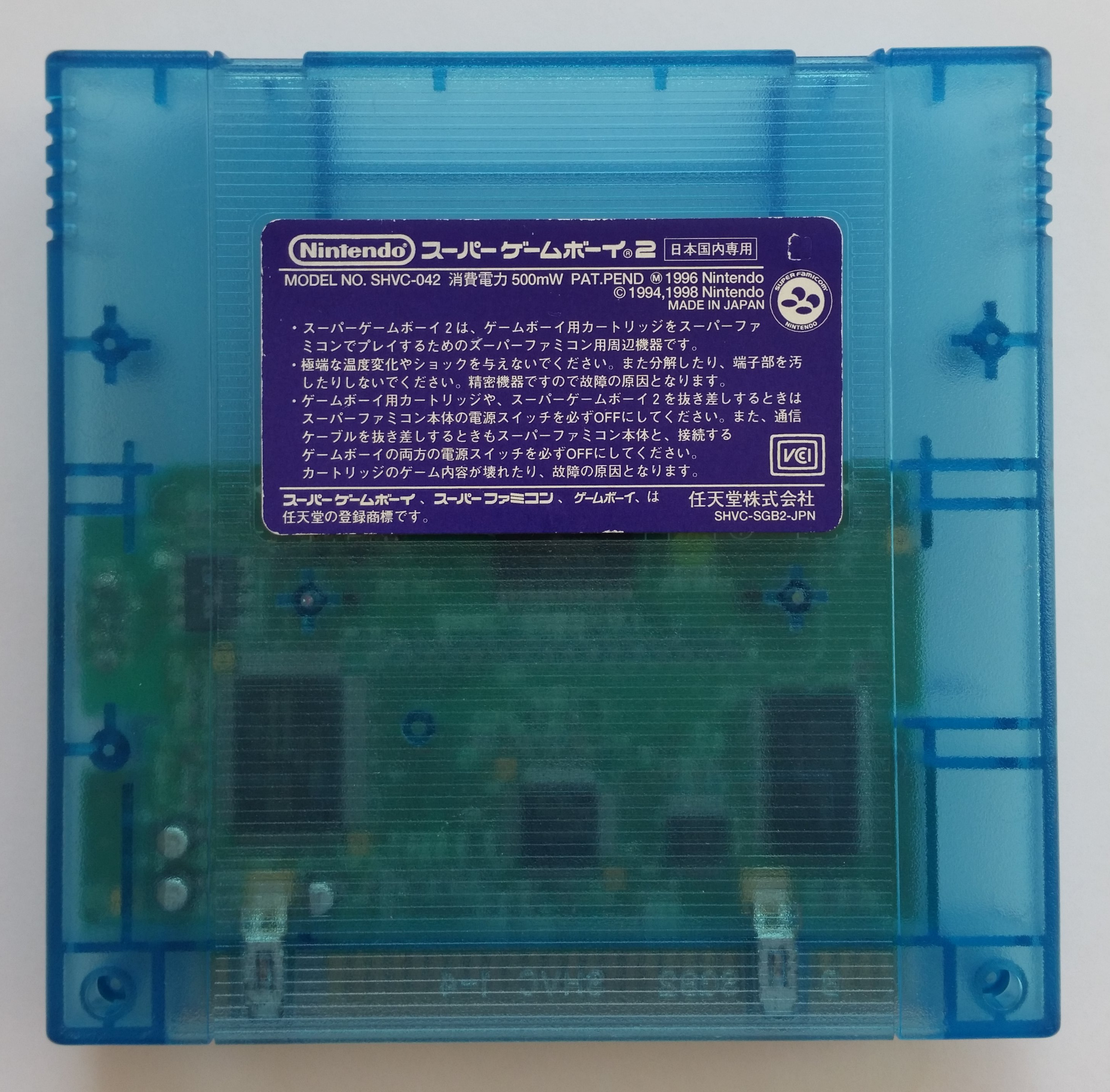

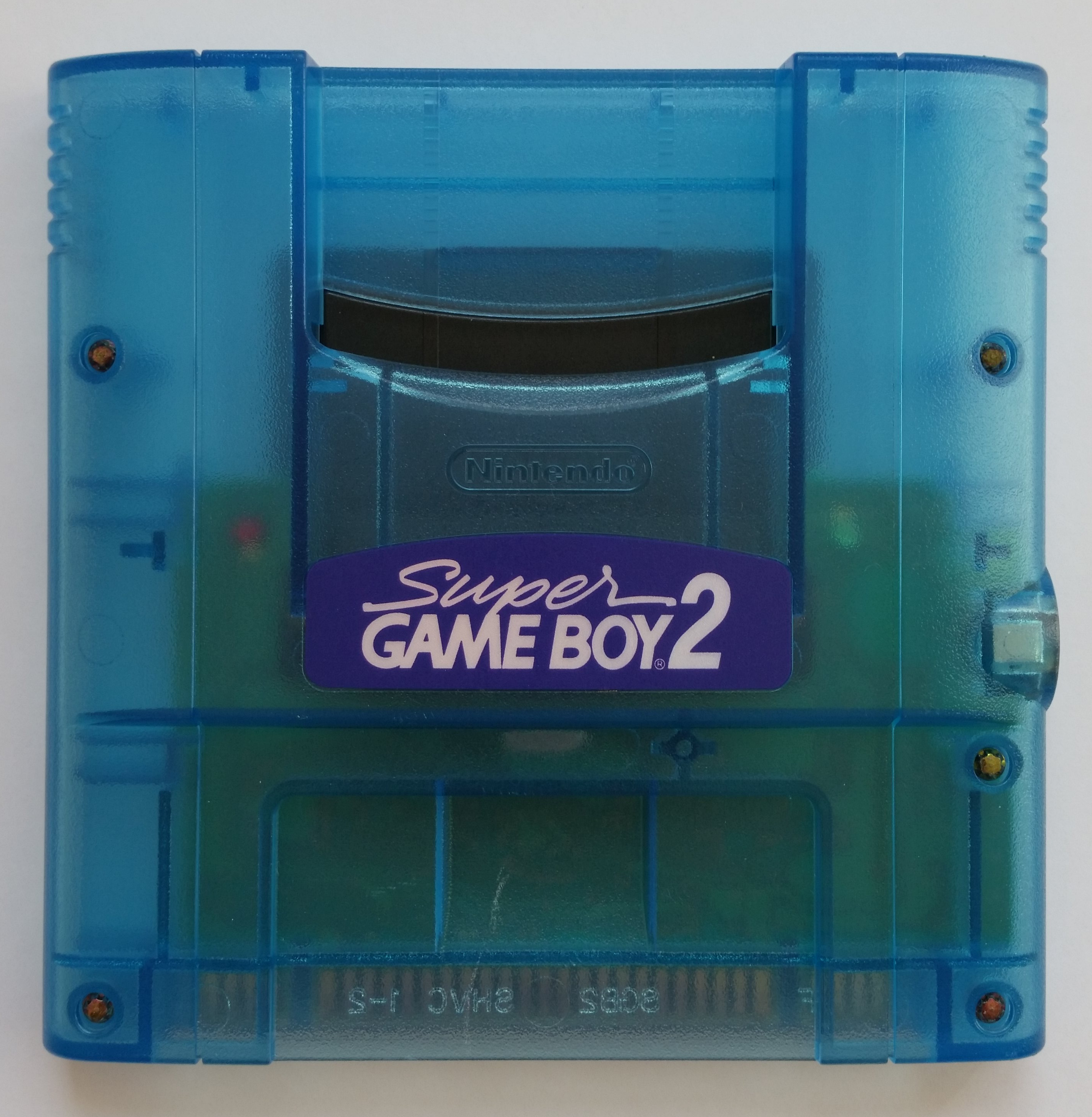

Front side of Super Game Boy 2Back side of Super Game Boy 2

Stamp on sticker
20
Color of cartridge slot
black

Mainboard

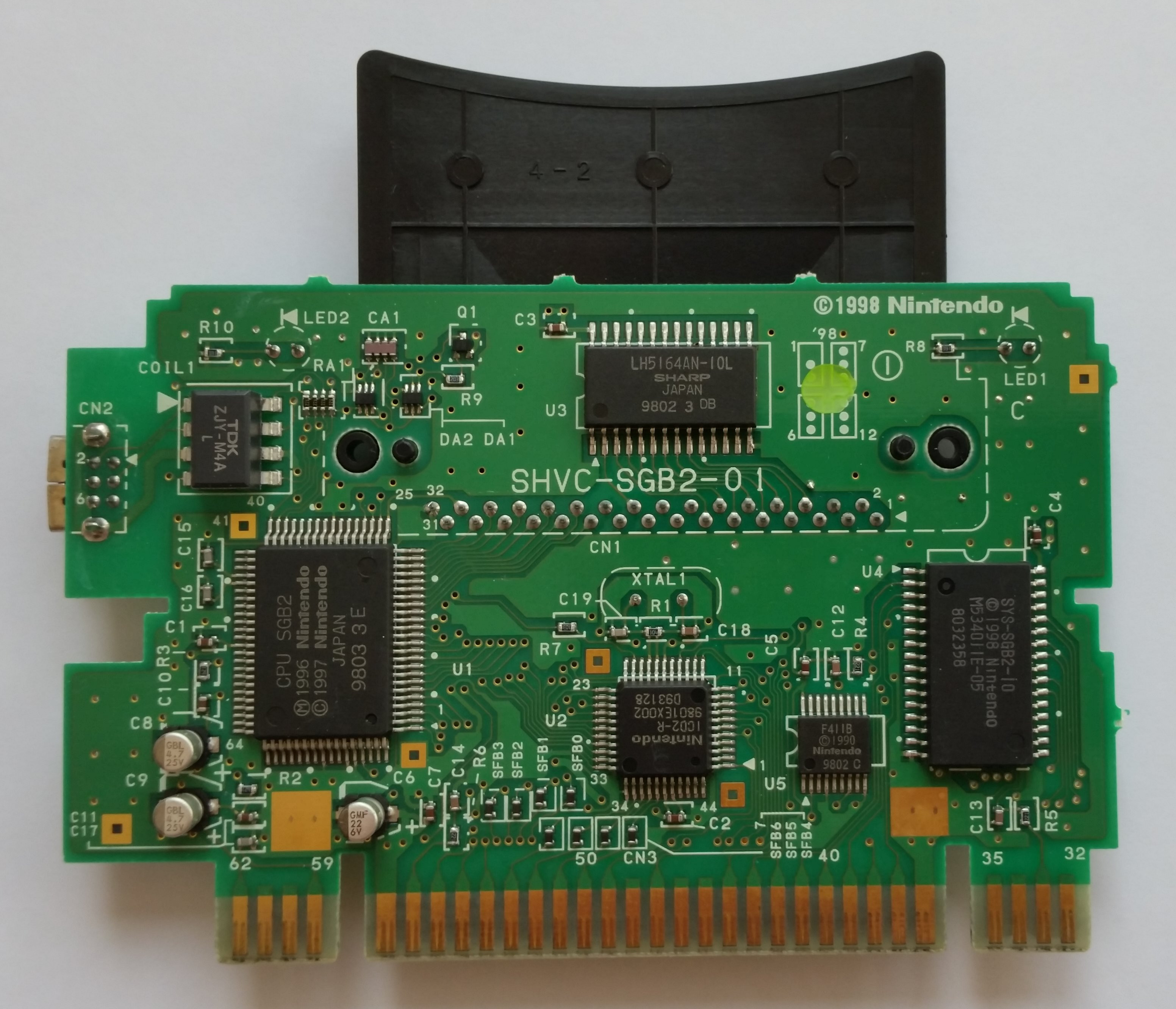

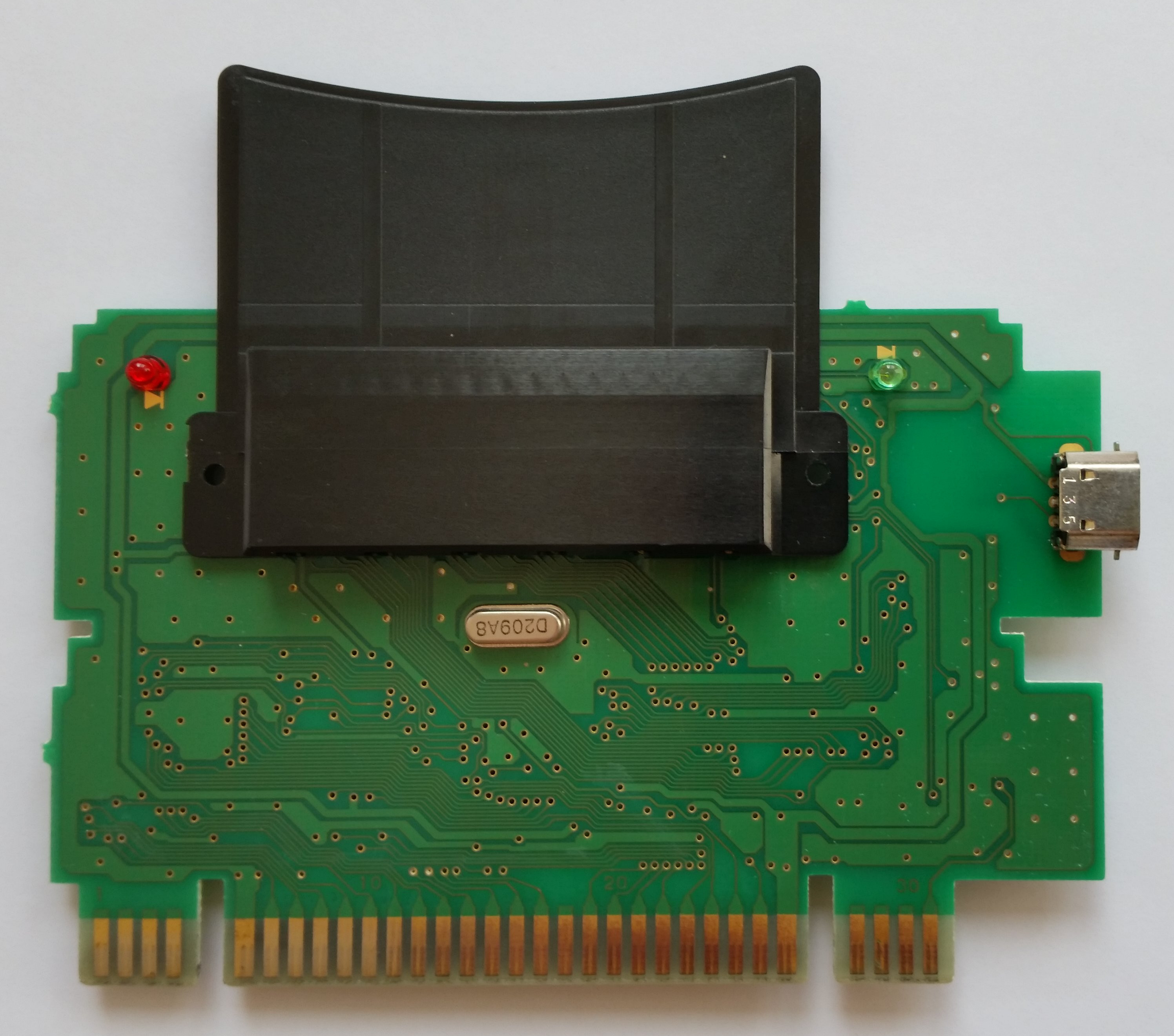

Front side of Super Game Boy 2 circuit boardBack side of Super Game Boy 2 circuit board

Board type
SHVC-SGB2-01
Manufacture date
January/1998
Circled letter(s) on board
I
Letter at top right
C

Chips

 ChipTypeManufacturerDateLabel
U1CPUCPU SGB2SharpWeek 3/1998
CPU SGB2
Ⓜ 1996 Nintendo
© 1997 Nintendo
JAPAN
9803 3 E
U2Host interfaceICD2-R?Week 1/1998
Nintendo
ICO2-R
9801EX002
D93128
U3Work RAMLH5164AN-10LSharpWeek 2/1998
LH5164AN-10L
SHARP
JAPAN
9802 3 DB
U4ROMSYS-SGB2-10OKIWeek 3/1998
SYS-SGB2-10
© 1998 Nintendo
M534011E-05
8032358
U5CICF411BSharpWeek 2/1998
F411B
© 1990
Nintendo
9802 C
XTAL1CrystalD209DaishinkuJanuary/1998
D209A8
COIL1CoilZJY-M4ATDK?
TDK
ZJY-M4A
L

Notes

none

Misc

CPU works
yes
