SGB2: [iceboy] #2

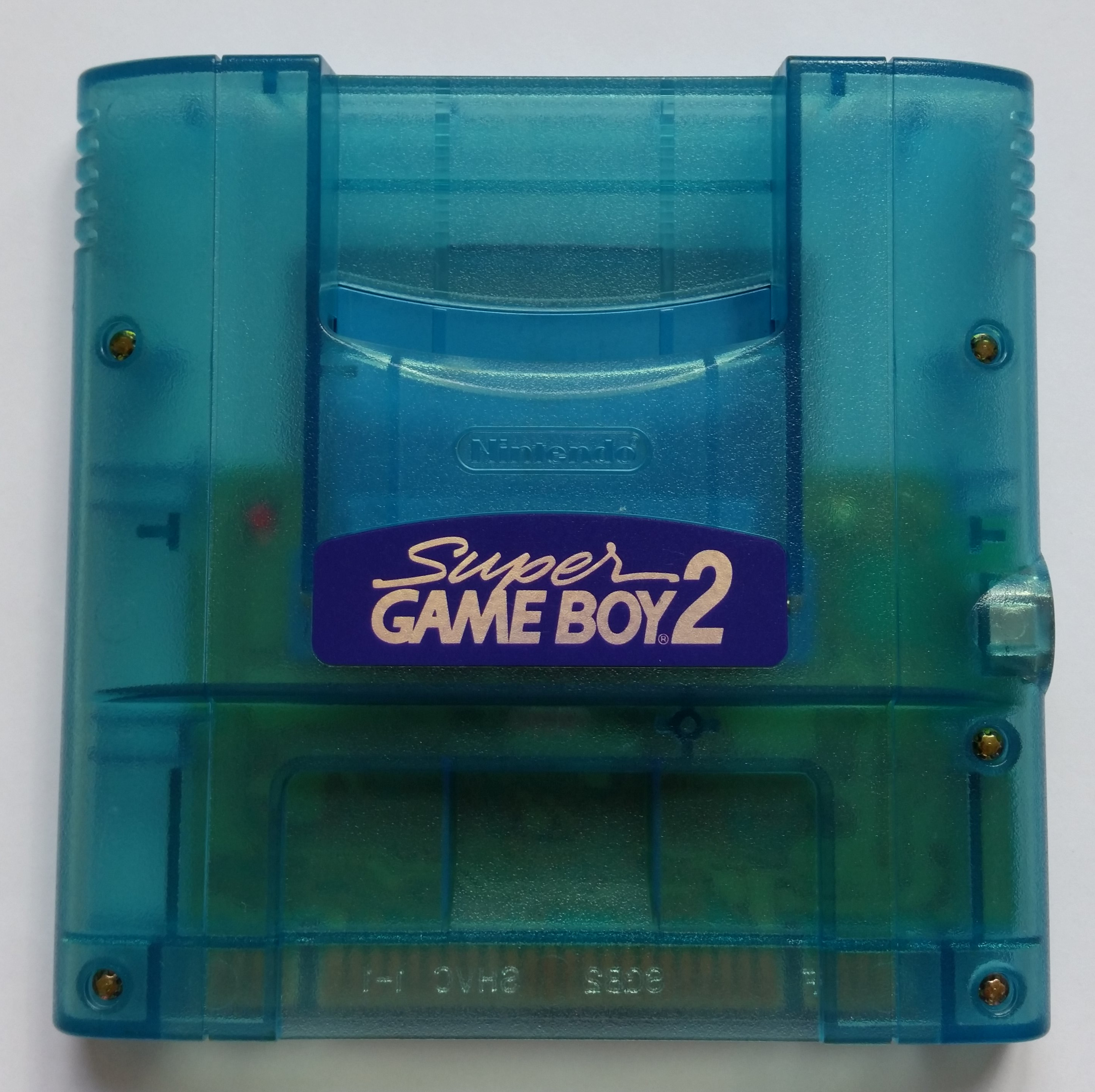

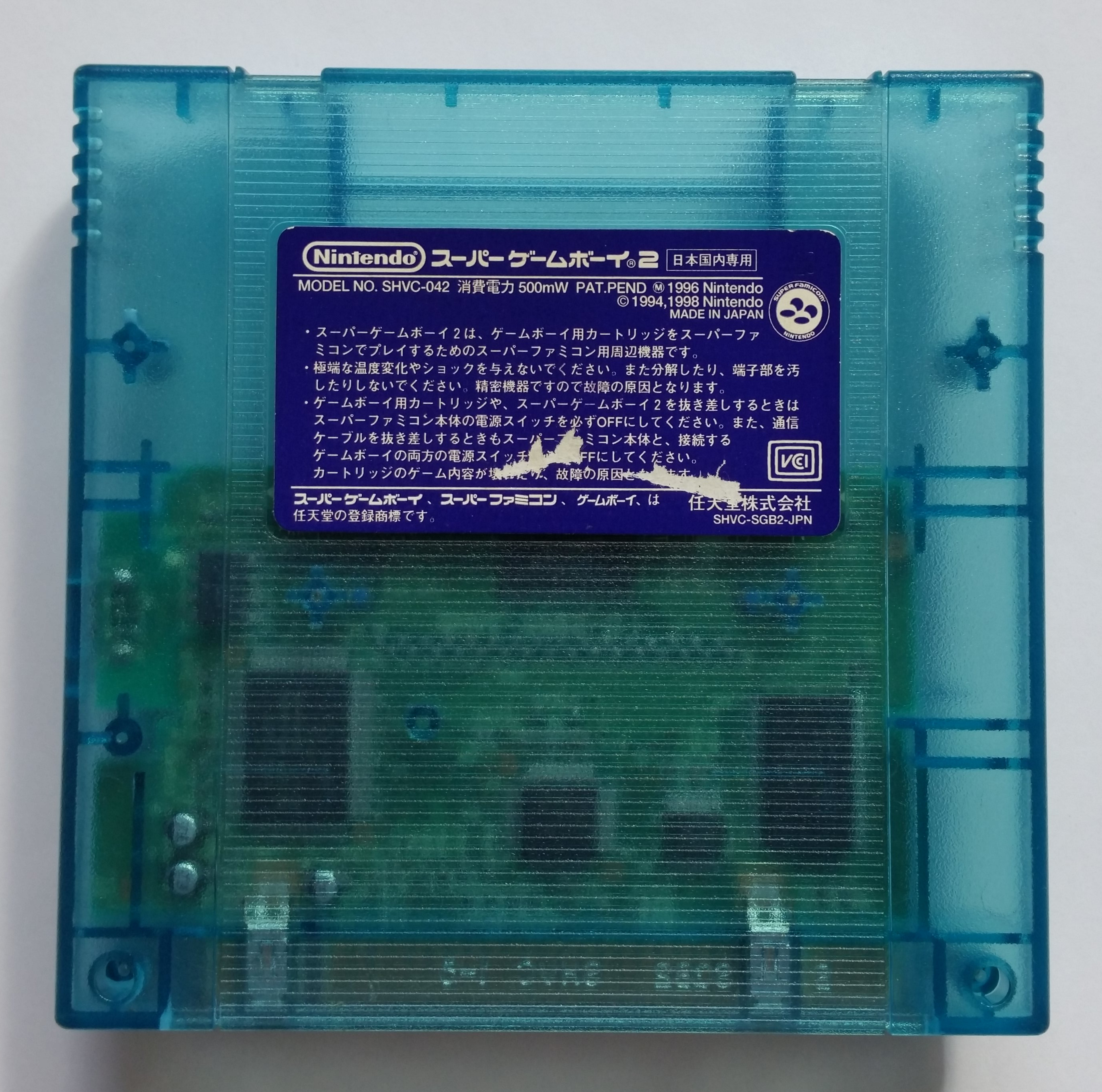

Front side of Super Game Boy 2Back side of Super Game Boy 2

Stamp on sticker
20
Color of cartridge slot
blue

Mainboard

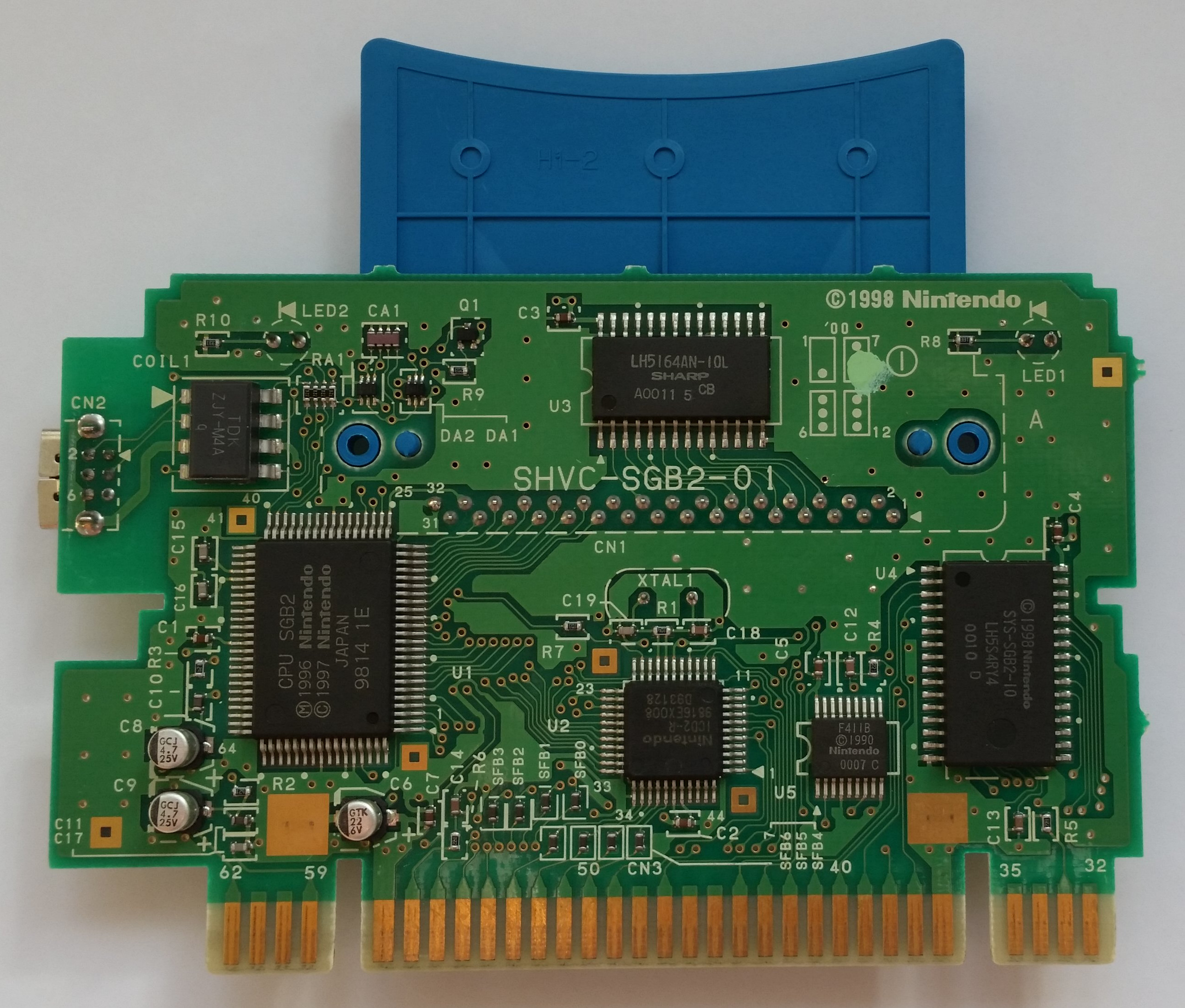

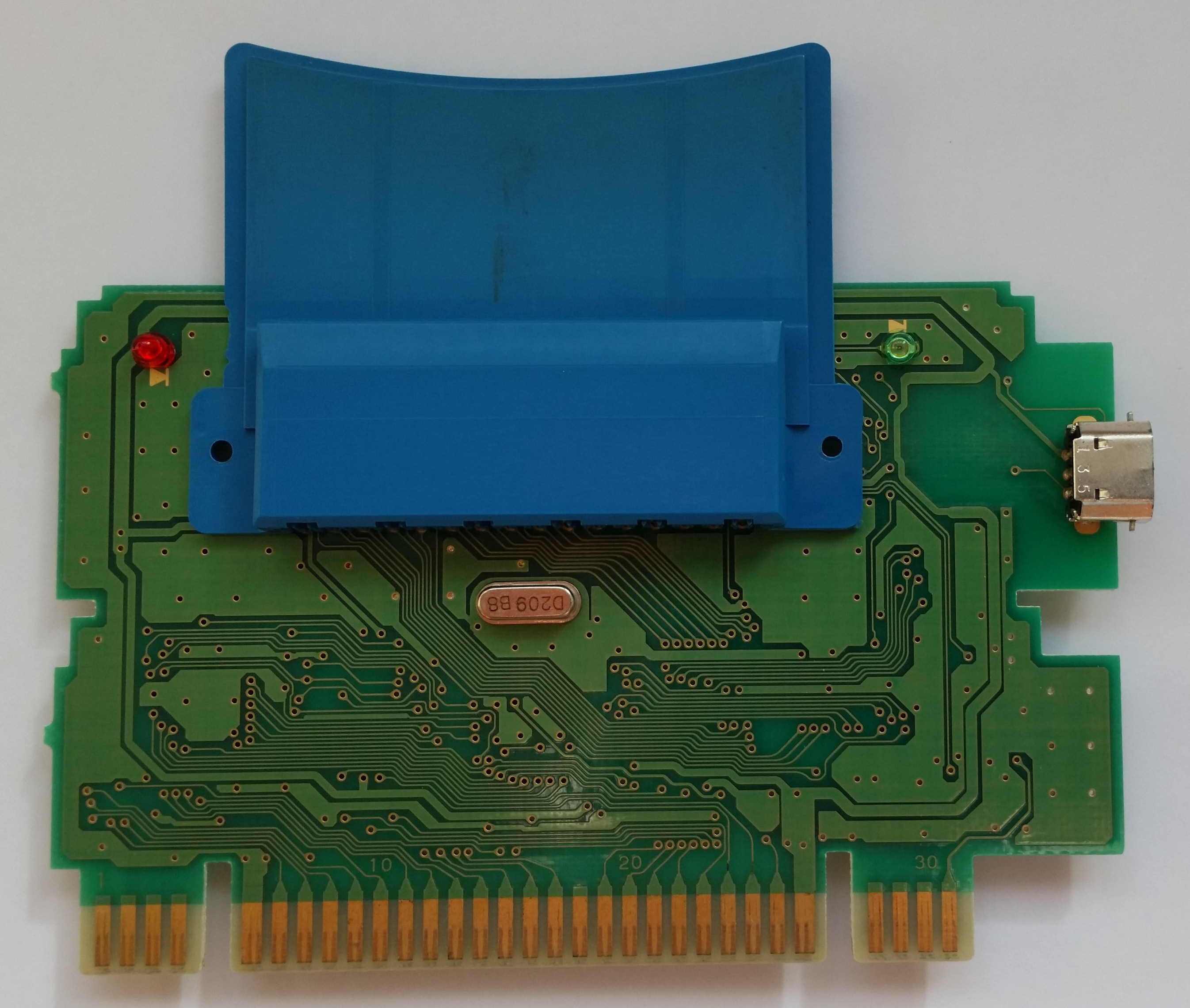

Front side of Super Game Boy 2 circuit boardBack side of Super Game Boy 2 circuit board

Board type
SHVC-SGB2-01
Manufacture date
February/2000
Circled letter(s) on board
I
Letter at top right
A

Chips

 ChipTypeManufacturerDateLabel
U1CPUCPU SGB2SharpWeek 14/1998
CPU SGB2
Ⓜ 1996 Nintendo
© 1997 Nintendo
JAPAN
9814 1E
U2Host interfaceICD2-R?Week 16/1998
Nintendo
ICD2-R
9816EX008
D93128
U3Work RAMLH5164AN-10LSharpWeek 11/2000
LH5164AN-10L
SHARP
A0011 5 CB
U4ROMSYS-SGB2-10SharpWeek 10/2000
© 1998 Nintendo
SYS-SGB2-10
LH5S4RY4
0010 D
U5CICF411BSharpWeek 7/2000
F411B
© 1990
Nintendo
0007 C
XTAL1CrystalD209DaishinkuFebruary/1998
D209B8
COIL1CoilZJY-M4ATDK?
TDK
ZJY-M4A
q

Notes

none

Misc

CPU works
yes
