Home :: Game Boy Database :: Game Boy Light (MGL)

MGL: [iceboy] #1 - L10511771

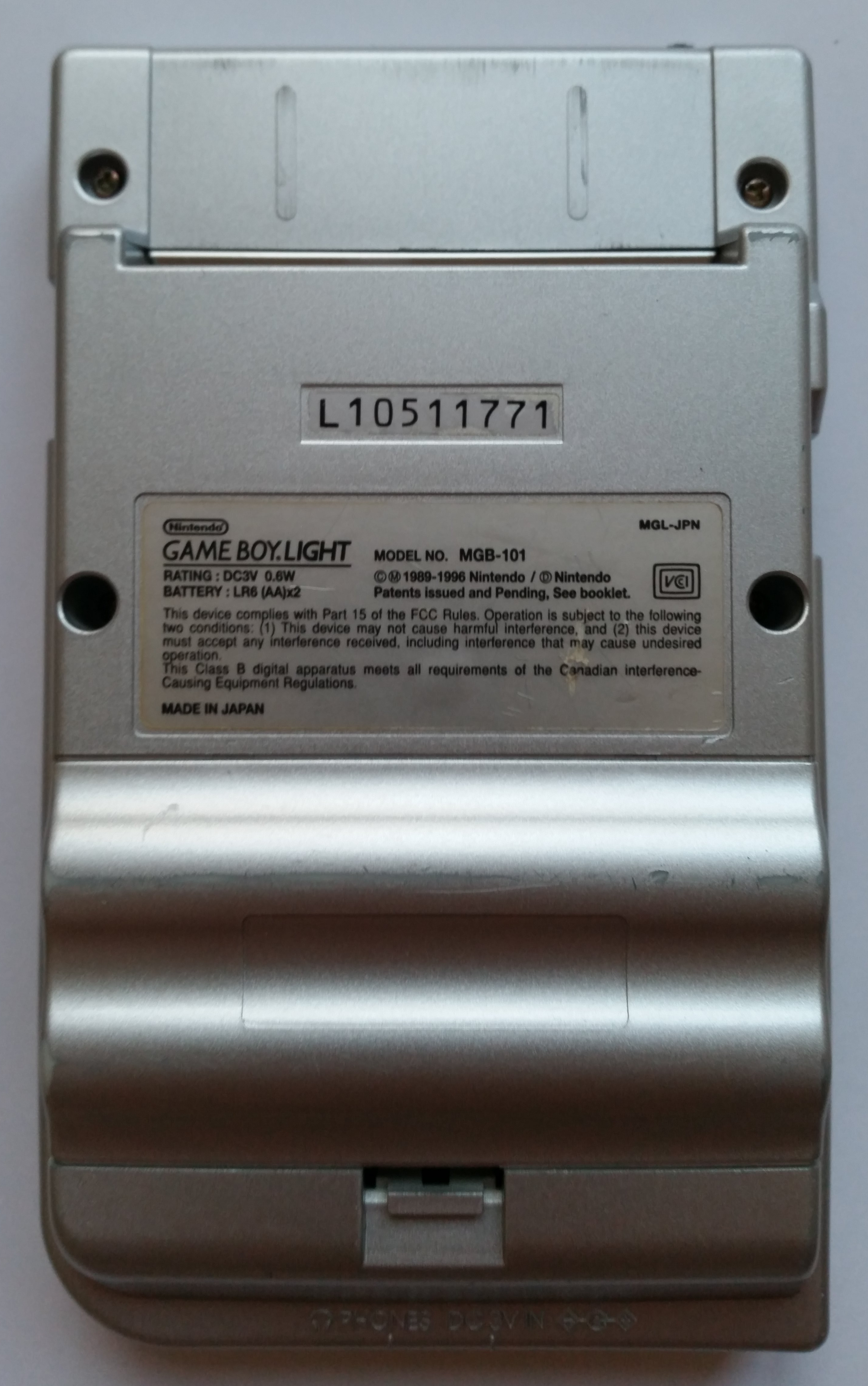

Front side of Game Boy LightBack side of Game Boy Light

Color
silver
Release code
MGL-JPN
Assembly date
Week 18/1998

Mainboard

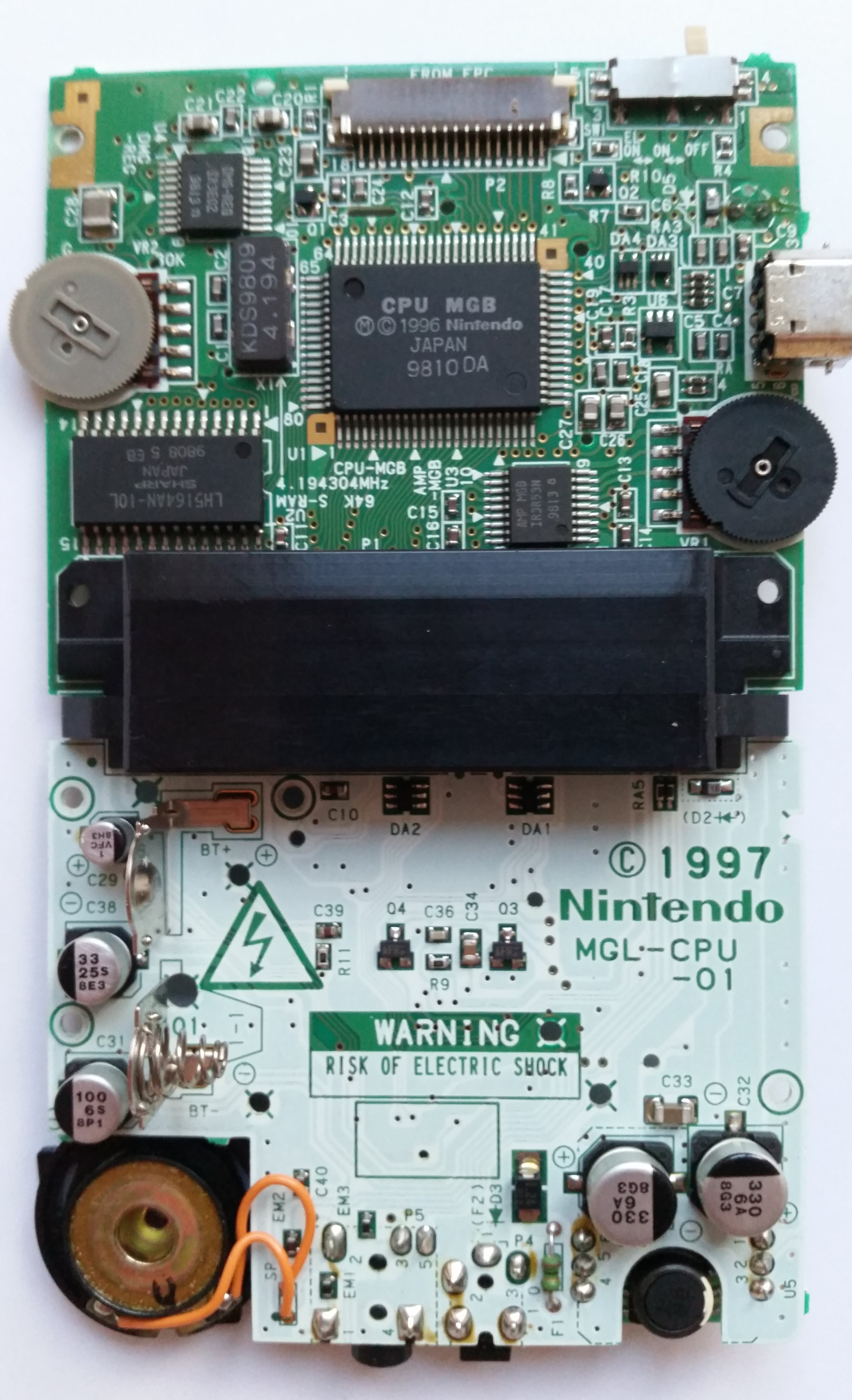

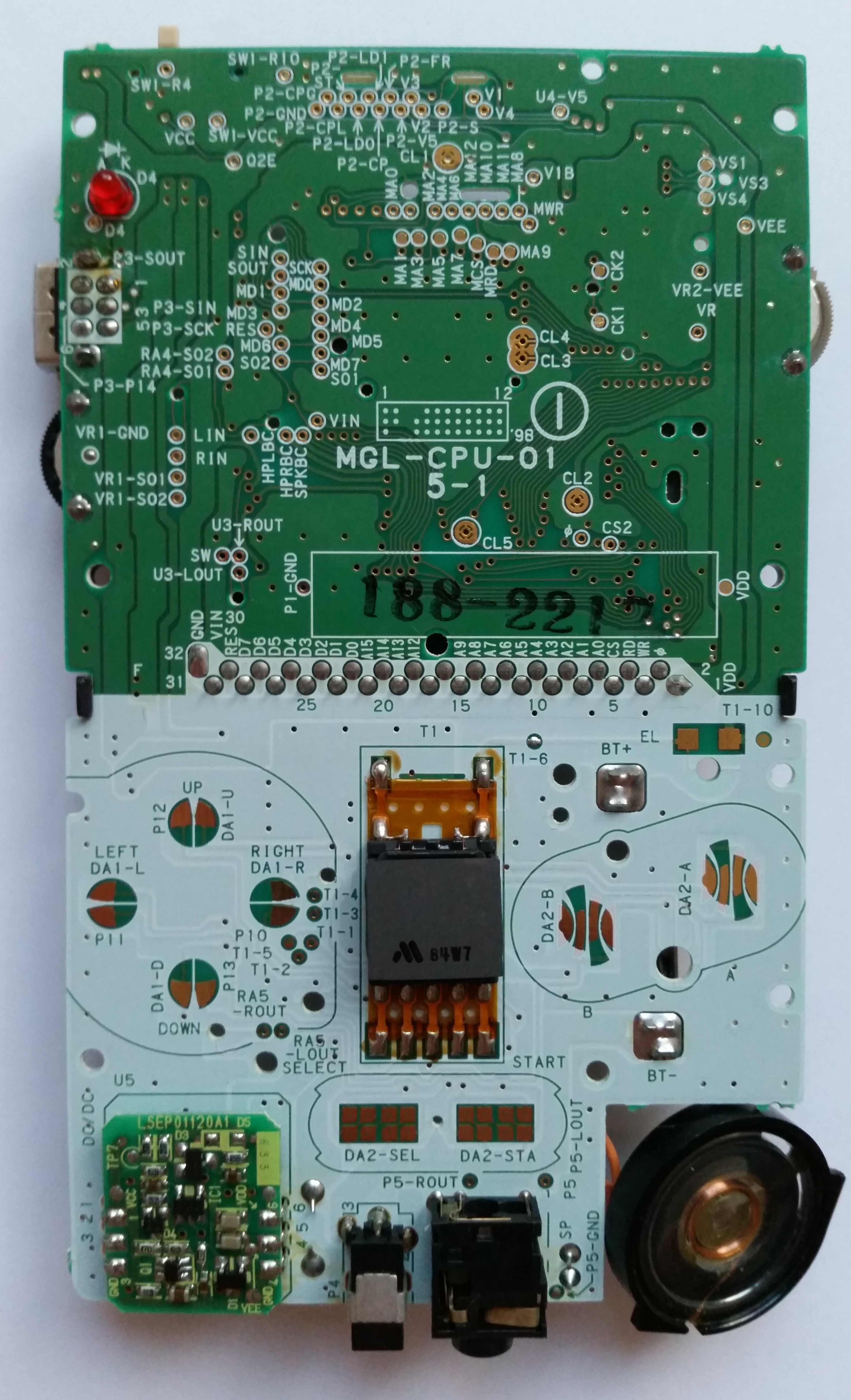

Front side of Game Boy Light circuit boardBack side of Game Boy Light circuit board

Board type
MGL-CPU-01
Manufacture date
February/1998 - April/1998
Number pair on board
5-1
Stamp on board
188-2217
Circled letter(s) on board
I
Extra stamp on front
-
Extra stamp on back
-
Label on power board
833
Stamp on speaker
Q

LCD Panel

Manufacture date
March/1998
Panel label
T8 0306
Extra label
-
Row cable label
-

Backlight

Manufacture date
March/1998
Panel label
8317

Chips

 ChipTypeManufacturerDateLabel
U1CPUCPU MGBSharpWeek 10/1998
CPU MGB
Ⓜ © 1996 Nintendo
JAPAN
9810 DA
U2Work RAMLH5164AN-10LSharpWeek 8/1998
LH5164AN-10L
SHARP
JAPAN
9808 5 EB
U3AmplifierIR3R53NSharpWeek 13/1998
AMP MGB
IR3R53N
9813 a
U4LCD RegulatorIR3E02SharpWeek 13/1998
DMG-REG
IR3E02
9813 n
X1CrystalKDS 4.194DaishinkuWeek 9/1998
KDS9809
4.194
T1Transformer?Mitsumi?
84W7
-LCD Column DriverLH5077 B1SharpWeek 7/1998
LH5077 B1
8071
-LCD Row DriverLH5076 ESharpWeek 7/1998
LH5076 E
8070

Notes

- Battery contacts had no contact because of acid damage:
    -> Scrubbed off blue stuff

Misc

CPU works
yes
