MGB: [iceboy] #5 - M12423022

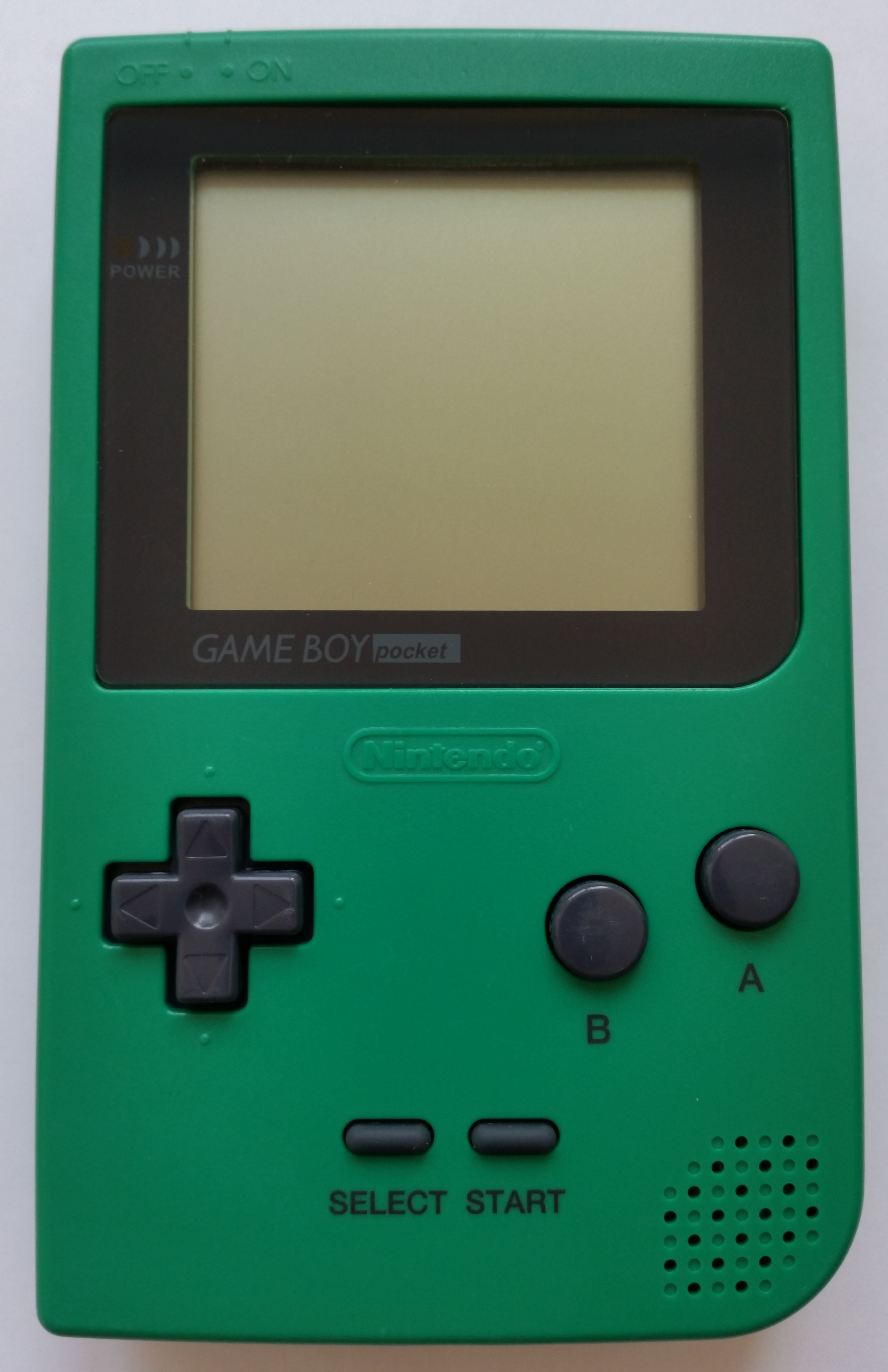

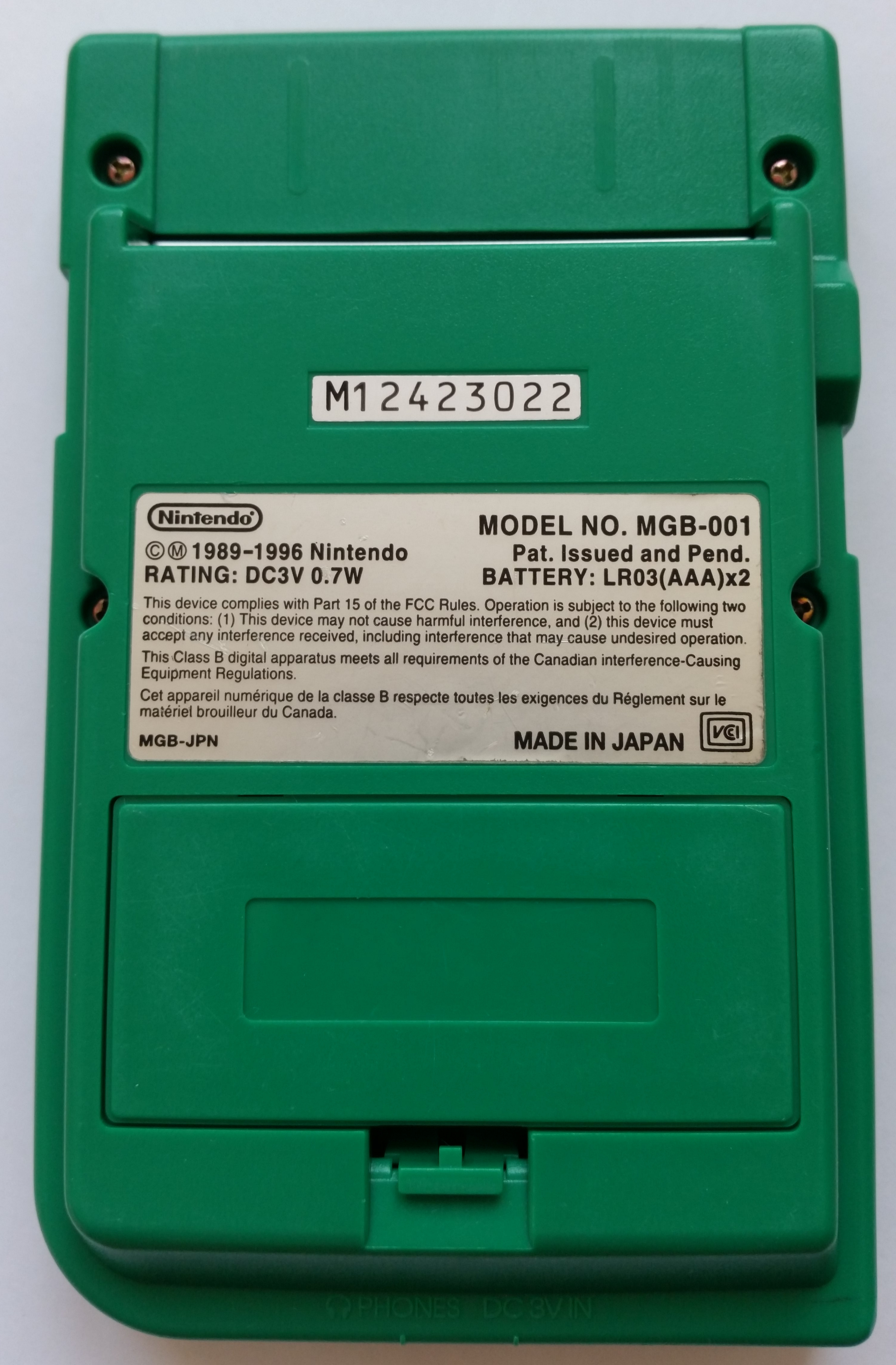

Front side of Game Boy PocketBack side of Game Boy Pocket

Color
green
Release code
MGB-JPN
Assembly date
October/1997
Has LED
yes

Mainboard

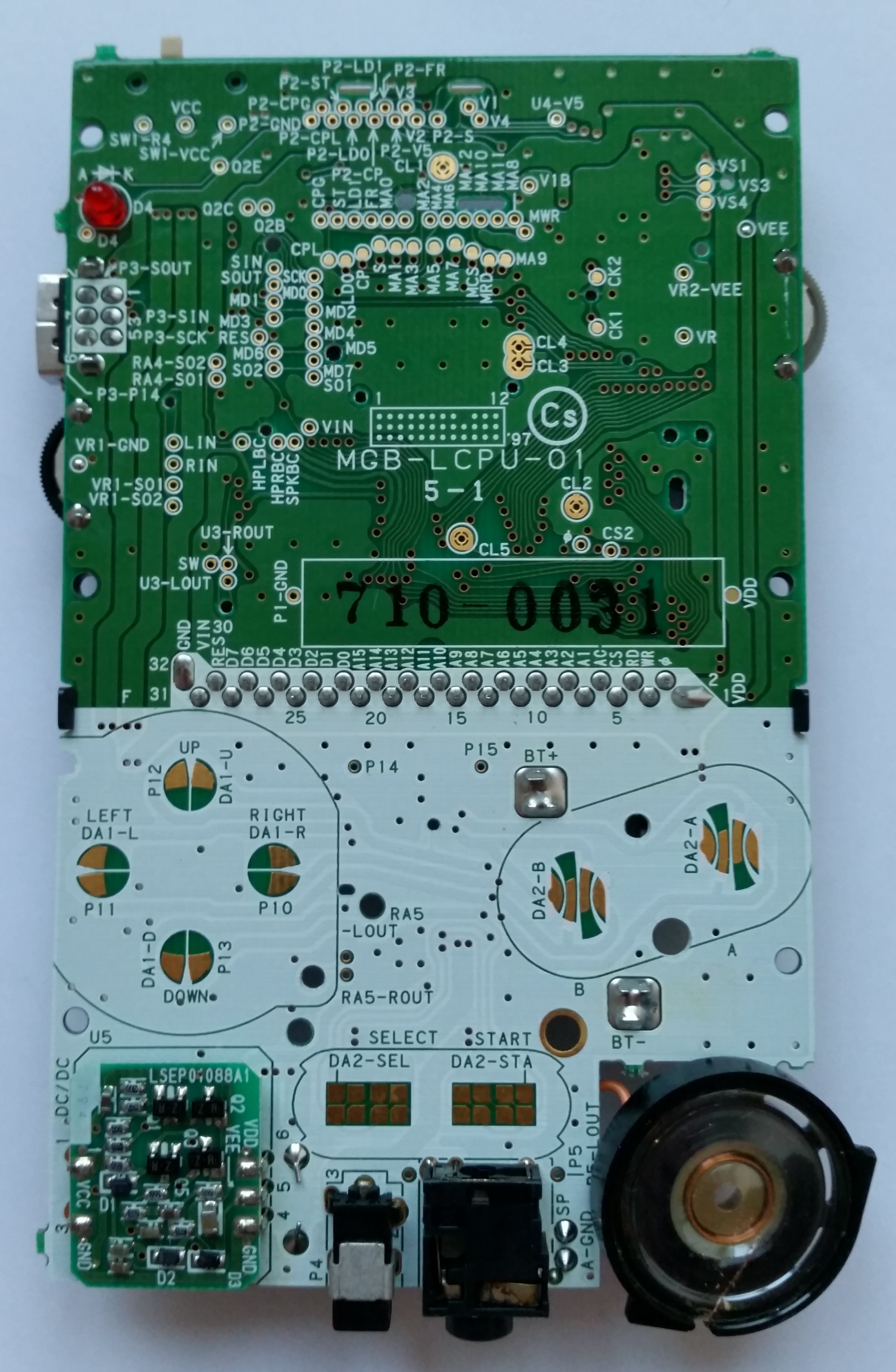

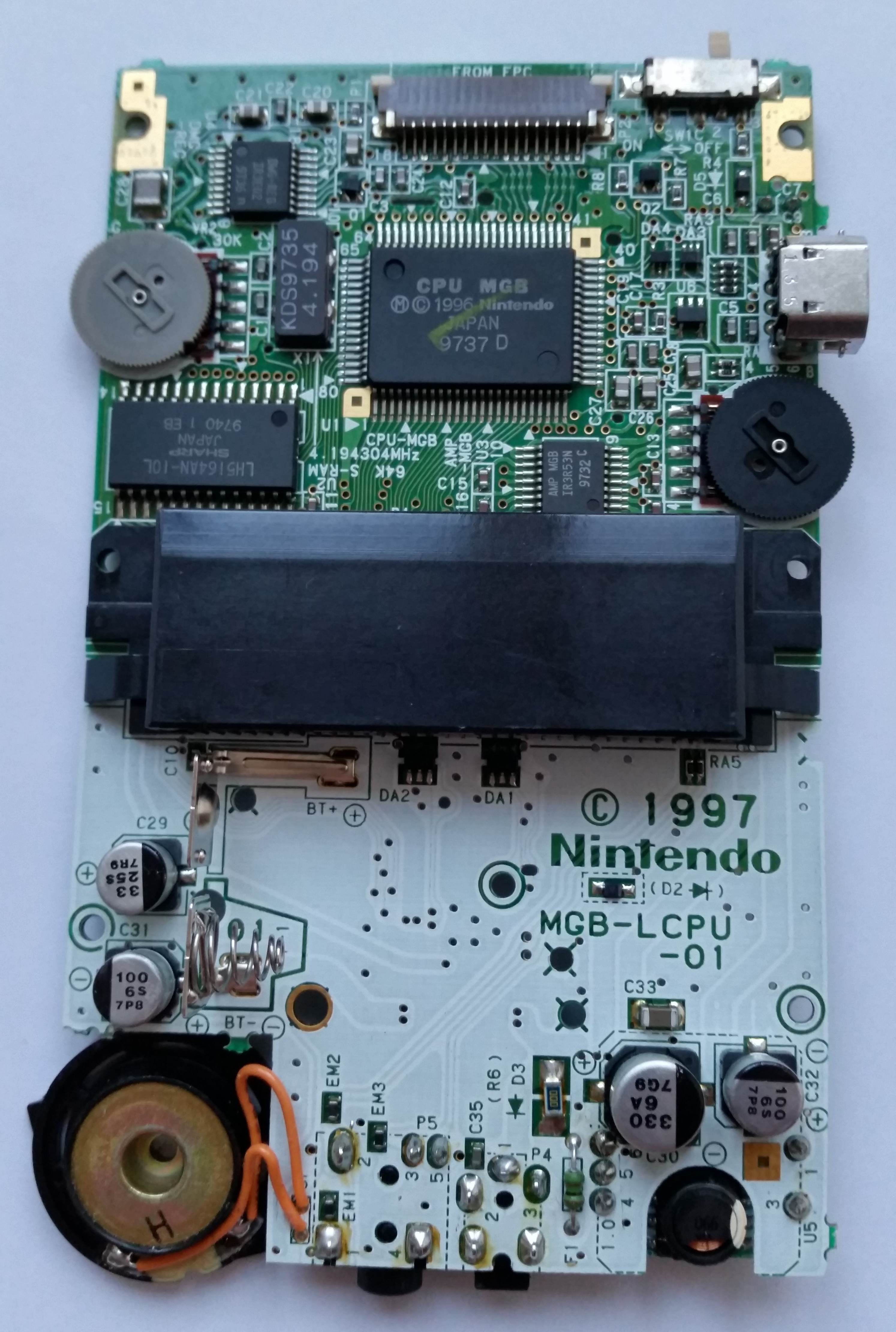

Front side of Game Boy Pocket circuit boardBack side of Game Boy Pocket circuit board

Board type
MGB-LCPU-01
Color of bottom half
white
Manufacture date
September/1997
Number pair on board
5-1
Stamp on board
710-0031
Circled letter(s) on board
Cs
Extra stamp on front
-
Extra stamp on back
-
Label on power board
794
Stamp on speaker
H

LCD Panel

Manufacture date
November/1997
Panel label
A71113A
A71115
Extra label
12
M
Row cable label
-

Chips

 ChipTypeManufacturerDateLabel
U1CPUCPU MGBSharpWeek 37/1997
CPU MGB
Ⓜ © 1996 Nintendo
JAPAN
9737 D
U2Work RAMLH5164AN-10LSharpWeek 40/1997
LH5164AN-10L
SHARP
JAPAN
9740 1 EB
U3AmplifierIR3R53NSharpWeek 32/1997
AMP MGB
IR3R53N
9732 C
U4LCD RegulatorIR3E02SharpWeek 36/1997
DMG-REG
IR3E02
9736 n
X1CrystalKDS 4.194DaishinkuWeek 35/1997
KDS9735
4.194
-LCD Column DriverLH5077 B1SharpWeek 41/1997
LH5077 B1
7411
-LCD Row DriverLH5076 ESharpWeek 40/1997
LH5076 E
7400

Notes

none

Misc

CPU works
yes
