MGB: [iceboy] #4 - MH16775748

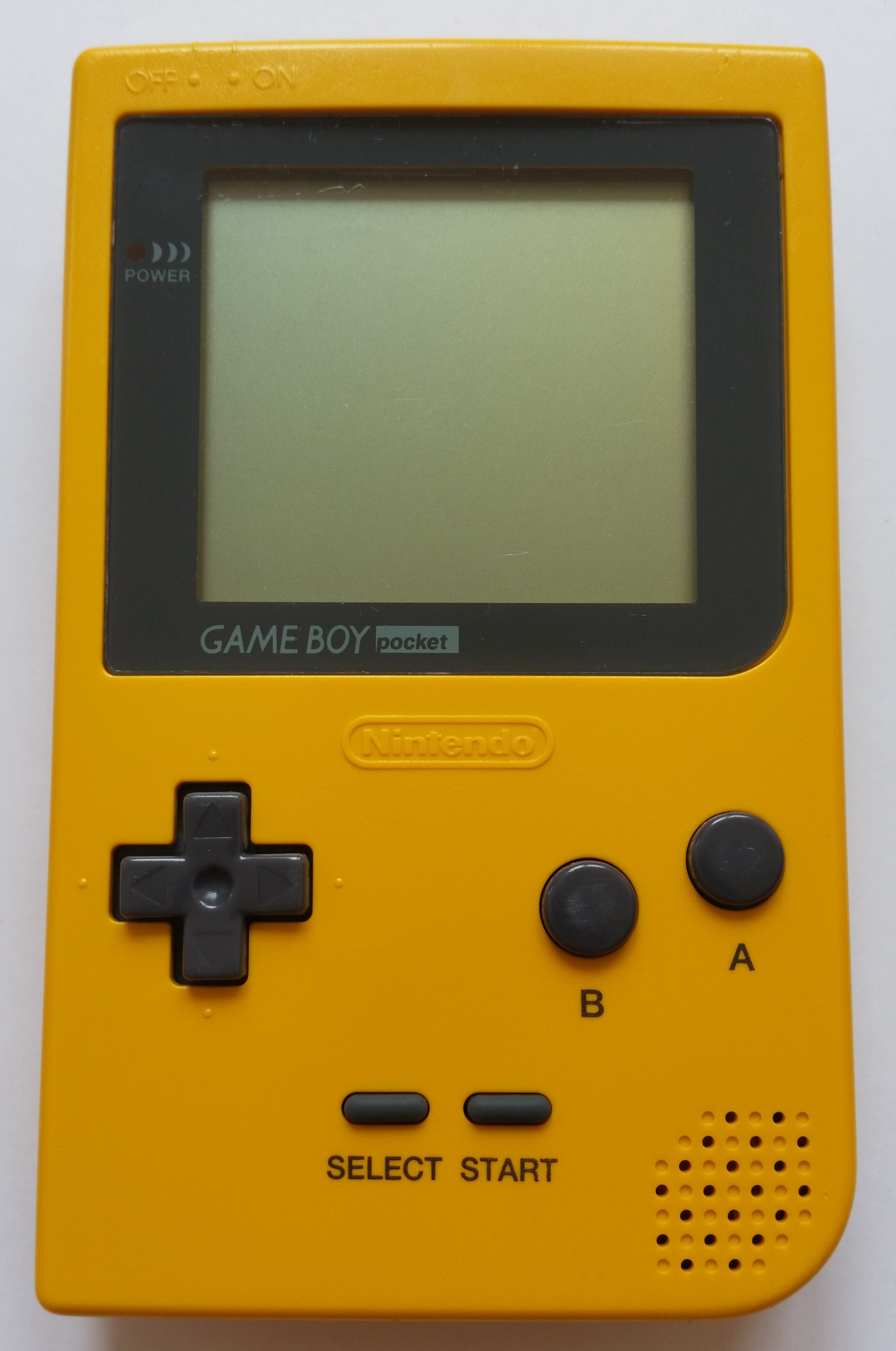

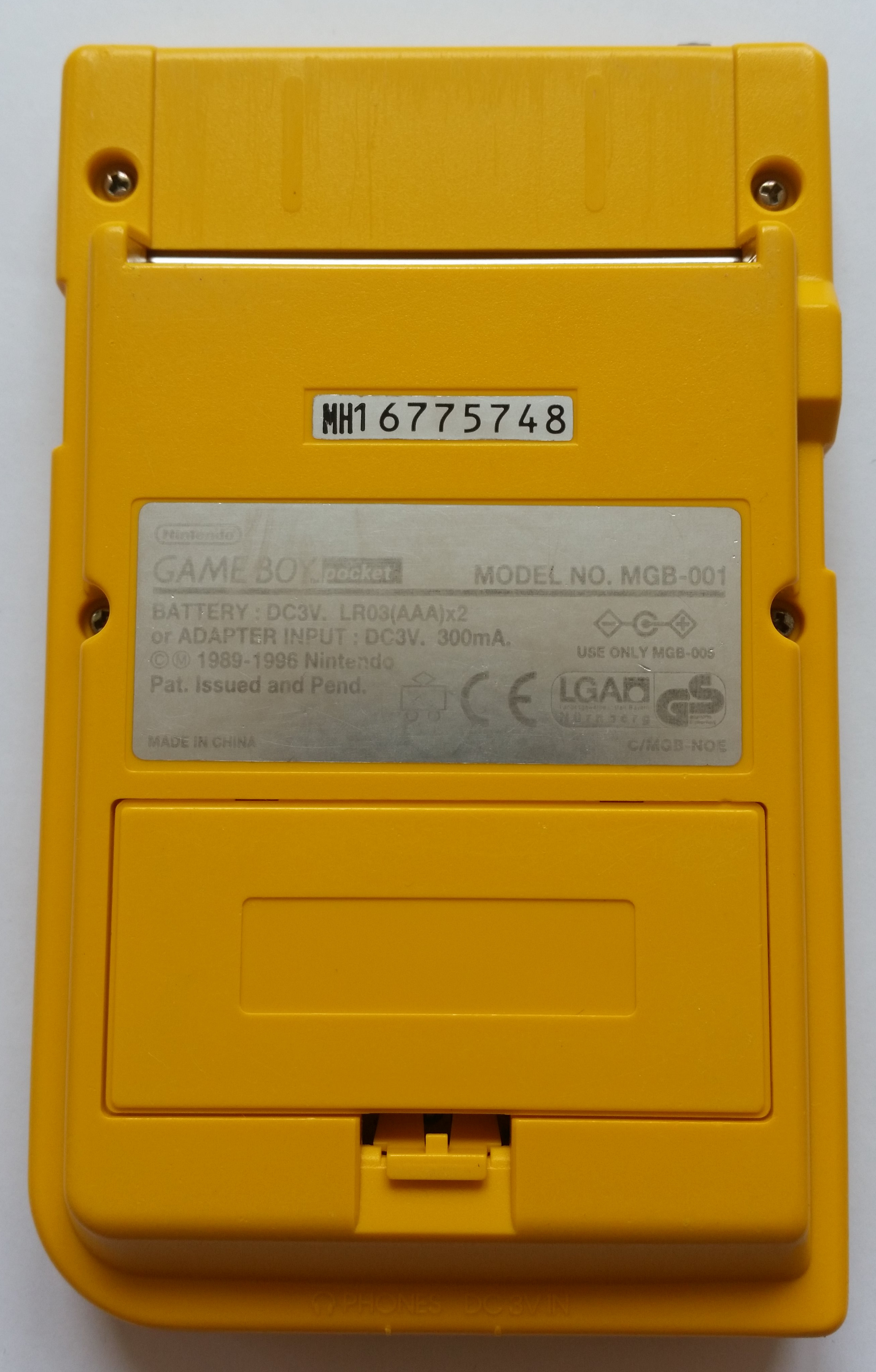

Front side of Game Boy PocketBack side of Game Boy Pocket

Color
yellow
Release code
C/MGB-NOE
Assembly date
April/1998
Has LED
yes

Mainboard

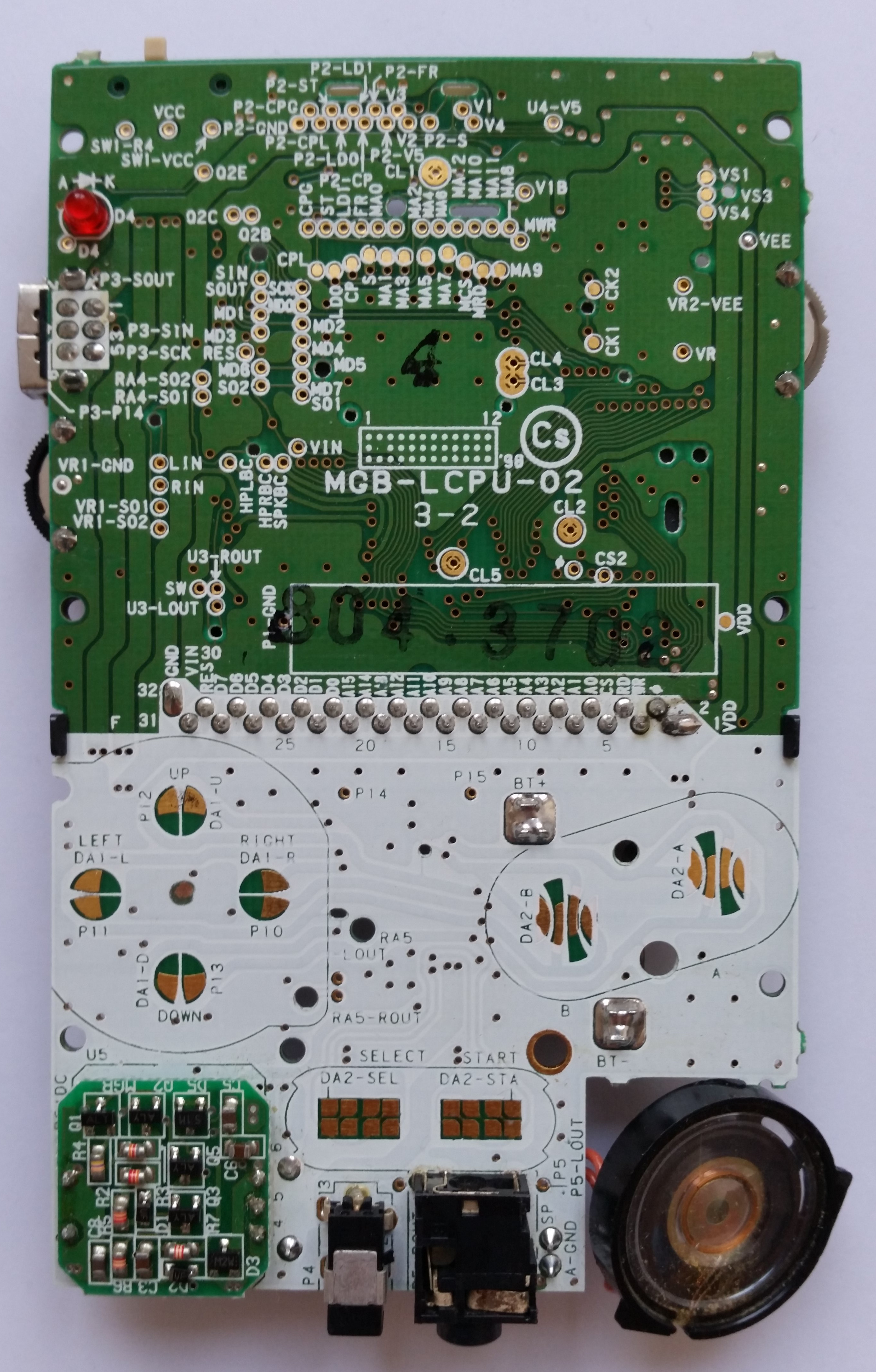

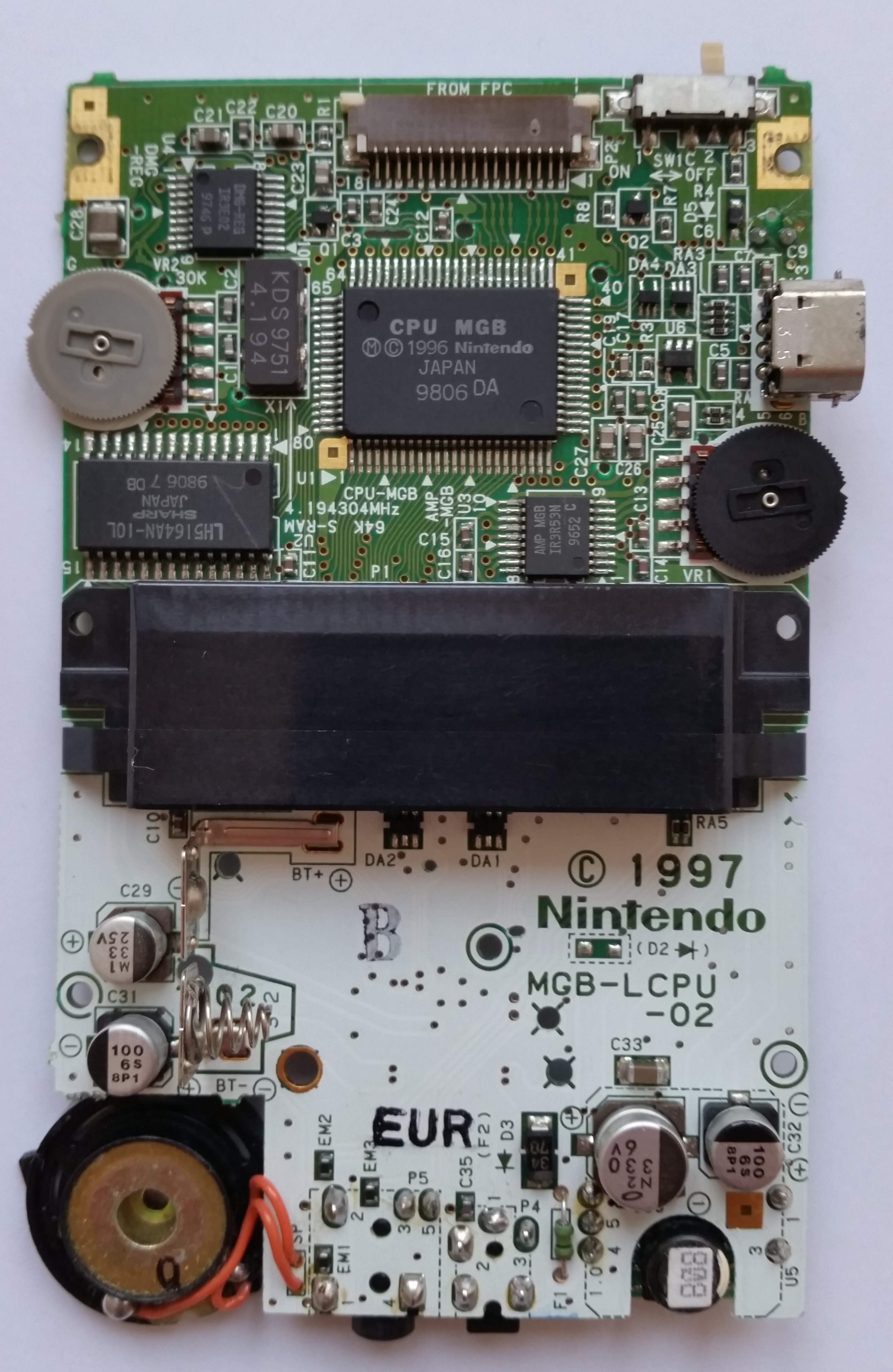

Front side of Game Boy Pocket circuit boardBack side of Game Boy Pocket circuit board

Board type
MGB-LCPU-02
Color of bottom half
white
Manufacture date
February/1998
Number pair on board
3-2
Stamp on board
804.3702
Circled letter(s) on board
Cs
Extra stamp on front
4
Extra stamp on back
B EUR
Label on power board
808
Stamp on speaker
Q

LCD Panel

Manufacture date
March/1998
Panel label
080305
080306
Extra label
A
2
Row cable label
-

Chips

 ChipTypeManufacturerDateLabel
U1CPUCPU MGBSharpWeek 6/1998
CPU MGB
Ⓜ © 1996 Nintendo
JAPAN
9806 DA
U2Work RAMLH5164AN-10LSharpWeek 6/1998
LH5164AN-10L
SHARP
JAPAN
9806 7 DB
U3AmplifierIR3R53NSharpWeek 52/1996
AMP MGB
IR3R53N
9652 C
U4LCD RegulatorIR3E02SharpWeek 46/1997
DMG-REG
IR3E02
9746 p
X1CrystalKDS 4.194DaishinkuWeek 51/1997
KDS 9751
4.194
-LCD Column DriverLH5077 B1SharpWeek 3/1998
LH5077 B1
8031
-LCD Row DriverLH5076 ESharpWeek 3/1998
LH5076 E
8030

Notes

- Display has black leakage at the borders, but it is small
  and not visible in assembled state

Misc

CPU works
yes
