MGB: [iceboy] #3 - MH10004891

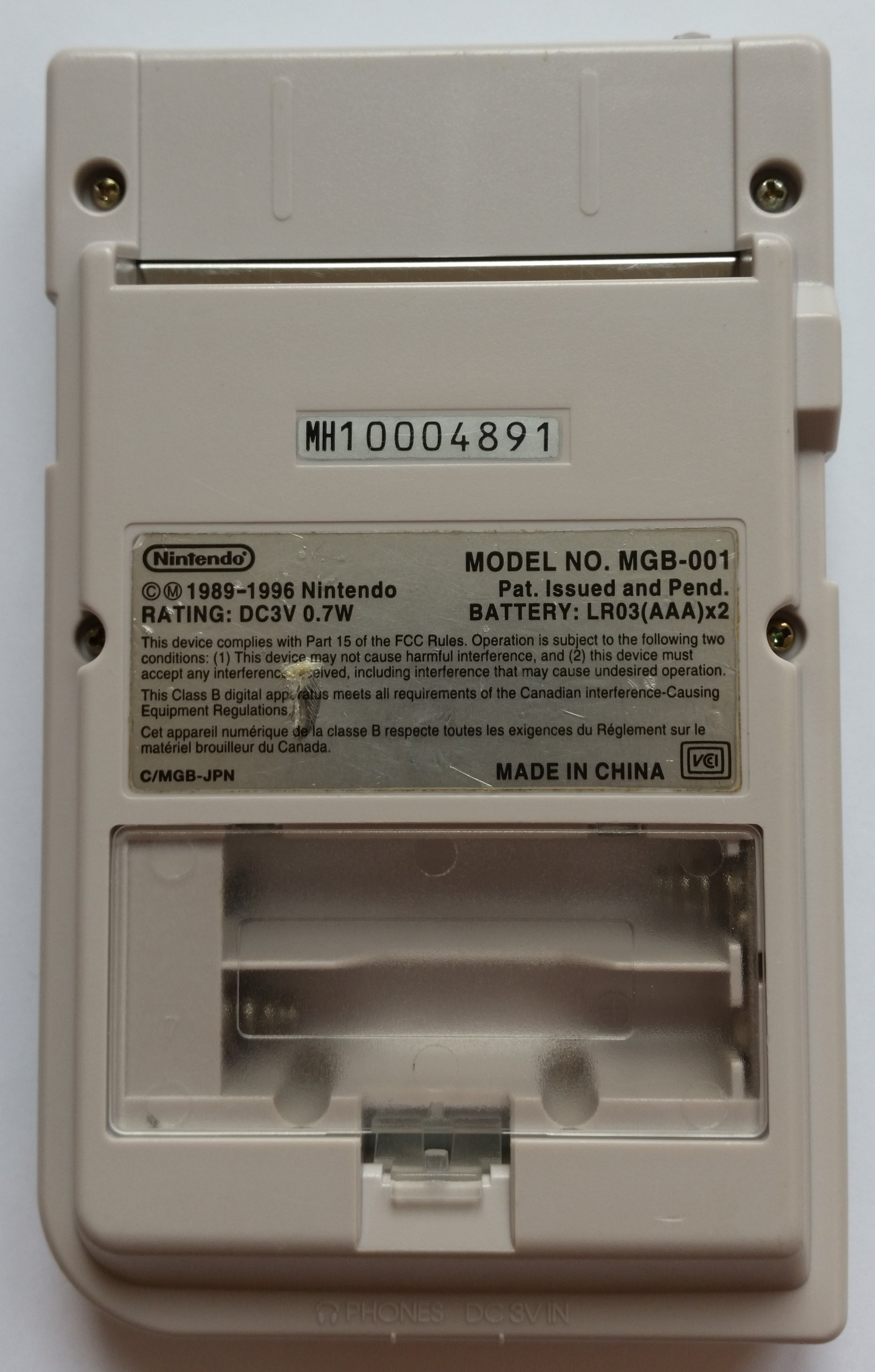

Front side of Game Boy PocketBack side of Game Boy Pocket

Color
off-white
Release code
C/MGB-JPN
Assembly date
June/1996
Has LED
no

Mainboard

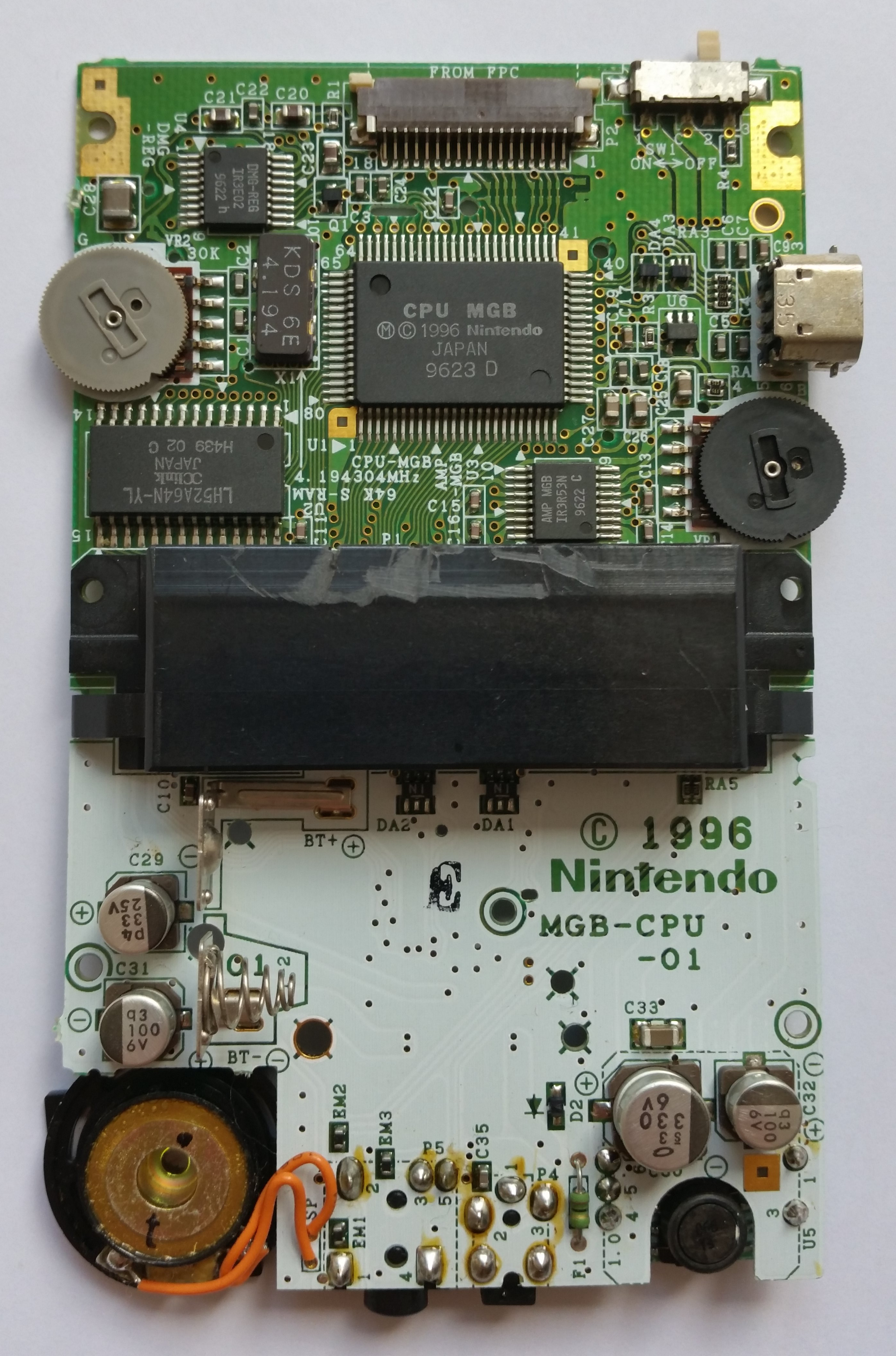

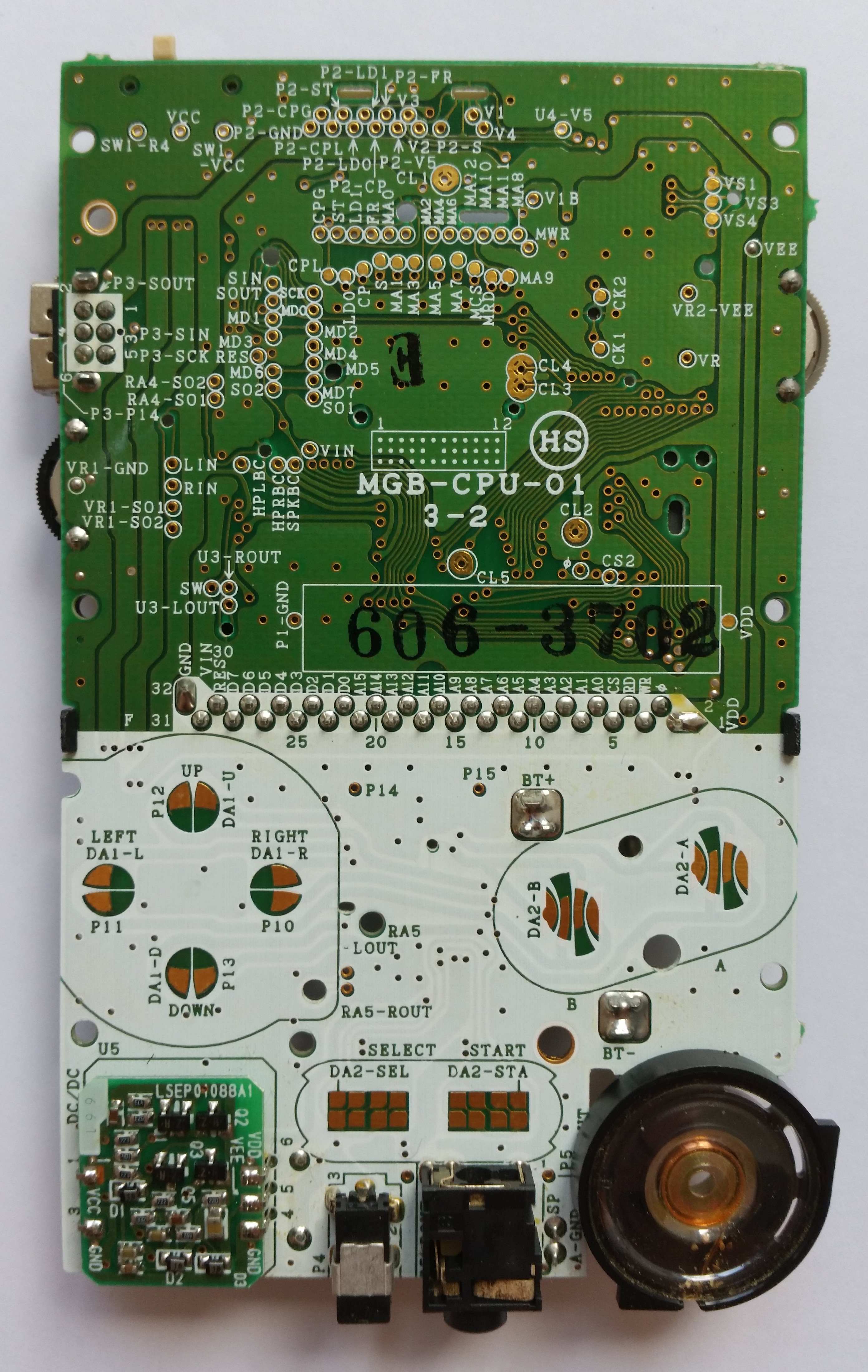

Front side of Game Boy Pocket circuit boardBack side of Game Boy Pocket circuit board

Board type
MGB-CPU-01
Color of bottom half
white
Manufacture date
June/1996
Number pair on board
3-2
Stamp on board
606-3702
Circled letter(s) on board
HS
Extra stamp on front
E
Extra stamp on back
E
Label on power board
661
Stamp on speaker
t

LCD Panel

Manufacture date
May/1996
Panel label
AH 960522
T60528
Extra label
-
Row cable label
T60524

Chips

 ChipTypeManufacturerDateLabel
U1CPUCPU MGBSharpWeek 23/1996
CPU MGB
Ⓜ © 1996 Nintendo
JAPAN
9623 D
U2Work RAMLH52A64N-YLCrosslink SemiconductorWeek 39/1994
LH52A64N-YL
Xlink
JAPAN
H439 02 C
U3AmplifierIR3R53NSharpWeek 22/1996
AMP MGB
IR3R53N
9622 C
U4LCD RegulatorIR3E02SharpWeek 22/1996
DMG-REG
IR3E02
9622 h
X1CrystalKDS 4.194DaishinkuMay/1996
KDS 6E
4.194
-LCD Column DriverLH5077 B1Sharp?
LH5077 B1
-LCD Row DriverLH5076 ESharpWeek 20/1996
LH5076 E
6200

Notes

- Display cover was missing
    -> Cleaned old glue
    -> Attached replica part
- Someone forcefully rammed something like a screwdriver into the cartridge
  connector multiple times and destroyed it.
- Battery cover was missing:
    -> Attached replica part

Misc

CPU works
yes
