MGB: [iceboy] #2 - MH12515141

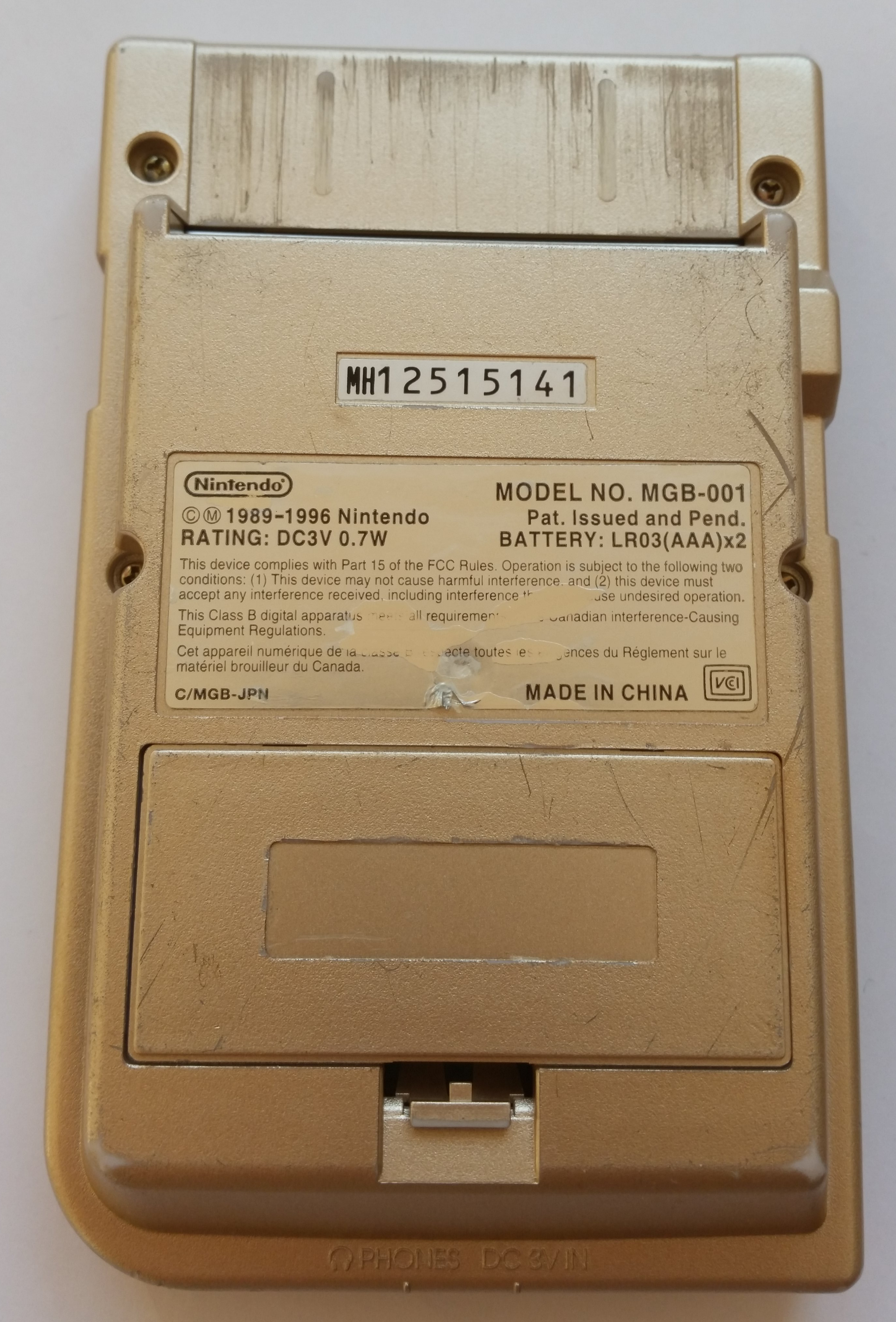

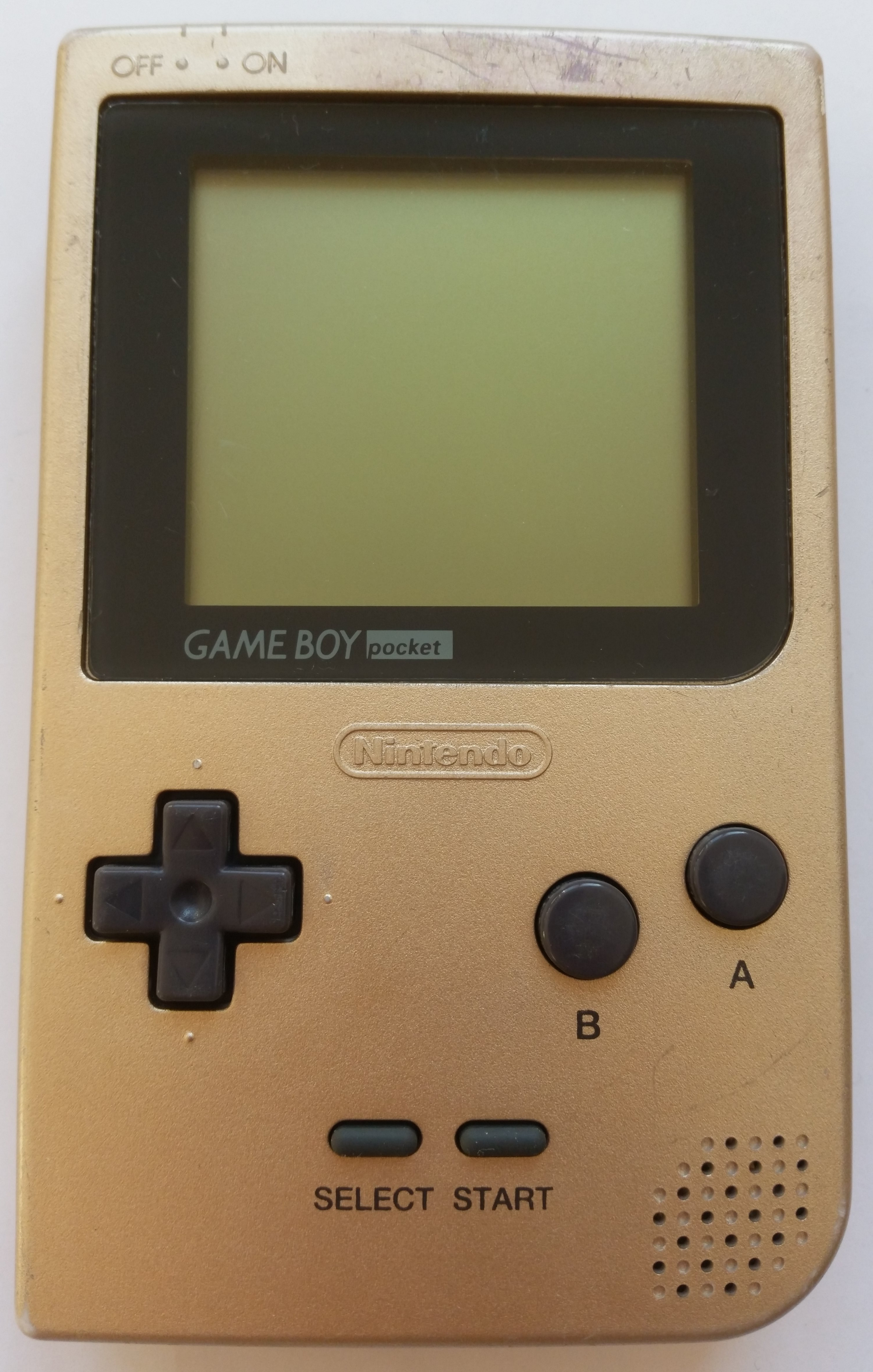

Front side of Game Boy PocketBack side of Game Boy Pocket

Color
gold
Release code
C/MGB-JPN
Assembly date
April/1997
Has LED
no

Mainboard

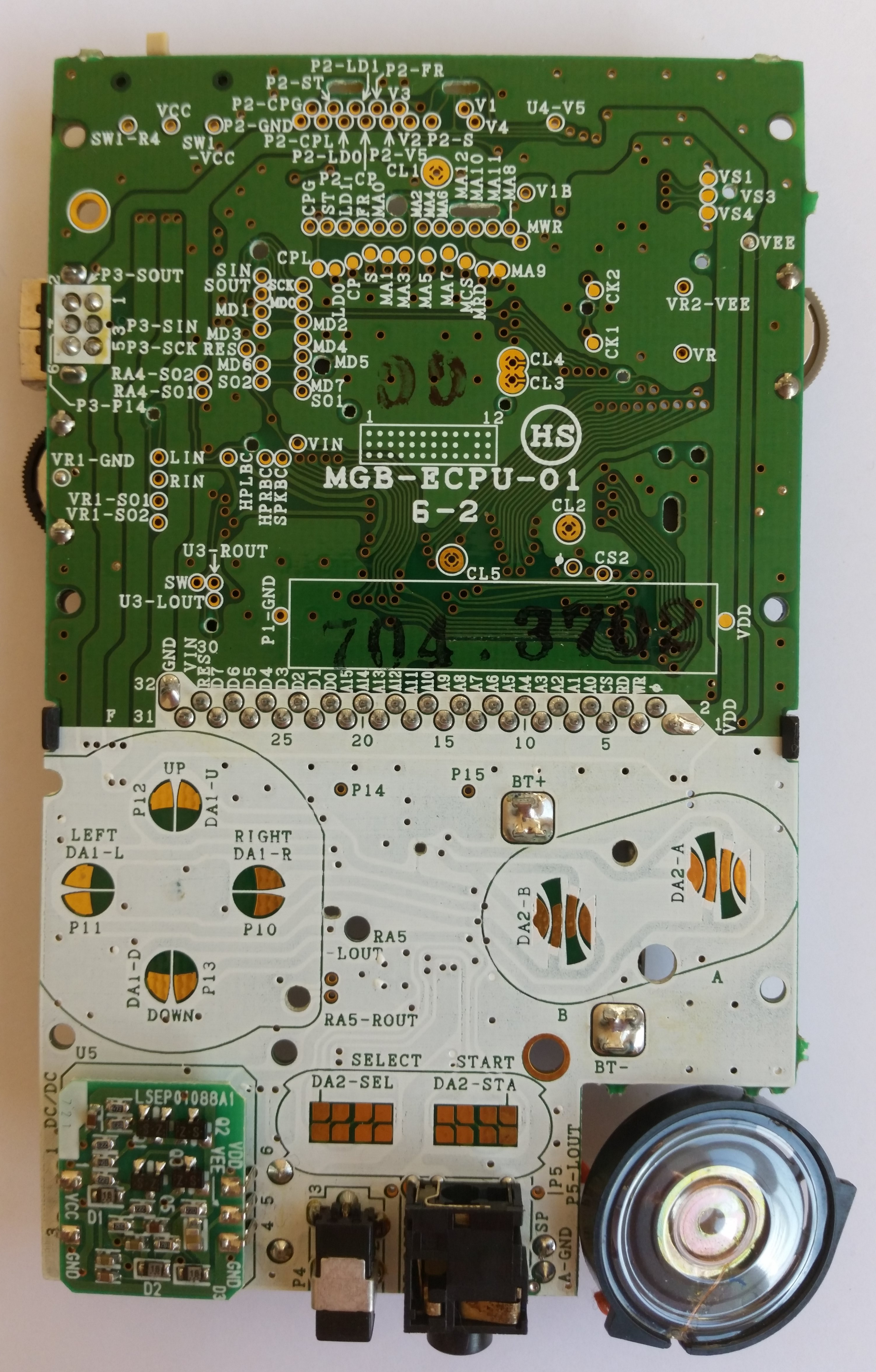

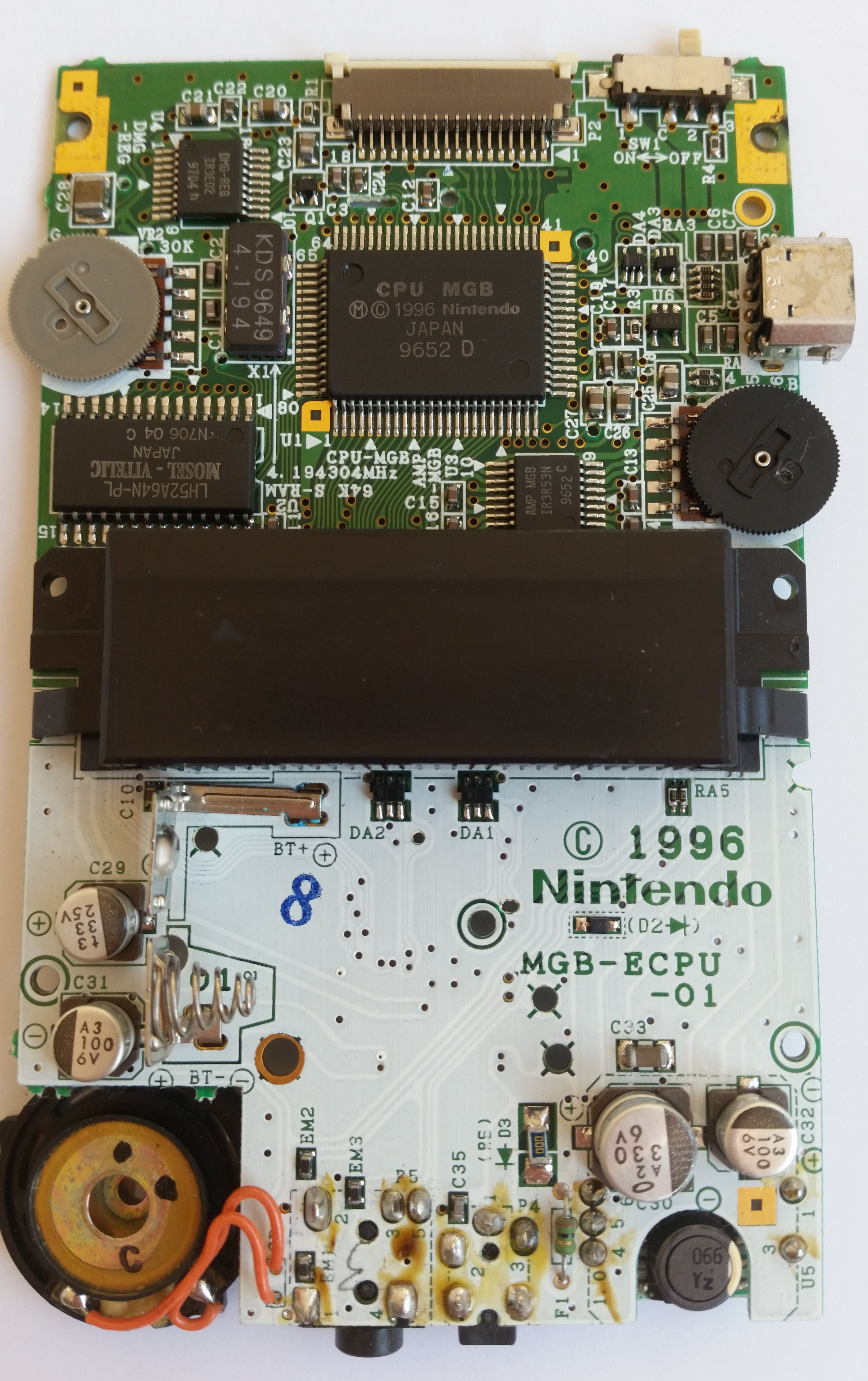

Front side of Game Boy Pocket circuit boardBack side of Game Boy Pocket circuit board

Board type
MGB-ECPU-01
Color of bottom half
white
Manufacture date
September/1996
Number pair on board
6-2
Stamp on board
704.3702
Circled letter(s) on board
HS
Extra stamp on front
GG
Extra stamp on back
8
Label on power board
721
Stamp on speaker
C

LCD Panel

Manufacture date
March/1997
Panel label
D70315
D70317
Extra label
8
Row cable label
-

Chips

 ChipTypeManufacturerDateLabel
U1CPUCPU MGBSharpWeek 52/1996
CPU MGB
Ⓜ © 1996 Nintendo
JAPAN
9652 D
U2Work RAMLH52A64N-PLMosel-VitelicWeek 6/1997
LH52A64N-PL
MOSEL-VITELIC
JAPAN
N706 04 C
U3AmplifierIR3R53NSharpWeek 52/1996
AMP MGB
IR3R53N
9652 C
U4LCD RegulatorIR3E02SharpWeek 4/1997
DMG-REG
IR3E02
9704 h
X1CrystalKDS 4.194DaishinkuWeek 49/1996
KDS 9649
4.194
-LCD Column DriverLH5077 B1SharpWeek 46/1996
LH5077 B1
6461
-LCD Row DriverLH5076 ESharpWeek 46/1996
LH5076 E
6460

Notes

- LCD has two adjacent rows near the middle that are missing:
    -> Not tried to fix yet
- Polarization filter got a little burn and a bubble after I obtained the device, even though it never was exposed to sunlight.
    -> Replaced filter

Misc

CPU works
yes
