MGB: [iceboy] #10 - MH15105757

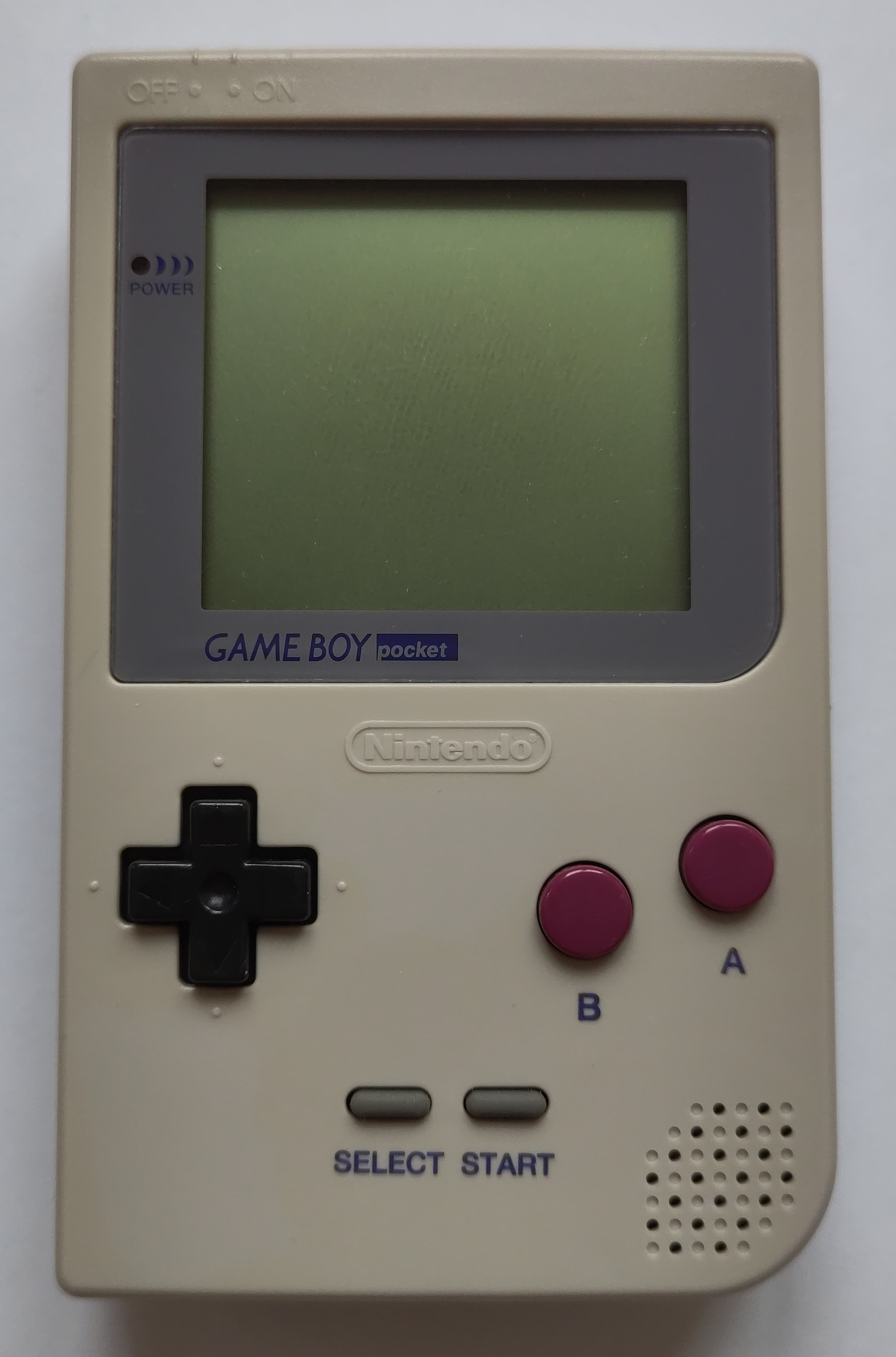

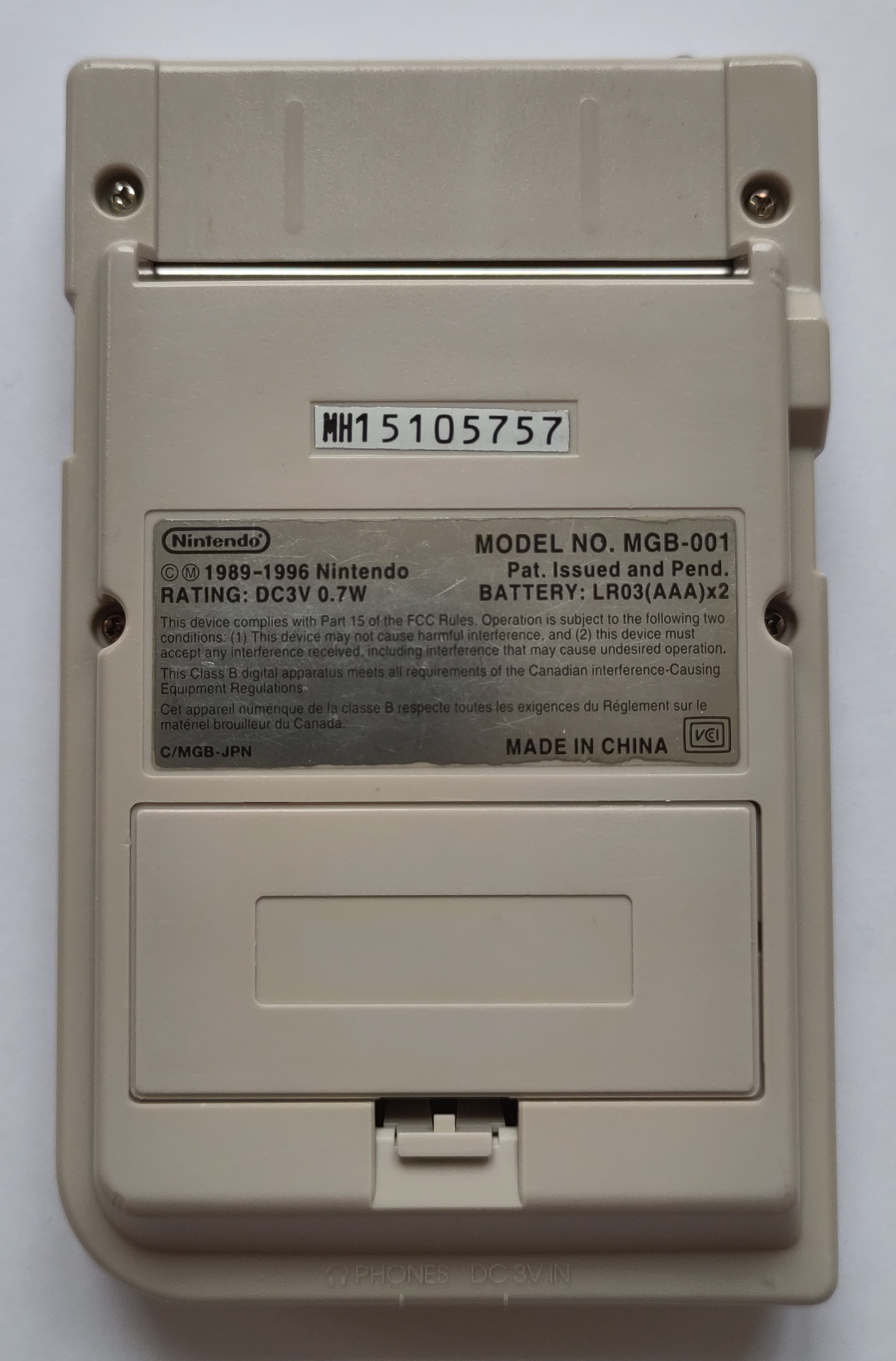

Front side of Game Boy PocketBack side of Game Boy Pocket

Color
off-white
Release code
C/MGB-JPN
Assembly date
December/1997
Has LED
yes

Mainboard

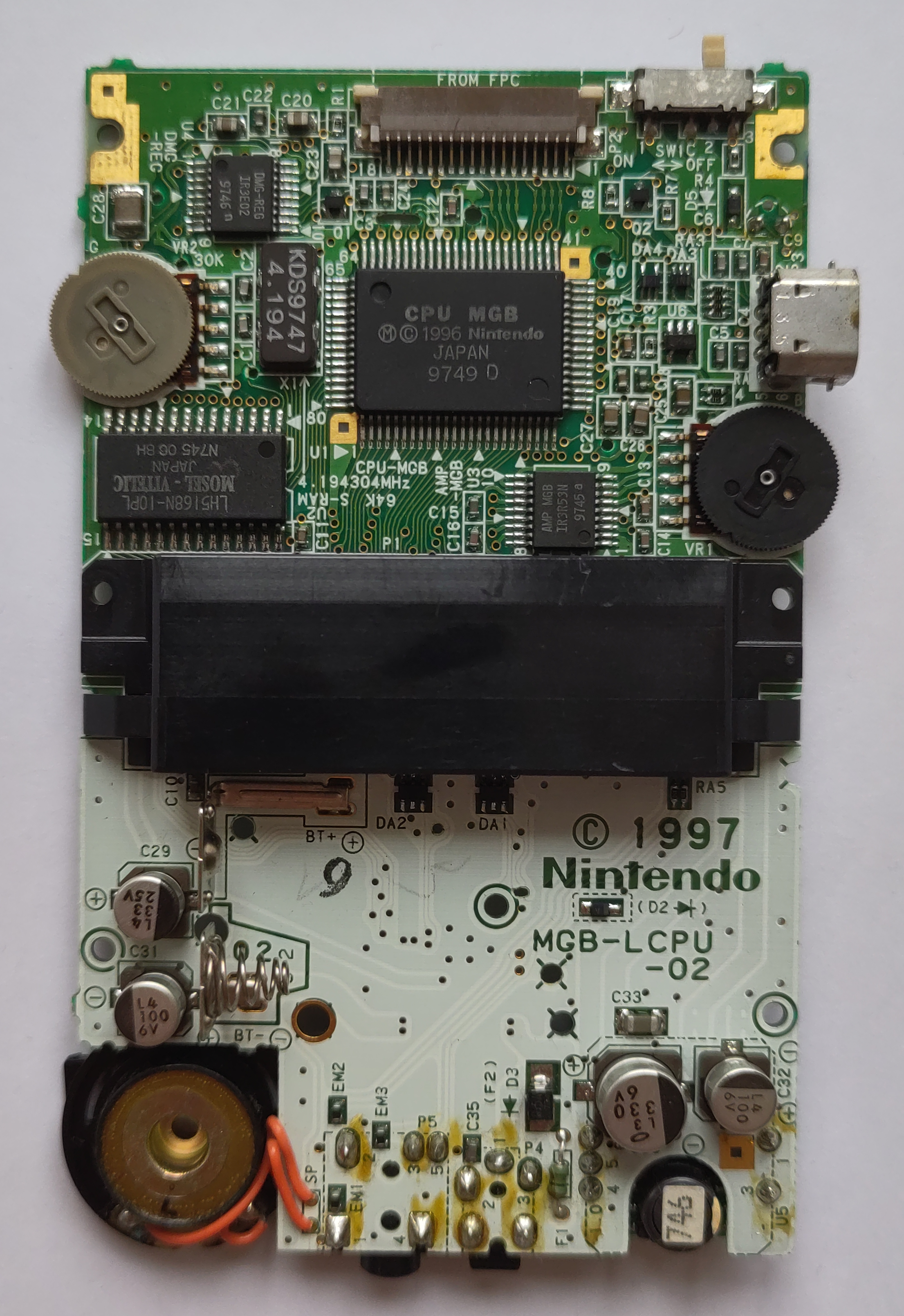

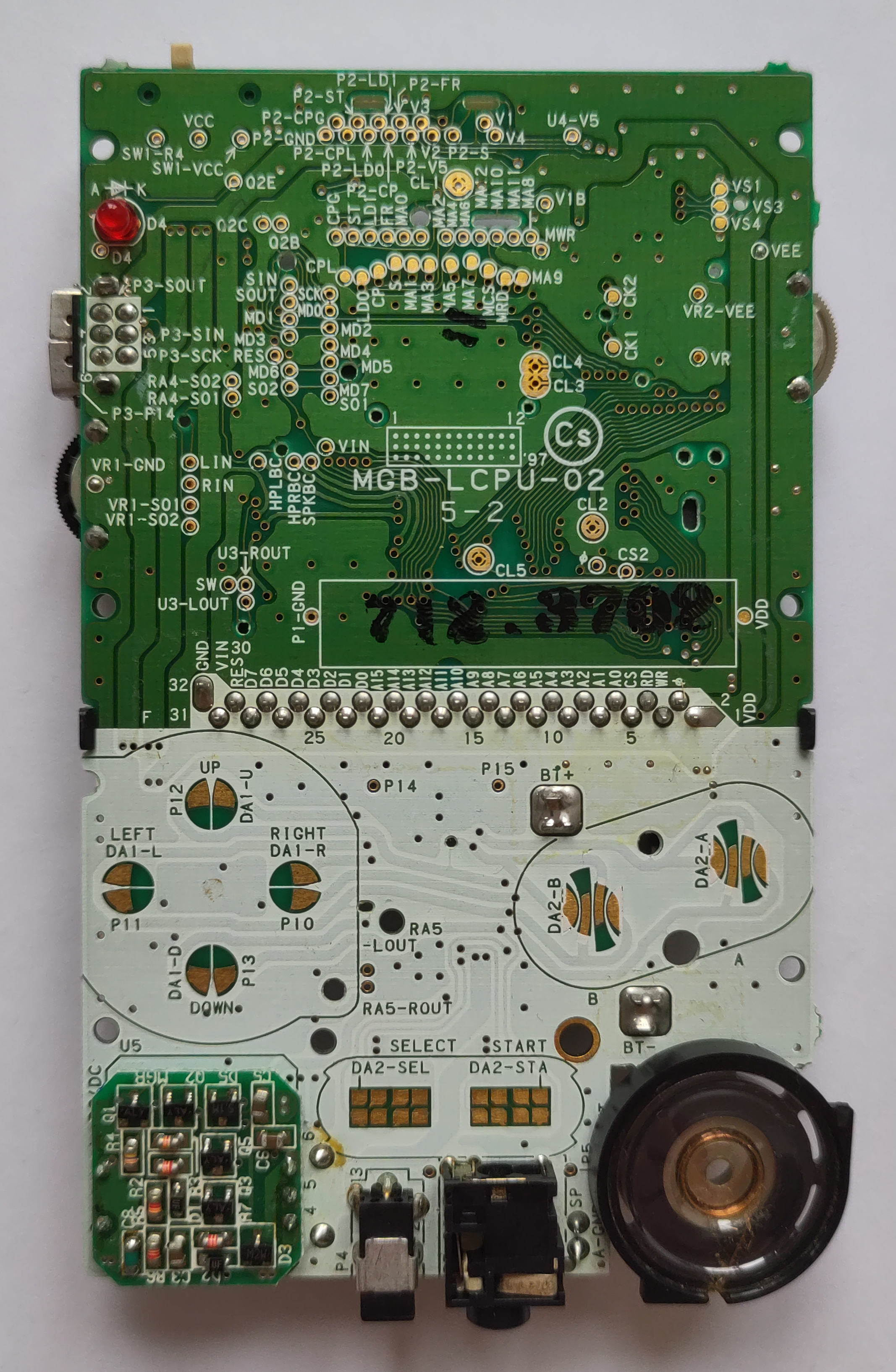

Front side of Game Boy Pocket circuit boardBack side of Game Boy Pocket circuit board

Board type
MGB-LCPU-02
Color of bottom half
white
Manufacture date
November/1997
Number pair on board
5-2
Stamp on board
712.3702
Circled letter(s) on board
Cs
Extra stamp on front
?
Extra stamp on back
9
Label on power board
746
Stamp on speaker
L

LCD Panel

Manufacture date
November/1997 - December/1997
Panel label
T71128S
T71201
Extra label
5
G
Row cable label
-

Chips

 ChipTypeManufacturerDateLabel
U1CPUCPU MGBSharpWeek 49/1997
CPU MGB
Ⓜ © 1996 Nintendo
JAPAN
9749 D
U2Work RAMLH5168N-10PLMosel-VitelicWeek 45/1997
LH5168N-10PL
MOSEL-VITELIC
JAPAN
N745 0C BH
U3AmplifierIR3R53NSharpWeek 45/1997
AMP MGB
IR3R53N
9745 a
U4LCD RegulatorIR3E02SharpWeek 46/1997
DMG-REG
IR3E02
9746 n
X1CrystalKDS 4.194DaishinkuWeek 47/1997
KDS9747
4.194
-LCD Column DriverLH5077 B1SharpWeek 45/1997
LH5077 B1
7451
-LCD Row DriverLH5076 ESharpWeek 41/1997
LH5076 E
7410

Notes

- Tri-wing and mainboard screws didn't click, so it was opened before.
- Polarization filter got a little burn with a rippled pattern after I obtained the device, even though it never was exposed to sunlight.

Misc

CPU works
yes
