DMG: [iceboy] #9 - G01403669

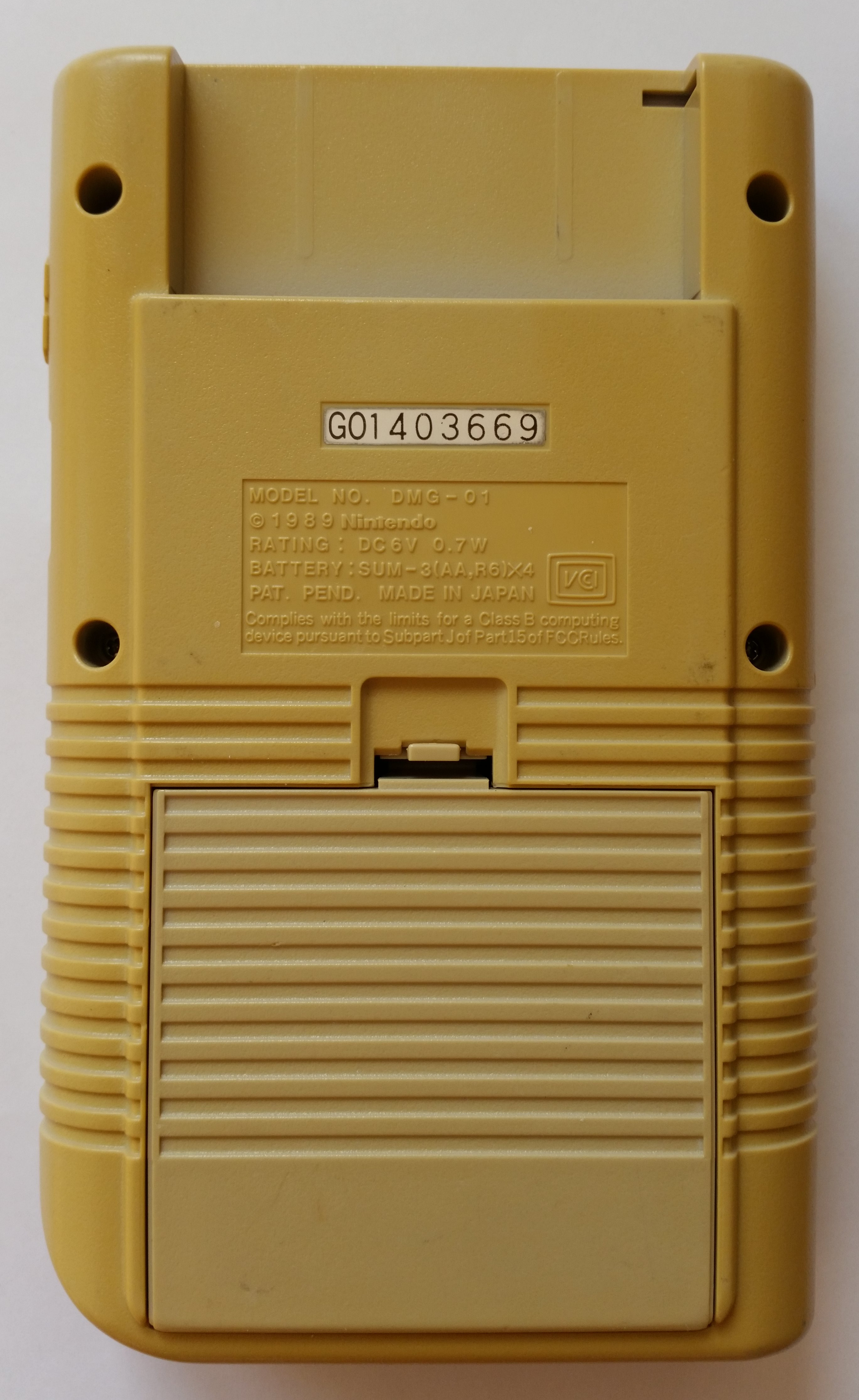

Front side of Game BoyBack side of Game Boy

Color
off-white
Screws
phillips
Assembly date
May/1989

Mainboard

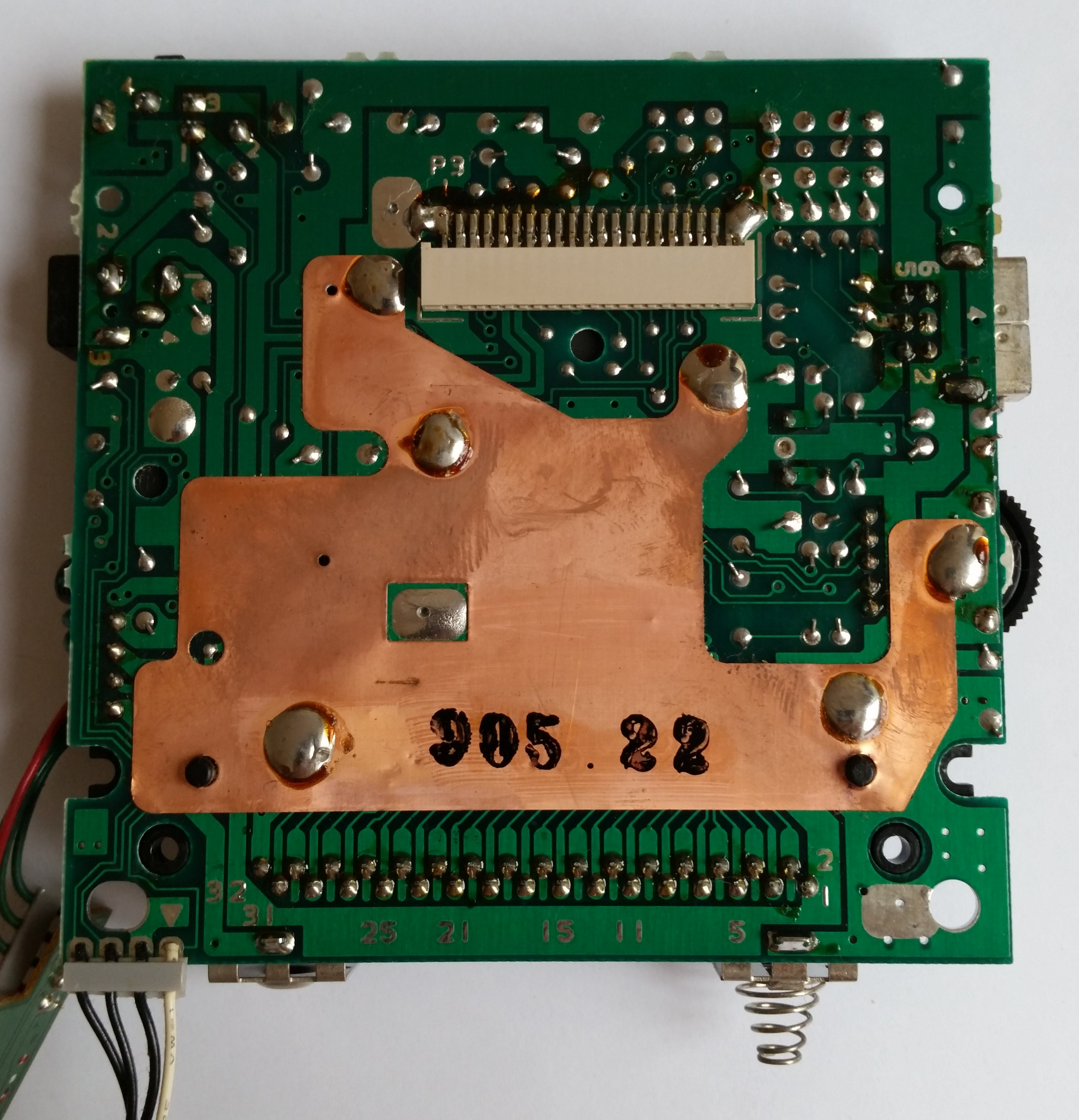

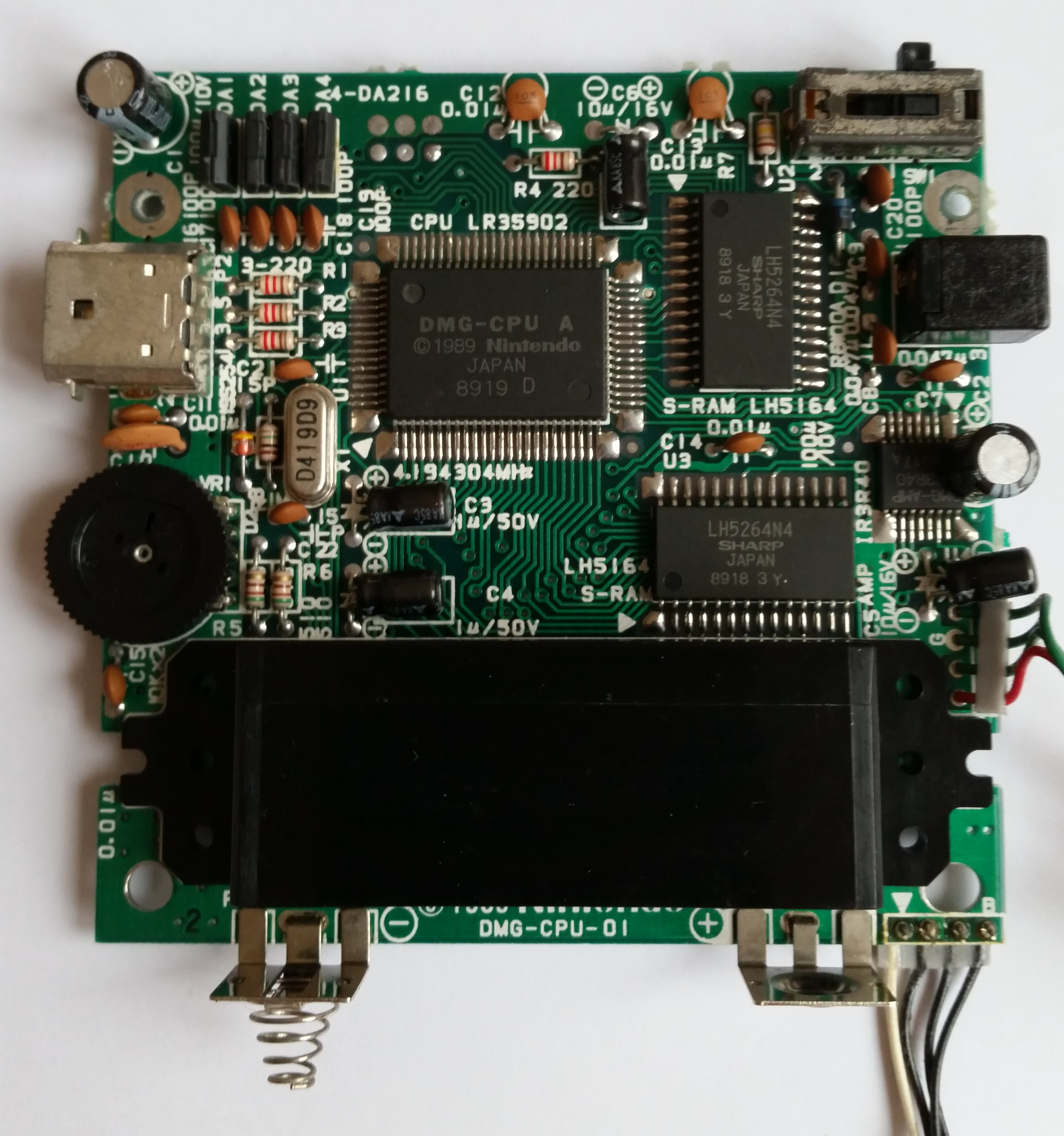

Front side of Game Boy main circuit boardBack side of Game Boy main circuit board

Board type
DMG-CPU-01
Stamp on board
905.22
Circled letter(s) on board
-
Extra label
2

LCD Board

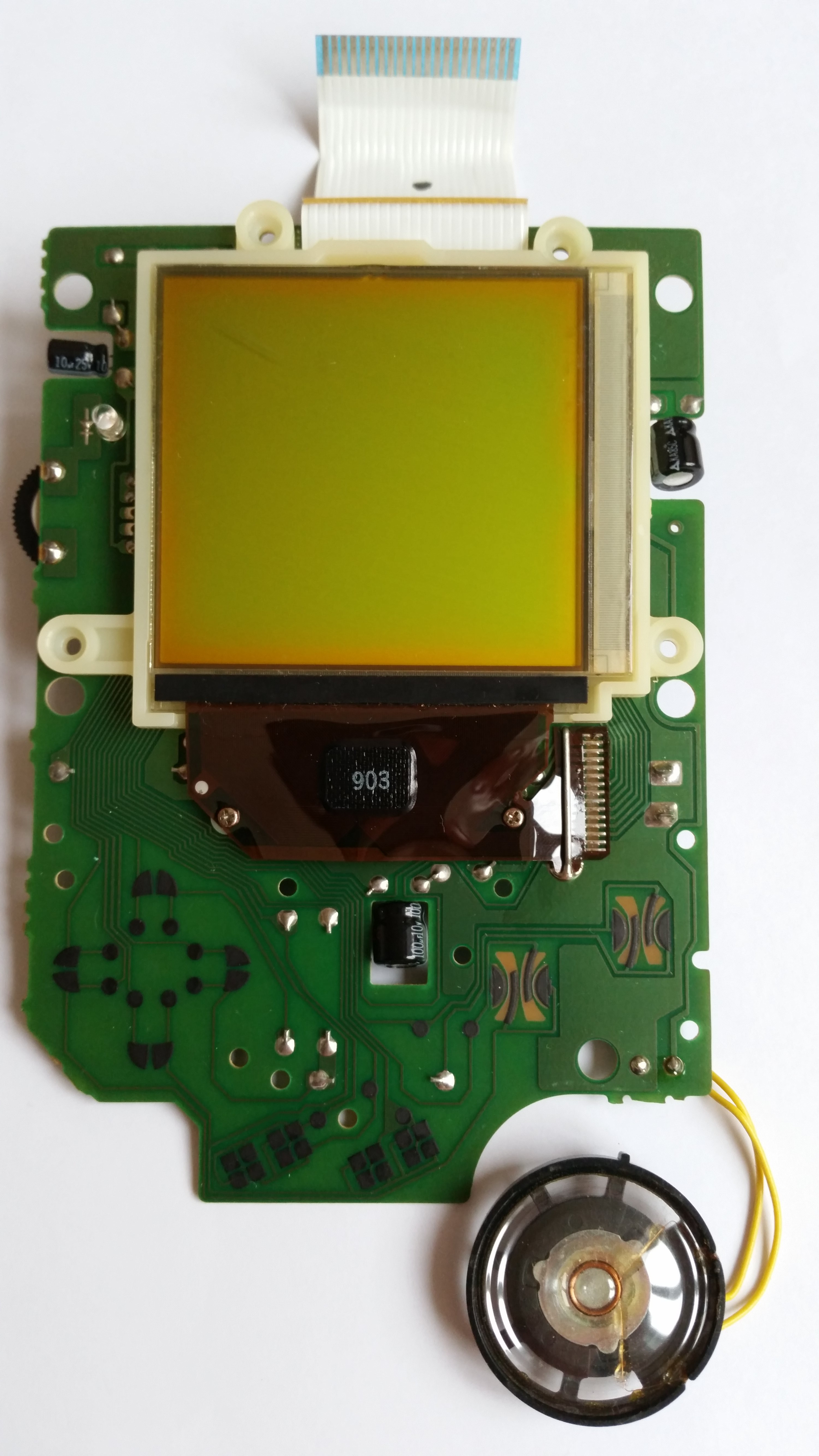

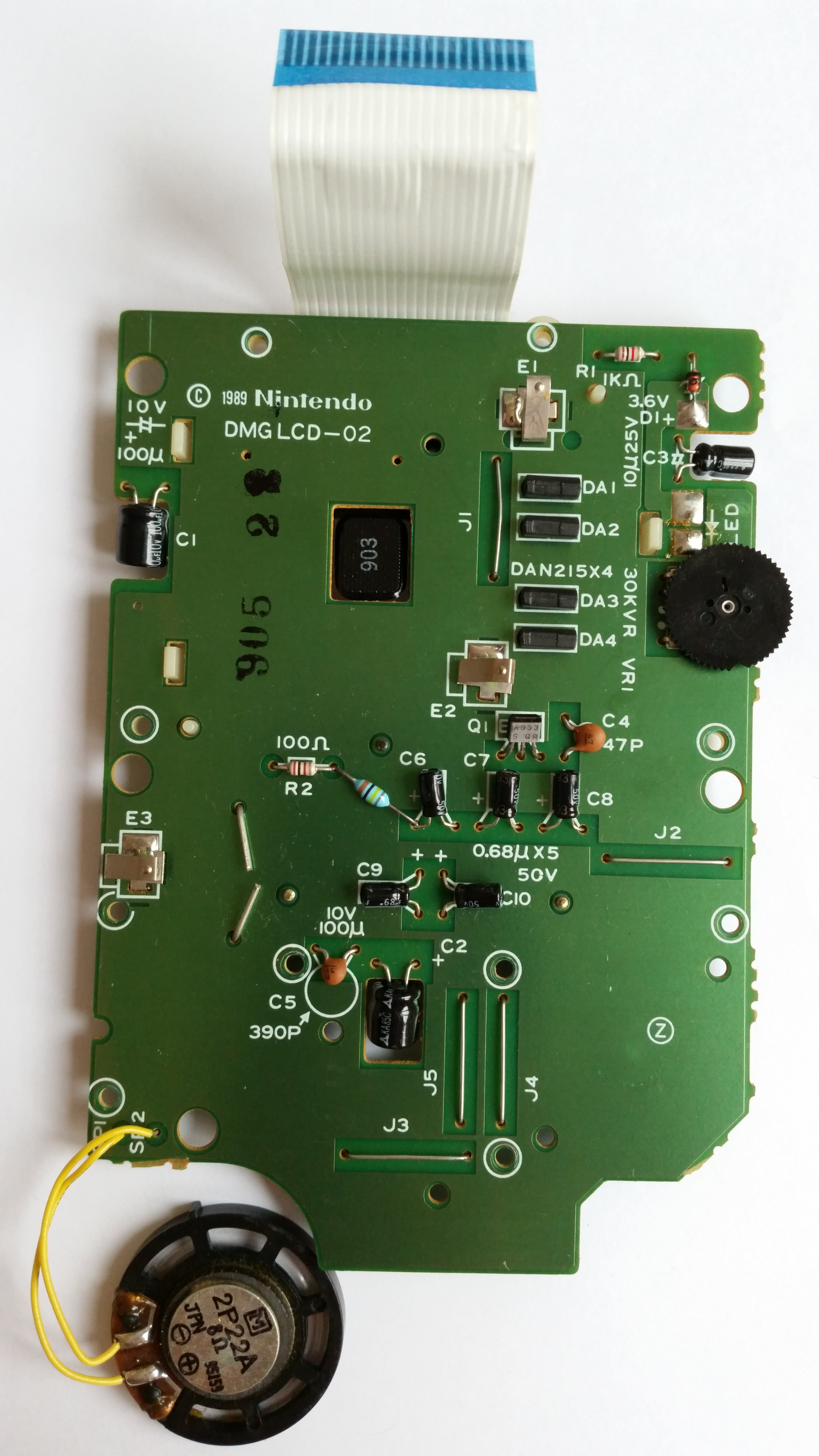

Front side of Game Boy LCD circuit boardBack side of Game Boy LCD circuit board

Board type
DMG LCD-02
Manufacture date
1989
Stamp on board
905 22
Circled letter(s) on board
Z
Number pair on board
-
LCD panel label
A890401
LCD row cable label
890414
LCD panel date
April/1989

Power Board

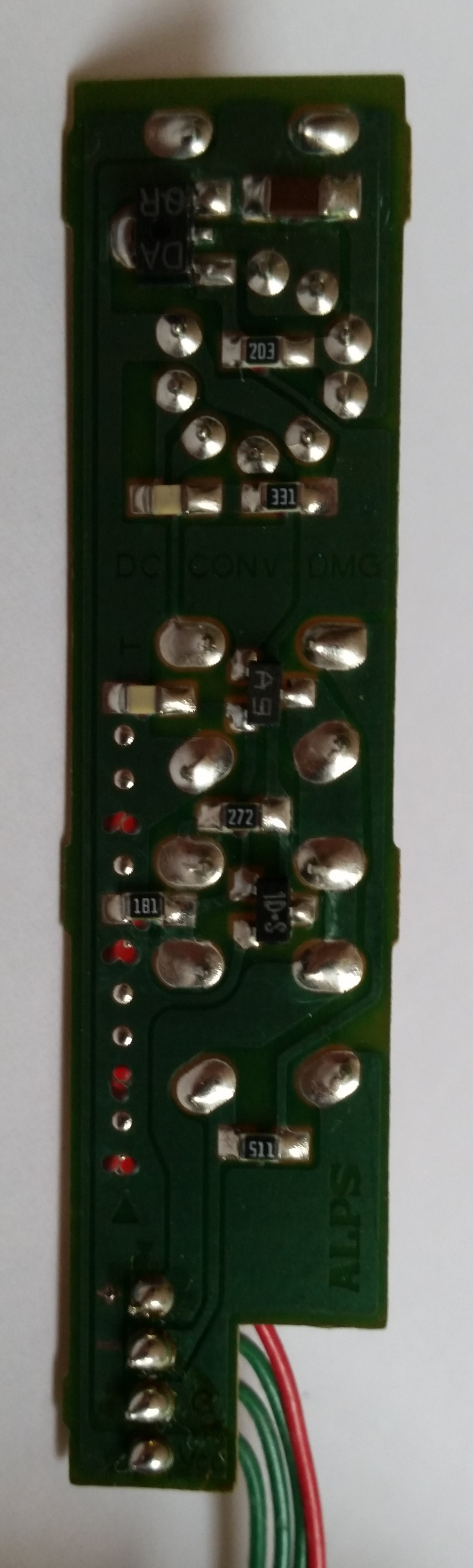

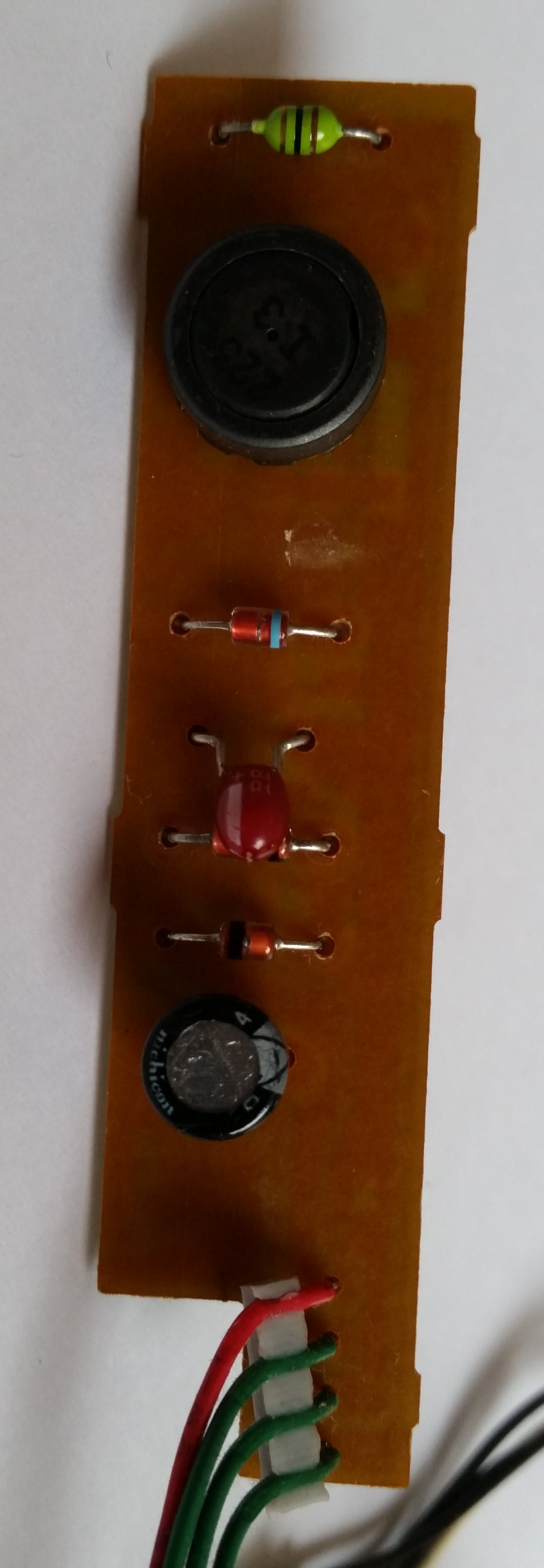

Front side of Game Boy power circuit boardBack side of Game Boy power circuit board

Board type
A1
Manufacture date
1989
Label
DC CONV DMG

Jack Board

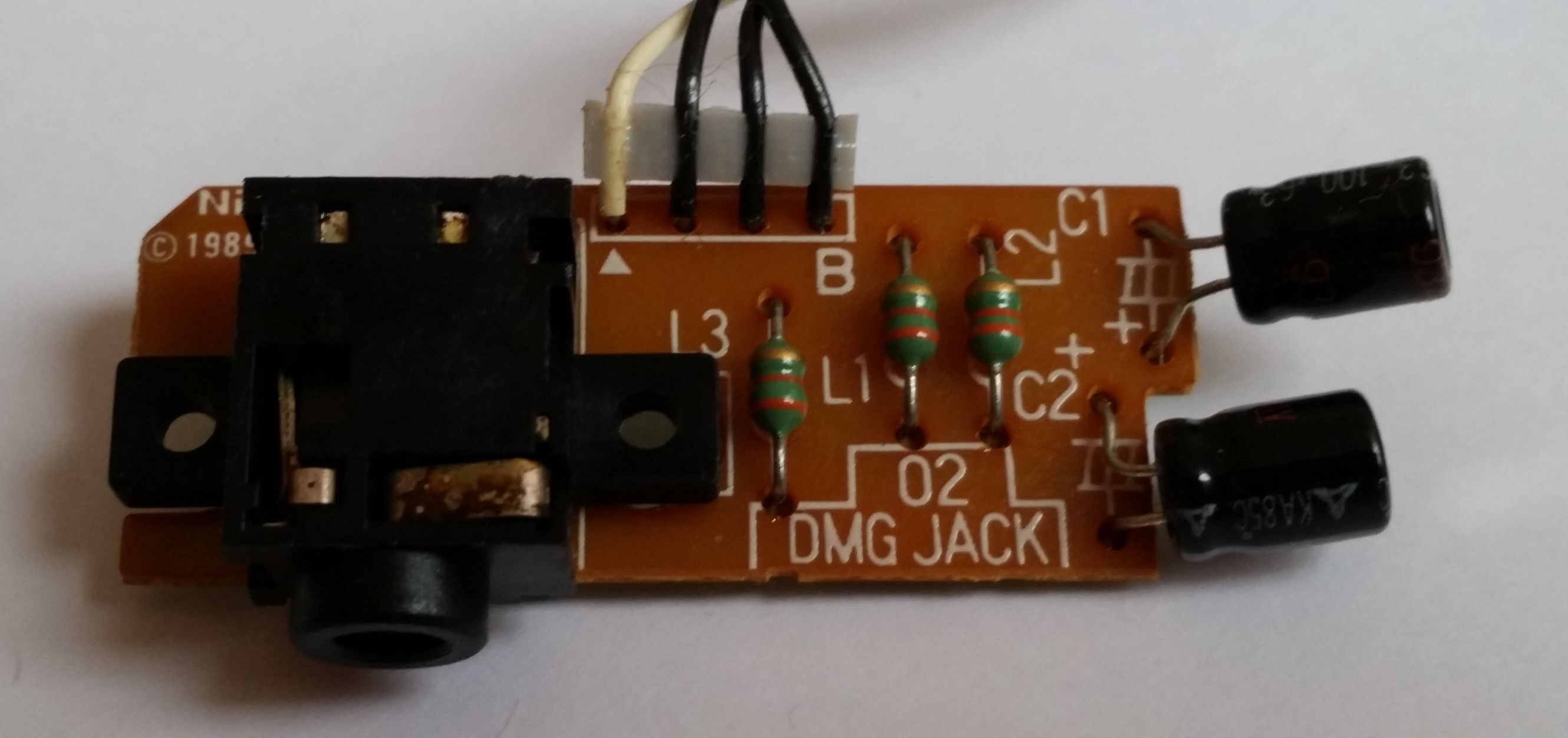

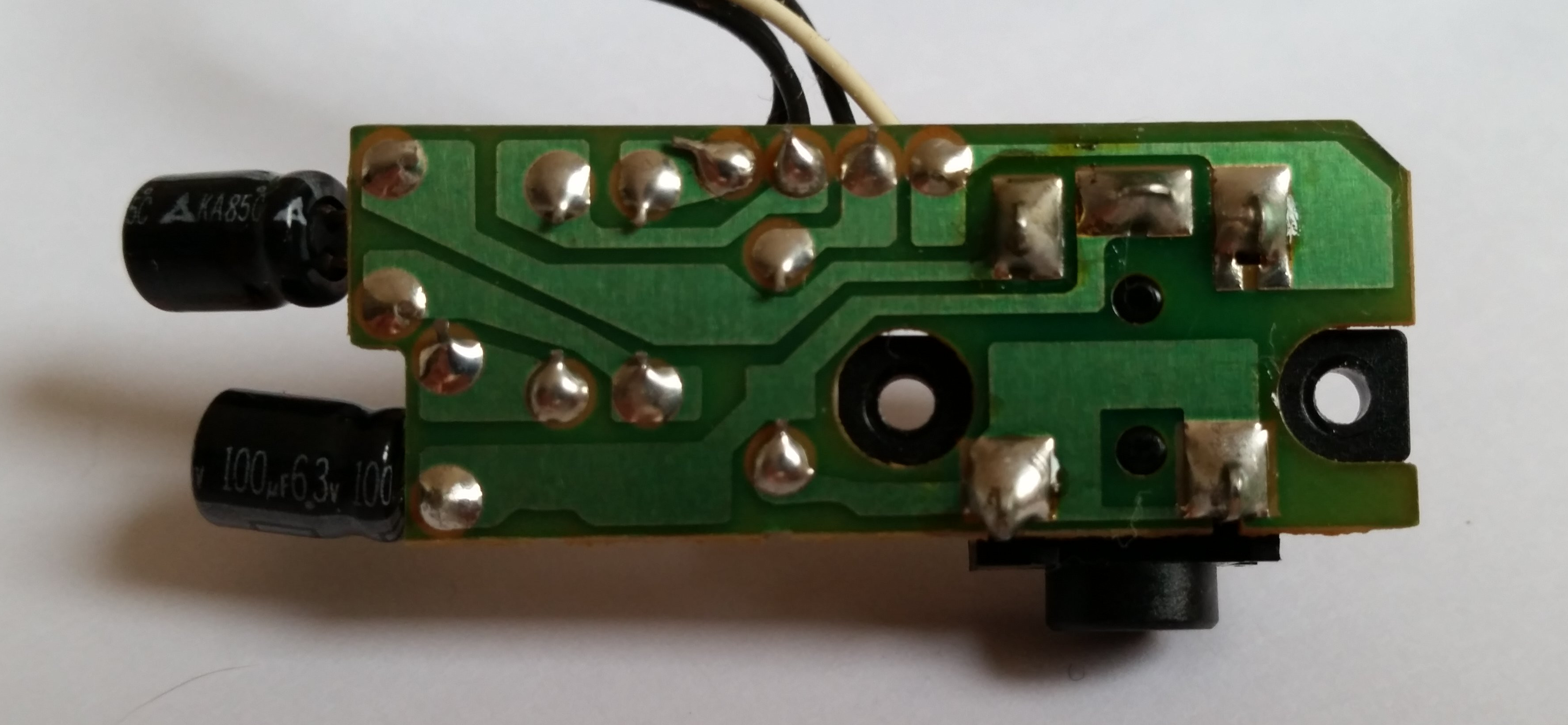

Front side of Game Boy headphone jack circuit boardBack side of Game Boy headphone jack circuit board

Board type
DMG JACK 02
Extra label
-

Chips

 ChipTypeManufacturerDateLabel
U1CPUDMG-CPU ASharpWeek 19/1989
DMG-CPU A
© 1989 Nintendo
JAPAN
8919 D
U2Video RAMLH5264N4SharpWeek 18/1989
LH5264N4
SHARP
JAPAN
8918 3 Y
U3Work RAMLH5264N4SharpWeek 18/1989
LH5264N4
SHARP
JAPAN
8918 3 Y
U4AmplifierIR3R40SharpWeek 17/1989
DMG-AMP
IR3R40
8917 A
X1CrystalD419DaishinkuApril/1989
D419D9
-LCD Column DriverLH5077 FSharpMarch/1989
LH5077 F
903
-LCD Row DriverLH5076 FSharpMarch/1989
LH5076 F
903
-LCD RegulatorIR3E02SharpWeek 14/1989
DMG-REG
IR3E02
8914 A

Notes

- Display cover was missing
    -> Cleaned old glue
    -> Attached replica part
- LCD has scratches
    -> Maybe fixable by replacing polarization filter
- LCD had huge amount of missing columns:
    -> Most of them repaired. Significant amount on the left side just refuse to stay fixed.

Misc

CPU works
yes
