DMG: [iceboy] #7 - G10161367

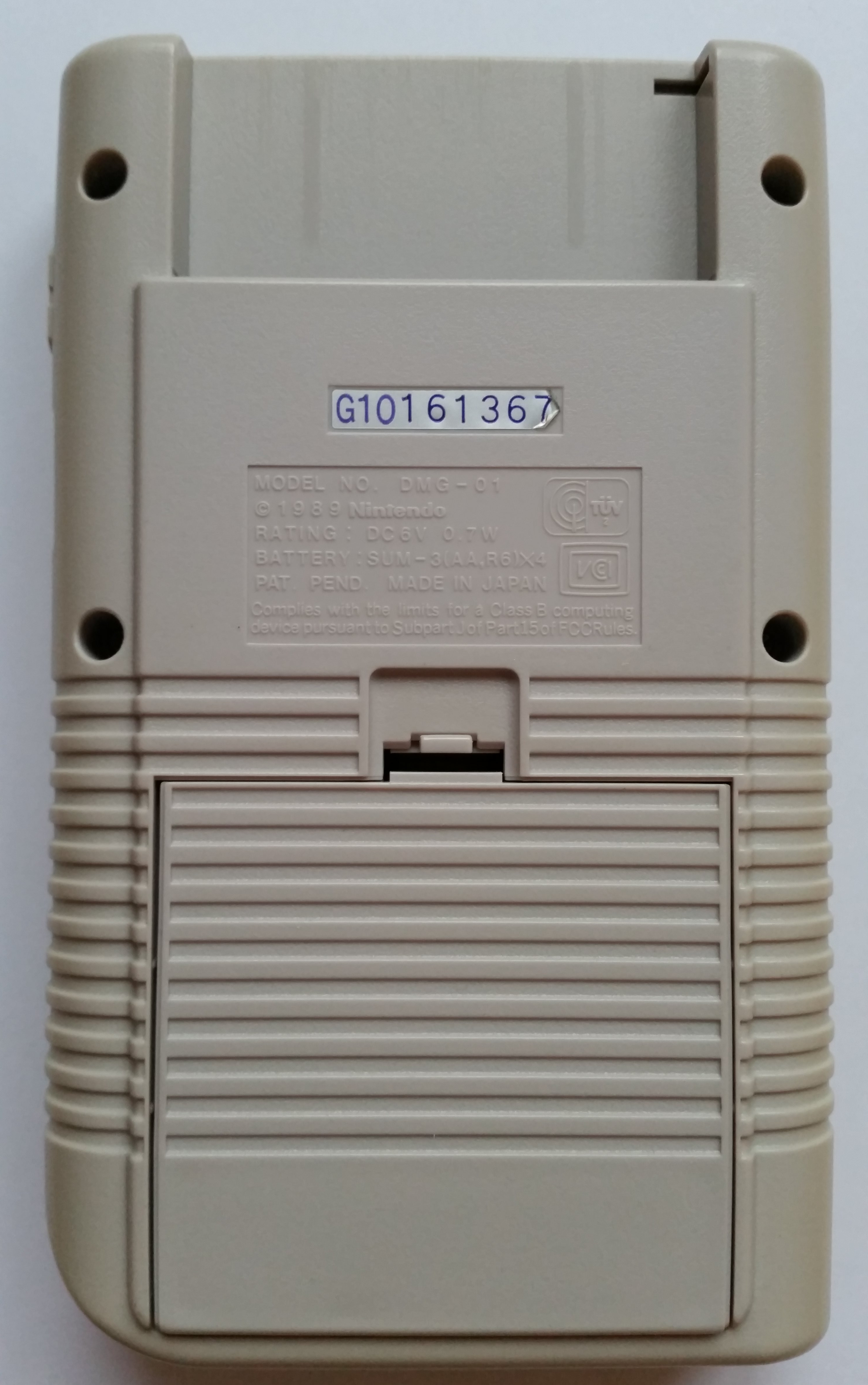

Front side of Game BoyBack side of Game Boy

Color
off-white
Screws
phillips
Assembly date
September/1990

Mainboard

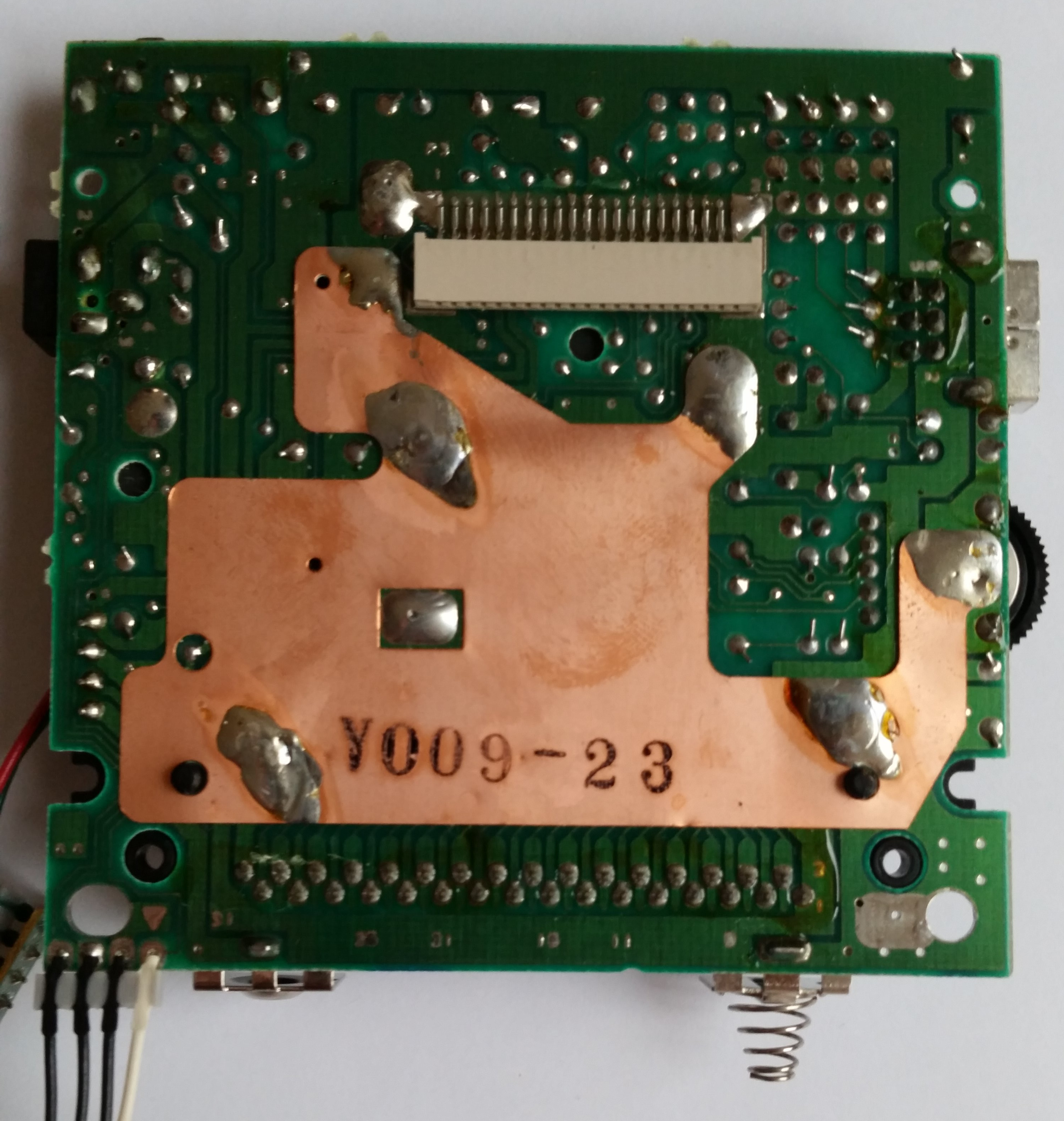

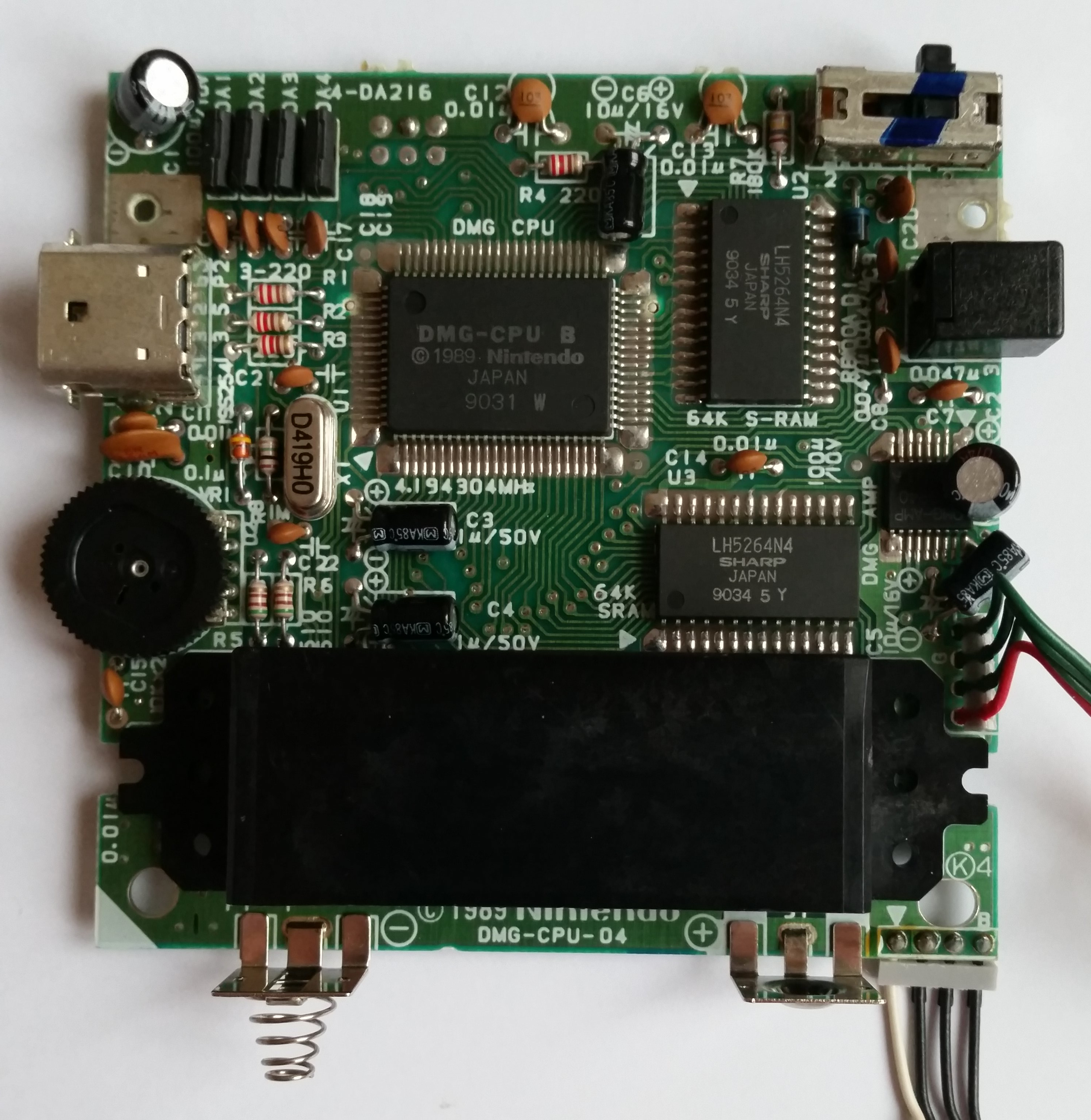

Front side of Game Boy main circuit boardBack side of Game Boy main circuit board

Board type
DMG-CPU-04
Stamp on board
Y009-23
Circled letter(s) on board
K4
Extra label
1

LCD Board

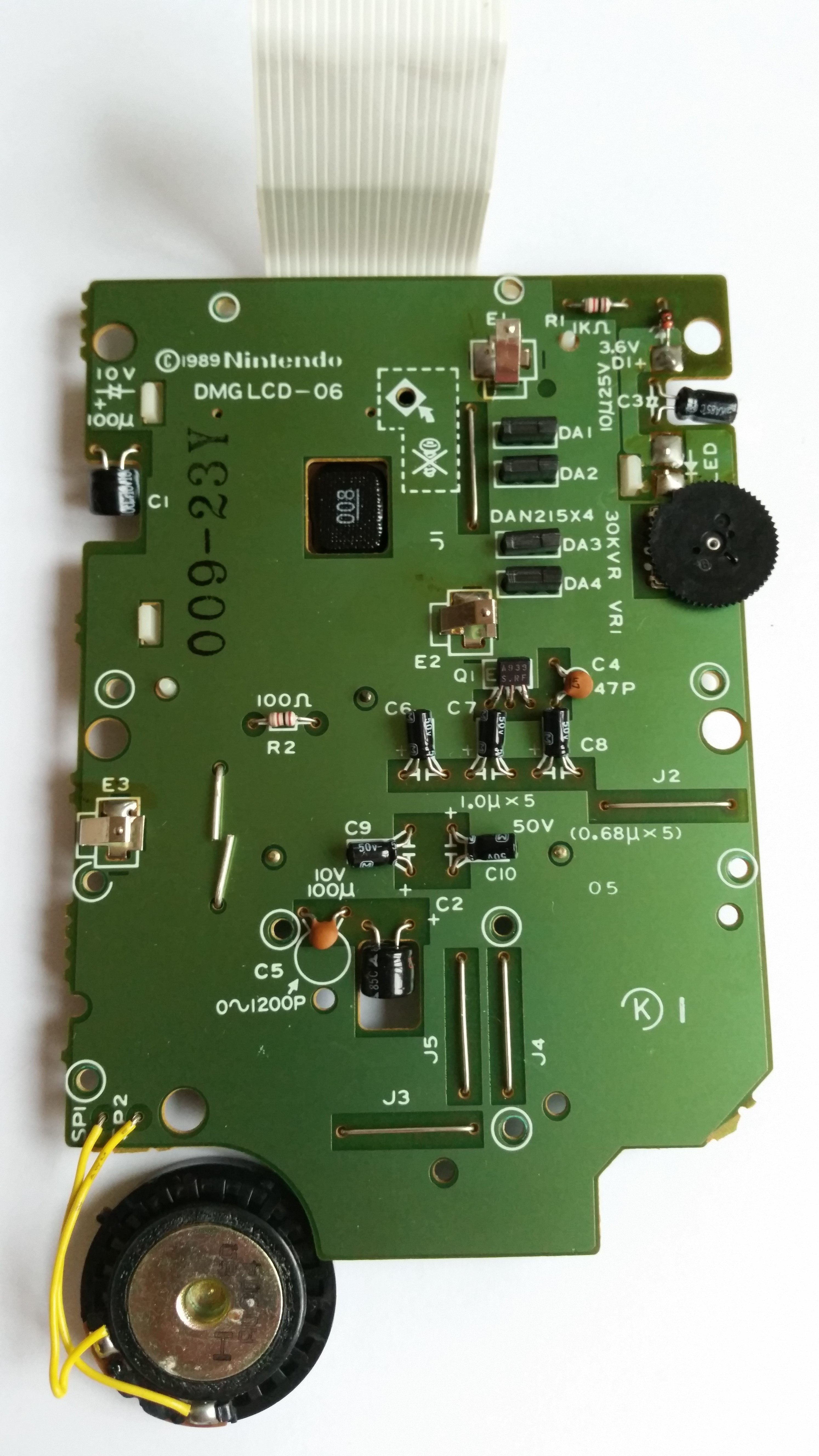

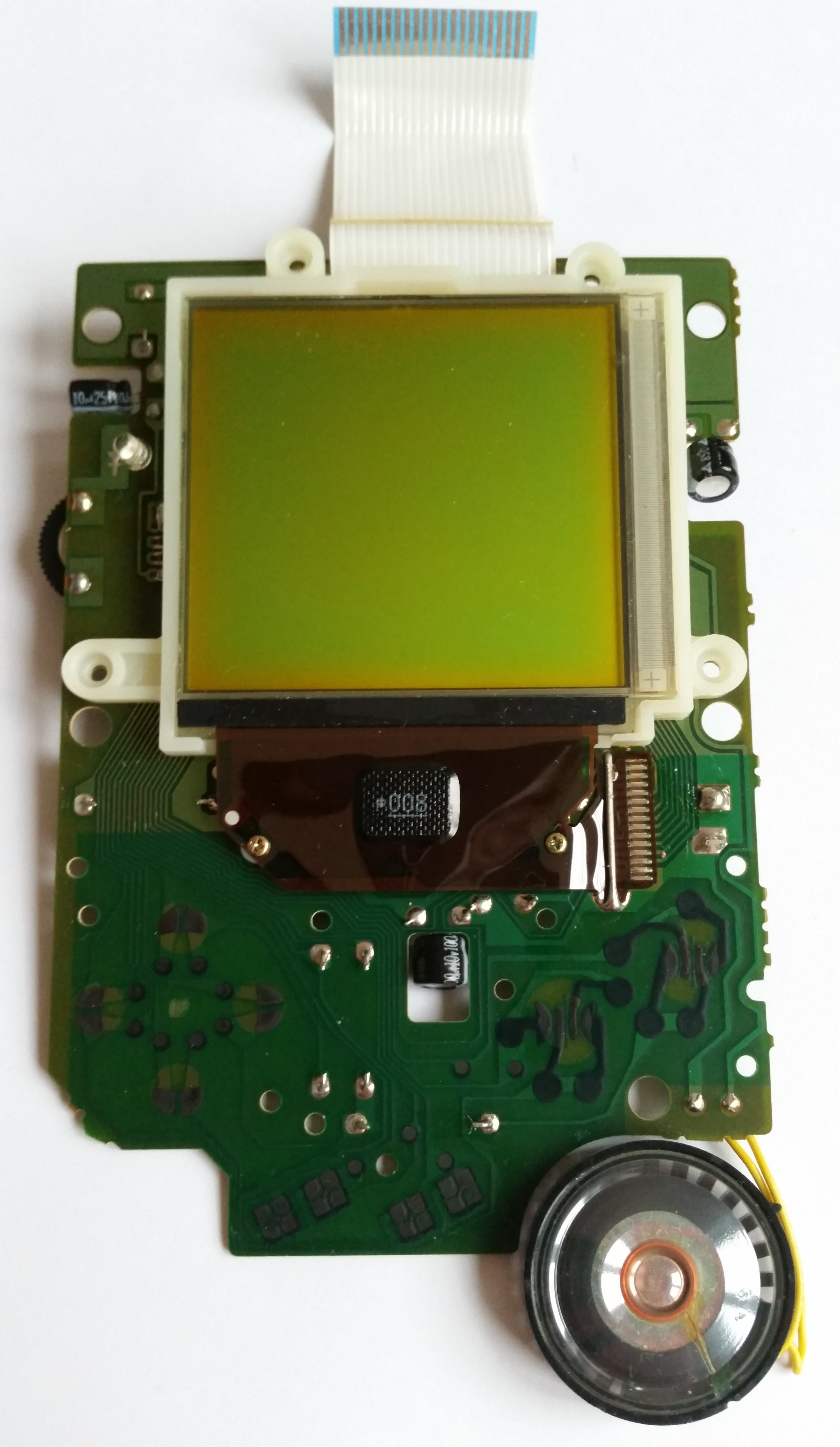

Front side of Game Boy LCD circuit boardBack side of Game Boy LCD circuit board

Board type
DMG LCD-06
Manufacture date
?
Stamp on board
009-23Y
Circled letter(s) on board
K1
Number pair on board
-
LCD panel label
ST900829
LCD row cable label
7 00906
LCD panel date
August/1990 - September/1990

Power Board

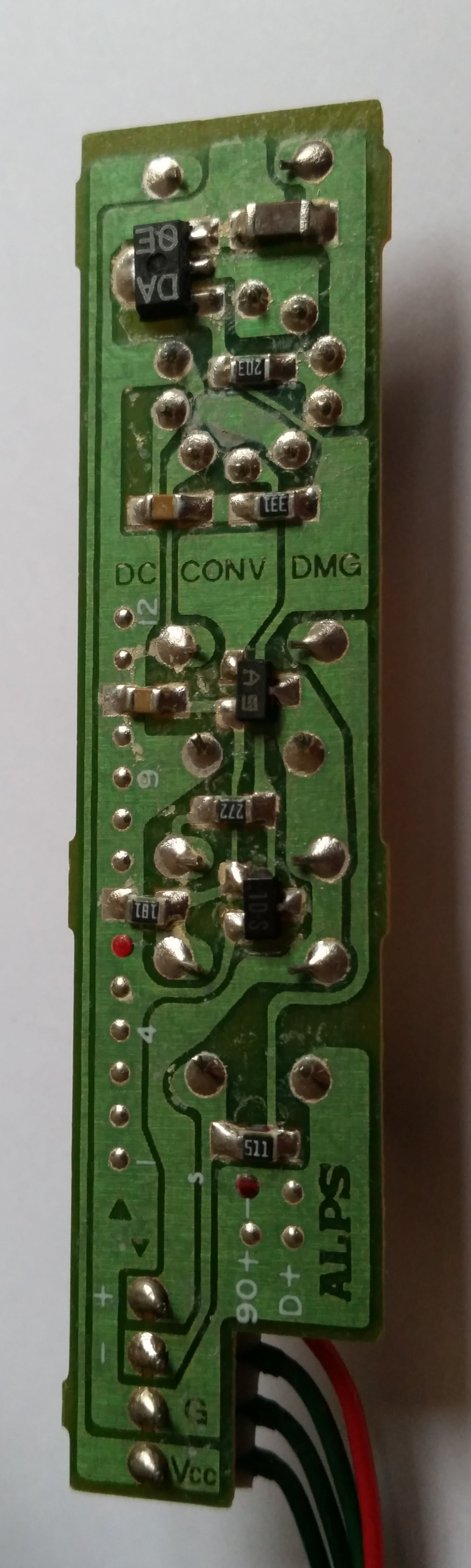

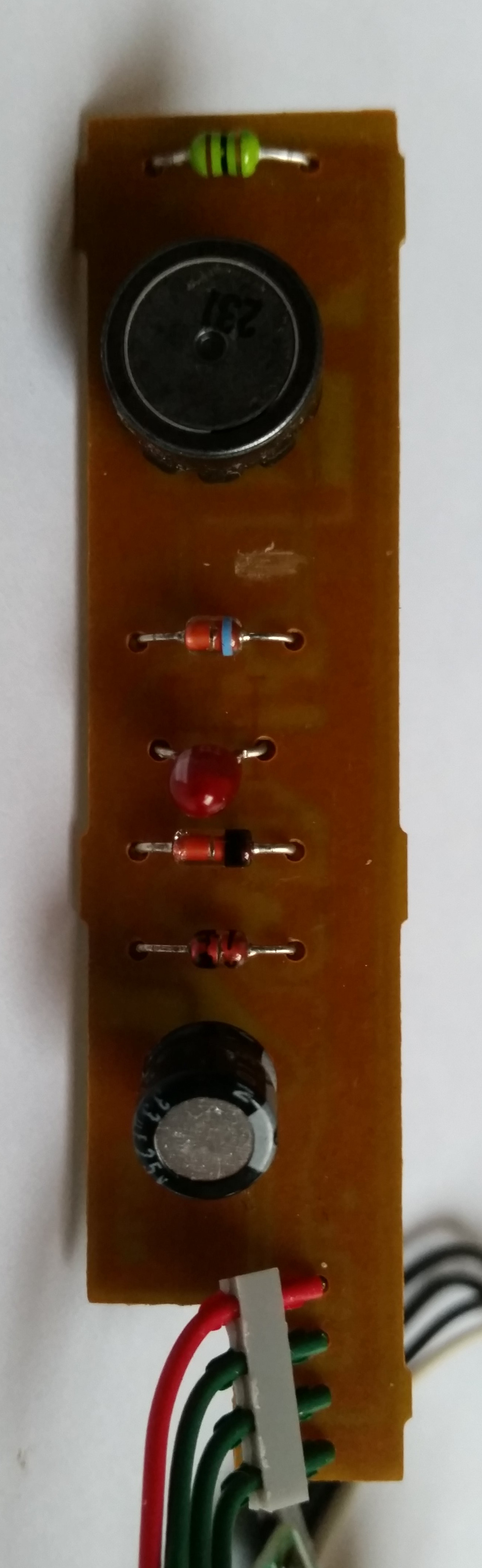

Front side of Game Boy power circuit boardBack side of Game Boy power circuit board

Board type
A2
Manufacture date
June/1990
Label
DC CONV DMG

Jack Board

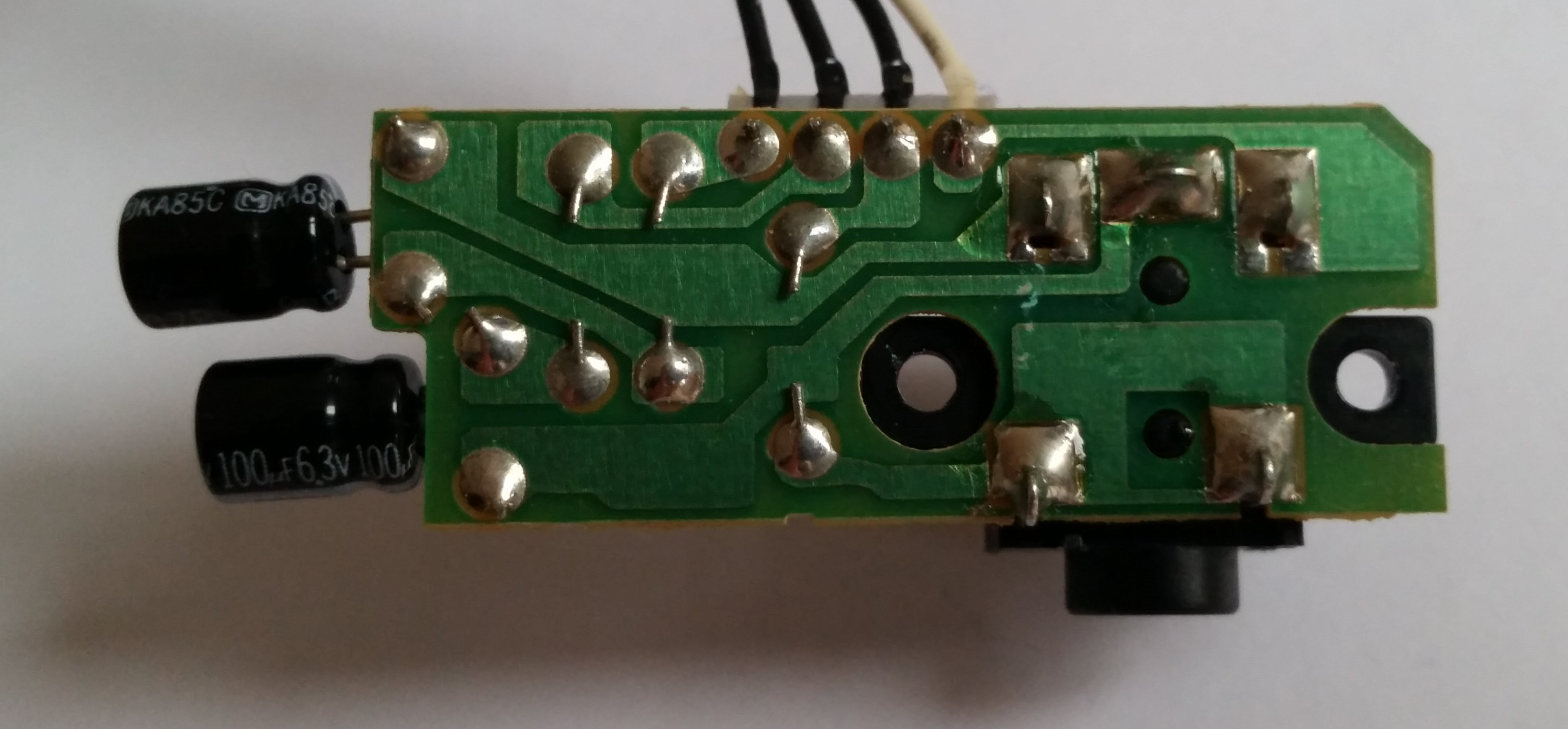

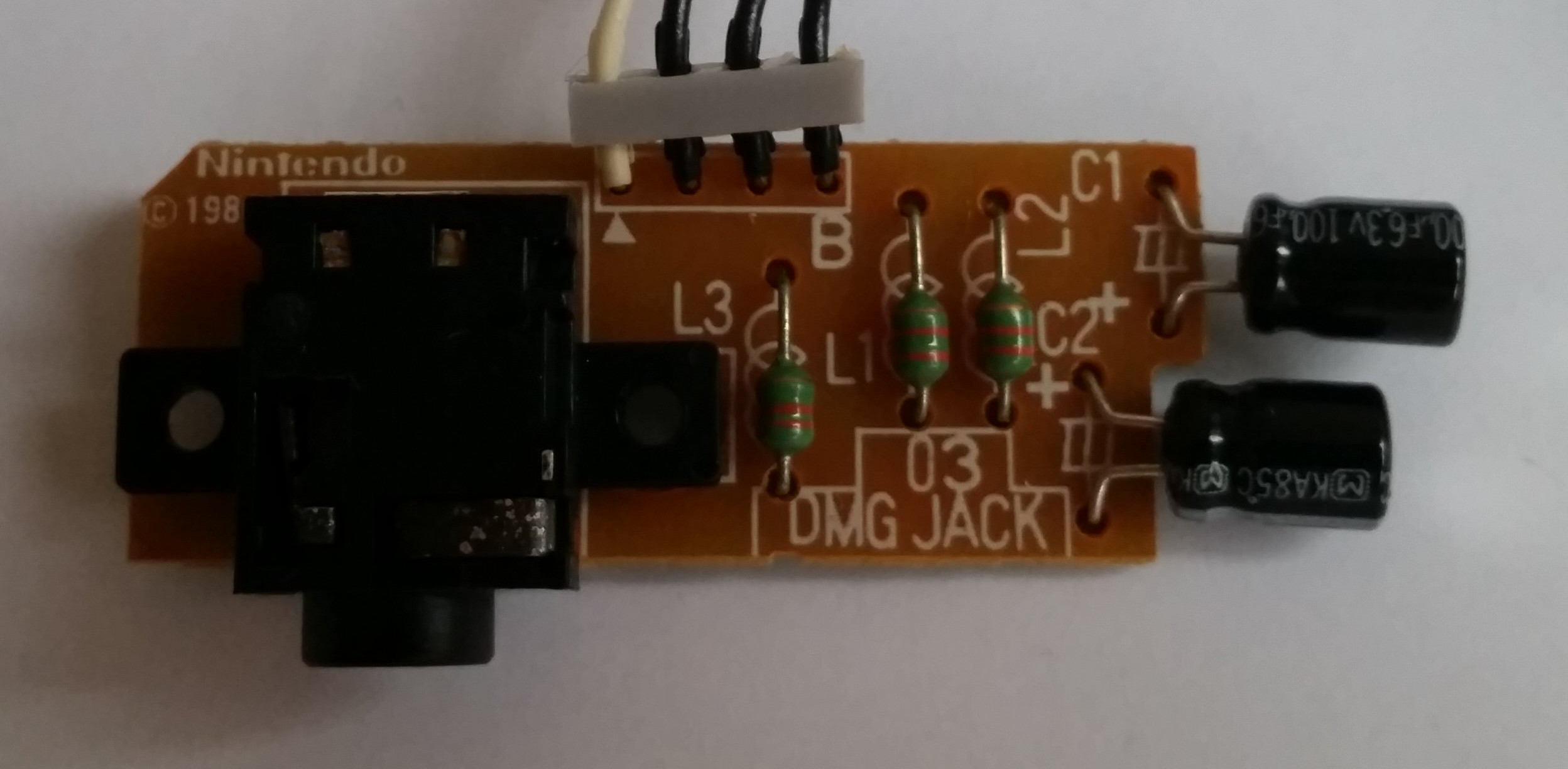

Front side of Game Boy headphone jack circuit boardBack side of Game Boy headphone jack circuit board

Board type
DMG JACK 03
Extra label
-

Chips

 ChipTypeManufacturerDateLabel
U1CPUDMG-CPU BSharpWeek 31/1990
DMG-CPU B
© 1989 Nintento
JAPAN
9031 W
U2Video RAMLH5264N4SharpWeek 34/1990
LH5264N4
SHARP
JAPAN
9034 5 Y
U3Work RAMLH5264N4SharpWeek 34/1990
LH5264N4
SHARP
JAPAN
9034 5 Y
U4AmplifierIR3R40SharpWeek 31/1990
DMG-AMP
IR3R40
9031 A
X1CrystalD419DaishinkuAugust/1990
D419H0
-LCD Column DriverLH5077 FSharpAugust/1990
LH5077 F
008
-LCD Row DriverLH5076 FSharpAugust/1990
LH5076 F
008
-LCD RegulatorIR3E02SharpWeek 36/1990
DMG-REG
IR3E02
9036 J

Notes

- Display cover fell off:
    -> Cleaned old glue
    -> Applied double sided tape
    -> Cover seems to be original
- LCD had missing columns at the left border:
    -> repaired
- Button A was stuck:
    -> Cleaned contacts

Misc

CPU works
yes
