N2AH 930208
| Chip | Type | Manufacturer | Date | Label | |
|---|---|---|---|---|---|
| U1 | CPU | DMG-CPU B | Sharp | Week 9/1993 | DMG-CPU B © 1989 Nintento JAPAN 9309 D |
| U2 | Video RAM | LH5264TN-TL | LSI Logic | Week 7/1993 | LH5264TN-TL LSI LOGIC JAPAN D307 03 C |
| U3 | Work RAM | LH5264TN-TL | LSI Logic | Week 7/1993 | LH5264TN-TL LSI LOGIC JAPAN D307 03 C |
| U4 | Amplifier | IR3R40 | Sharp | Week 9/1993 | DMG-AMP IR3R40 9309 AA |
| X1 | Crystal | D419 | Daishinku | February/1993 | D419B3 |

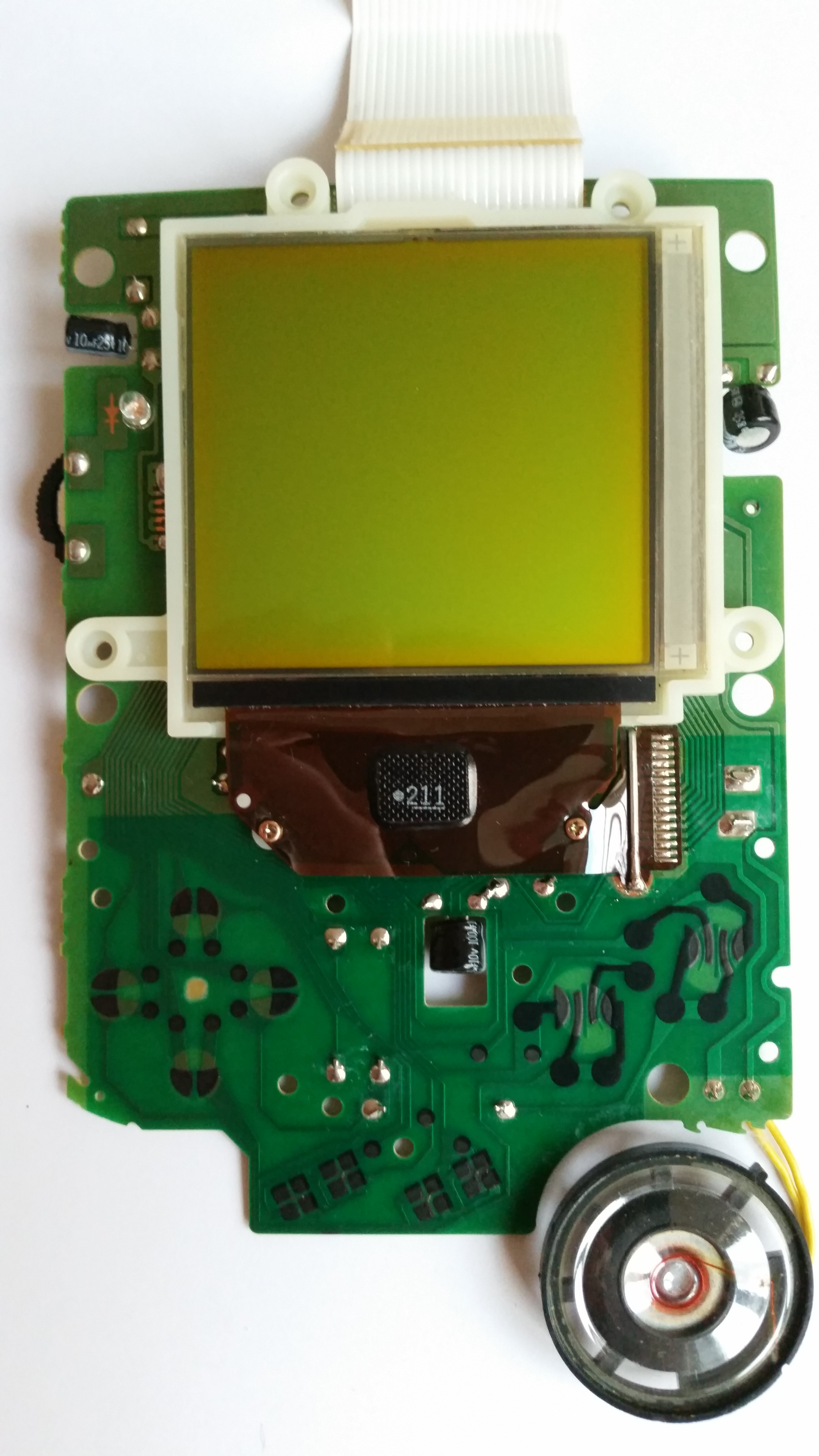

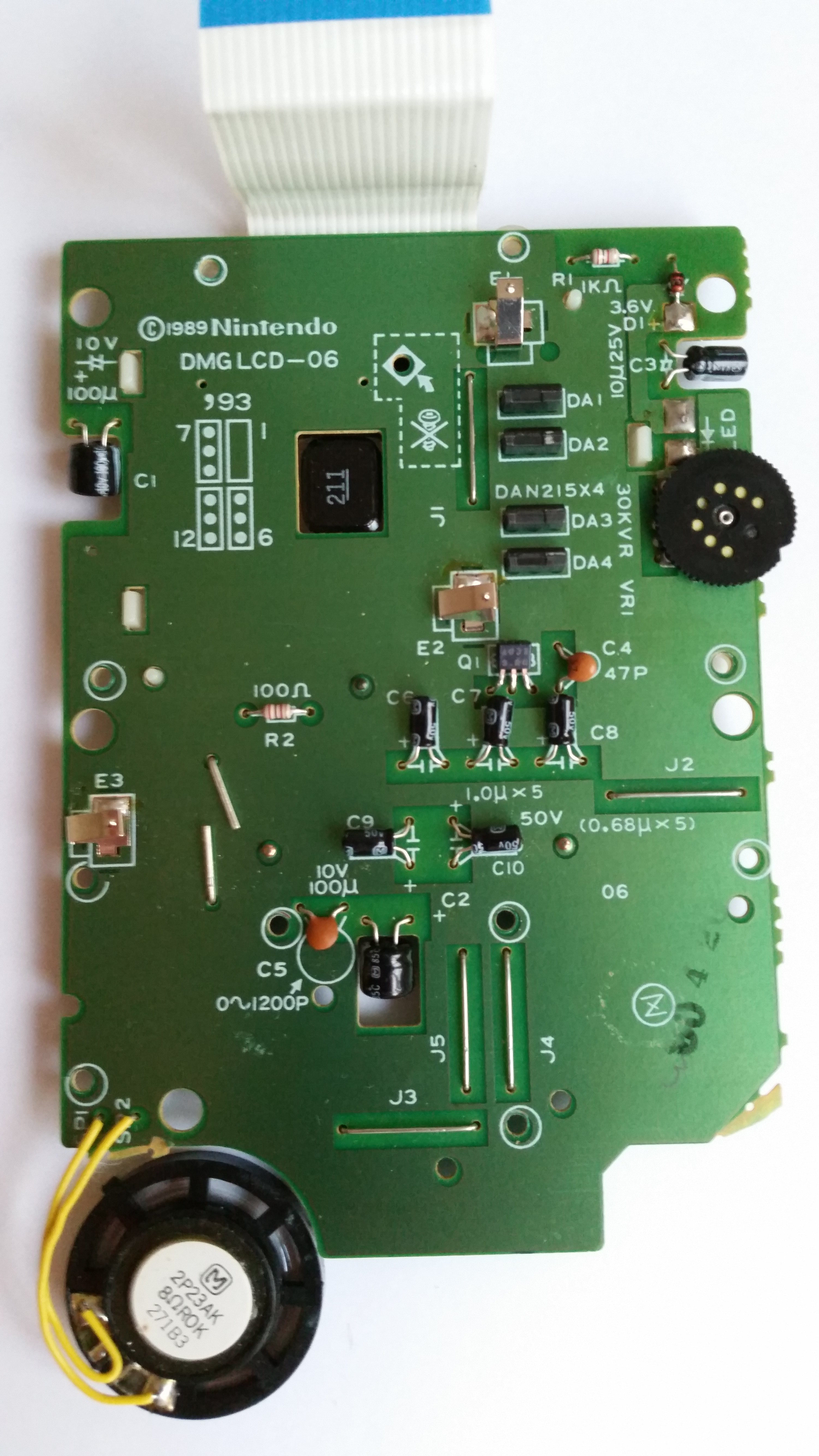

| - | LCD Column Driver | LH5077 F | Sharp | November/1992 | LH5077 F 211 |
| - | LCD Row Driver | LH5076 F | Sharp | November/1992 | LH5076 F 211 |
| - | LCD Regulator | IR3E02 | Sharp | Week 7/1993 | DMG-REG IR3E02 9307 CB |

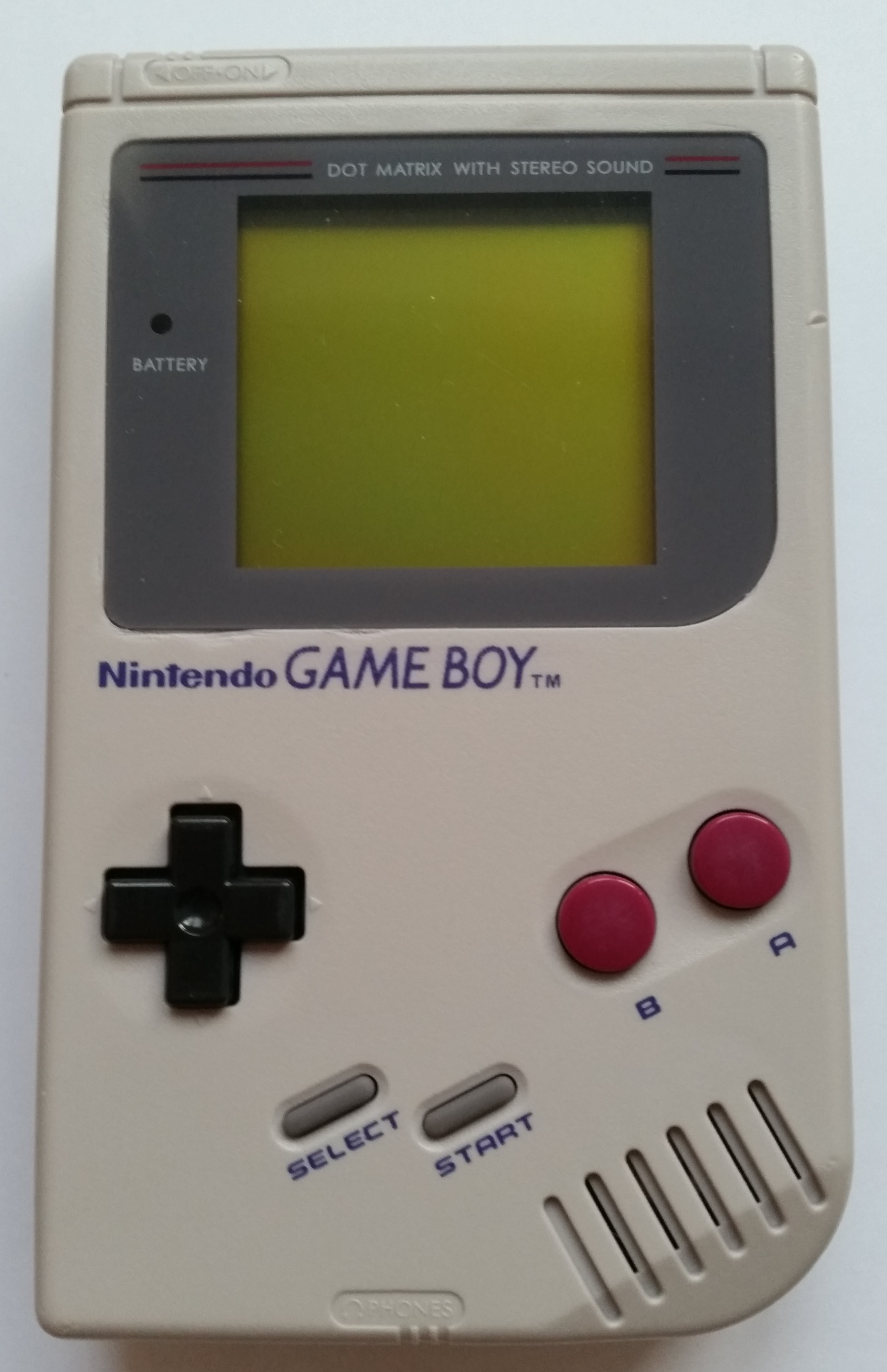

- Display cover fell off:
-> Someone glued it in with plastic glue. The glue fused
the top shell to the the grey color of the display cover,
but weakened the bonding between color and cover, so it ripped off
the grey color from the display cover.
-> Wasn't able to remove the glue with alkohol. The glue deformed the
plastic.
-> Milled off the deformed plastic that had the gray color attached to it.
Accidentially left some deep scratches just above the "Nintendo GAME
BOY" logo, because the glue was close to the edge.
-> Attached replica part

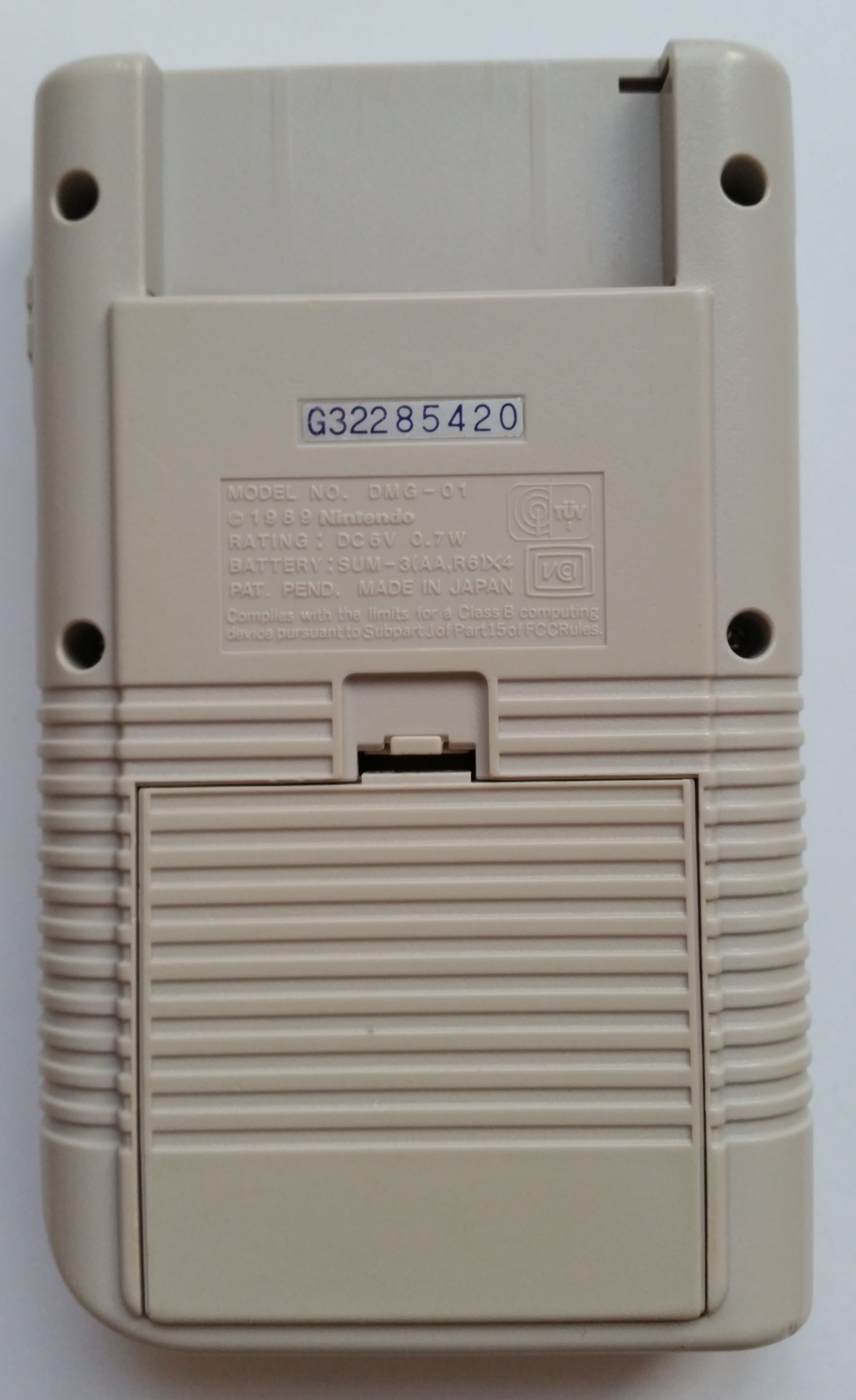

- Link port cover was missing:
-> Attached replica part
