DMG: [iceboy] #40 - GH1739169

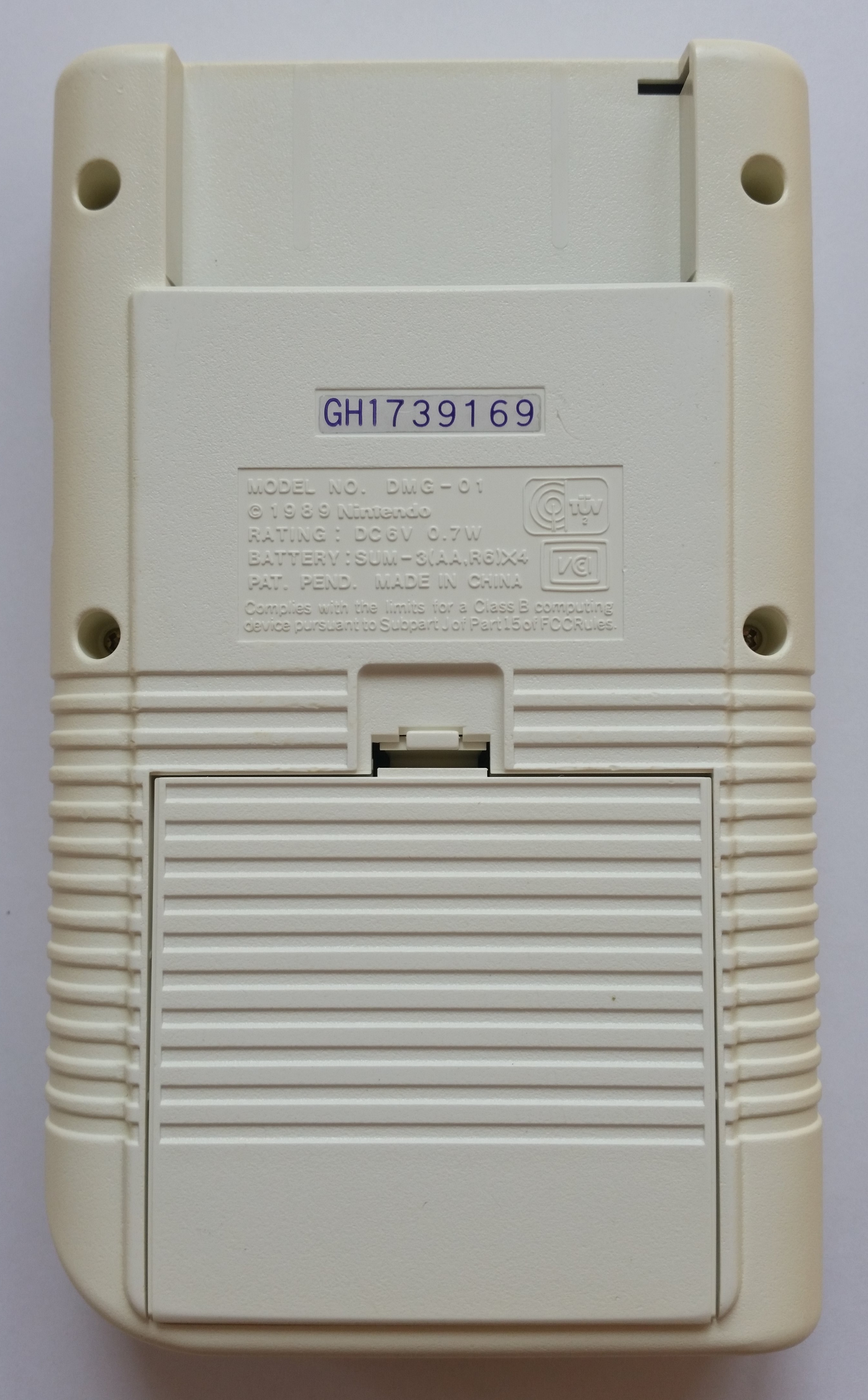

Front side of Game BoyBack side of Game Boy

Color
traditional-white
Screws
tri-wing
Assembly date
October/1994

Mainboard

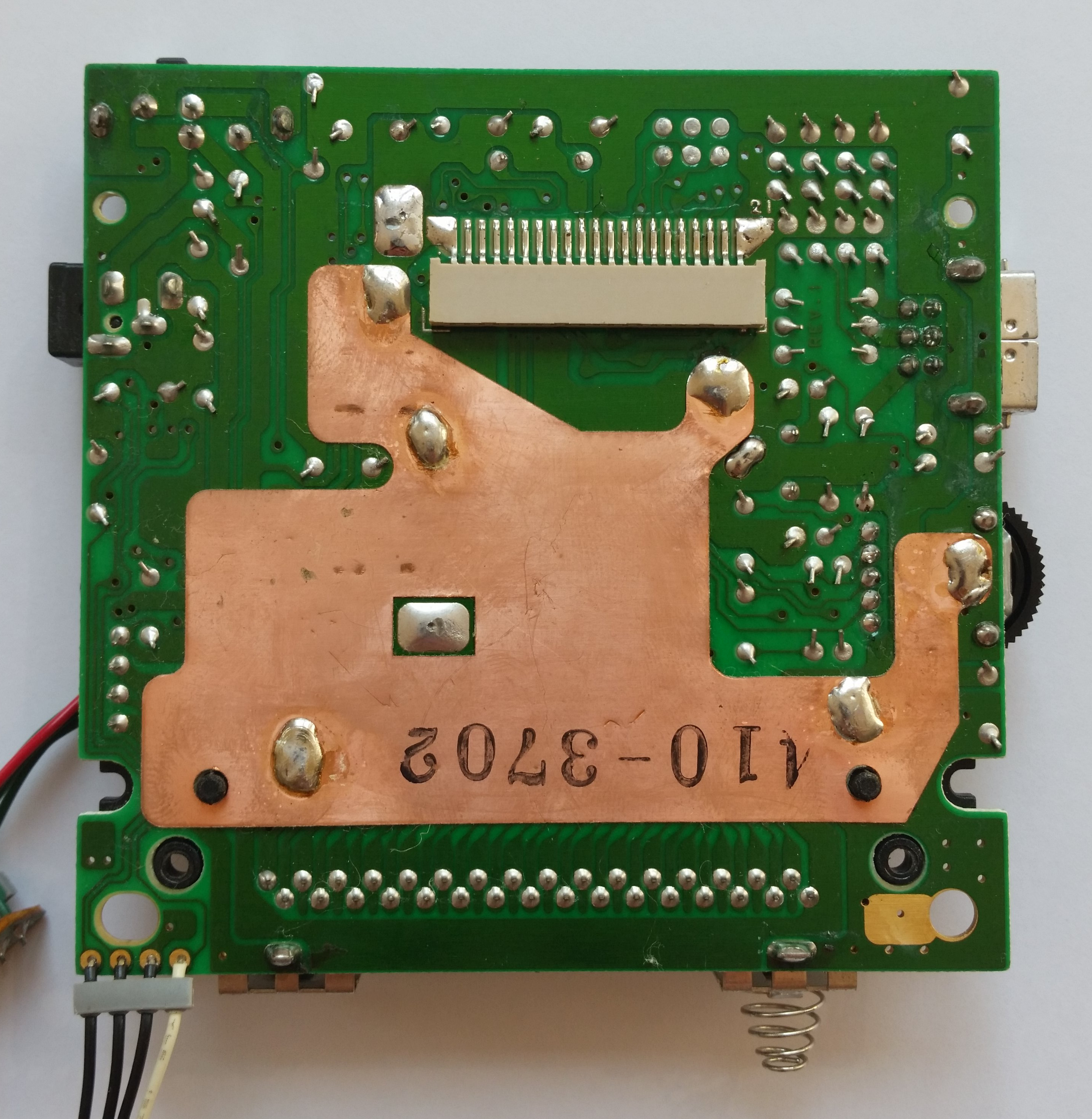

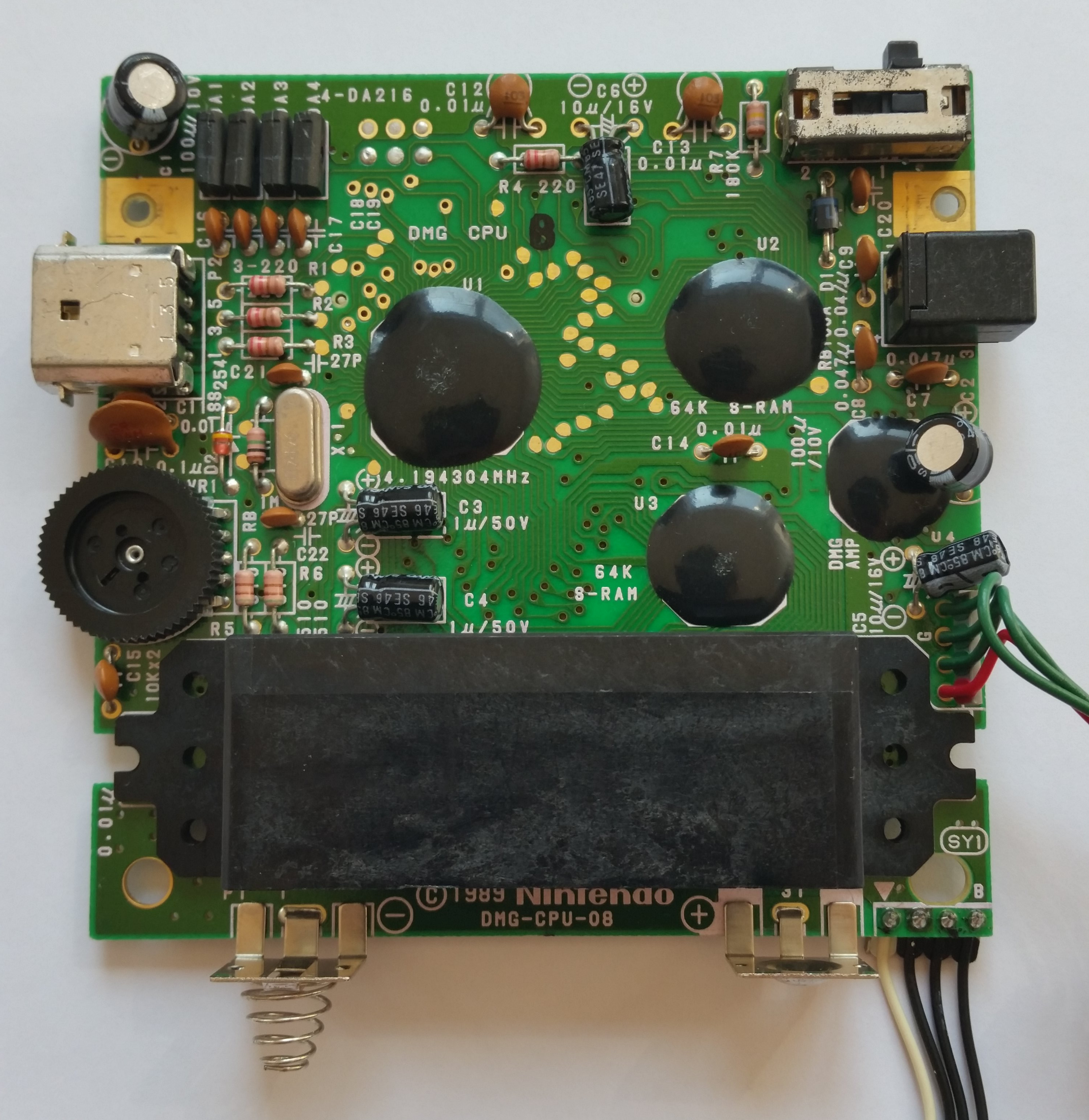

Front side of Game Boy main circuit boardBack side of Game Boy main circuit board

Board type
DMG-CPU-08
Stamp on board
410-3702
Circled letter(s) on board
SYI
Extra label
REV.1

LCD Board

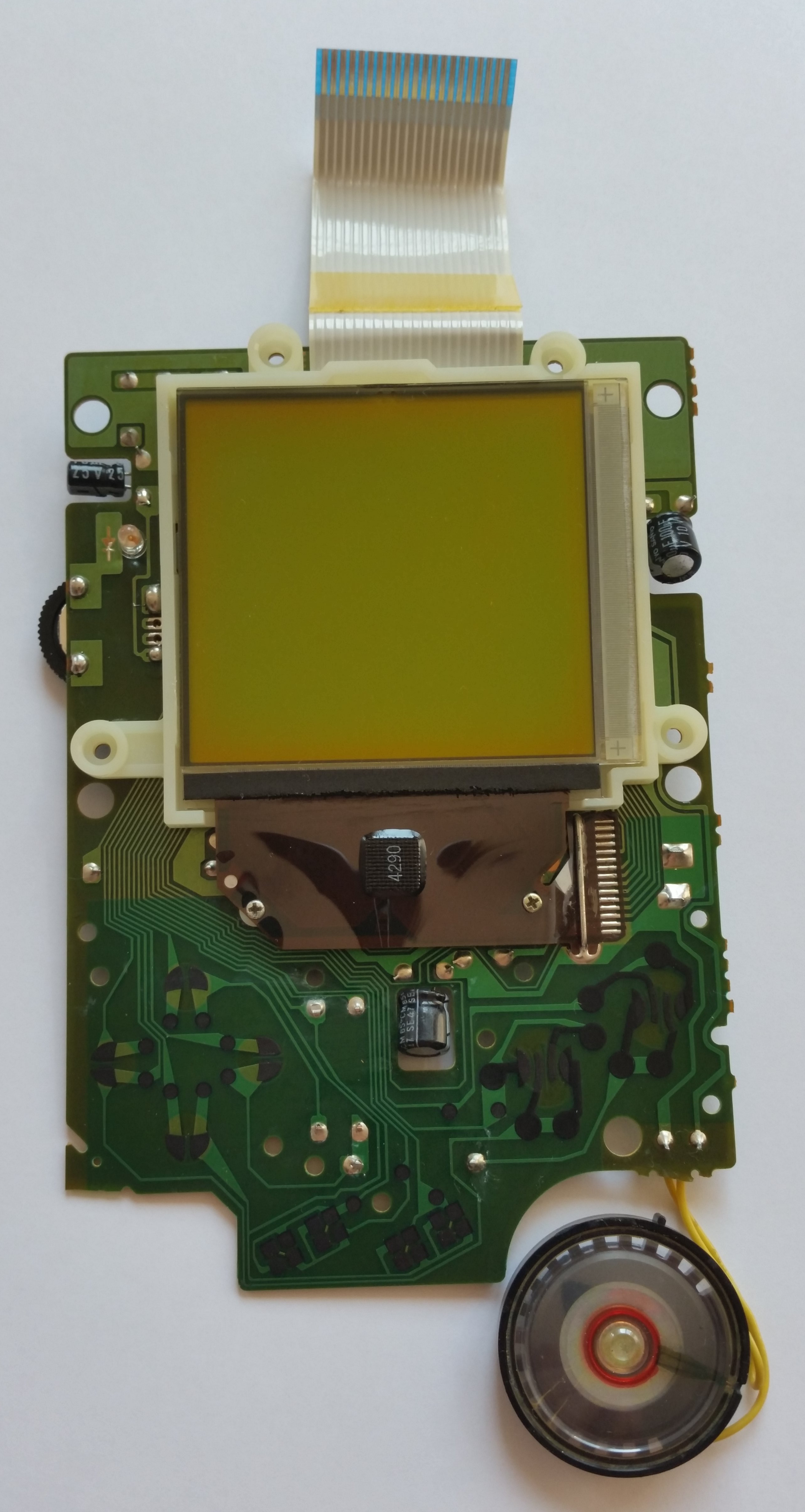

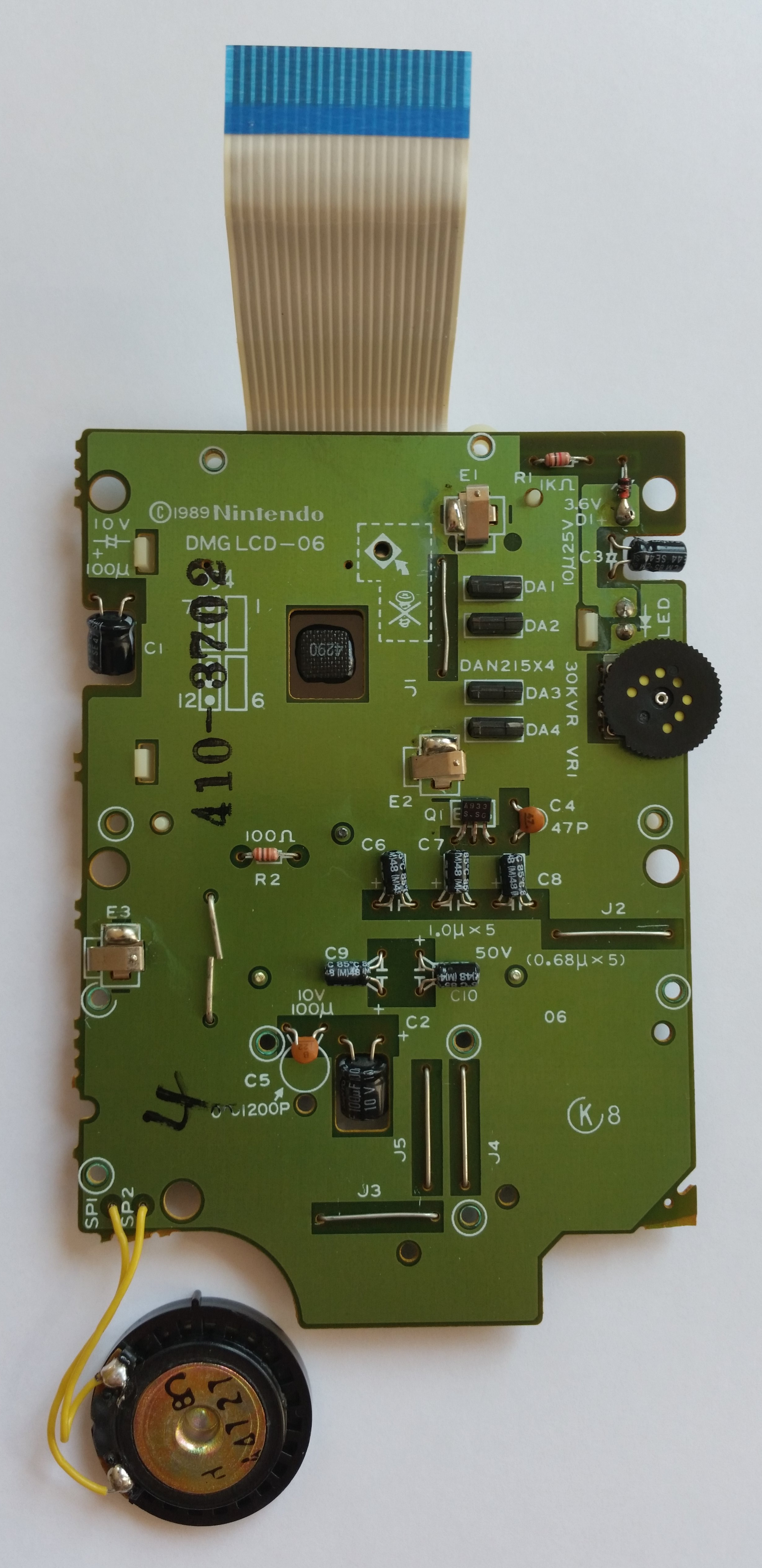

Front side of Game Boy LCD circuit boardBack side of Game Boy LCD circuit board

Board type
DMG LCD-06
Manufacture date
June/1994
Stamp on board
410-3702
Circled letter(s) on board
K8
Number pair on board
-
LCD panel label
CT
940913
LCD row cable label
F 40922
LCD panel date
September/1994

Power Board

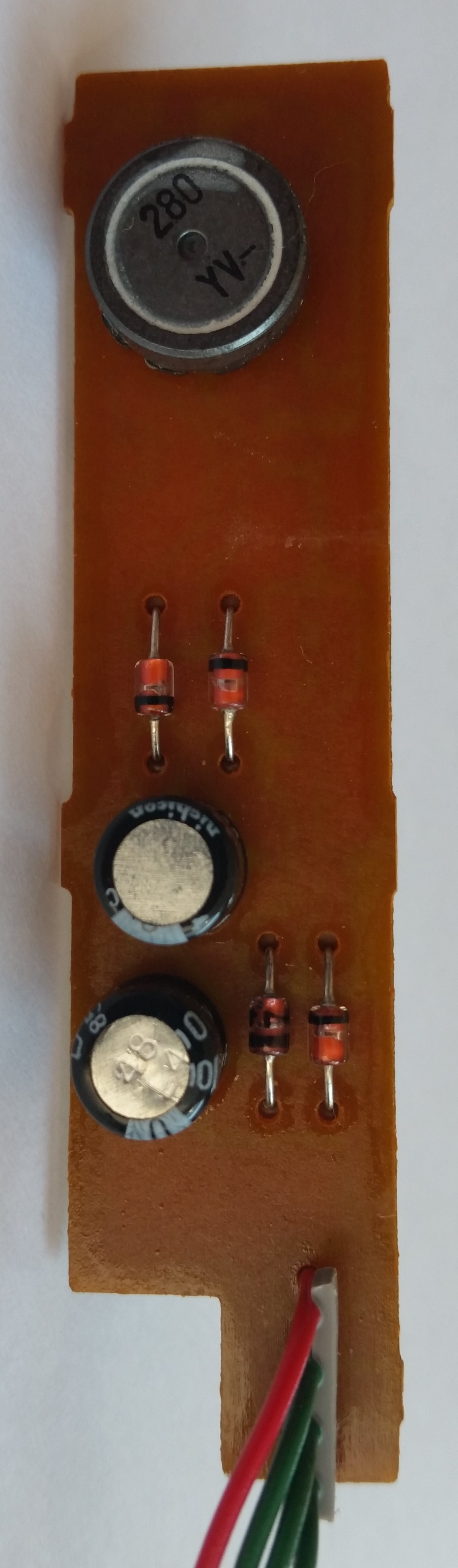

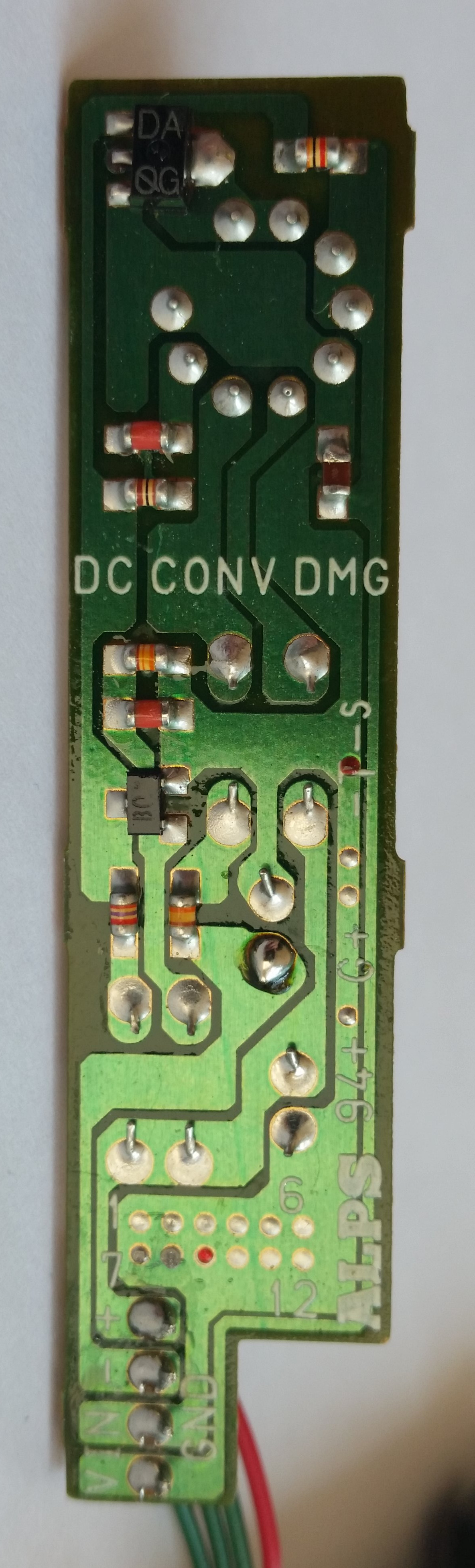

Front side of Game Boy power circuit boardBack side of Game Boy power circuit board

Board type
C
Manufacture date
September/1994
Label
DC CONV DMG

Jack Board

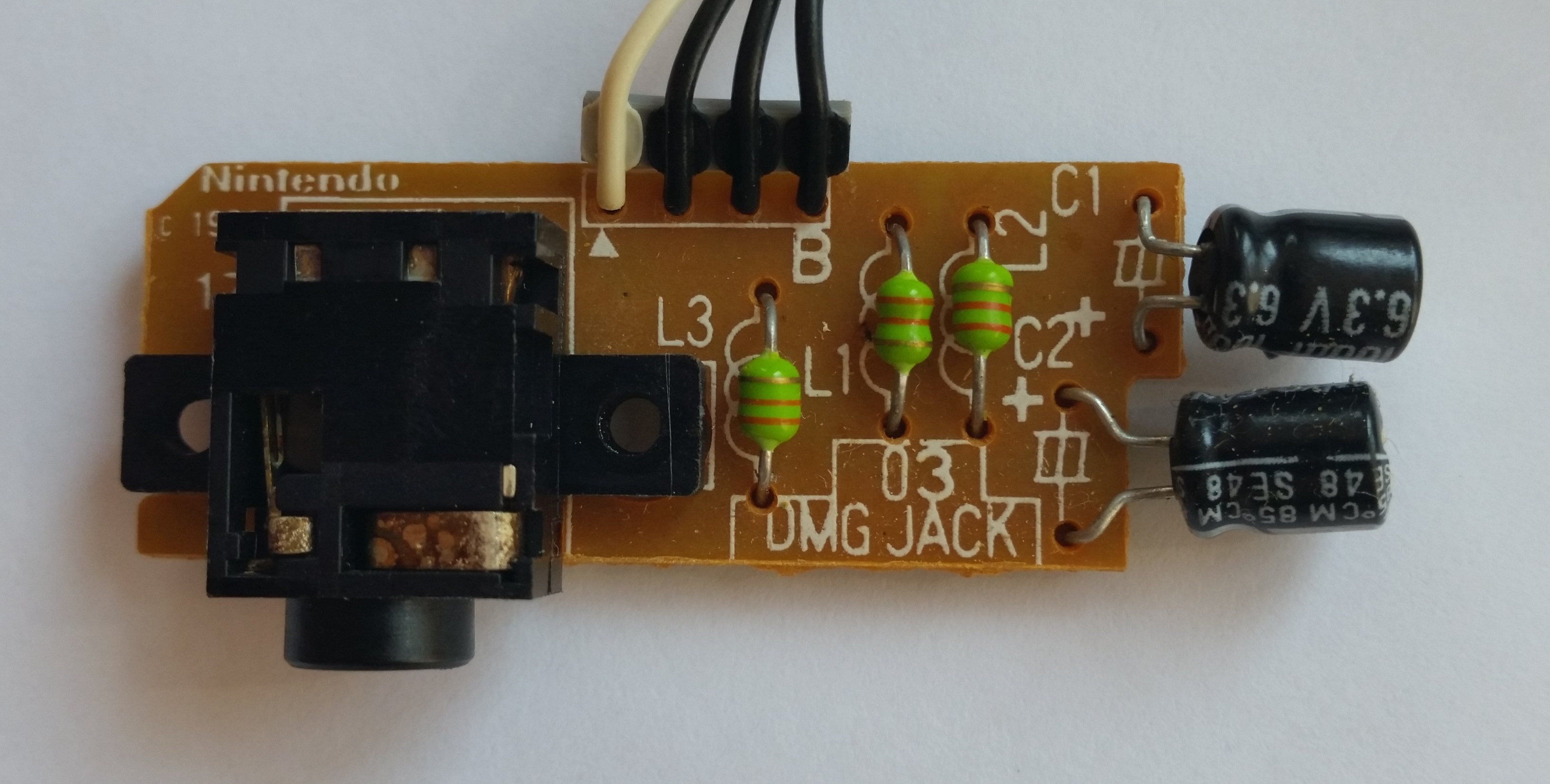

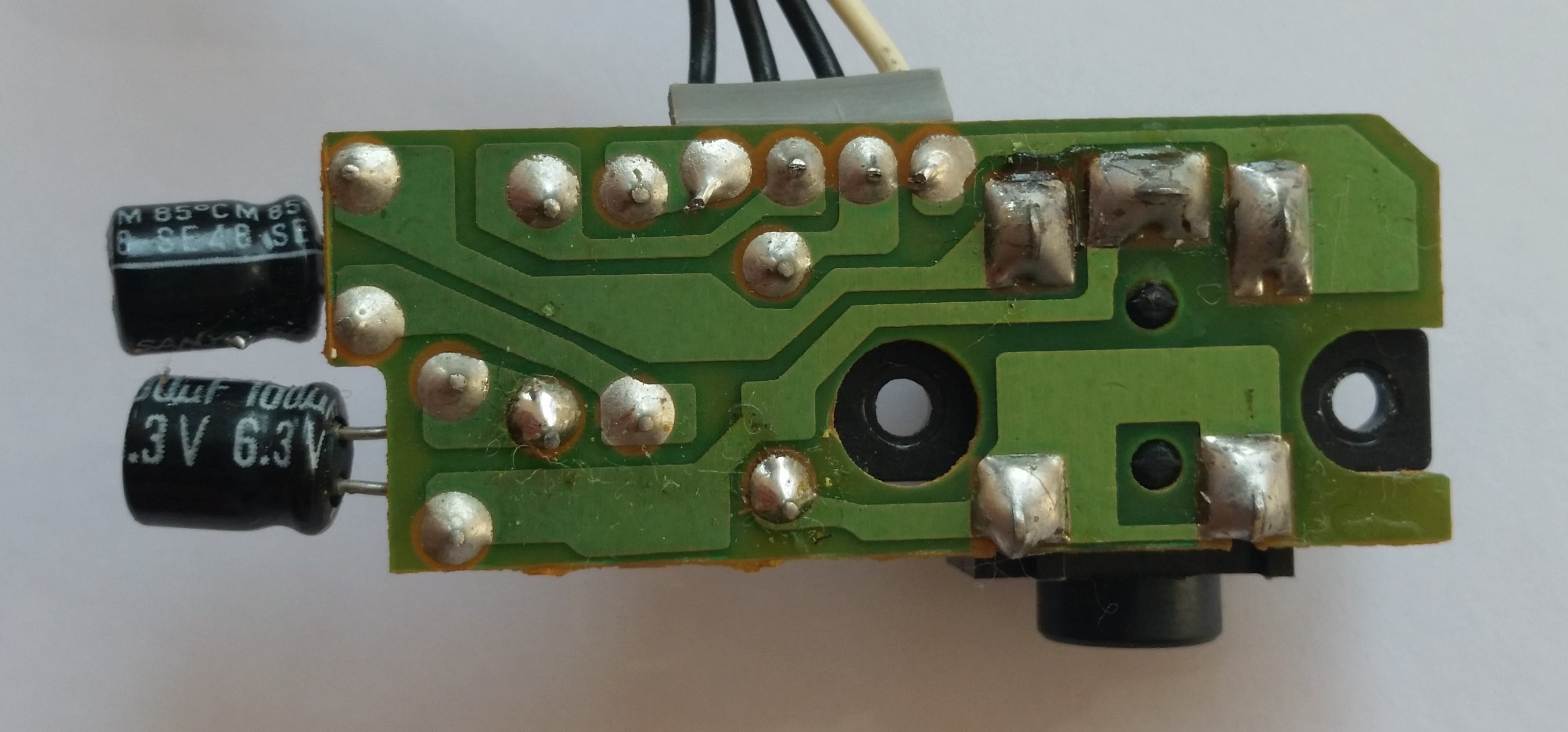

Front side of Game Boy headphone jack circuit boardBack side of Game Boy headphone jack circuit board

Board type
DMG JACK 03
Extra label
17

Chips

 ChipTypeManufacturerDateLabel
U1CPUDMG-CPU B (blob)??
B
U2Video RAM???
-
U3Work RAM???
-
U4Amplifier???
-
X1Crystal??August/1994
4.194R4H
-LCD Column DriverLH5077 BFSharpWeek 29/1994
LH5077 BF
4290
-LCD Row DriverLH5076 BFSharpWeek 29/1994
LH5076 BF
4290
-LCD RegulatorIR3E02SharpWeek 21/1994
DMG-REG
IR3E02
9421 CB

Notes

- Link port cover was missing:
    -> Attached replica part

Misc

CPU works
yes
