DMG: [iceboy] #39 - GH2682651

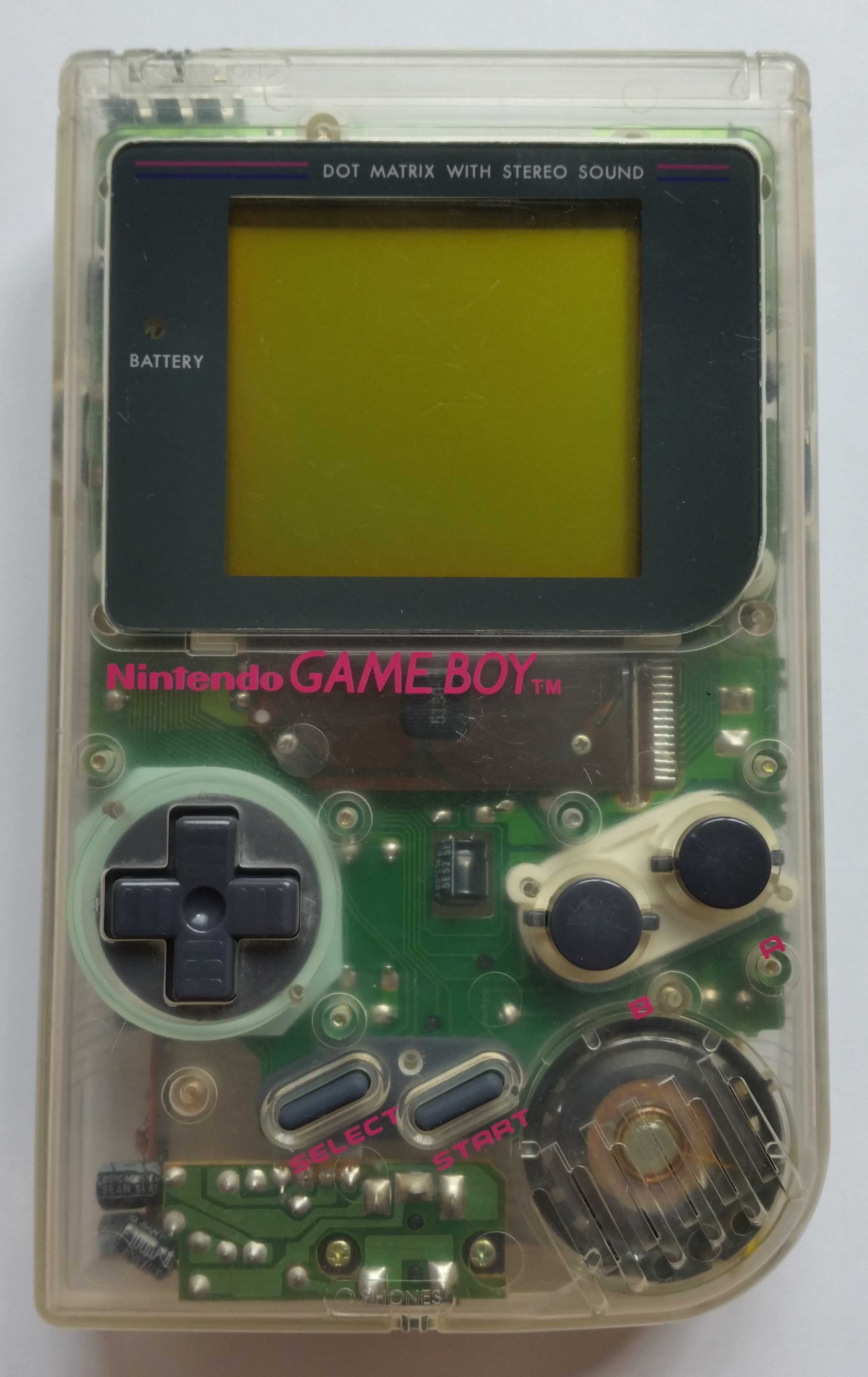

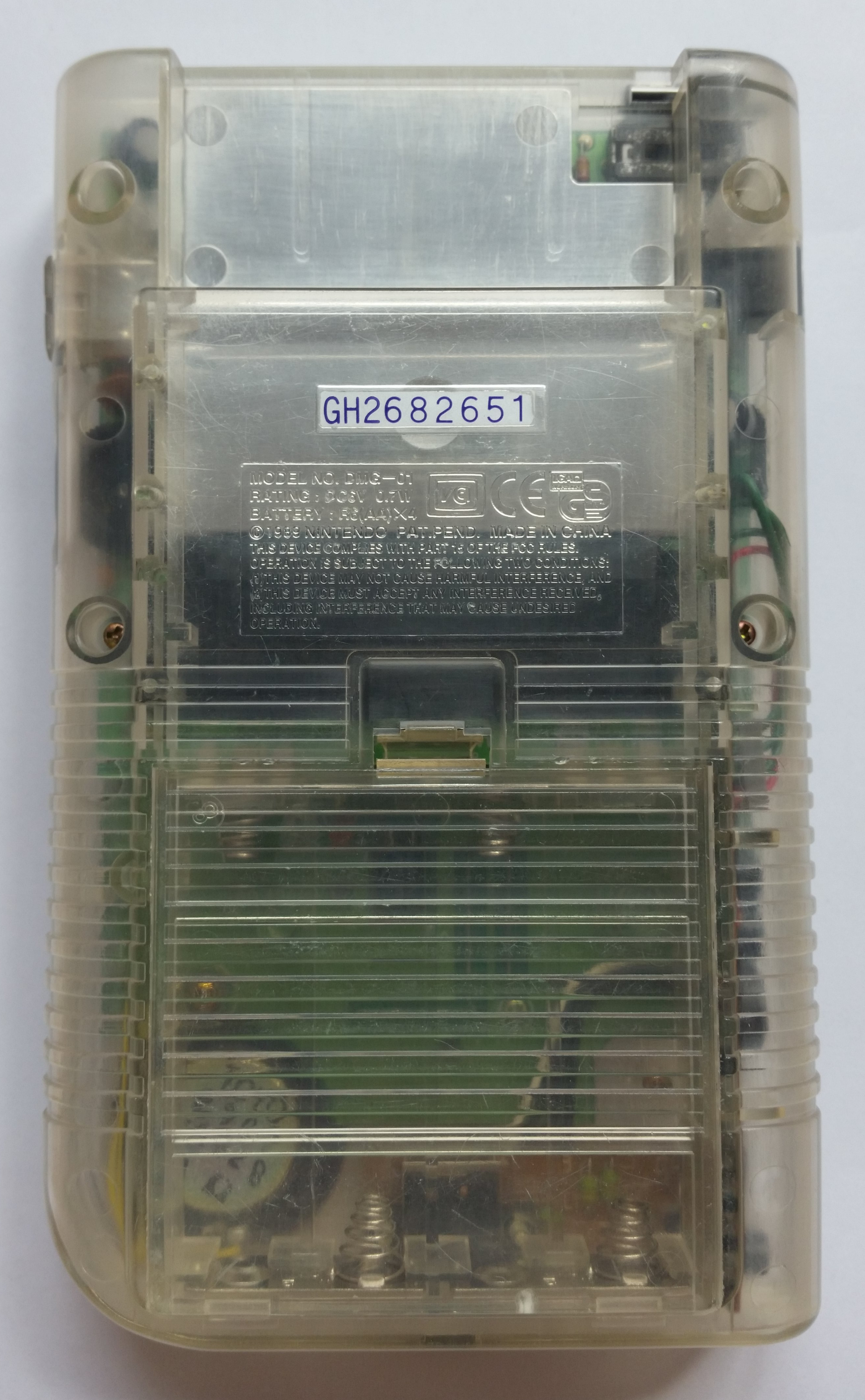

Front side of Game BoyBack side of Game Boy

Color
high-tech-transparent
Screws
tri-wing
Assembly date
June/1995

Mainboard

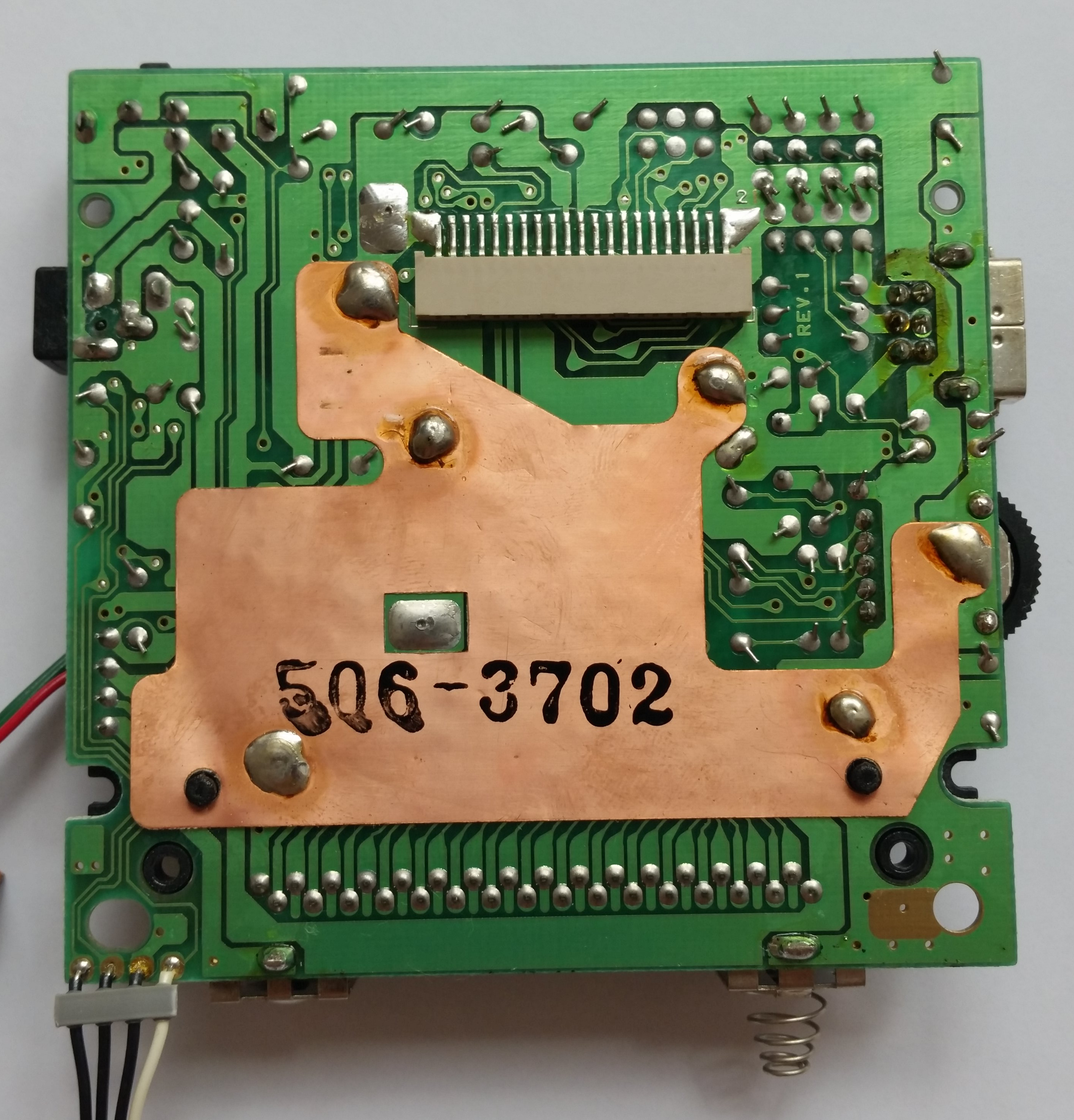

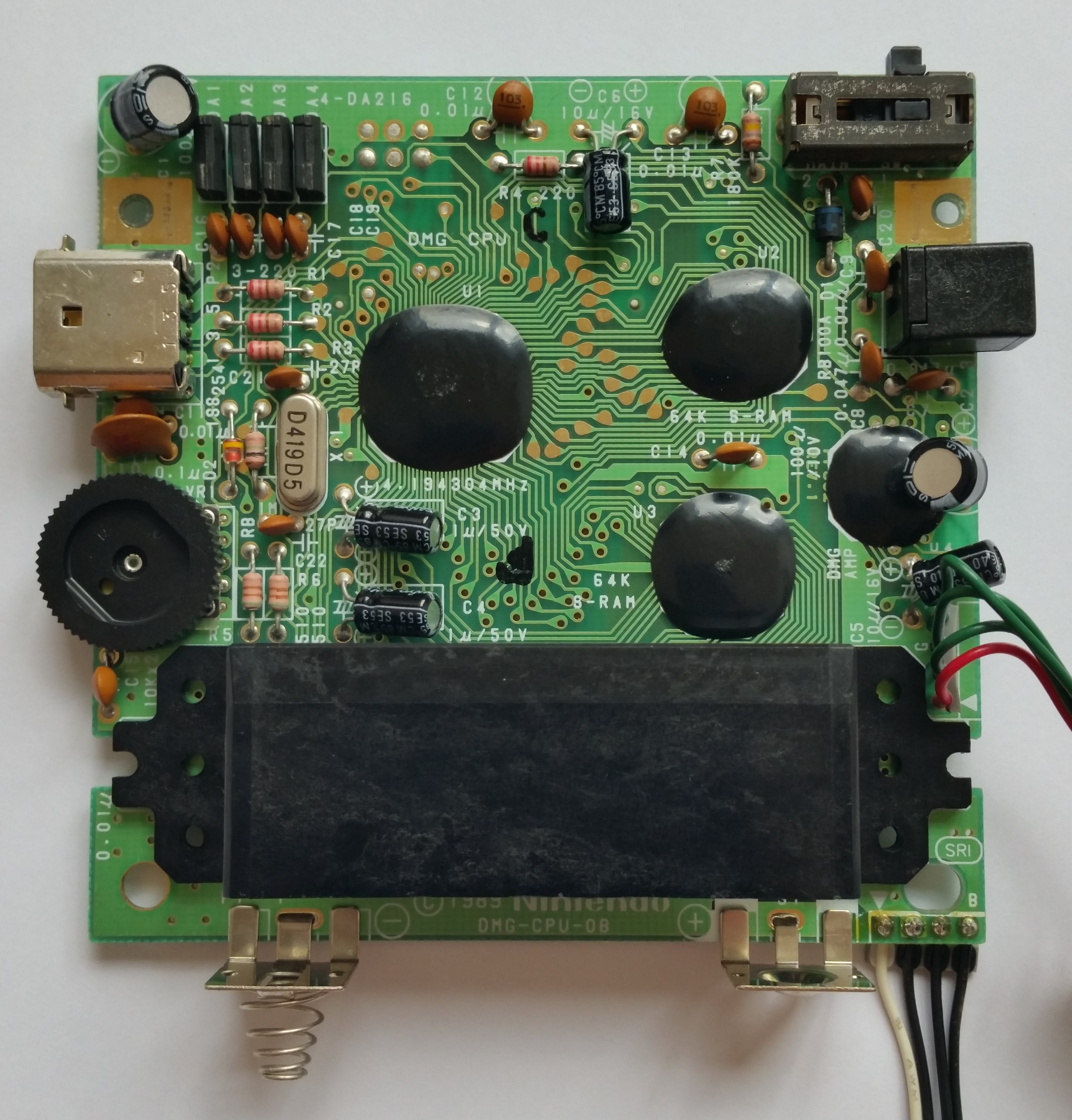

Front side of Game Boy main circuit boardBack side of Game Boy main circuit board

Board type
DMG-CPU-08
Stamp on board
506-3702
Circled letter(s) on board
SRI
Extra label
REV.1

LCD Board

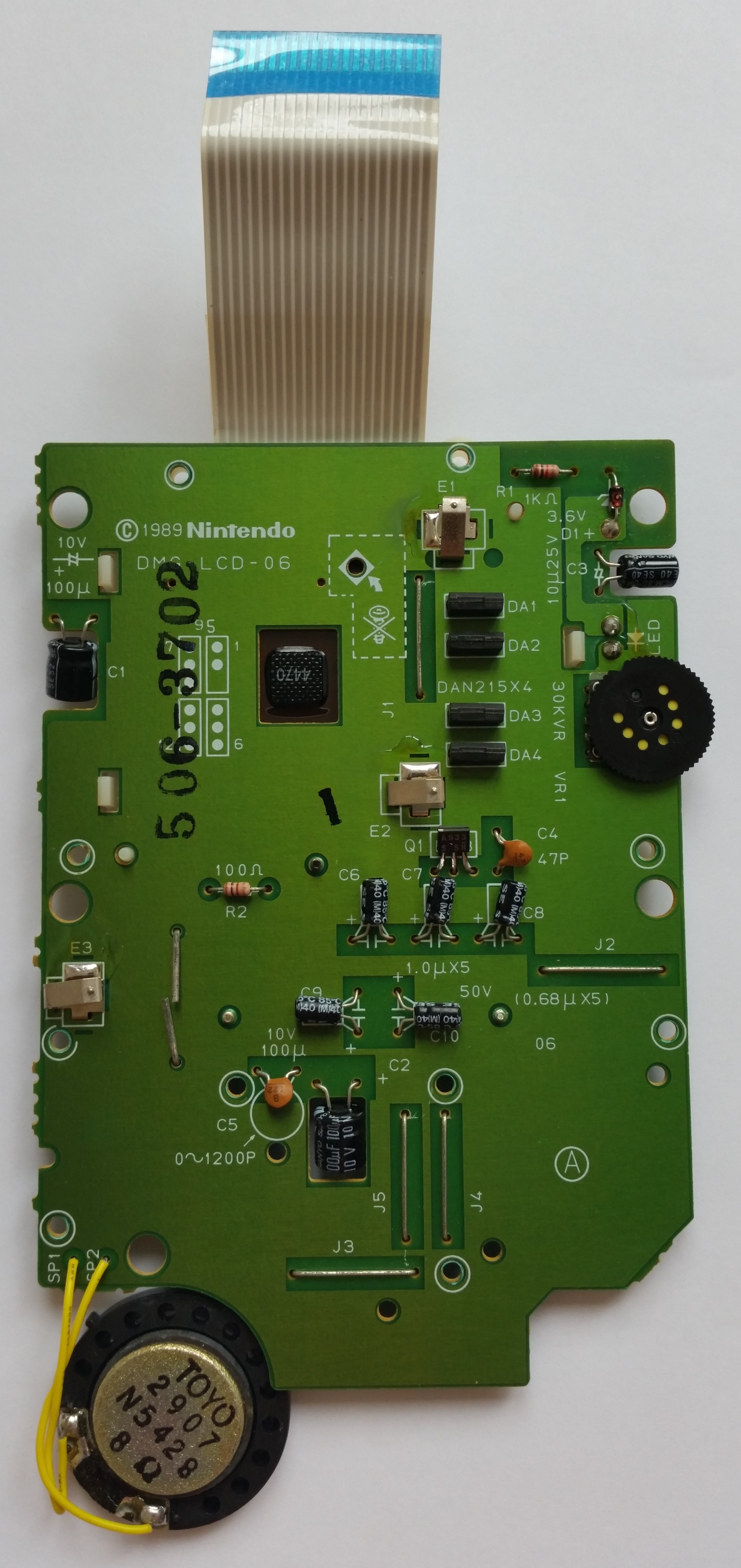

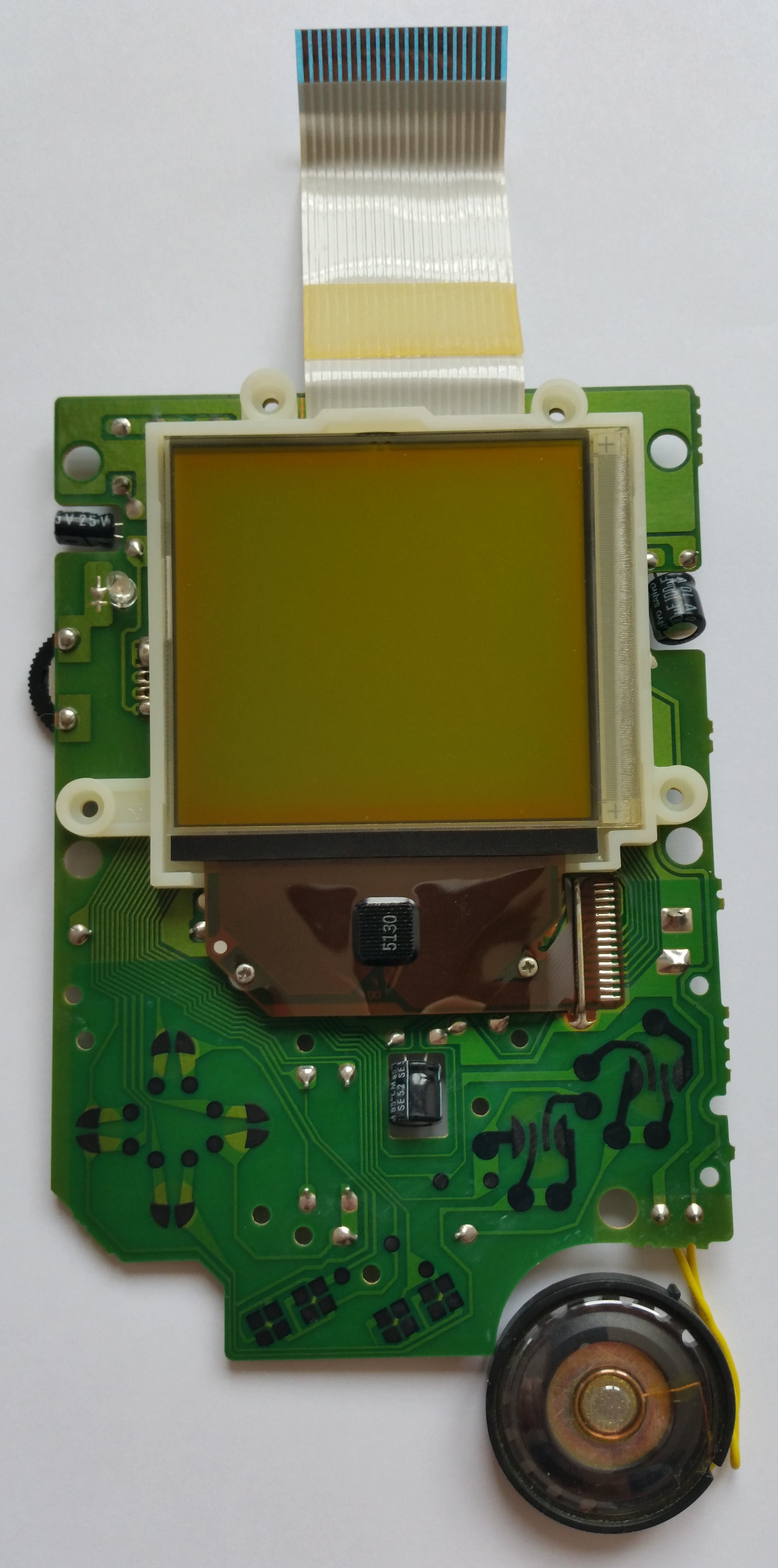

Front side of Game Boy LCD circuit boardBack side of Game Boy LCD circuit board

Board type
DMG-LCD-06
Manufacture date
March/1995
Stamp on board
506-3702
Circled letter(s) on board
A
Number pair on board
-
LCD panel label
N1ST
954017
LCD row cable label
55 0426
LCD panel date
April/1995

Power Board

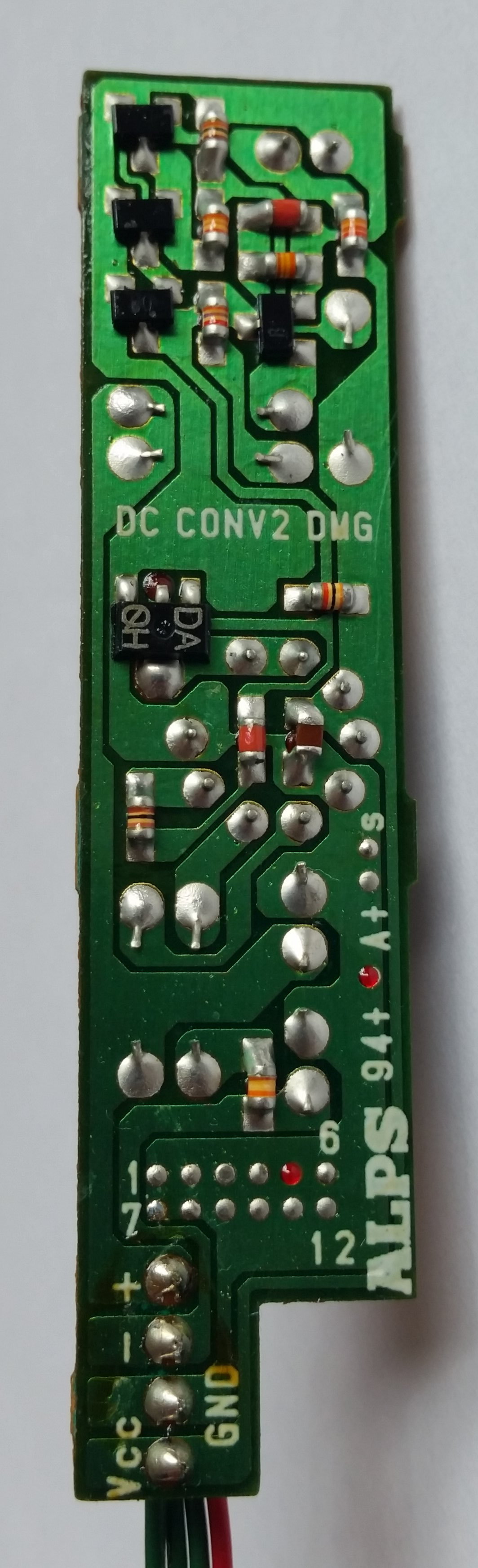

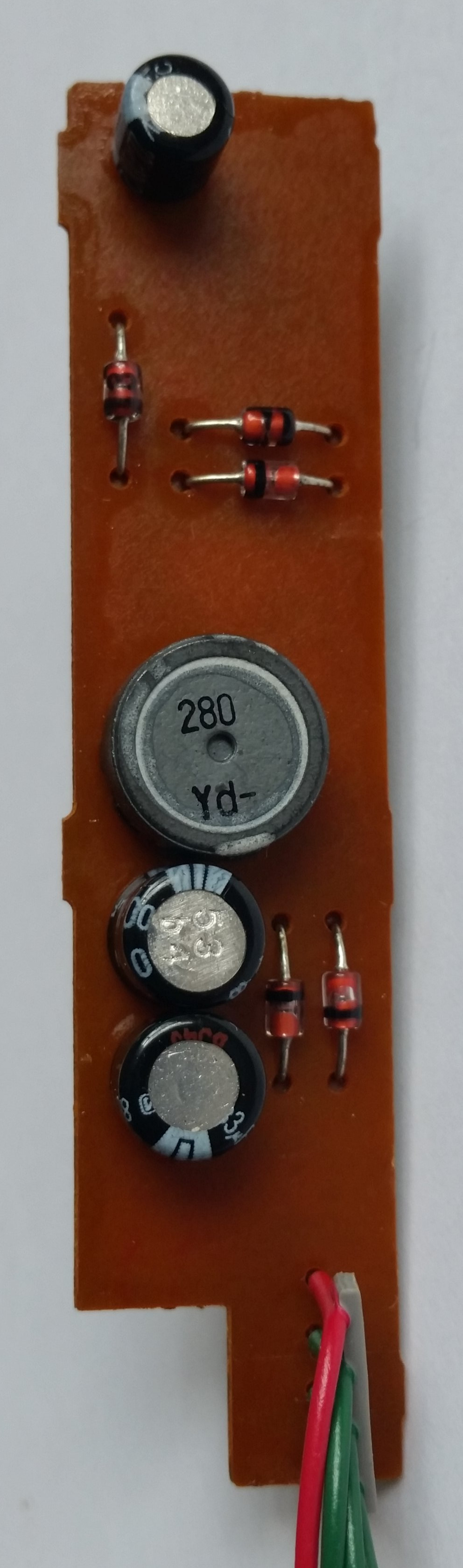

Front side of Game Boy power circuit boardBack side of Game Boy power circuit board

Board type
D
Manufacture date
May/1994
Label
DC CONV2 DMG

Jack Board

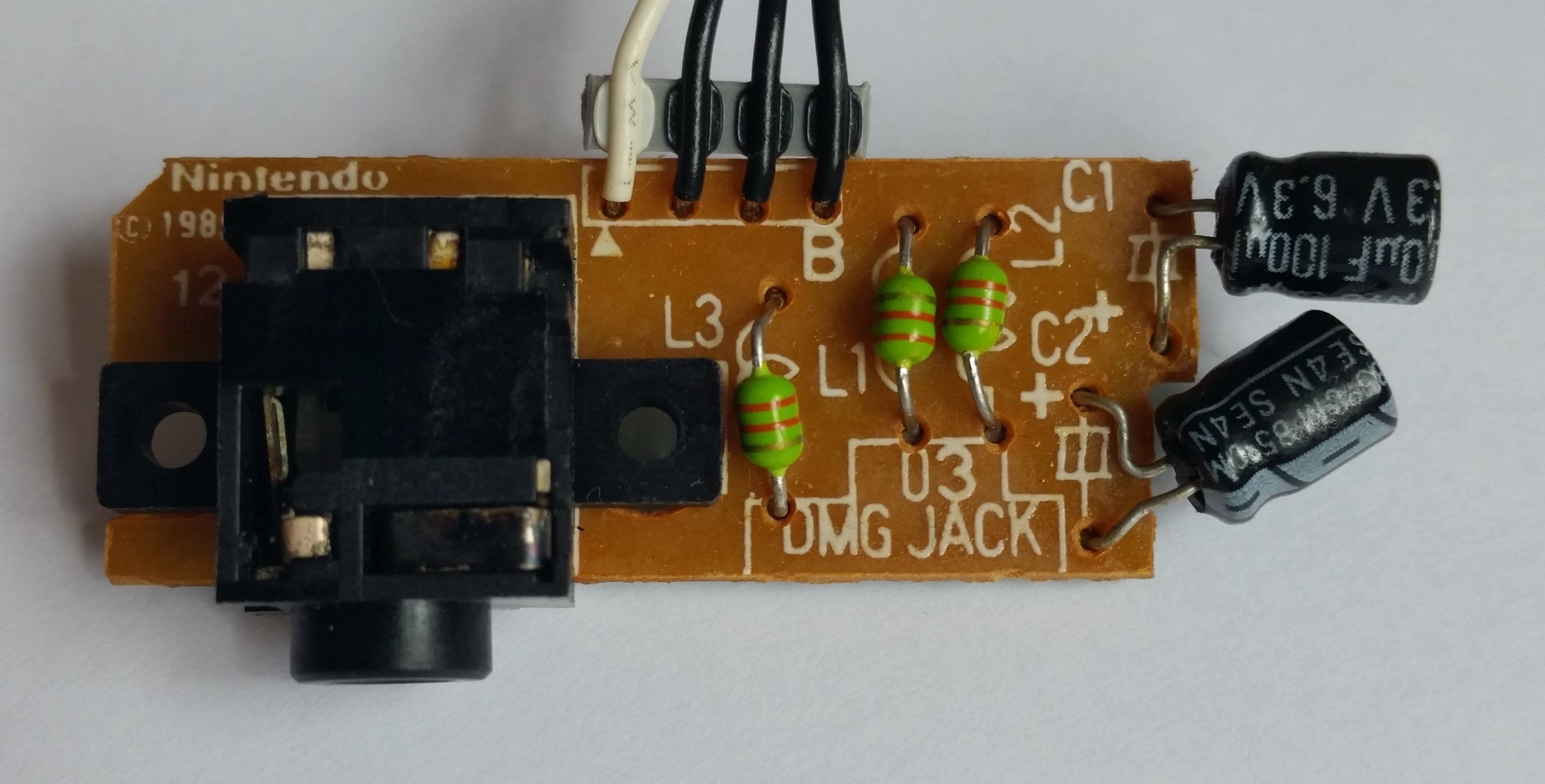

Front side of Game Boy headphone jack circuit boardBack side of Game Boy headphone jack circuit board

Board type
DMG JACK 03
Extra label
12

Chips

 ChipTypeManufacturerDateLabel
U1CPUDMG-CPU C (blob)??
C
U2Video RAM???
-
U3Work RAM???
-
U4Amplifier???
-
X1CrystalD419DaishinkuApril/1995
D419D5
-LCD Column DriverLH5077 BFSharpWeek 13/1995
LH5077 BF
5130
-LCD Row DriverLH5076 BFSharpWeek 47/1994
LH5076 BF
4470
-LCD RegulatorIR3E02SharpWeek 15/1995
DMG-REG
IR3E02
9515 CB

Notes

- The display is actually labeled wrong: 954017

Misc

CPU works
yes
