DMG: [iceboy] #38 - GM5817254

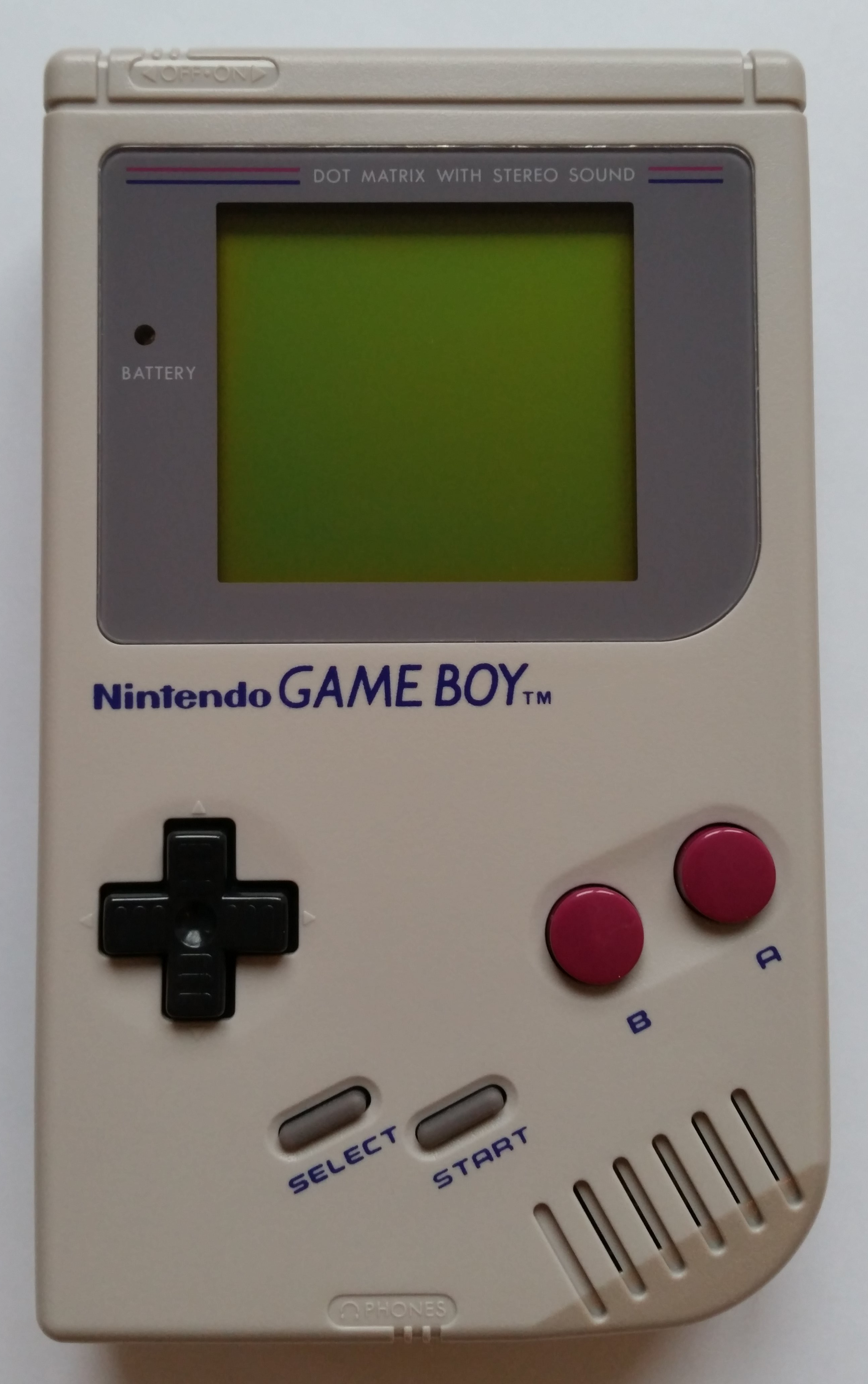

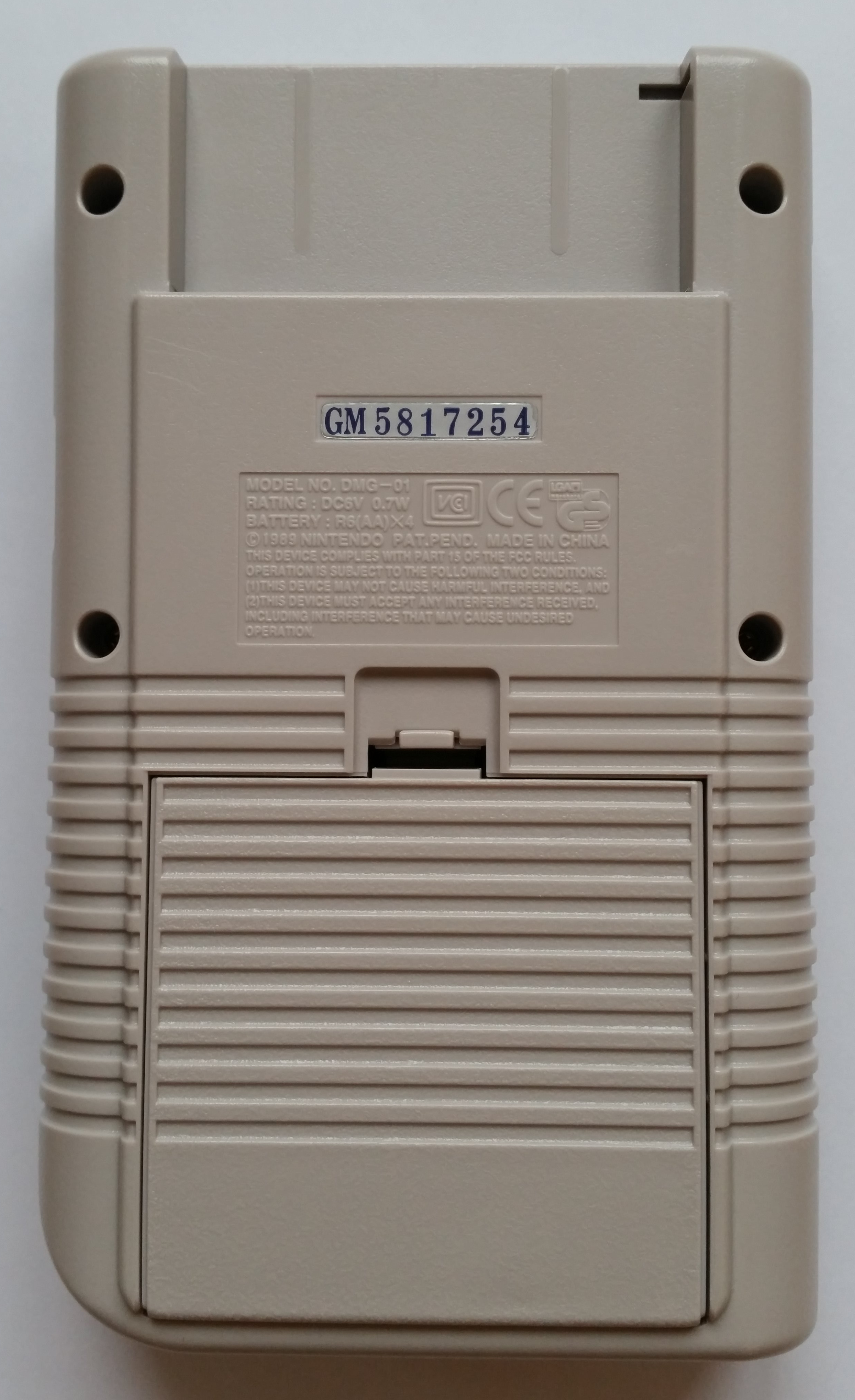

Front side of Game BoyBack side of Game Boy

Color
off-white
Screws
tri-wing
Assembly date
July/1998

Mainboard

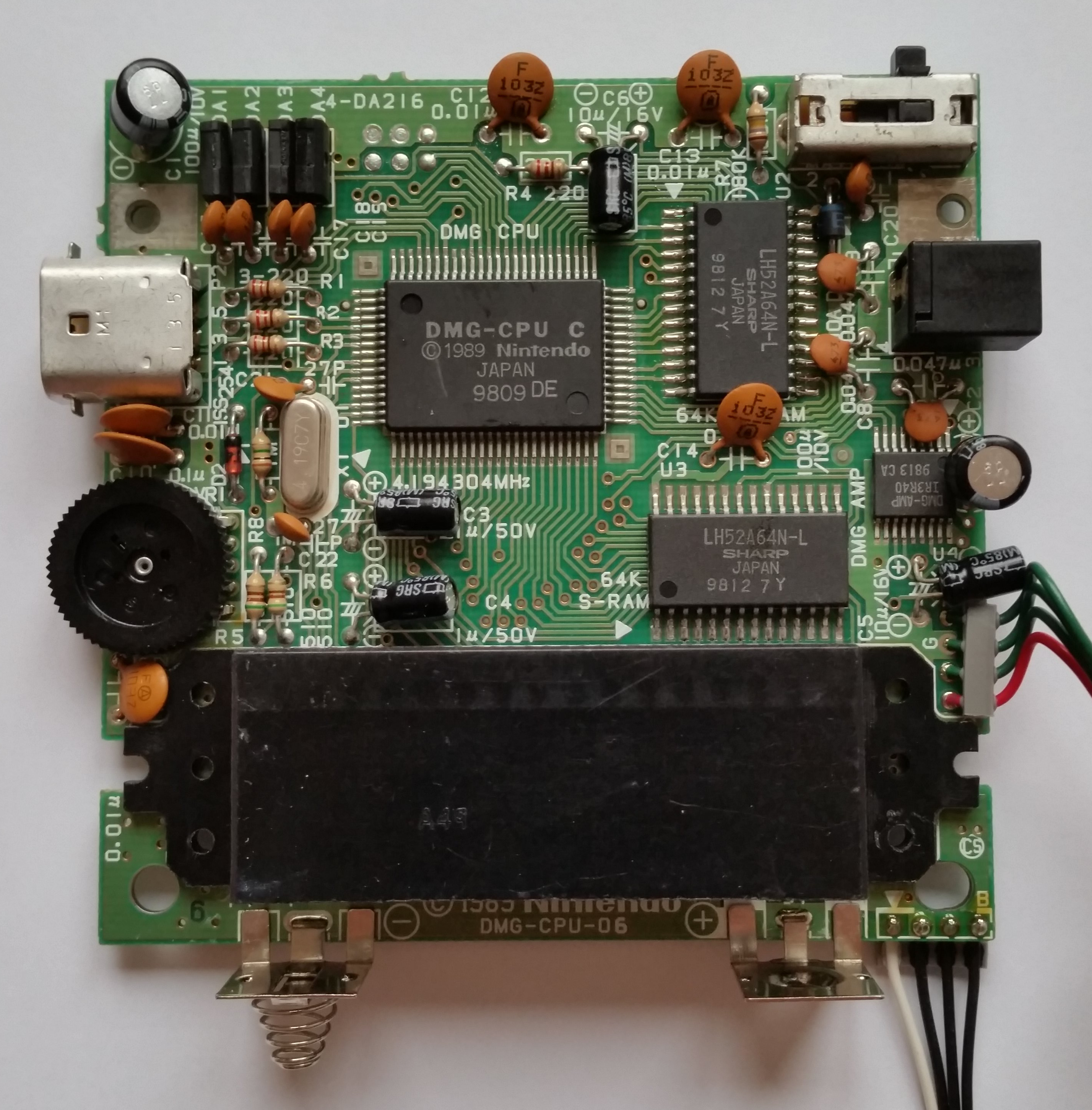

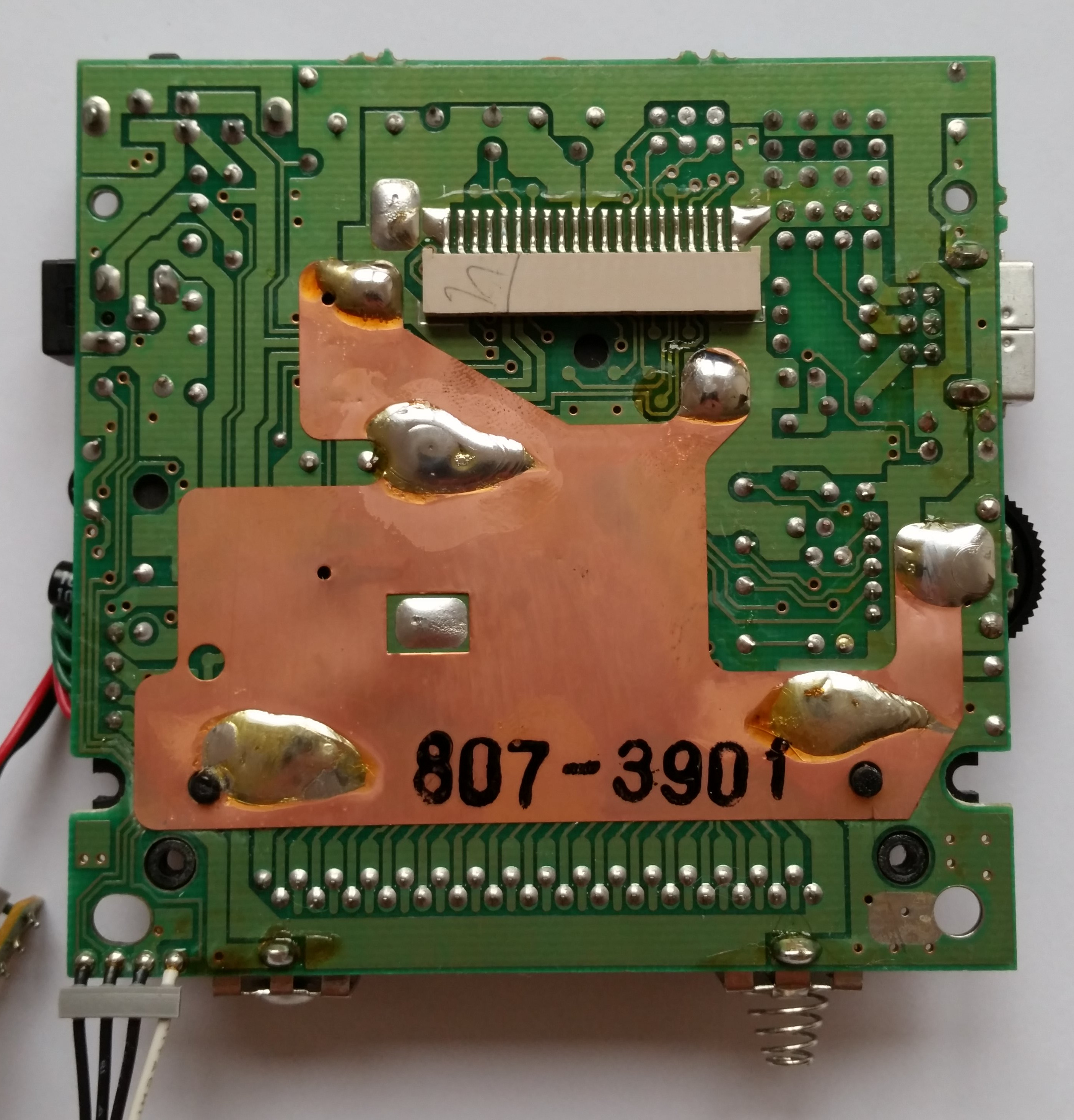

Front side of Game Boy main circuit boardBack side of Game Boy main circuit board

Board type
DMG-CPU-06
Stamp on board
807-3901
Circled letter(s) on board
CS
Extra label
6

LCD Board

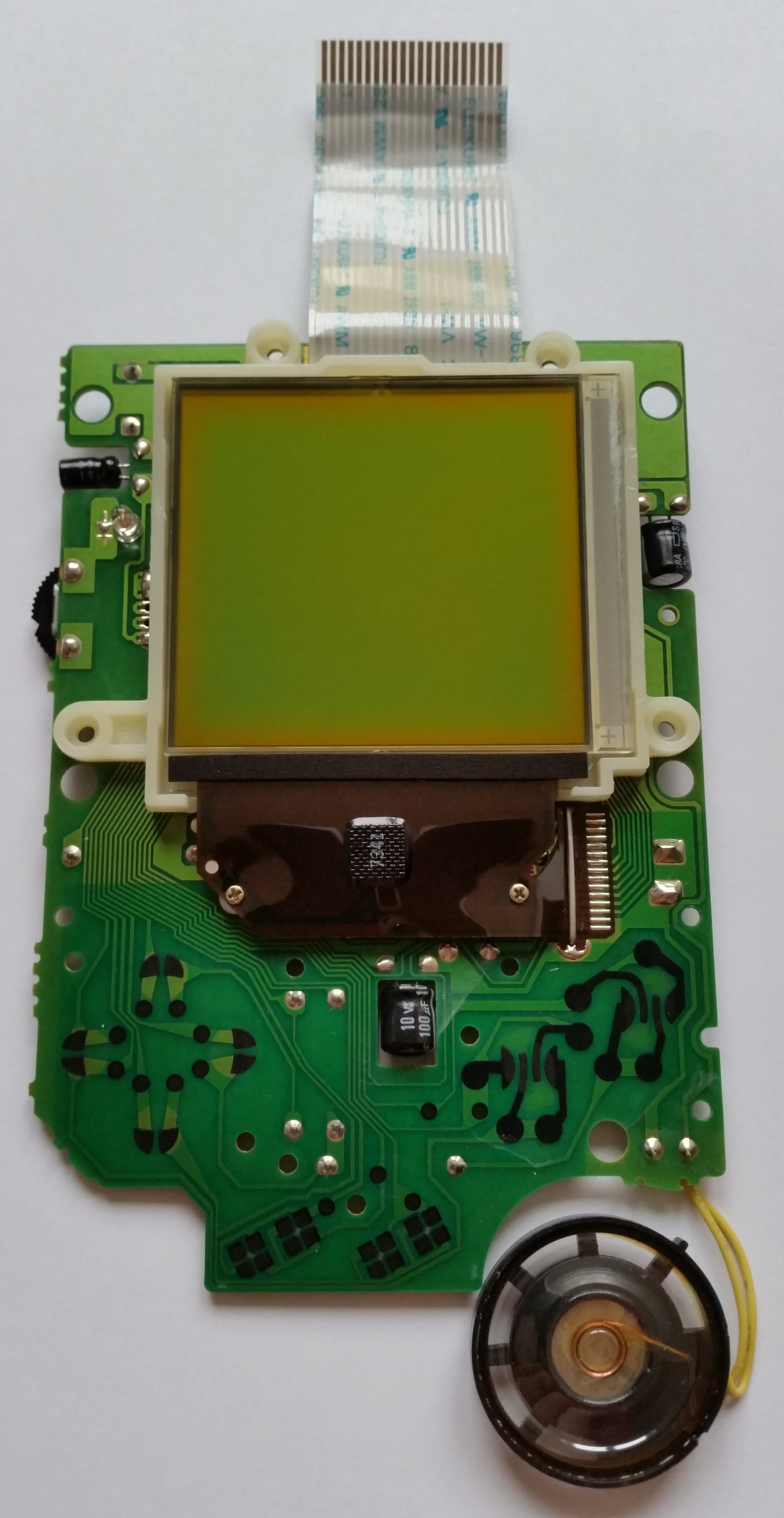

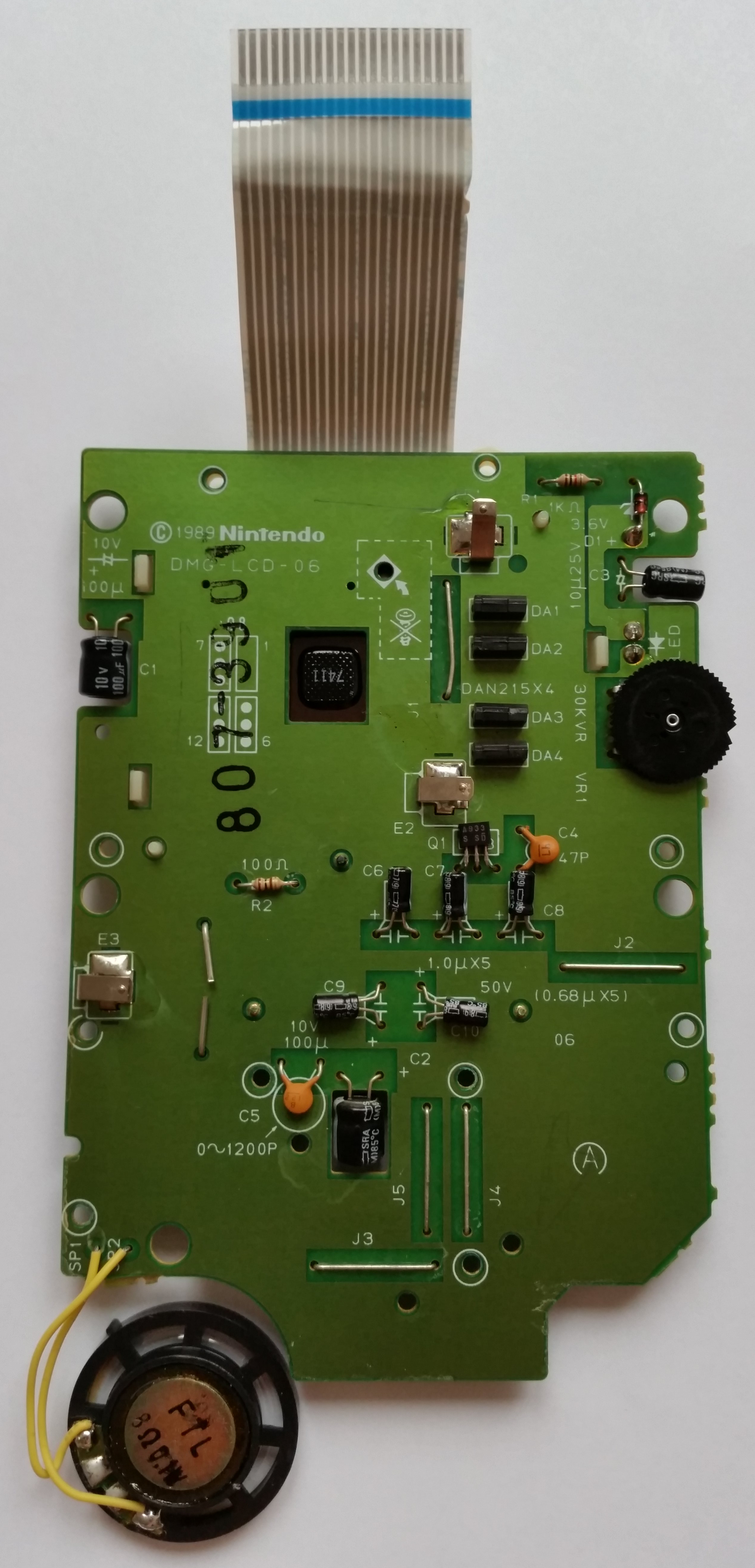

Front side of Game Boy LCD circuit boardBack side of Game Boy LCD circuit board

Board type
DMG-LCD-06
Manufacture date
March/1998
Stamp on board
807-3901
Circled letter(s) on board
A
Number pair on board
-
LCD panel label
ST
980417
LCD row cable label
380427
LCD panel date
April/1998

Power Board

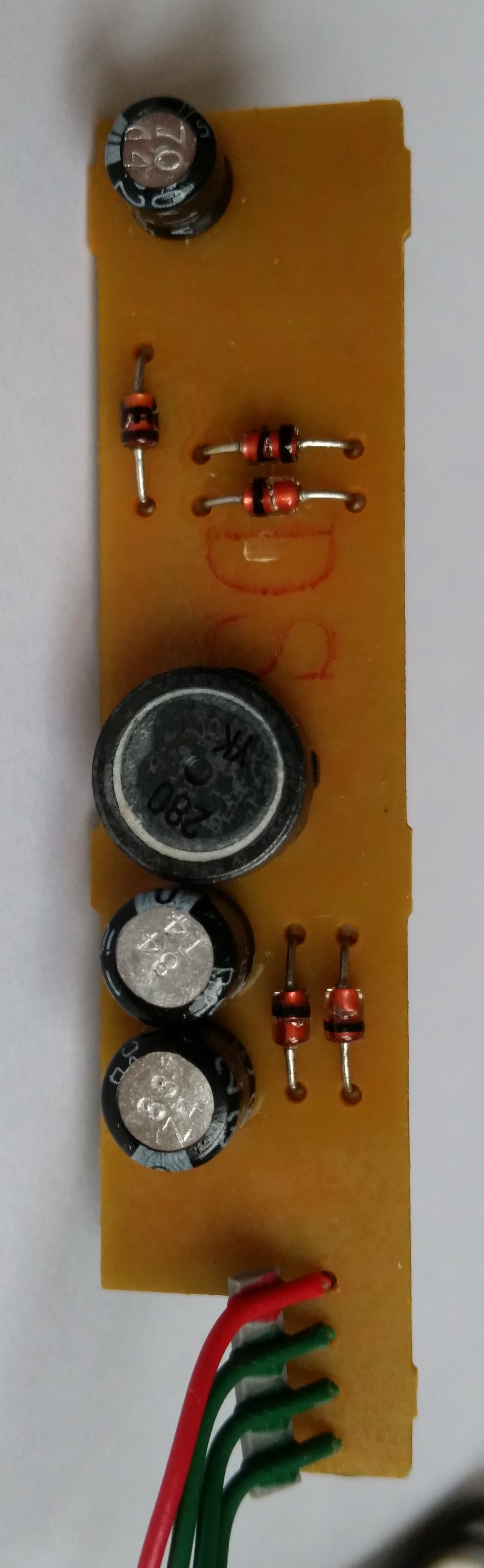

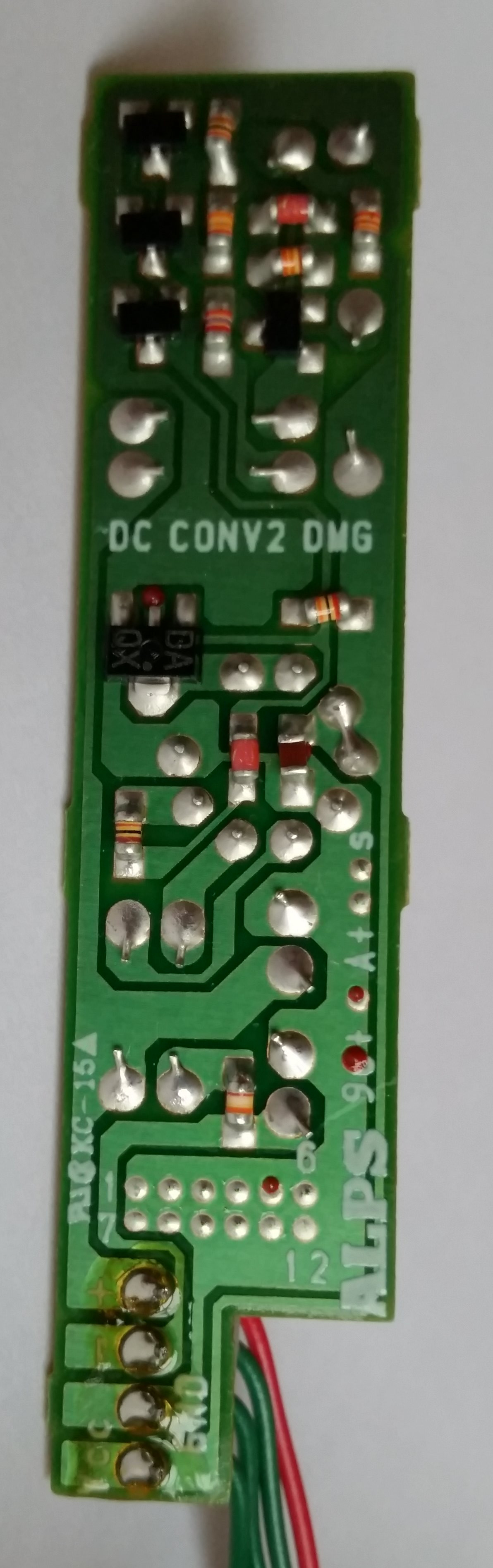

Front side of Game Boy power circuit boardBack side of Game Boy power circuit board

Board type
D
Manufacture date
May/1996
Label
DC CONV2 DMG

Jack Board

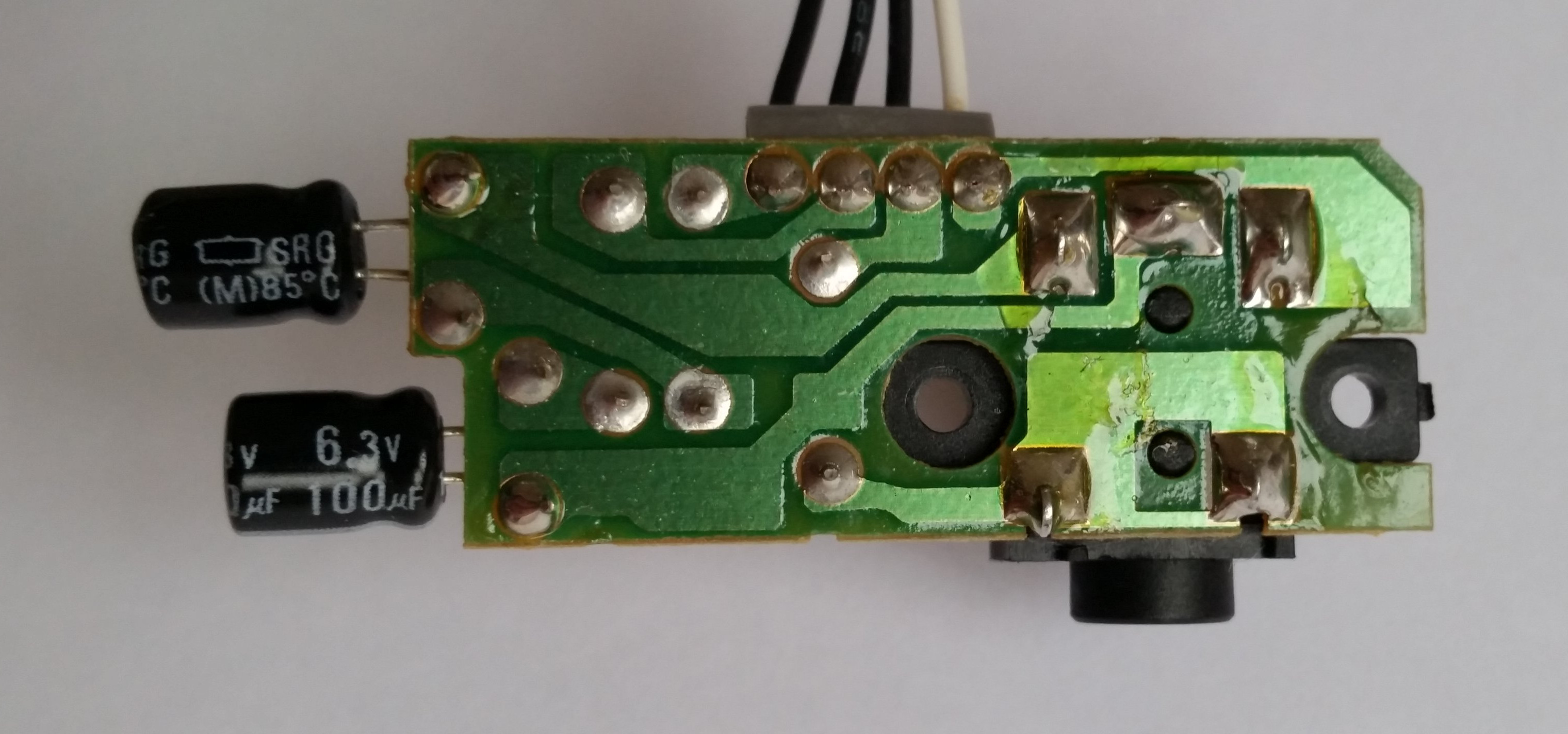

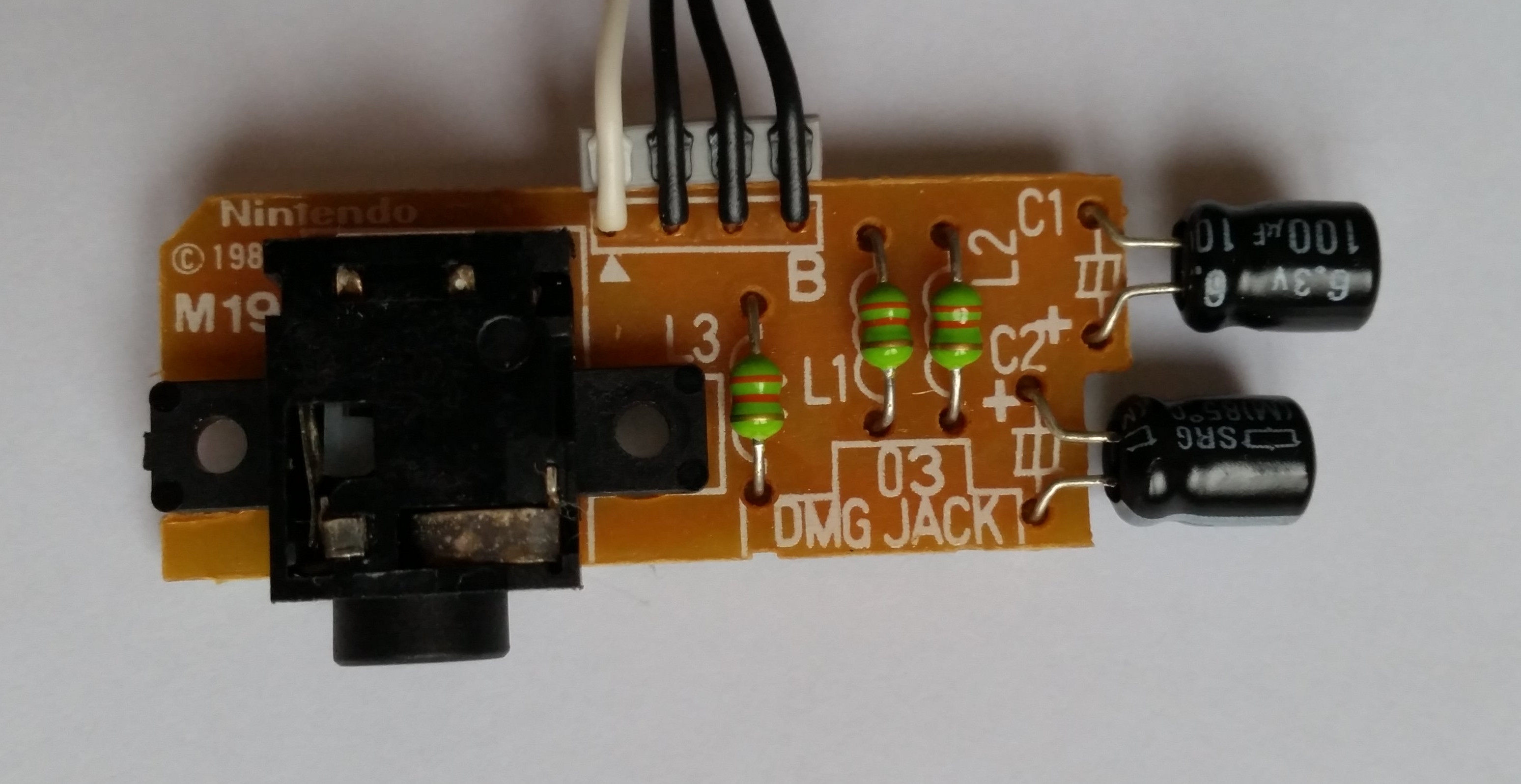

Front side of Game Boy headphone jack circuit boardBack side of Game Boy headphone jack circuit board

Board type
DMG JACK 03
Extra label
M19

Chips

 ChipTypeManufacturerDateLabel
U1CPUDMG-CPU CSharpWeek 9/1998
DMG-CPU C
© 1989 Nintendo
JAPAN
9809 DE
U2Video RAMLH52A64N-LSharpWeek 12/1998
LH52A64N-L
SHARP
JAPAN
9812 7 Y
U3Work RAMLH52A64N-LSharpWeek 12/1998
LH52A64N-L
SHARP
JAPAN
9812 7 Y
U4AmplifierIR3R40SharpWeek 13/1998
DMG-AMP
IR3R40
9813 CA
X1Crystal4.19C?November/1997
4.19C7Y
-LCD Column DriverLH5077 BFSharpWeek 34/1997
LH5077 BF
7341
-LCD Row DriverLH5076 BFSharpWeek 41/1997
LH5076 BF
7411
-LCD RegulatorIR3E02SharpWeek 17/1998
DMG-REG
IR3E02
9817 n

Notes

- Link port cover was missing:
    -> Attached replica part

Misc

CPU works
yes
