Home :: Game Boy Database :: Game Boy (DMG)

DMG: [iceboy] #36 - GM1066405

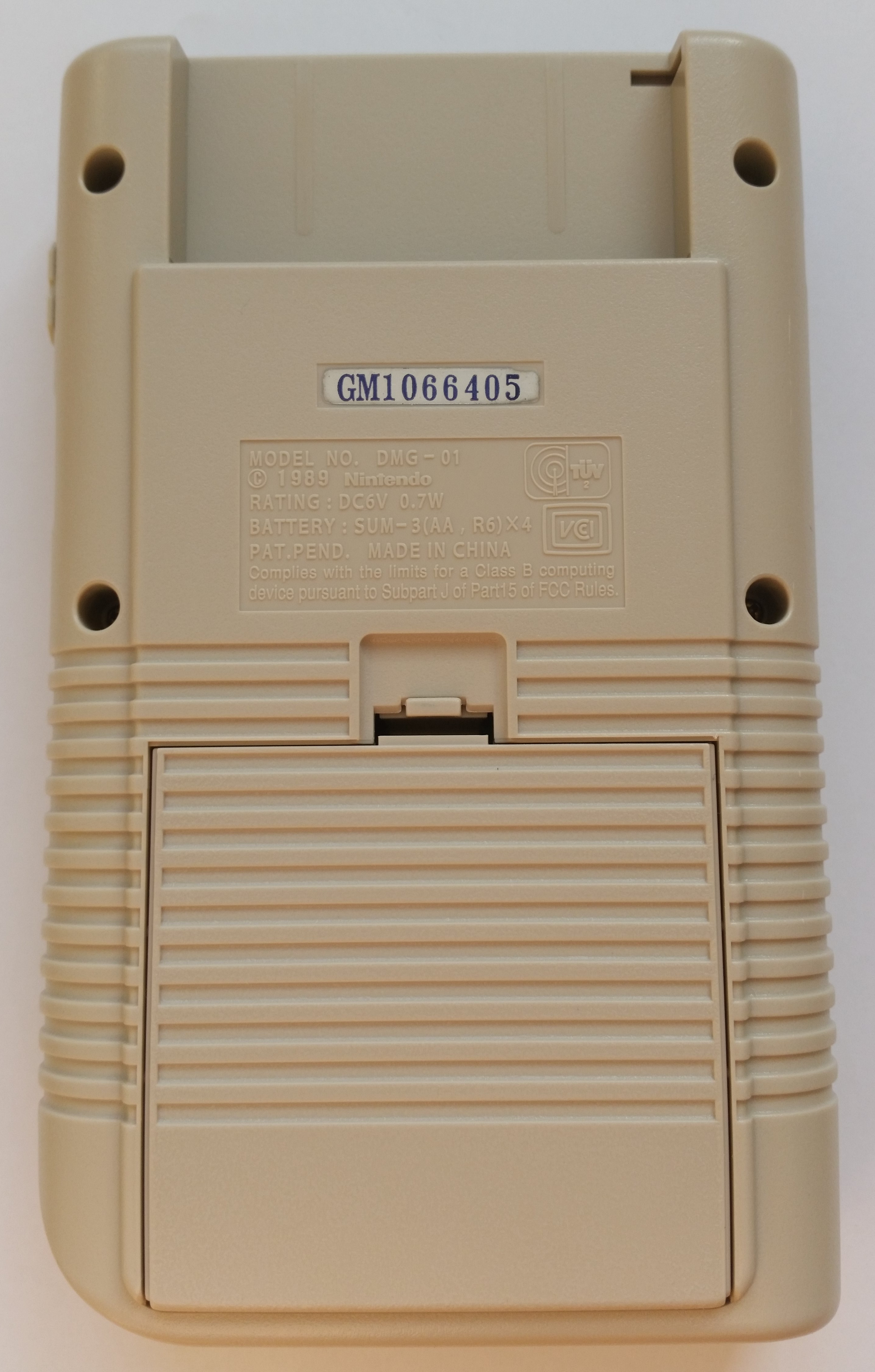

Front side of Game BoyBack side of Game Boy

Color
off-white
Screws
tri-wing
Assembly date
July/1994

Mainboard

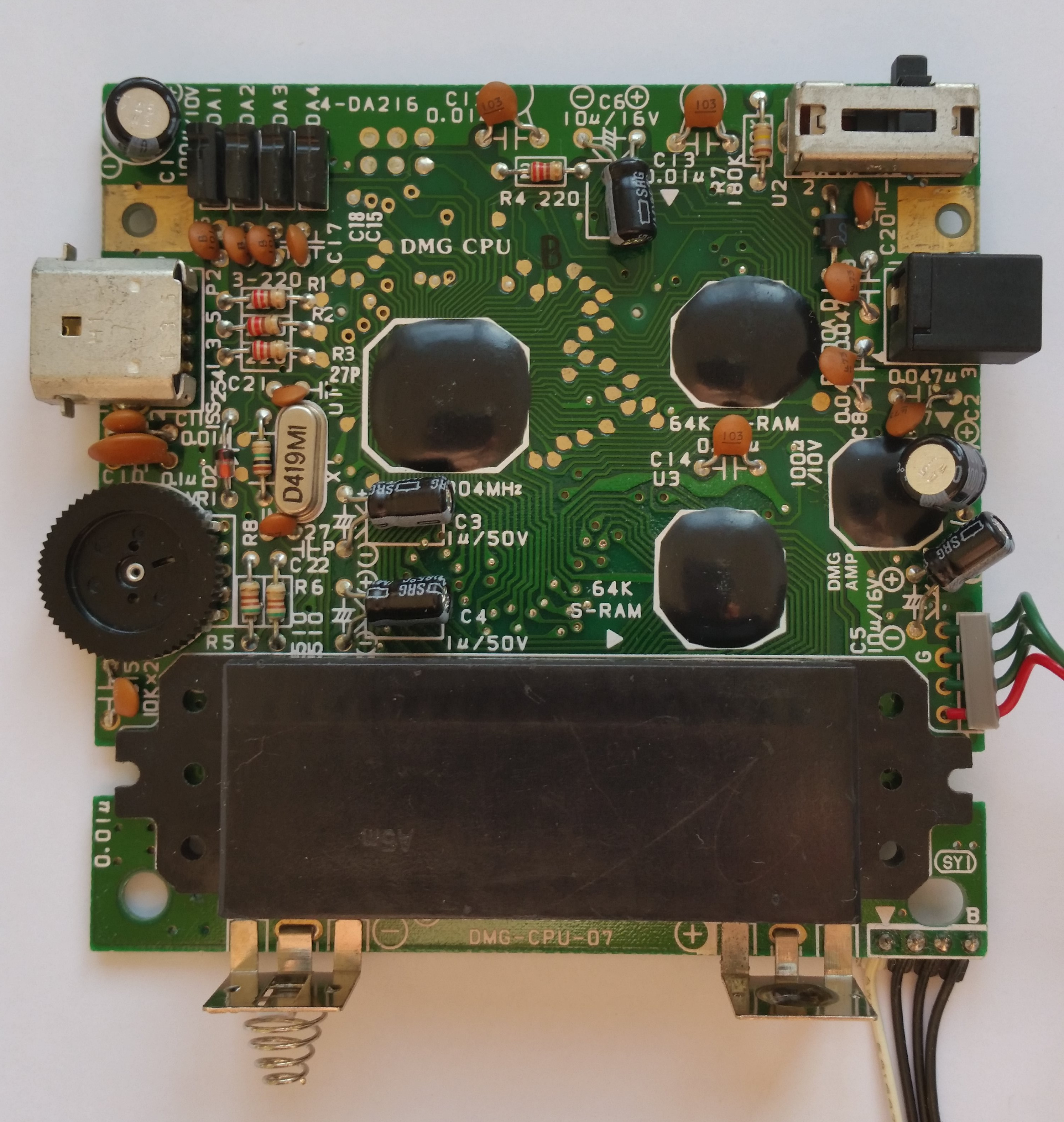

Front side of Game Boy main circuit boardBack side of Game Boy main circuit board

Board type
DMG-CPU-07
Stamp on board
407 3901
Circled letter(s) on board
SYI
Extra label
REV 1

LCD Board

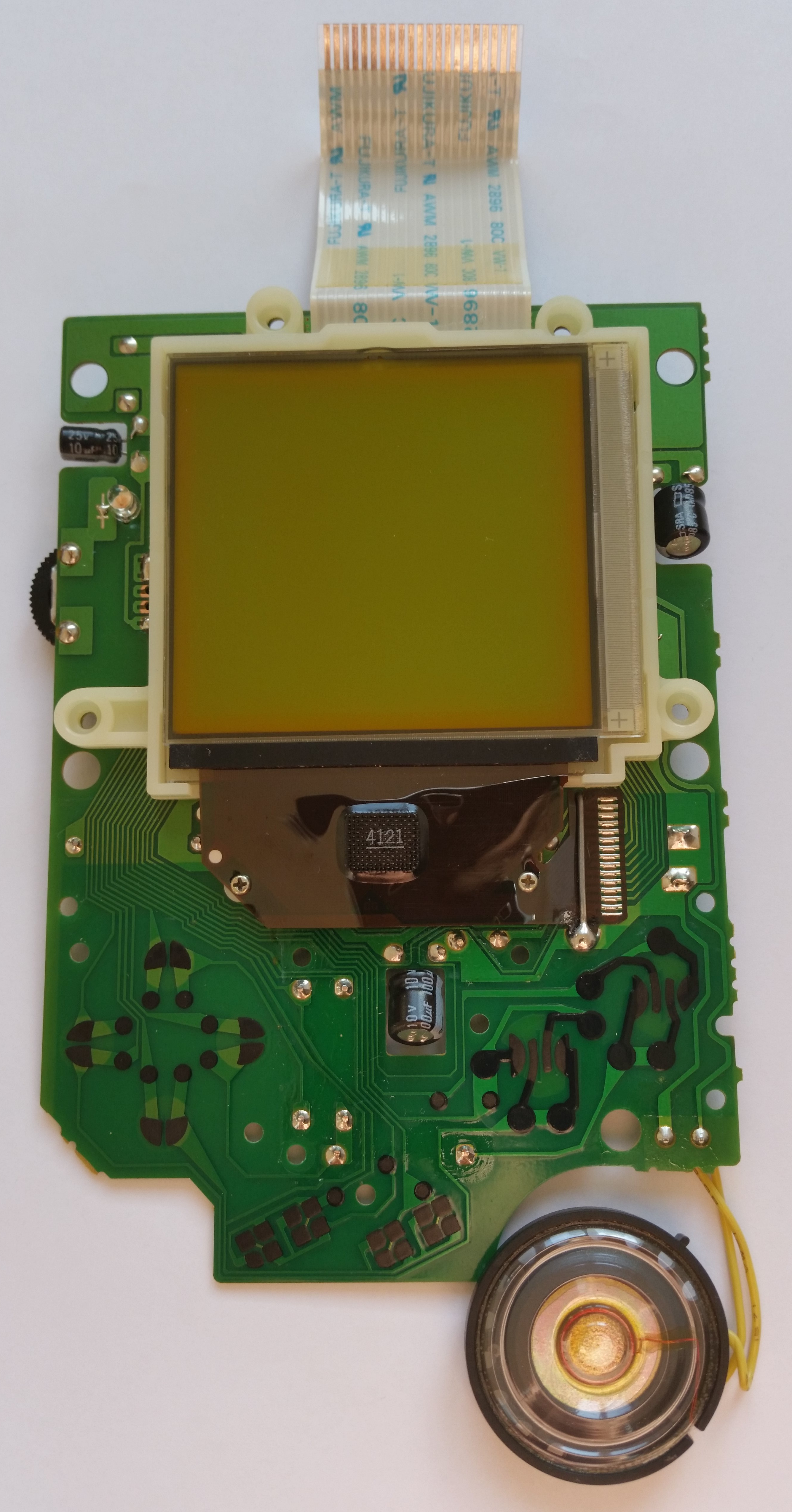

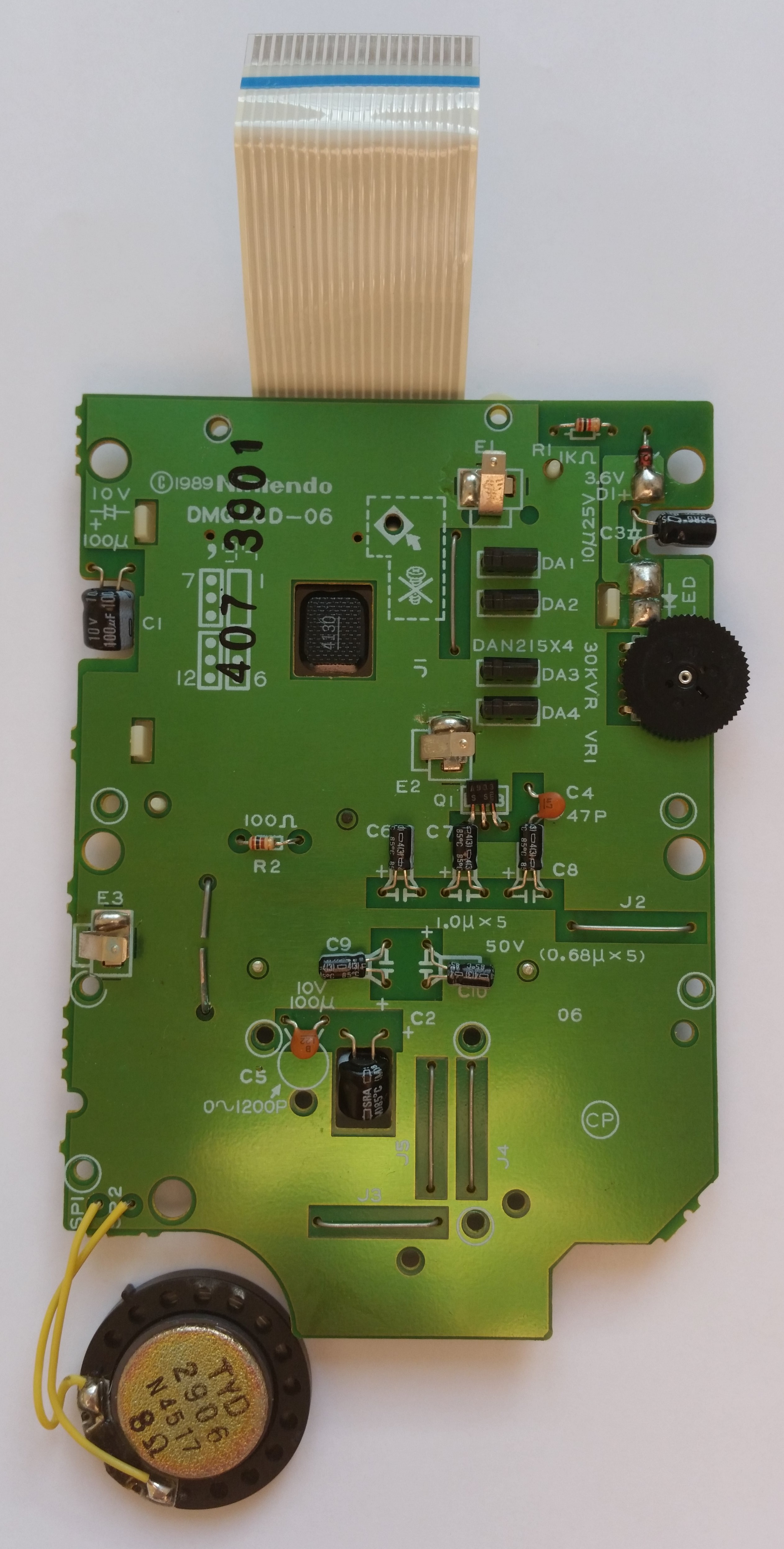

Front side of Game Boy LCD circuit boardBack side of Game Boy LCD circuit board

Board type
DMG LCD-06
Manufacture date
April/1994
Stamp on board
407 3901
Circled letter(s) on board
CP
Number pair on board
-
LCD panel label
AE
940322
LCD row cable label
F 40612
LCD panel date
March/1994 - June/1994

Power Board

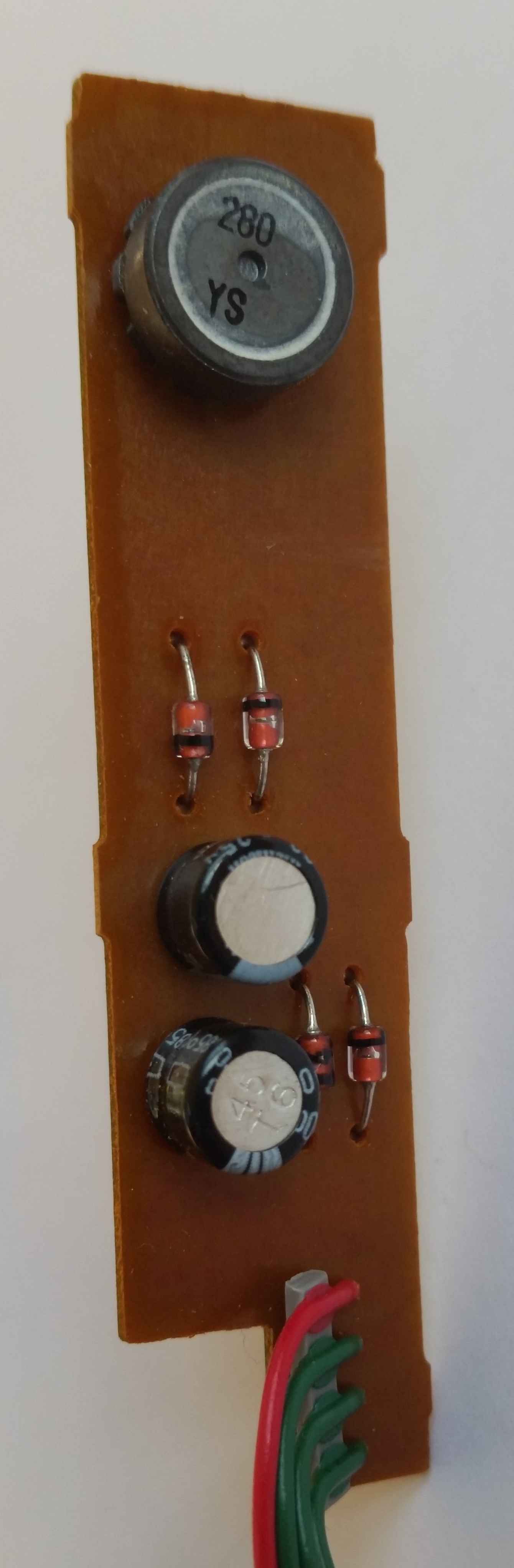

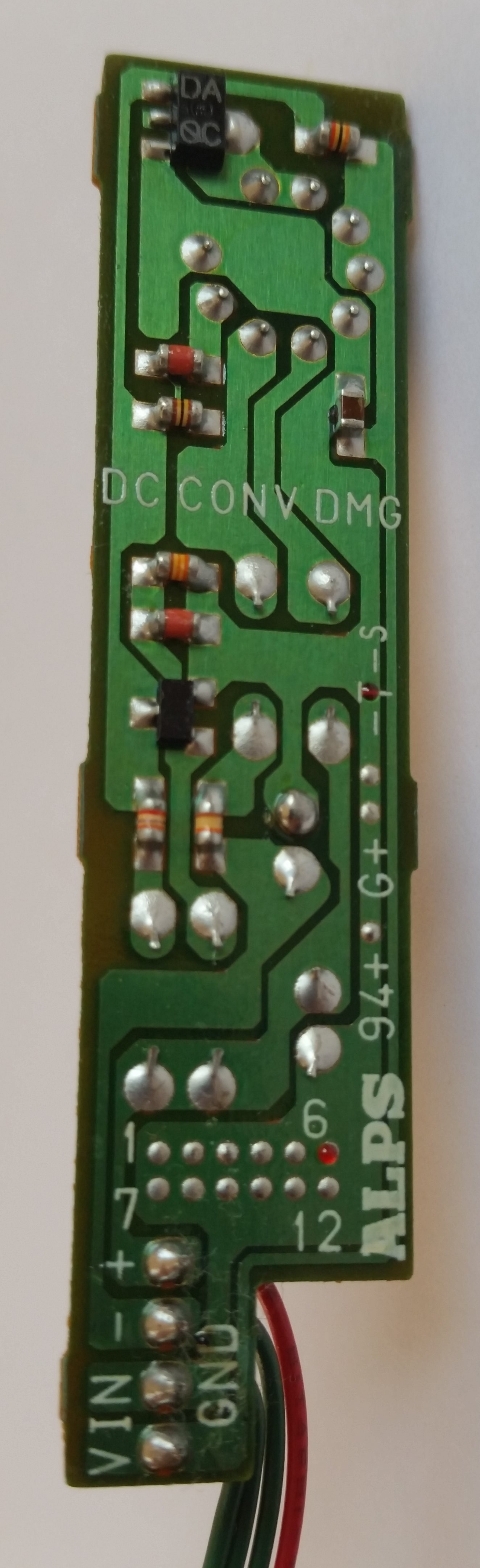

Front side of Game Boy power circuit boardBack side of Game Boy power circuit board

Board type
C
Manufacture date
June/1994
Label
DC CONV DMG

Jack Board

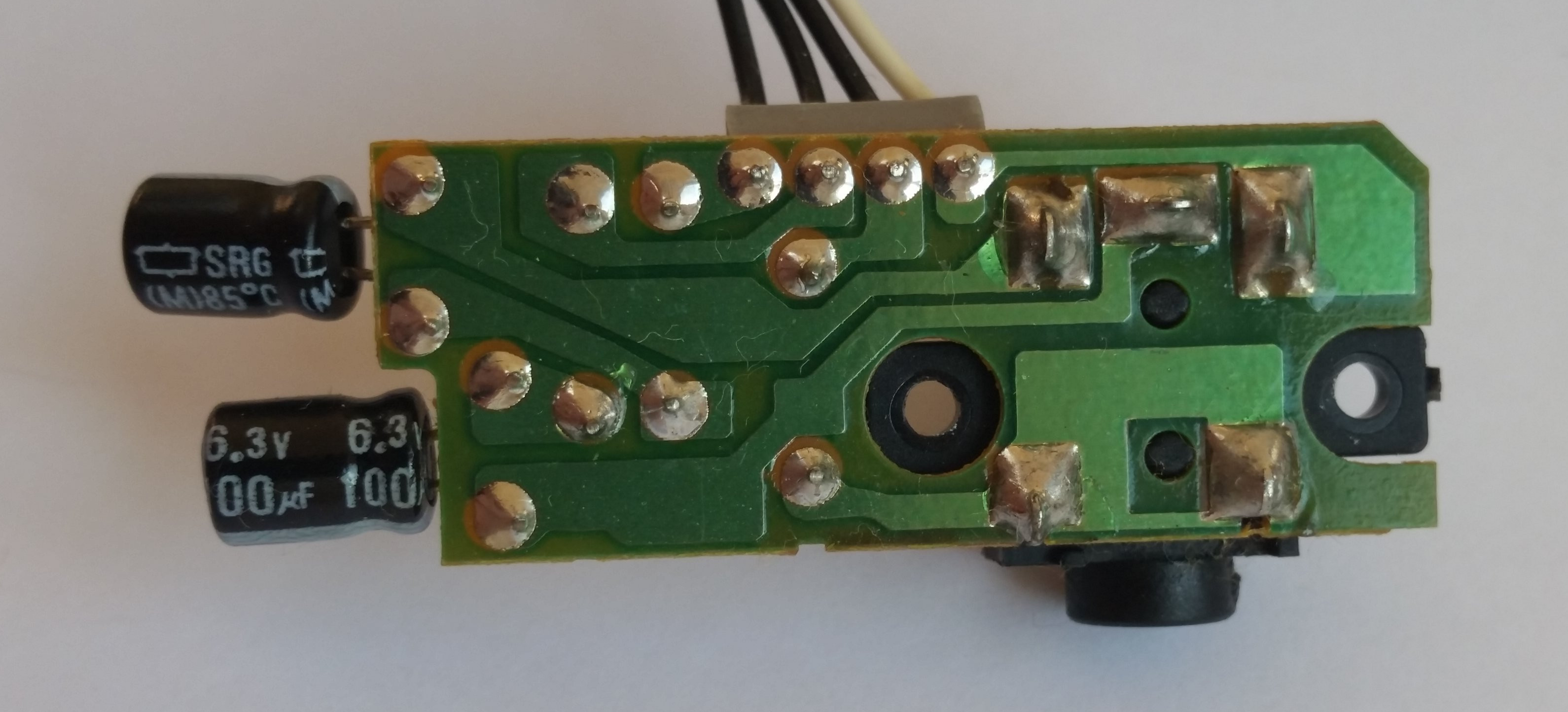

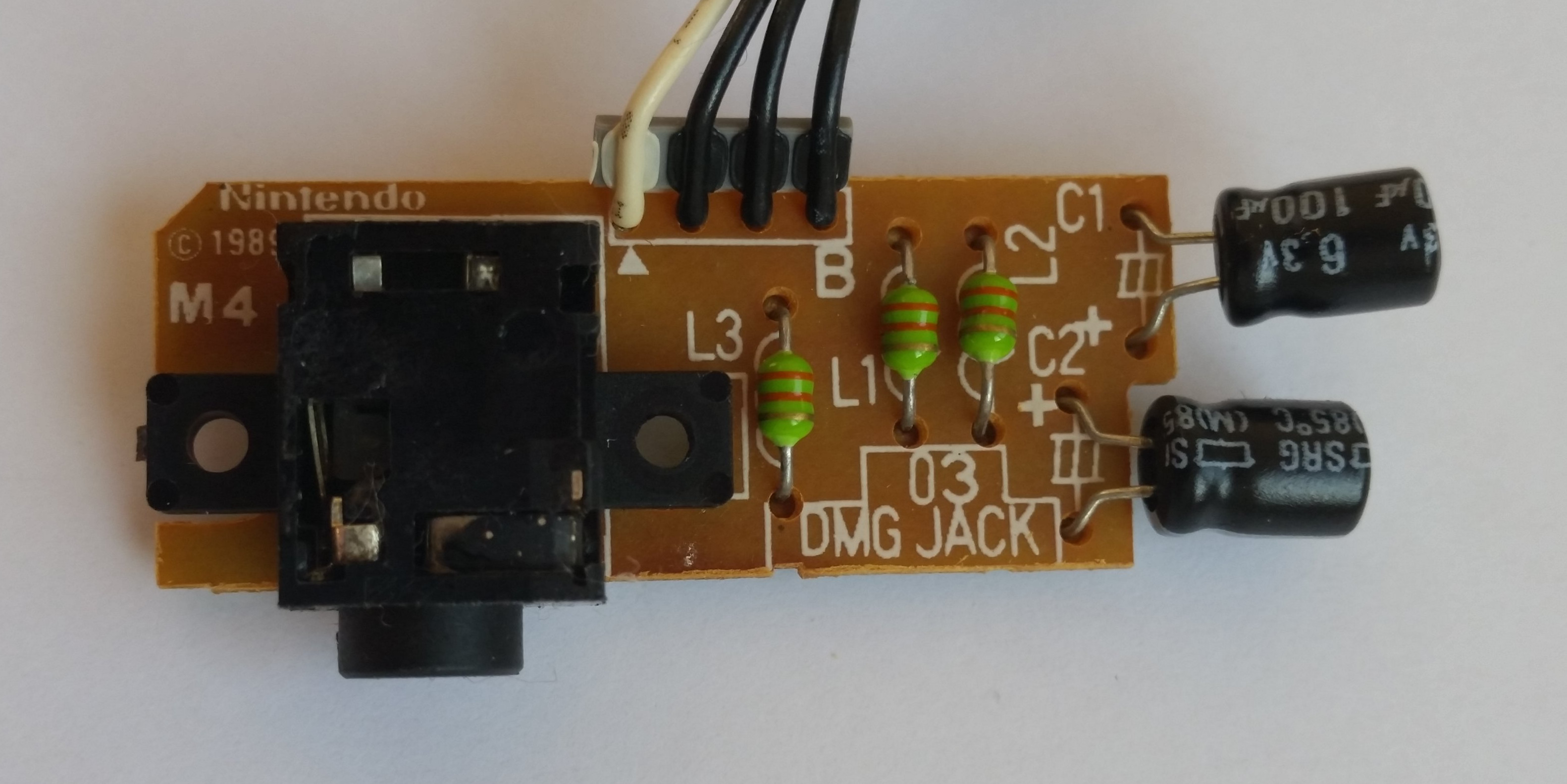

Front side of Game Boy headphone jack circuit boardBack side of Game Boy headphone jack circuit board

Board type
DMG JACK 03
Extra label
M4

Chips

 ChipTypeManufacturerDateLabel
U1CPUDMG-CPU B (blob)??
B
U2Video RAM???
-
U3Work RAM???
-
U4Amplifier???
-
X1CrystalD419DaishinkuDecember/1991
D419M1
-LCD Column DriverLH5077 AFSharpWeek 12/1994
LH5077 AF
4121
-LCD Row DriverLH5076 AFSharpWeek 13/1994
LH5076 AF
4130
-LCD RegulatorIR3E02SharpWeek 14/1994
DMG-REG
IR3E02
9414 CB

Notes

- Display cover was missing
    -> Cleaned old glue
    -> Attached replica part
- LCD had two missing columns at the left border:
    -> TODO: repaired
- The blue print on the shell (Nintendo GAMEBOY, START, SELECT, A, B) dissolves in alcohol
  much more easily compared to other Gameboys and smears across the shell.
    -> Could be a sign that the shell got swapped with an non-original part.
       But except for the dissolving of paint it looks genuine.
- Link port cover was missing:
    -> Attached replica part

Misc

CPU works
yes
