DMG: [iceboy] #35 - G71261043-6

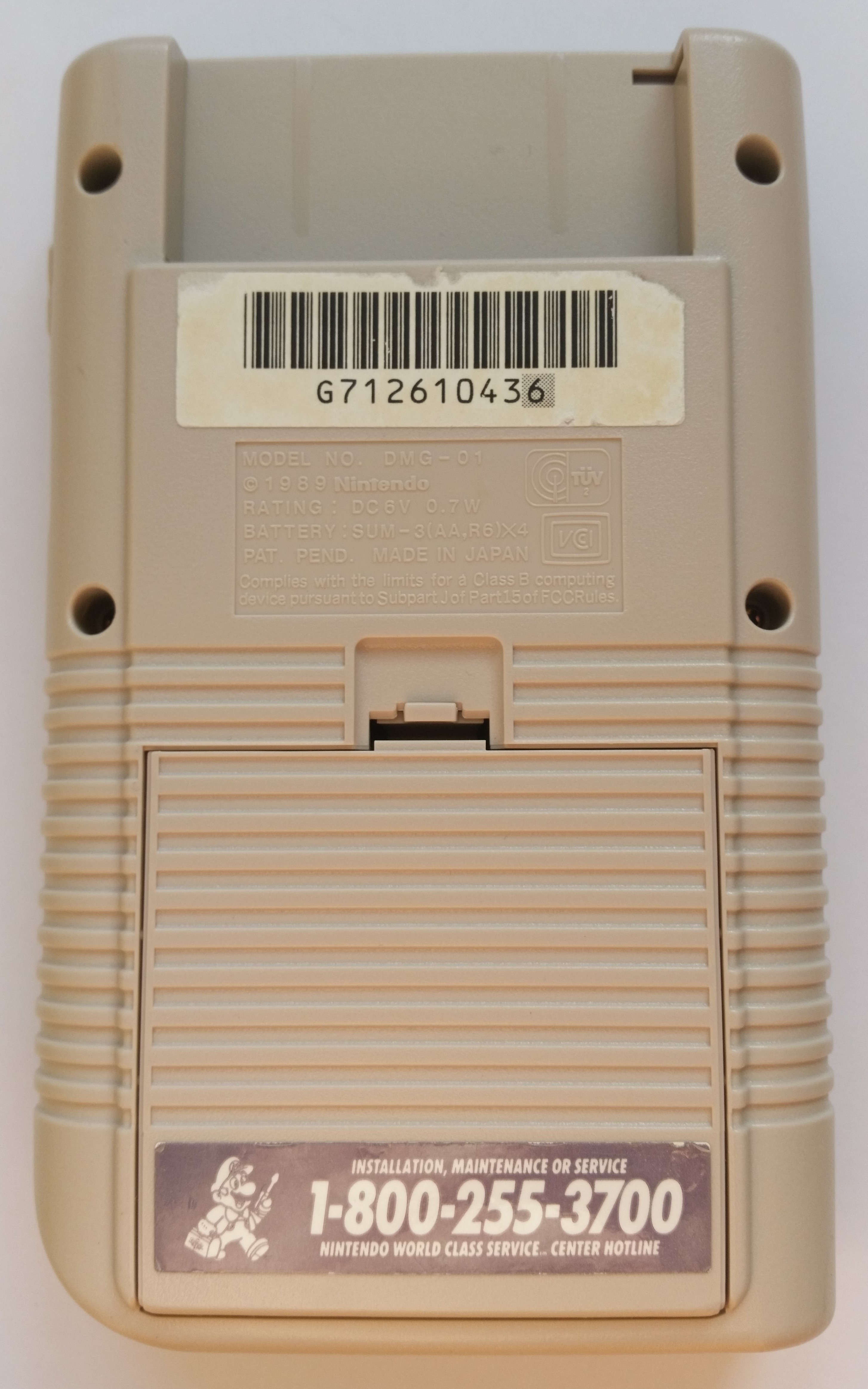

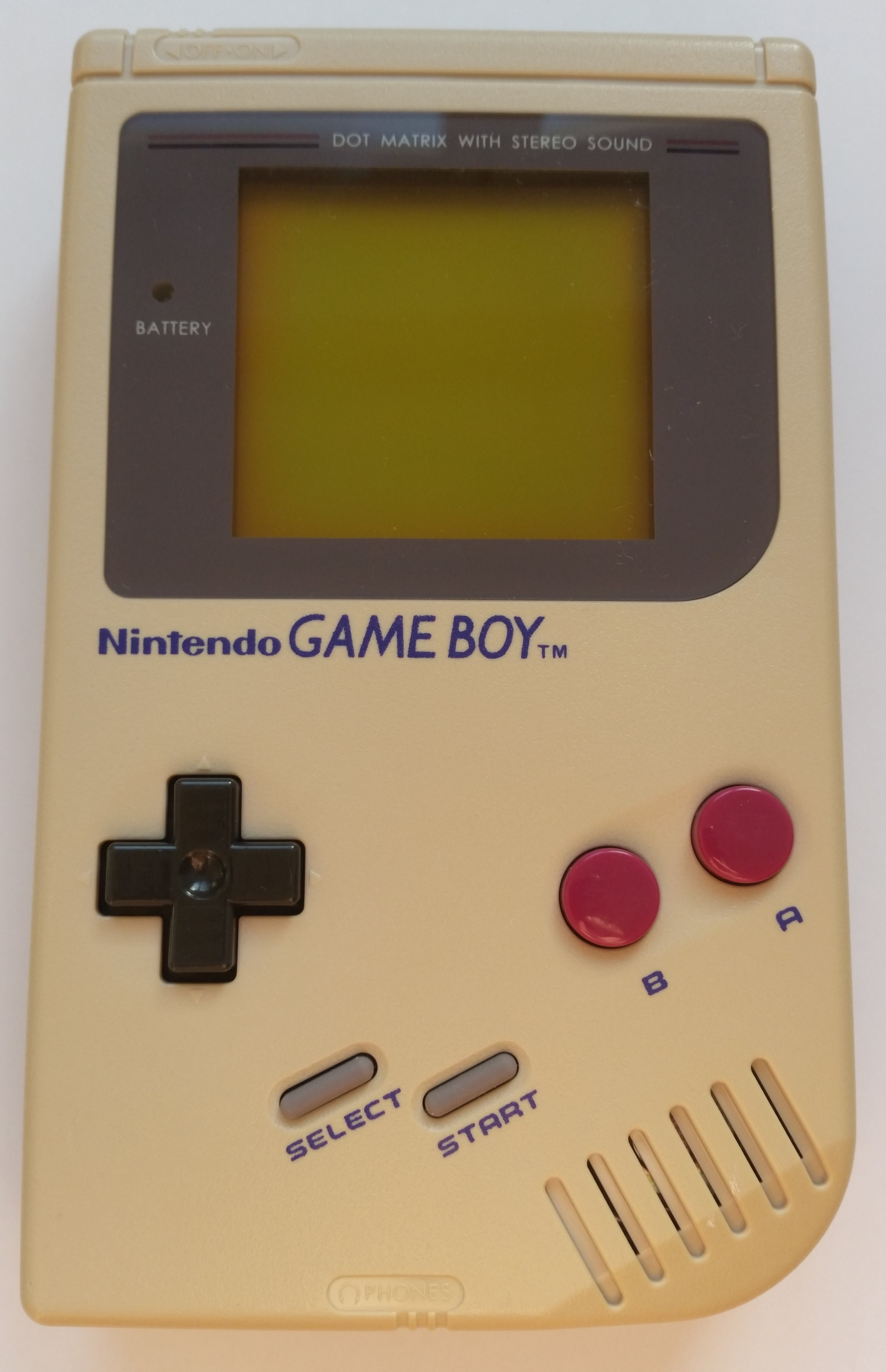

Front side of Game BoyBack side of Game Boy

Color
off-white
Screws
tri-wing
Assembly date
June/1993

Mainboard

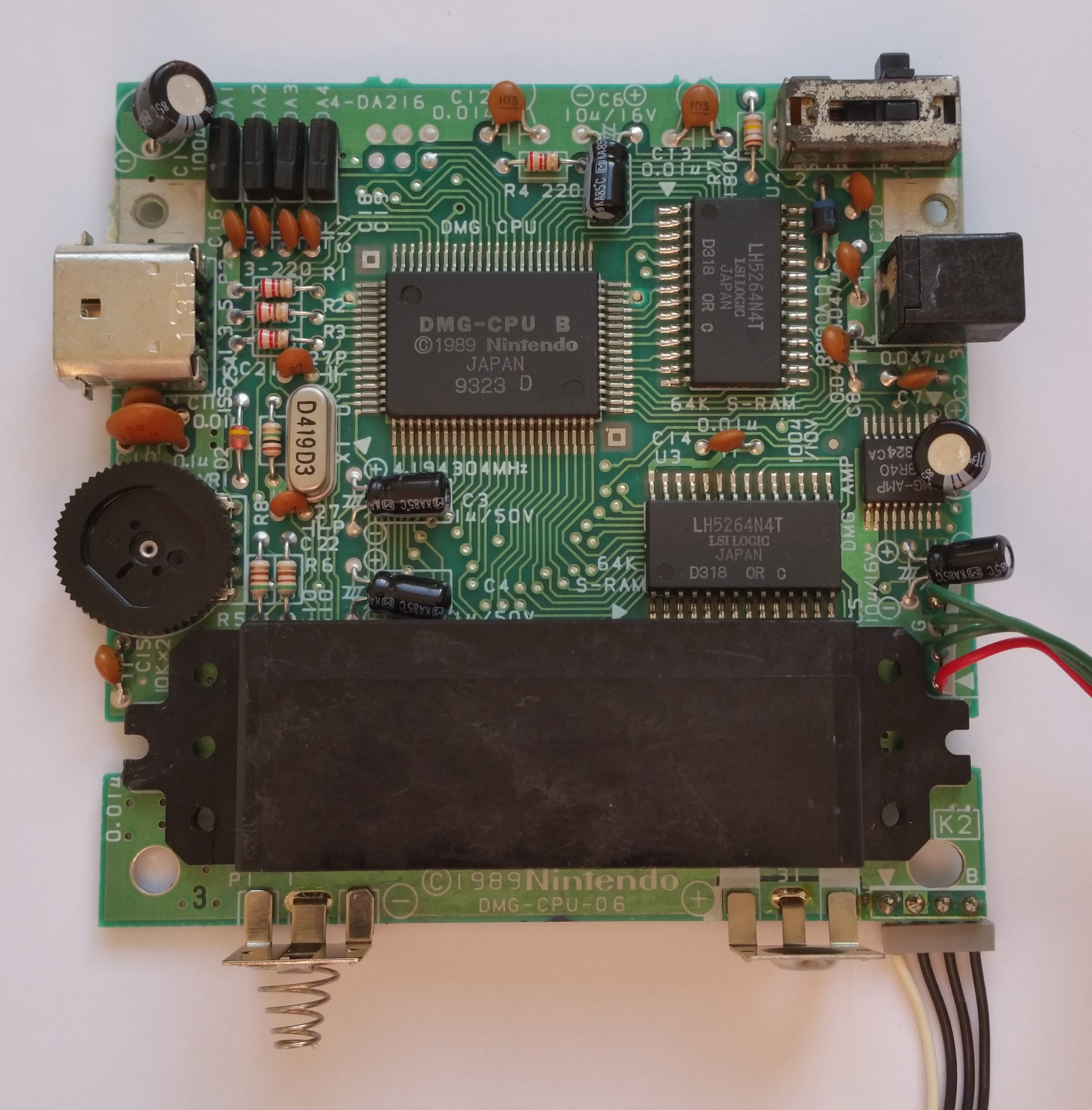

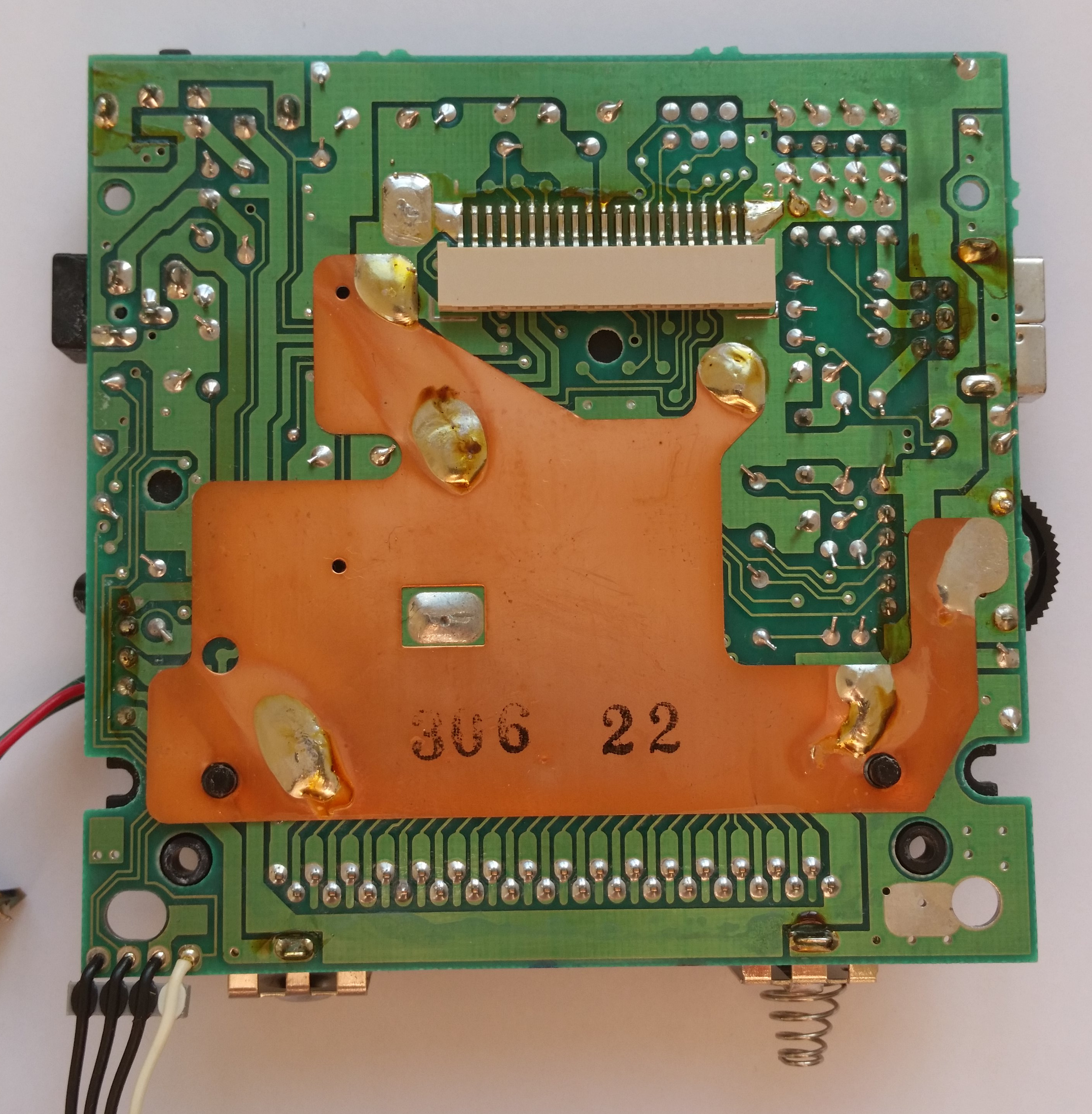

Front side of Game Boy main circuit boardBack side of Game Boy main circuit board

Board type
DMG-CPU-06
Stamp on board
306 22
Circled letter(s) on board
K2
Extra label
3

LCD Board

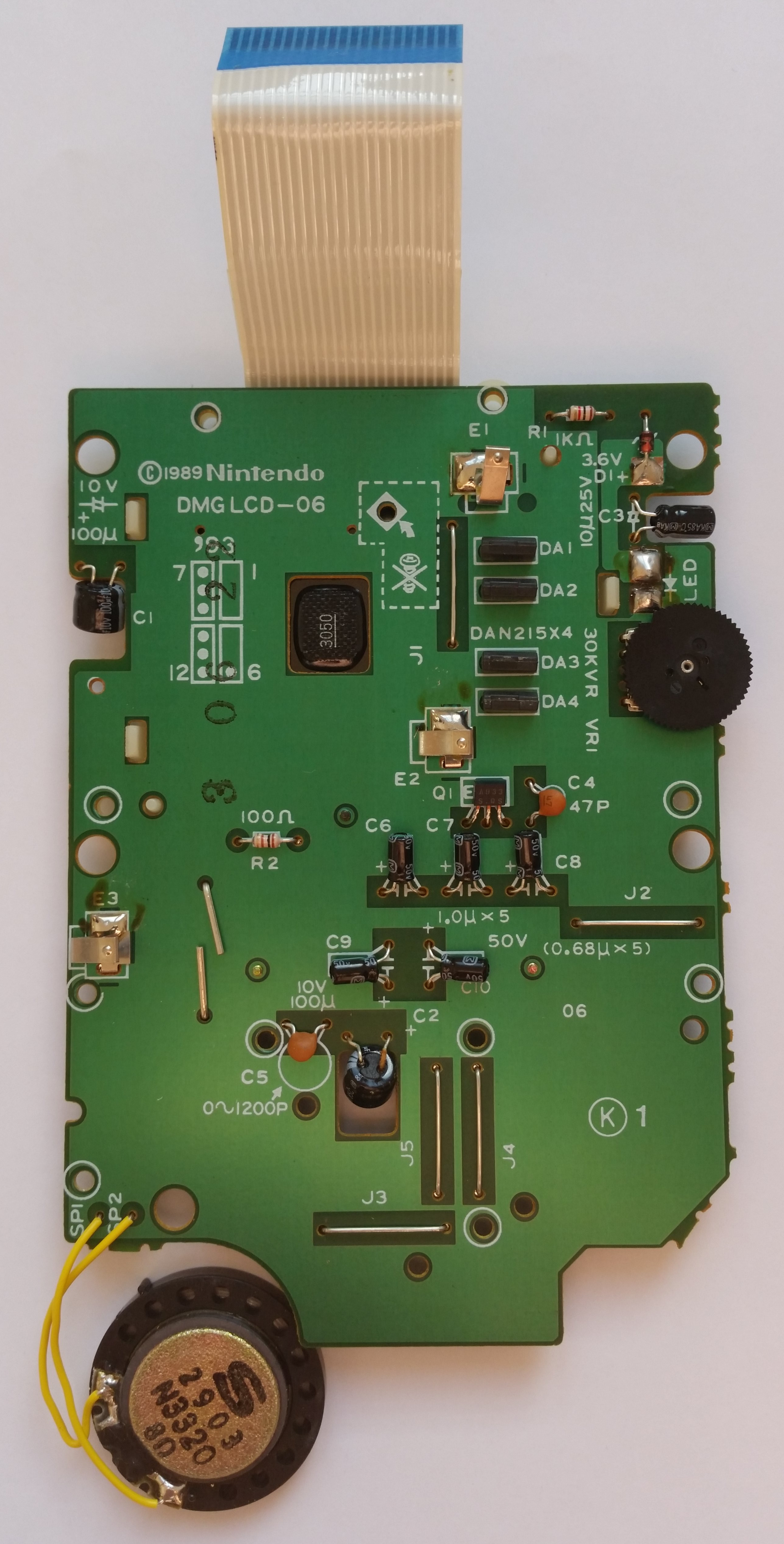

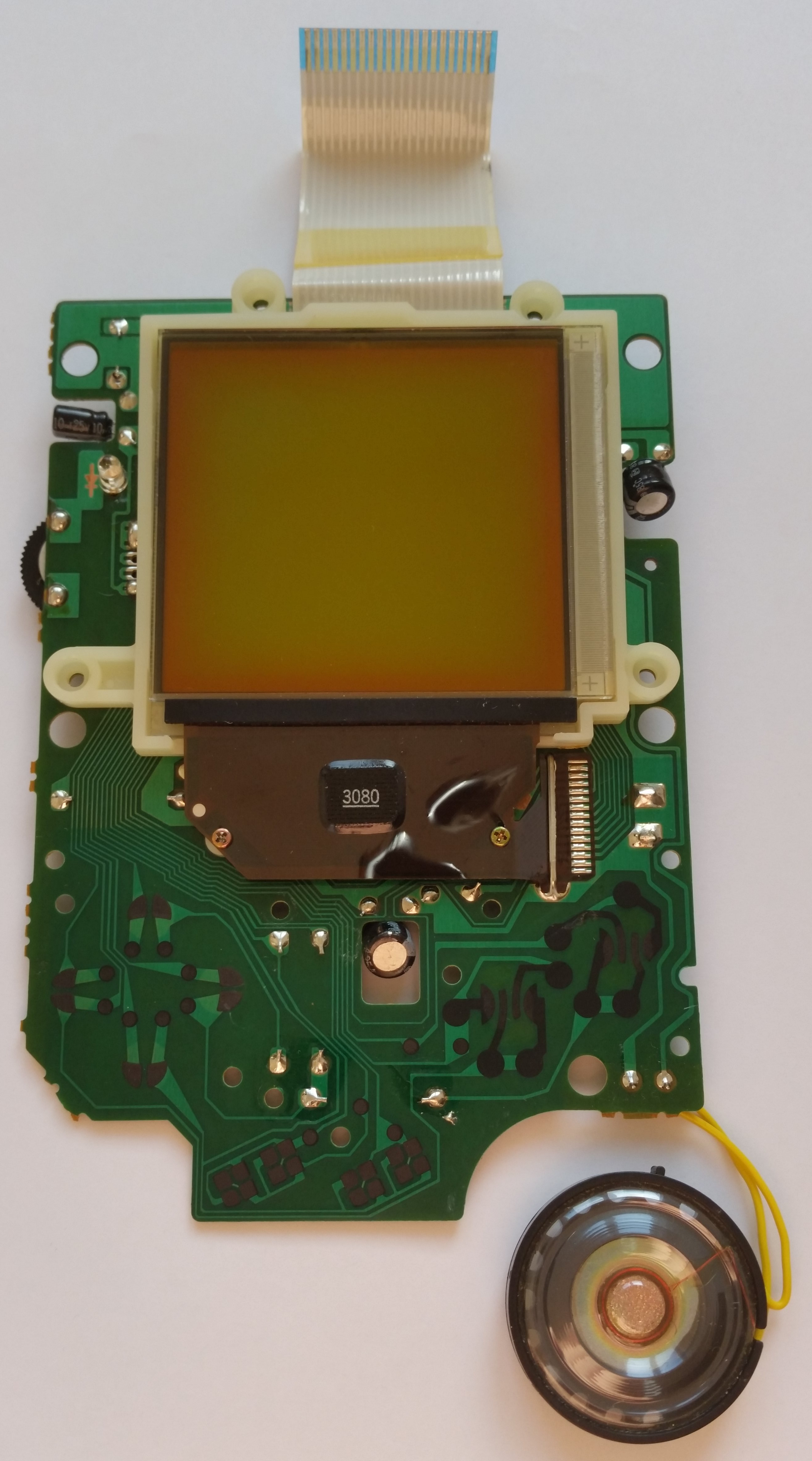

Front side of Game Boy LCD circuit boardBack side of Game Boy LCD circuit board

Board type
DMG LCD-06
Manufacture date
May/1993
Stamp on board
3 06 22
Circled letter(s) on board
K1
Number pair on board
-
LCD panel label
ST
930614
LCD row cable label
53 0619
LCD panel date
June/1993

Power Board

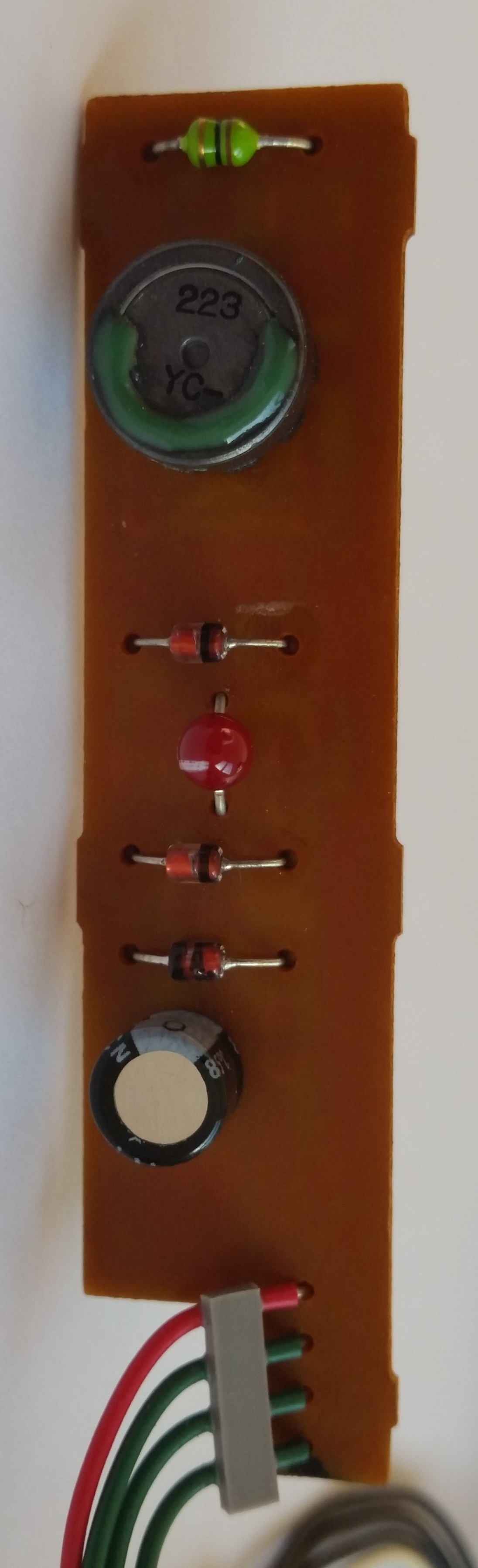

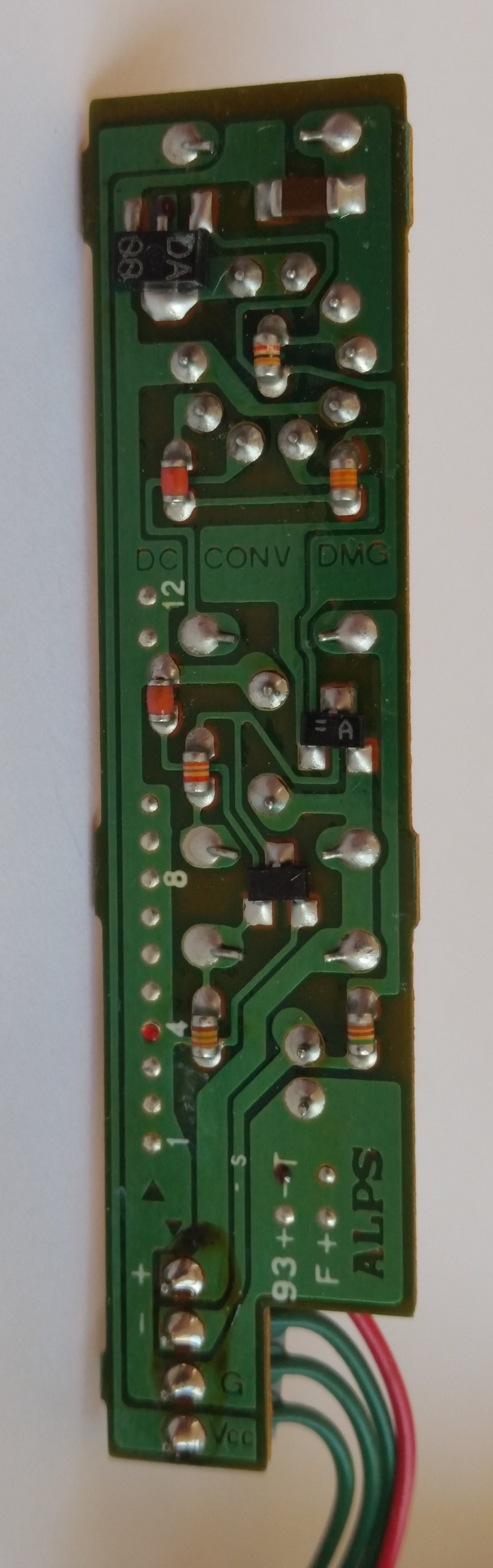

Front side of Game Boy power circuit boardBack side of Game Boy power circuit board

Board type
B
Manufacture date
April/1993
Label
DC CONV DMG

Jack Board

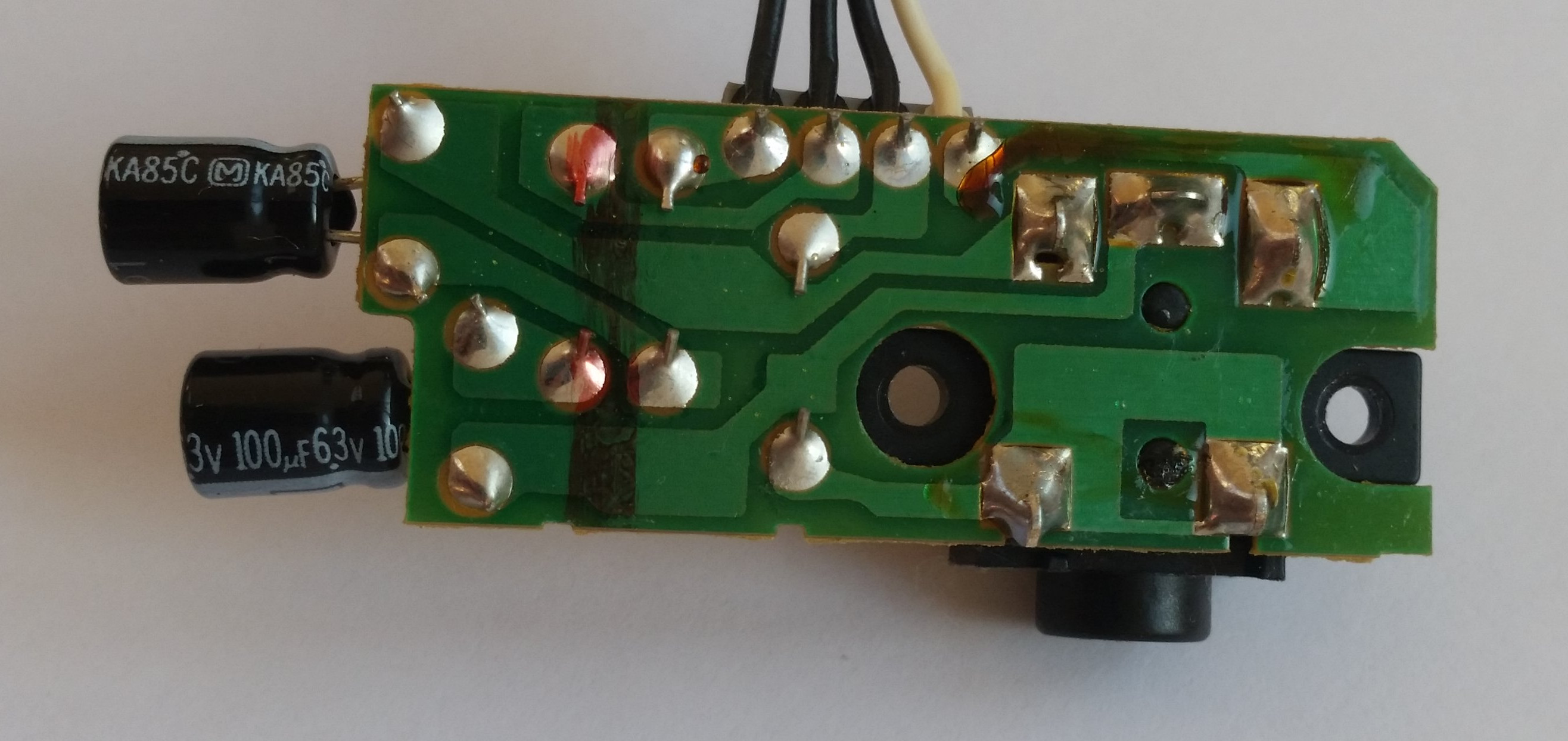

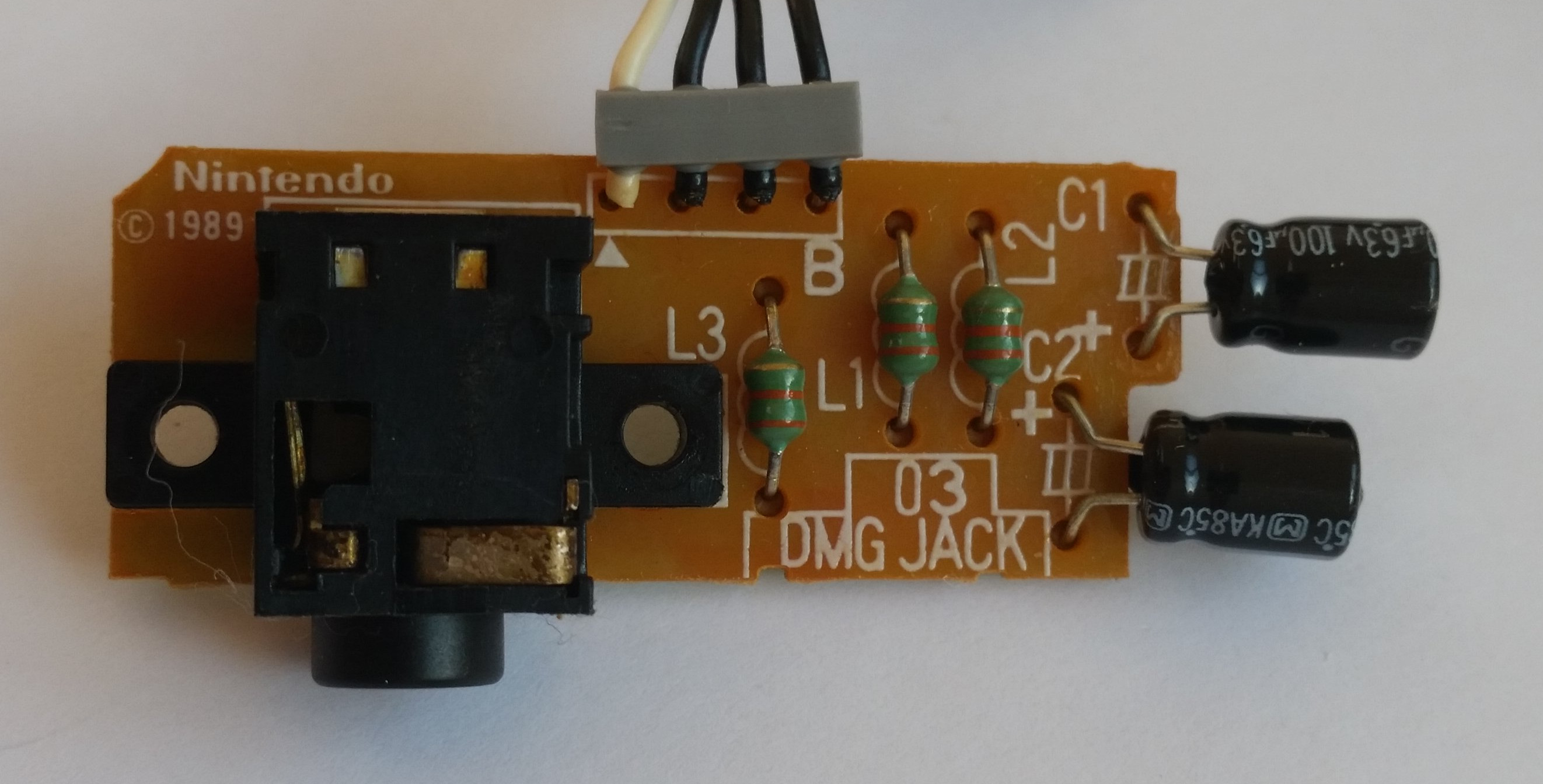

Front side of Game Boy headphone jack circuit boardBack side of Game Boy headphone jack circuit board

Board type
DMG JACK 03
Extra label
-

Chips

 ChipTypeManufacturerDateLabel
U1CPUDMG-CPU BSharpWeek 23/1993
DMG-CPU B
© 1989 Nintento
JAPAN
9323 D
U2Video RAMLH5264N4TLSI LogicWeek 18/1993
LH5264N4T
LSI LOGIC
JAPAN
D318 0R C
U3Work RAMLH5264N4TLSI LogicWeek 18/1993
LH5264N4T
LSI LOGIC
JAPAN
D318 0R C
U4AmplifierIR3R40SharpWeek 24/1993
DMG-AMP
IR3R40
9324 CA
X1CrystalD419DaishinkuApril/1993
D419D3
-LCD Column DriverLH5077 AFSharpWeek 8/1993
LH5077 AF
3080
-LCD Row DriverLH5076 AFSharpWeek 5/1993
LH5076 AF
3050
-LCD RegulatorIR3E02SharpWeek 23/1993
DMG-REG
IR3E02
9323 CB

Notes

- Display cover was missing
    -> Cleaned old glue
    -> Attached replica part
- LCD had two missing columns at the right border:
    -> TODO: repaired

Misc

CPU works
yes
