DMG: [iceboy] #33 - G38509307

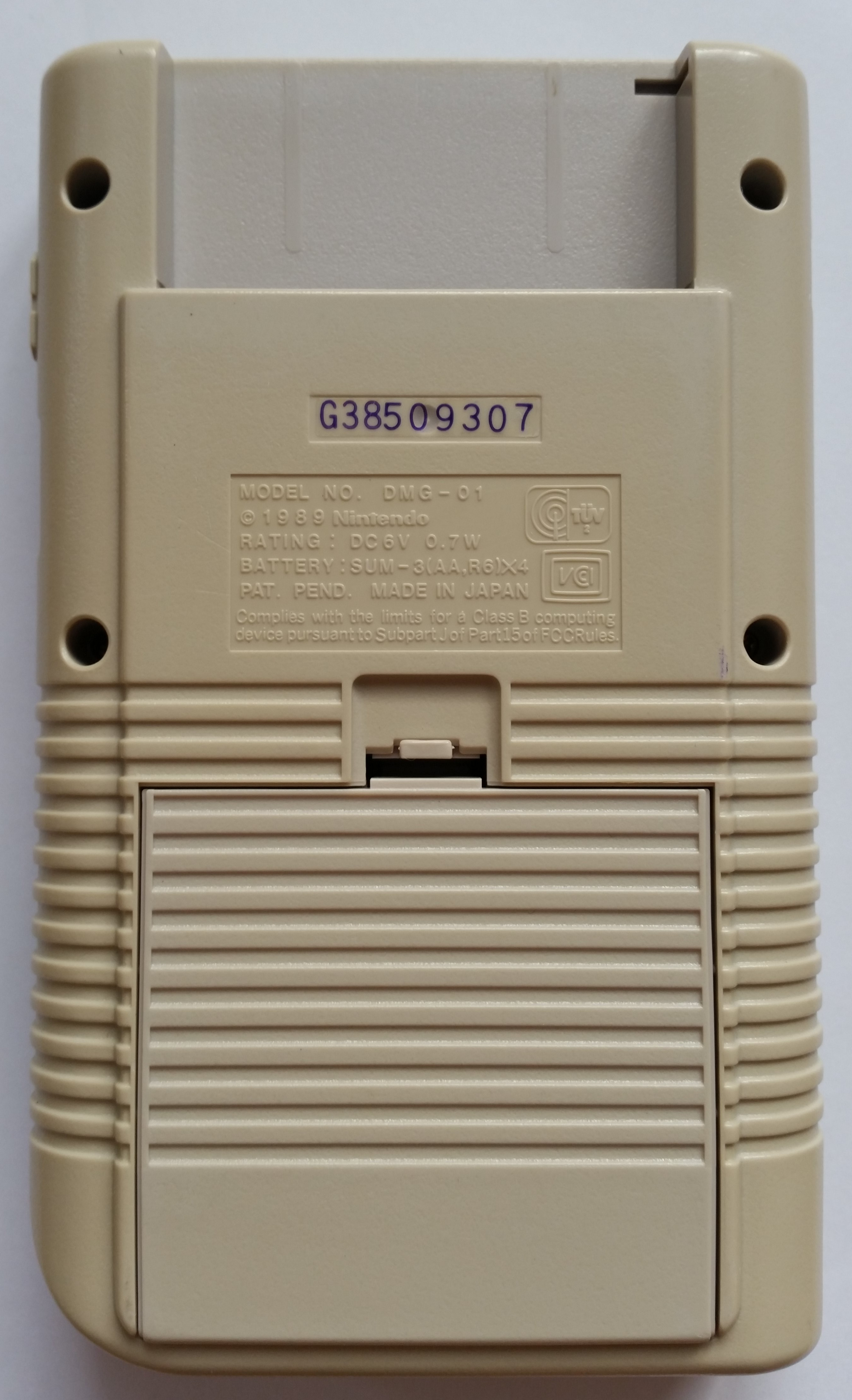

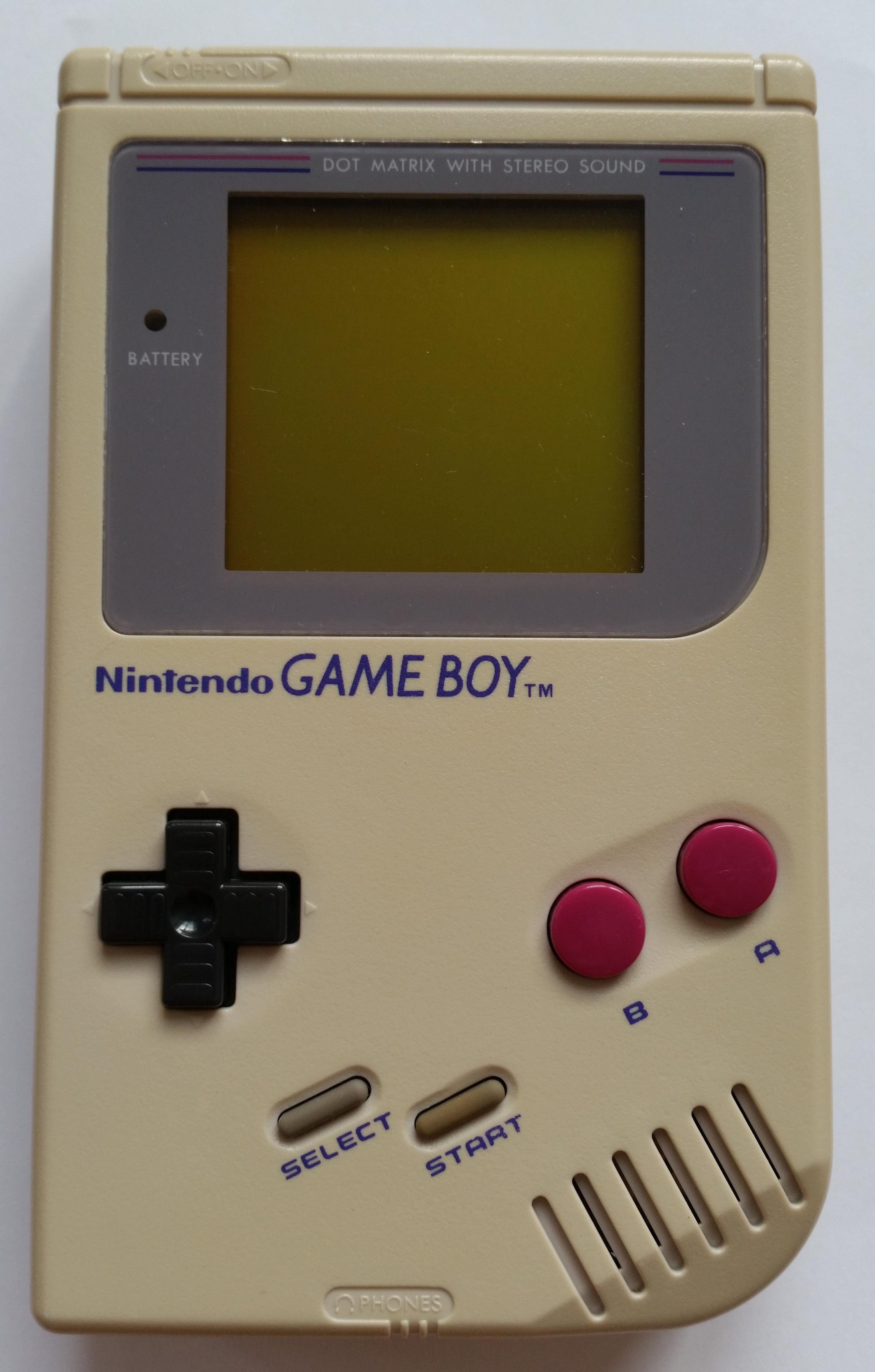

Front side of Game BoyBack side of Game Boy

Color
off-white
Screws
tri-wing
Assembly date
September/1994

Mainboard

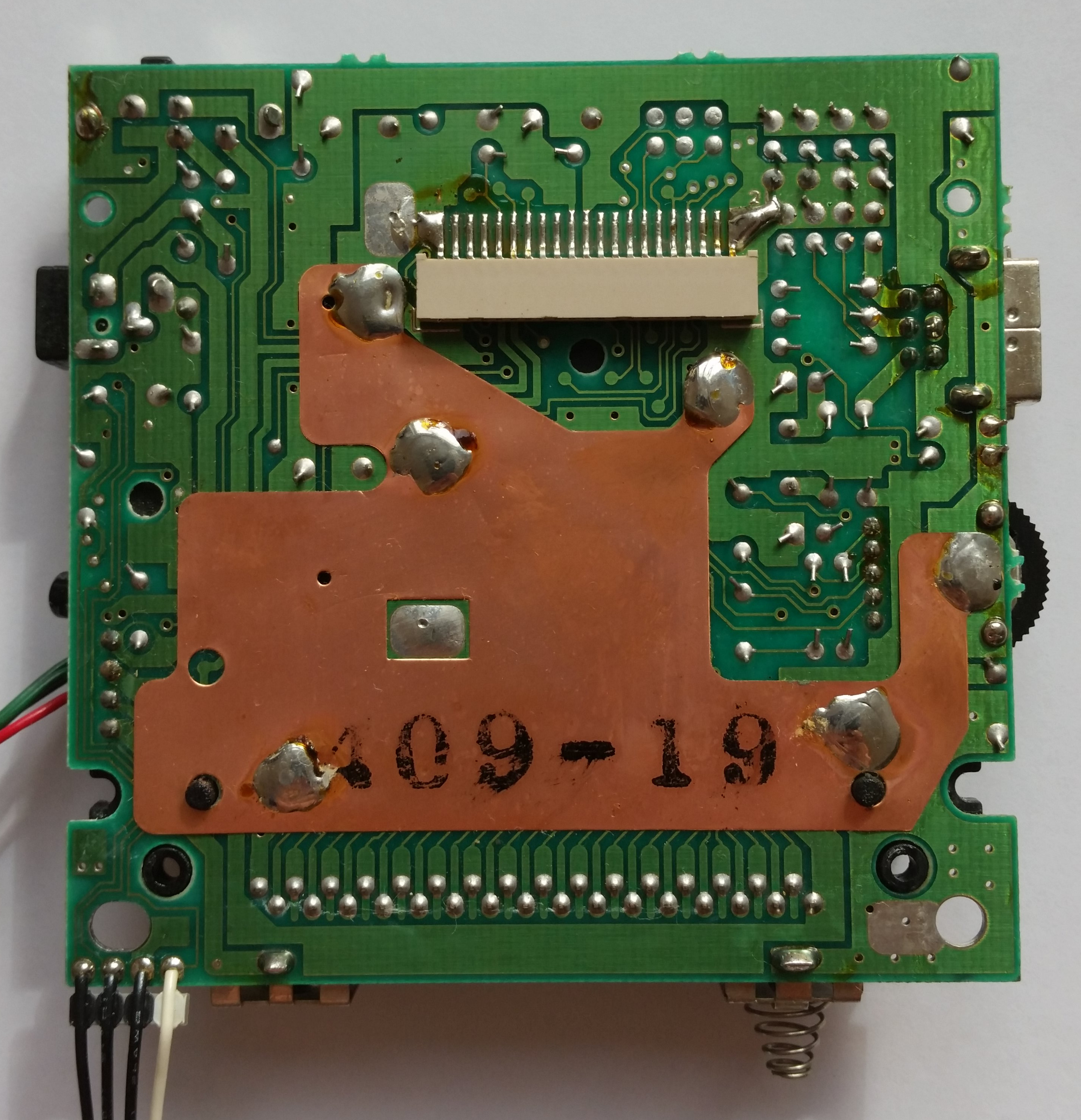

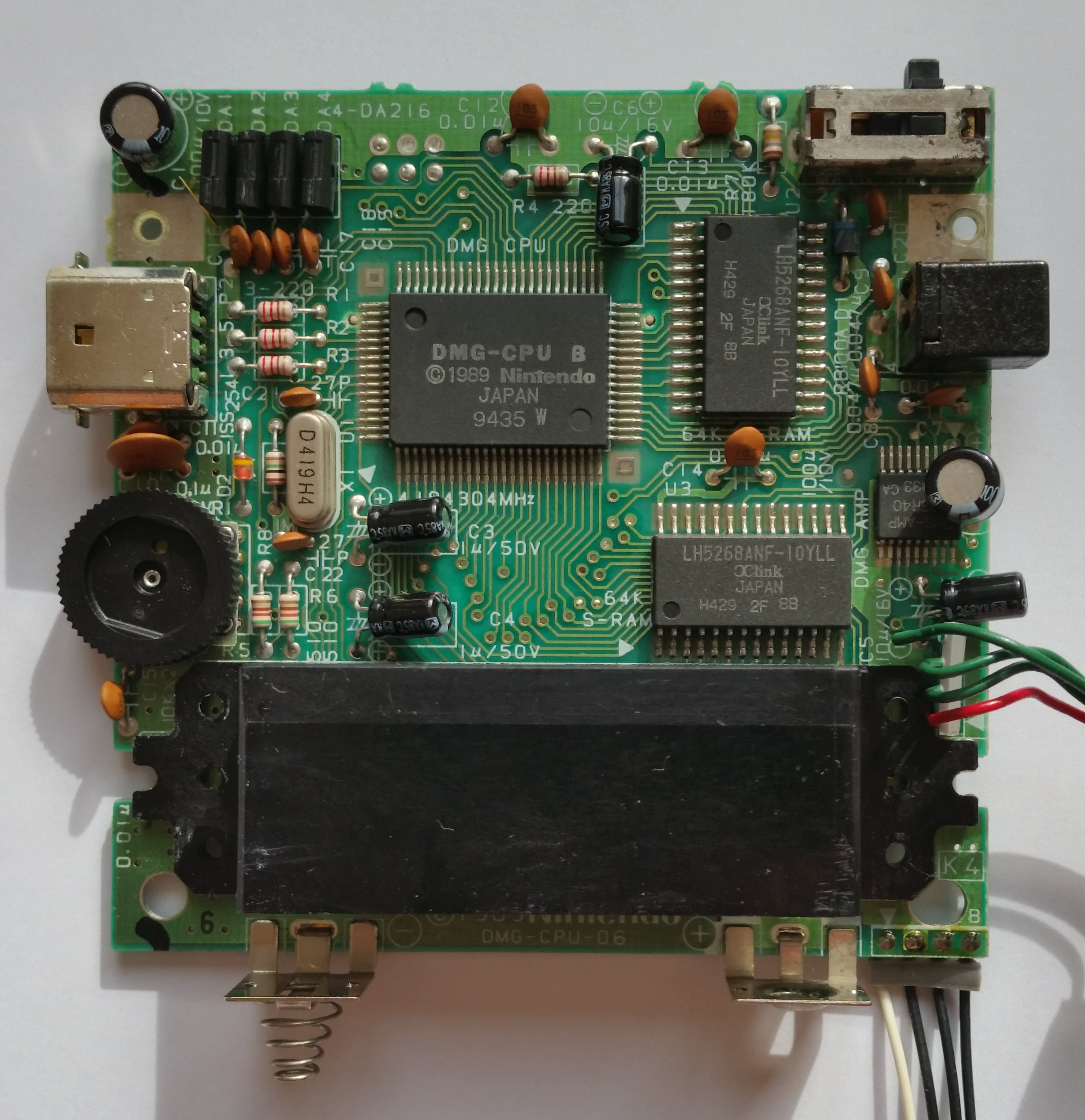

Front side of Game Boy main circuit boardBack side of Game Boy main circuit board

Board type
DMG-CPU-06
Stamp on board
409-19
Circled letter(s) on board
K4
Extra label
6

LCD Board

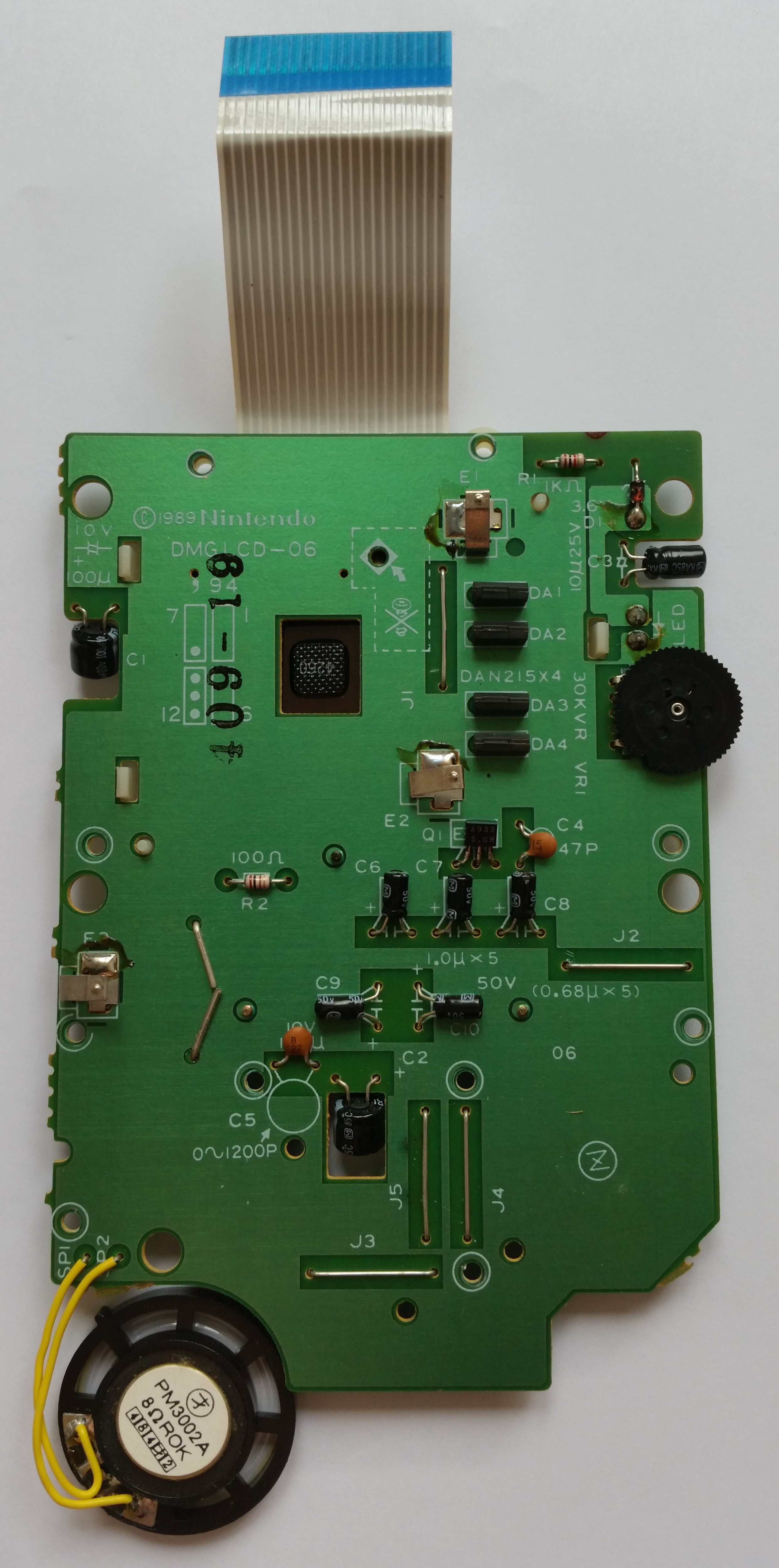

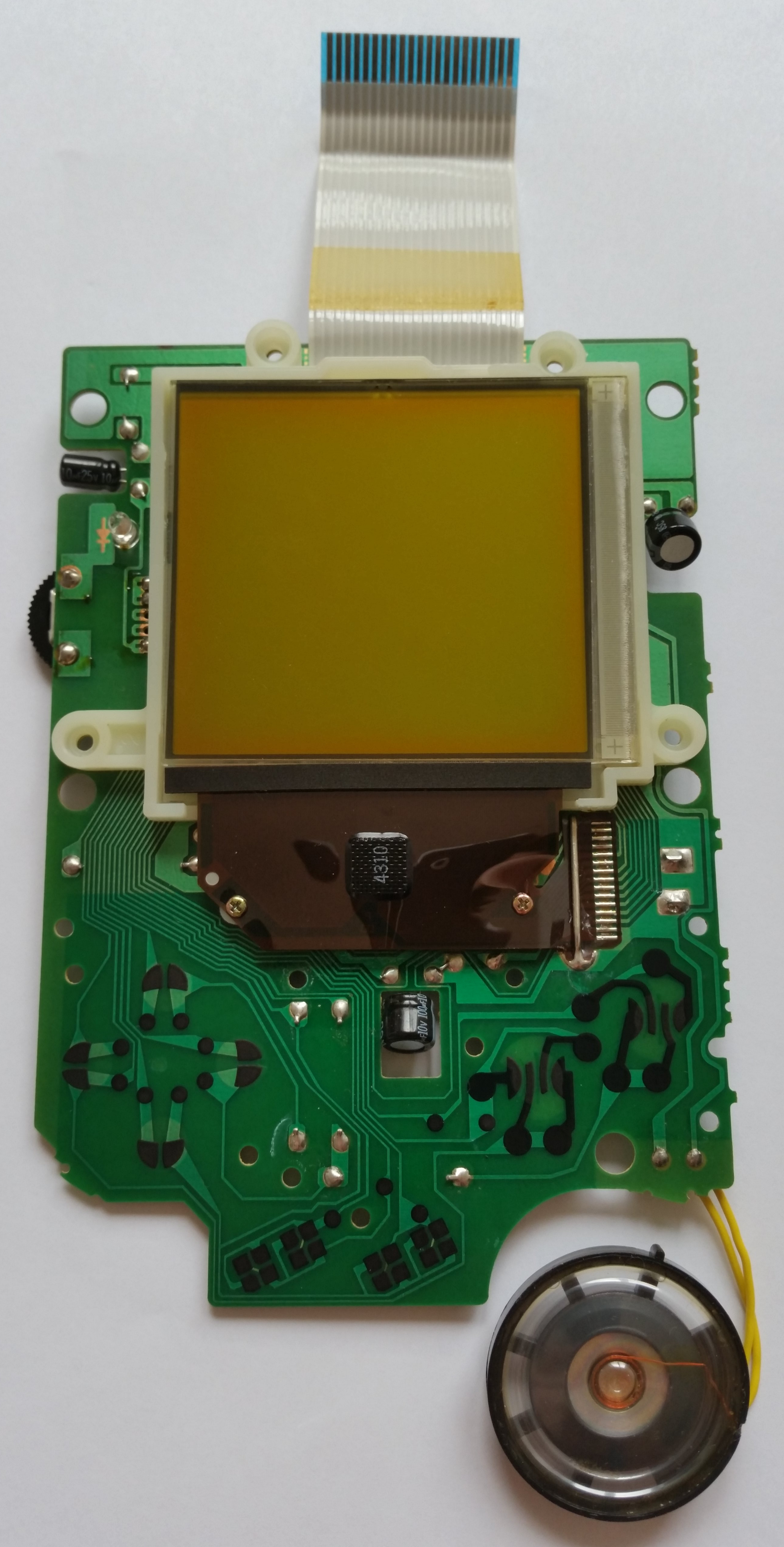

Front side of Game Boy LCD circuit boardBack side of Game Boy LCD circuit board

Board type
DMG LCD-06
Manufacture date
August/1994
Stamp on board
409-19
Circled letter(s) on board
Z
Number pair on board
-
LCD panel label
N2AH
940801
LCD row cable label
34 0909
LCD panel date
August/1994

Power Board

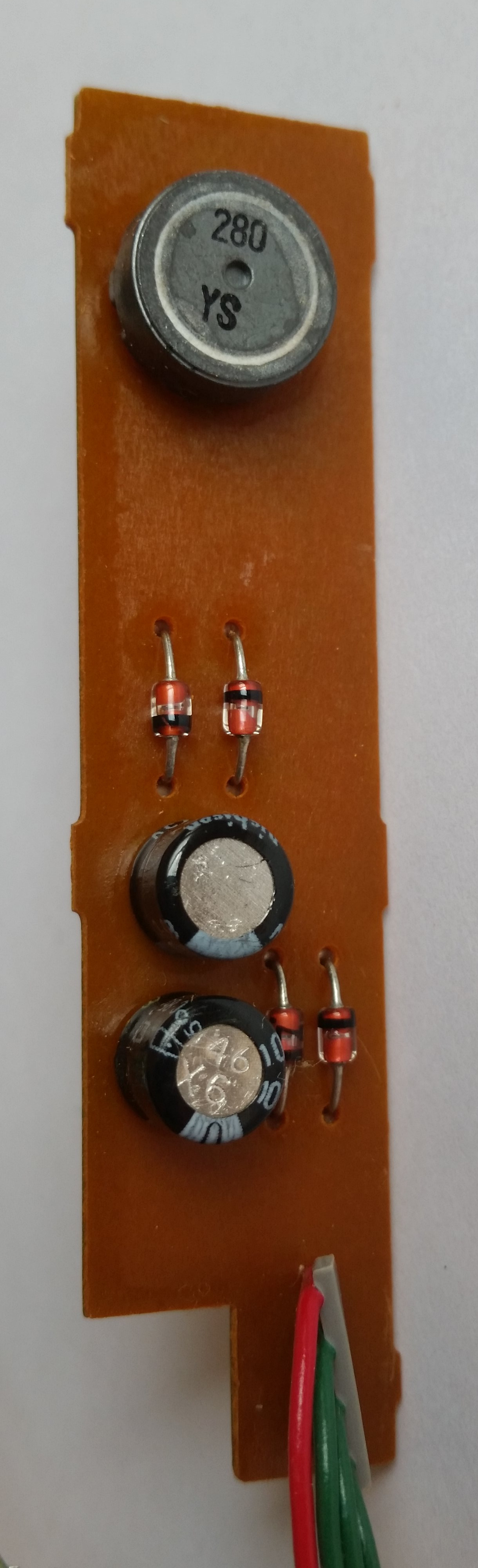

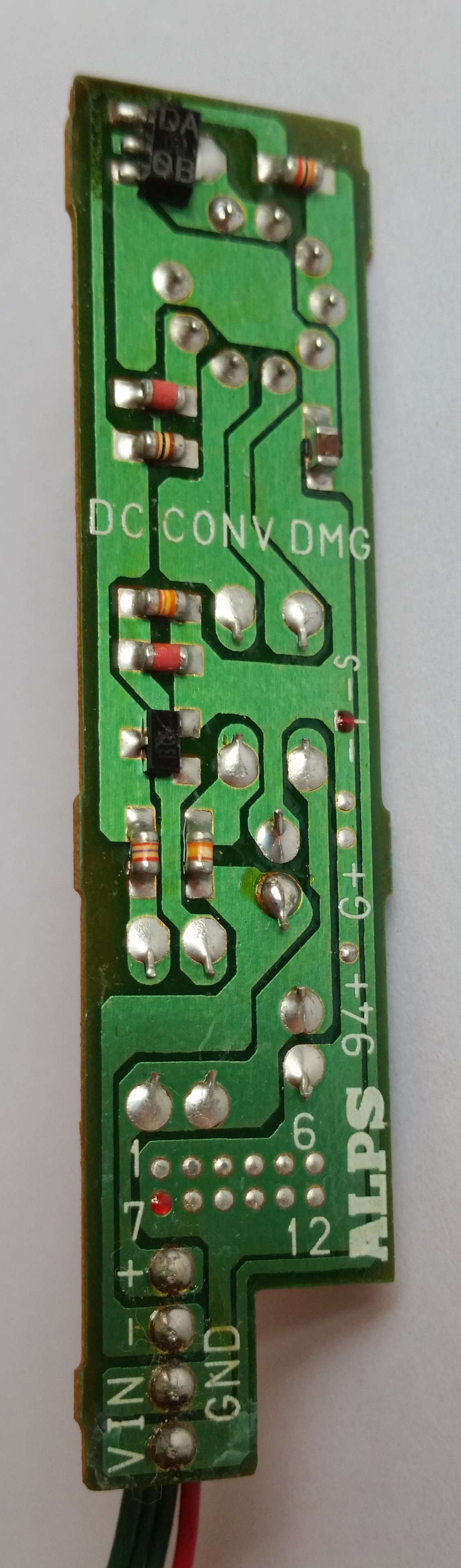

Front side of Game Boy power circuit boardBack side of Game Boy power circuit board

Board type
C
Manufacture date
July/1994
Label
DC CONV DMG

Jack Board

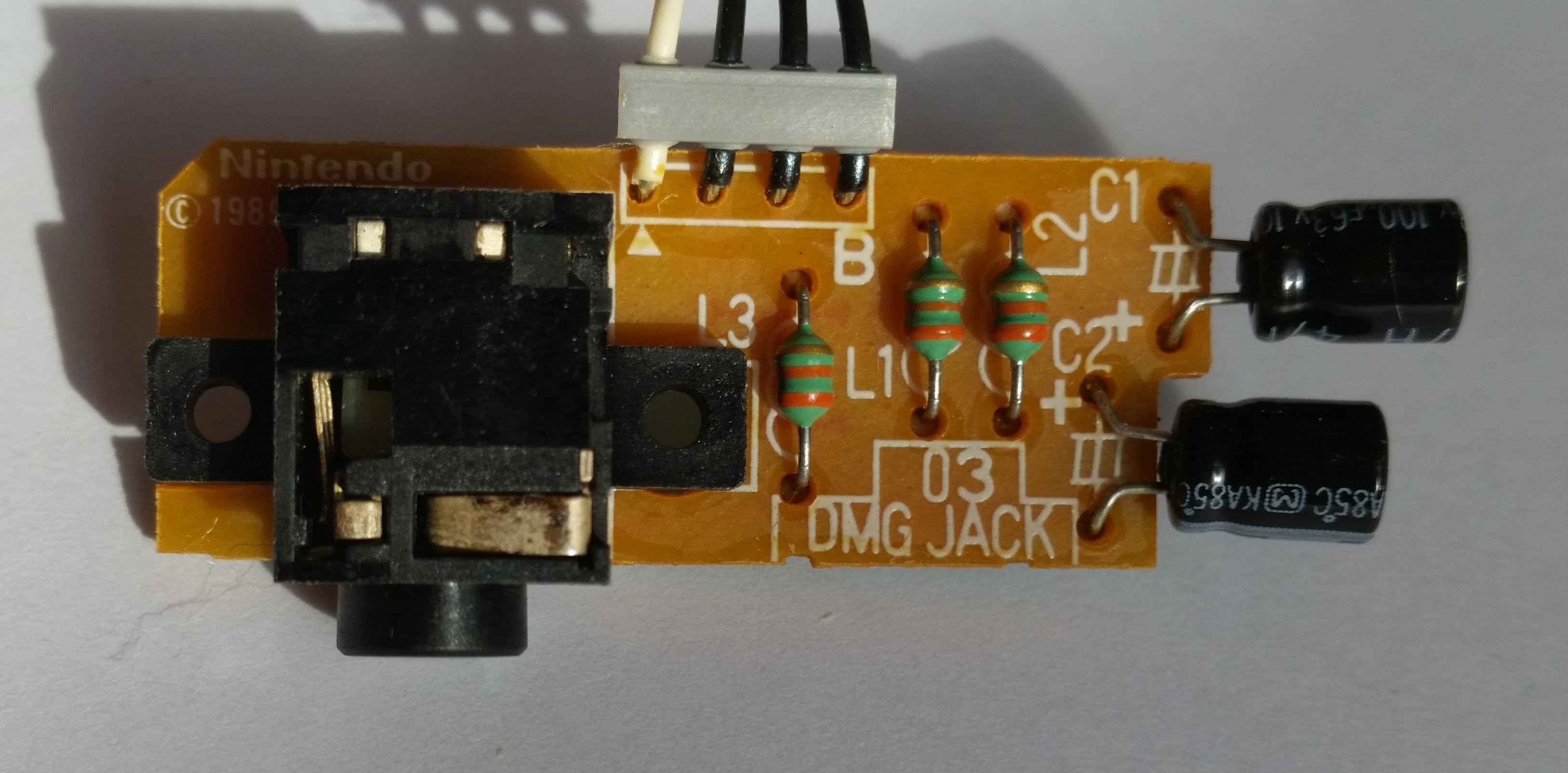

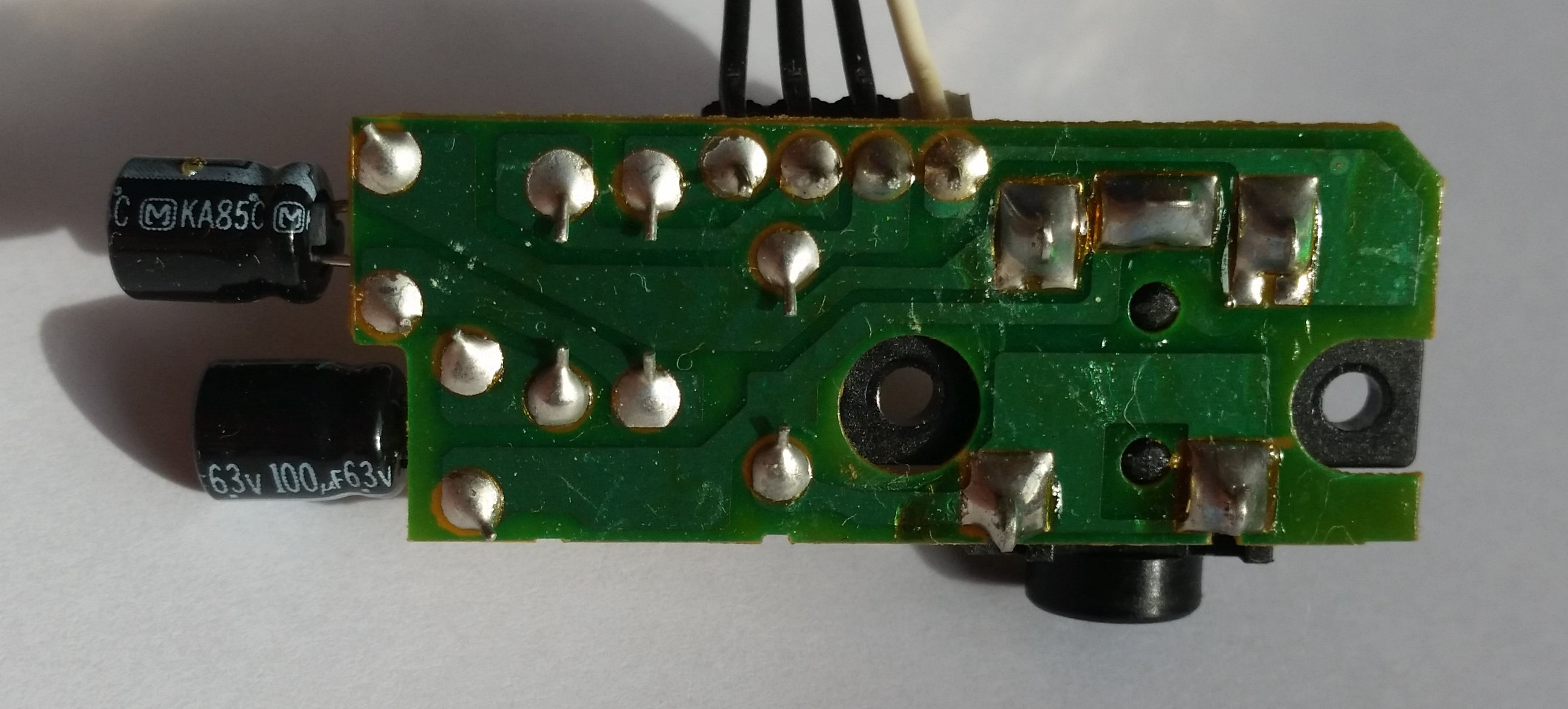

Front side of Game Boy headphone jack circuit boardBack side of Game Boy headphone jack circuit board

Board type
DMG JACK 03
Extra label
-

Chips

 ChipTypeManufacturerDateLabel
U1CPUDMG-CPU BSharpWeek 35/1994
DMG-CPU B
© 1989 Nintento
JAPAN
9435 W
U2Video RAMLH5268ANF-10YLLCrosslink SemiconductorWeek 29/1994
LH5268ANF-10YLL
Xlink
JAPAN
H429 2F BB
U3Work RAMLH5268ANF-10YLLCrosslink SemiconductorWeek 29/1994
LH5268ANF-10YLL
Xlink
JAPAN
H429 2F BB
U4AmplifierIR3R40SharpWeek 33/1994
DMG-AMP
IR3R40
9433 CA
X1CrystalD419DaishinkuAugust/1994
D419H4
-LCD Column DriverLH5077 BFSharpWeek 31/1994
LH5077 BF
4310
-LCD Row DriverLH5076 BFSharpWeek 26/1994
LH5076 BF
4260
-LCD RegulatorIR3E02SharpWeek 35/1994
DMG-REG
IR3E02
9435 CB

Notes

- Display cover fell off:
    -> Cleaned old glue
    -> Applied double sided tape
    -> Cover seems to be original

Misc

CPU works
yes
