DMG: [iceboy] #31 - GH2098778

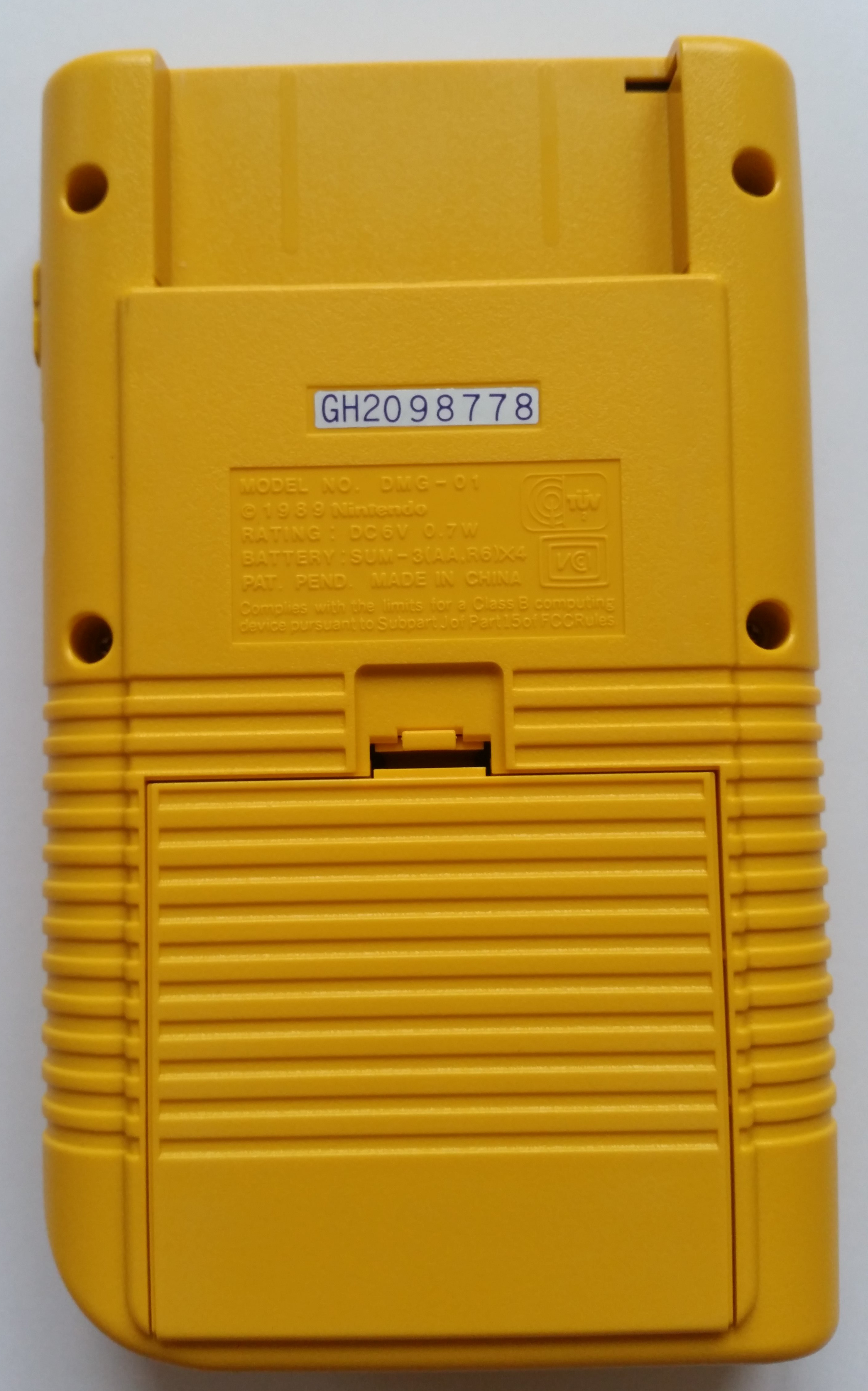

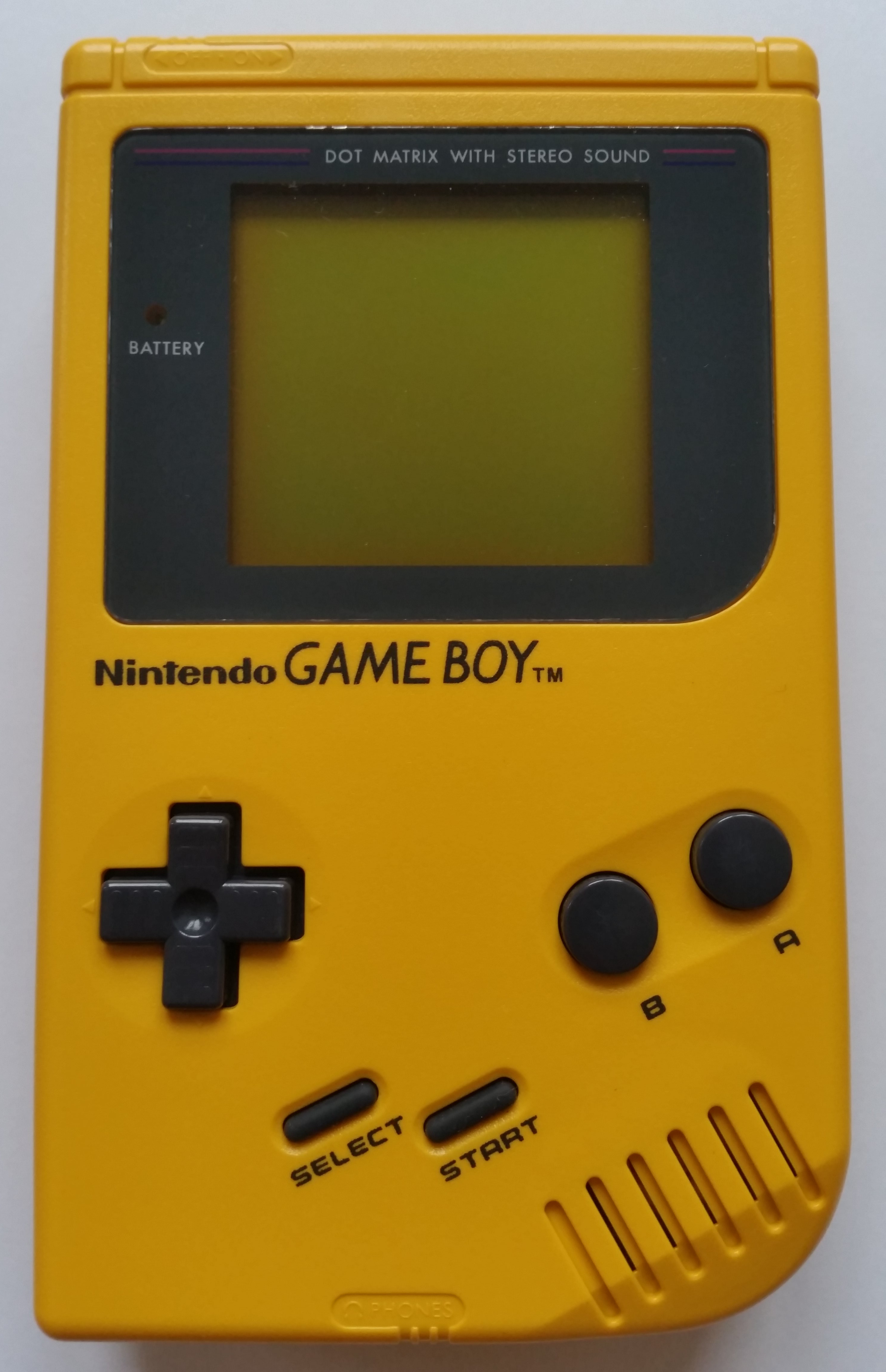

Front side of Game BoyBack side of Game Boy

Color
vibrant-yellow
Screws
tri-wing
Assembly date
February/1995

Mainboard

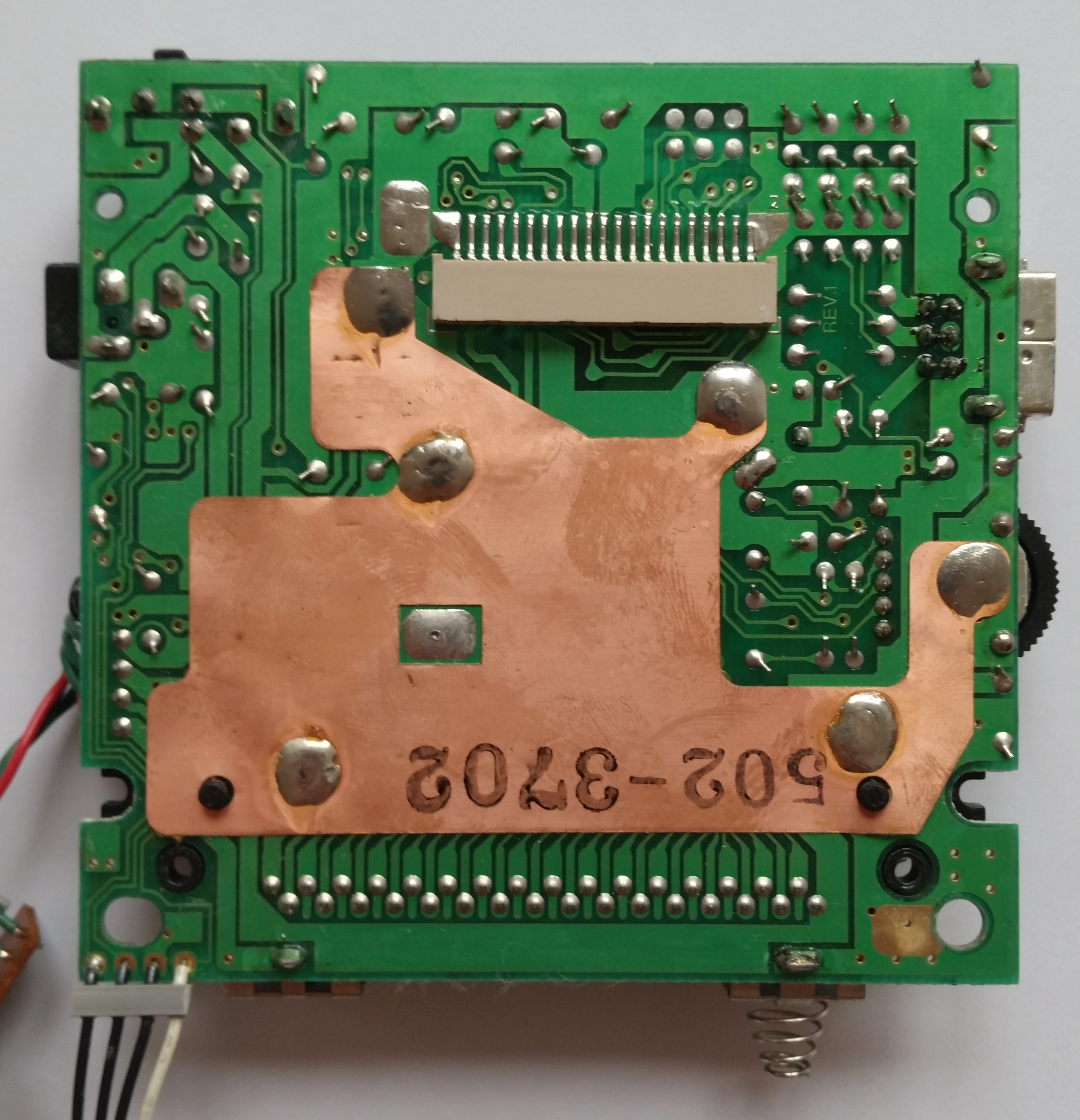

Front side of Game Boy main circuit boardBack side of Game Boy main circuit board

Board type
DMG-CPU-07
Stamp on board
502-3702
Circled letter(s) on board
SRI
Extra label
REV.1

LCD Board

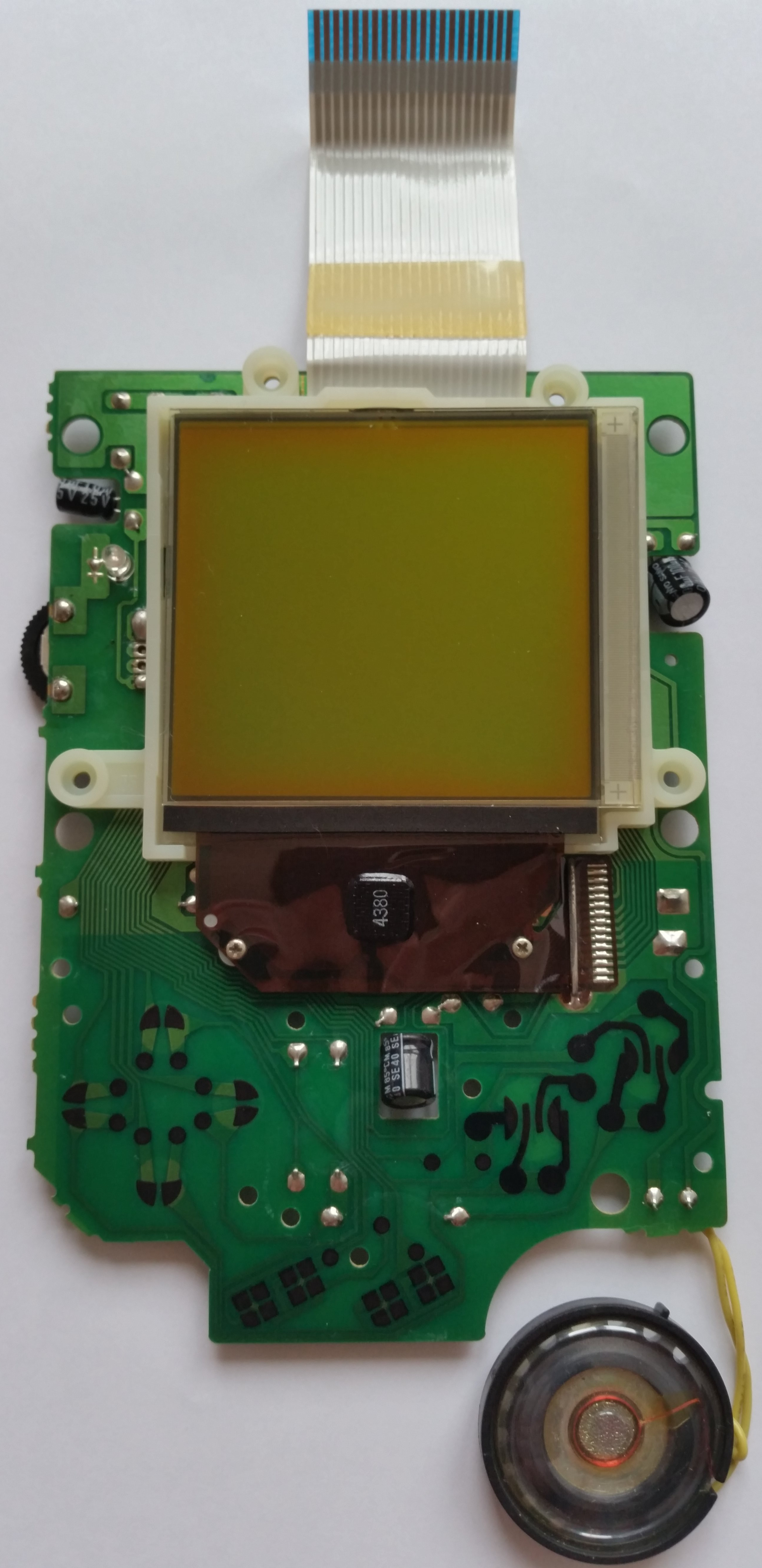

Front side of Game Boy LCD circuit boardBack side of Game Boy LCD circuit board

Board type
DMG-LCD-06
Manufacture date
December/1994
Stamp on board
502-3702 E
Circled letter(s) on board
CP
Number pair on board
-
LCD panel label
N2ST
941121
LCD row cable label
54 1205
LCD panel date
November/1994 - December/1994

Power Board

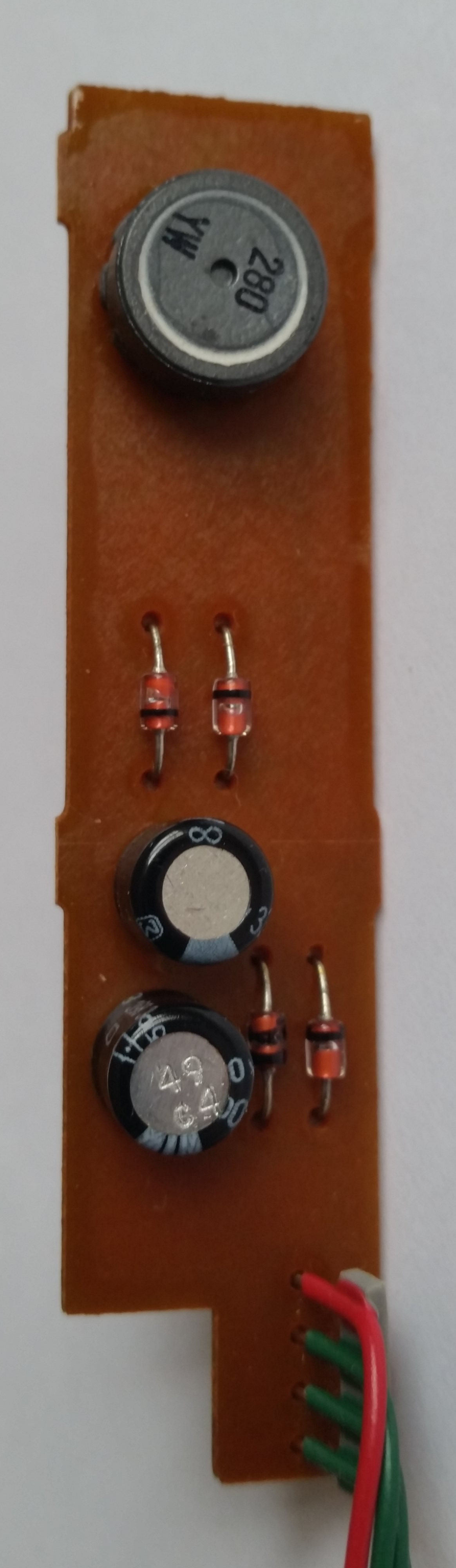

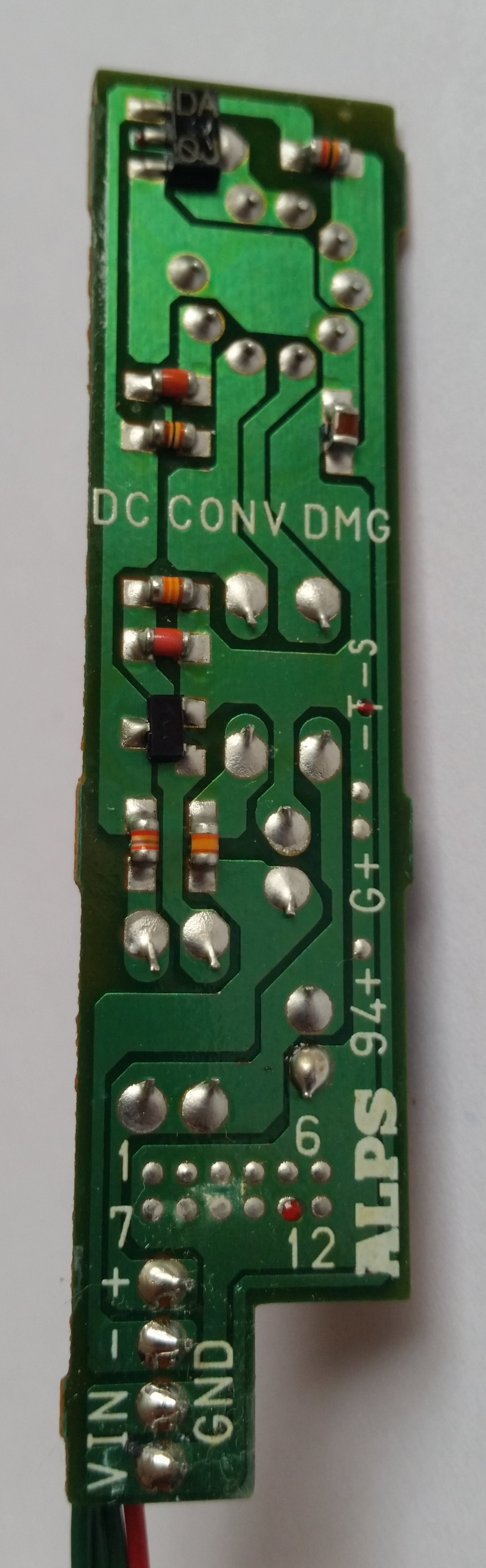

Front side of Game Boy power circuit boardBack side of Game Boy power circuit board

Board type
C
Manufacture date
November/1994
Label
DC CONV DMG

Jack Board

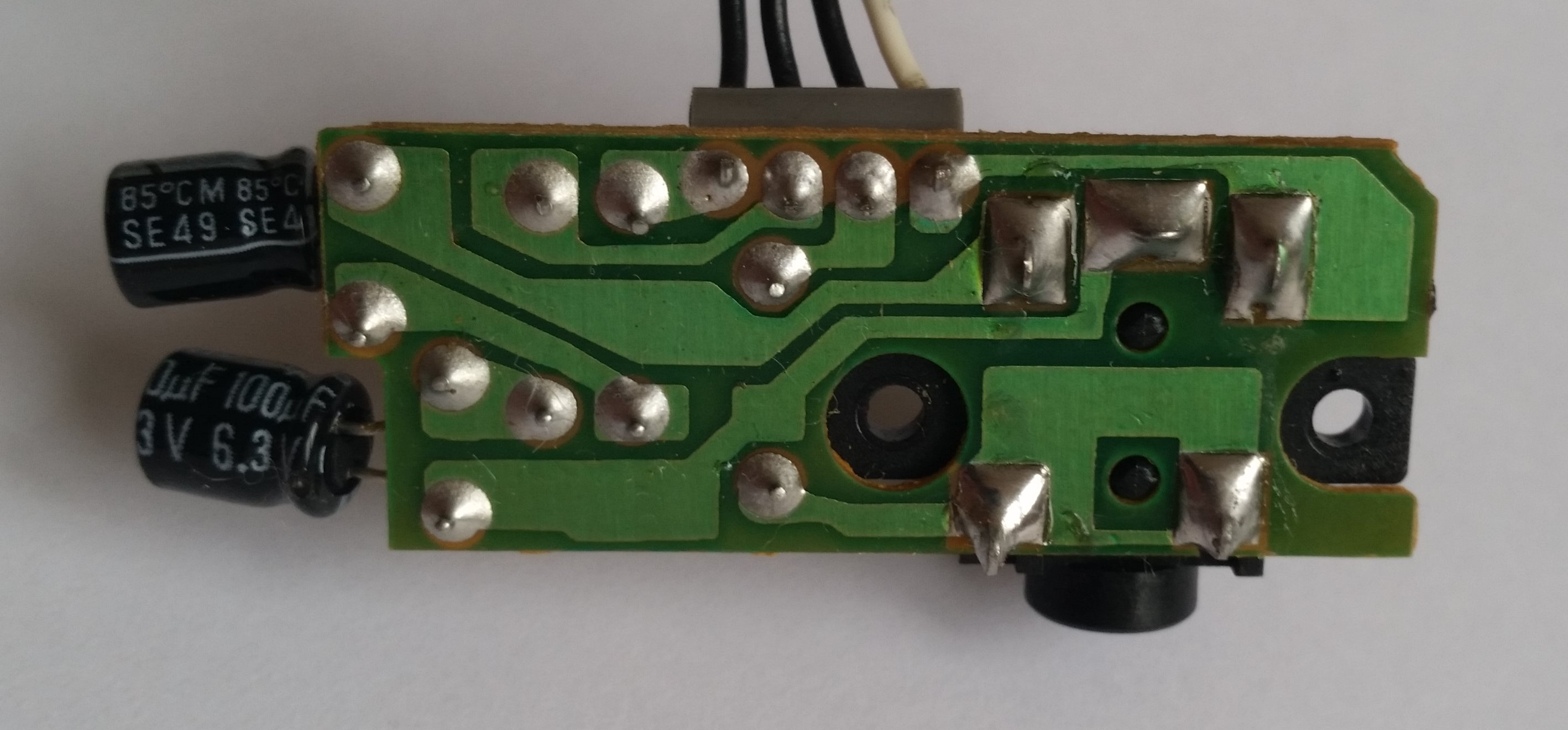

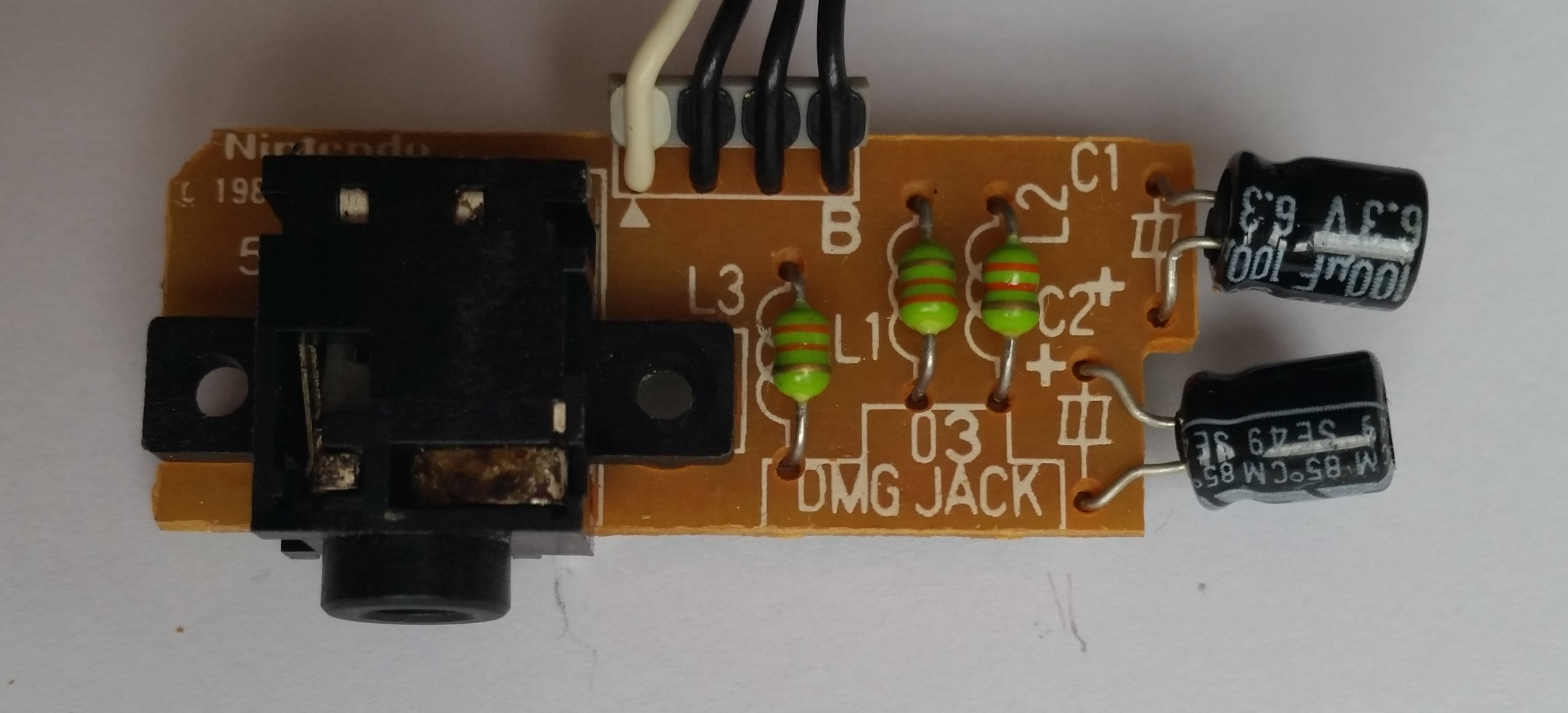

Front side of Game Boy headphone jack circuit boardBack side of Game Boy headphone jack circuit board

Board type
DMG JACK 03
Extra label
5

Chips

 ChipTypeManufacturerDateLabel
U1CPUDMG-CPU B (blob)??
B
U2Video RAM???
-
U3Work RAM???
-
U4Amplifier???
-
X1CrystalD419DaishinkuSeptember/1994
D419J4
-LCD Column DriverLH5077 BFSharpWeek 38/1994
LH5077 BF
4380
-LCD Row DriverLH5076 BFSharpWeek 32/1994
LH5076 BF
4320
-LCD RegulatorIR3E02SharpWeek 50/1994
DMG-REG
IR3E02
9450 CB

Notes

none

Misc

CPU works
yes
