DMG: [iceboy] #3 - G32988563

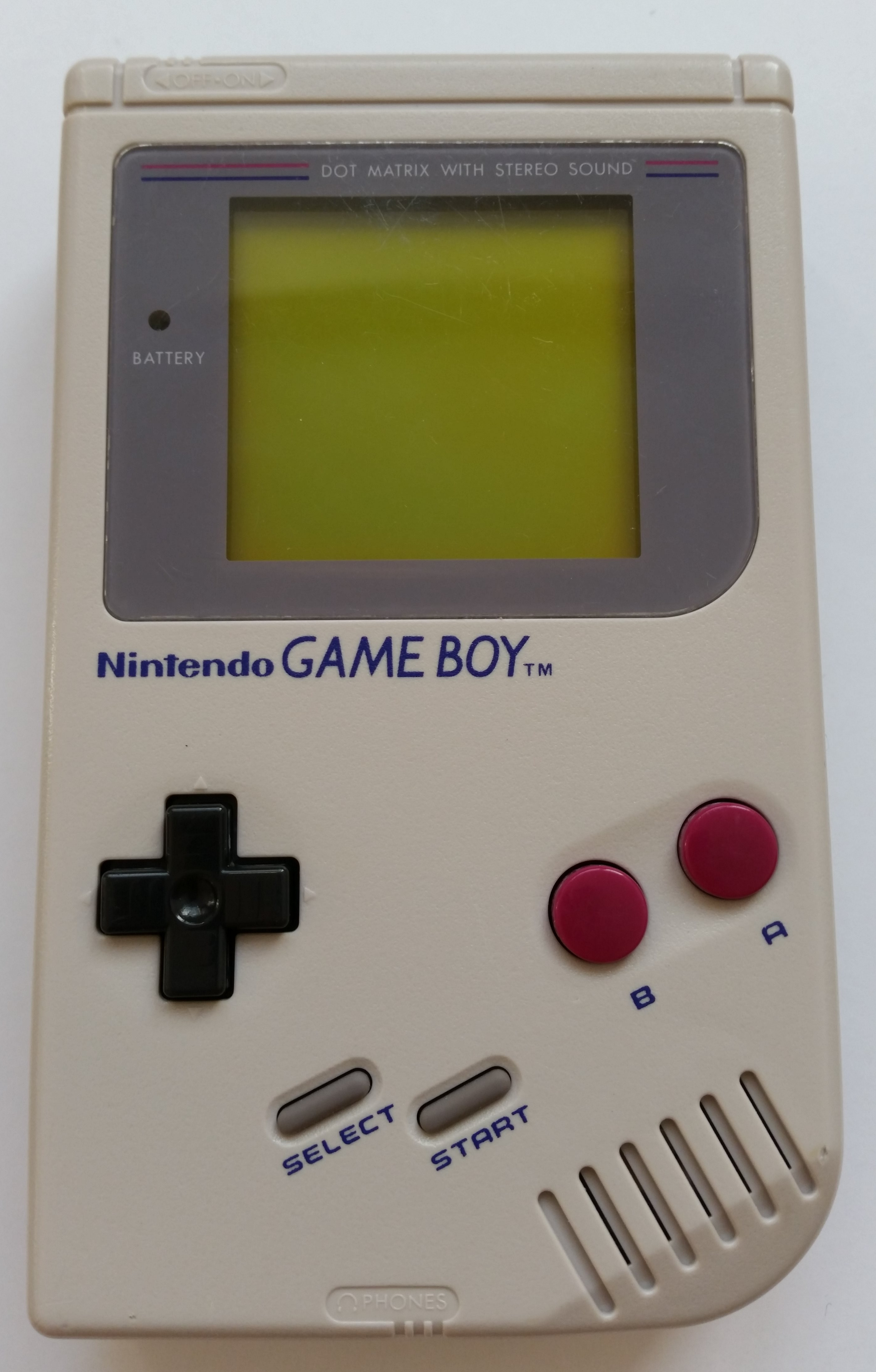

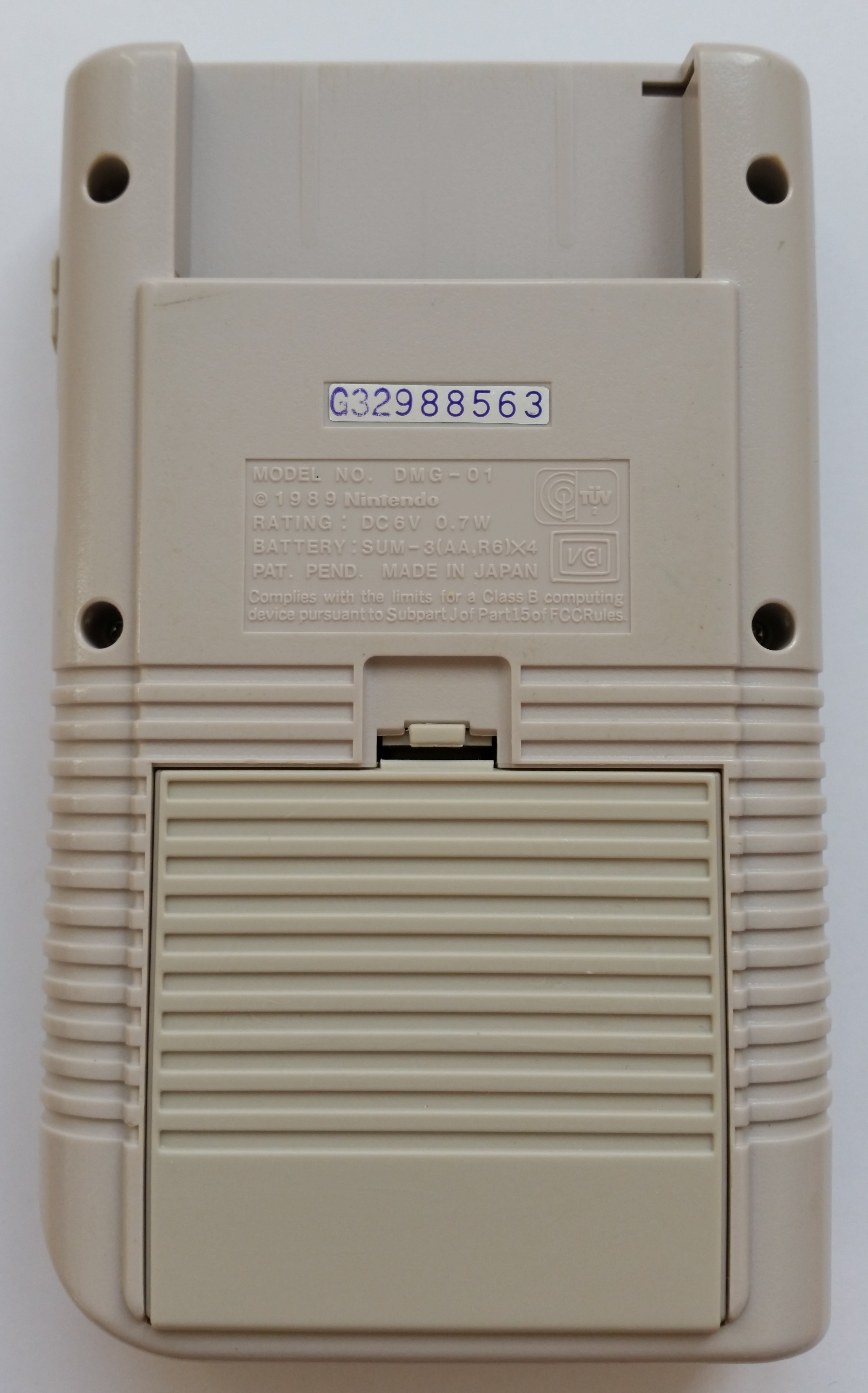

Front side of Game BoyBack side of Game Boy

Color
off-white
Screws
tri-wing
Assembly date
June/1993

Mainboard

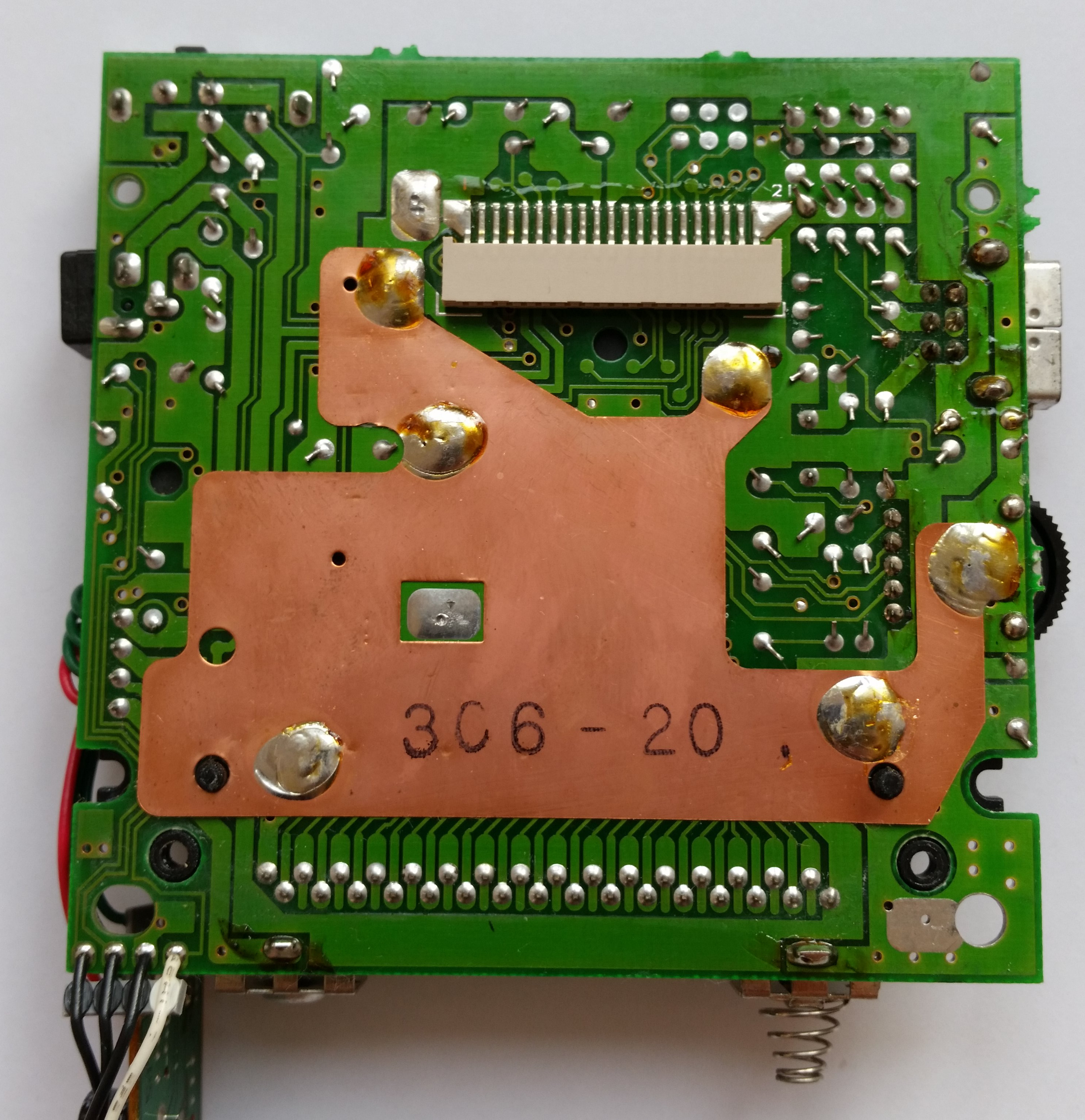

Front side of Game Boy main circuit boardBack side of Game Boy main circuit board

Board type
DMG-CPU-06
Stamp on board
306-20
Circled letter(s) on board
N
Extra label
6

LCD Board

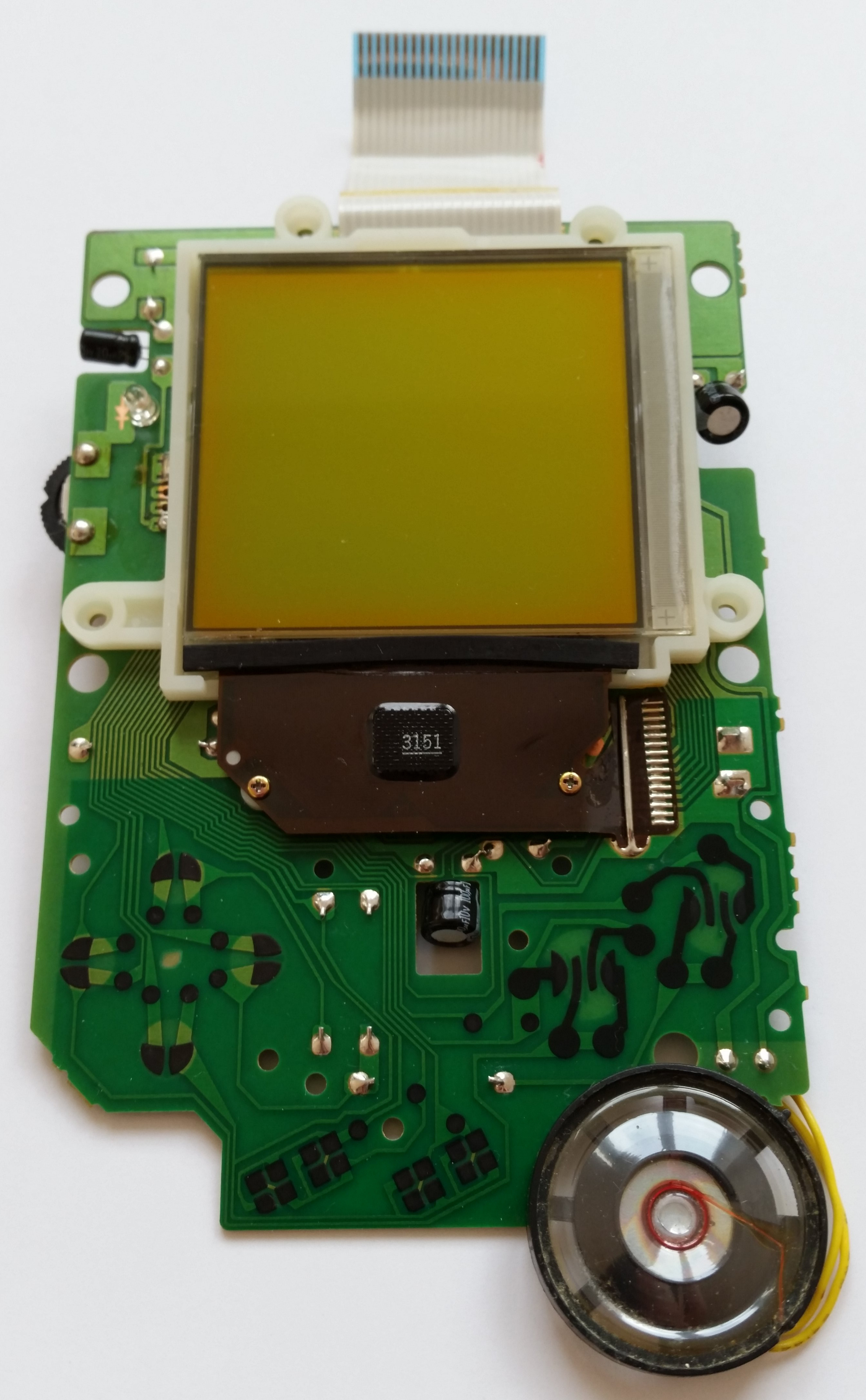

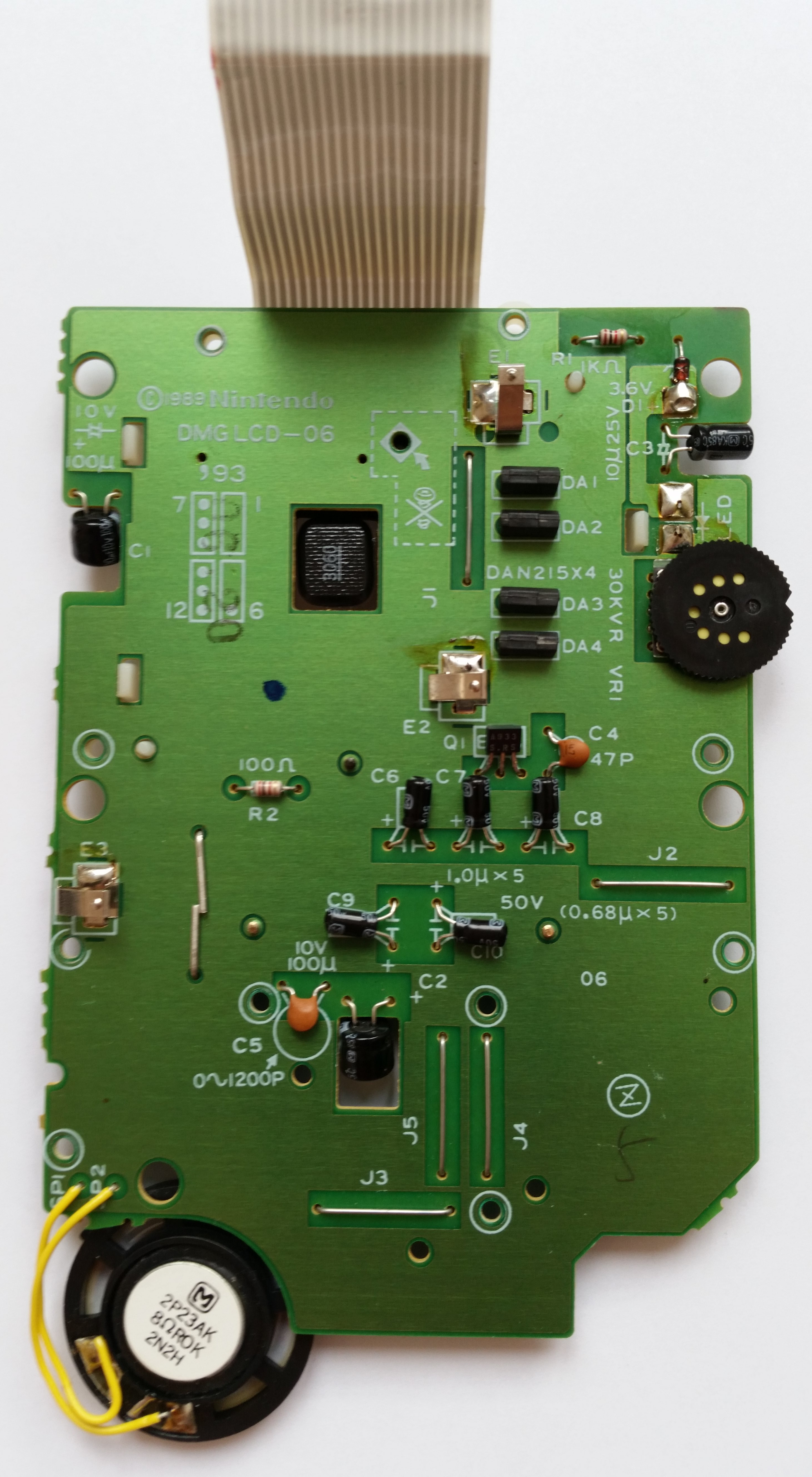

Front side of Game Boy LCD circuit boardBack side of Game Boy LCD circuit board

Board type
DMG LCD-06
Manufacture date
May/1993
Stamp on board
306-20
Circled letter(s) on board
Z (5)
Number pair on board
-
LCD panel label
N2AH 930526
LCD row cable label
7 30531
LCD panel date
May/1993

Power Board

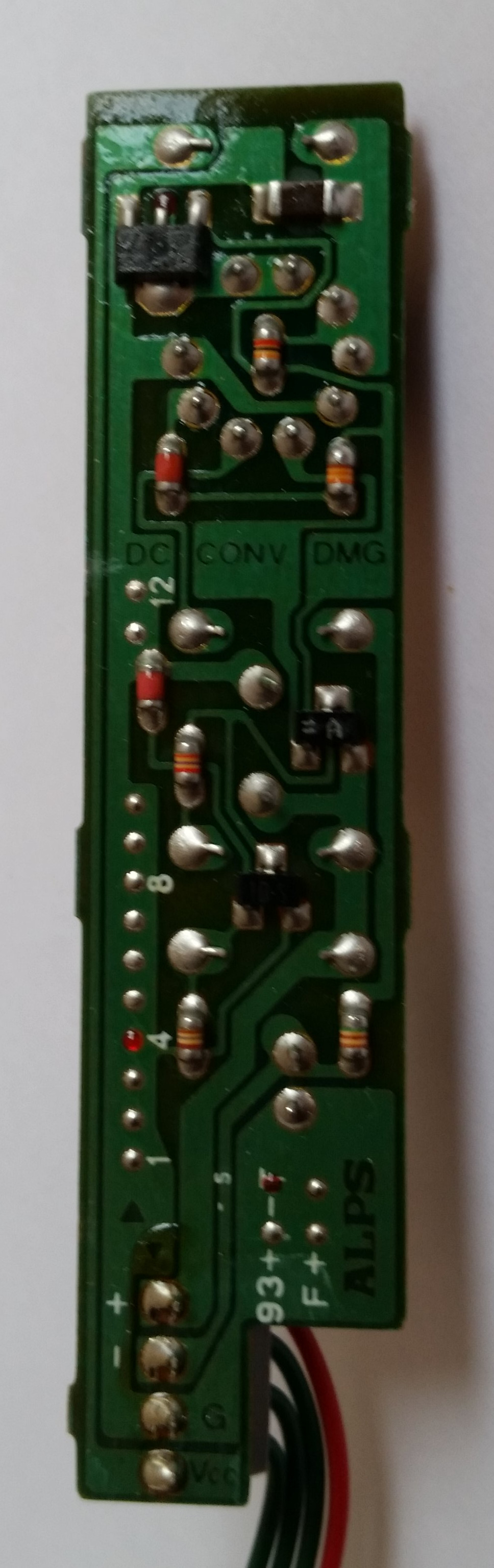

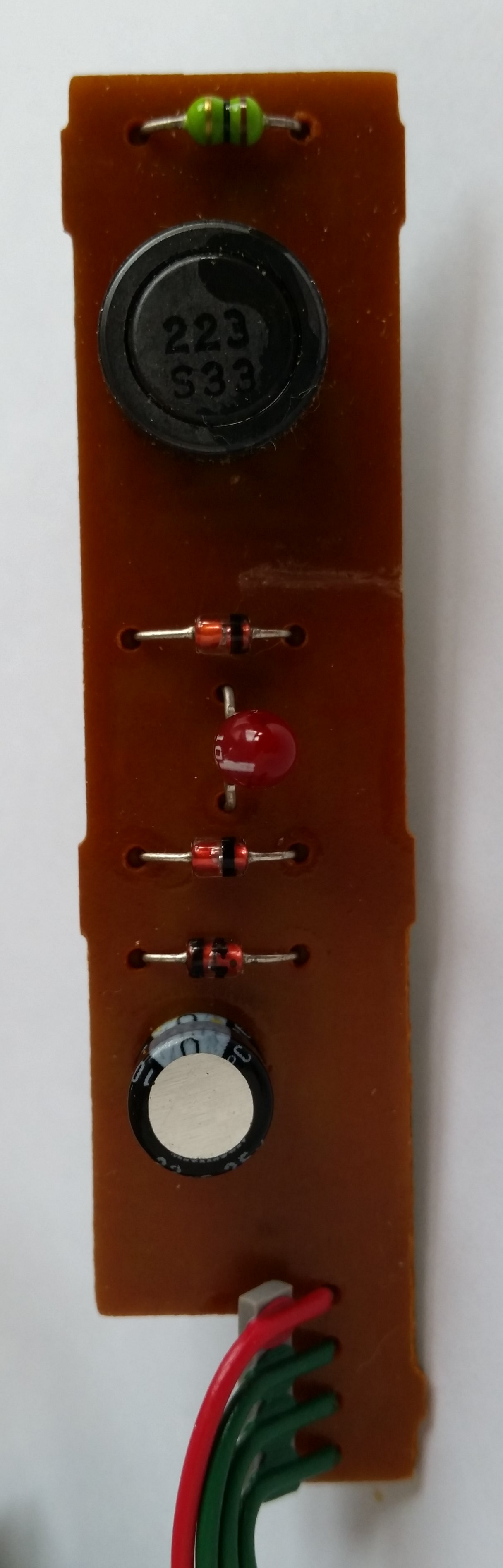

Front side of Game Boy power circuit boardBack side of Game Boy power circuit board

Board type
B
Manufacture date
April/1993
Label
DC CONV DMG

Jack Board

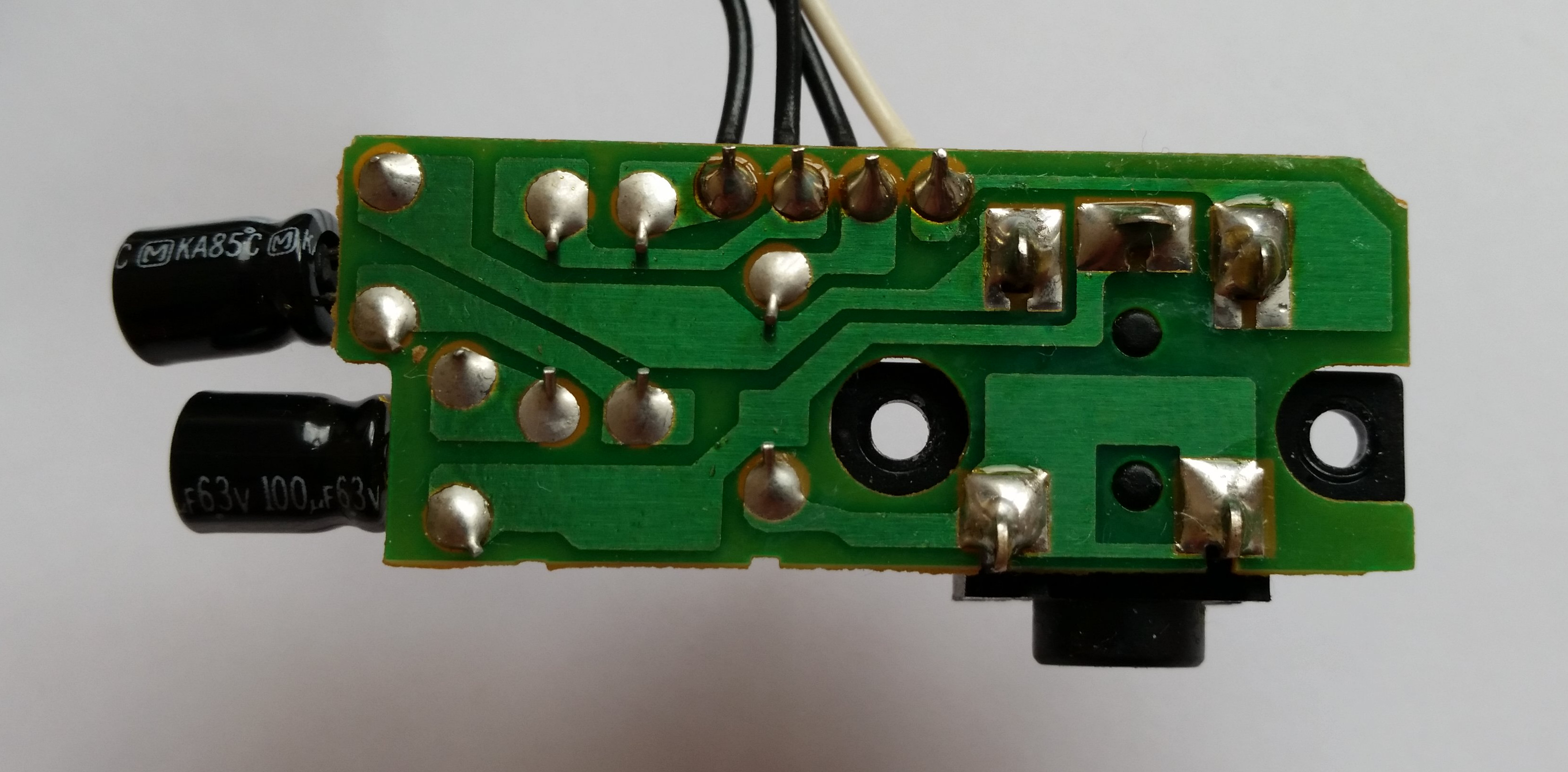

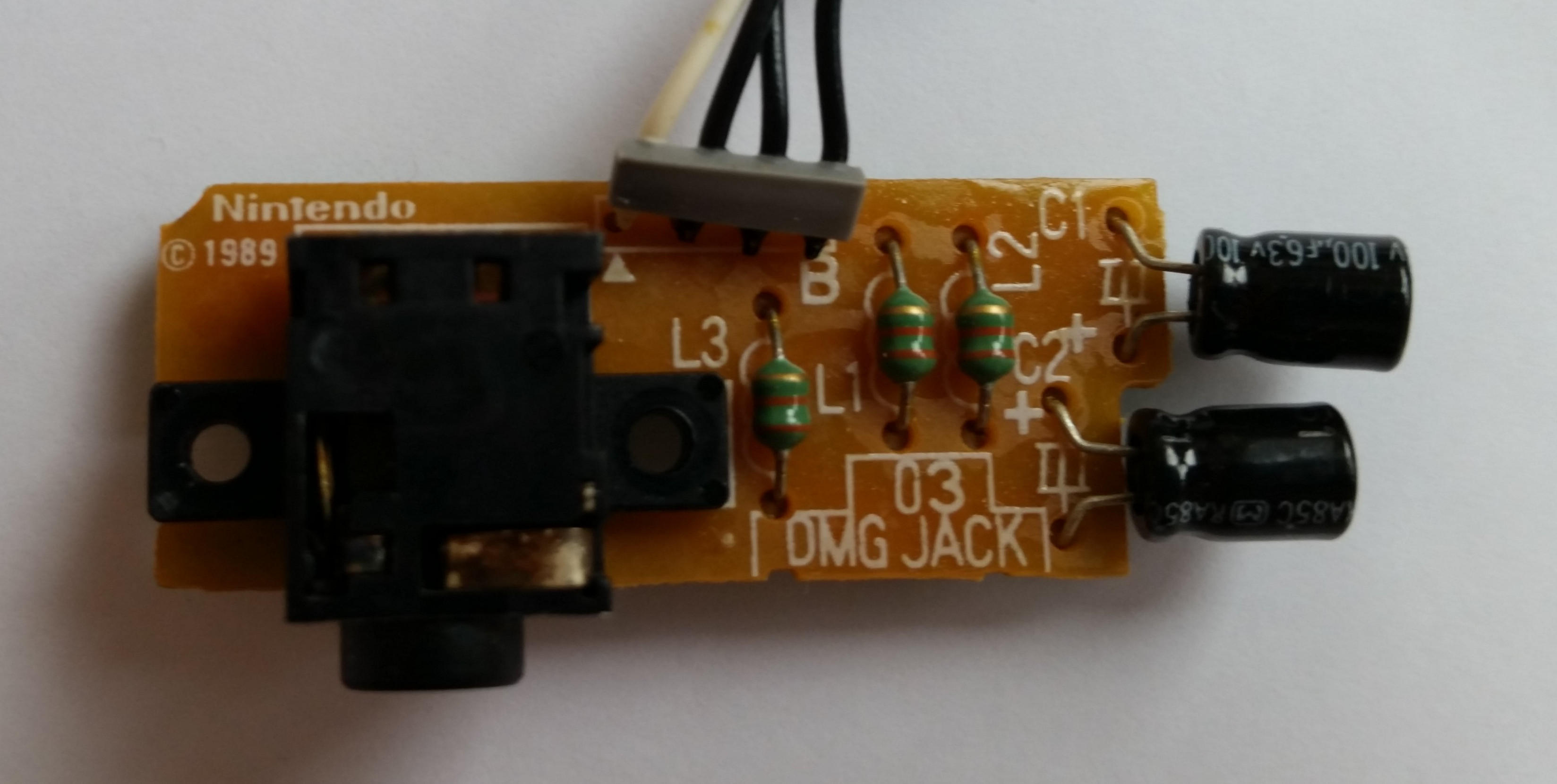

Front side of Game Boy headphone jack circuit boardBack side of Game Boy headphone jack circuit board

Board type
DMG JACK 03
Extra label
-

Chips

 ChipTypeManufacturerDateLabel
U1CPUDMG-CPU BSharpWeek 21/1993
DMG-CPU B
© 1989 Nintento
JAPAN
9321 D
U2Video RAMLH5264N4TLSI LogicWeek 7/1993
LH5264N4T
LSI LOGIC
JAPAN
D307 0V C
U3Work RAMLH5264N4TLSI LogicWeek 7/1993
LH5264N4T
LSI LOGIC
JAPAN
D307 0V C
U4AmplifierIR3R40SharpWeek 14/1993
DMG-AMP
IR3R40
9314 AA
X1CrystalD419DaishinkuMay/1993
D419E3
-LCD Column DriverLH5077 AFSharpWeek 15/1993
LH5077 AF
3151
-LCD Row DriverLH5076 AFSharpWeek 6/1993
LH5076 AF
3060
-LCD RegulatorIR3E02SharpWeek 23/1993
DMG-REG
IR3E02
9323 CB

Notes

- Display cover fell off:
    -> Cleaned old glue
    -> Applied double sided tape
    -> Cover seems to be original
- LCD had missing columns at the left and right border:
    -> repaired
- Link port cover was missing:
    -> Attached replica part
- Battery cover was missing:
    -> Attached replica part

Misc

CPU works
yes
