DMG: [iceboy] #28 - GM1558748

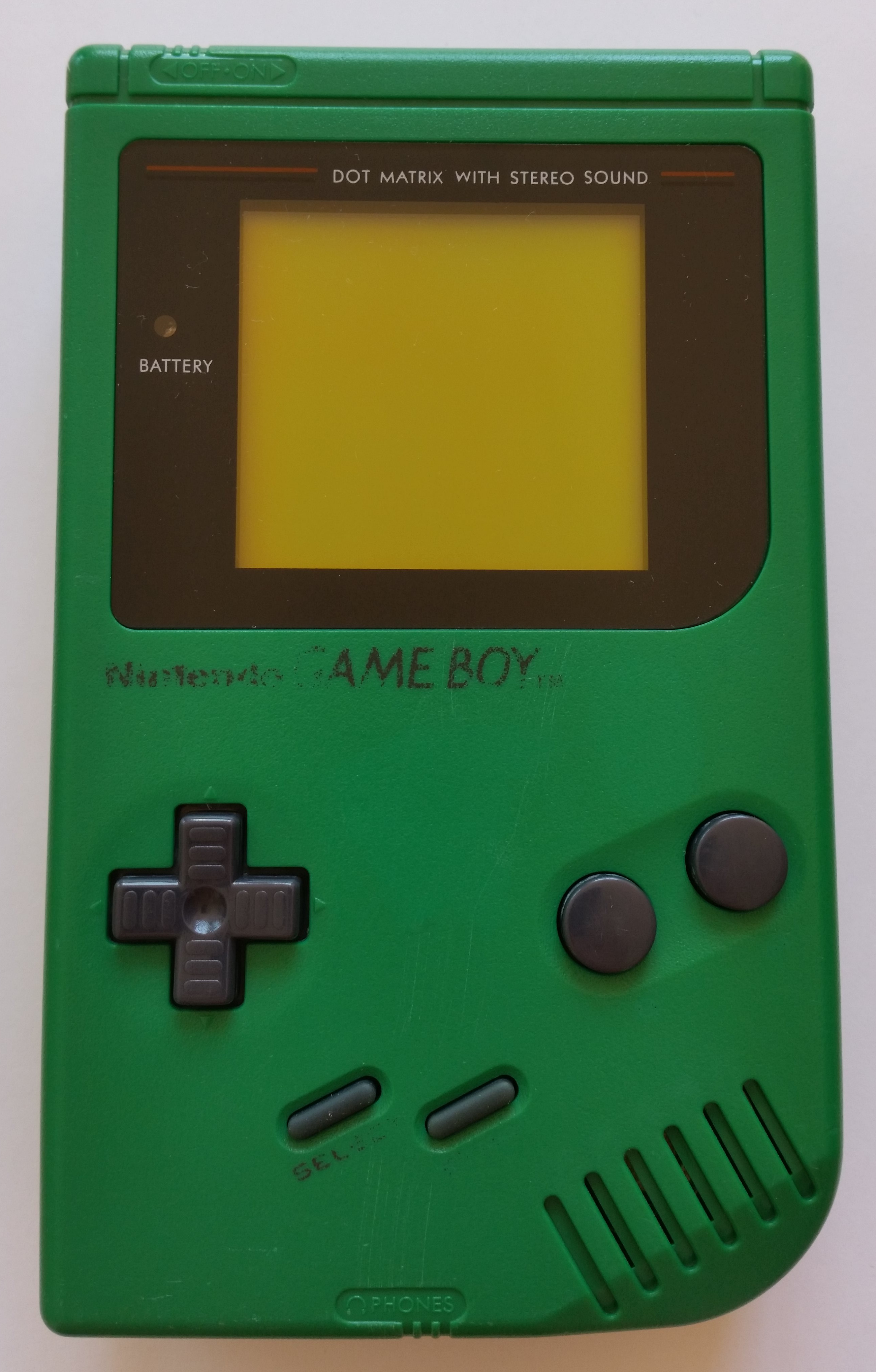

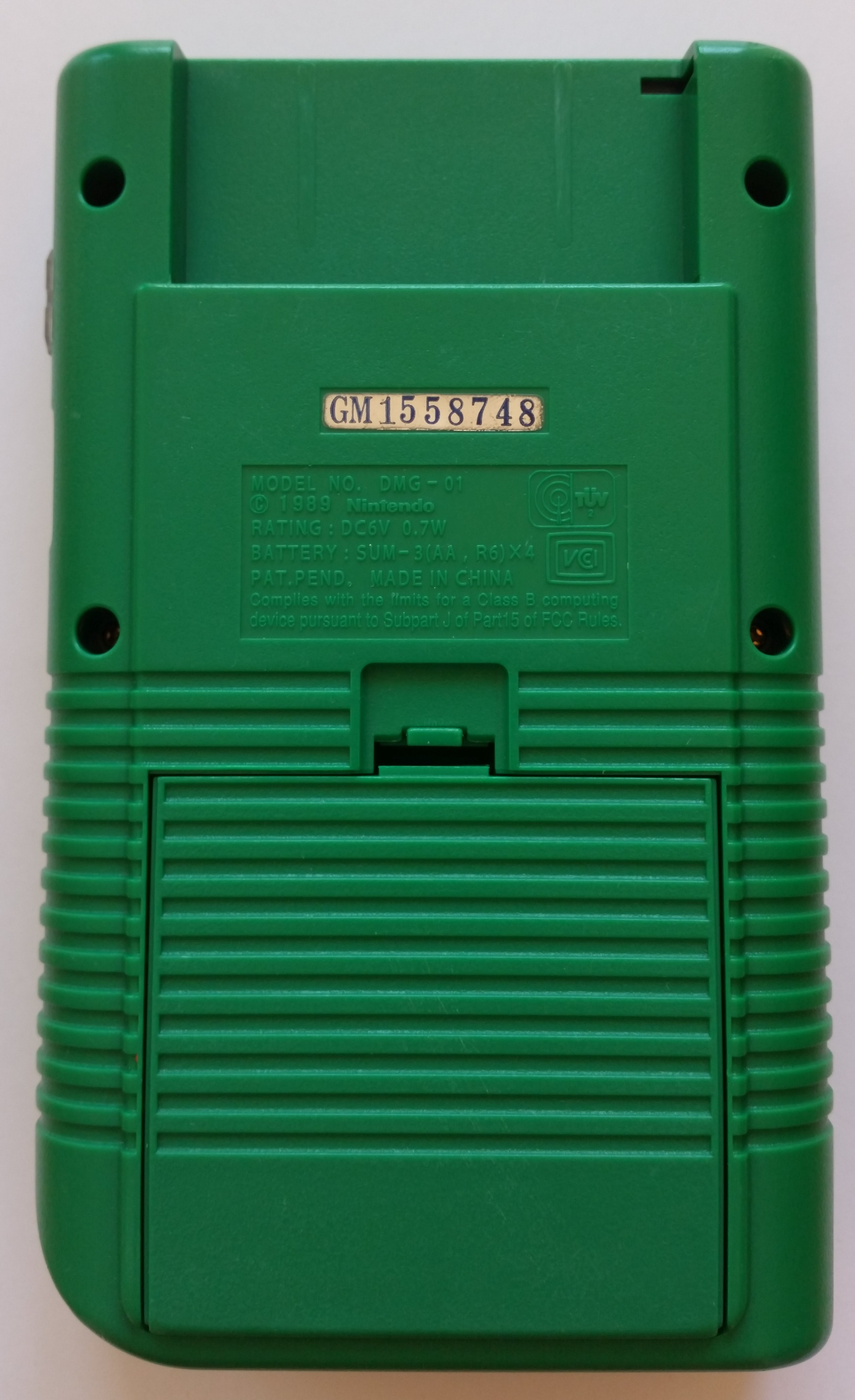

Front side of Game BoyBack side of Game Boy

Color
gorgeous-green
Screws
tri-wing
Assembly date
May/1995

Mainboard

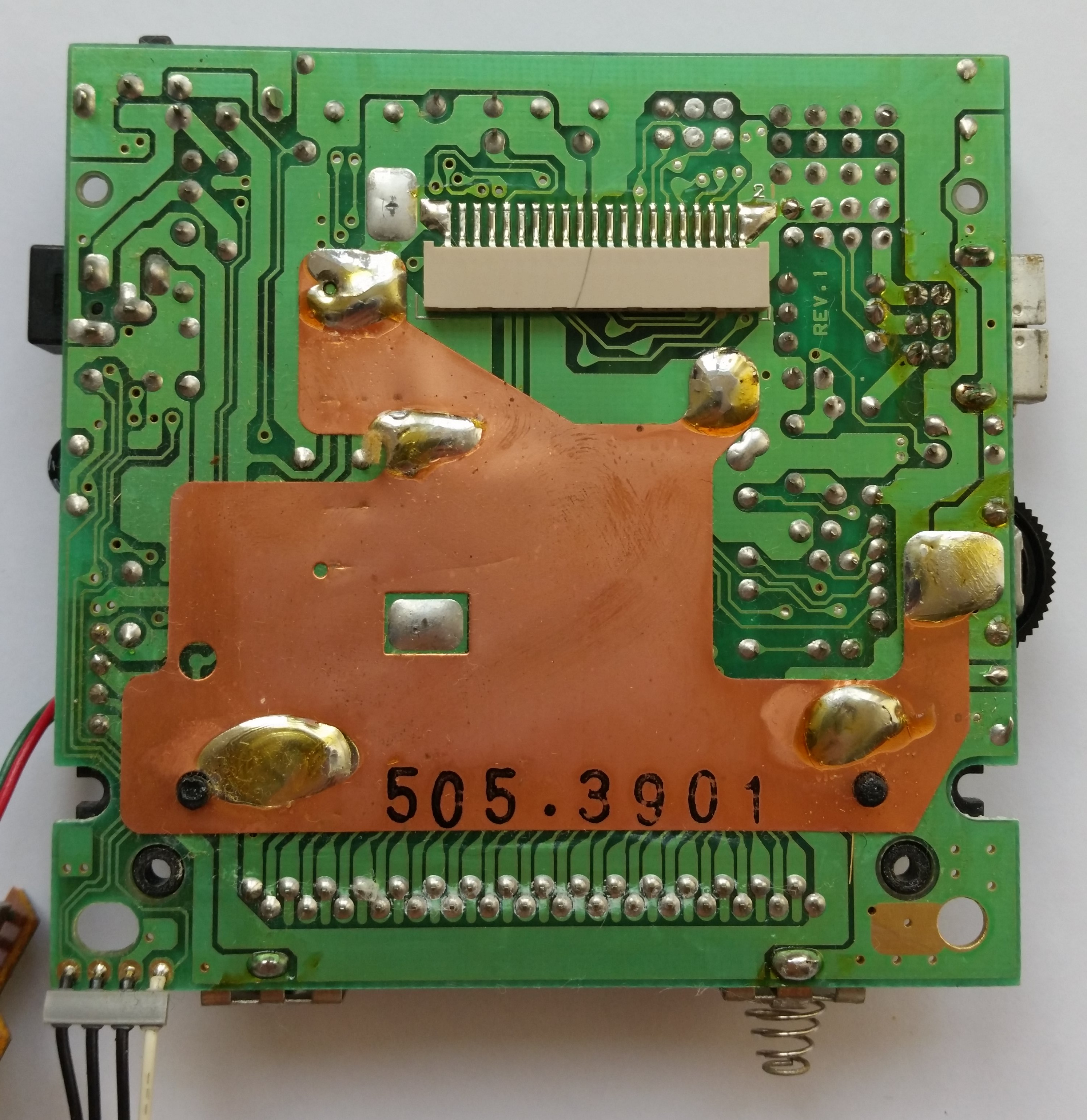

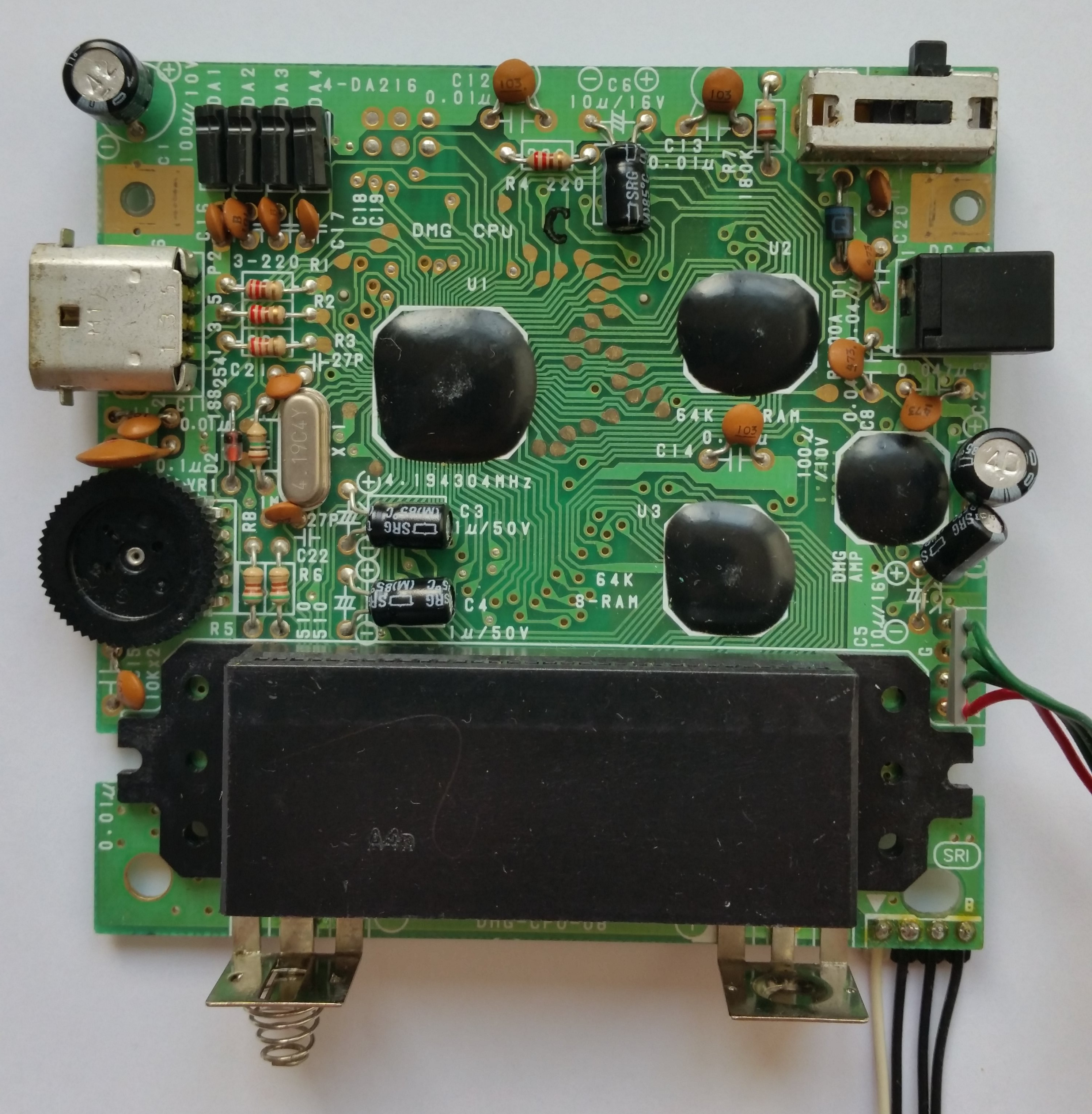

Front side of Game Boy main circuit boardBack side of Game Boy main circuit board

Board type
DMG-CPU-08
Stamp on board
505.3901
Circled letter(s) on board
SRI
Extra label
REV.1

LCD Board

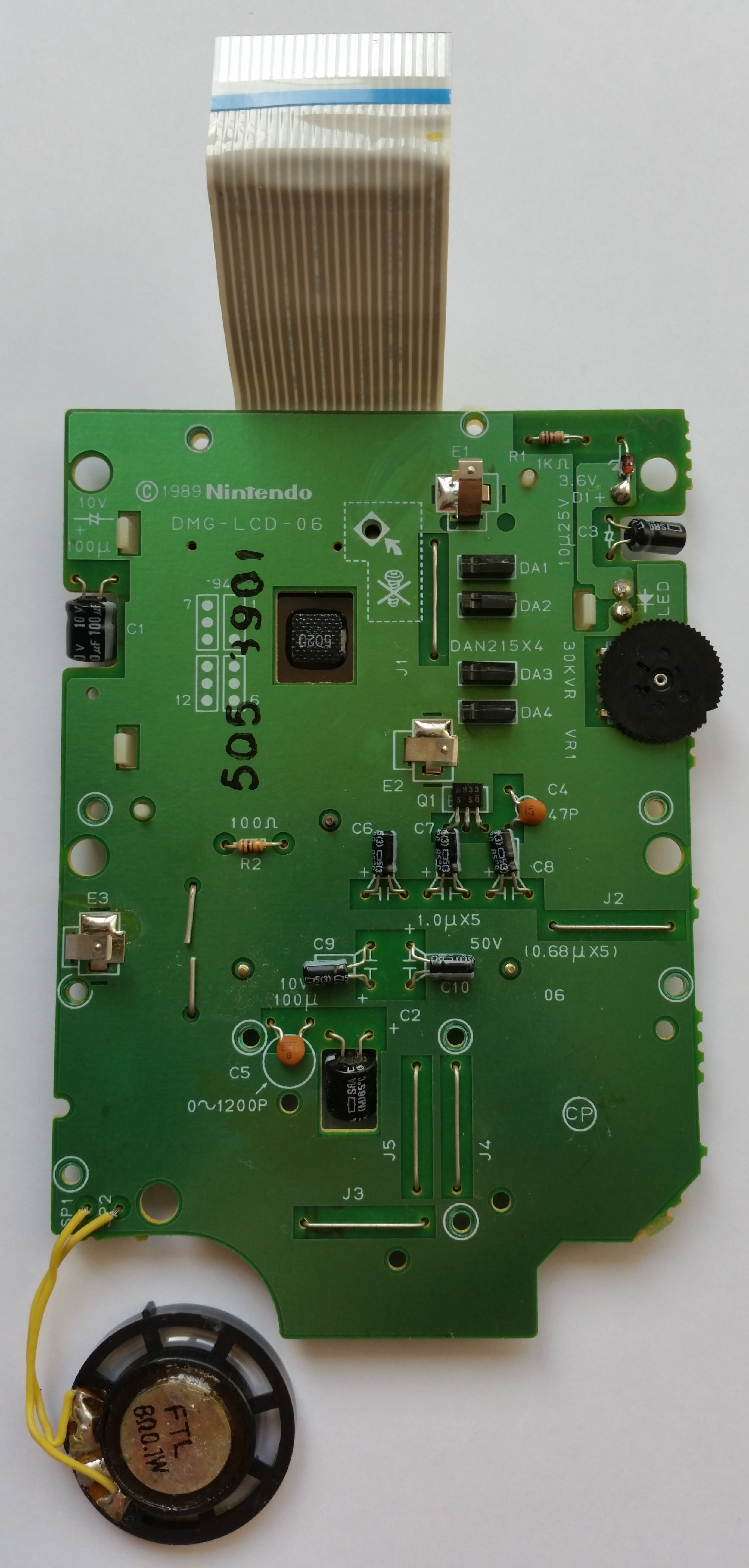

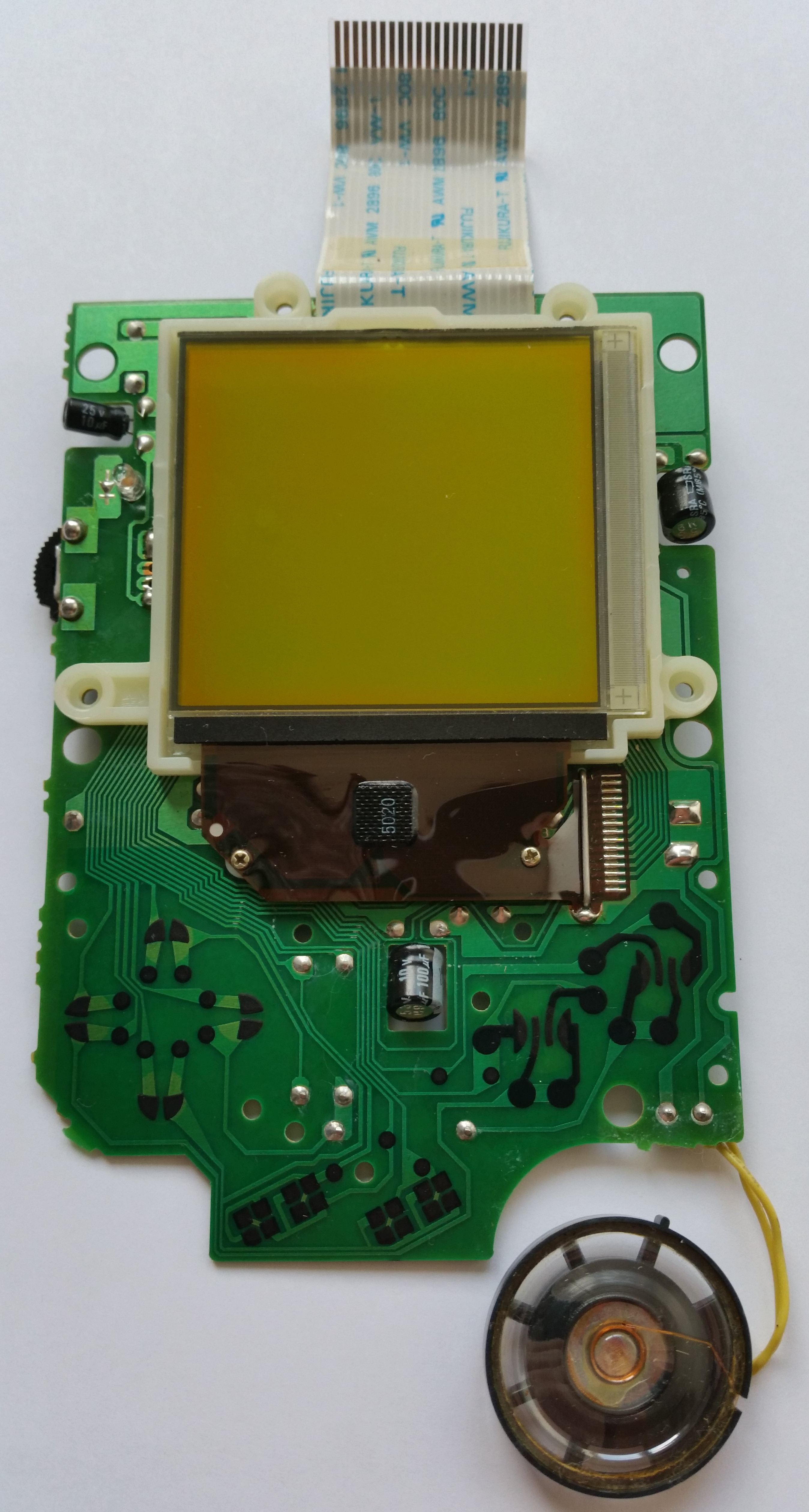

Front side of Game Boy LCD circuit boardBack side of Game Boy LCD circuit board

Board type
DMG-LCD-06
Manufacture date
February/1994
Stamp on board
505 3901
Circled letter(s) on board
CP
Number pair on board
-
LCD panel label
EP
950327
LCD row cable label
G 50506
LCD panel date
March/1995 - May/1995

Power Board

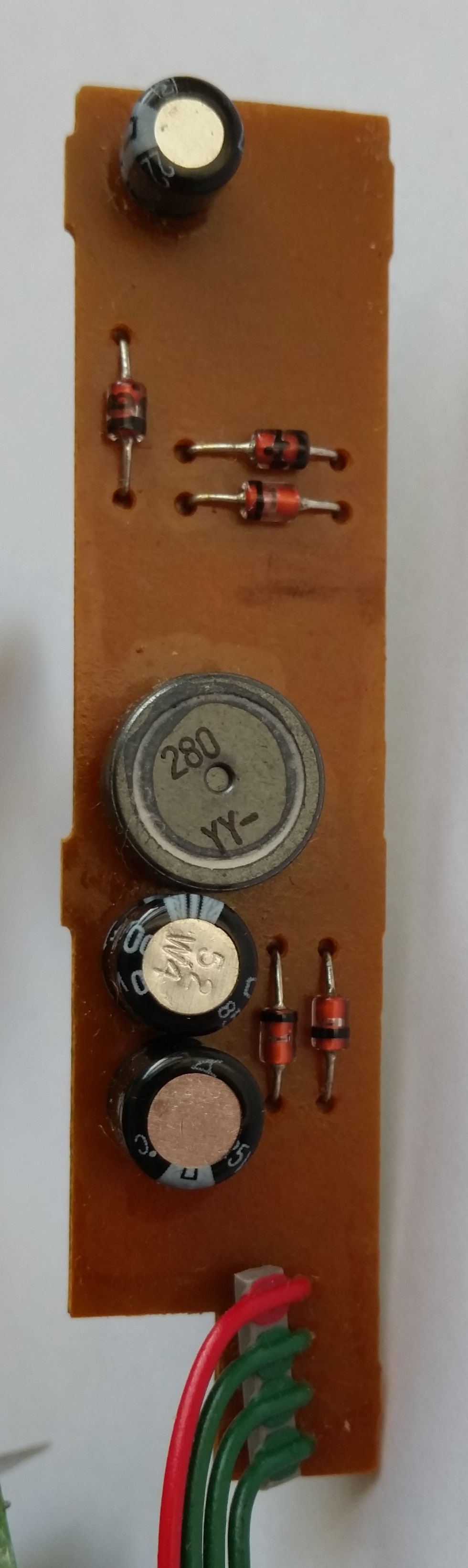

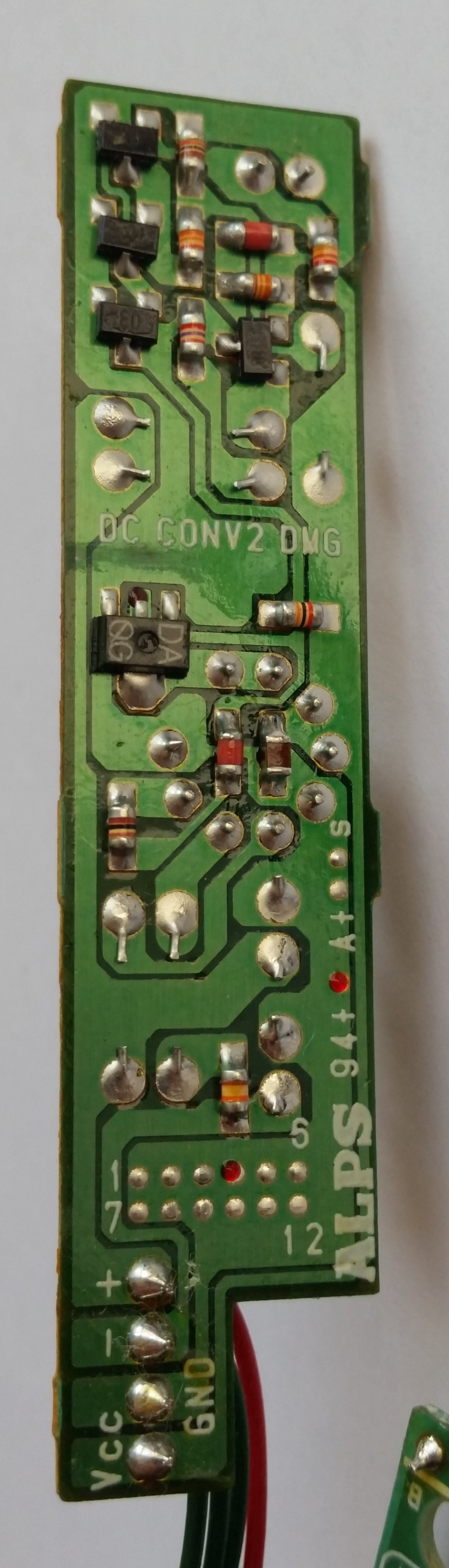

Front side of Game Boy power circuit boardBack side of Game Boy power circuit board

Board type
D
Manufacture date
April/1994
Label
DC CONV2 DMG

Jack Board

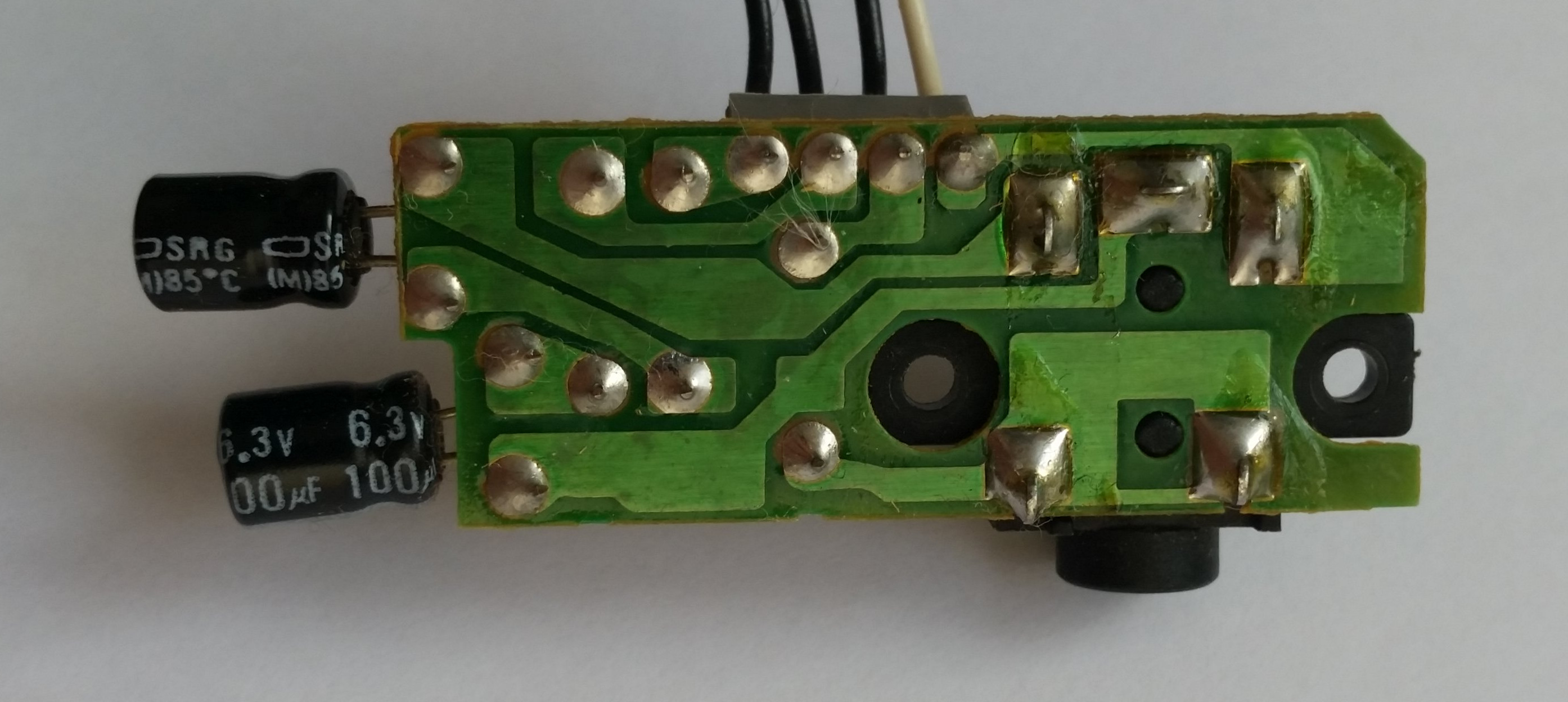

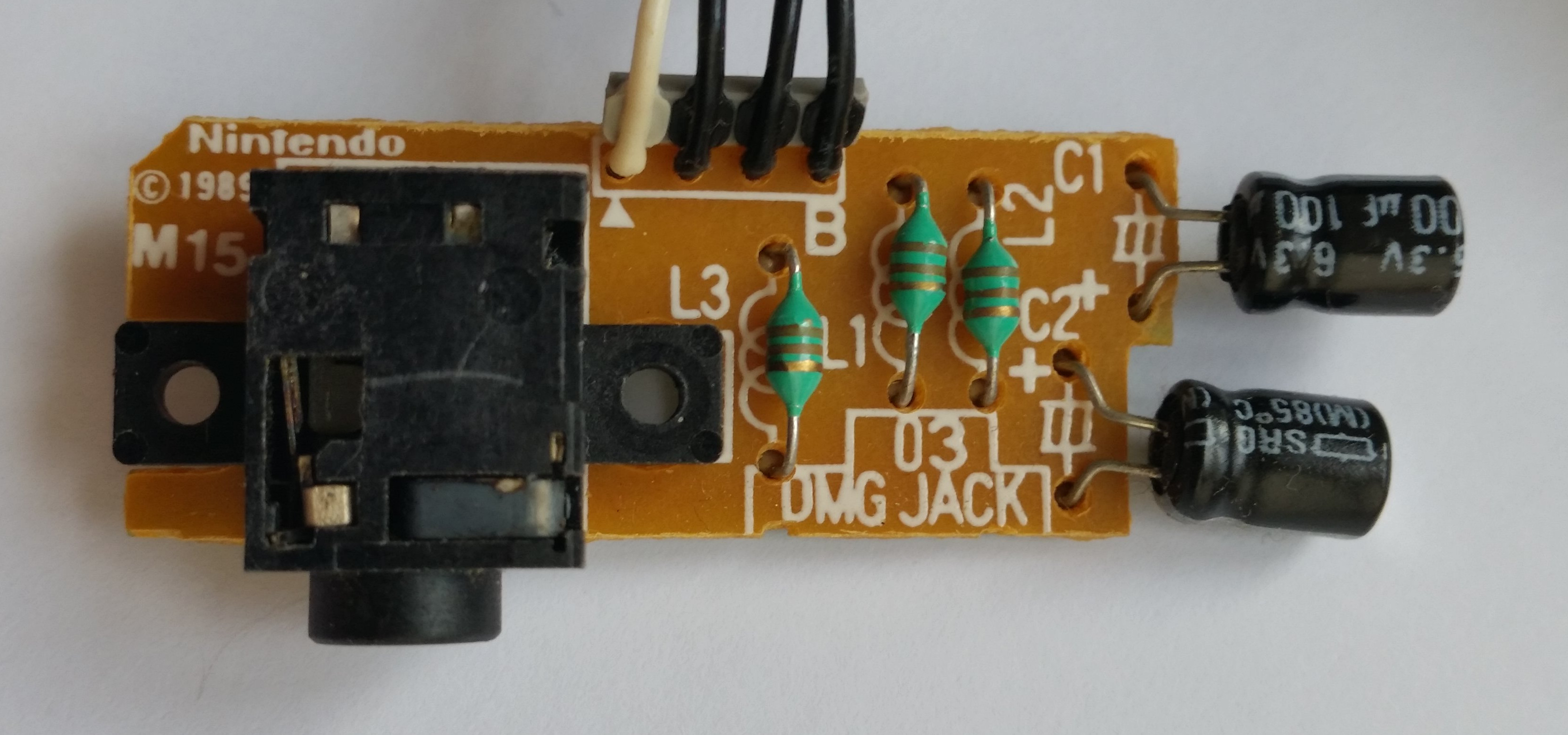

Front side of Game Boy headphone jack circuit boardBack side of Game Boy headphone jack circuit board

Board type
DMG JACK 03
Extra label
M15

Chips

 ChipTypeManufacturerDateLabel
U1CPUDMG-CPU C (blob)??
C
U2Video RAM???
-
U3Work RAM???
-
U4Amplifier???
-
X1Crystal4.19C?November/1994
4.19C4Y
-LCD Column DriverLH5077 BFSharpWeek 2/1995
LH5077 BF
5020
-LCD Row DriverLH5076 BFSharpWeek 2/1995
LH5076 BF
5020
-LCD RegulatorIR3E02SharpWeek 12/1995
DMG-REG
IR3E02
9512 CB

Notes

- Display cover fell off:
    -> Looks like it was re-glued already, but with a glue that didn't damage the shell
    -> Cleaned old glue
    -> Threw away, because parts of the grey color came off; seemed to be original though
    -> Attached replica part
- Link port cover was missing:
    -> Attached replica part
- Many parts of the shell broke off; mainly the cylindric parts where the screws drill into:
    -> The green plastic seems to be very fragile; also has this issue with GH2782432.
    -> glued

Misc

CPU works
yes
