DMG: [iceboy] #27 - G01125263

Front side of Game BoyBack side of Game Boy

Color
off-white
Screws
phillips
Assembly date
March/1989 - August/1990

Mainboard

Front side of Game Boy main circuit boardBack side of Game Boy main circuit board

Board type
DMG-CPU-01
Stamp on board
903-22
Circled letter(s) on board
-
Extra label
3

LCD Board

Front side of Game Boy LCD circuit boardBack side of Game Boy LCD circuit board

Board type
DMG LCD-04
Manufacture date
1989
Stamp on board
908-23Y 008-15
Circled letter(s) on board
Z
Number pair on board
-
LCD panel label
N2
ST900808
LCD row cable label
200816
LCD panel date
August/1990

Power Board

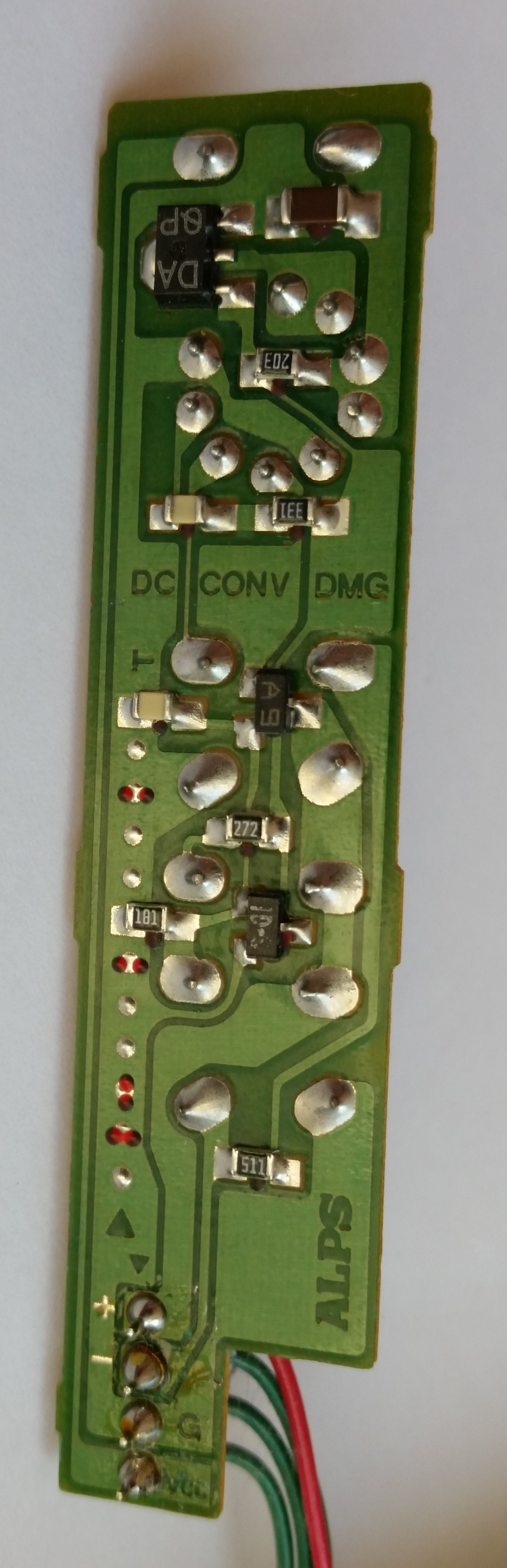

Front side of Game Boy power circuit boardBack side of Game Boy power circuit board

Board type
A1
Manufacture date
1989
Label
DC CONV DMG

Jack Board

Front side of Game Boy headphone jack circuit boardBack side of Game Boy headphone jack circuit board

Board type
DMG JACK 01
Extra label
-

Chips

 ChipTypeManufacturerDateLabel
U1CPUDMG-CPUSharpWeek 11/1989
DMG-CPU
© 1989 Nintento
JAPAN
8911 D
U2Video RAMLH5164LN-10SharpWeek 9/1989
LH5164LN-10
SHARP
JAPAN
8909 5 D
U3Work RAMLH5164LN-10SharpWeek 9/1989
LH5164LN-10
SHARP
JAPAN
8909 5 D
U4AmplifierIR3R40SharpWeek 9/1989
DMG-AMP
IR3R40
8909 A
X1CrystalD419DaishinkuFebruary/1989
D419B9
-LCD Column DriverLH5077 FSharpAugust/1990
LH5077 F
008
-LCD Row DriverLH5076 FSharpJuly/1990
LH5076 F
007
-LCD RegulatorIR3E02SharpWeek 26/1989
DMG-REG
IR3E02
8926 A

Notes

- LCD had two missing columns at the far right side:
    -> TODO: try to repair
- Display cover fell off:
    -> Cleaned old glue
    -> Applied double sided tape
    -> Cover seems to be original

Misc

CPU works
yes
