N1AH 931009

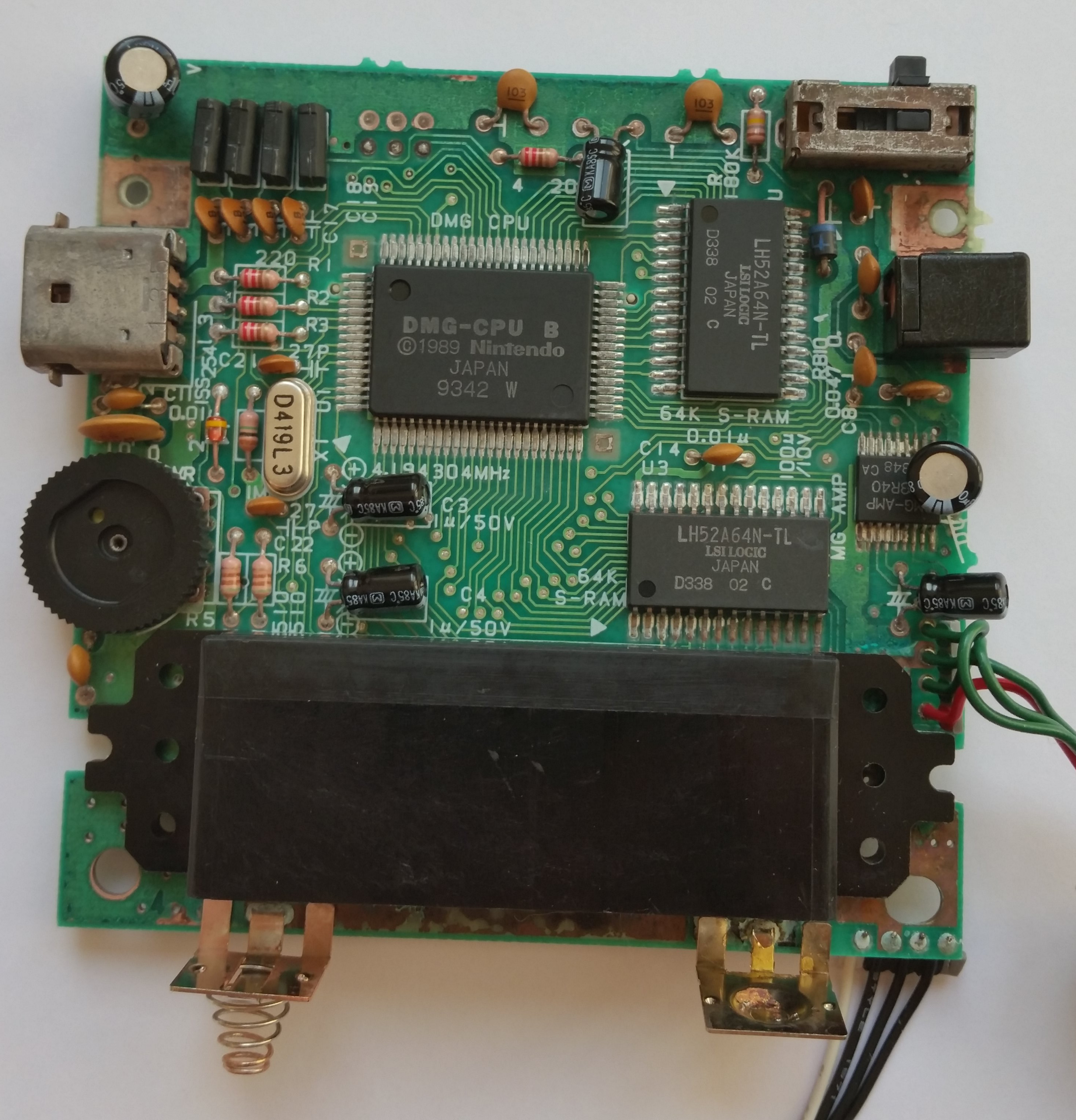

| Chip | Type | Manufacturer | Date | Label | |
|---|---|---|---|---|---|
| U1 | CPU | DMG-CPU B | Sharp | Week 42/1993 | DMG-CPU B © 1989 Nintento JAPAN 9342 W |
| U2 | Video RAM | LH52A64N-TL | LSI Logic | Week 38/1993 | LH52A64N-TL LSI LOGIC JAPAN D338 02 C |
| U3 | Work RAM | LH52A64N-TL | LSI Logic | Week 38/1993 | LH52A64N-TL LSI LOGIC JAPAN D338 02 C |
| U4 | Amplifier | IR3R40 | Sharp | Week 48/1993 | DMG-AMP IR3R40 9348 CA |
| X1 | Crystal | D419 | Daishinku | November/1993 | D419L3 |
| - | LCD Column Driver | LH5077 AF | Sharp | Week 41/1993 | LH5077 AF 3411 |
| - | LCD Row Driver | LH5076 AF | Sharp | Week 41/1993 | LH5076 AF 3410 |
| - | LCD Regulator | IR3E02 | Sharp | Week 11/1992 | DMG-REG IR3E02 9211 AB |

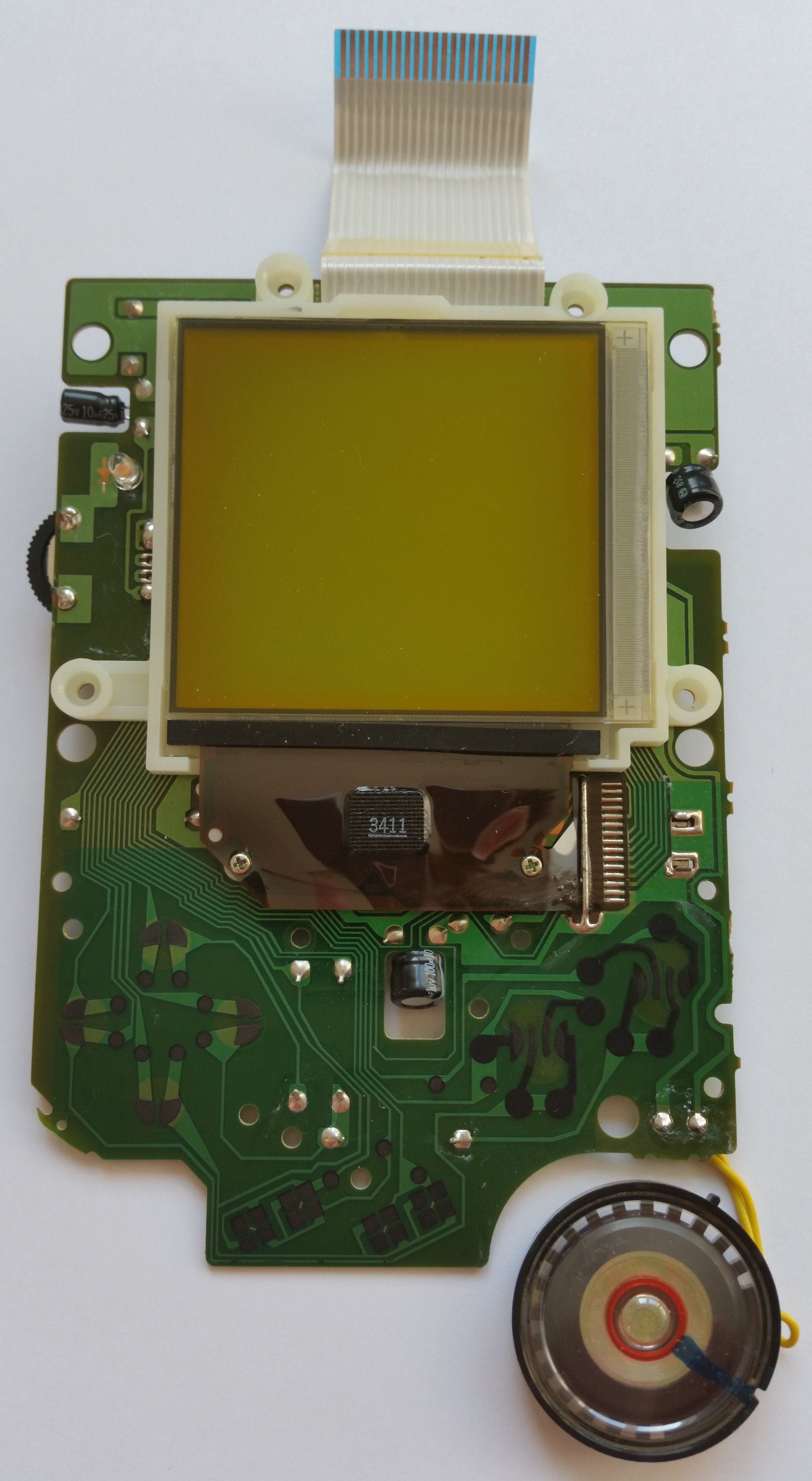

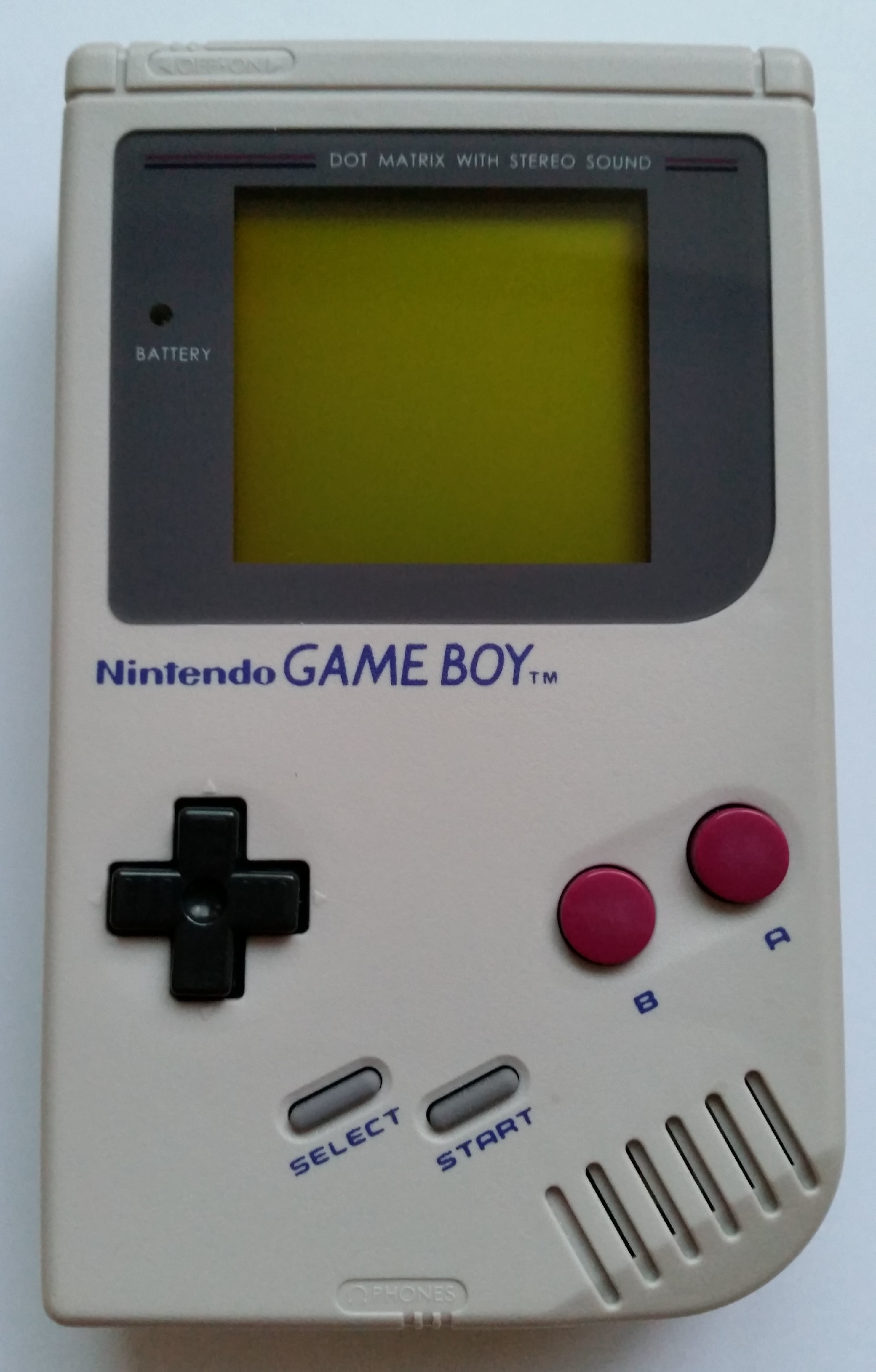

- LCD had some missing columns at the borders:
-> repaired
- LCD has two missing rows
- Display cover fell off:
-> Tried to clean old glue. Failed, because someone already re-glued it with
plastic glue.
-> Cover seems to be original, but grey color broke off due to use of wrong glue.
-> Garbage
-> Milled off the glue
-> Attached replica part
- Link port cover was missing:
-> Attached replica part

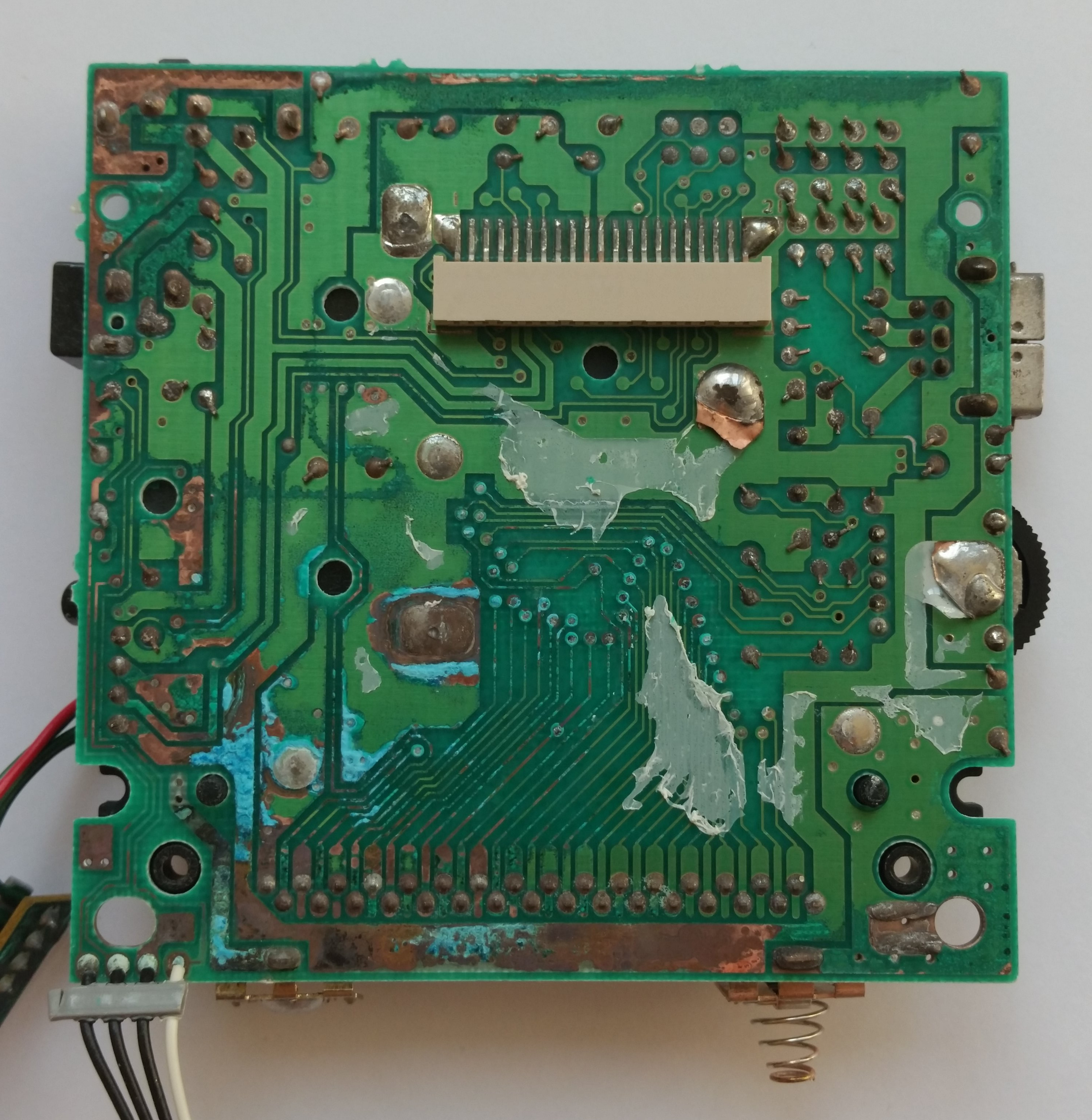

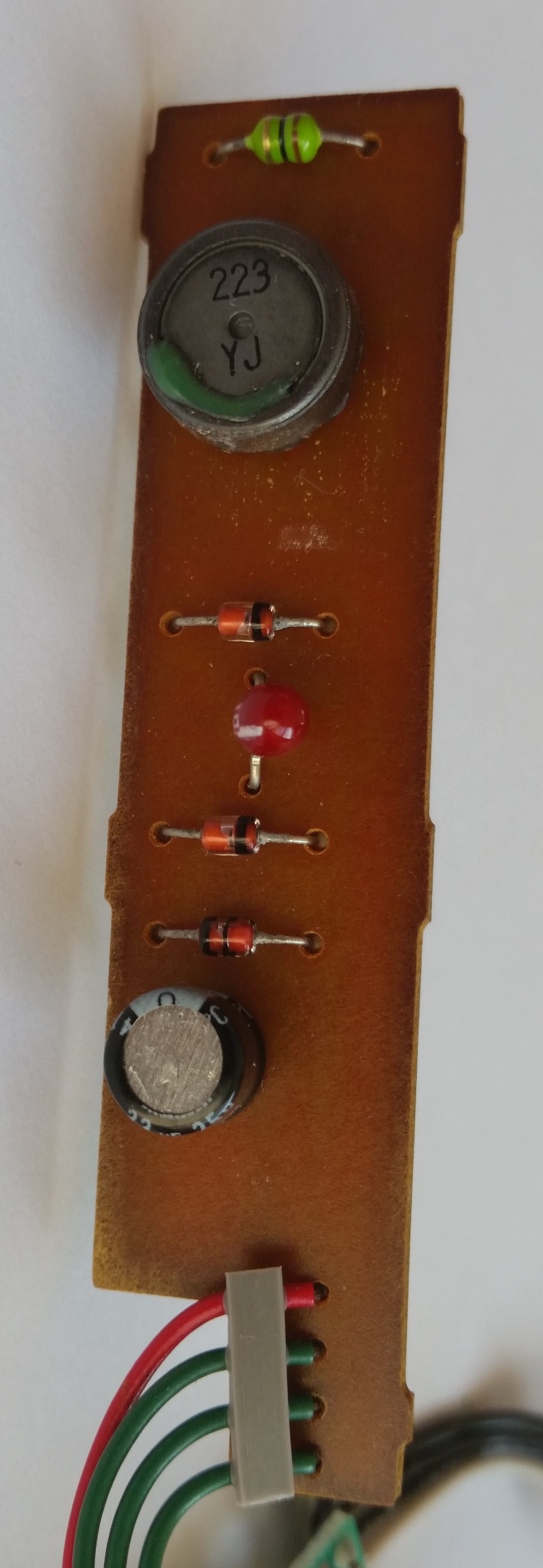

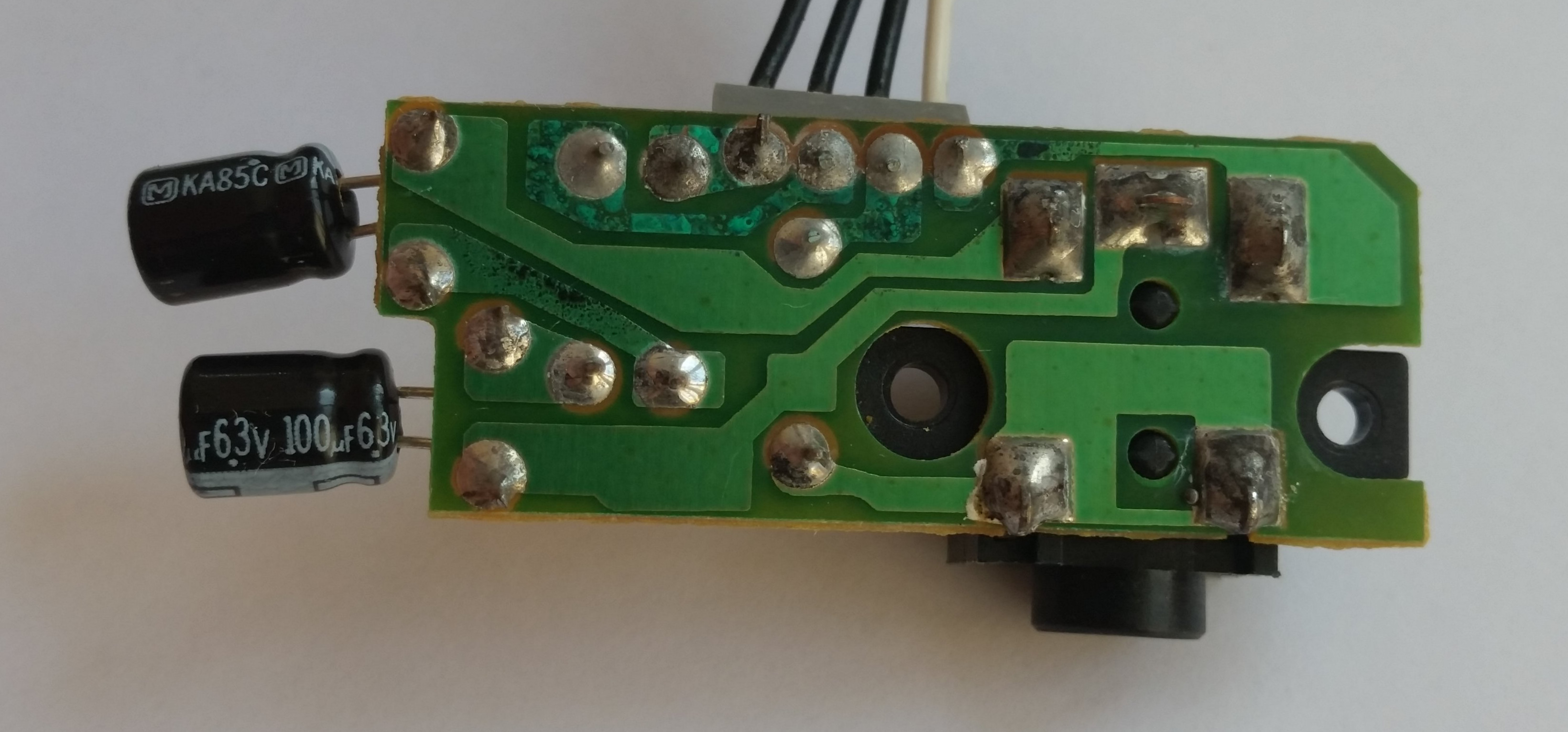

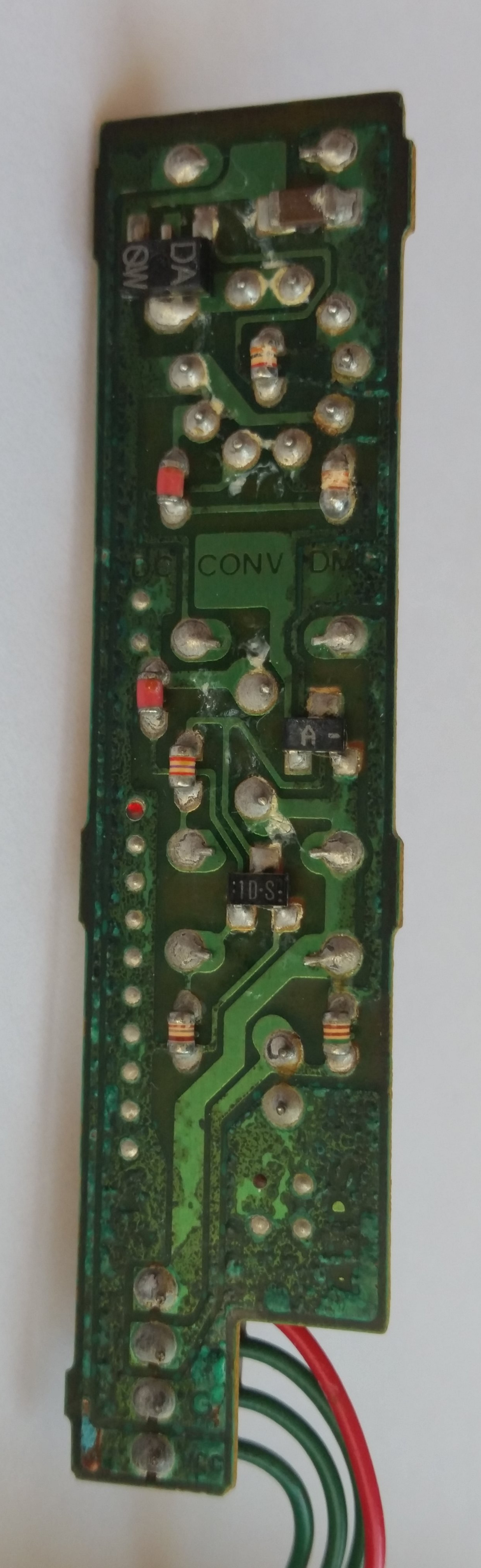

- Main PCB is partially covered in blue stuff from leaking batteries:
-> Soaked and scrubbed PCB in vinegar, then in alcohol

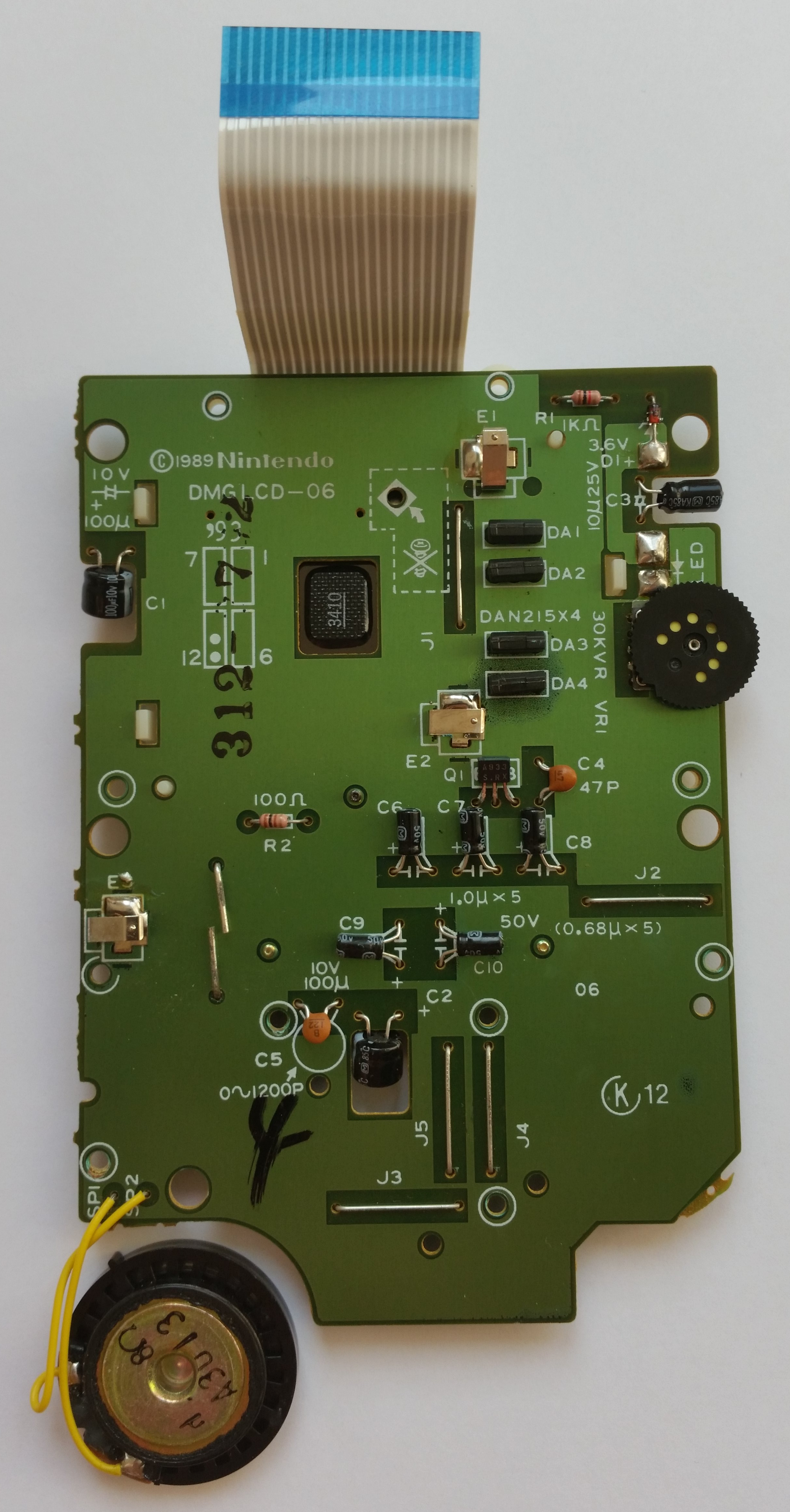

- One diode of the LCD PCB is covered in blue stuff:
-> Cleaned the part with alcohol
- Blue stuff also creeped into cartridge connector
- Two battery contact pieces are corroded:
-> Replaced with replica parts
- Two tri-wing screws are corroded:
-> replaced
