DMG: [iceboy] #25 - GM1158120

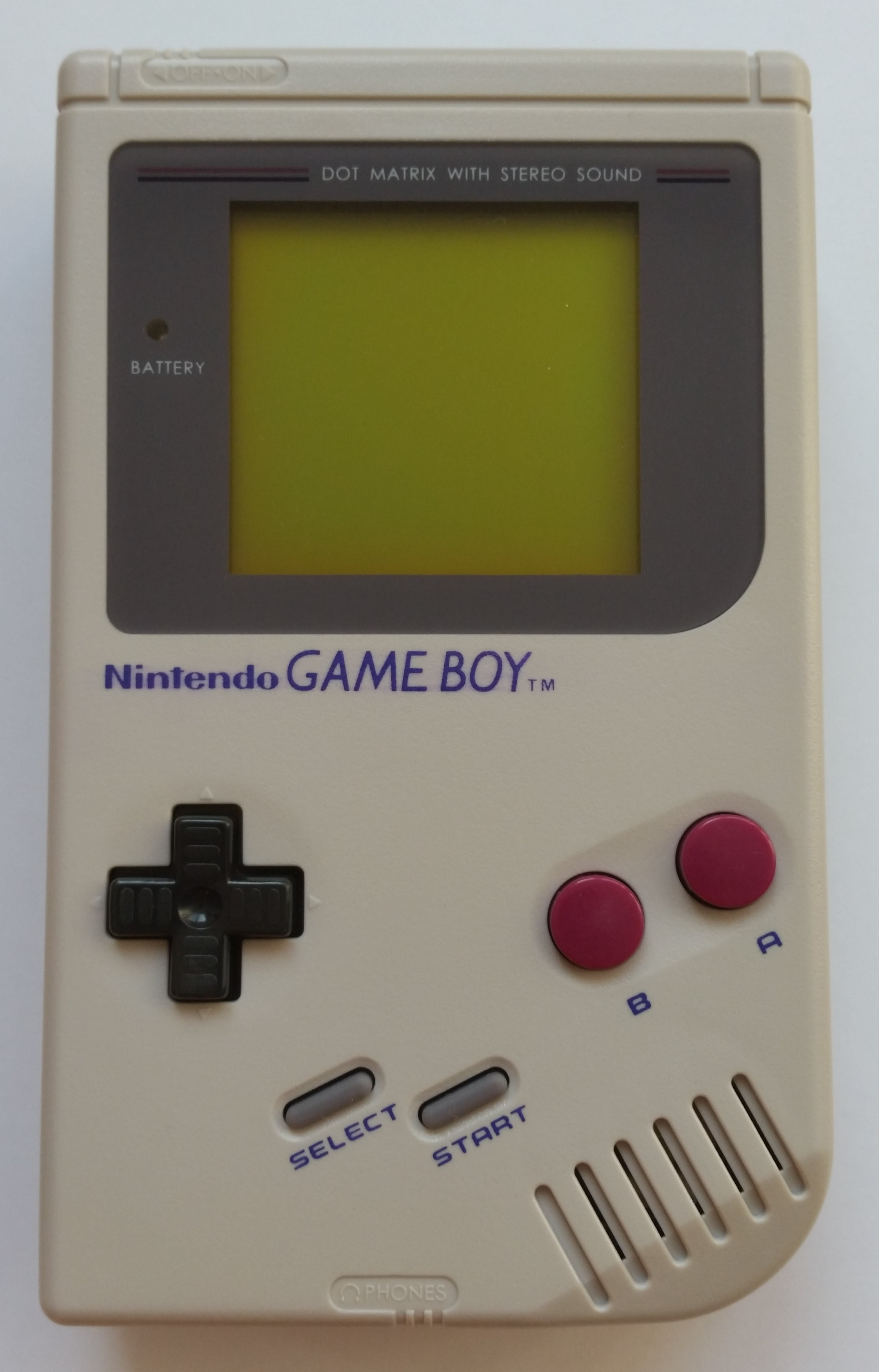

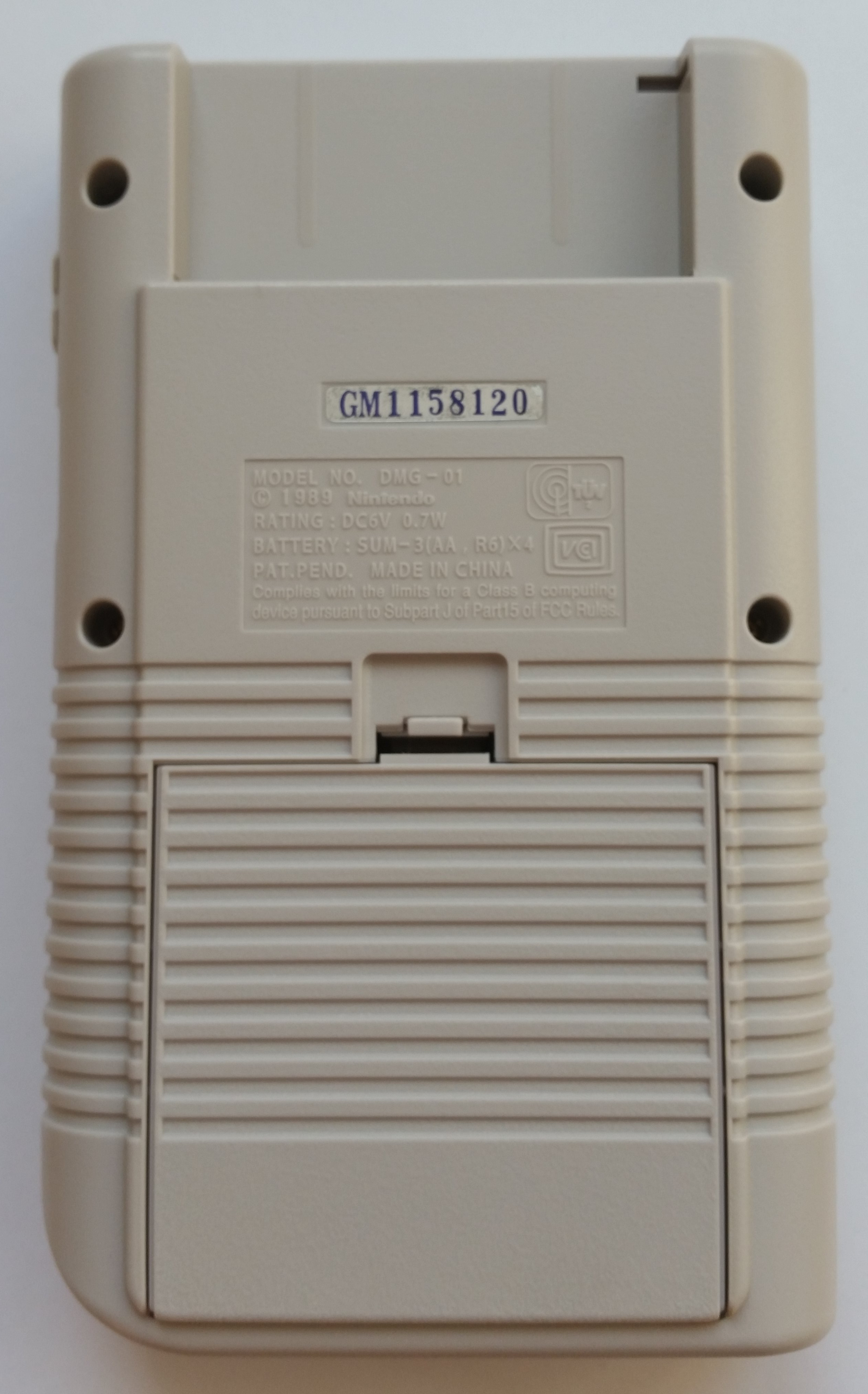

Front side of Game BoyBack side of Game Boy

Color
off-white
Screws
tri-wing
Assembly date
September/1994

Mainboard

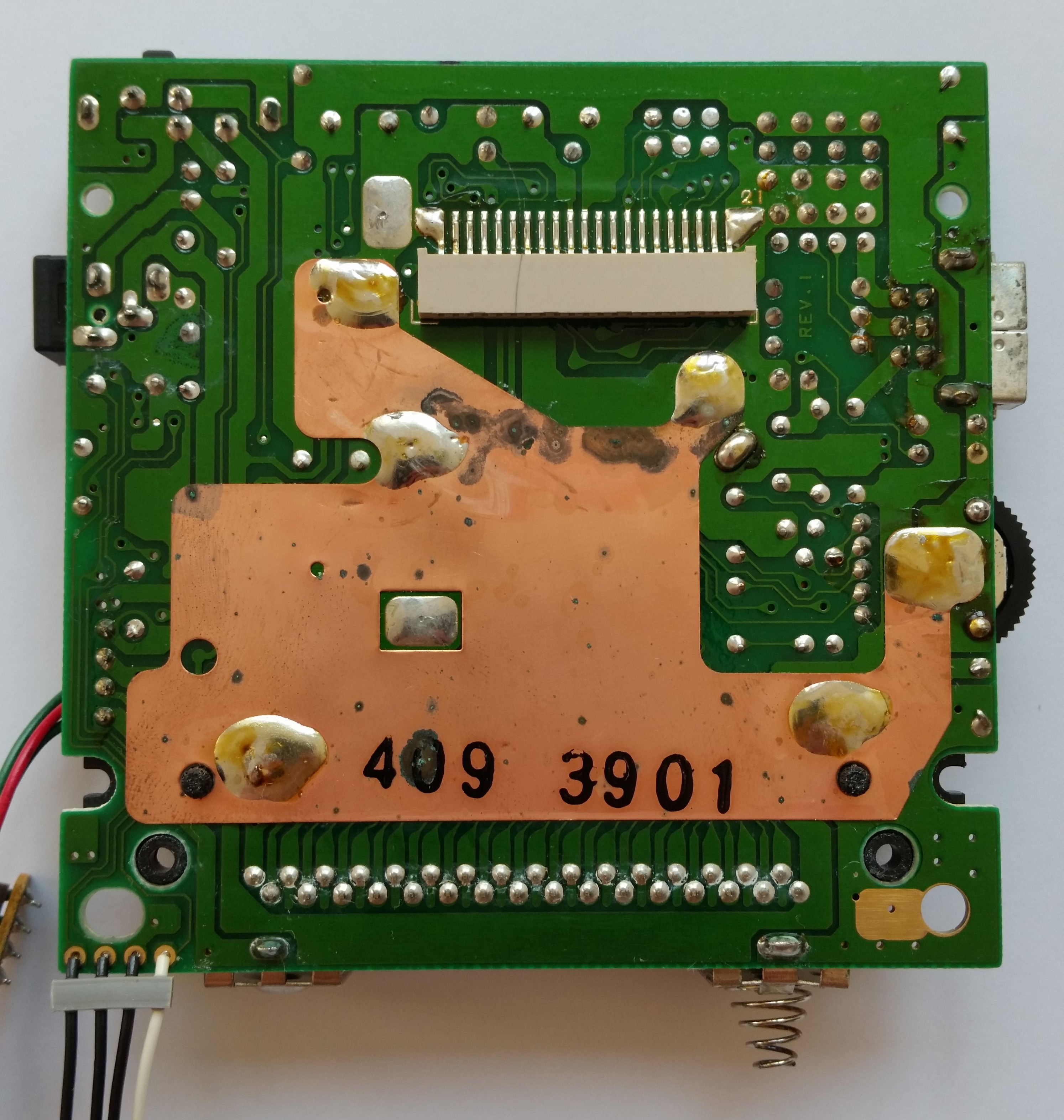

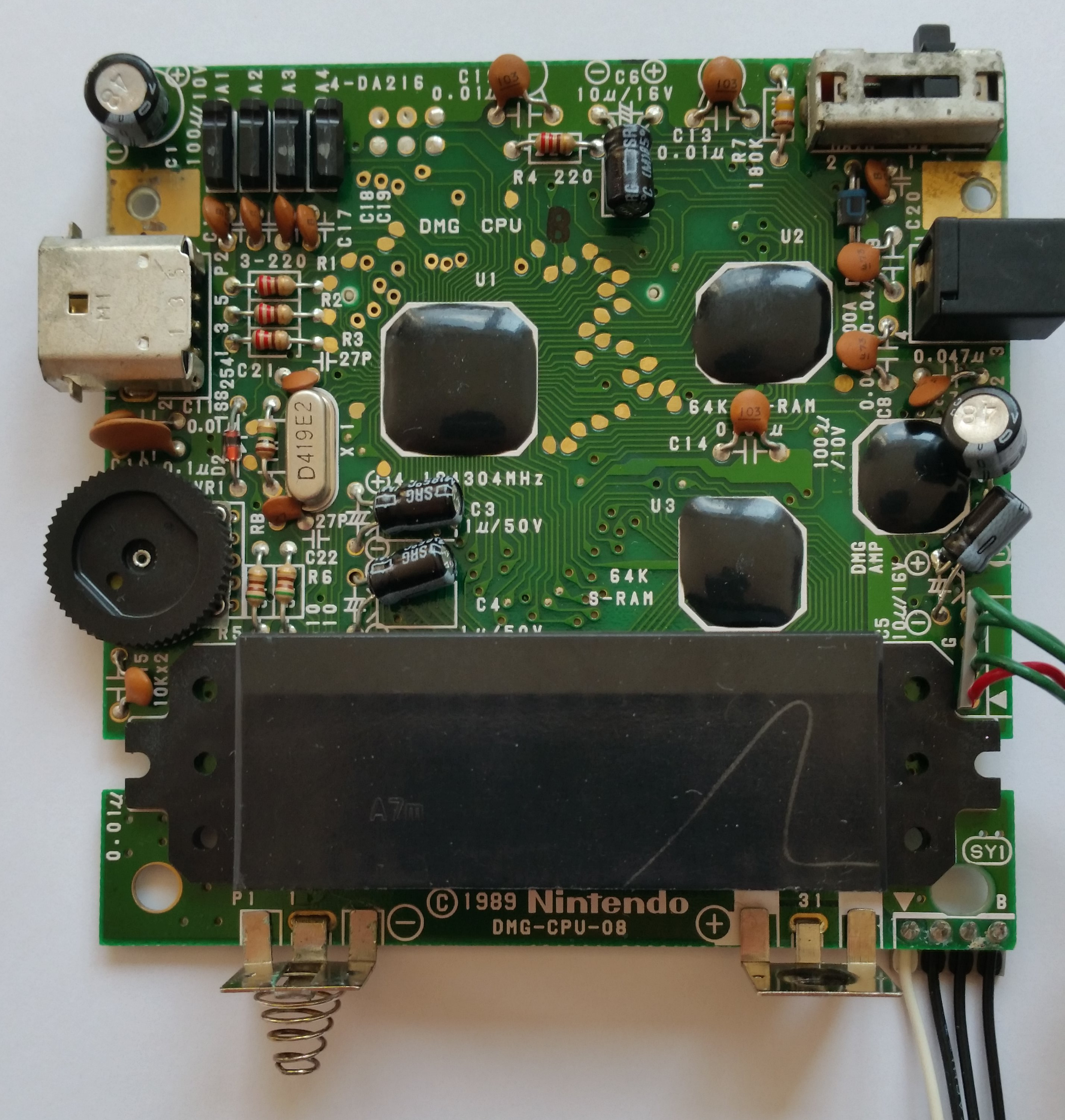

Front side of Game Boy main circuit boardBack side of Game Boy main circuit board

Board type
DMG-CPU-08
Stamp on board
409 3901
Circled letter(s) on board
SYI
Extra label
REV.1

LCD Board

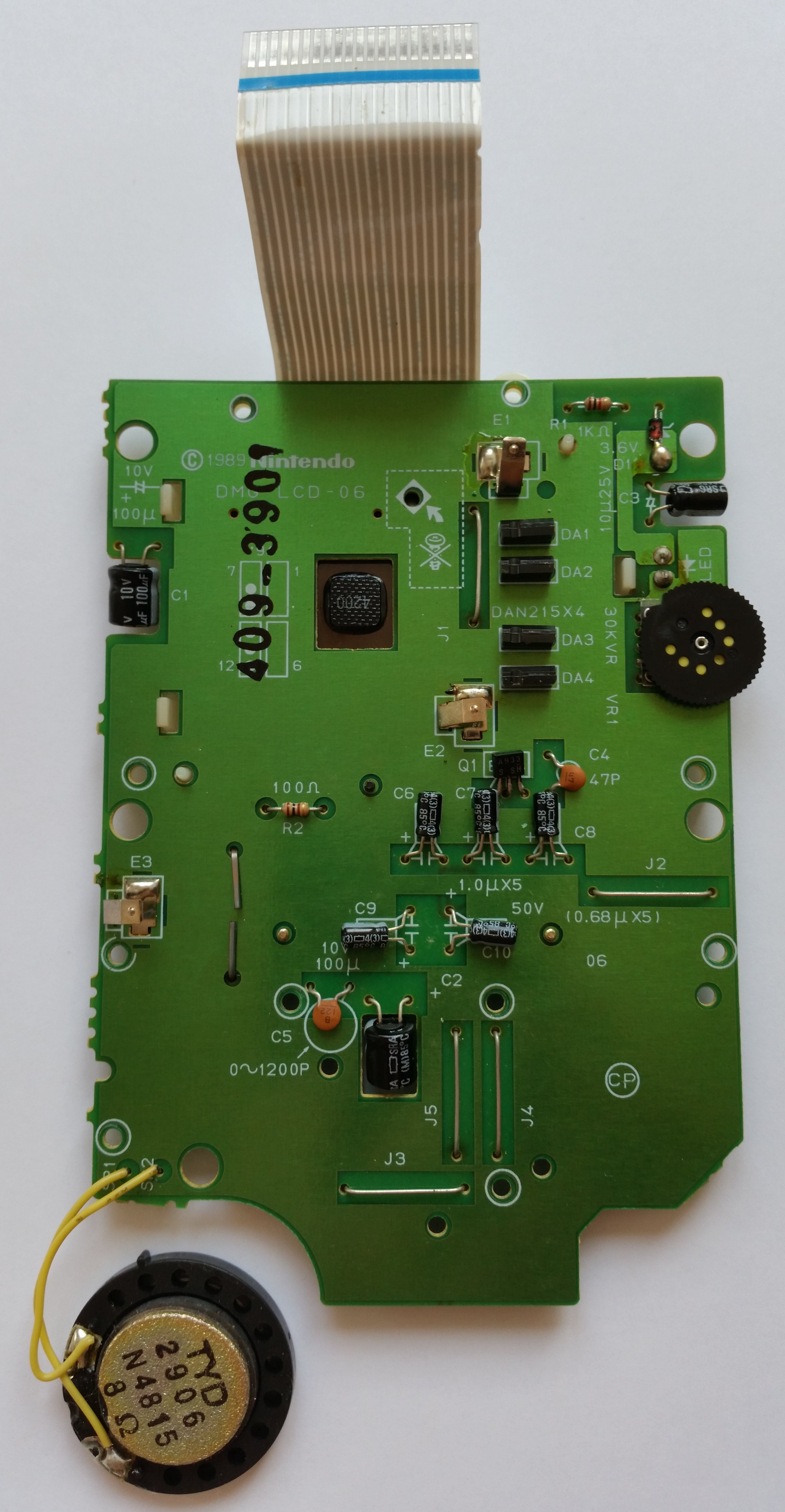

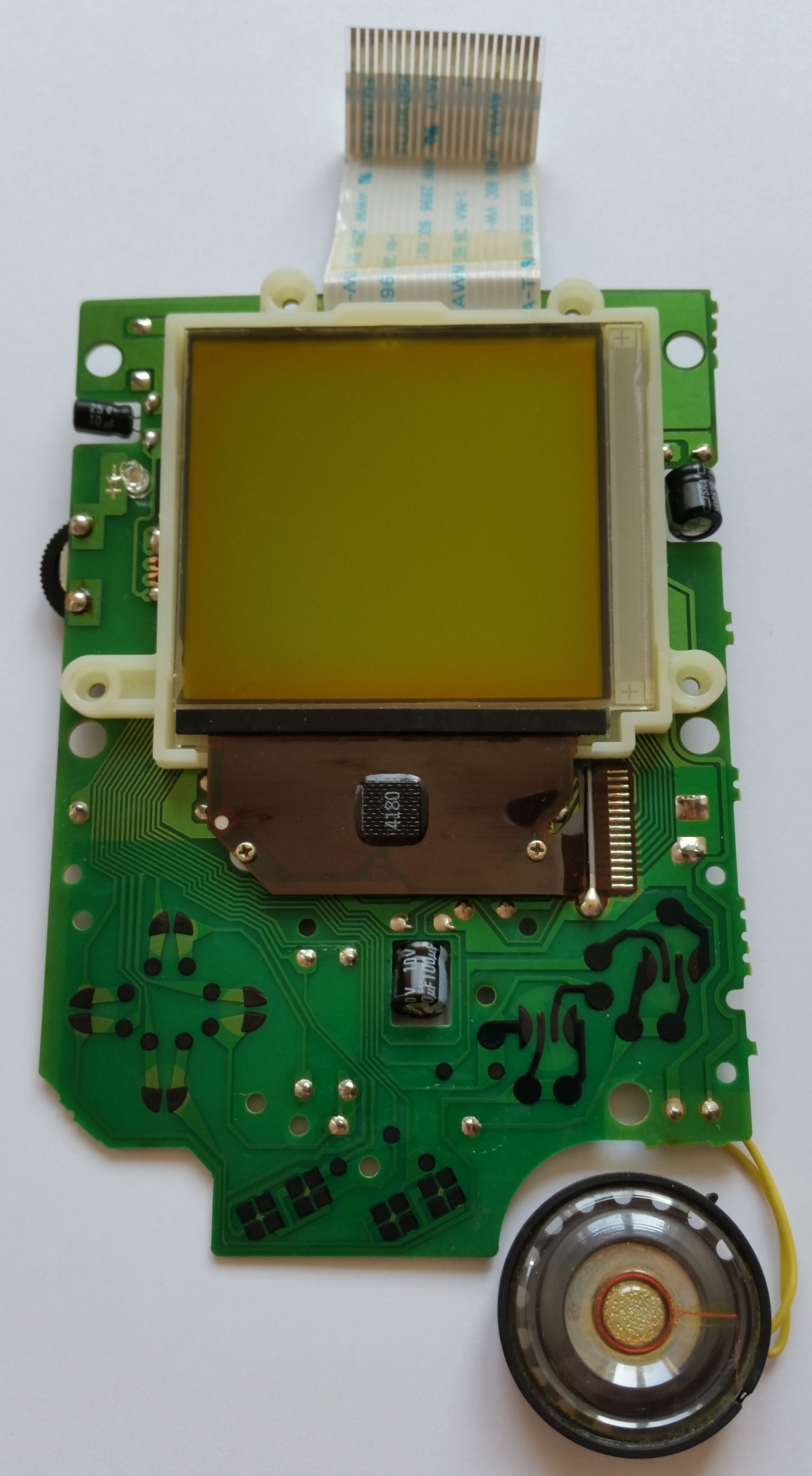

Front side of Game Boy LCD circuit boardBack side of Game Boy LCD circuit board

Board type
DMG-LCD-06
Manufacture date
July/1994
Stamp on board
409-3901
Circled letter(s) on board
CP
Number pair on board
-
LCD panel label
EP
940722
LCD row cable label
G40729
LCD panel date
July/1994

Power Board

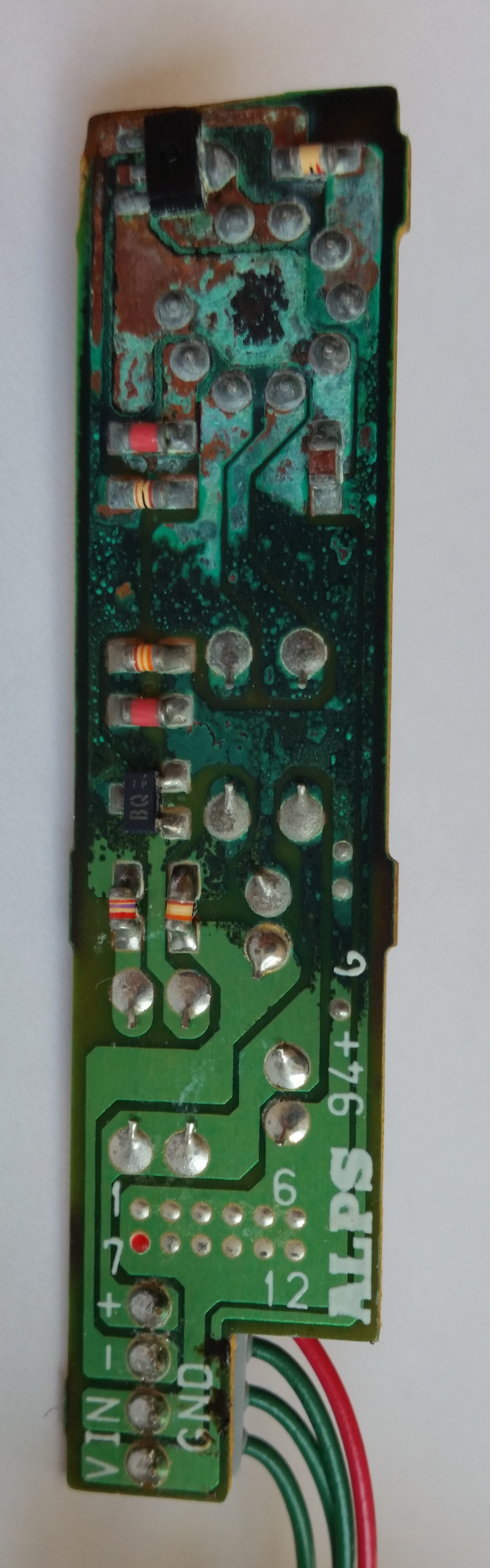

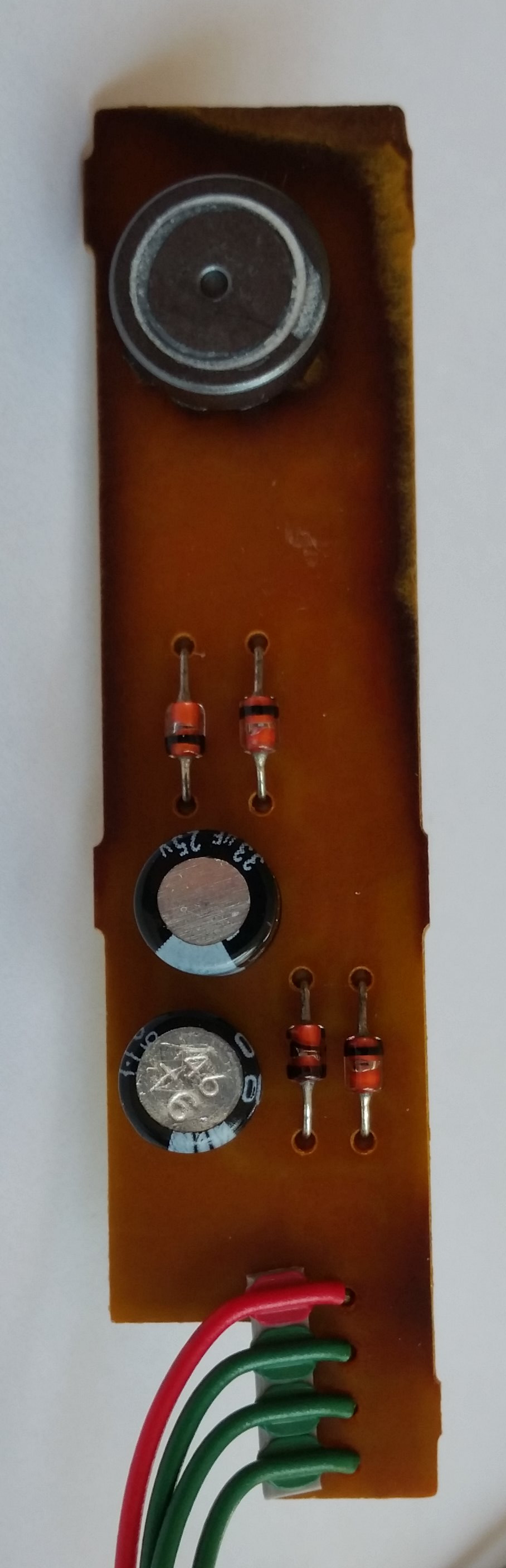

Front side of Game Boy power circuit boardBack side of Game Boy power circuit board

Board type
C
Manufacture date
July/1994
Label
DC CONV DMG

Jack Board

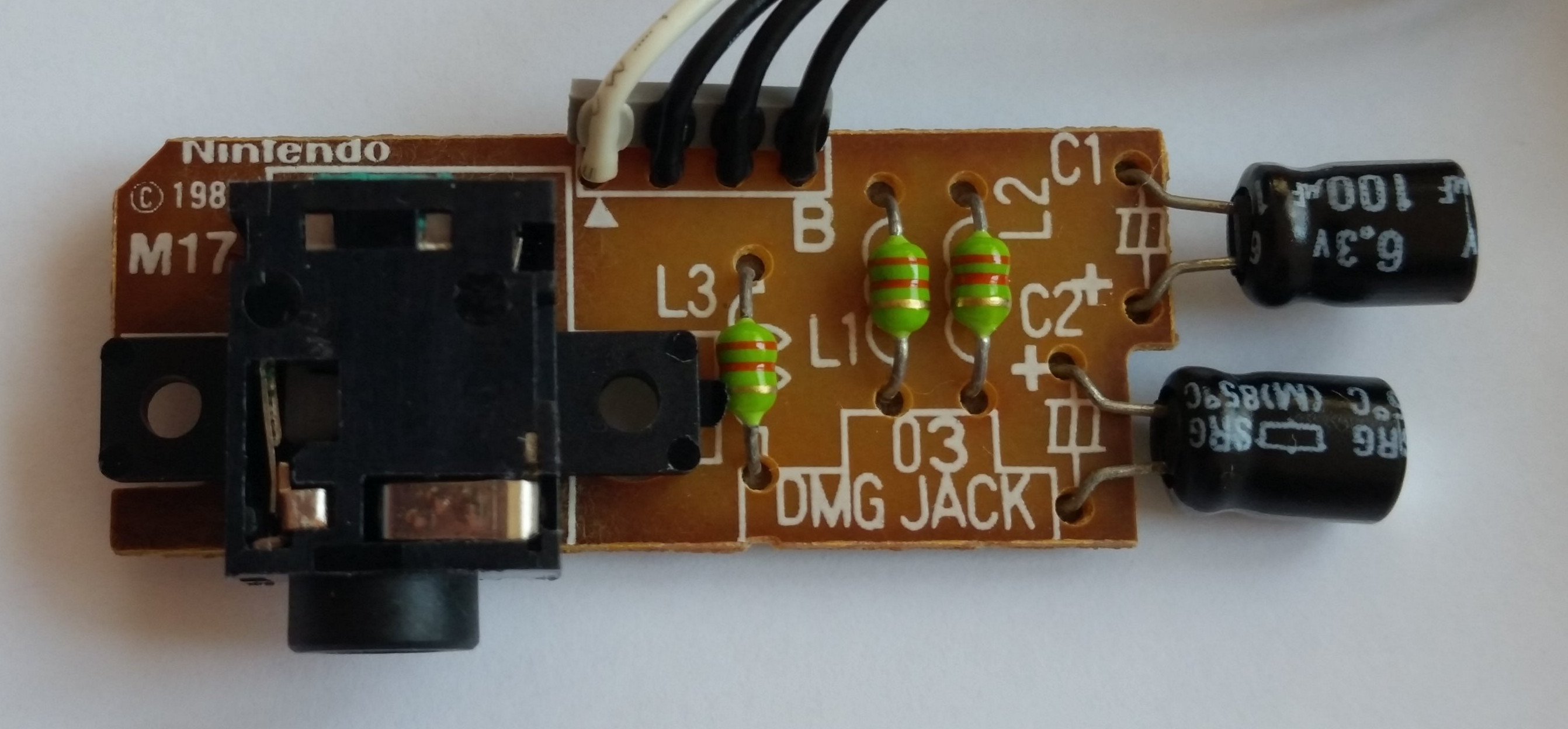

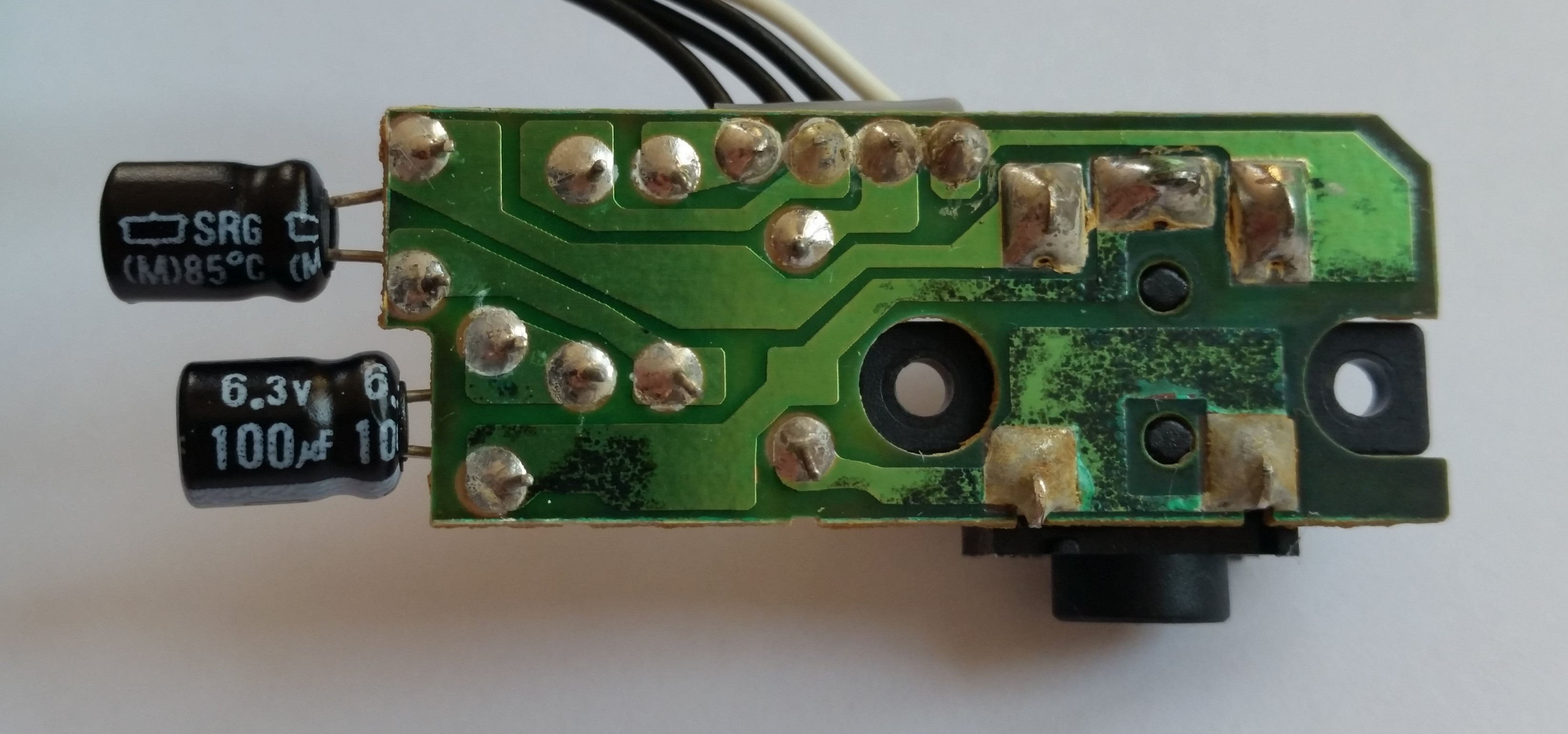

Front side of Game Boy headphone jack circuit boardBack side of Game Boy headphone jack circuit board

Board type
DMG JACK 03
Extra label
M17

Chips

 ChipTypeManufacturerDateLabel
U1CPUDMG-CPU B (blob)??
B
U2Video RAM???
-
U3Work RAM???
-
U4Amplifier???
-
X1CrystalD419DaishinkuMay/1992
D419E2
-LCD Column DriverLH5077 BFSharpWeek 18/1994
LH5077 BF
4180
-LCD Row DriverLH5076 BFSharpWeek 20/1994
LH5076 BF
4200
-LCD RegulatorIR3E02SharpWeek 30/1994
DMG-REG
IR3E02
9430 CB

Notes

- LCD had some missing columns at the borders:
    -> repaired
- Missing display cover:
    -> Cleaned old glue
    -> Attached replica part
- Bottom end of power PCB is covered in blue stuff from leaking batteries:
    -> Soaked and scrubbed PCB in vinegar, then in alcohol
    -> The thin copper wire of one of the transformer coils was rotten away from pin 8. I managed to reconnect it. Cleaned the tranaformer and sealed all tiny wires with solder mask.
    -> Removed all components from PCB and applied new solder mask.
    -> Traces on power PCB are broken. Fixed broken traces with copper wire.
- Headphone jack is covered in blue stuff:
    -> Cleaned with vinegar and alcohol
- The two bottom battery contact pieces are corroded:
    -> Replaced with replica parts
- The two screws holding the headphone jack were corroded
    -> Replaced
- The glue of the sticky tape between display and shell dissolved and made a mess:
    -> Removed the sticky tape
- The blue print on the shell (Nintendo GAMEBOY, START, SELECT, A, B) dissolves in alcohol
  much more easily compared to other Gameboys and smears across the shell.
    -> Could be a sign that the shell got swapped with an non-original part.
       But except for the dissolving of paint and glue of the sticky tape it looks
       genuine.

Misc

CPU works
yes
