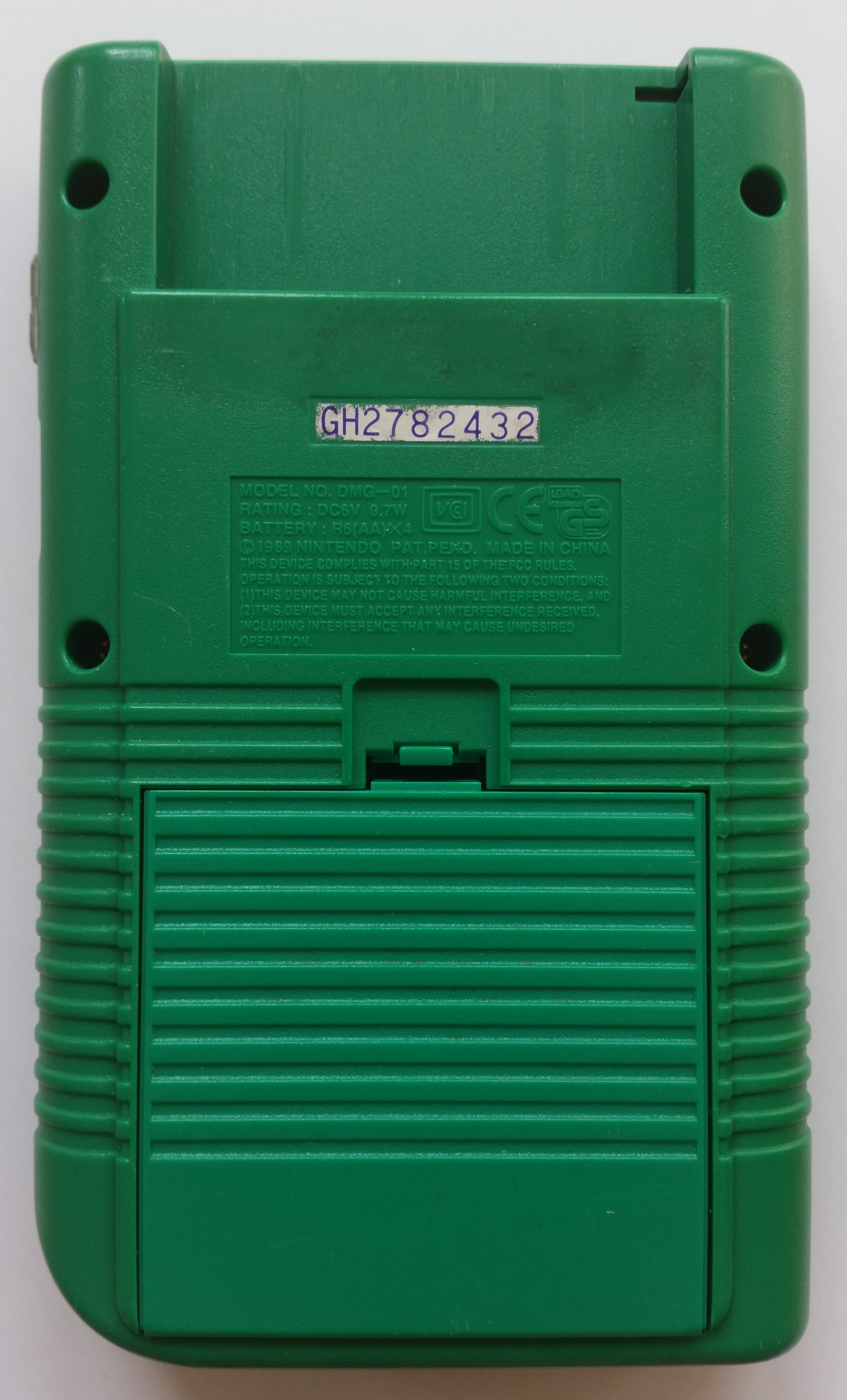

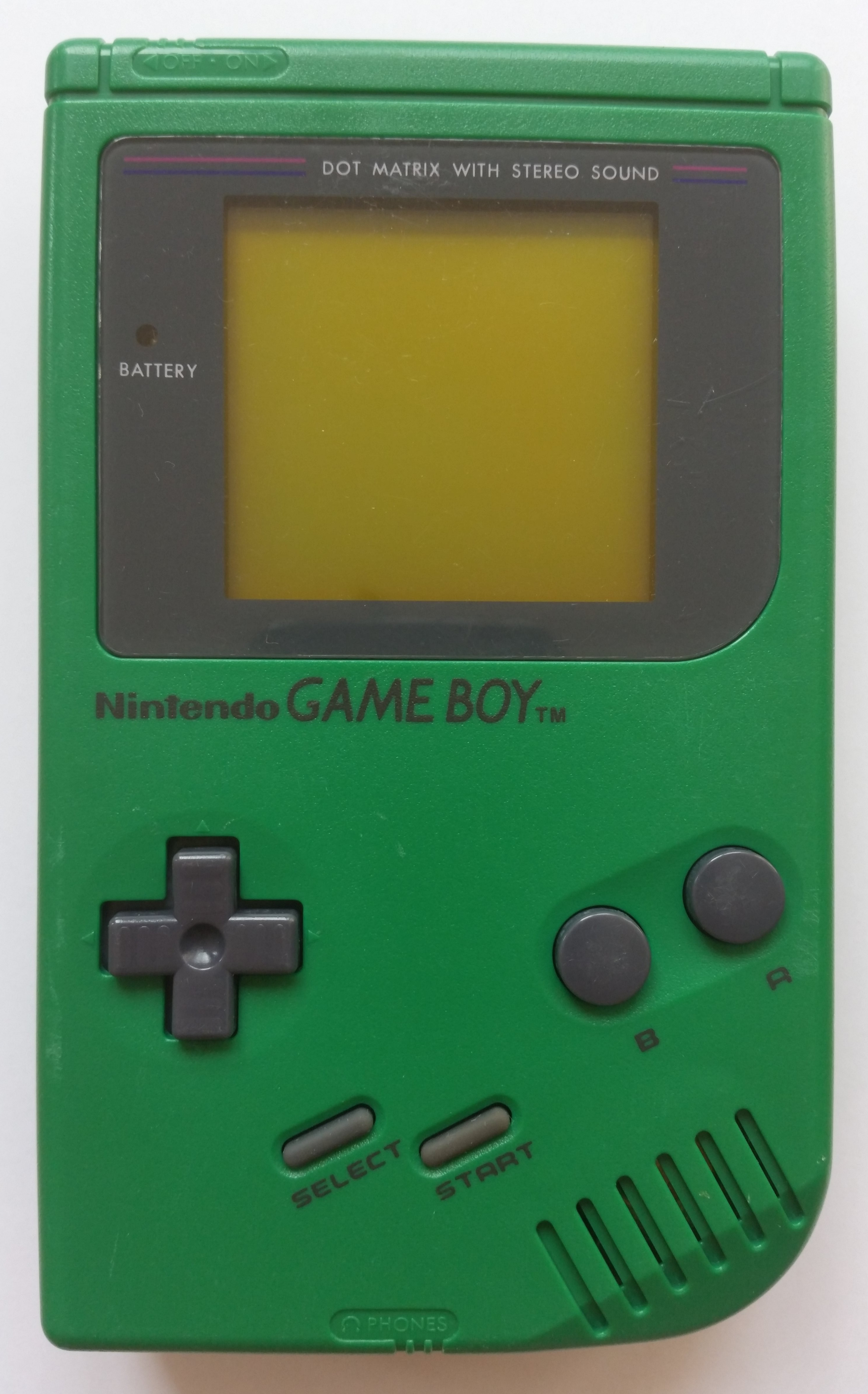

DMG: [iceboy] #22 - GH2782432

Color: gorgeous-green
Screws: tri-wing
Assembly date: June/1995

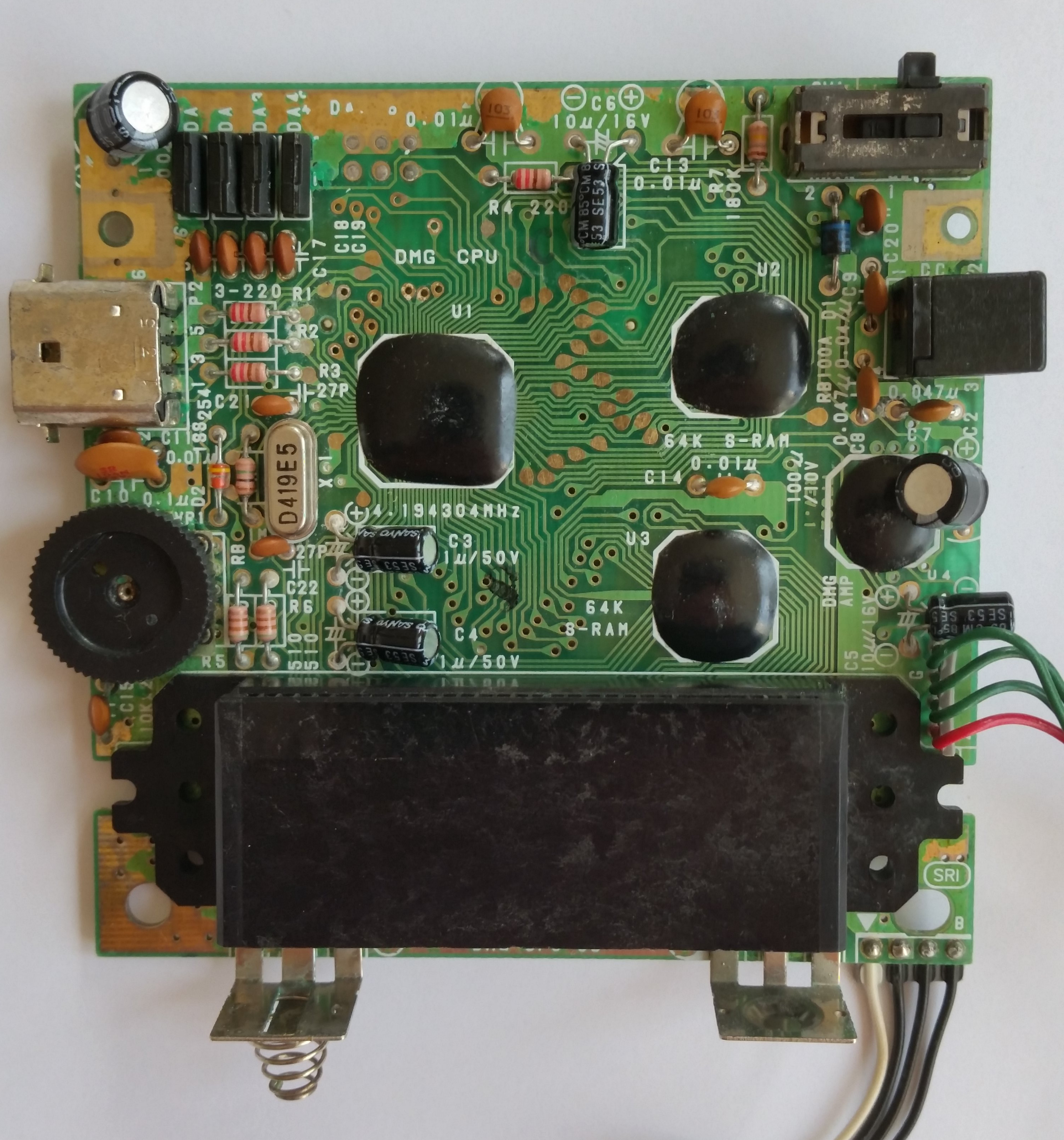

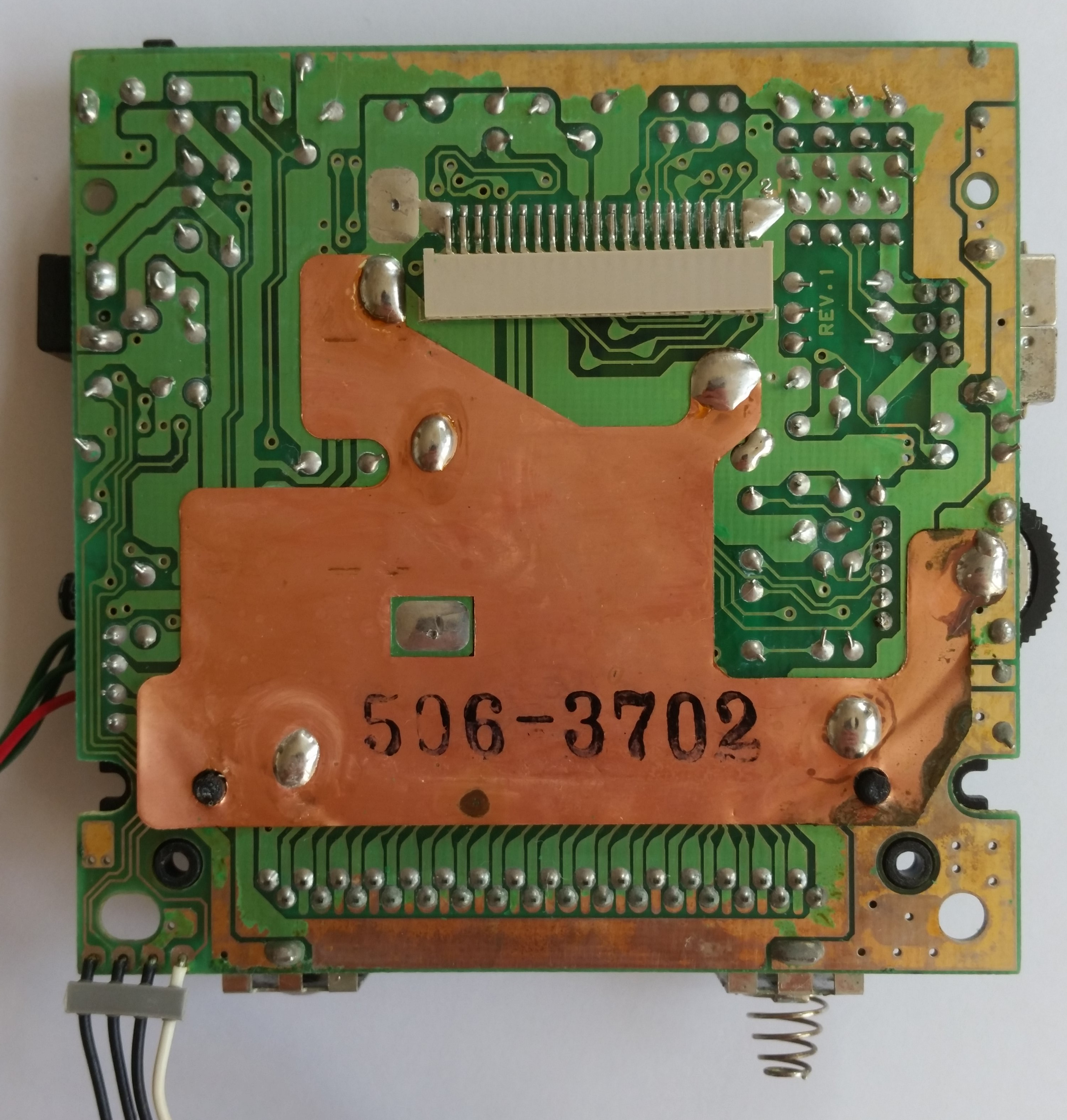

Mainboard

Board type: DMG-CPU-08
Stamp on board: 506-3702
Circled letter(s) on board: SRI
Extra label: REV.1

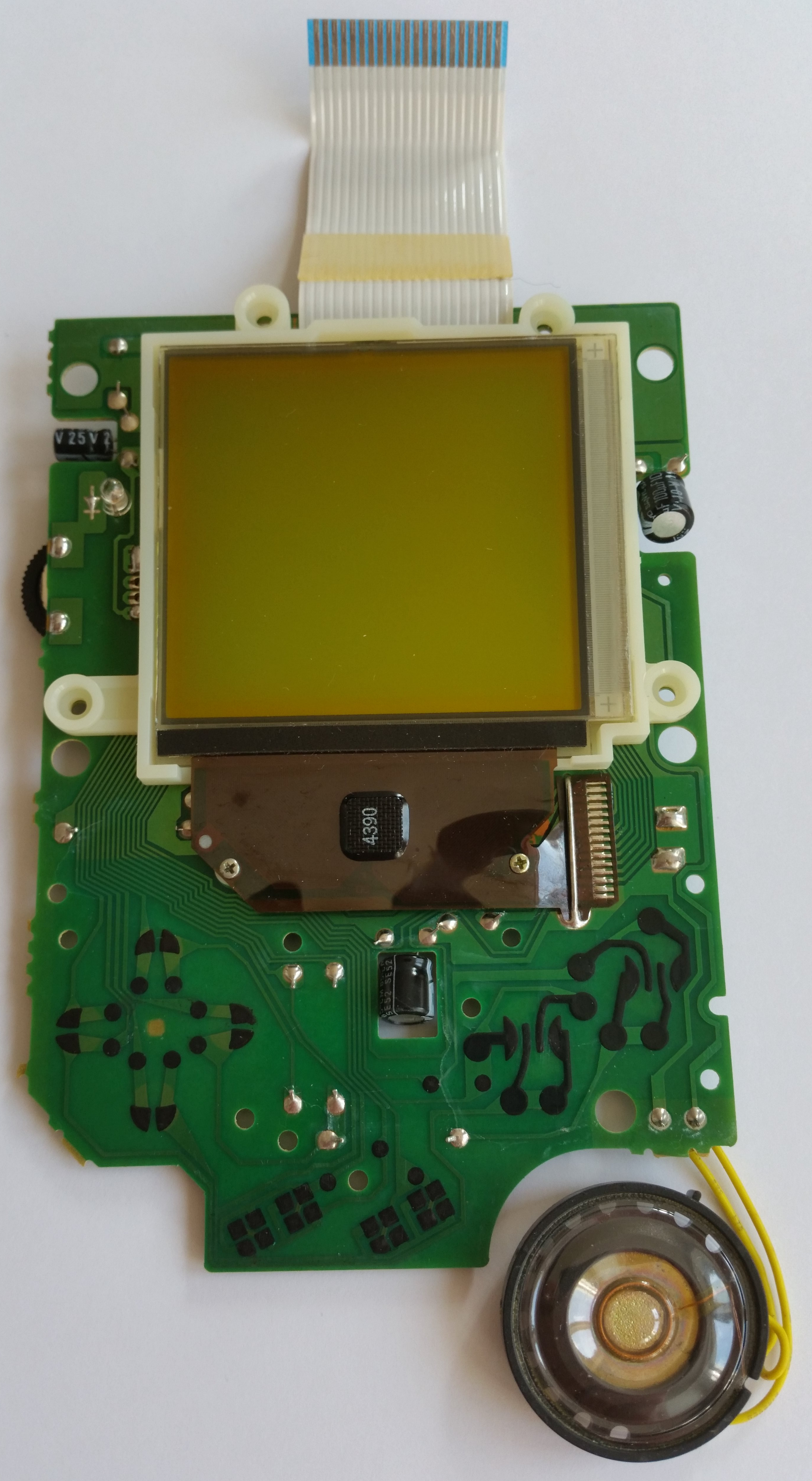

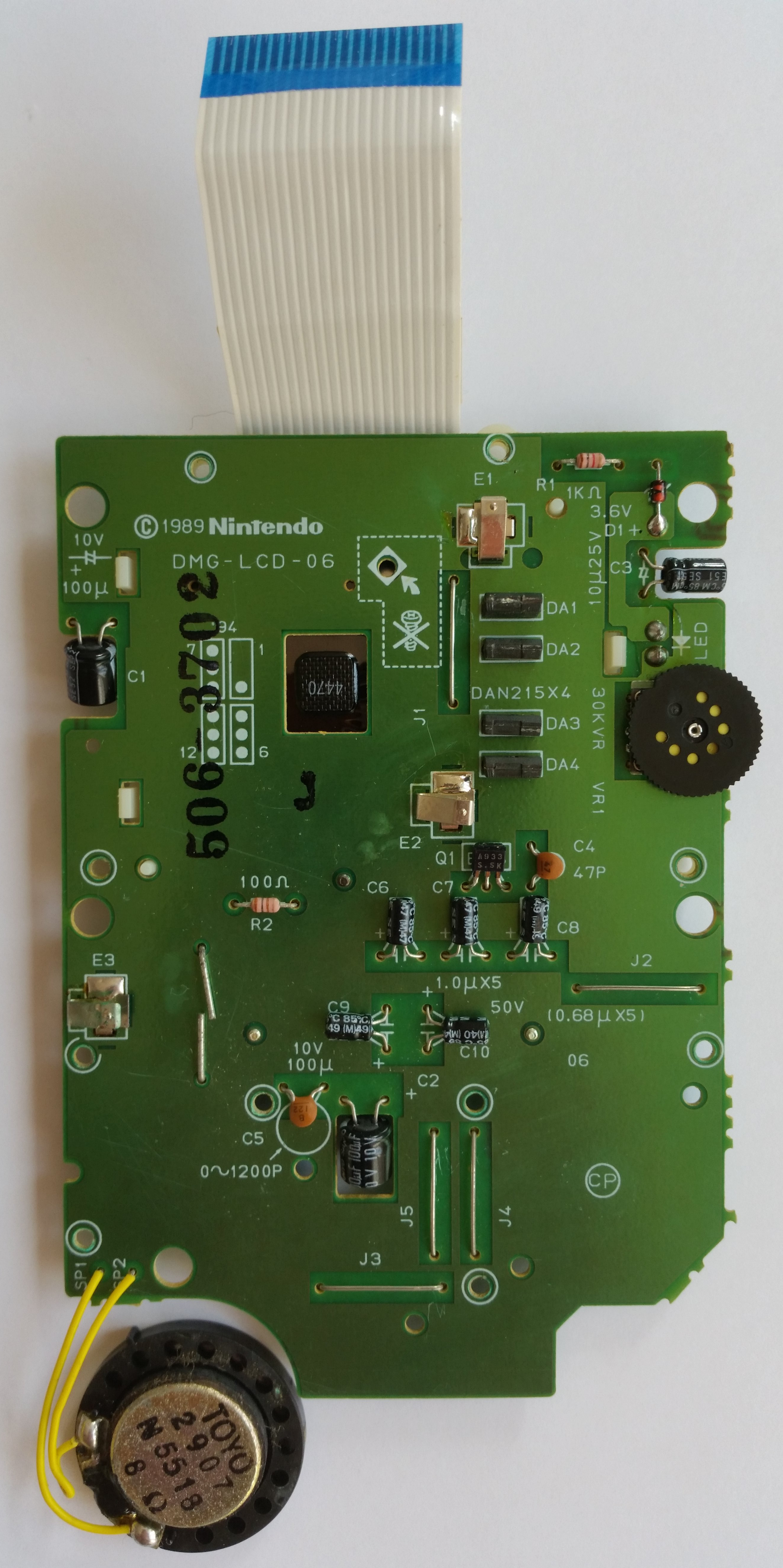

LCD Board

Board type

DMG-LCD-06

Manufacture date

February/1994

Stamp on board

506-3702

Circled letter(s) on board

Number pair on board

LCD panel label

EP
941201

LCD row cable label

I 50615

LCD panel date

December/1994 - June/1995

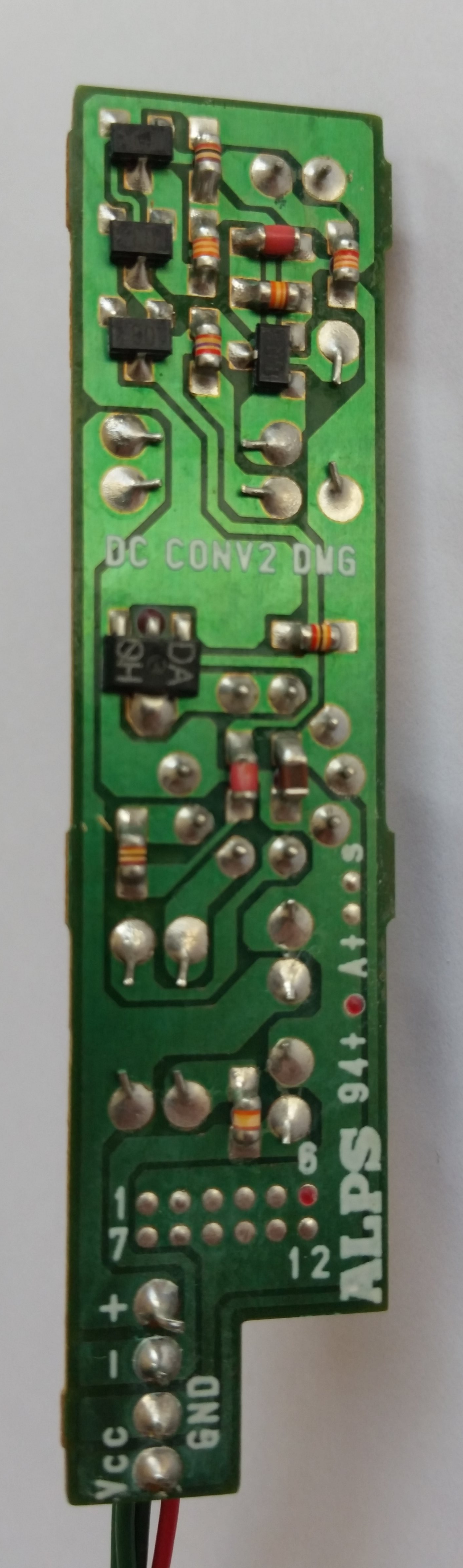

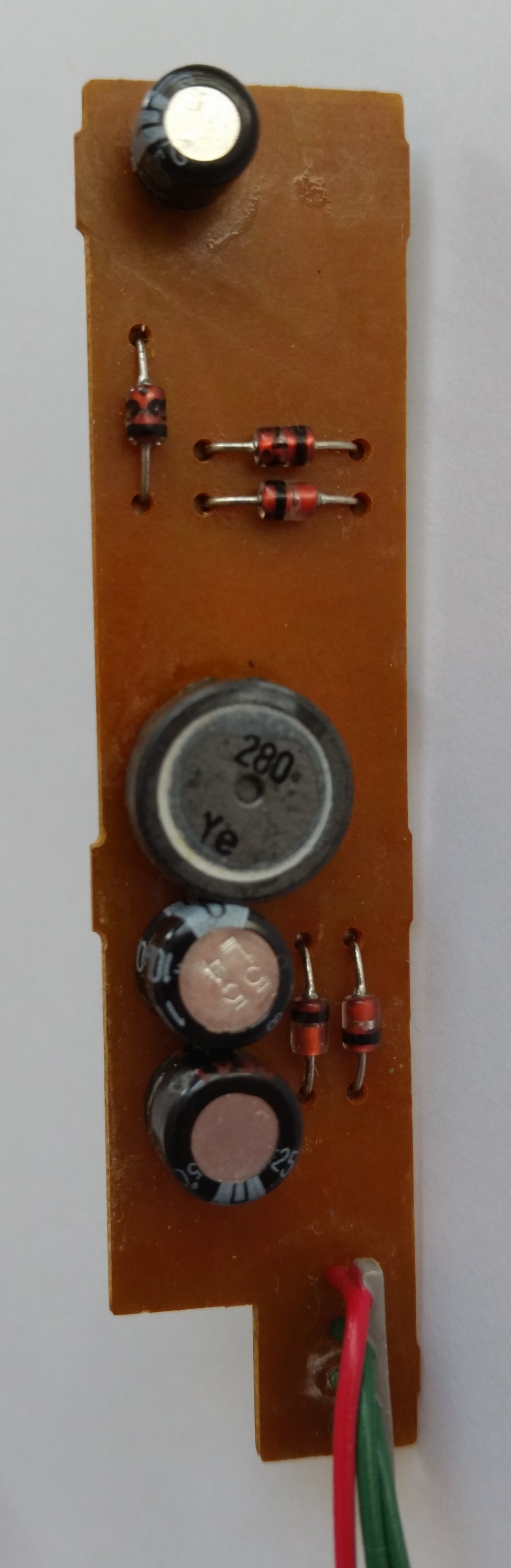

Power Board

Board type: D
Manufacture date: June/1994
Label: DC CONV2 DMG

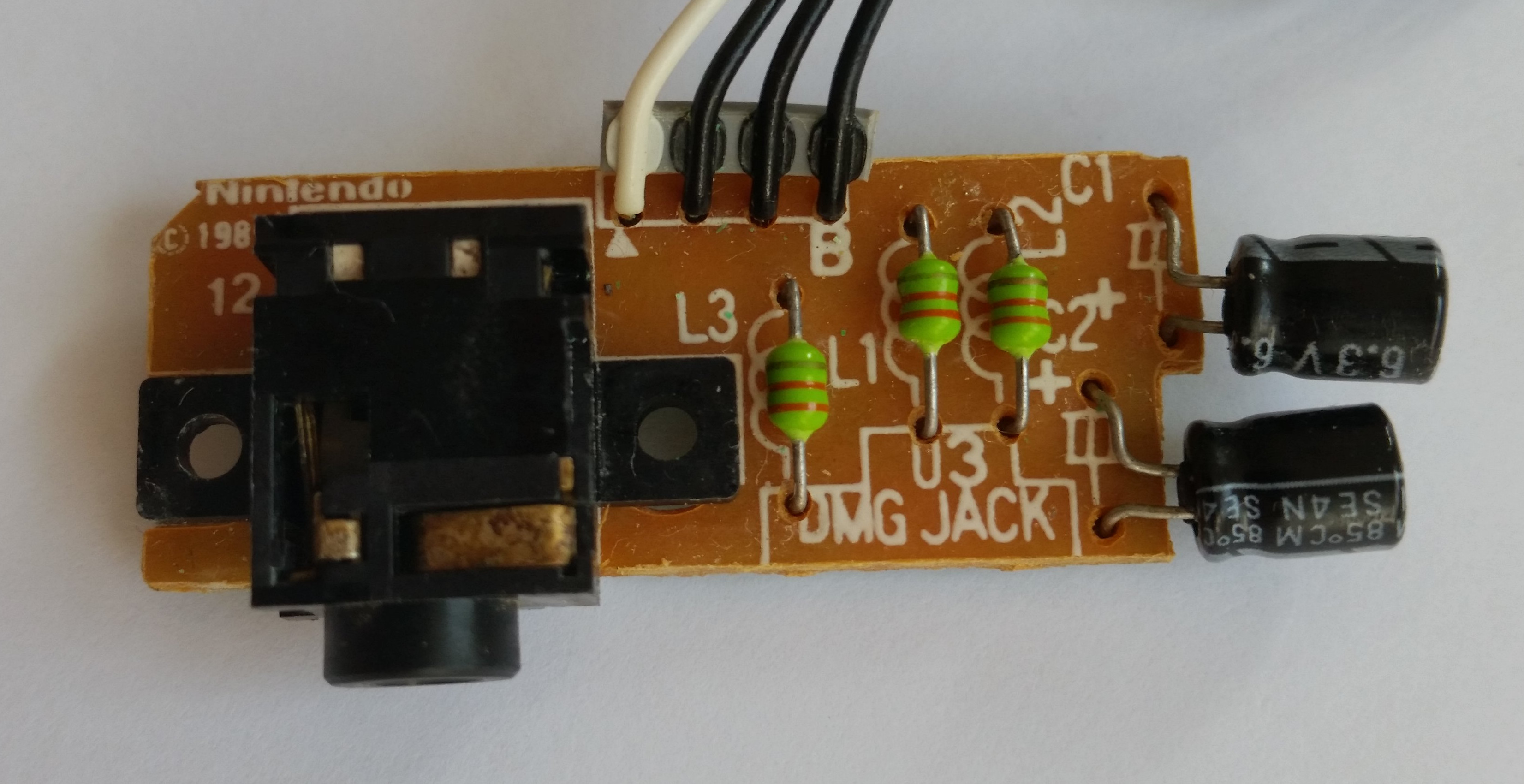

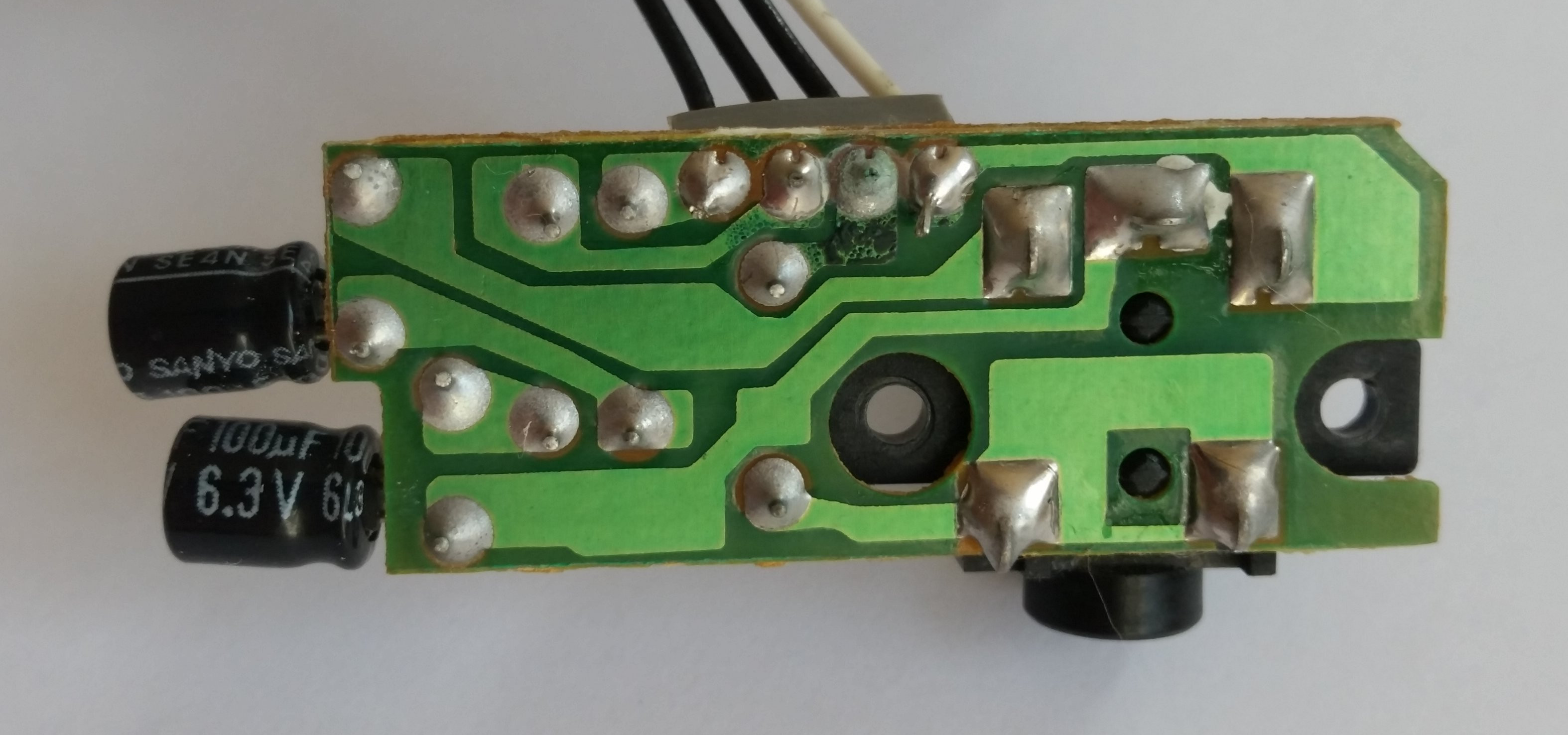

Jack Board

Board type: DMG JACK 03
Extra label: 12

Chips

	Chip	Type	Manufacturer	Date	Label
U1	CPU	DMG-CPU C (blob)	?	?	C
U2	Video RAM	?	?	?	-
U3	Work RAM	?	?	?	-
U4	Amplifier	?	?	?	-
X1	Crystal	D419	Daishinku	May/1995	D419E5
-	LCD Column Driver	LH5077 BF	Sharp	Week 39/1994	LH5077 BF 4390
-	LCD Row Driver	LH5076 BF	Sharp	Week 47/1994	LH5076 BF 4470
-	LCD Regulator	IR3E02	Sharp	Week 20/1995	DMG-REG IR3E02 9520 CB

Notes

- PCB got damaged by leaking batteries
    -> Cleaned
- Shell shows no sign of leaked batteries and the display cover still
  holds and seems to be original, although the display underneath was
  very dirty:
    -> Maybe shell was swapped at some point
- Link port cover was missing:
    -> Attached replica part
- The part that holds one of the screws in the battery compartment, just
  above the speaker, broke off:
    -> glued
- The part that holds one of the main board screws, near the battery
  spring, broke apart:
    -> glued
- All six tri-wing screws and one of the main board screws are corroded:
    -> replaced
- Sound volume is very low

Misc

CPU works: yes
