DMG: [iceboy] #20 - G01136207

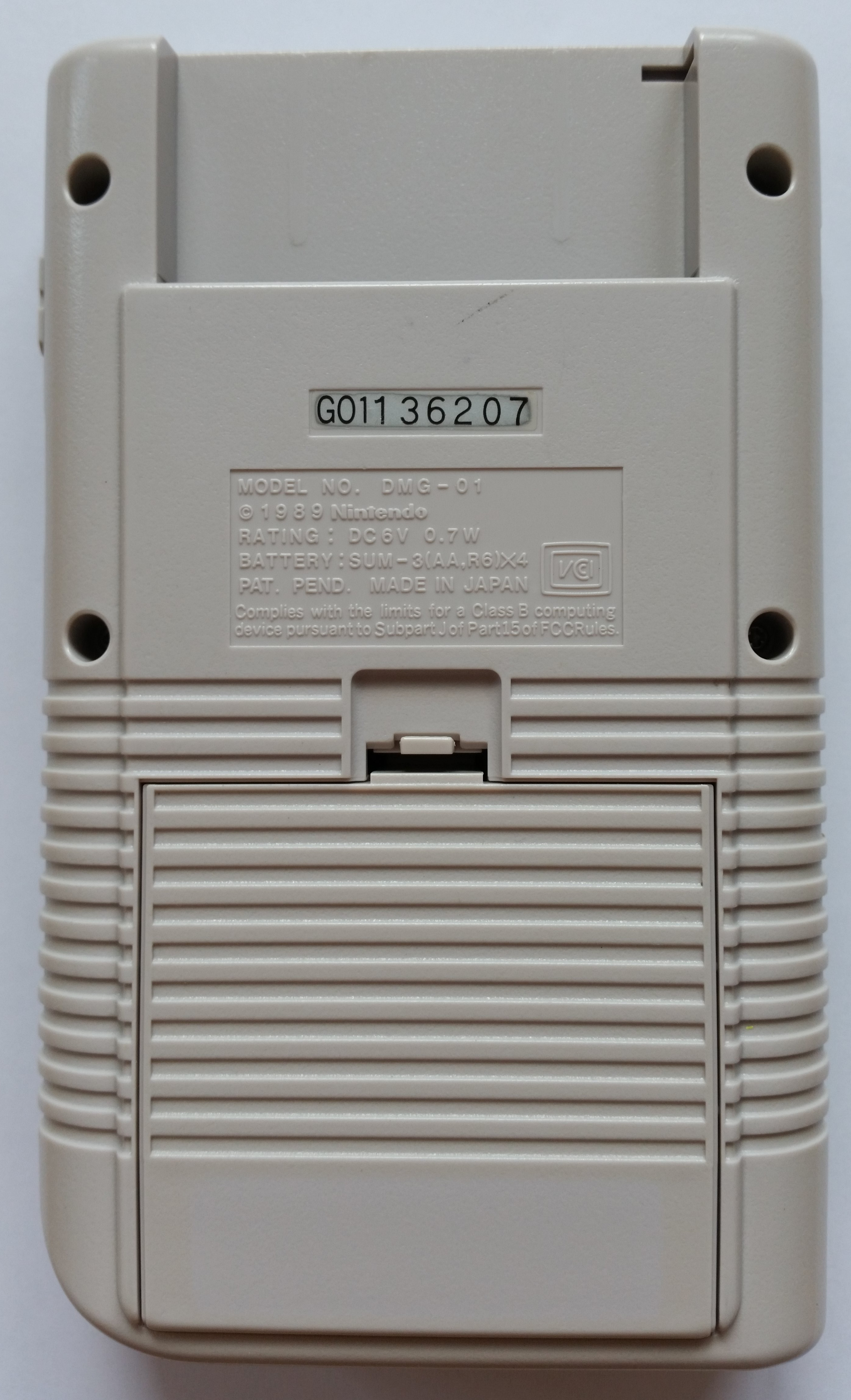

Front side of Game BoyBack side of Game Boy

Color
off-white
Screws
phillips
Assembly date
March/1989

Mainboard

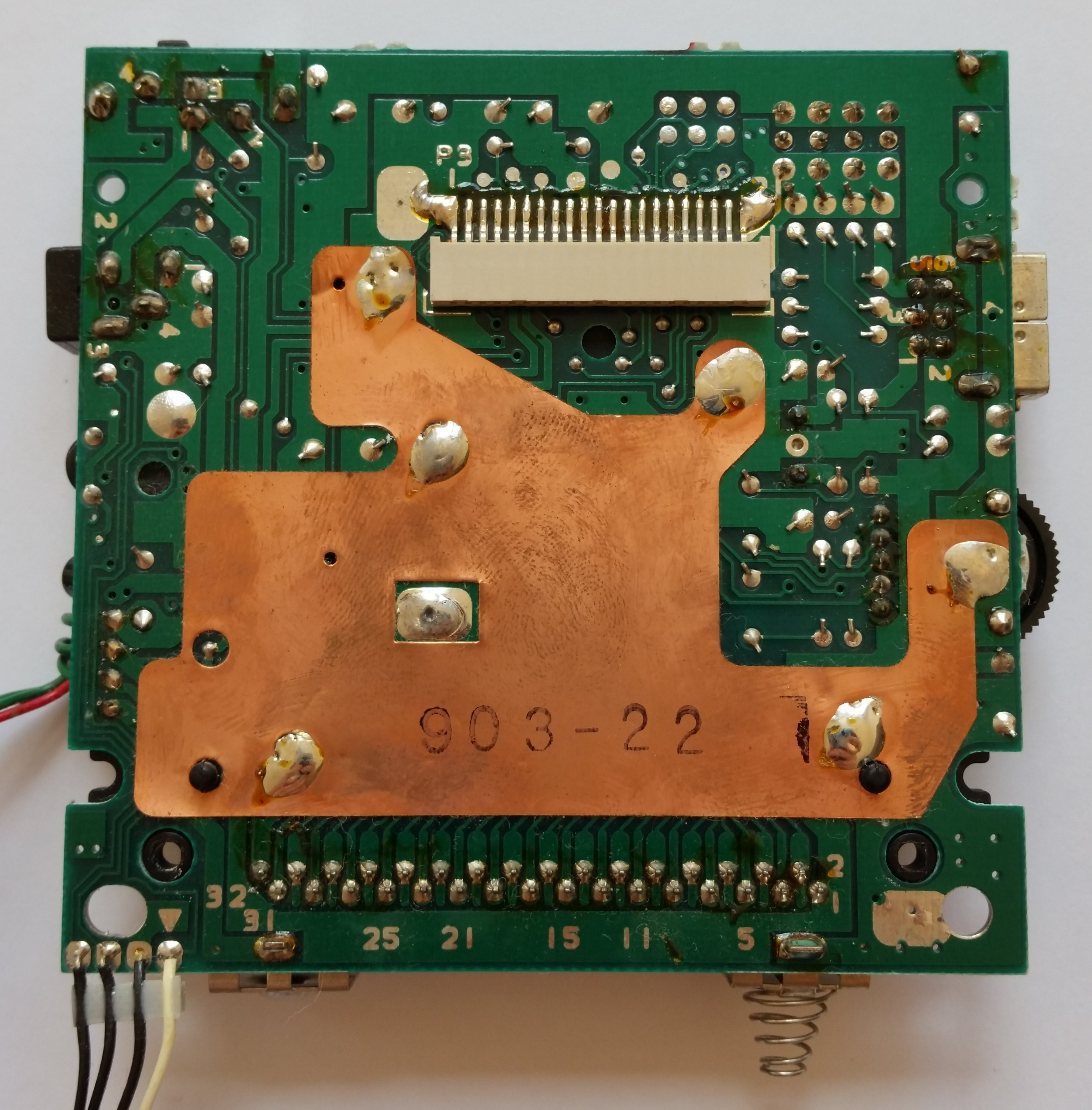

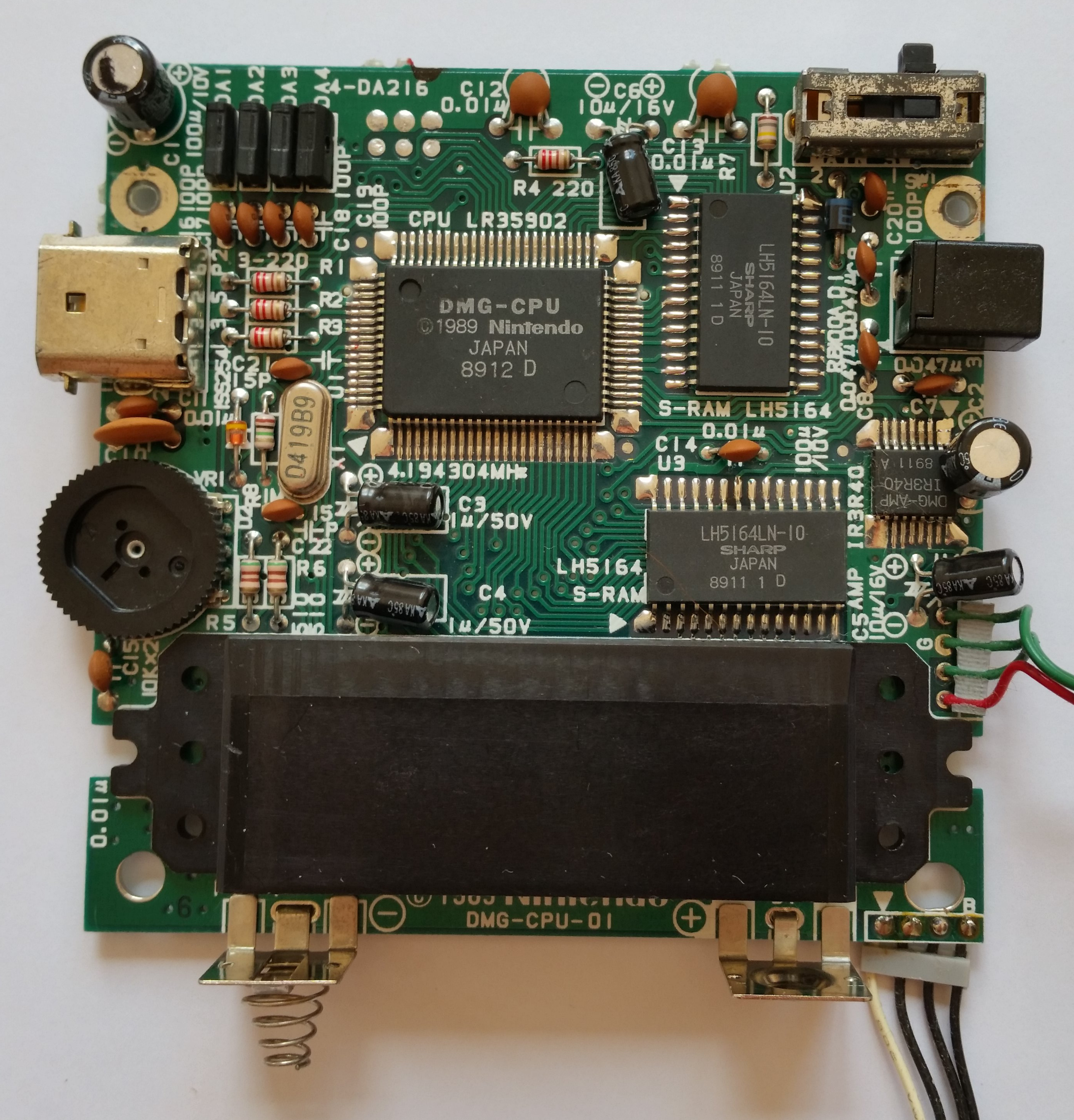

Front side of Game Boy main circuit boardBack side of Game Boy main circuit board

Board type
DMG-CPU-01
Stamp on board
903-22
Circled letter(s) on board
-
Extra label
6

LCD Board

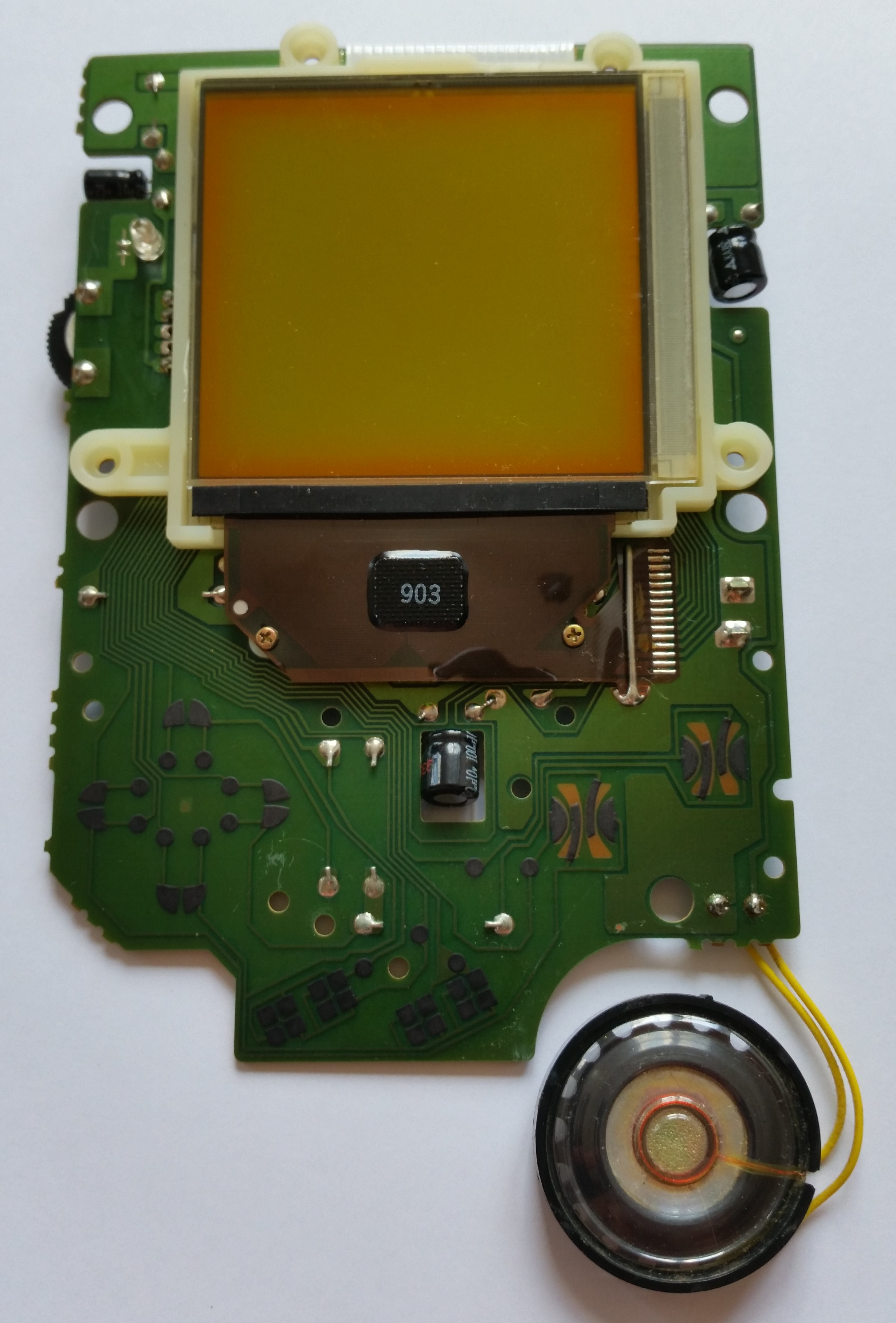

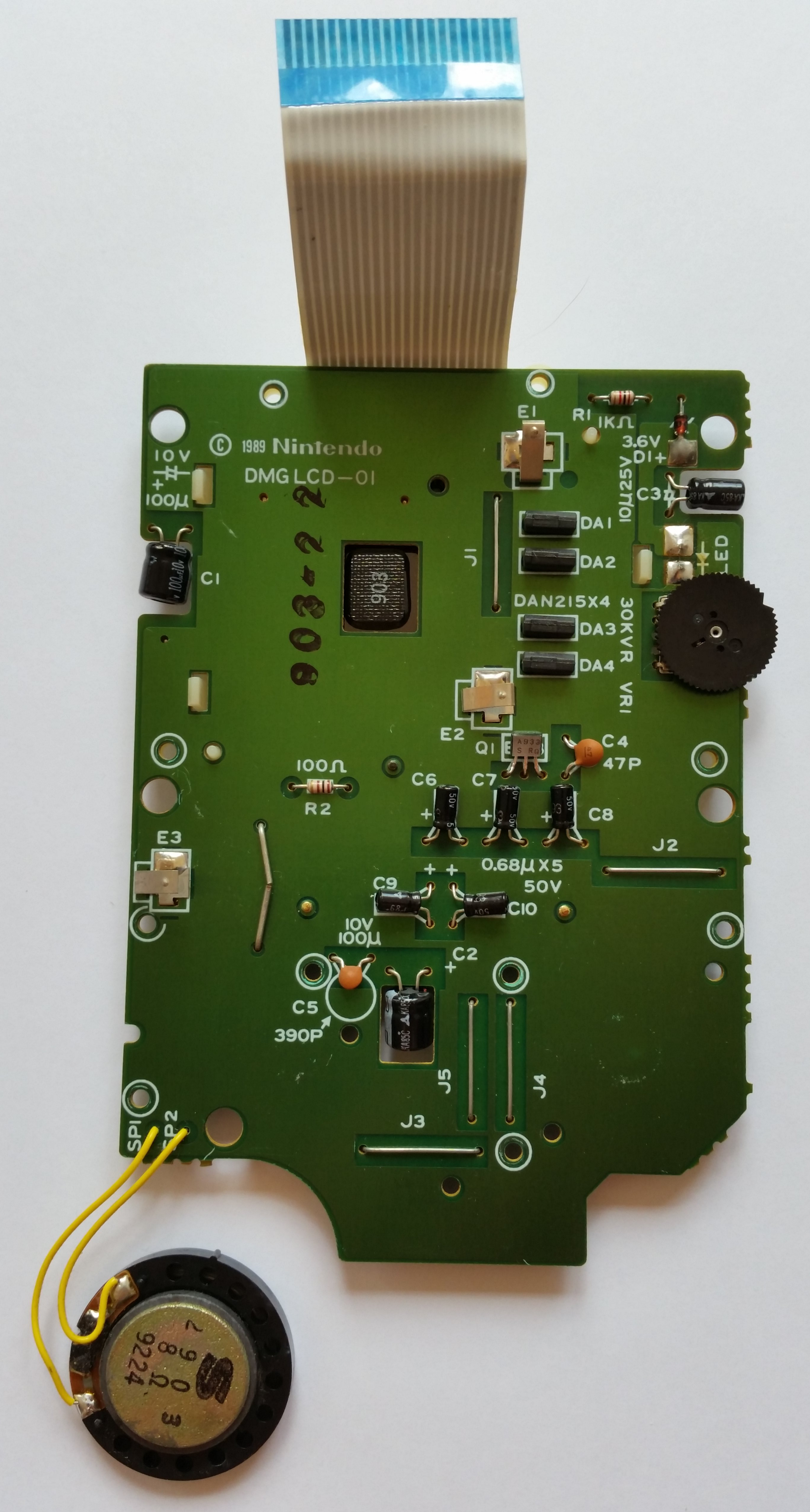

Front side of Game Boy LCD circuit boardBack side of Game Boy LCD circuit board

Board type
DMG LCD-01
Manufacture date
1989
Stamp on board
903-22
Circled letter(s) on board
-
Number pair on board
-
LCD panel label
S 890303
LCD row cable label
890324
LCD panel date
March/1989

Power Board

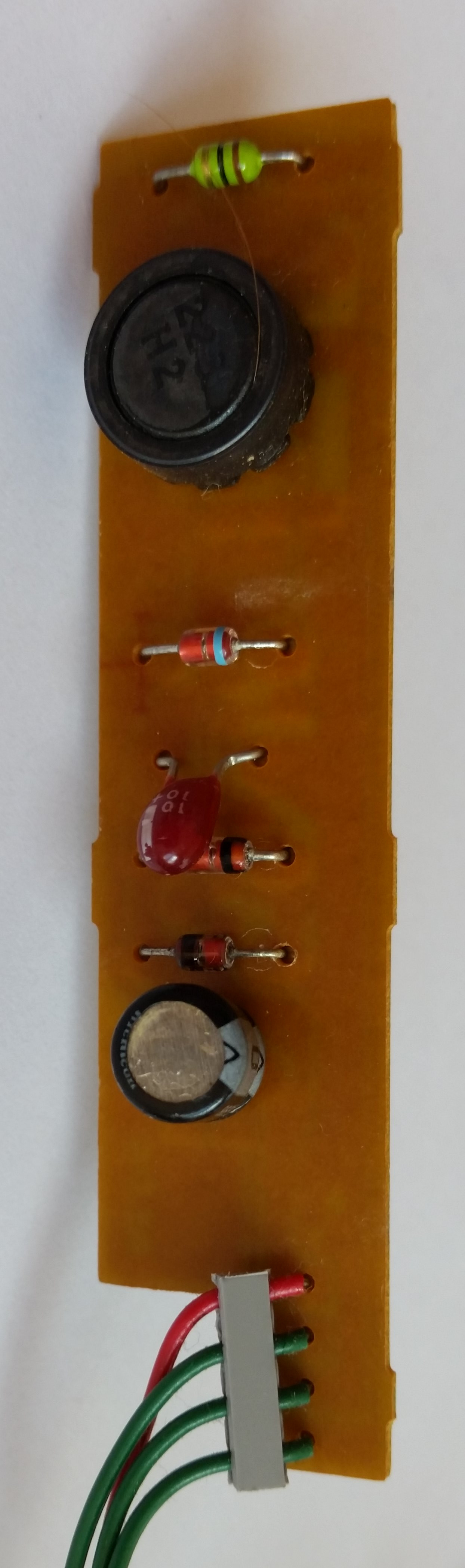

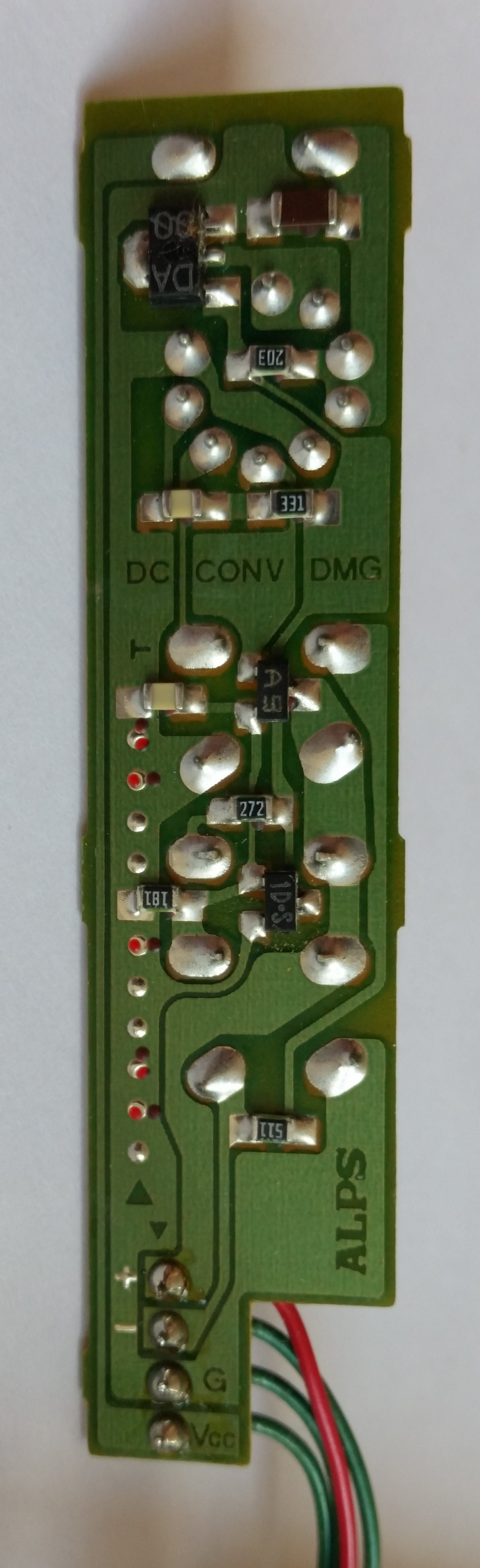

Front side of Game Boy power circuit boardBack side of Game Boy power circuit board

Board type
A1
Manufacture date
1989
Label
DC CONV DMG

Jack Board

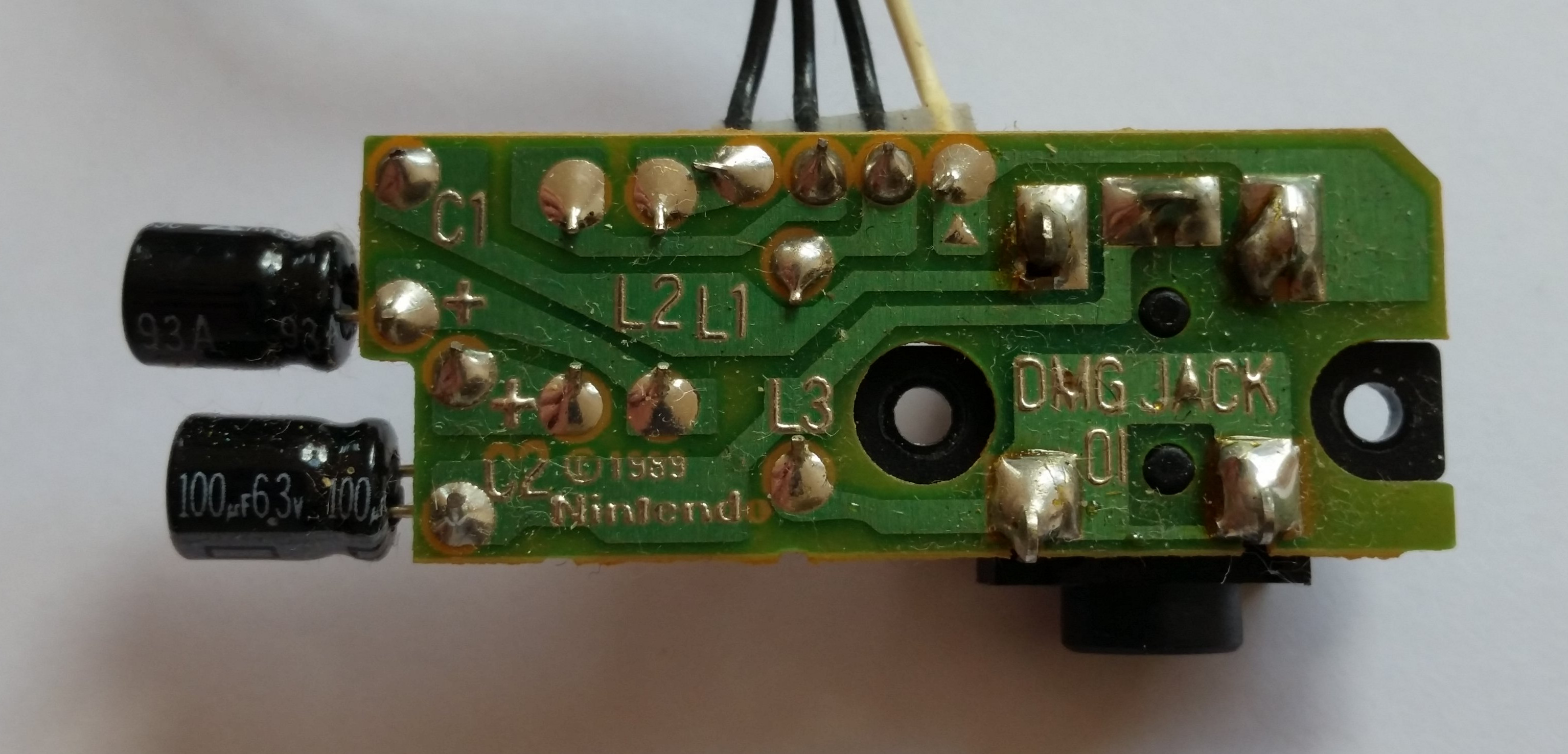

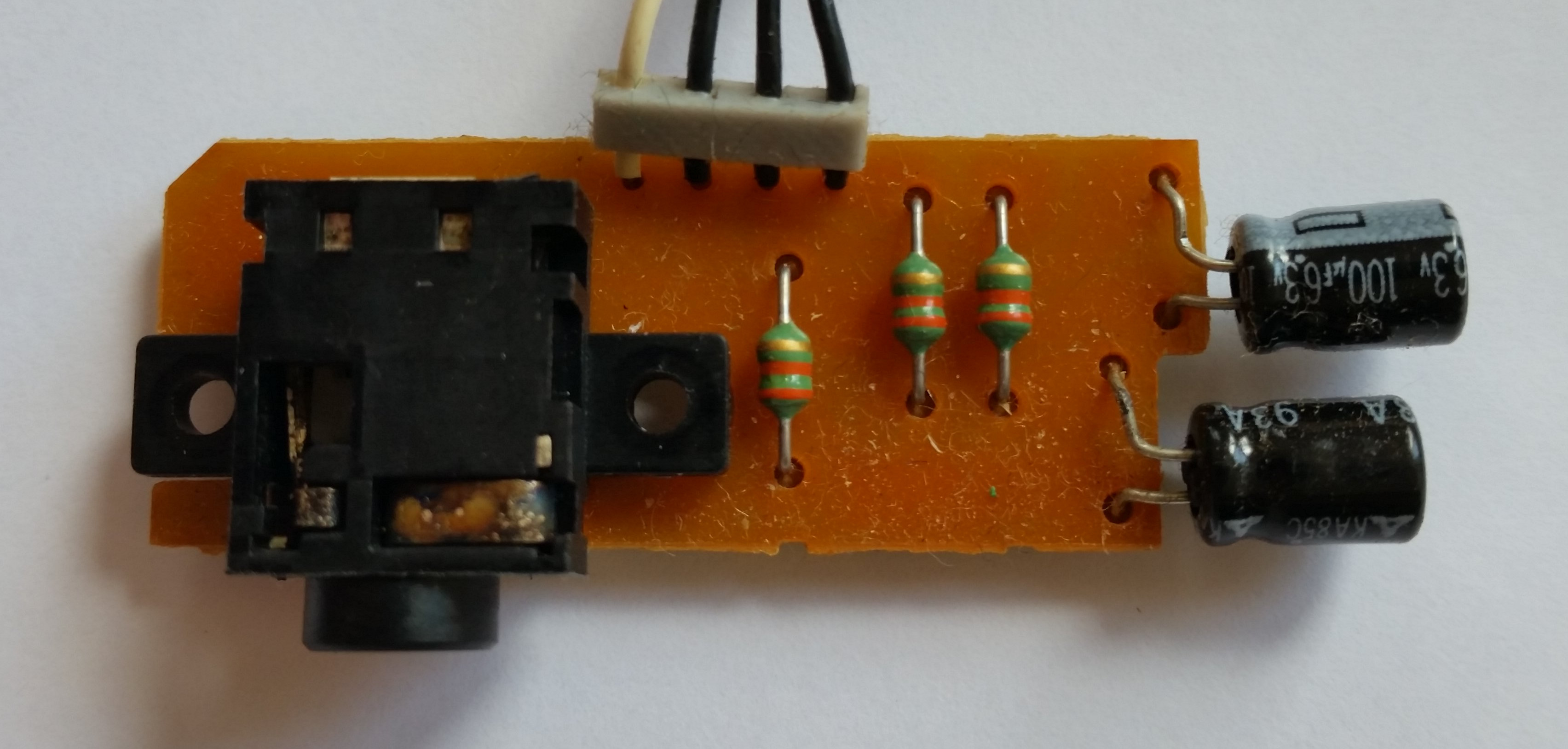

Front side of Game Boy headphone jack circuit boardBack side of Game Boy headphone jack circuit board

Board type
DMG JACK 01
Extra label
-

Chips

 ChipTypeManufacturerDateLabel
U1CPUDMG-CPUSharpWeek 12/1989
DMG-CPU
© 1989 Nintento
JAPAN
8912 D
U2Video RAMLH5164LN-10SharpWeek 11/1989
LH5164LN-10
SHARP
JAPAN
8911 1 D
U3Work RAMLH5164LN-10SharpWeek 11/1989
LH5164LN-10
SHARP
JAPAN
8911 1 D
U4AmplifierIR3R40SharpWeek 11/1989
DMG-AMP
IR3R40
8911 A
X1CrystalD419DaishinkuFebruary/1989
D419B9
-LCD Column DriverLH5077 FSharpMarch/1989
LH5077 F
903
-LCD Row DriverLH5076 FSharpMarch/1989
LH5076 F
903
-LCD RegulatorIR3E02SharpWeek 9/1989
DMG-REG
IR3E02
8909 A

Notes

- LCD had massive amount of missing columns:
    -> TODO: try to repair
- Display cover fell off:
    -> Cleaned old glue
    -> Applied double sided tape
    -> Cover seems to be original
- D-Pad silicon pad disintegrated while cleaning
    -> Attached replica part

Misc

CPU works
yes
