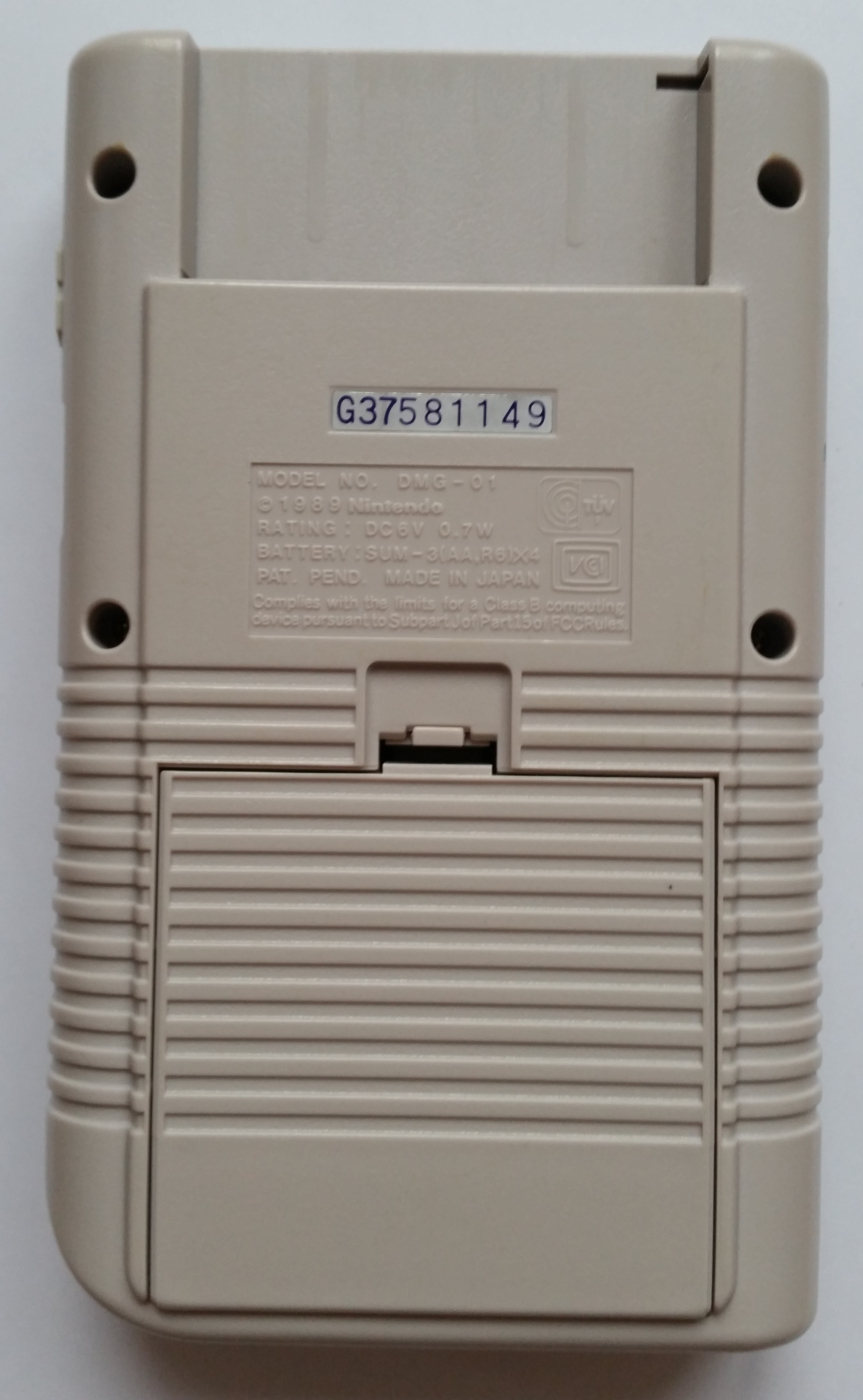

DMG: [iceboy] #2 - G37581149

Front side of Game BoyBack side of Game Boy

Color
off-white
Screws
tri-wing
Assembly date
July/1994

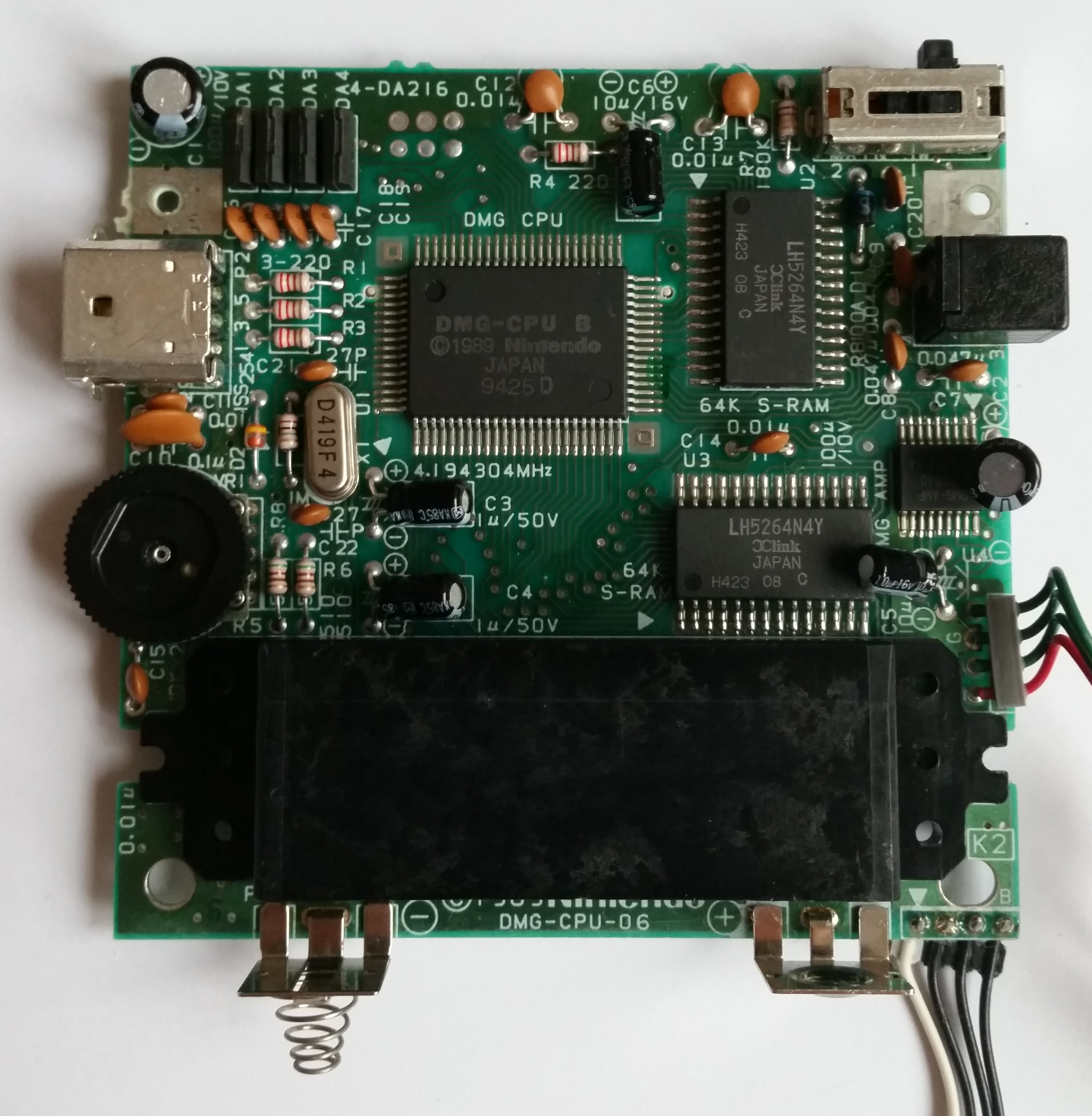

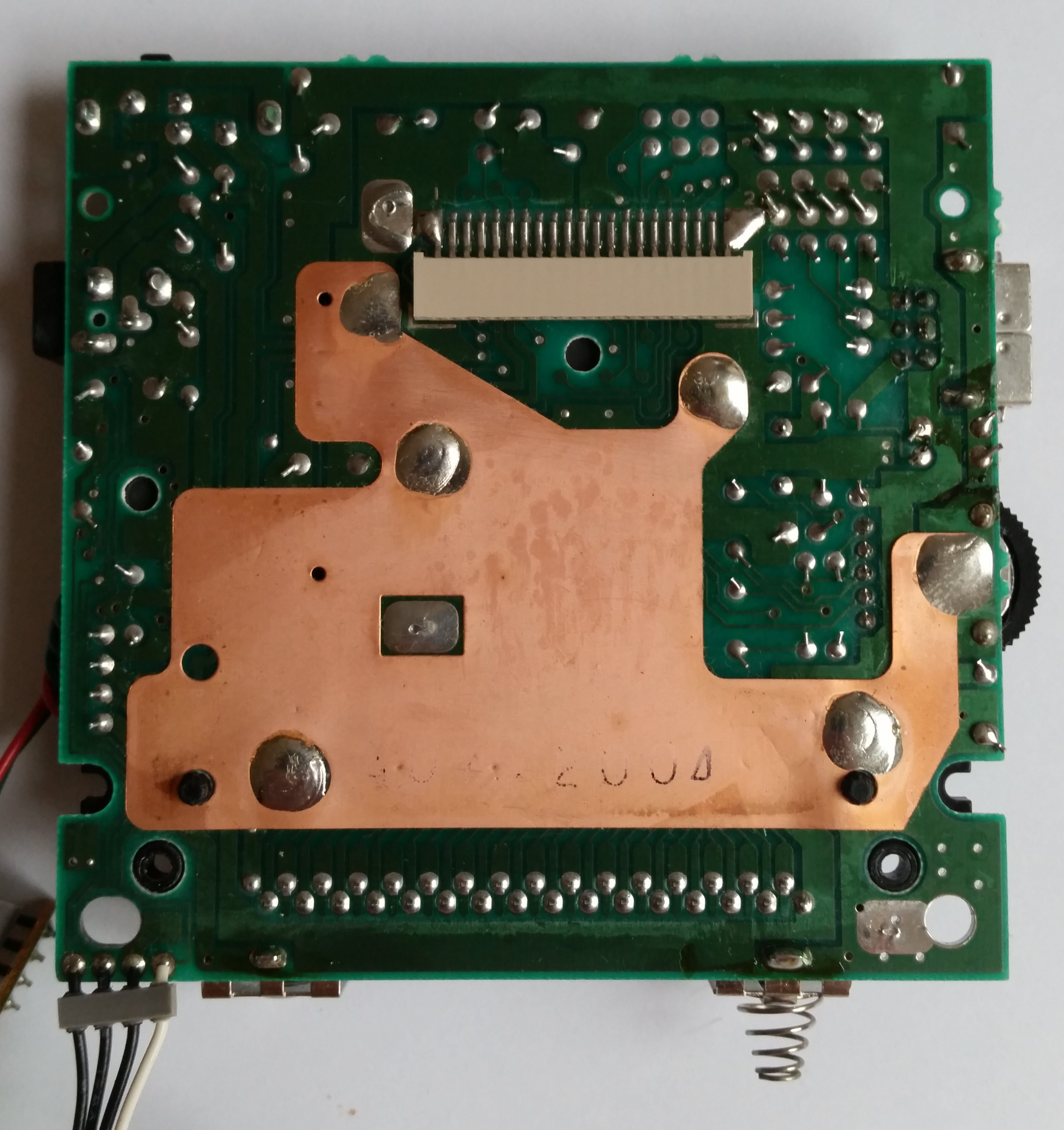

Mainboard

Front side of Game Boy main circuit boardBack side of Game Boy main circuit board

Board type
DMG-CPU-06
Stamp on board
407-2004
Circled letter(s) on board
K2
Extra label
6

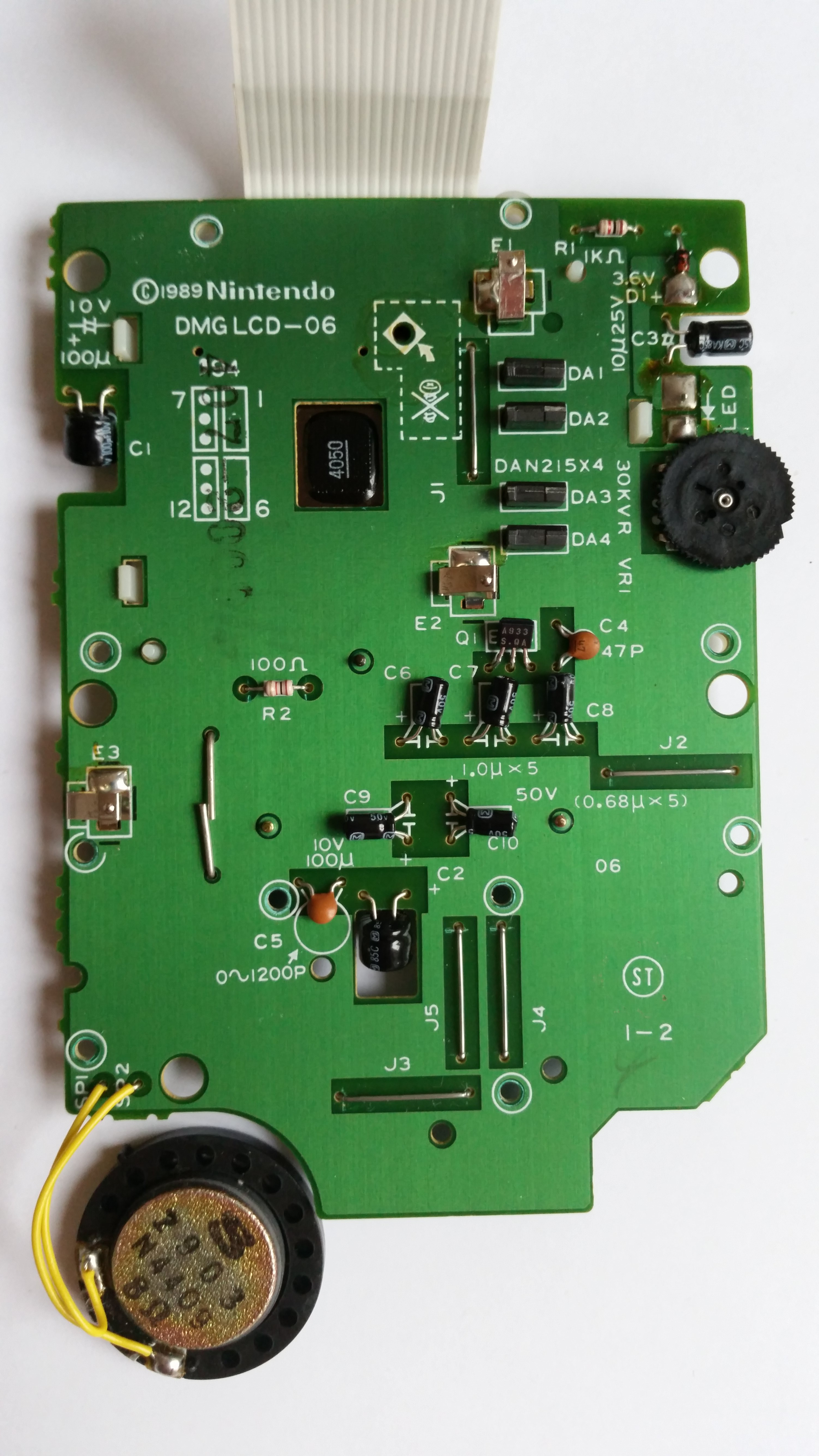

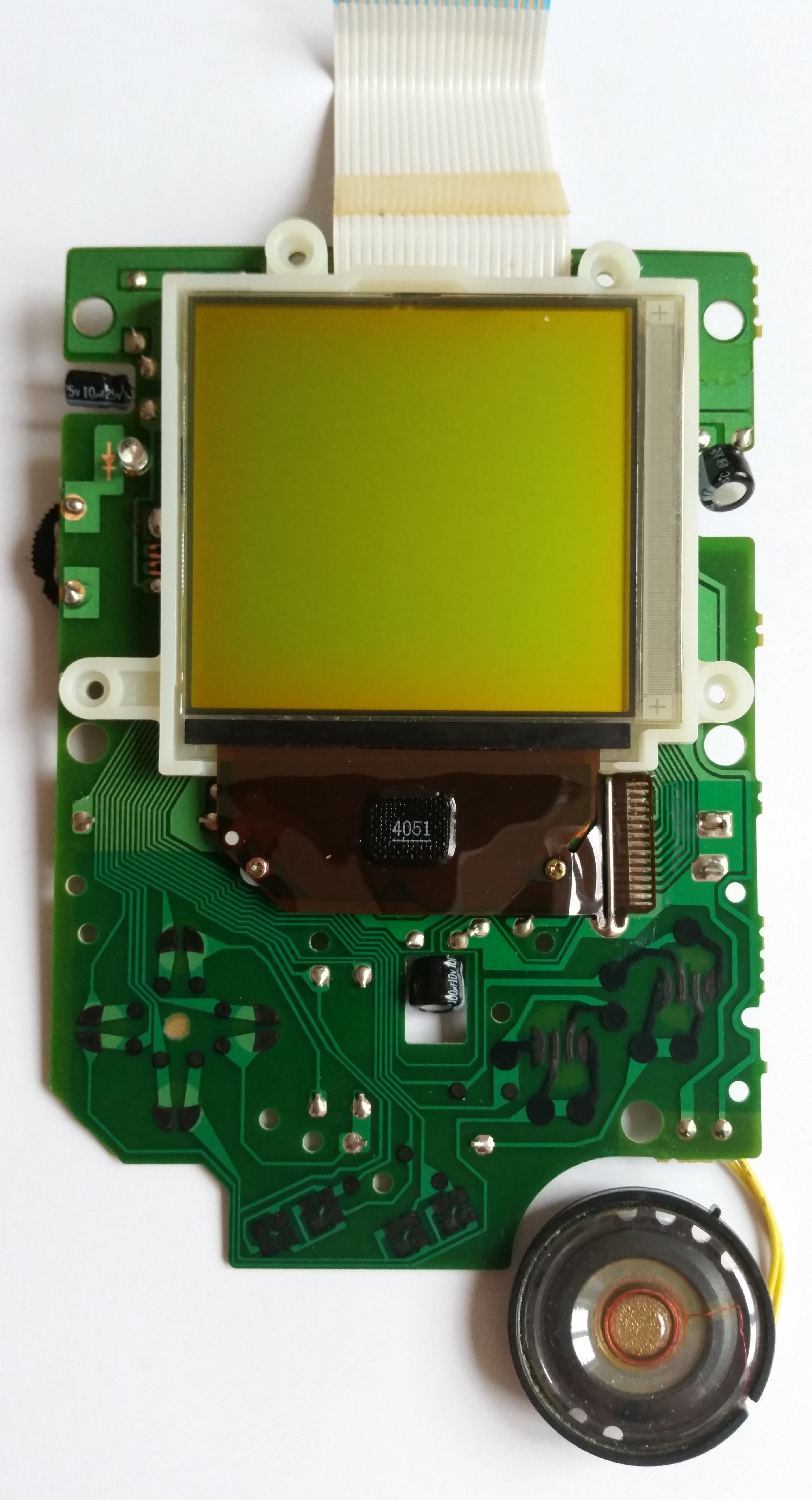

LCD Board

Front side of Game Boy LCD circuit boardBack side of Game Boy LCD circuit board

Board type
DMG LCD-06
Manufacture date
May/1994
Stamp on board
407-2009
Circled letter(s) on board
ST (4)
Number pair on board
1-2
LCD panel label
AH 940302
LCD row cable label
I 40421
LCD panel date
March/1994 - April/1994

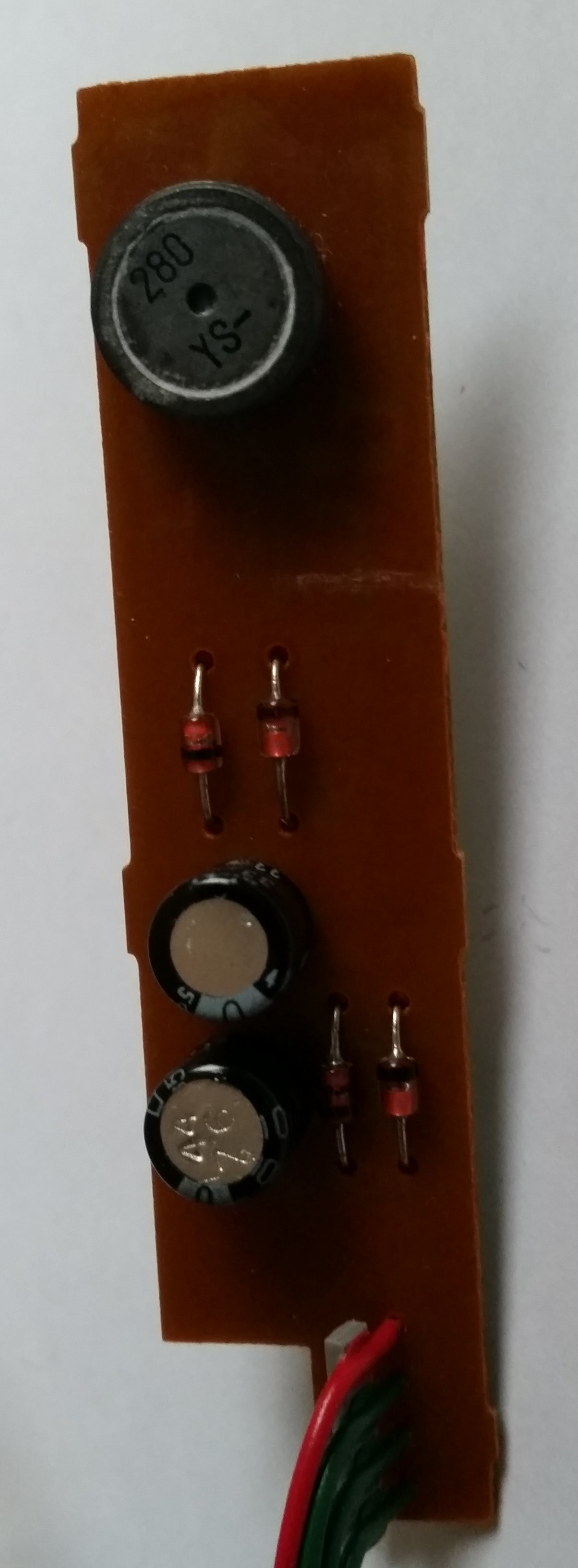

Power Board

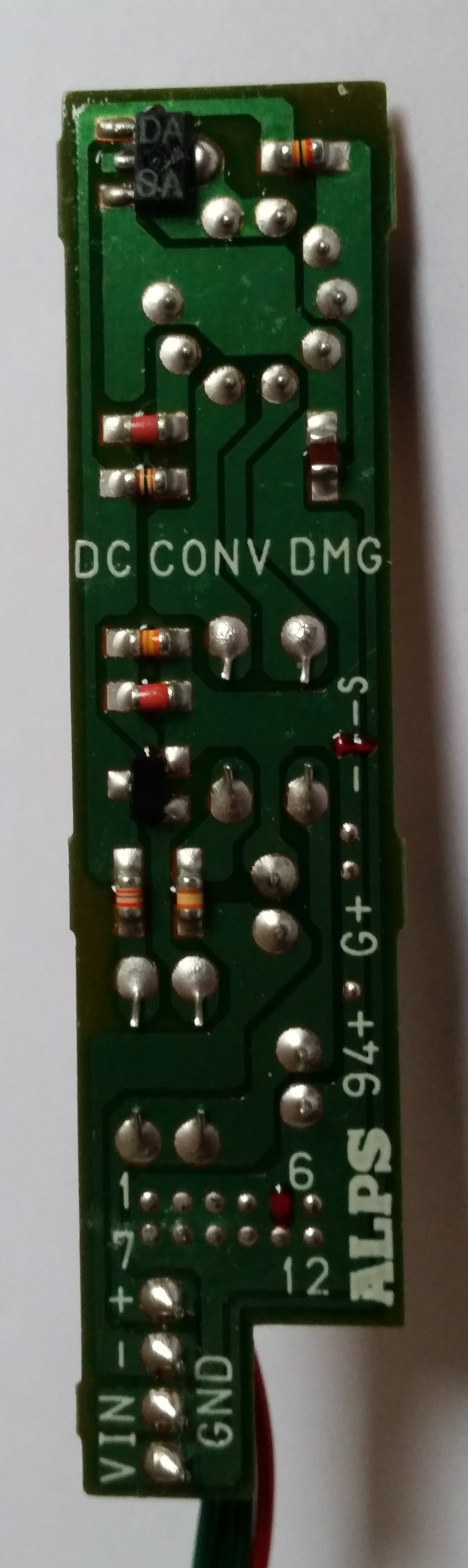

Front side of Game Boy power circuit boardBack side of Game Boy power circuit board

Board type
C
Manufacture date
May/1994
Label
DC CONV DMG

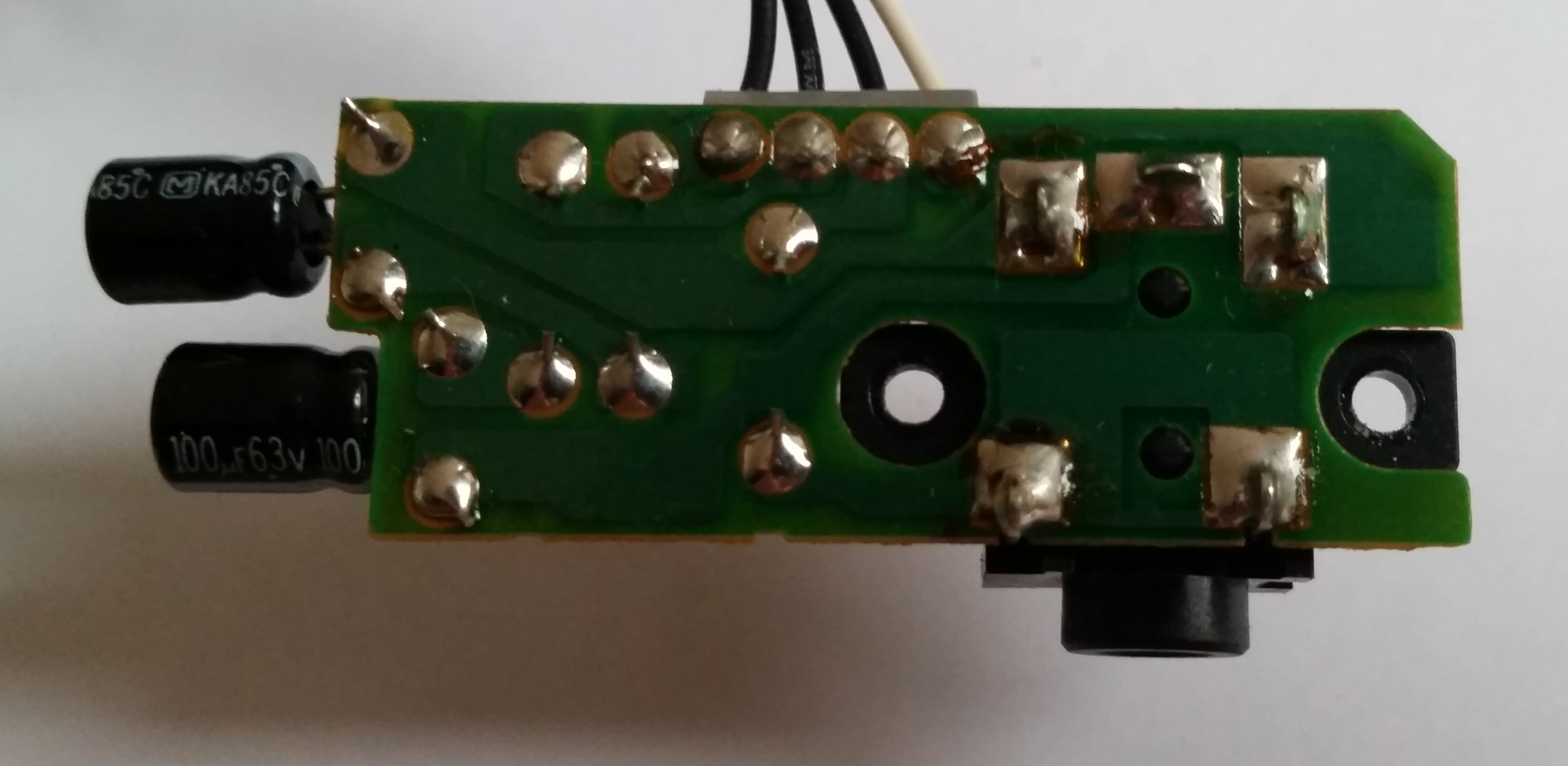

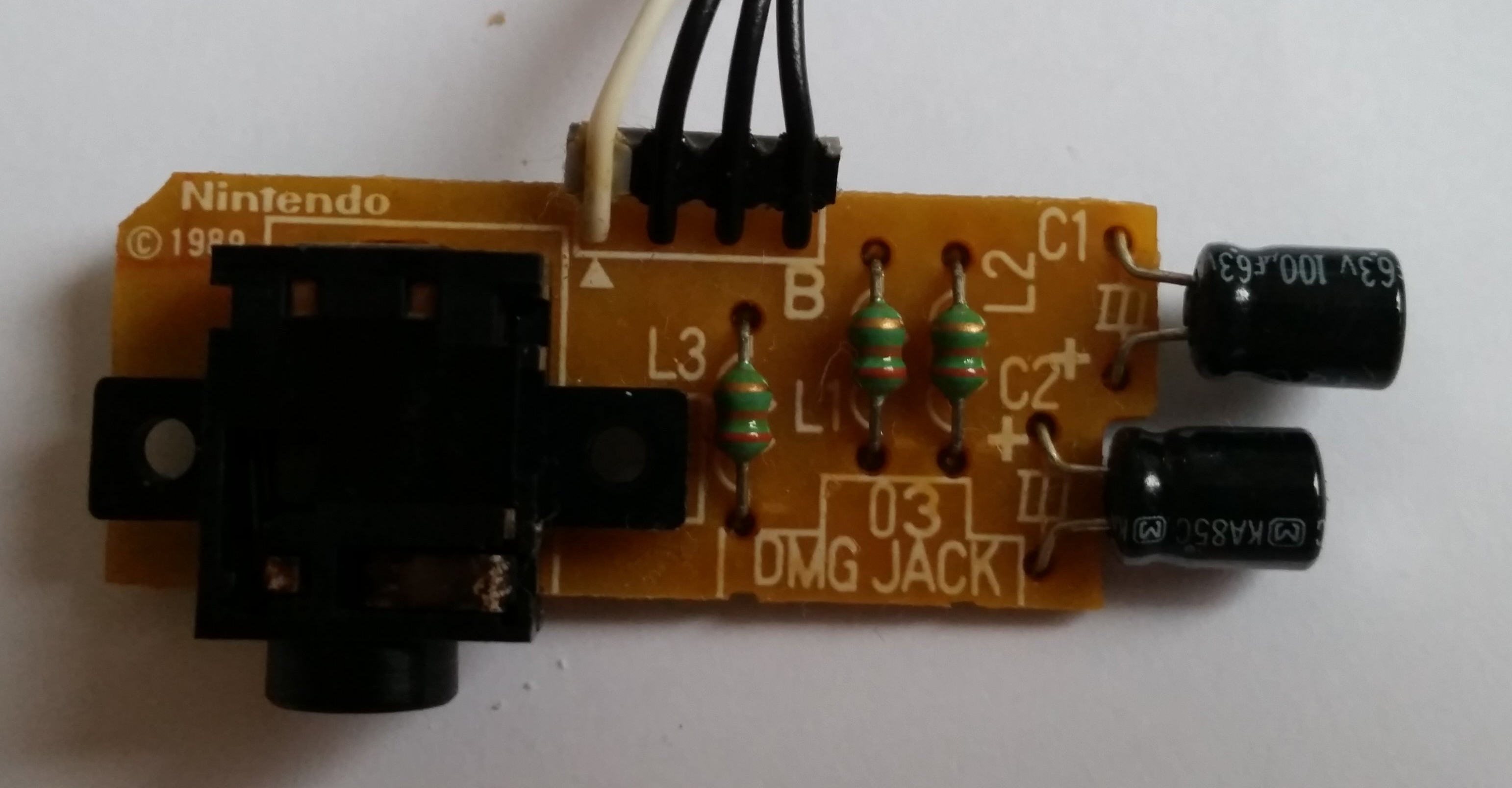

Jack Board

Front side of Game Boy headphone jack circuit boardBack side of Game Boy headphone jack circuit board

Board type
DMG JACK 03
Extra label
-

Chips

 ChipTypeManufacturerDateLabel
U1CPUDMG-CPU BSharpWeek 25/1994
DMG-CPU B
© 1989 Nintento
JAPAN
9425 D
U2Video RAMLH5264N4YCrosslink SemiconductorWeek 23/1994
LH5264N4Y
Xlink
JAPAN
H423 08 C
U3Work RAMLH5264N4YCrosslink SemiconductorWeek 23/1994
LH5264N4Y
Xlink
JAPAN
H423 08 C
U4AmplifierIR3R40SharpWeek 11/1993
DMG-AMP
IR3R40
9311 AA
X1CrystalD419DaishinkuJune/1994
D419F4
-LCD Column DriverLH5077 AFSharpWeek 5/1994
LH5077 AF
4051
-LCD Row DriverLH5076 AFSharpWeek 5/1994
LH5076 AF
4050
-LCD RegulatorIR3E02SharpWeek 13/1994
DMG-REG
IR3E02
9413 CB

Notes

- Display cover fell off:
    -> Cleaned old glue
    -> Applied double sided tape
    -> Cover seems to be original
- Link port cover was missing:
    -> Attached replica part

Misc

CPU works
yes
