DMG: [iceboy] #19 - GH1422860

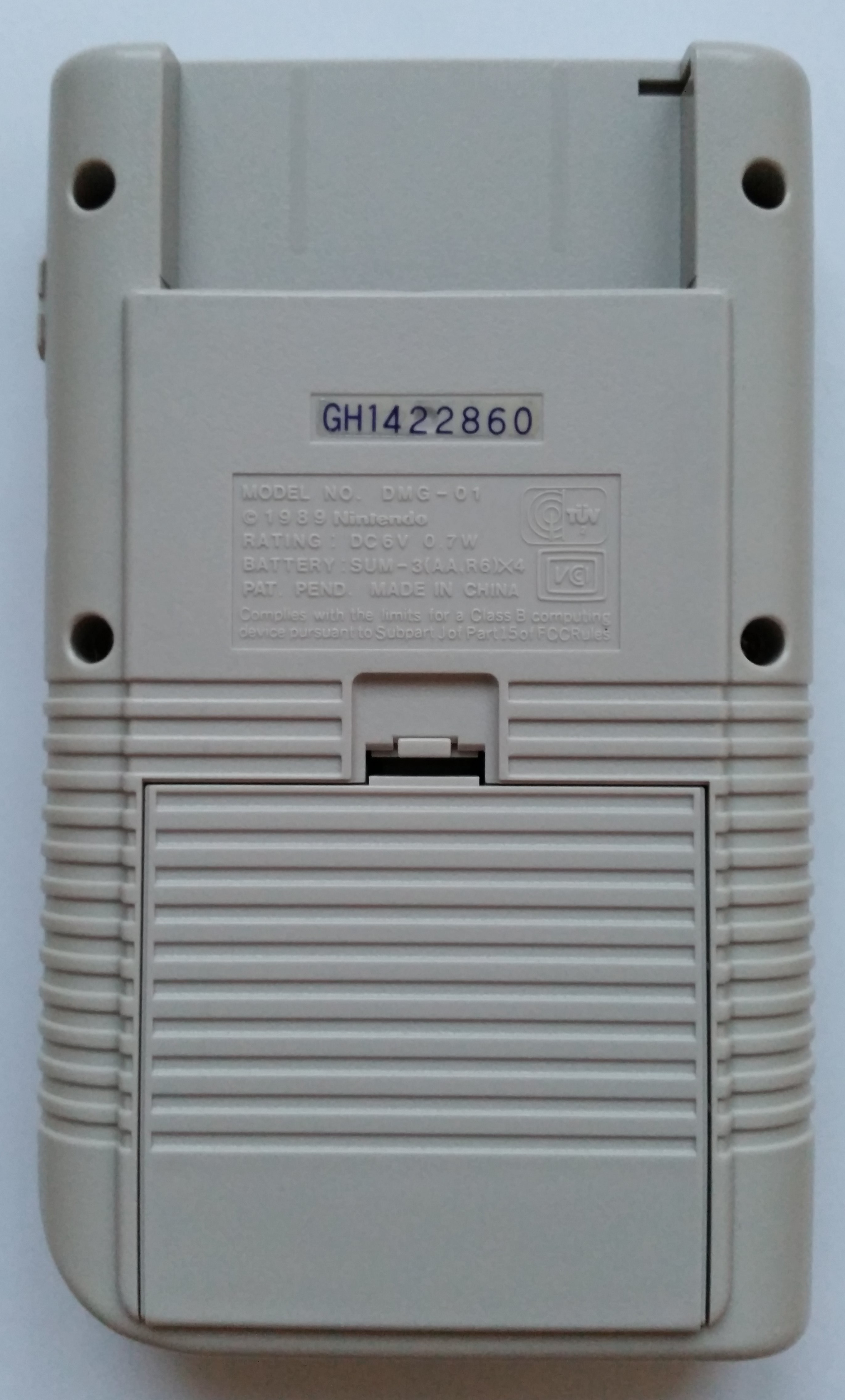

Front side of Game BoyBack side of Game Boy

Color
off-white
Screws
tri-wing
Assembly date
April/1994

Mainboard

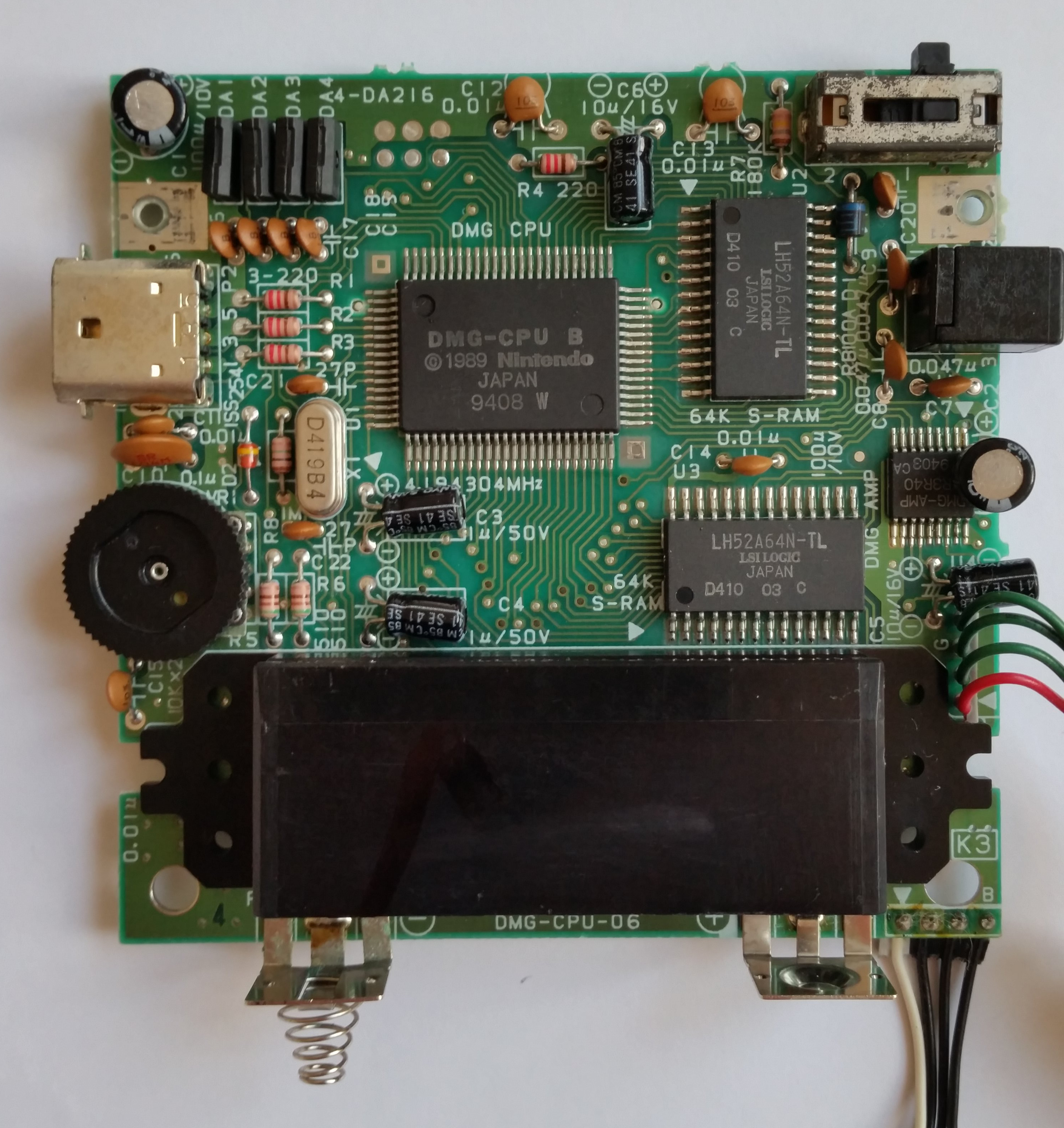

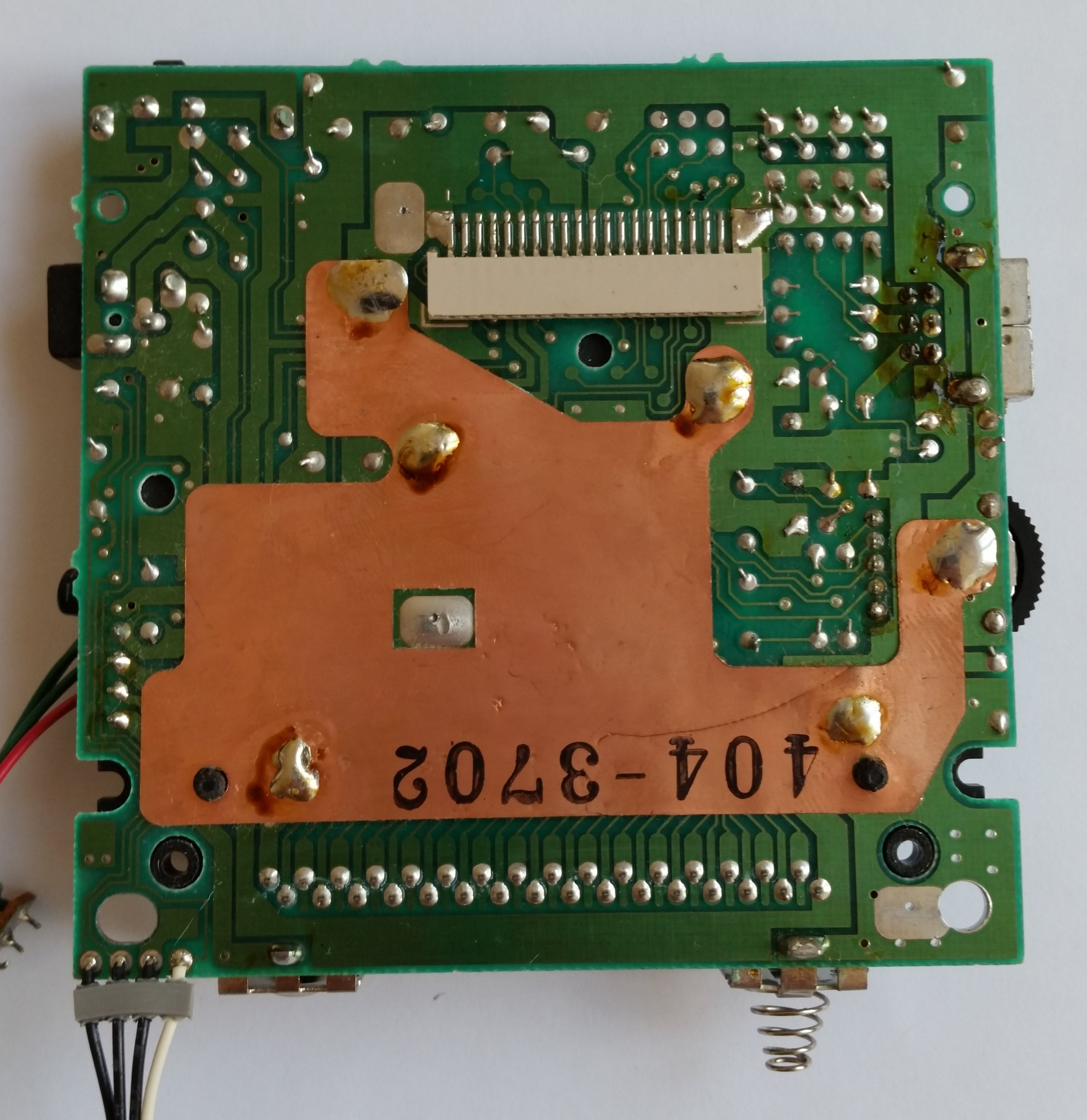

Front side of Game Boy main circuit boardBack side of Game Boy main circuit board

Board type
DMG-CPU-06
Stamp on board
404-3702
Circled letter(s) on board
K3
Extra label
4

LCD Board

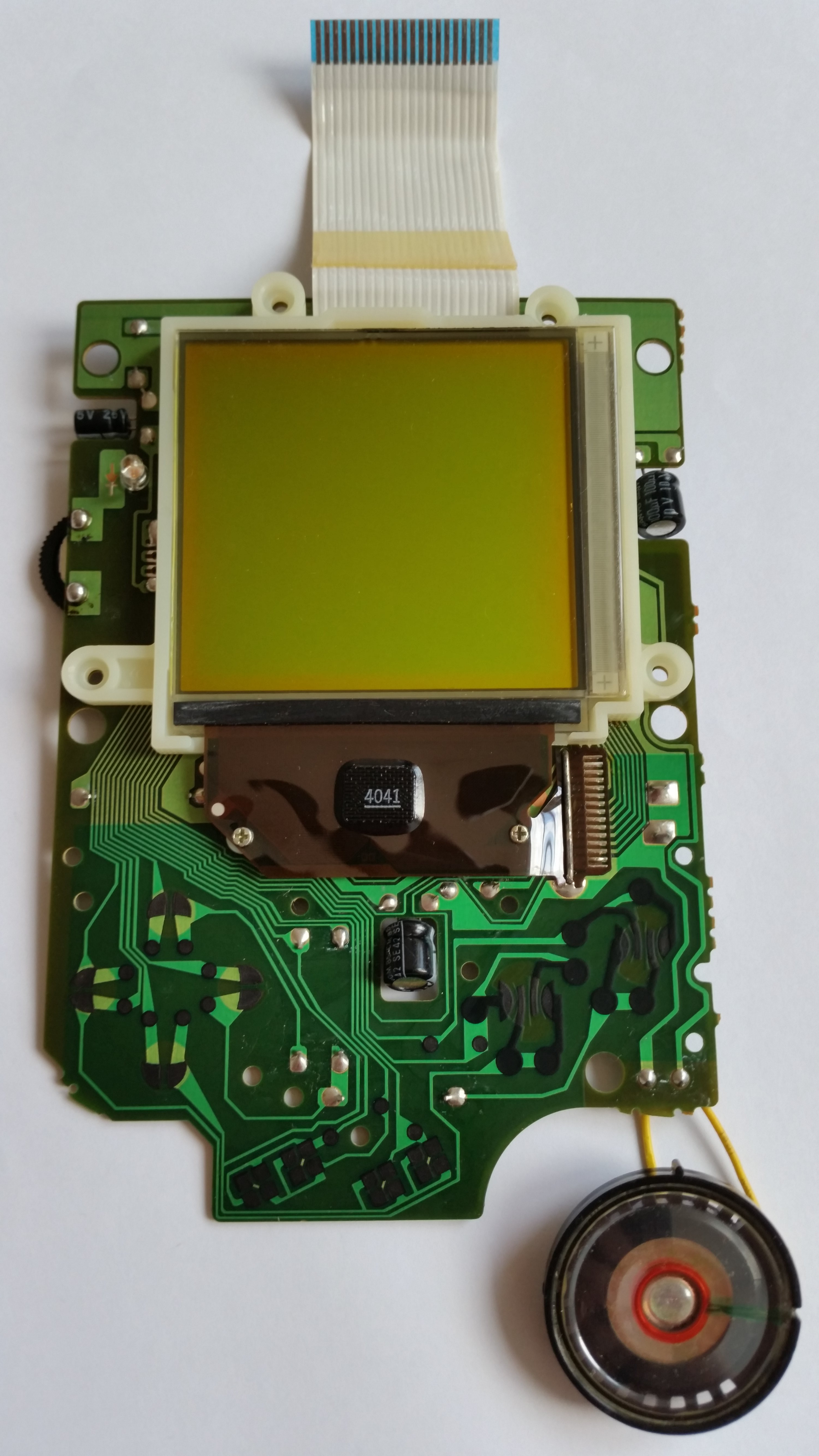

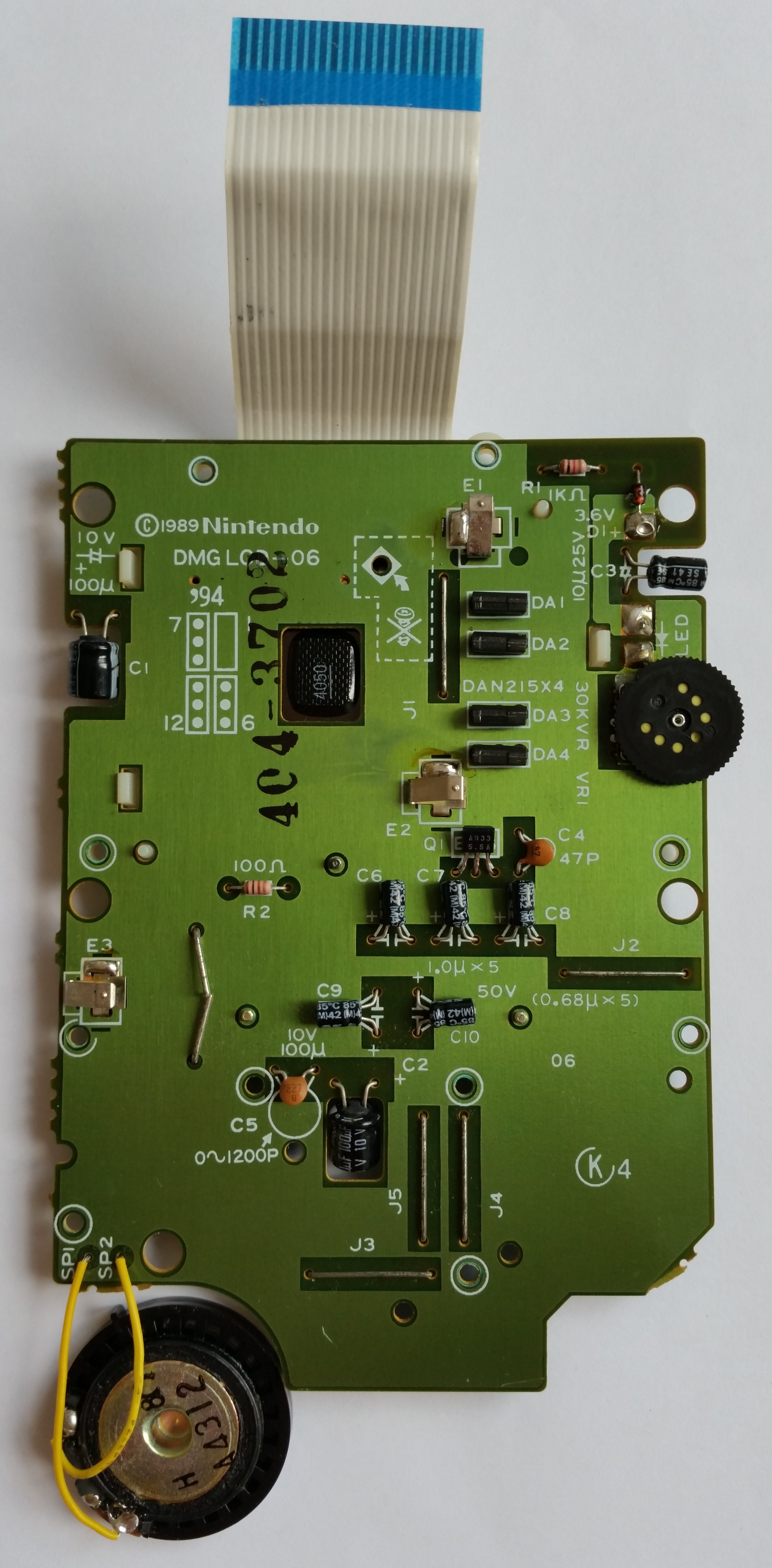

Front side of Game Boy LCD circuit boardBack side of Game Boy LCD circuit board

Board type
DMG LCD-06
Manufacture date
March/1994
Stamp on board
404-3702
Circled letter(s) on board
K4
Number pair on board
-
LCD panel label
N23S
940207
LCD row cable label
B 40215
LCD panel date
February/1994

Power Board

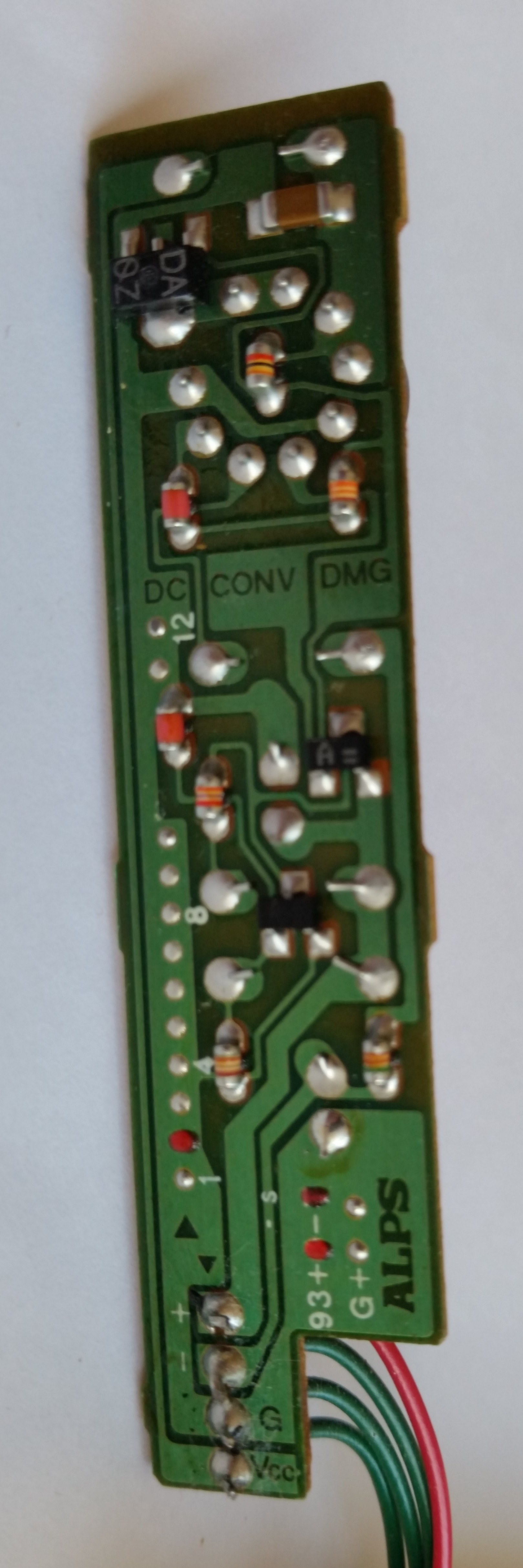

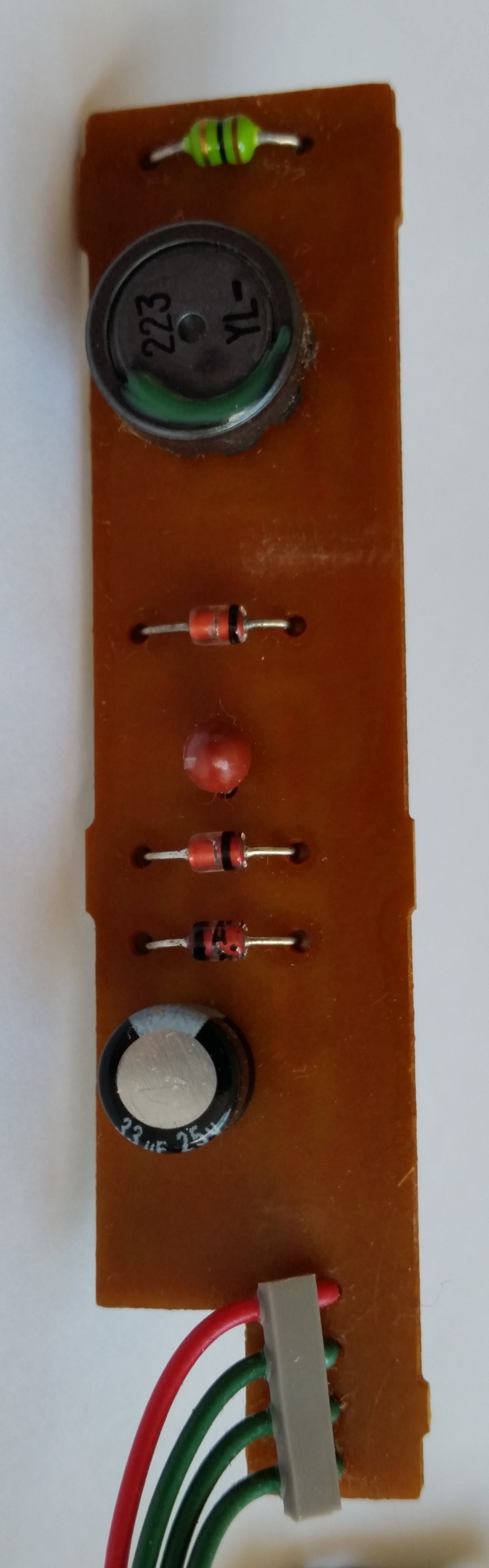

Front side of Game Boy power circuit boardBack side of Game Boy power circuit board

Board type
B
Manufacture date
February/1993
Label
DC CONV DMG

Jack Board

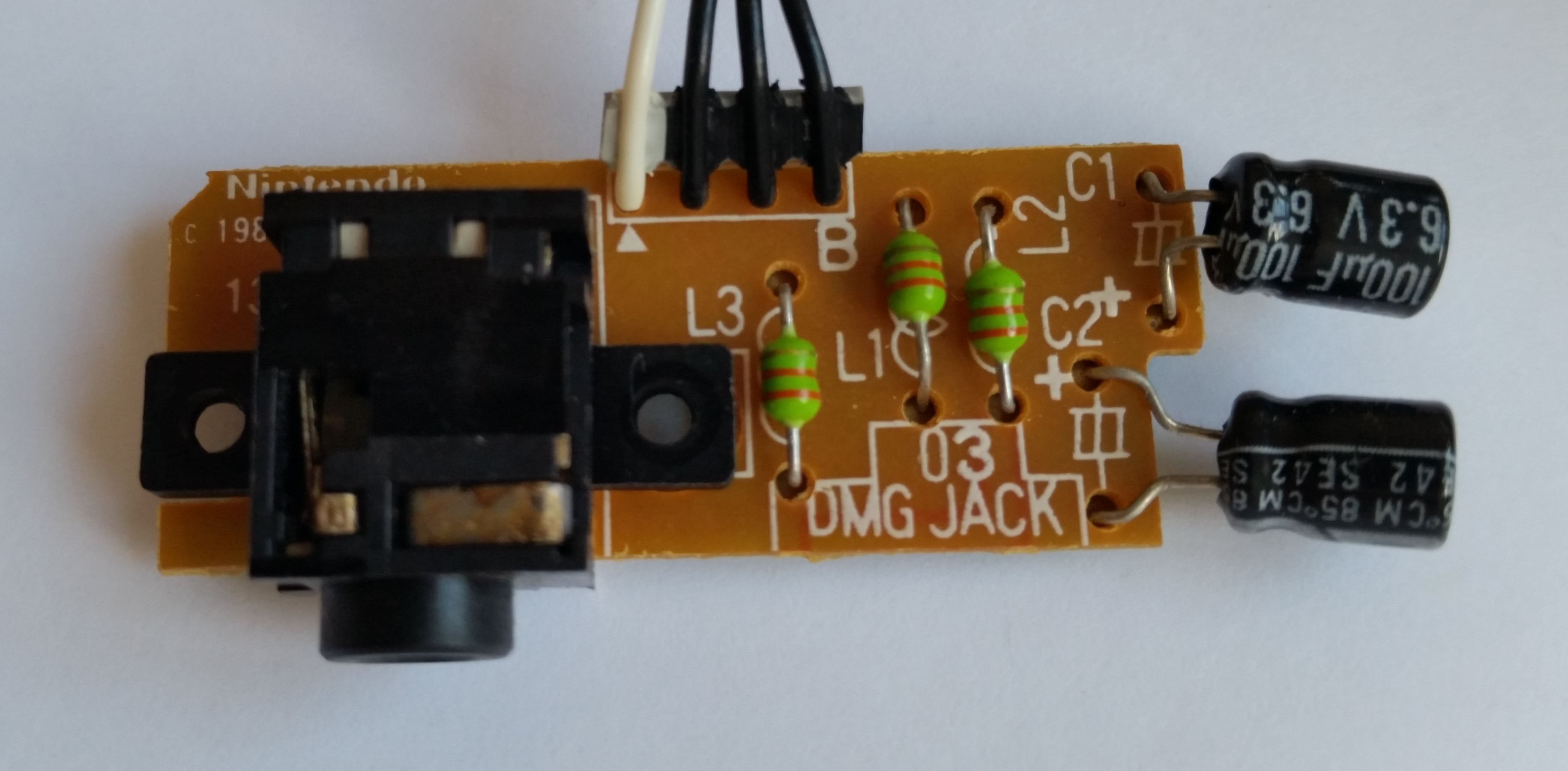

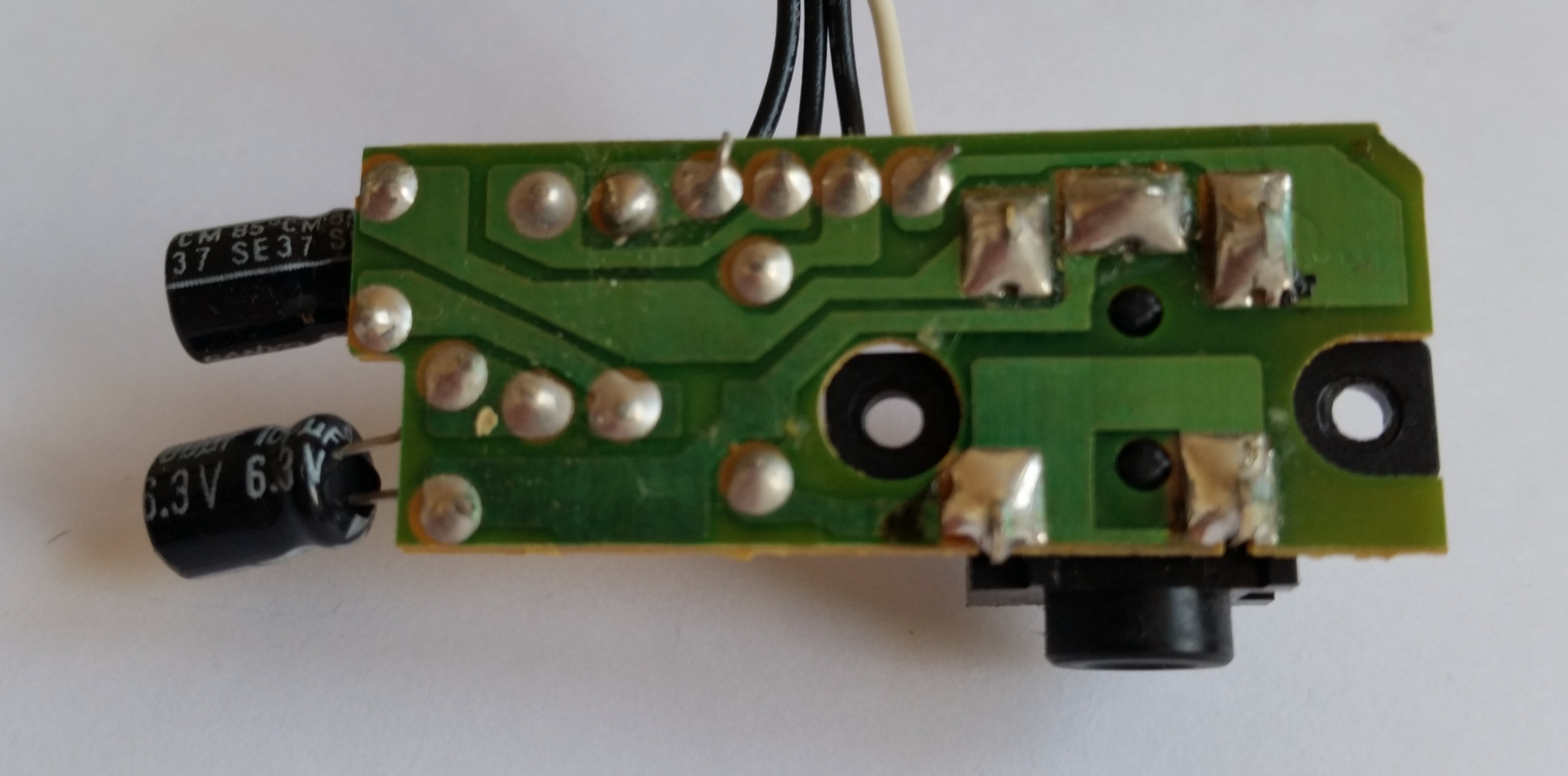

Front side of Game Boy headphone jack circuit boardBack side of Game Boy headphone jack circuit board

Board type
DMG JACK 03
Extra label
13

Chips

 ChipTypeManufacturerDateLabel
U1CPUDMG-CPU BSharpWeek 8/1994
DMG-CPU B
© 1989 Nintento
JAPAN
9408 W
U2Video RAMLH52A64N-TLLSI LogicWeek 10/1994
LH52A64N-TL
LSI LOGIC
JAPAN
D410 03 C
U3Work RAMLH52A64N-TLLSI LogicWeek 10/1994
LH52A64N-TL
LSI LOGIC
JAPAN
D410 03 C
U4AmplifierIR3R40SharpWeek 3/1994
DMG-AMP
IR3R40
9403 CA
X1CrystalD419DaishinkuFebruary/1994
D419B4
-LCD Column DriverLH5077 AFSharpWeek 4/1994
LH5077 AF
4041
-LCD Row DriverLH5076 AFSharpWeek 5/1994
LH5076 AF
4050
-LCD RegulatorIR3E02SharpWeek 51/1993
DMG-REG
IR3E02
9351 CB

Notes

- Display cover was missing:
    -> Cleaned old glue
    -> Attached replica part
- Three knobs of the D-Pad its silicone pad fell off:
    -> Attached replica part

Misc

CPU works
yes
