DMG: [iceboy] #16 - G01312184

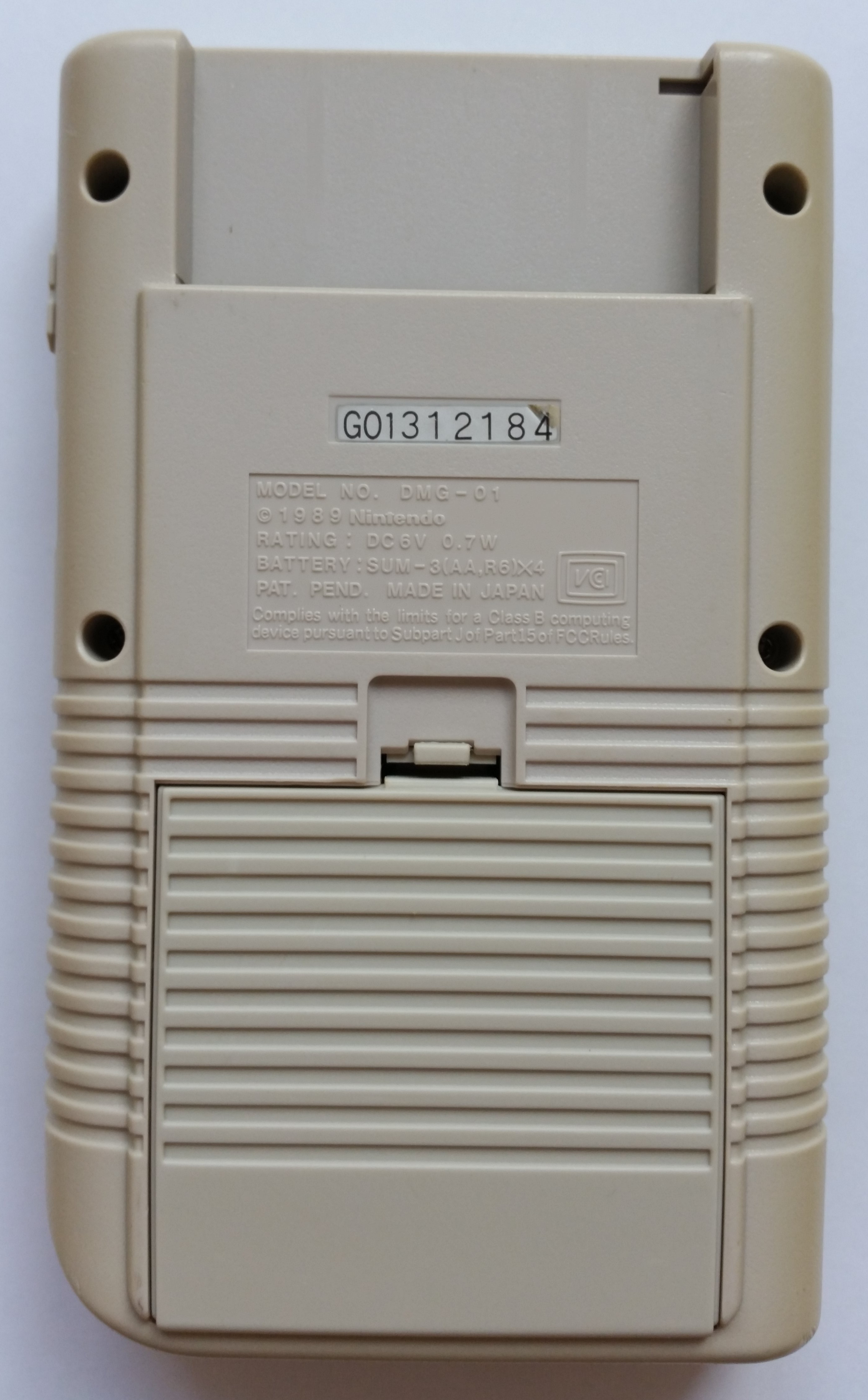

Front side of Game BoyBack side of Game Boy

Color
off-white
Screws
phillips
Assembly date
May/1989

Mainboard

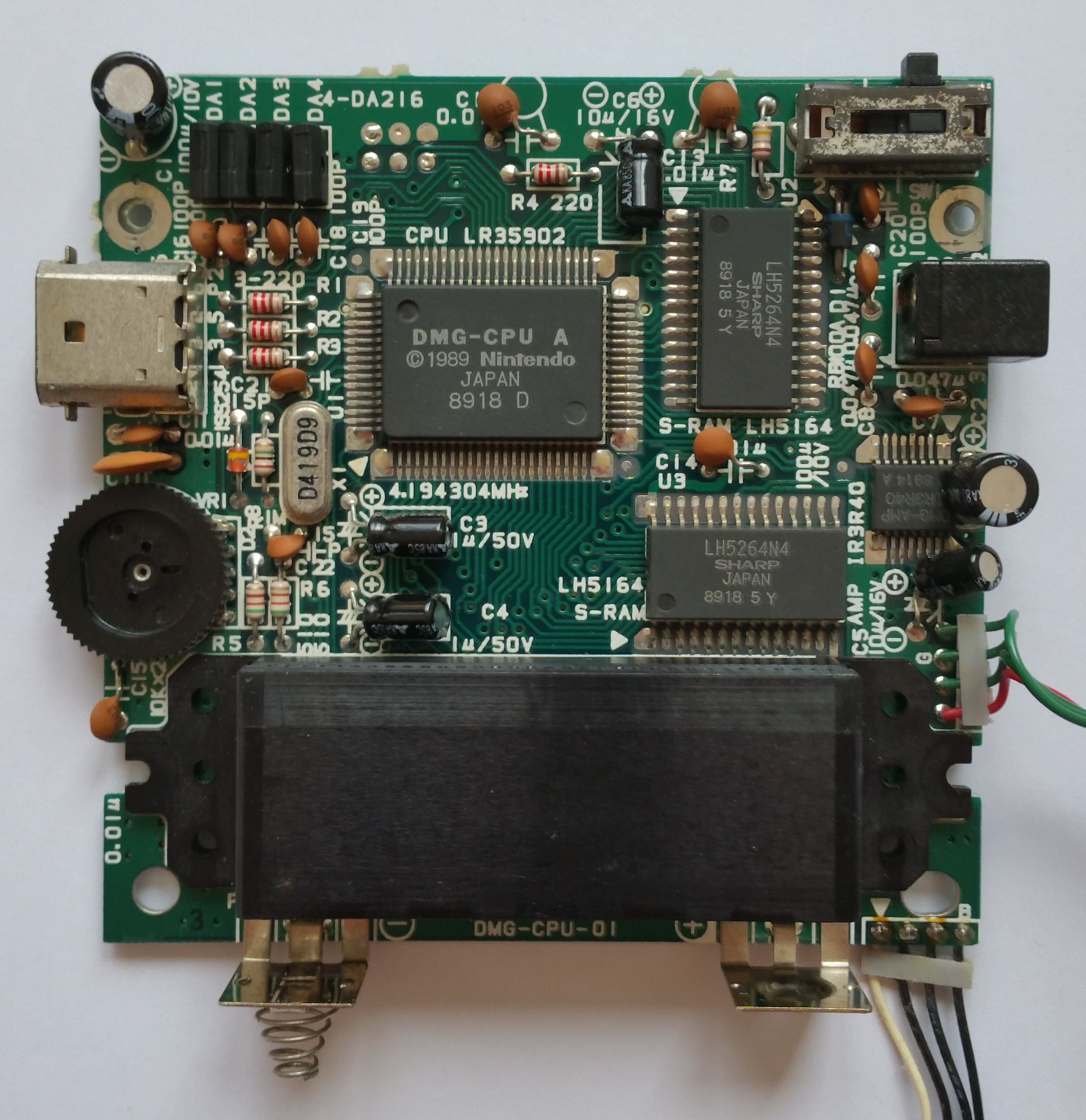

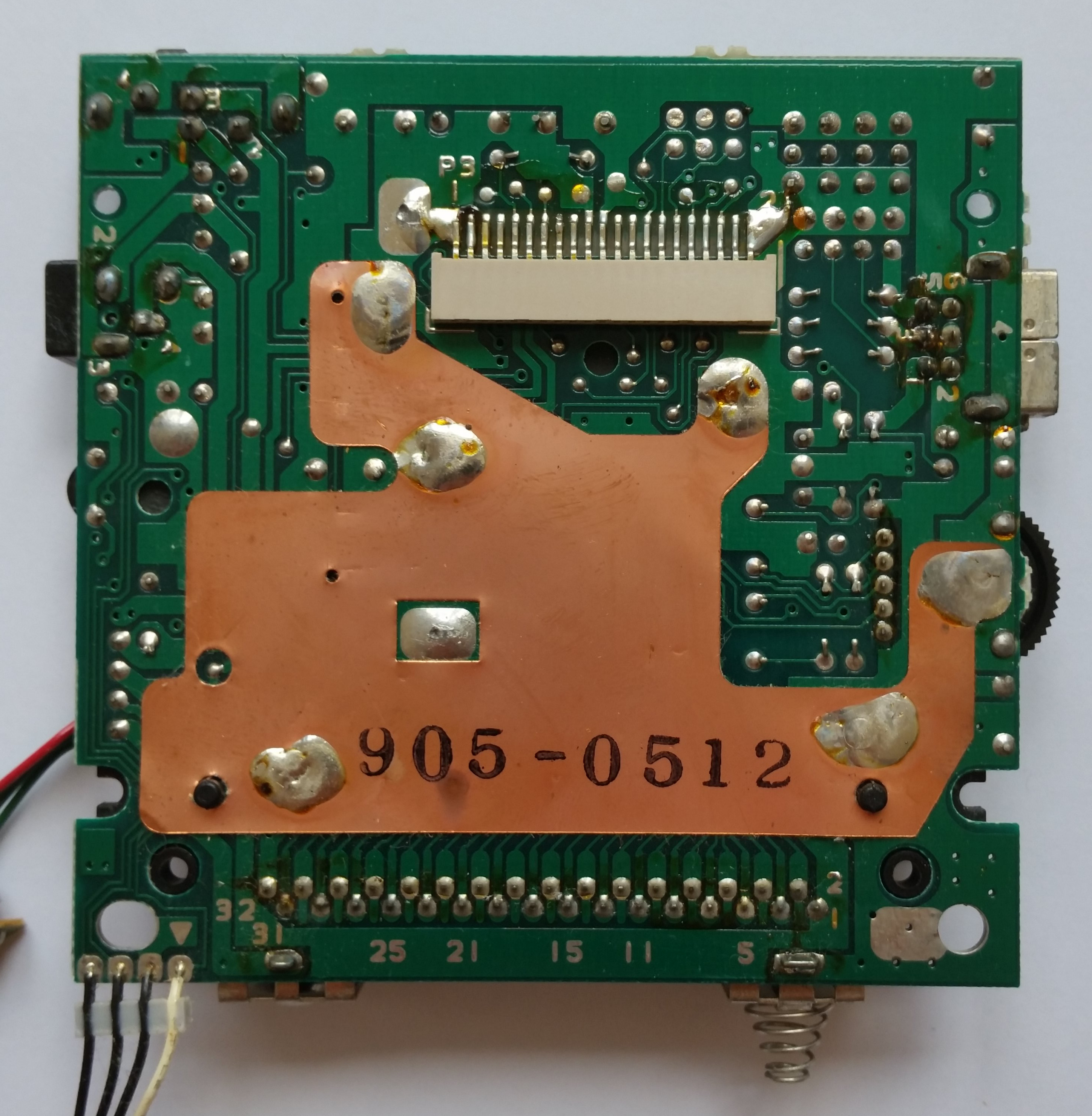

Front side of Game Boy main circuit boardBack side of Game Boy main circuit board

Board type
DMG-CPU-01
Stamp on board
905-0512
Circled letter(s) on board
-
Extra label
3

LCD Board

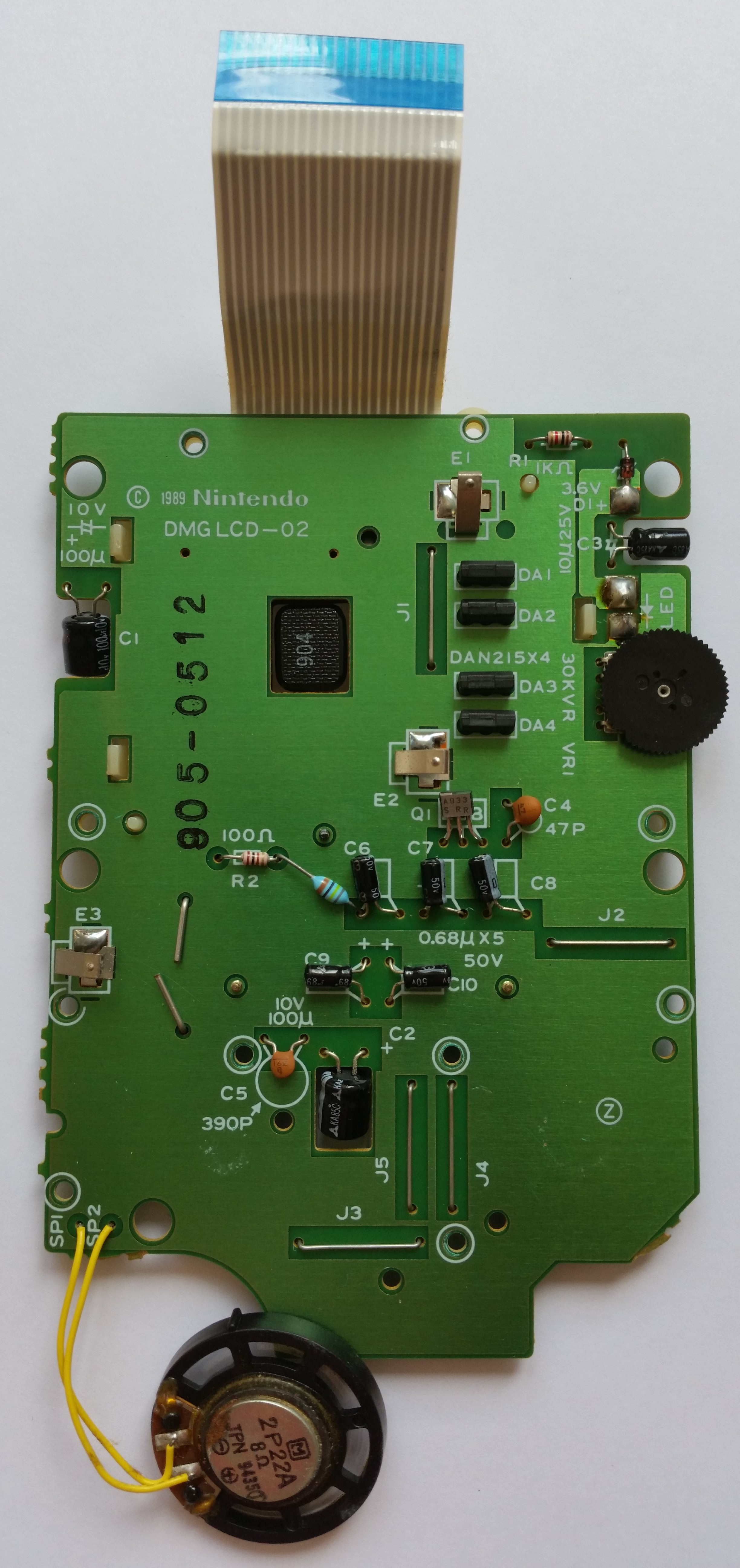

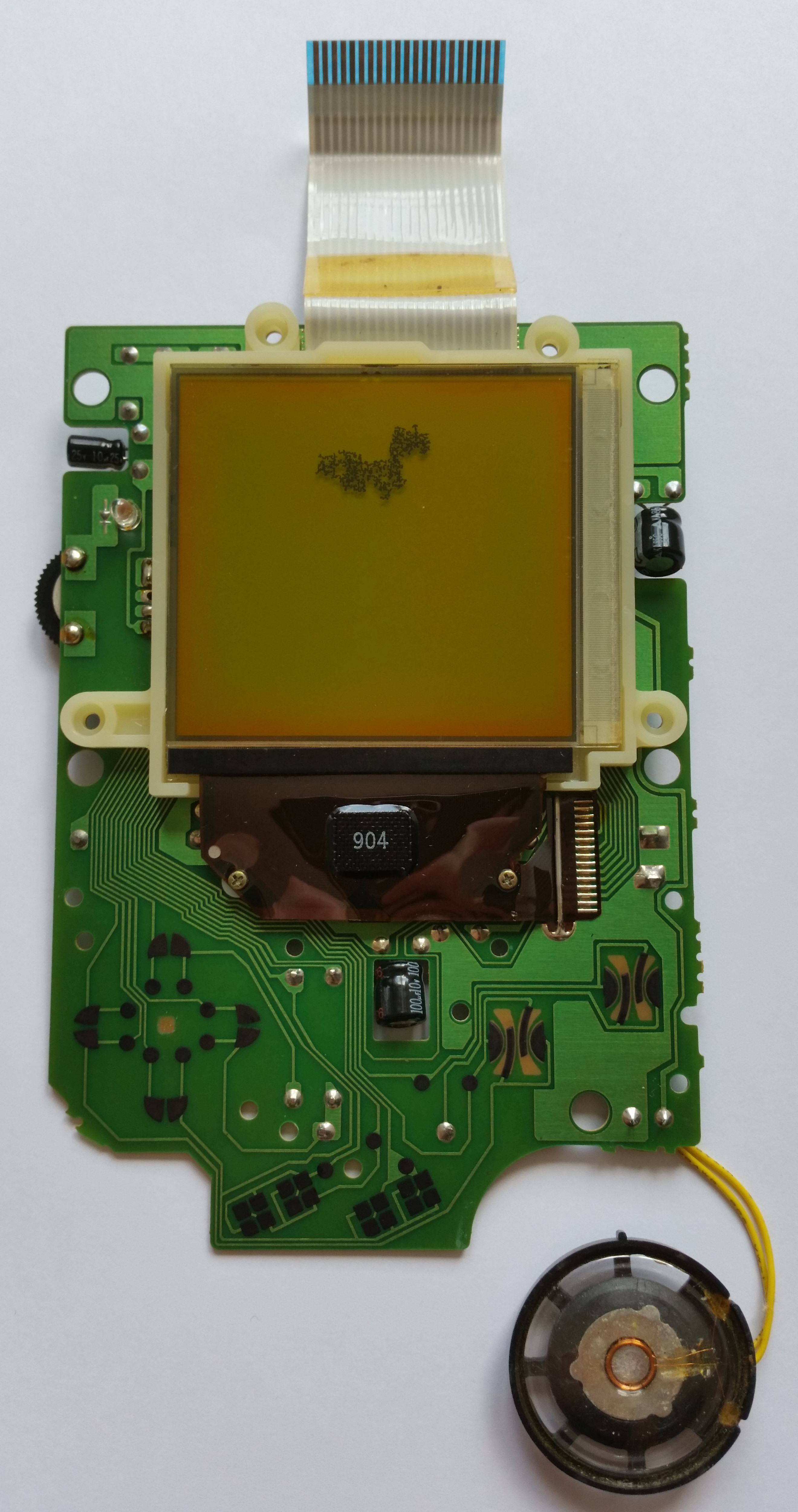

Front side of Game Boy LCD circuit boardBack side of Game Boy LCD circuit board

Board type
DMG LCD-02
Manufacture date
1989
Stamp on board
905-0512
Circled letter(s) on board
Z
Number pair on board
-
LCD panel label
S890404
LCD row cable label
290415
LCD panel date
April/1989

Power Board

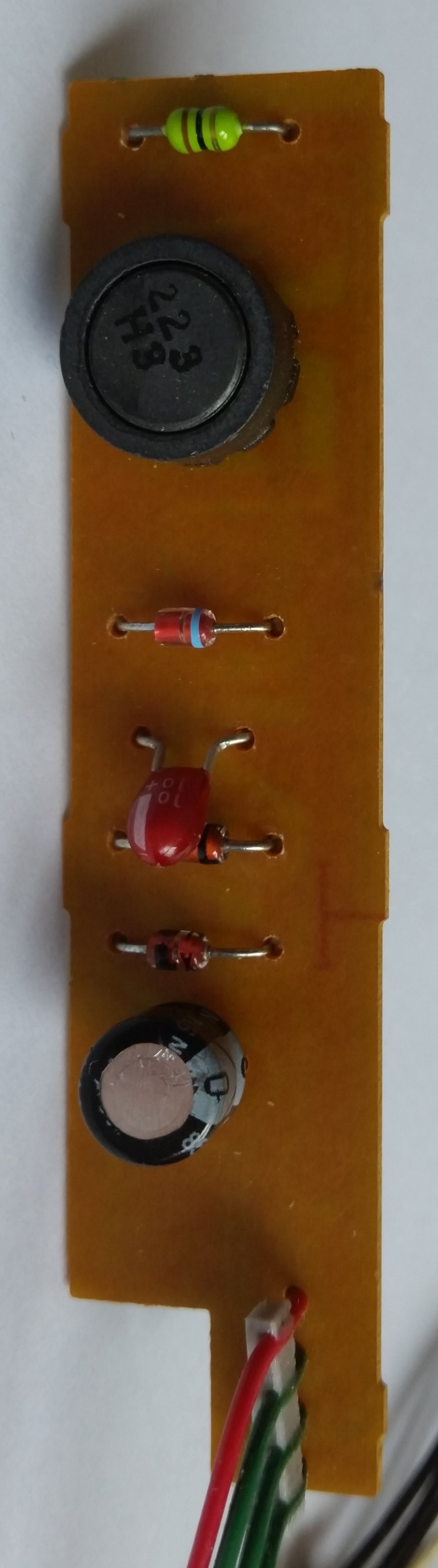

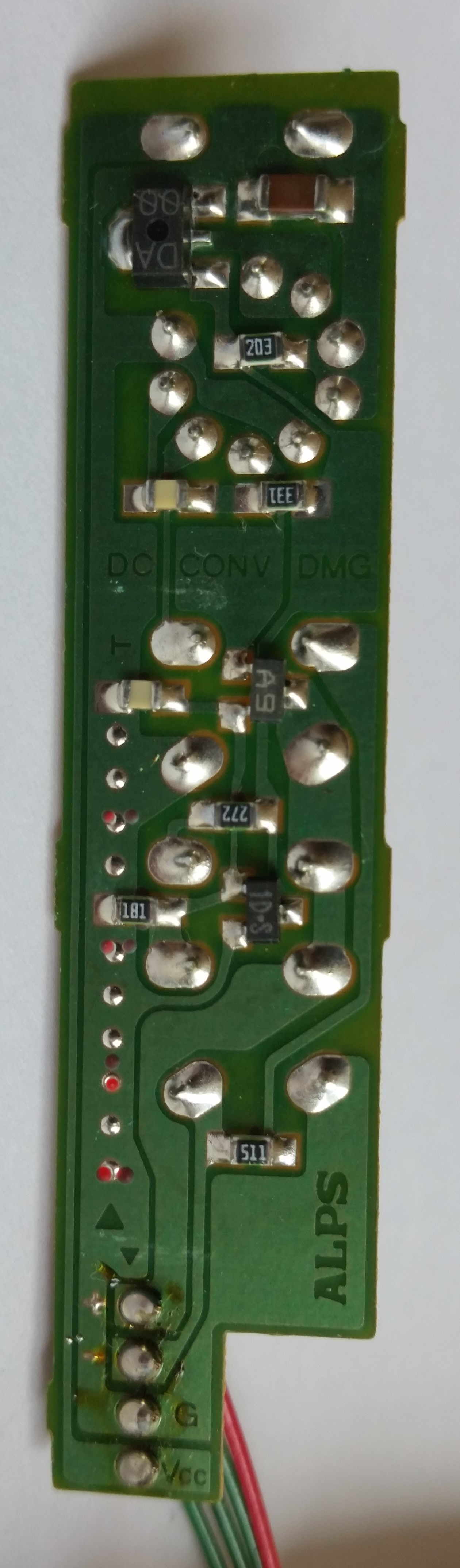

Front side of Game Boy power circuit boardBack side of Game Boy power circuit board

Board type
A1
Manufacture date
1989
Label
DC CONV DMG

Jack Board

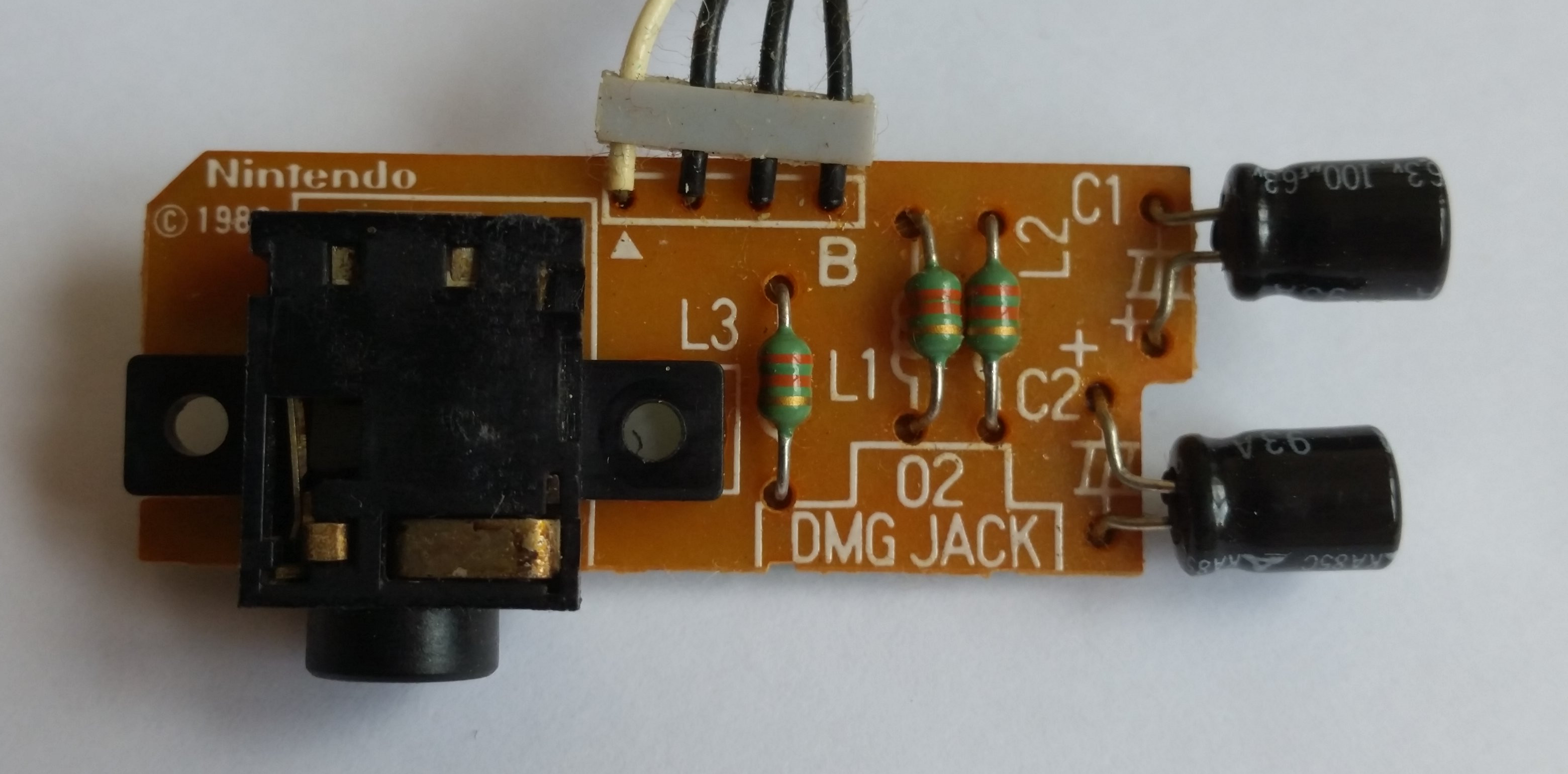

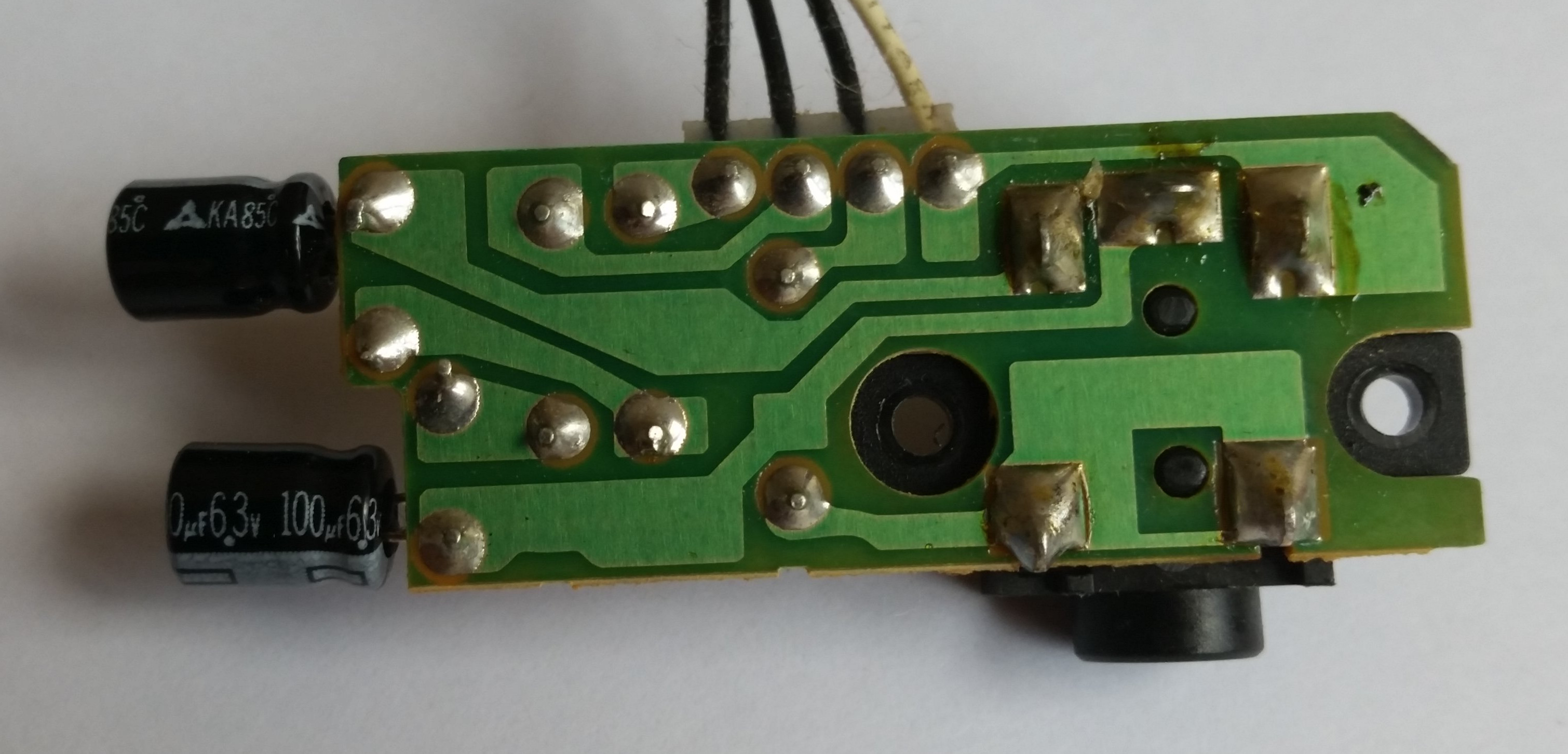

Front side of Game Boy headphone jack circuit boardBack side of Game Boy headphone jack circuit board

Board type
DMG JACK 02
Extra label
-

Chips

 ChipTypeManufacturerDateLabel
U1CPUDMG-CPU ASharpWeek 18/1989
DMG-CPU A
© 1989 Nintendo
JAPAN
8918 D
U2Video RAMLH5264N4SharpWeek 18/1989
LH5264N4
SHARP
JAPAN
8918 5 Y
U3Work RAMLH5264N4SharpWeek 18/1989
LH5264N4
SHARP
JAPAN
8918 5 Y
U4AmplifierIR3R40SharpWeek 14/1989
DMG-AMP
IR3R40
8914 A
X1CrystalD419DaishinkuApril/1989
D419D9
-LCD Column DriverLH5077 FSharpApril/1989
LH5077 F
904
-LCD Row DriverLH5076 FSharpApril/1989
LH5076 F
904
-LCD RegulatorIR3E02SharpWeek 14/1989
DMG-REG
IR3E02
8914 A

Notes

- LCD had missing rows at the top:
    -> TODO: repaired
- LCD had missing columns, most of them at the borders:
    -> TODO: repaired
- LCD is leaking / has black spot
- Display cover was missing
    -> Cleaned old glue
    -> Attached replica part
- Link port cover was missing:
    -> Attached replica part
- Battery cover was missing:
    -> Attached replica part

Misc

CPU works
yes
