DMG: [iceboy] #13 - G01938012

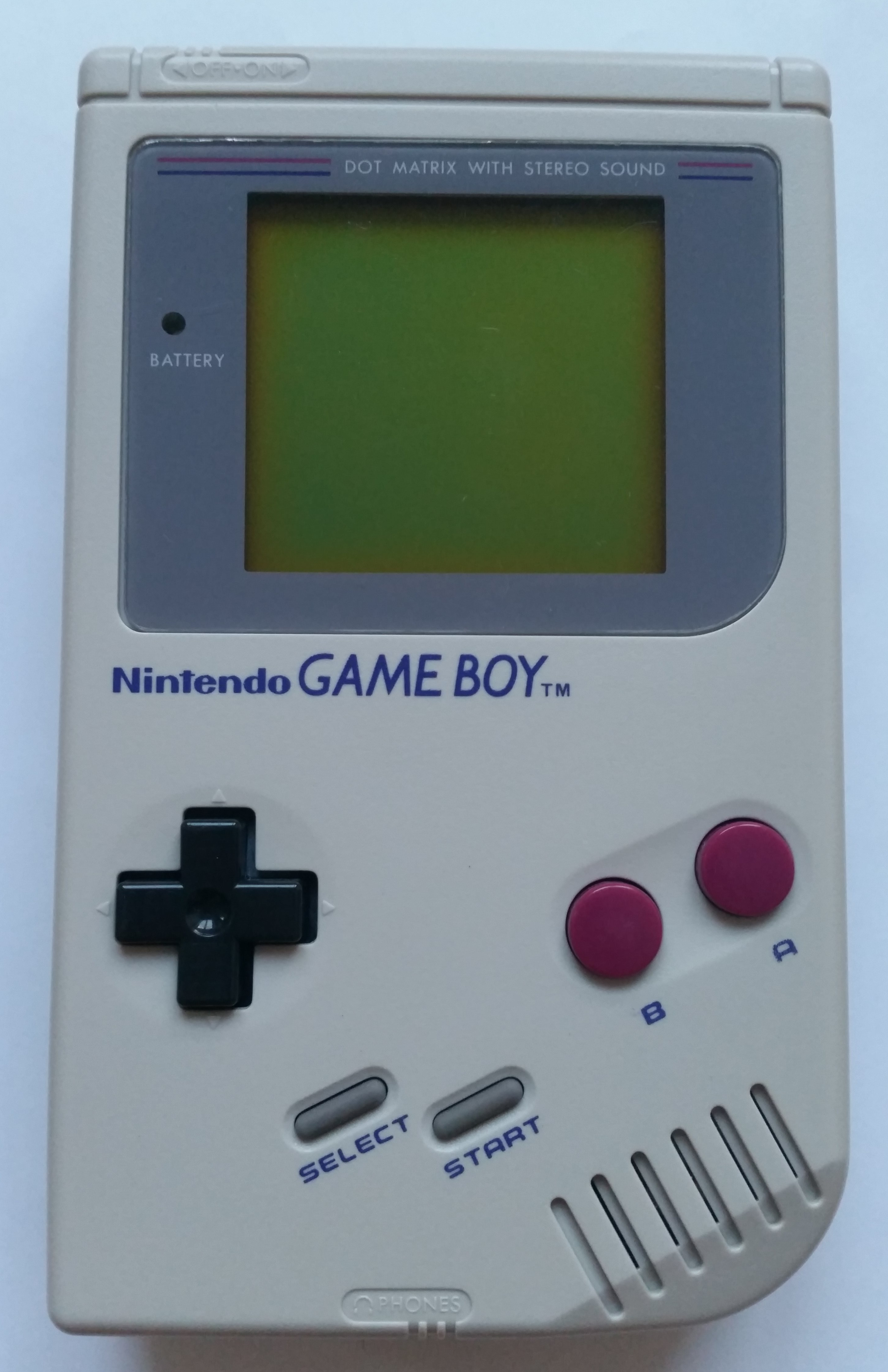

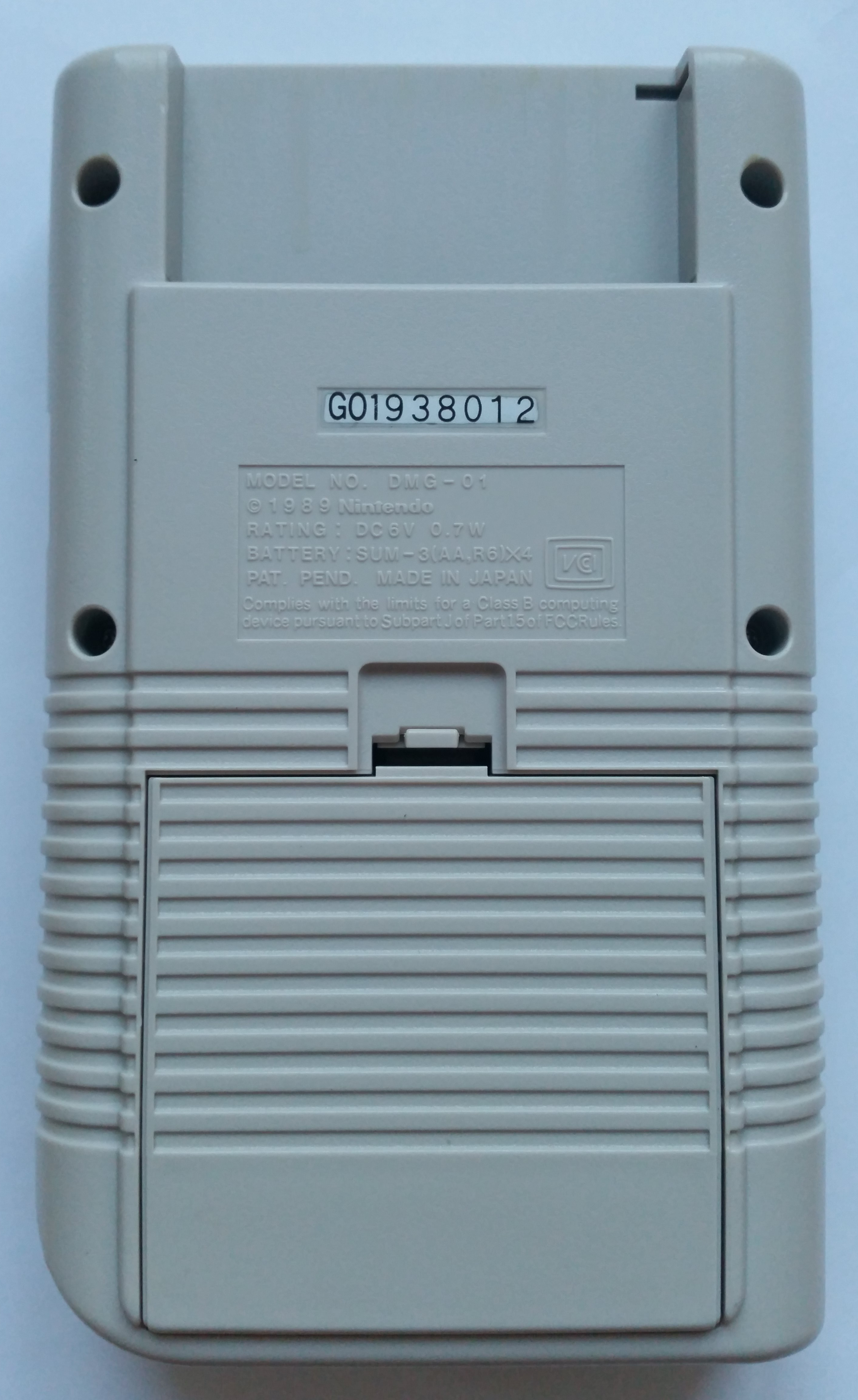

Front side of Game BoyBack side of Game Boy

Color
off-white
Screws
phillips
Assembly date
July/1989

Mainboard

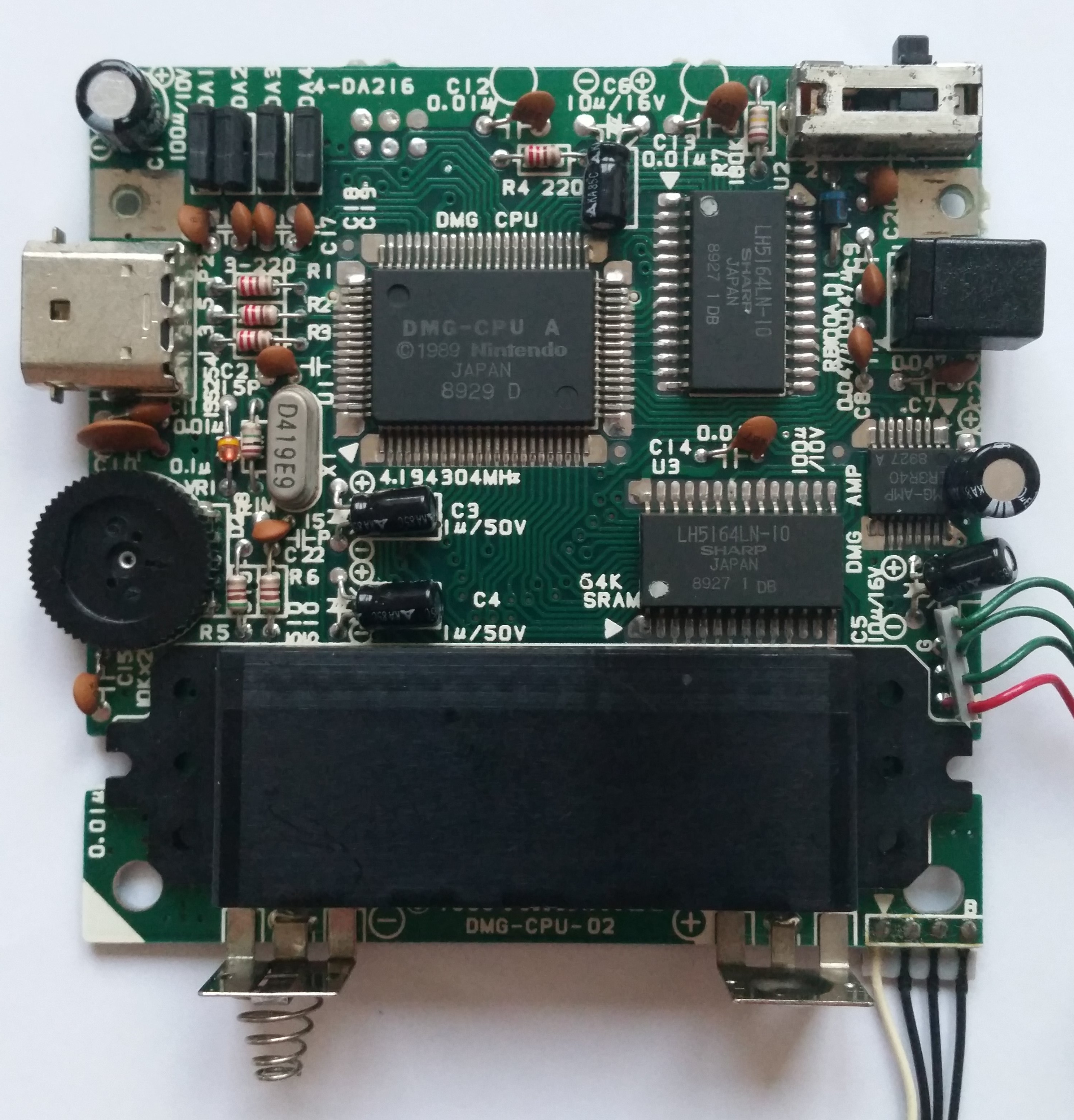

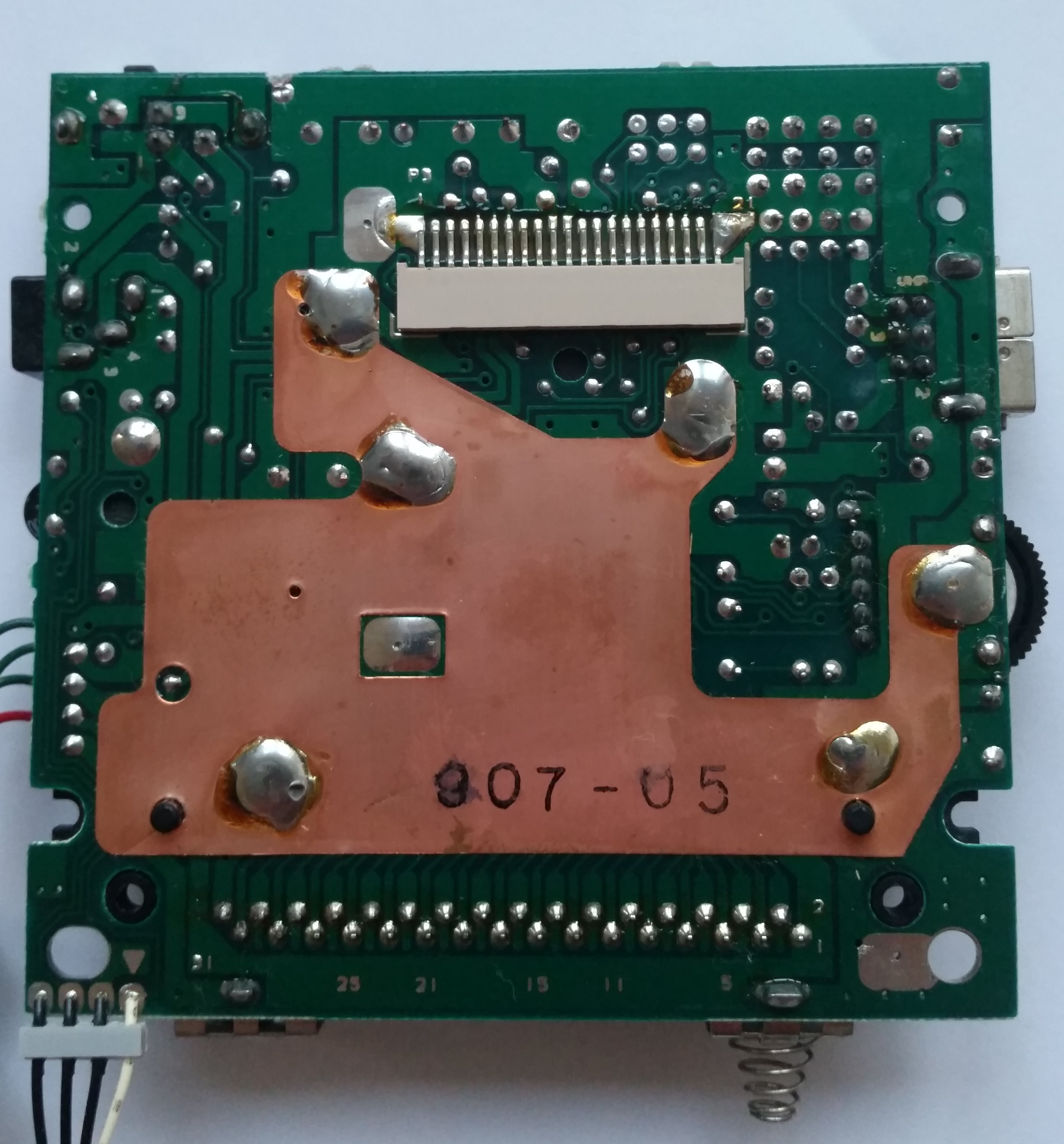

Front side of Game Boy main circuit boardBack side of Game Boy main circuit board

Board type
DMG-CPU-02
Stamp on board
907-05
Circled letter(s) on board
-
Extra label
1

LCD Board

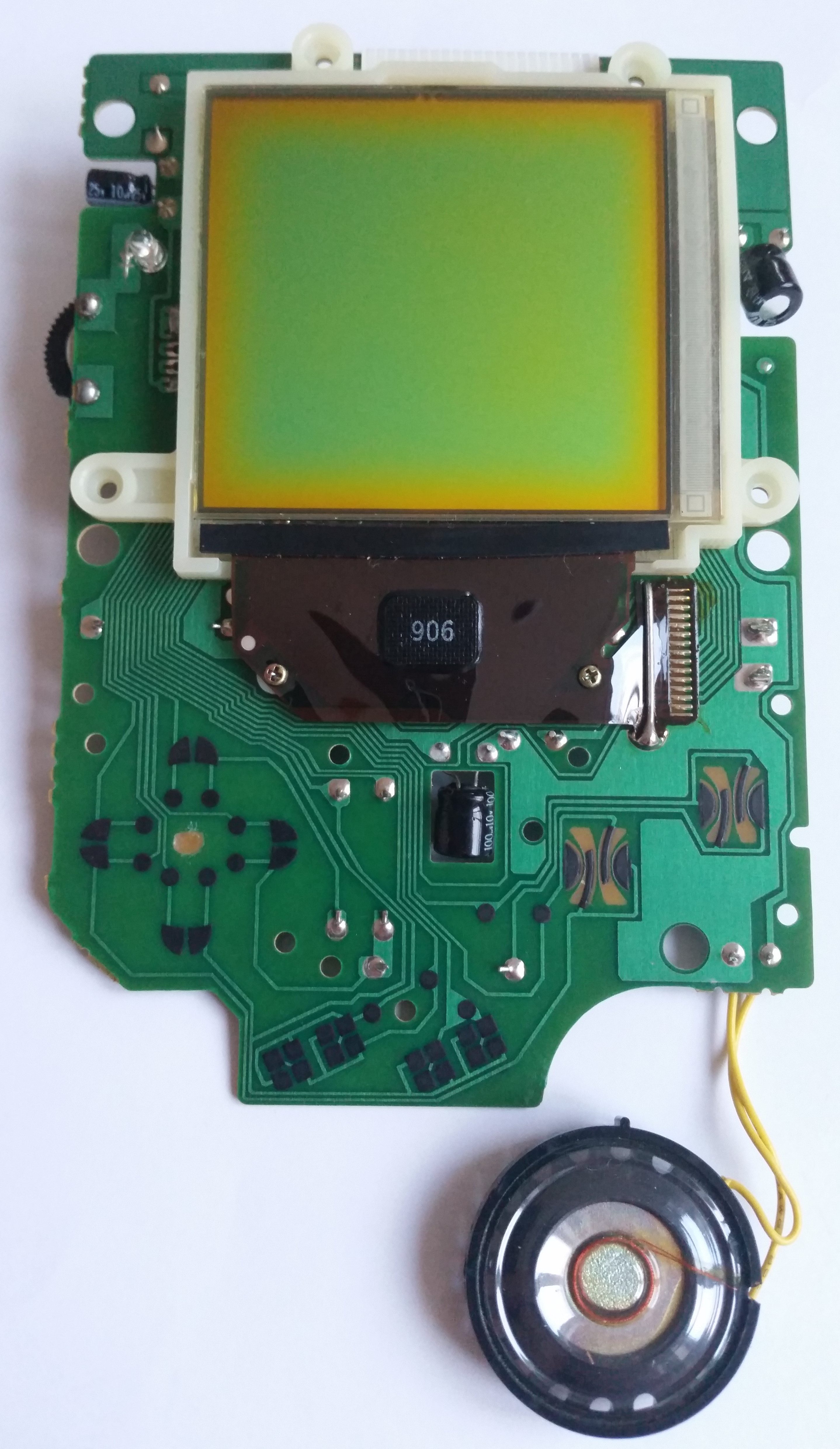

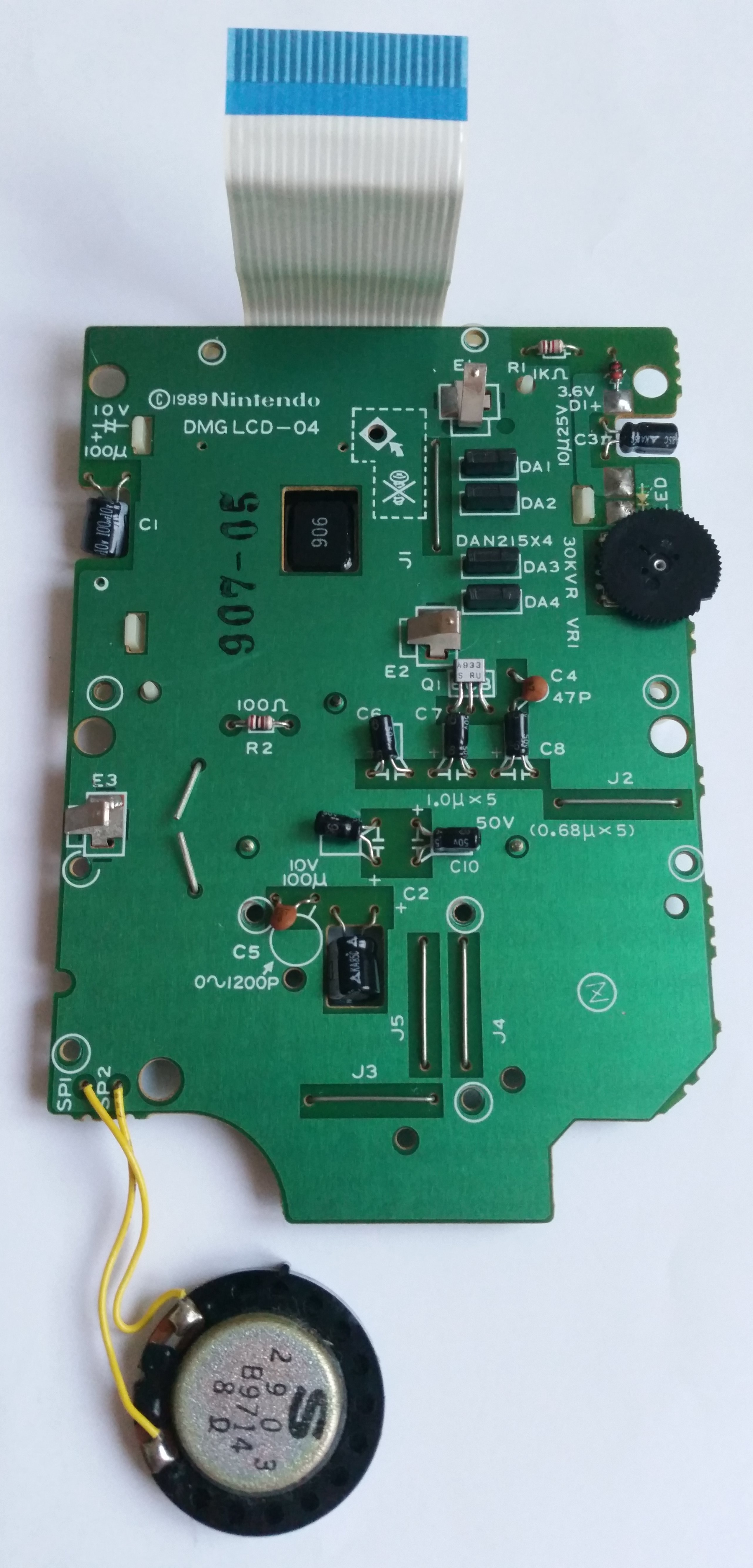

Front side of Game Boy LCD circuit boardBack side of Game Boy LCD circuit board

Board type
DMG LCD-04
Manufacture date
1989
Stamp on board
907-05
Circled letter(s) on board
Z
Number pair on board
-
LCD panel label
S890616
LCD row cable label
1 90704
LCD panel date
June/1989 - July/1989

Power Board

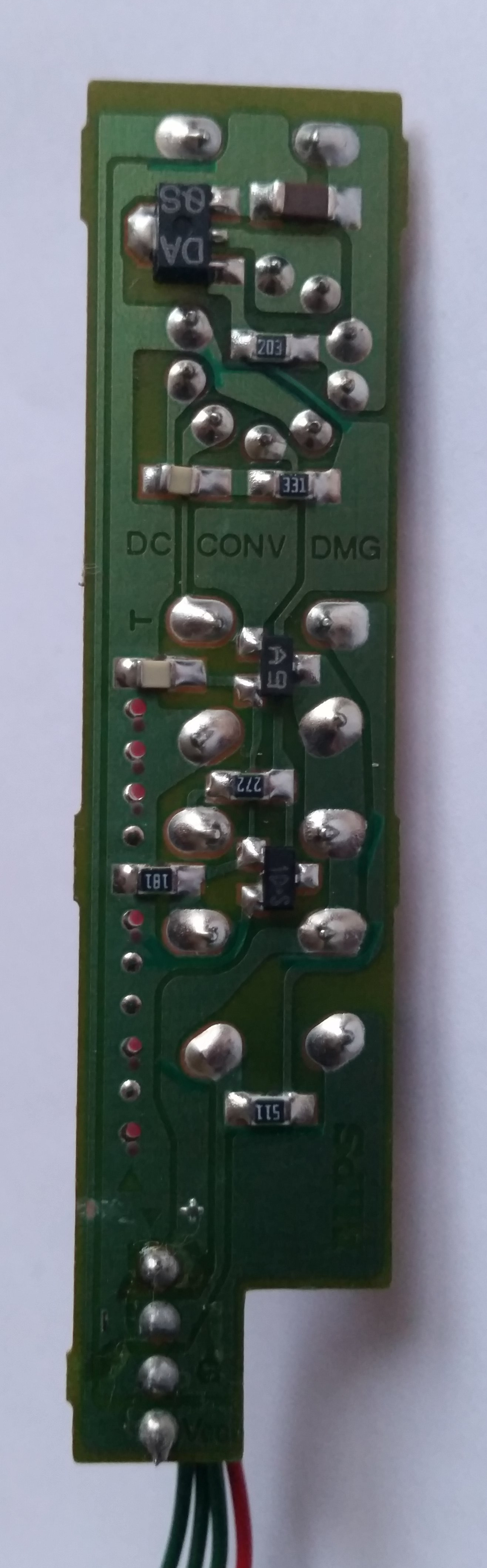

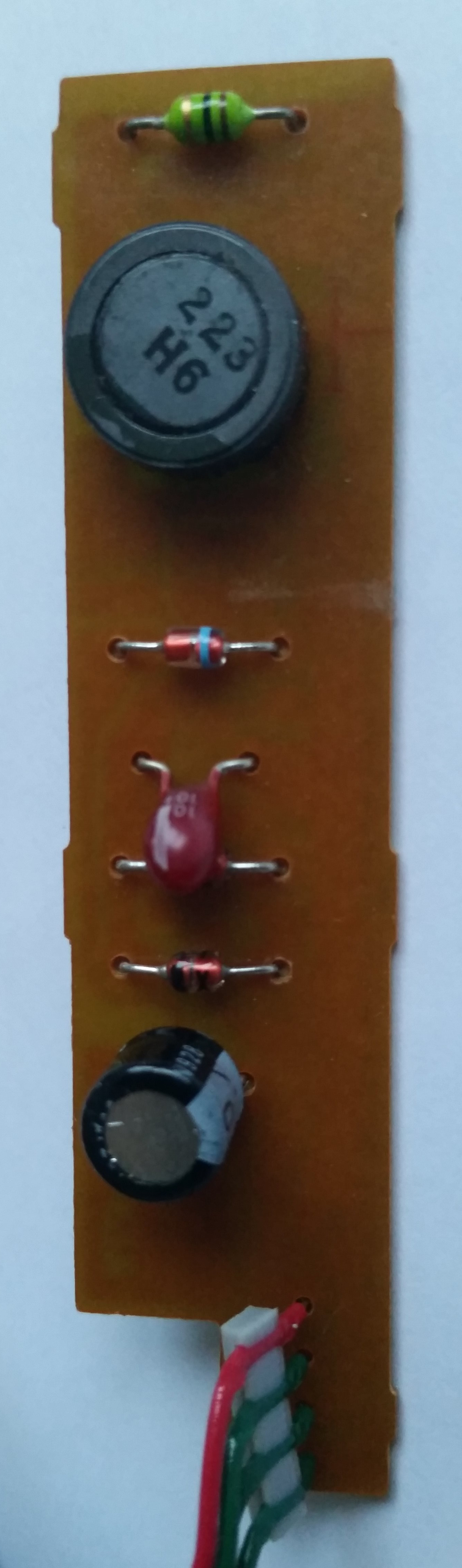

Front side of Game Boy power circuit boardBack side of Game Boy power circuit board

Board type
A1
Manufacture date
1989
Label
DC CONV DMG

Jack Board

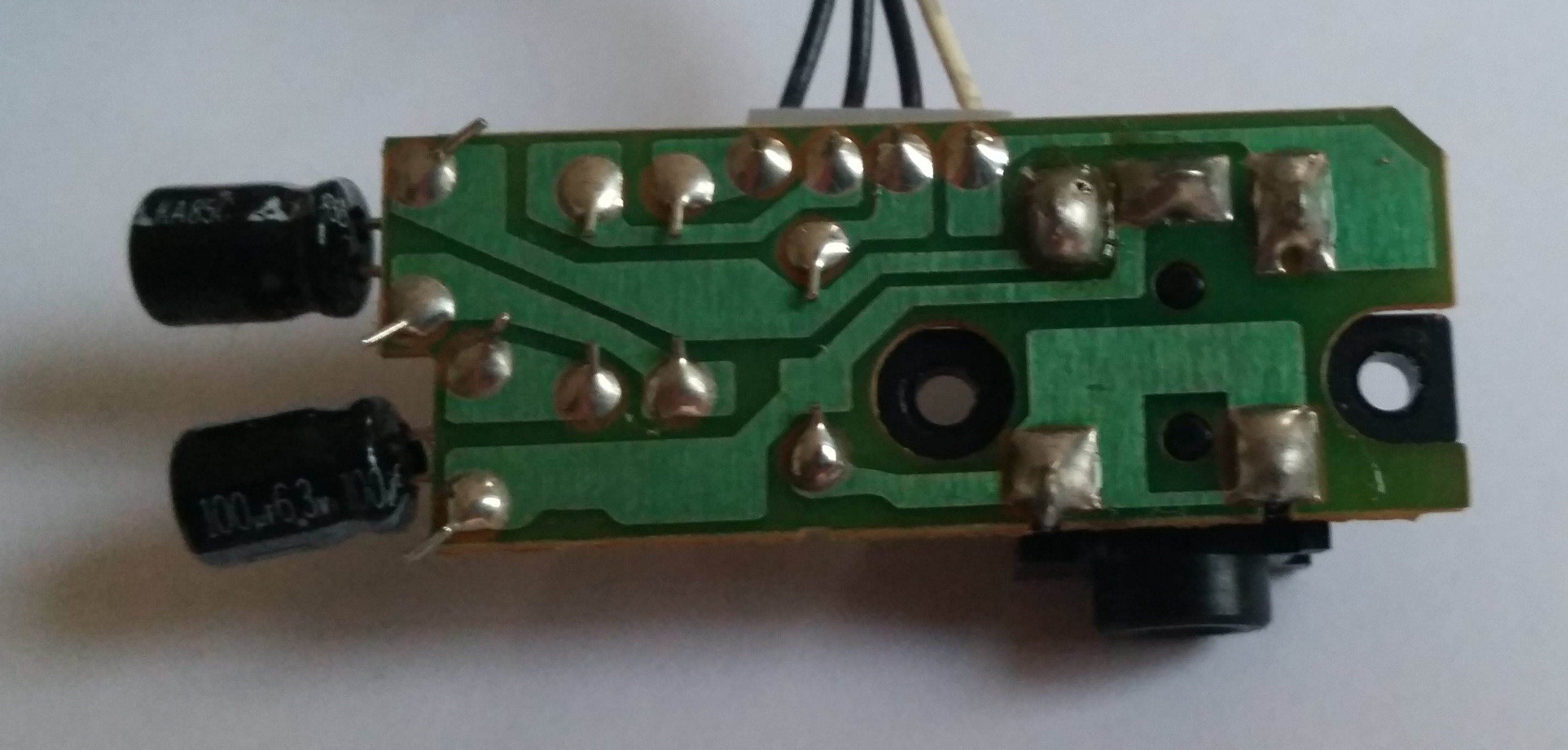

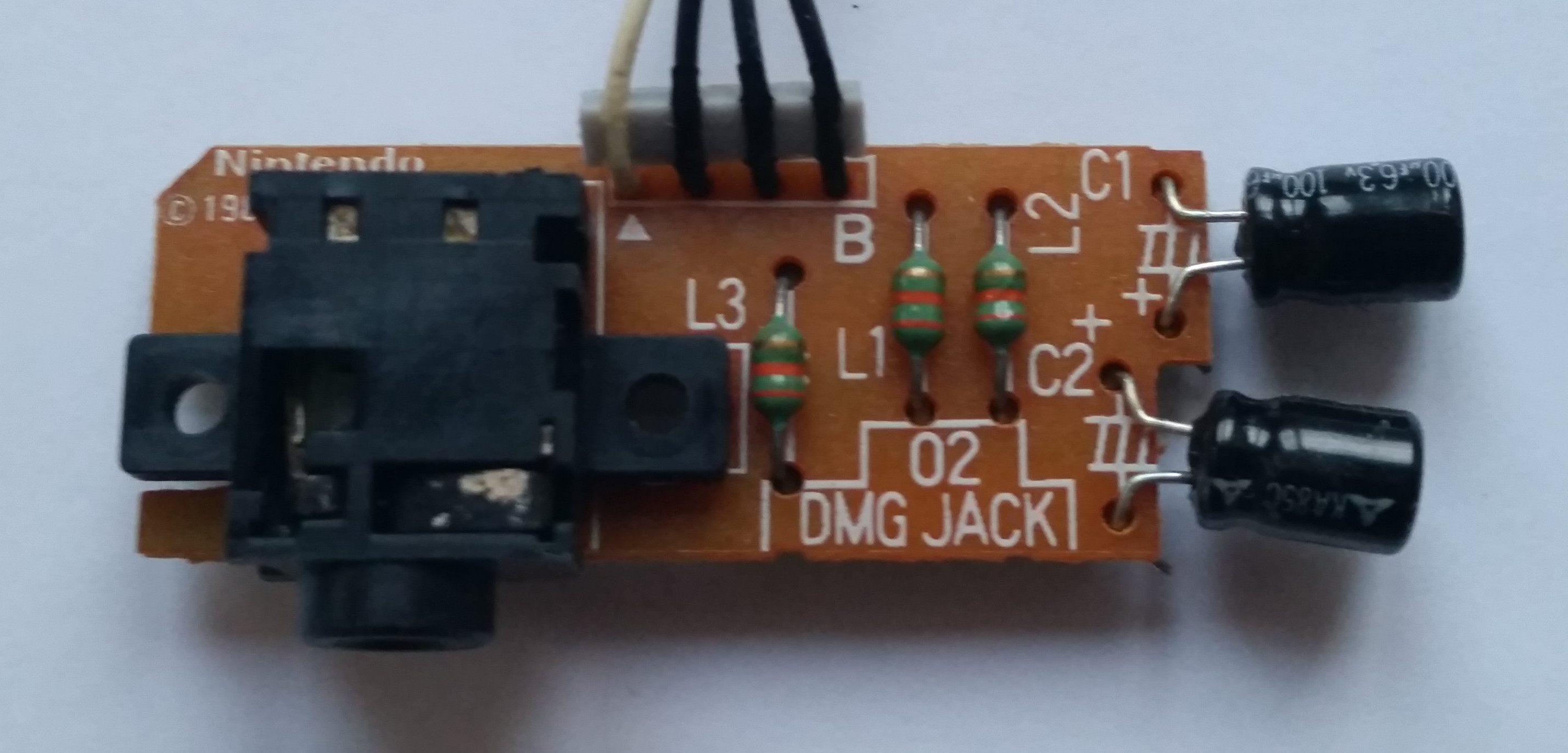

Front side of Game Boy headphone jack circuit boardBack side of Game Boy headphone jack circuit board

Board type
DMG JACK 02
Extra label
-

Chips

 ChipTypeManufacturerDateLabel
U1CPUDMG-CPU ASharpWeek 29/1989
DMG-CPU A
© 1989 Nintendo
JAPAN
8929 D
U2Video RAMLH5164LN-10SharpWeek 27/1989
LH5164LN-10
SHARP
JAPAN
8927 1 DB
U3Work RAMLH5164LN-10SharpWeek 27/1989
LH5164LN-10
SHARP
JAPAN
8927 1 DB
U4AmplifierIR3R40SharpWeek 27/1989
DMG-AMP
IR3R40
8927 A
X1CrystalD419DaishinkuMay/1989
D419E9
-LCD Column DriverLH5077 FSharpJune/1989
LH5077 F
906
-LCD Row DriverLH5076 FSharpJune/1989
LH5076 F
906
-LCD RegulatorIR3E02SharpWeek 26/1989
DMG-REG
IR3E02
8926 A

Notes

- LCD had three missing columns at the left border and one weaker row at the top:
    -> TODO: repair
- Display cover fell off:
    -> Cleaned old glue
    -> Applied double sided tape
    -> Cover seems to be original
- Link port cover was missing:
    -> Attached replica part
- Two knobs of the D-Pad its silicone pad fell off:
    -> Attached replica part

Misc

CPU works
yes
