DMG: [iceboy] #11 - G04293327

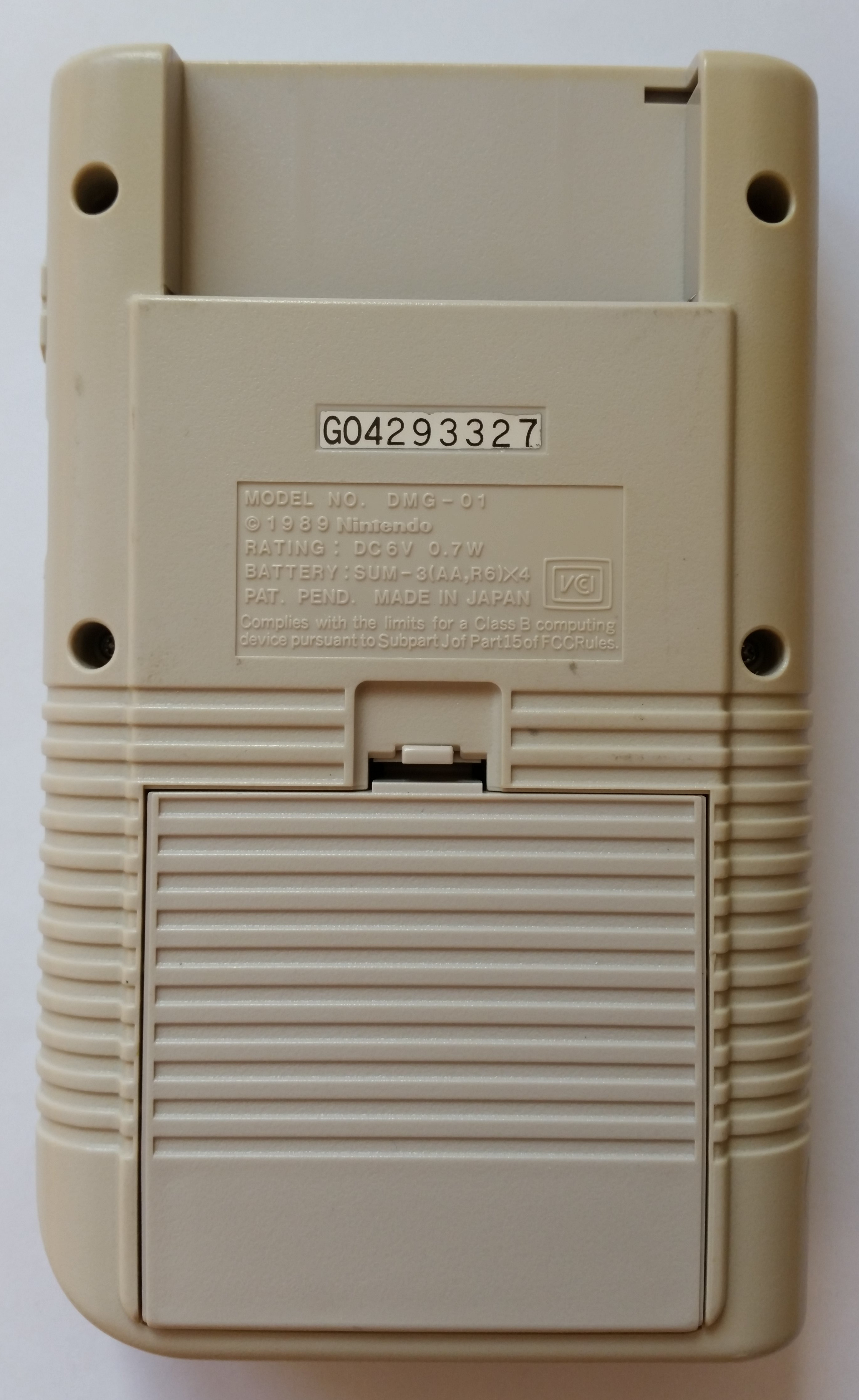

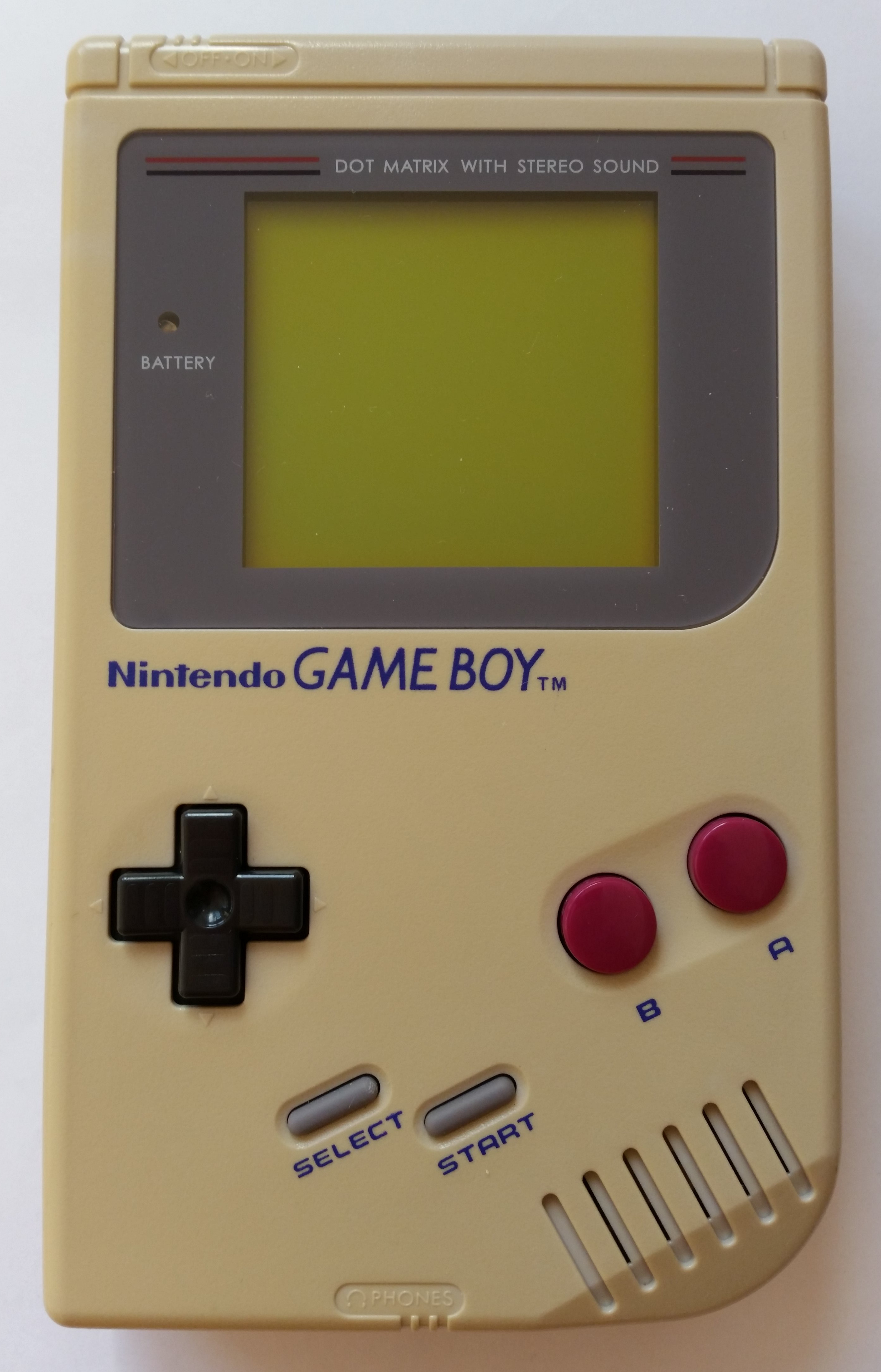

Front side of Game BoyBack side of Game Boy

Color
off-white
Screws
phillips
Assembly date
February/1990

Mainboard

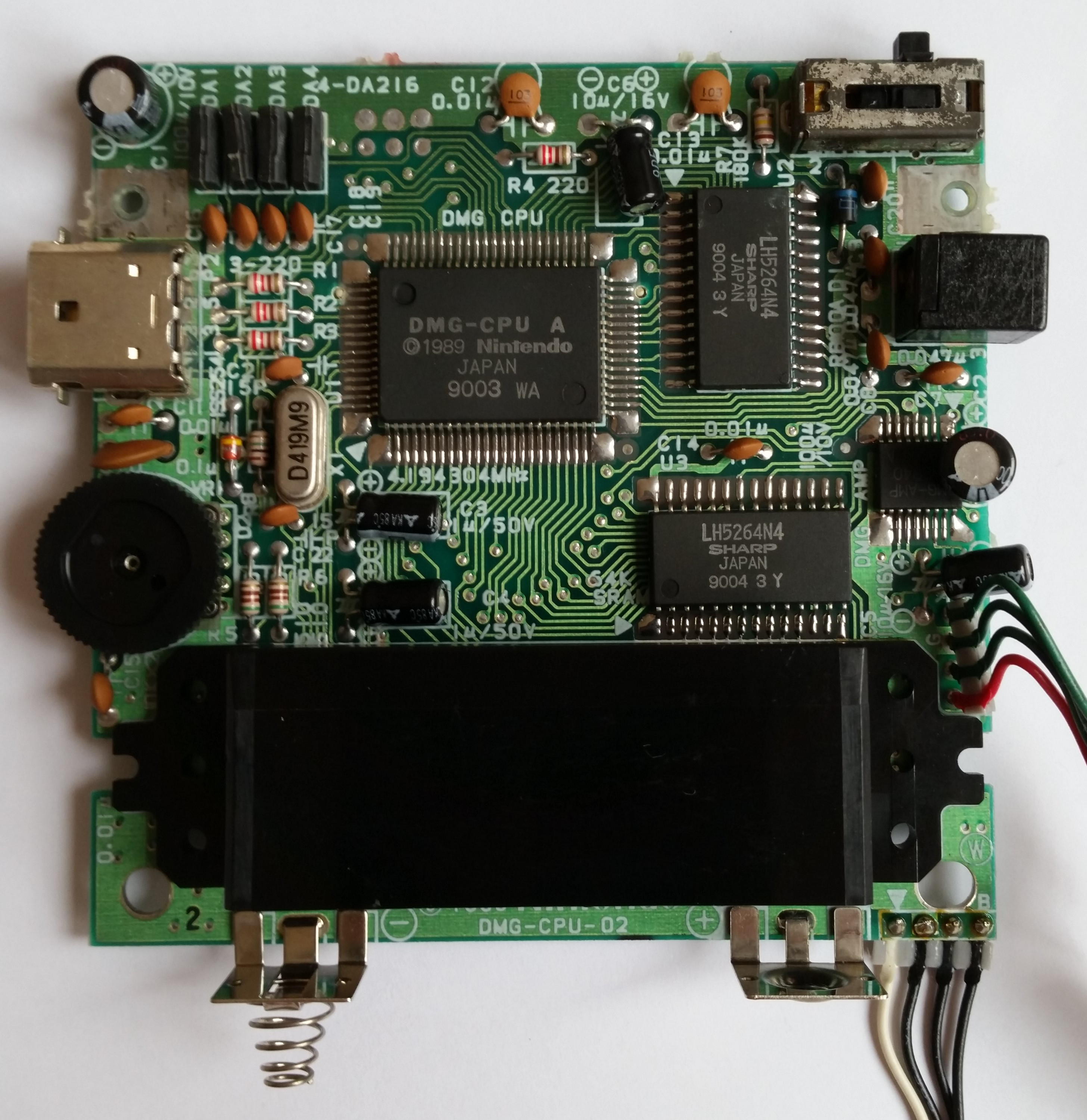

Front side of Game Boy main circuit boardBack side of Game Boy main circuit board

Board type
DMG-CPU-02
Stamp on board
002.22
Circled letter(s) on board
W
Extra label
2

LCD Board

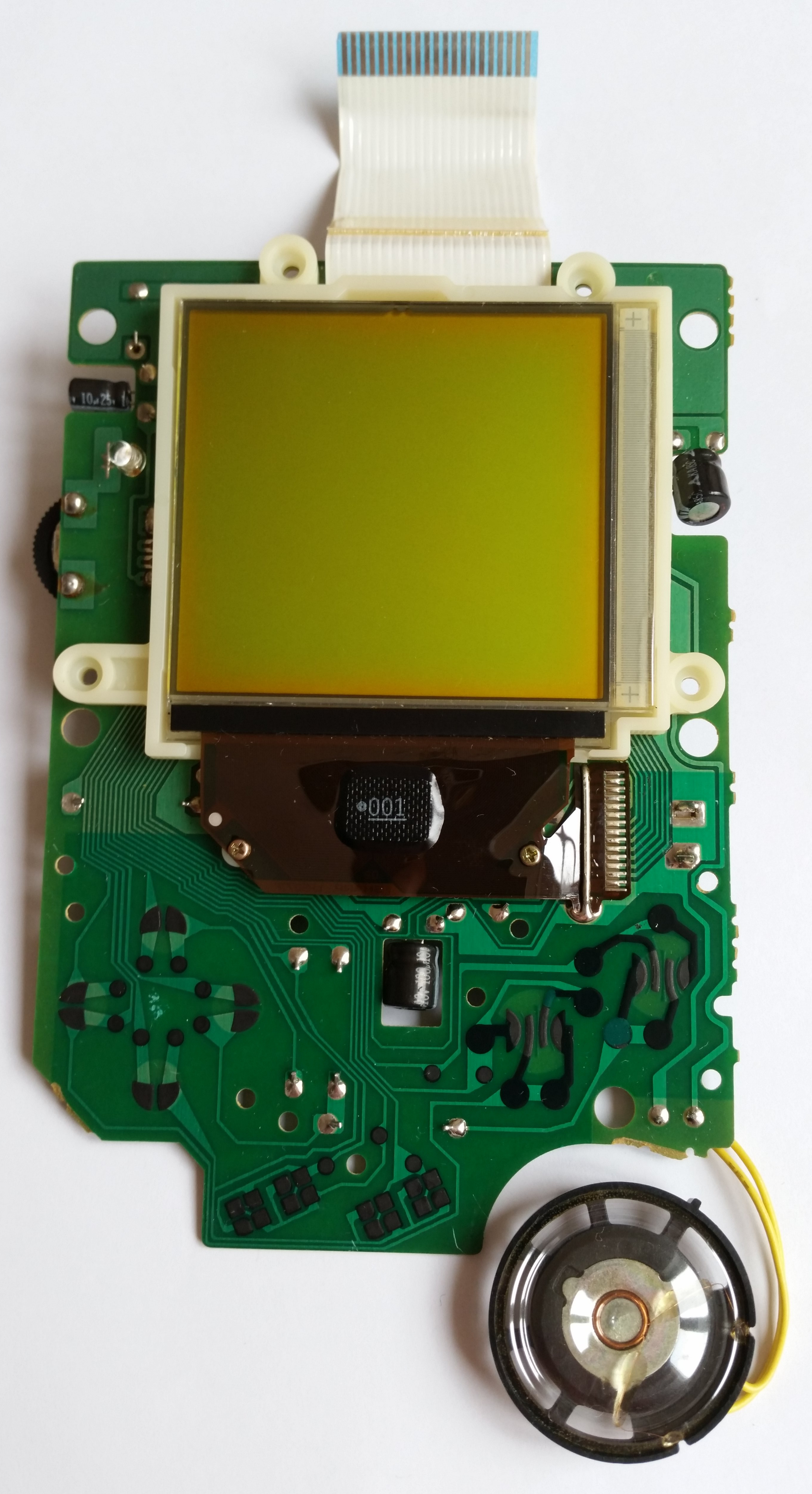

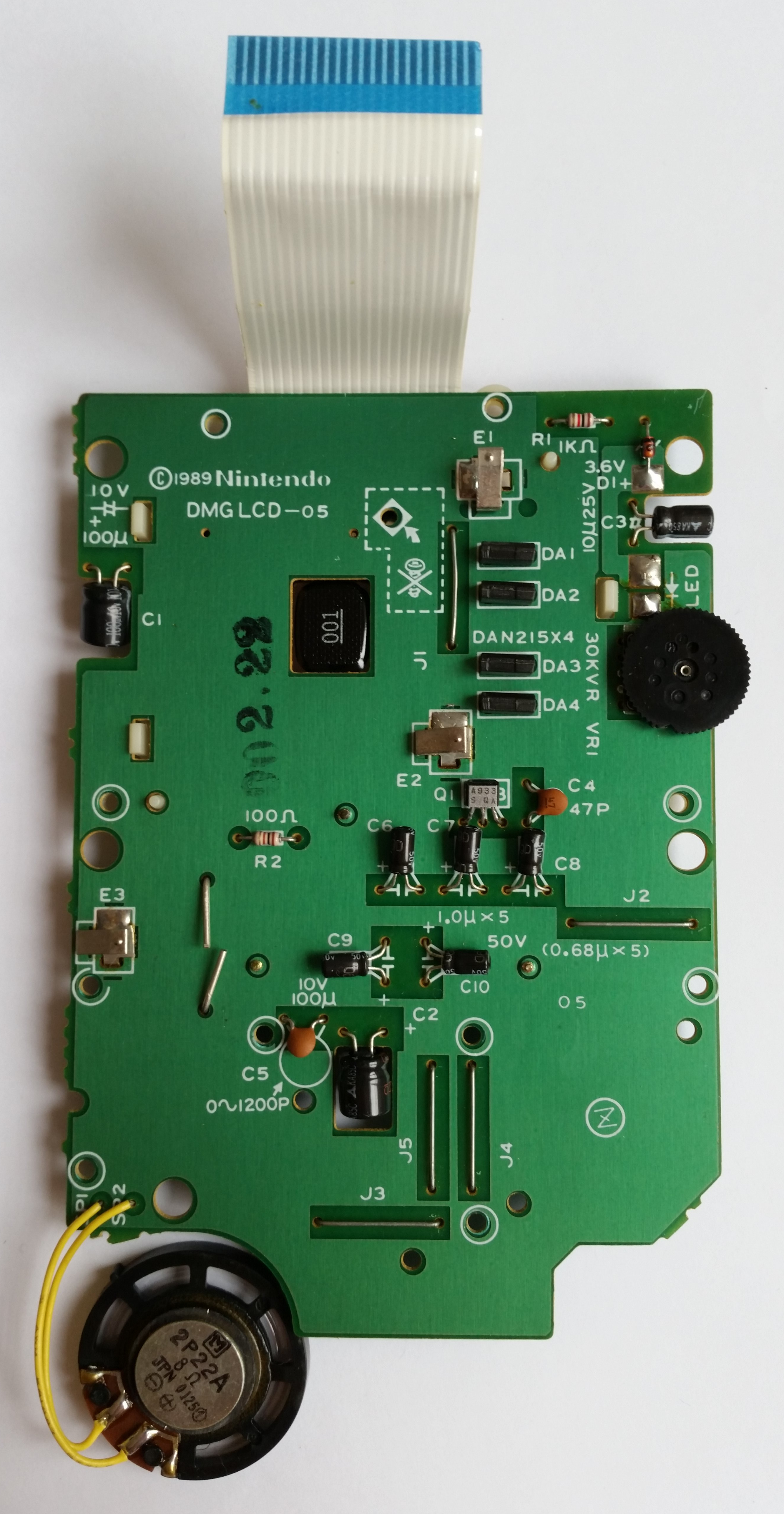

Front side of Game Boy LCD circuit boardBack side of Game Boy LCD circuit board

Board type
DMG LCD-05
Manufacture date
?
Stamp on board
002.22
Circled letter(s) on board
Z
Number pair on board
-
LCD panel label
AH900126
LCD row cable label
800207
LCD panel date
January/1990 - February/1990

Power Board

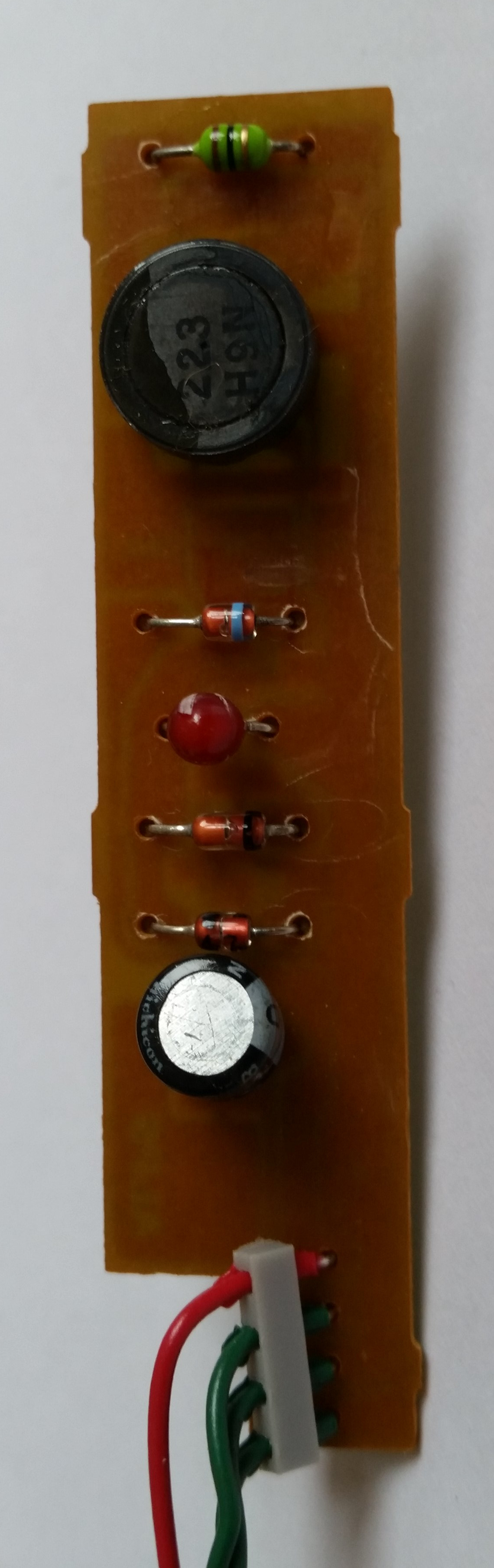

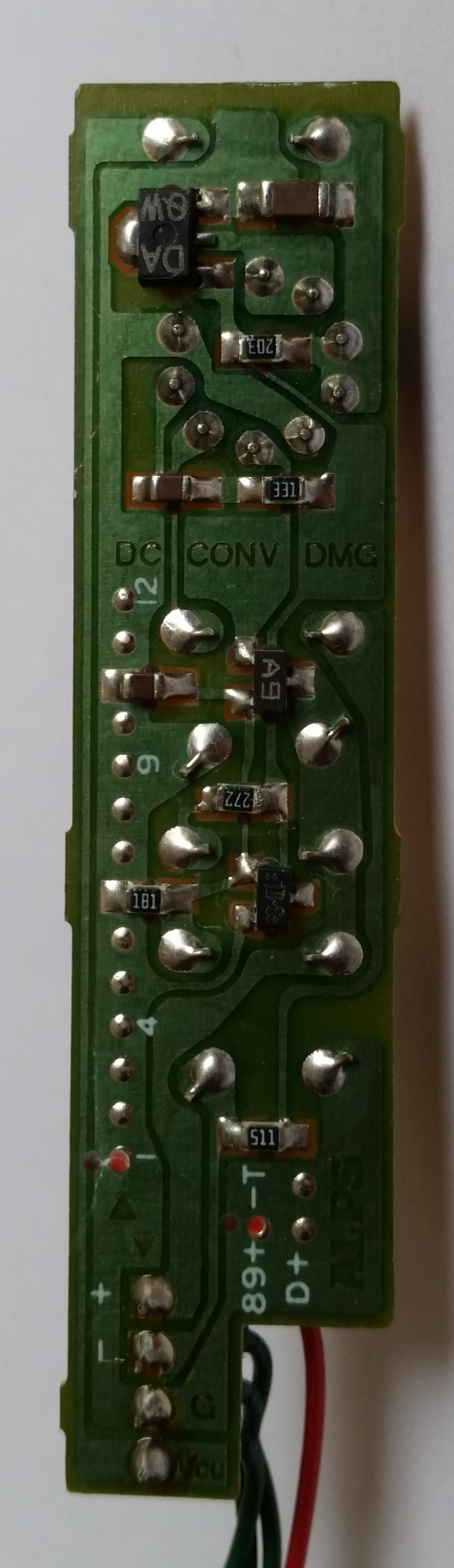

Front side of Game Boy power circuit boardBack side of Game Boy power circuit board

Board type
A2
Manufacture date
January/1990
Label
DC CONV DMG

Jack Board

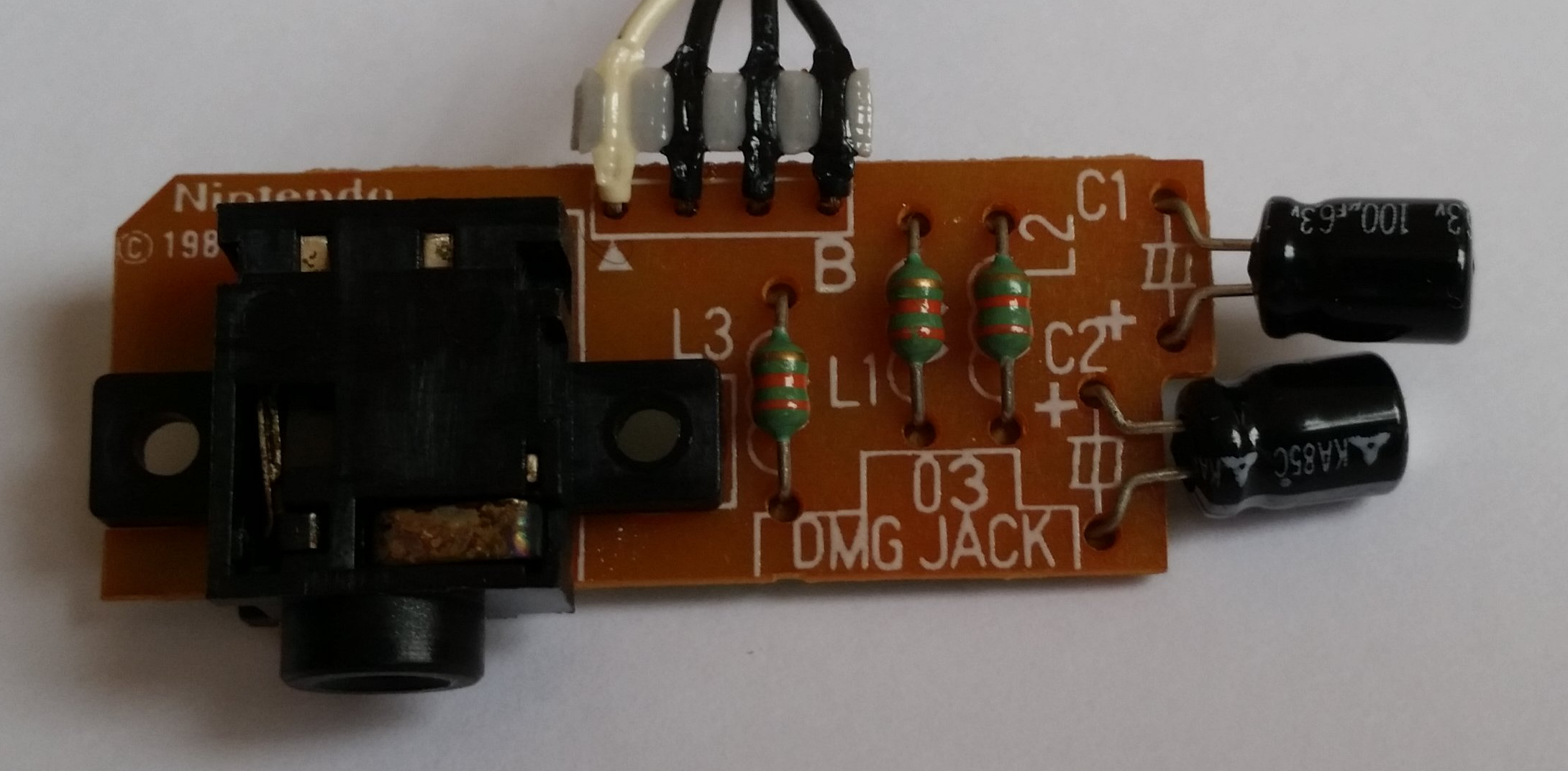

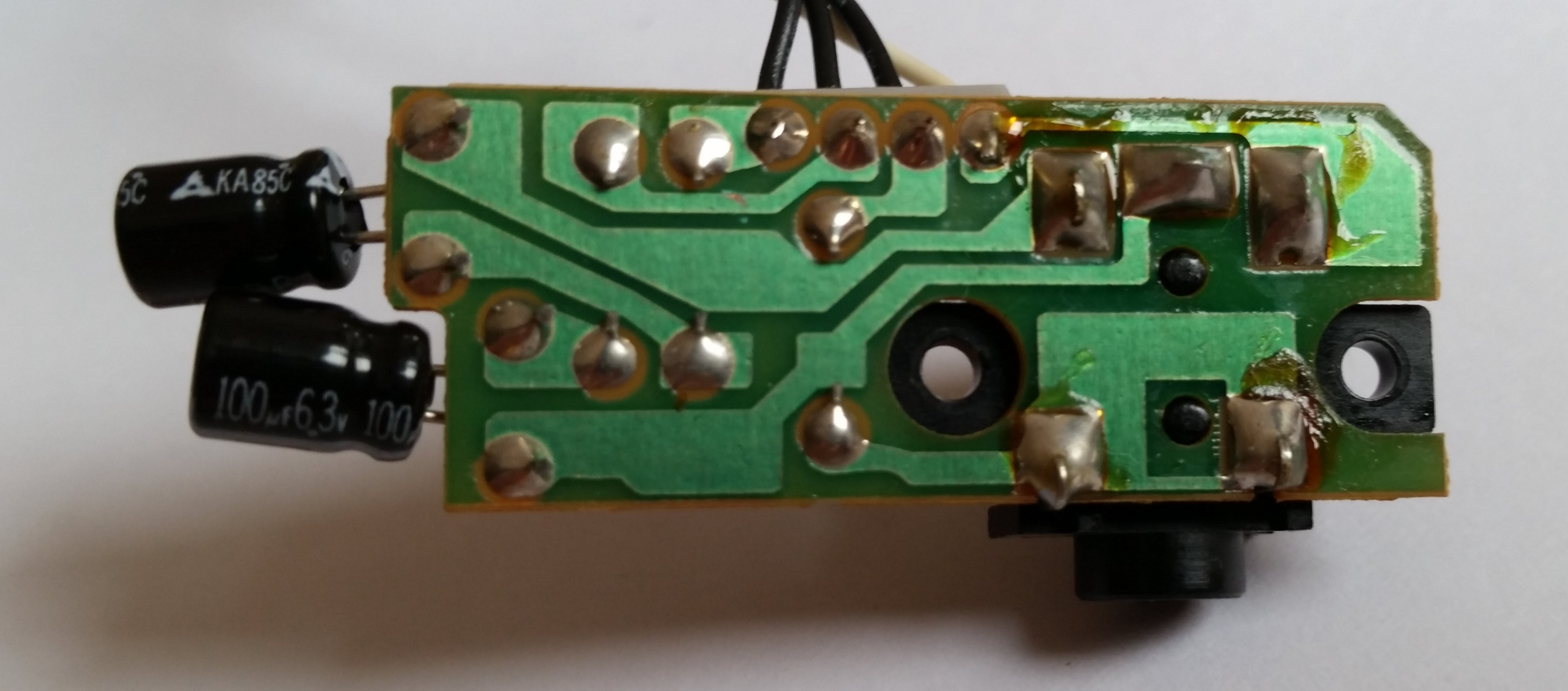

Front side of Game Boy headphone jack circuit boardBack side of Game Boy headphone jack circuit board

Board type
DMG JACK 03
Extra label
-

Chips

 ChipTypeManufacturerDateLabel
U1CPUDMG-CPU ASharpWeek 3/1990
DMG-CPU A
© 1989 Nintendo
JAPAN
9003 WA
U2Video RAMLH5264N4SharpWeek 4/1990
LH5264N4
SHARP
JAPAN
9004 3 Y
U3Work RAMLH5264N4SharpWeek 4/1990
LH5264N4
SHARP
JAPAN
9004 3 Y
U4AmplifierIR3R40SharpWeek 3/1990
DMG-AMP
IR3R40
9003 A
X1CrystalD419DaishinkuDecember/1989
D419M9
-LCD Column DriverLH5077 FSharpJanuary/1990
LH5077 F
001
-LCD Row DriverLH5076 FSharpJanuary/1990
LH5076 F
001
-LCD RegulatorIR3E02SharpWeek 2/1990
DMG-REG
IR3E02
9002 A

Notes

- Display cover was missing
    -> Cleaned old glue
    -> Attached replica part
- LCD had missing columns at the left and right border and one in the middle:
    -> repaired
- Link port cover was missing:
    -> Attached replica part

Misc

CPU works
yes
