CGB: [iceboy] #9 - C10024647

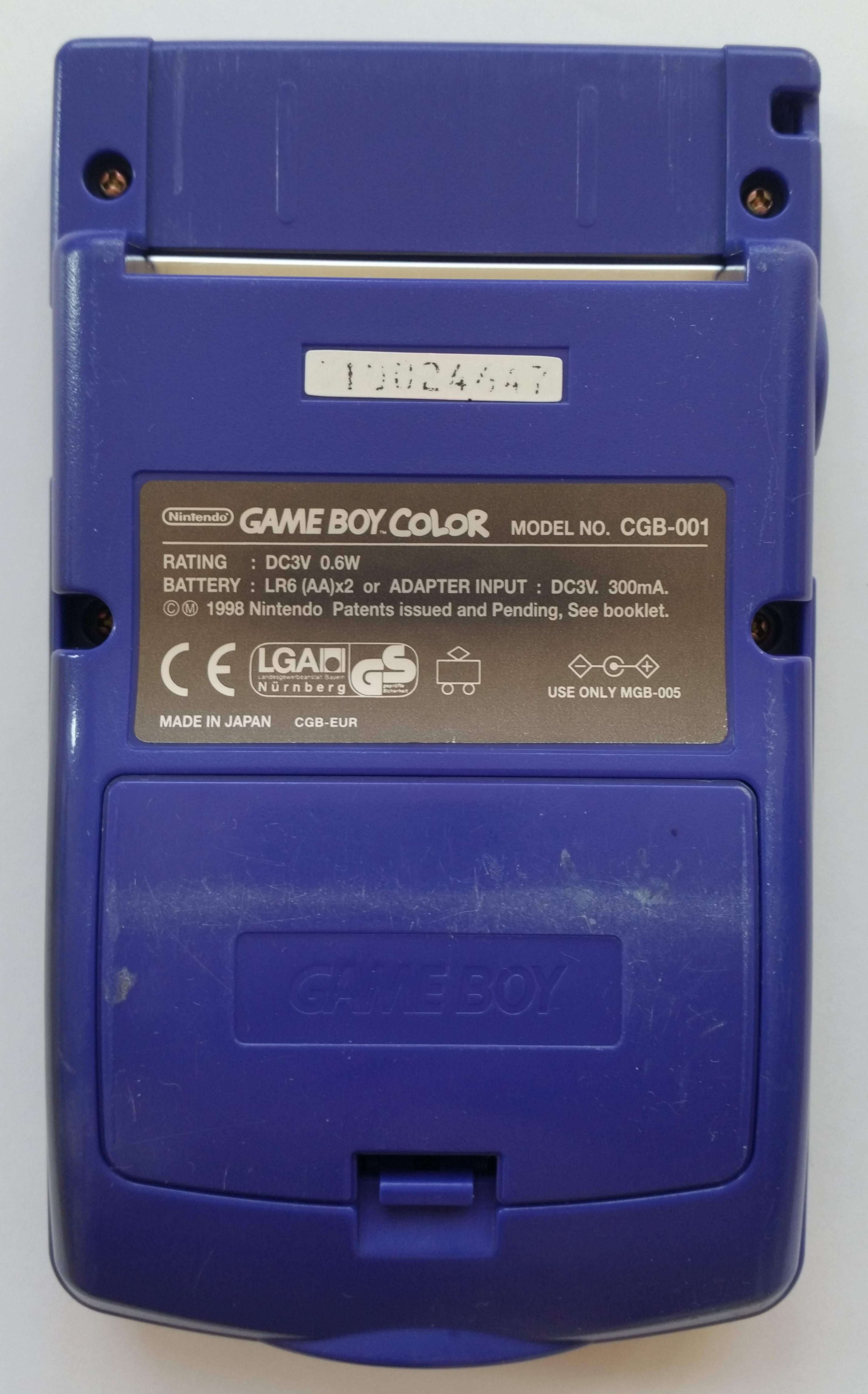

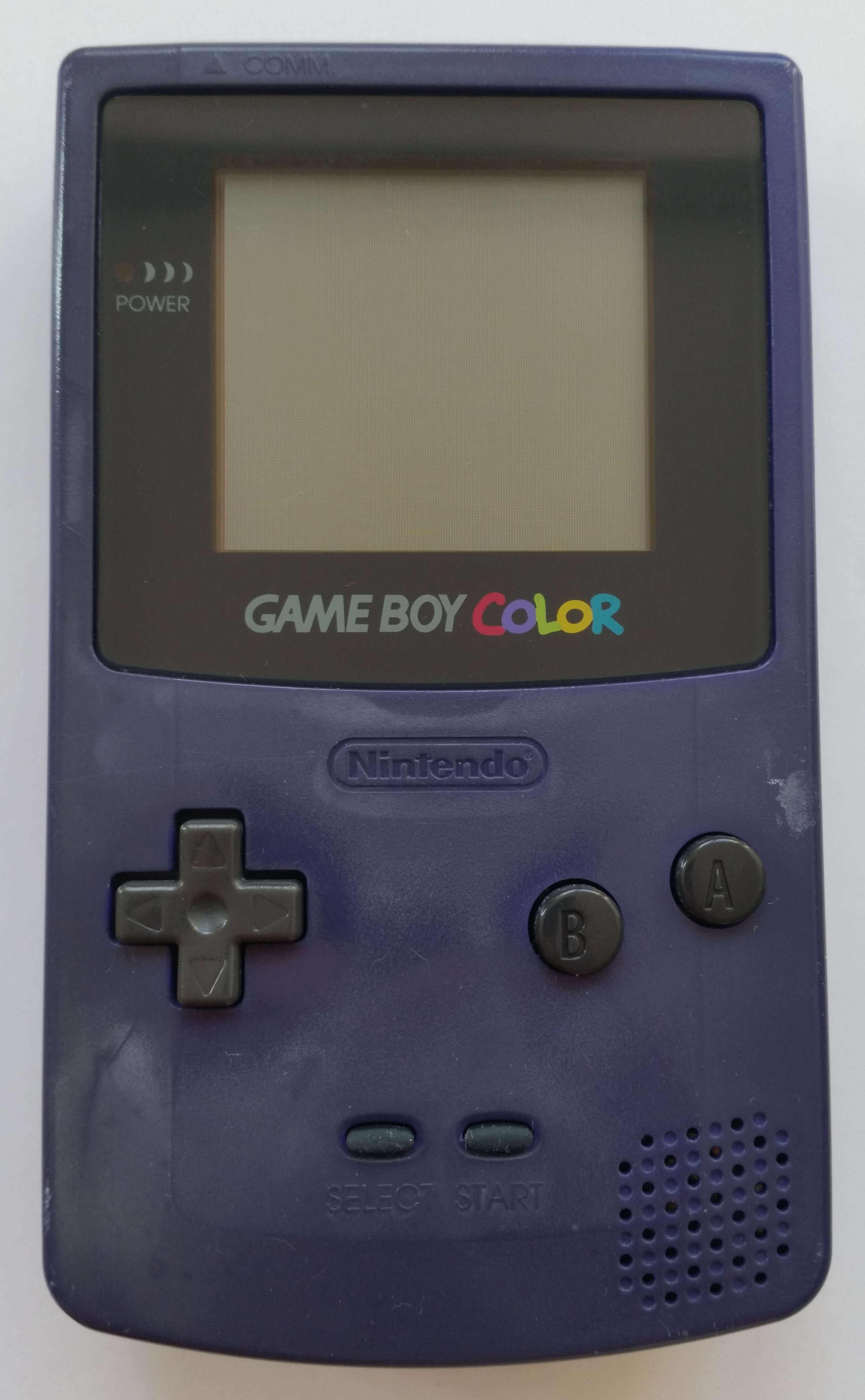

Front side of Game Boy ColorBack side of Game Boy Color

Color
grape
Release code
CGB-EUR
Assembly date
Week 38/1998

Mainboard

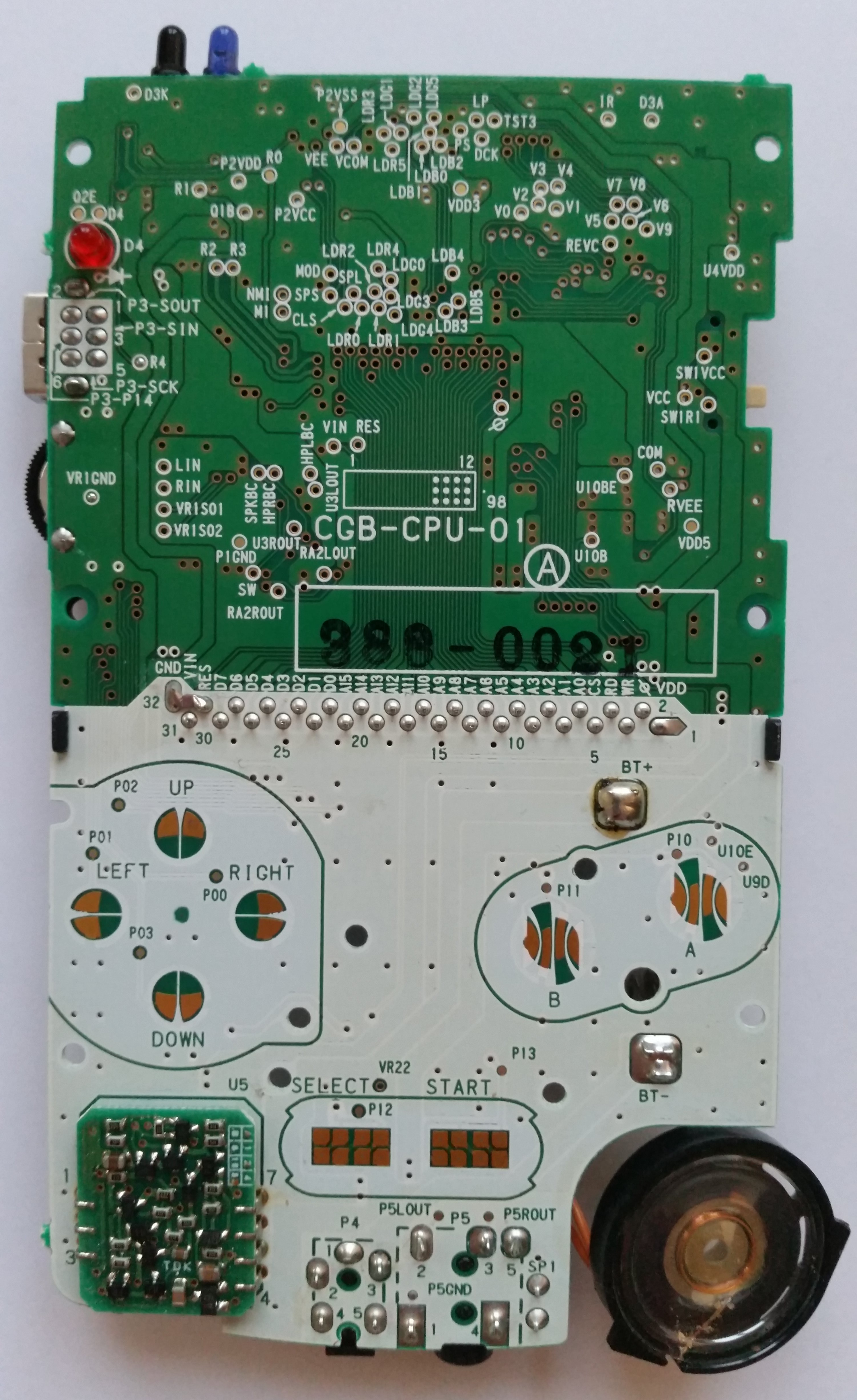

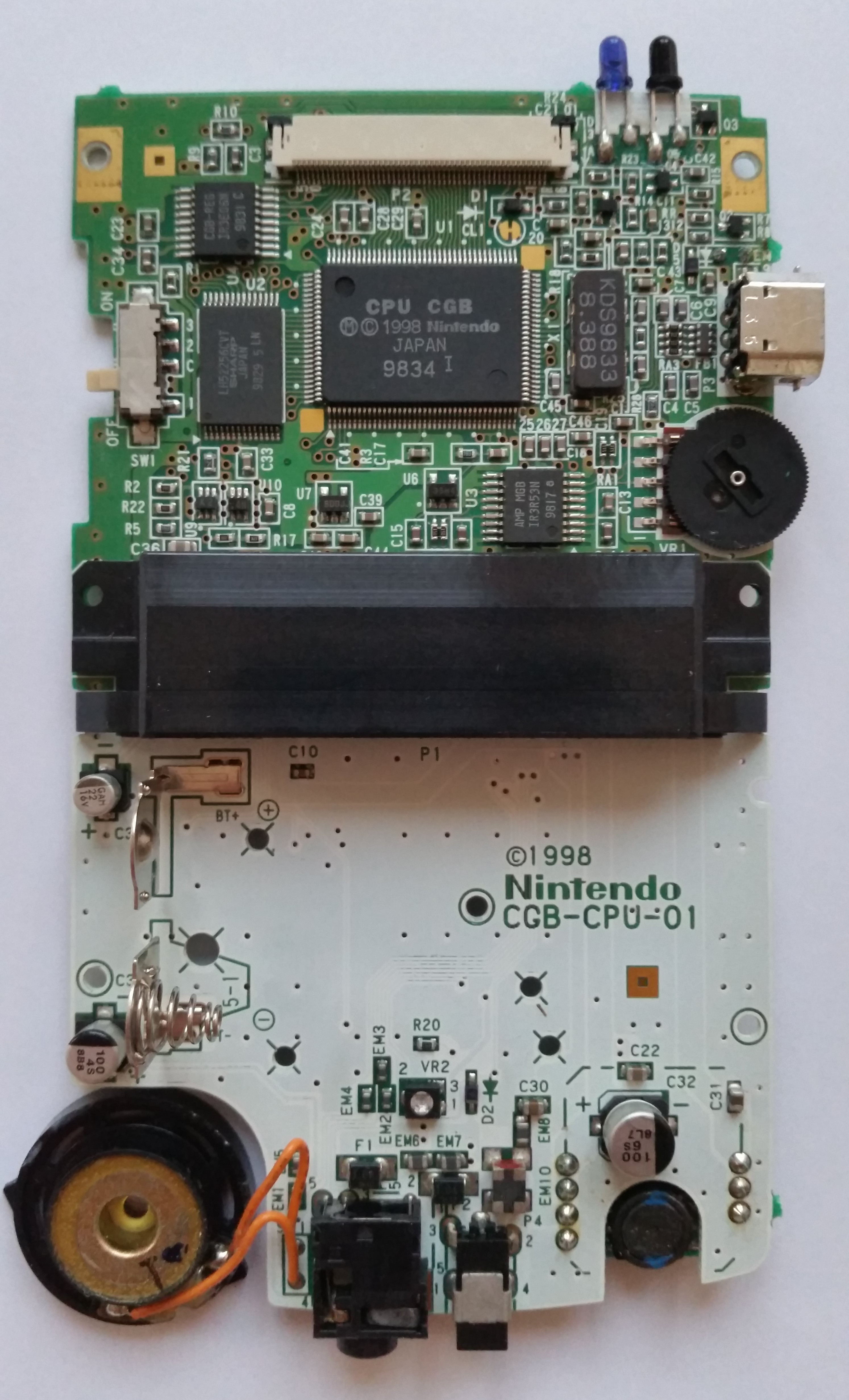

Front side of Game Boy Color circuit boardBack side of Game Boy Color circuit board

Board type
CGB-CPU-01
Manufacture date
August/1998
Number pair on front
-
Number pair on back
5-1
Stamp on board
388-0021
Circled letter(s) on board
A
Extra stamp on front
-
Extra stamp on back
-

LCD Panel

Panel label
-

Chips

 ChipTypeManufacturerDateLabel
U1CPUCPU CGBSharpWeek 34/1998
CPU CGB
Ⓜ © 1998 Nintendo
JAPAN
9834 I
U2Work RAMLH52256CVTSharpWeek 29/1998
LH52256CVT
SHARP
JAPAN
9829 5 LN
U3AmplifierIR3R53NSharpWeek 17/1998
AMP MGB
IR3R53N
9817 a
U4LCD RegulatorIR3E06NSharpWeek 31/1998
CGB-REG
IR3E06N
9831 C
X1CrystalKDS 8.388DaishinkuWeek 33/1998
KDS 9833
8.388

Notes

- Sticker on the back looks perfectly new.
    -> Looks odd compared to the worn off shell.
    -> Must have been replaced by the seller. Therefore release code may be wrong.
- Two knobs of the D-Pad silicon pad will soon fall off

Misc

CPU works
yes
