CGB: [iceboy] #7 - C21618911

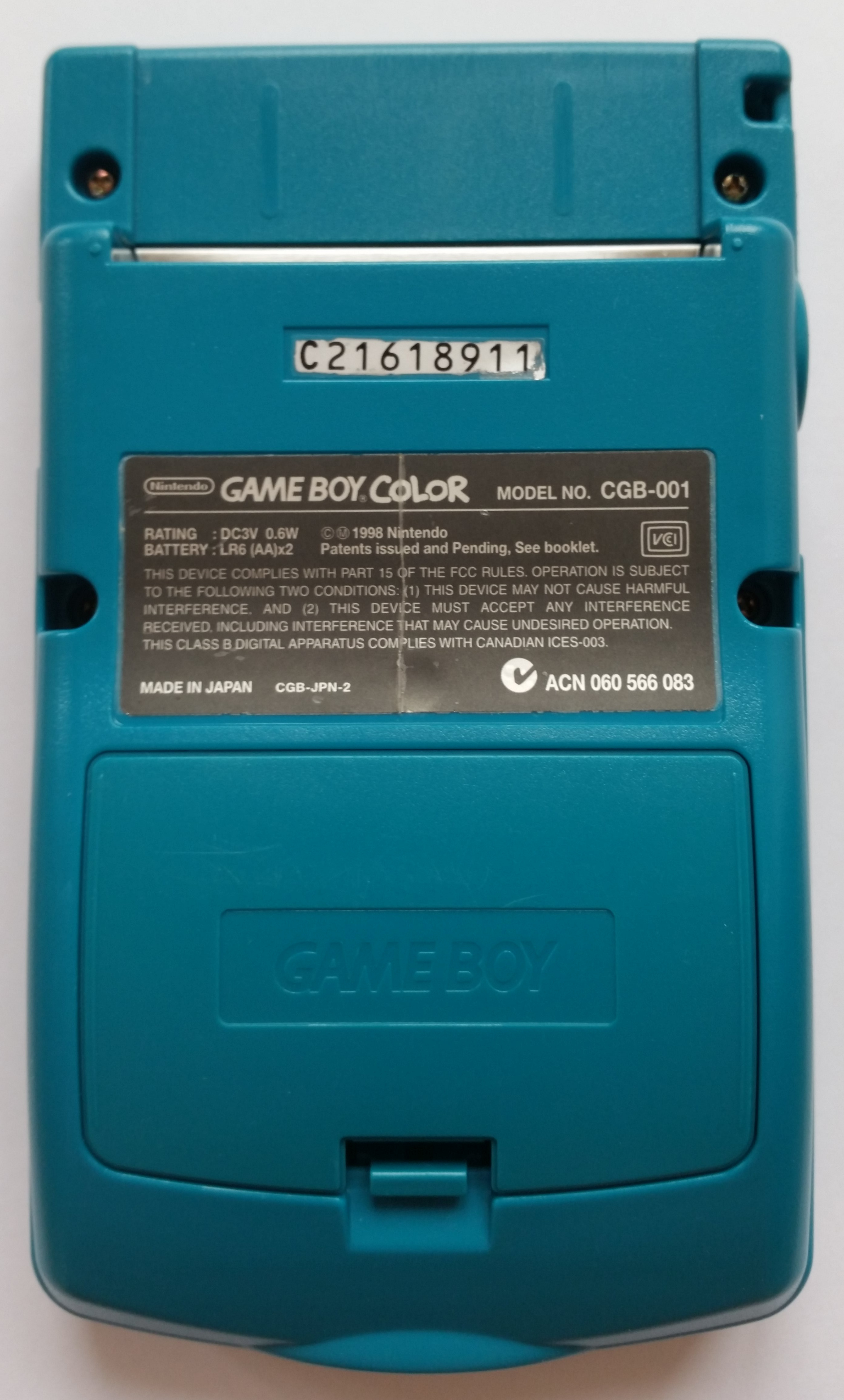

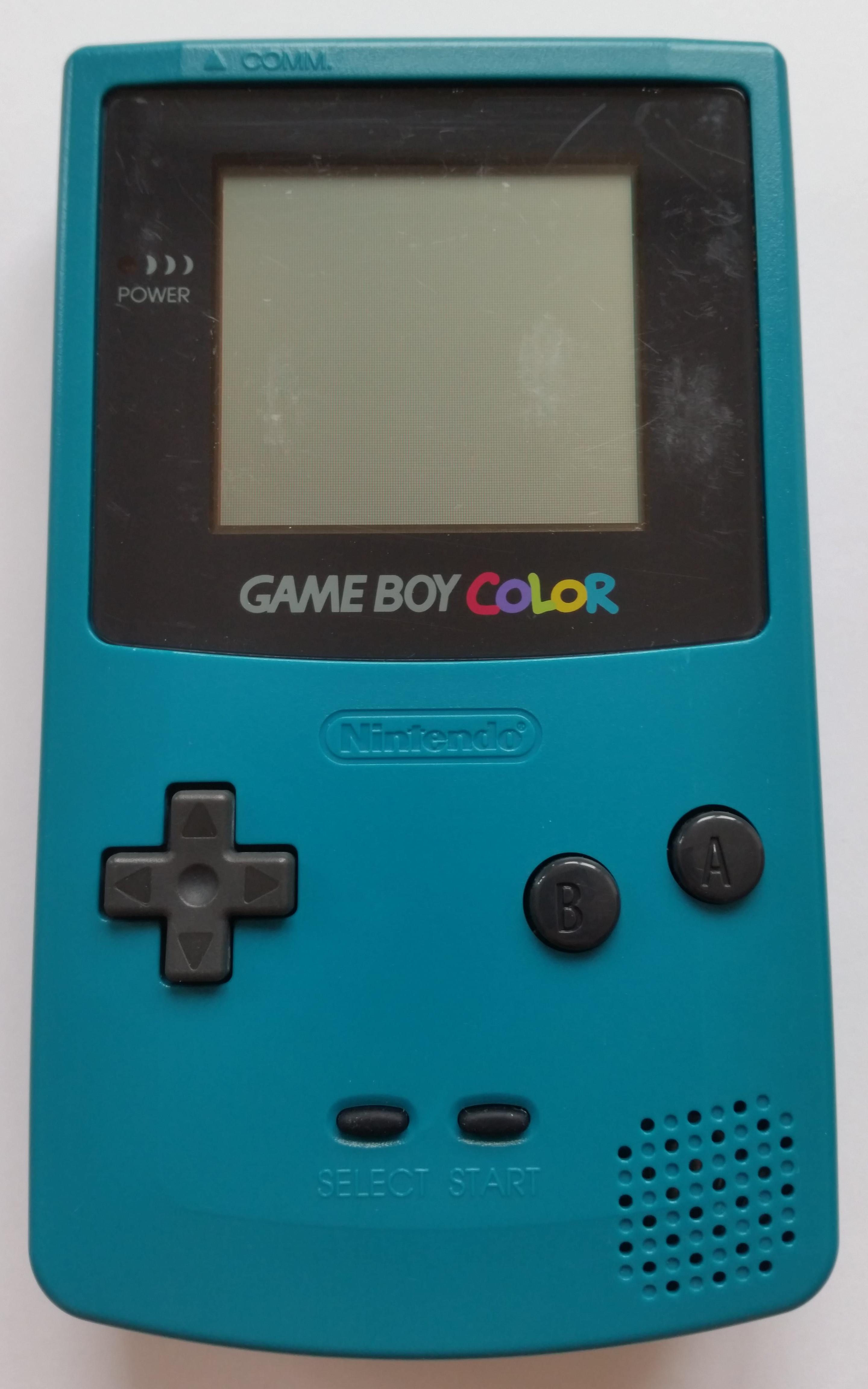

Front side of Game Boy ColorBack side of Game Boy Color

Color
teal
Release code
CGB-JPN-2
Assembly date
Week 4/2001

Mainboard

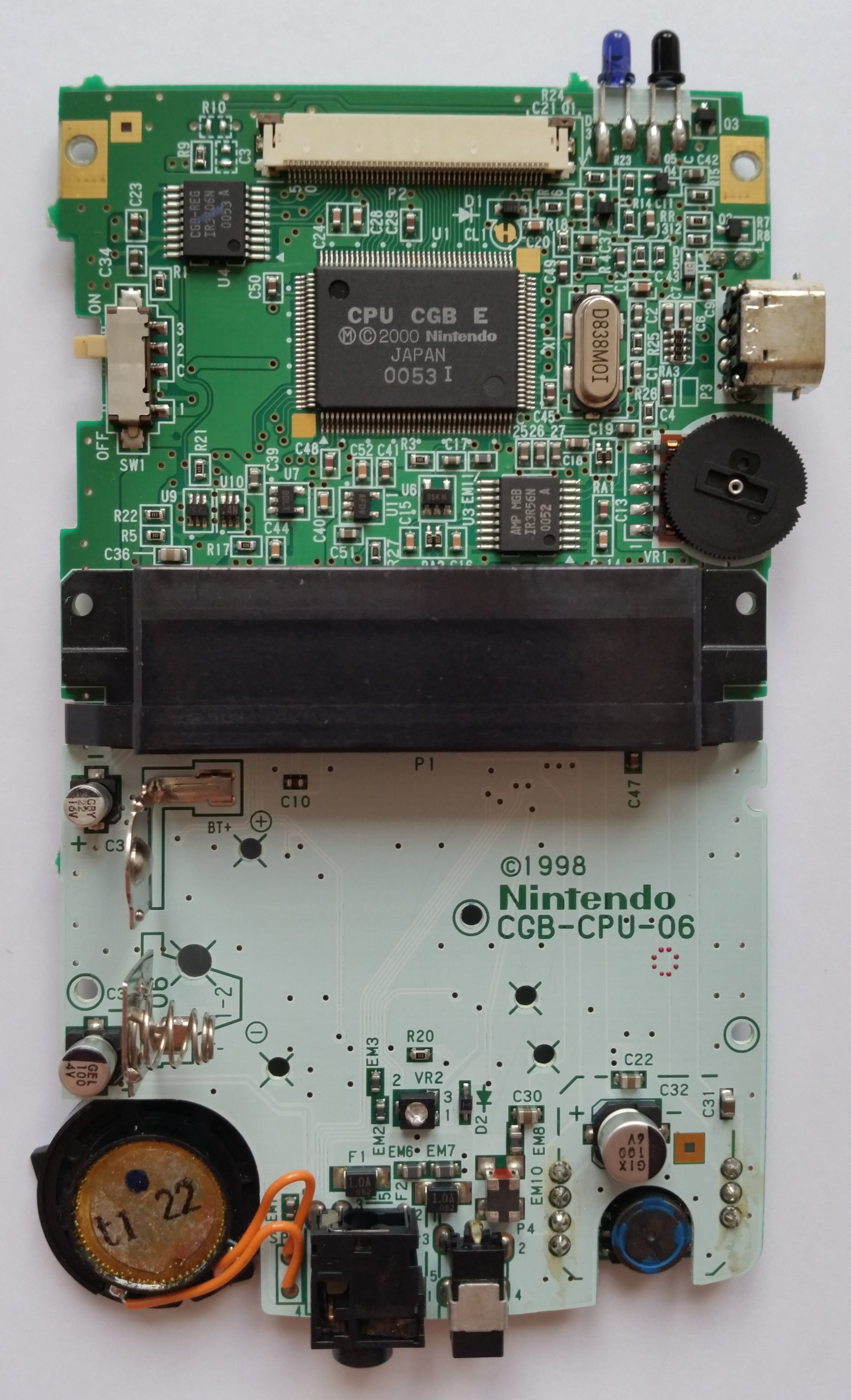

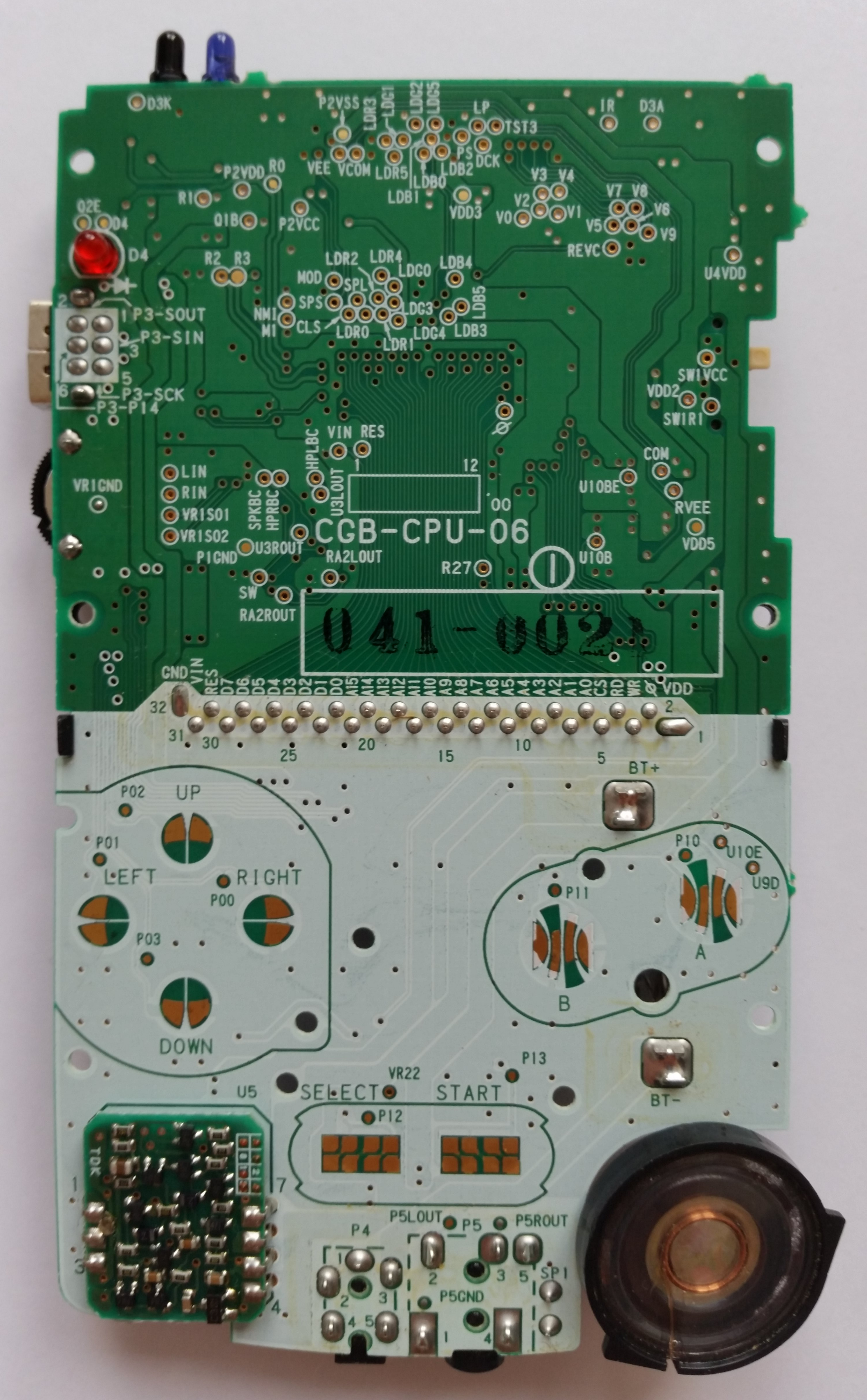

Front side of Game Boy Color circuit boardBack side of Game Boy Color circuit board

Board type
CGB-CPU-06
Manufacture date
December/2000
Number pair on front
-
Number pair on back
1-2
Stamp on board
041-0021
Circled letter(s) on board
I
Extra stamp on front
-
Extra stamp on back
-

LCD Panel

Panel label
???23B2DD01 11S00986583

Chips

 ChipTypeManufacturerDateLabel
U1CPUCPU CGB ESharpWeek 53/2000
CPU CGB E
Ⓜ © 2000 Nintendo
JAPAN
0053 I
-Work RAMCPU internal
U3AmplifierIR3R56NSharpWeek 52/2000
AMP MGB
IR3R56N
0052 A
U4LCD RegulatorIR3E06NSharpWeek 53/2000
CGB-REG
IR3E06N
0053 A
X1CrystalD838?December/2000
D838M0I

Notes

- Accidentially broke off one of the pins that hold the D-Pad silicon pad in place.
    -> Glued it back on.

Misc

CPU works
yes
