CGB: [iceboy] #5 - C14424523

Color: berry
Release code: CGB-JPN-1
Assembly date: Week 6/1999

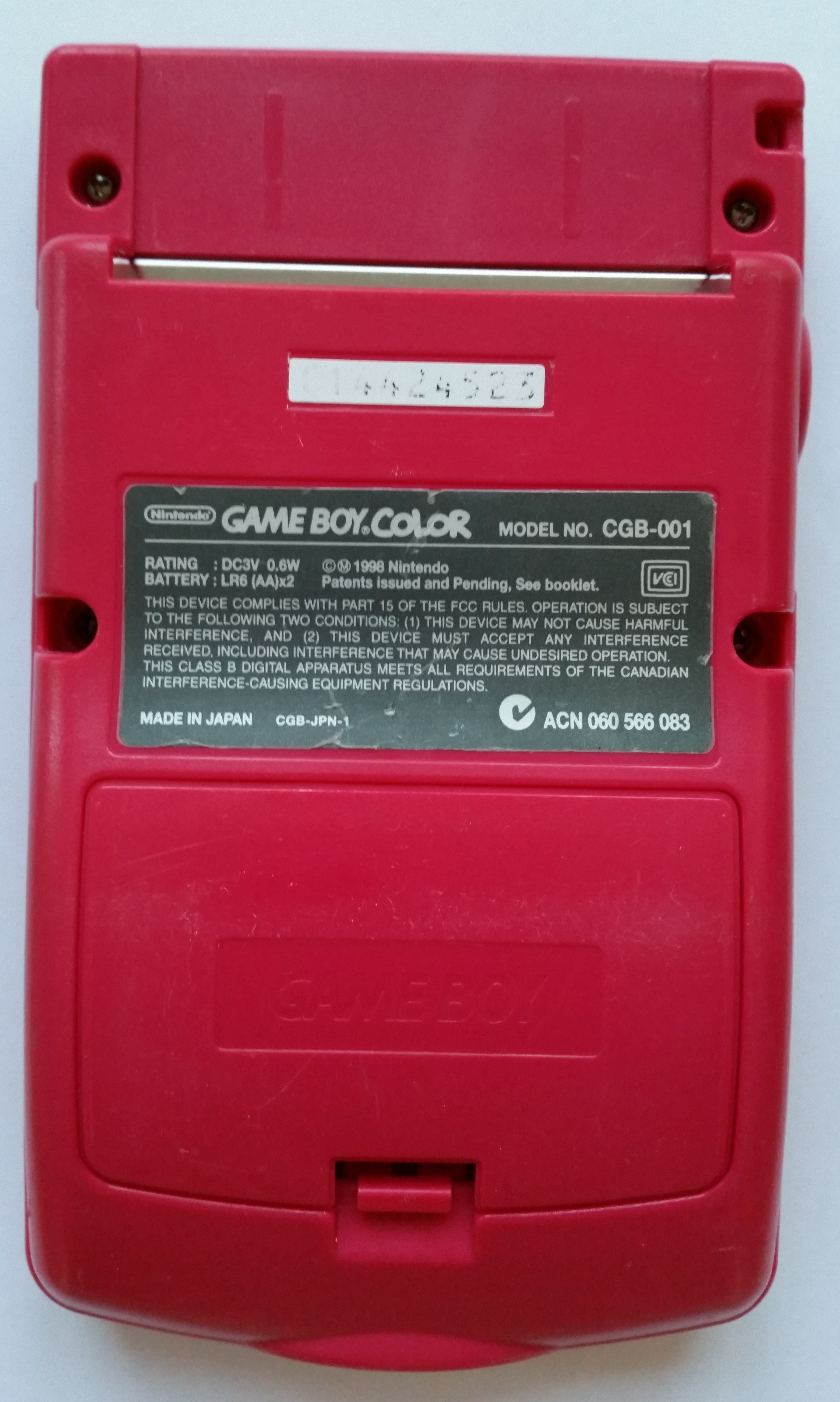

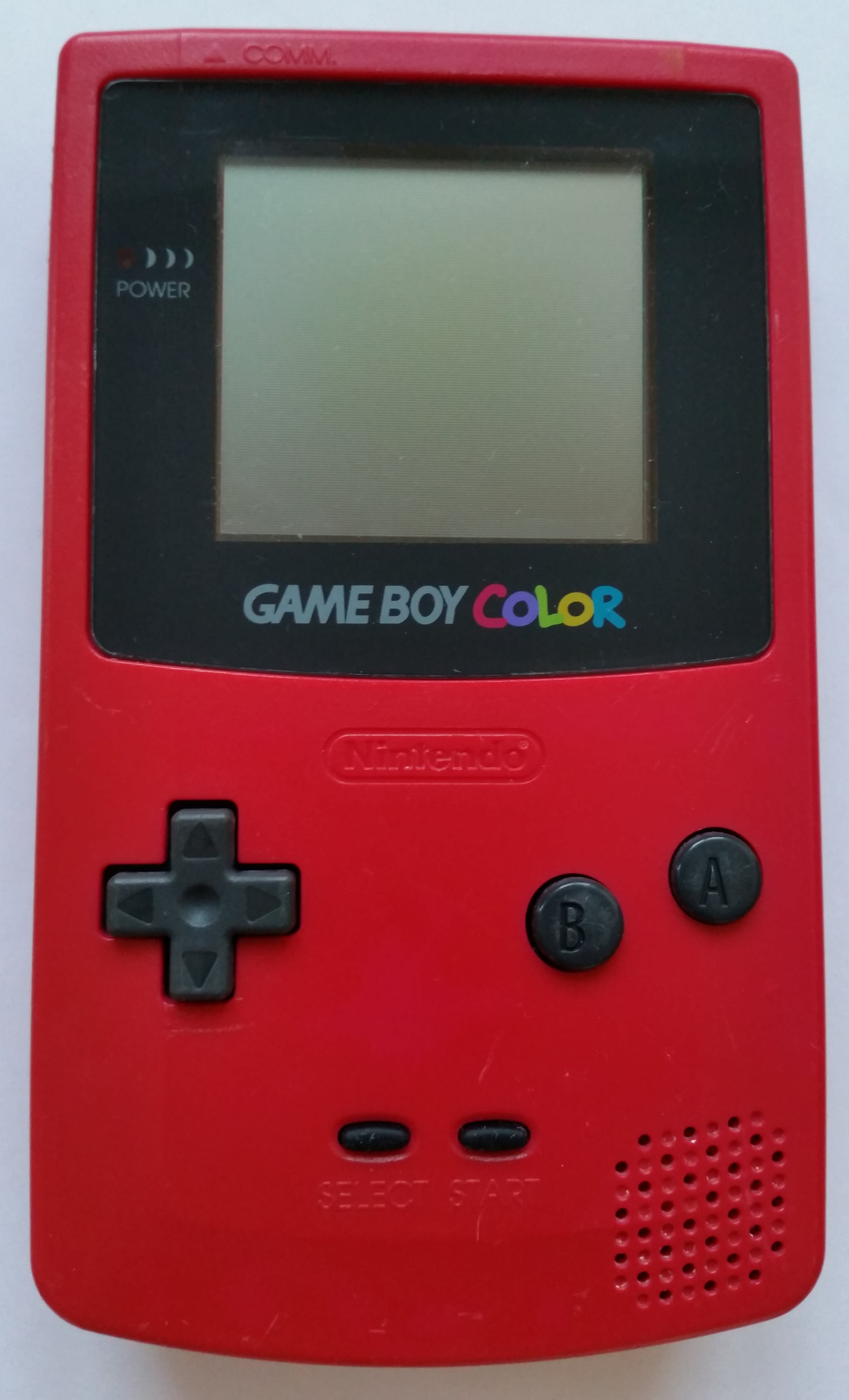

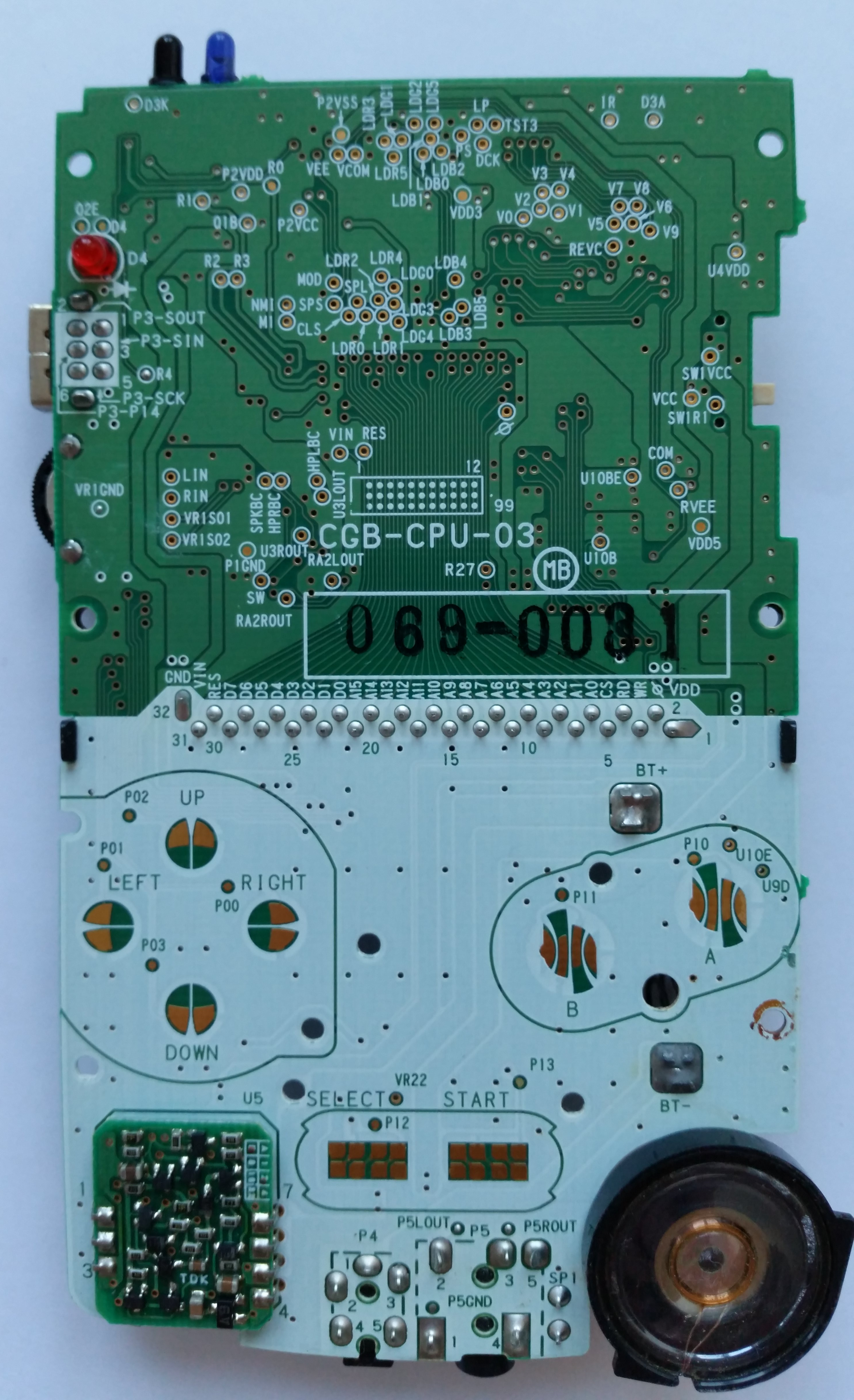

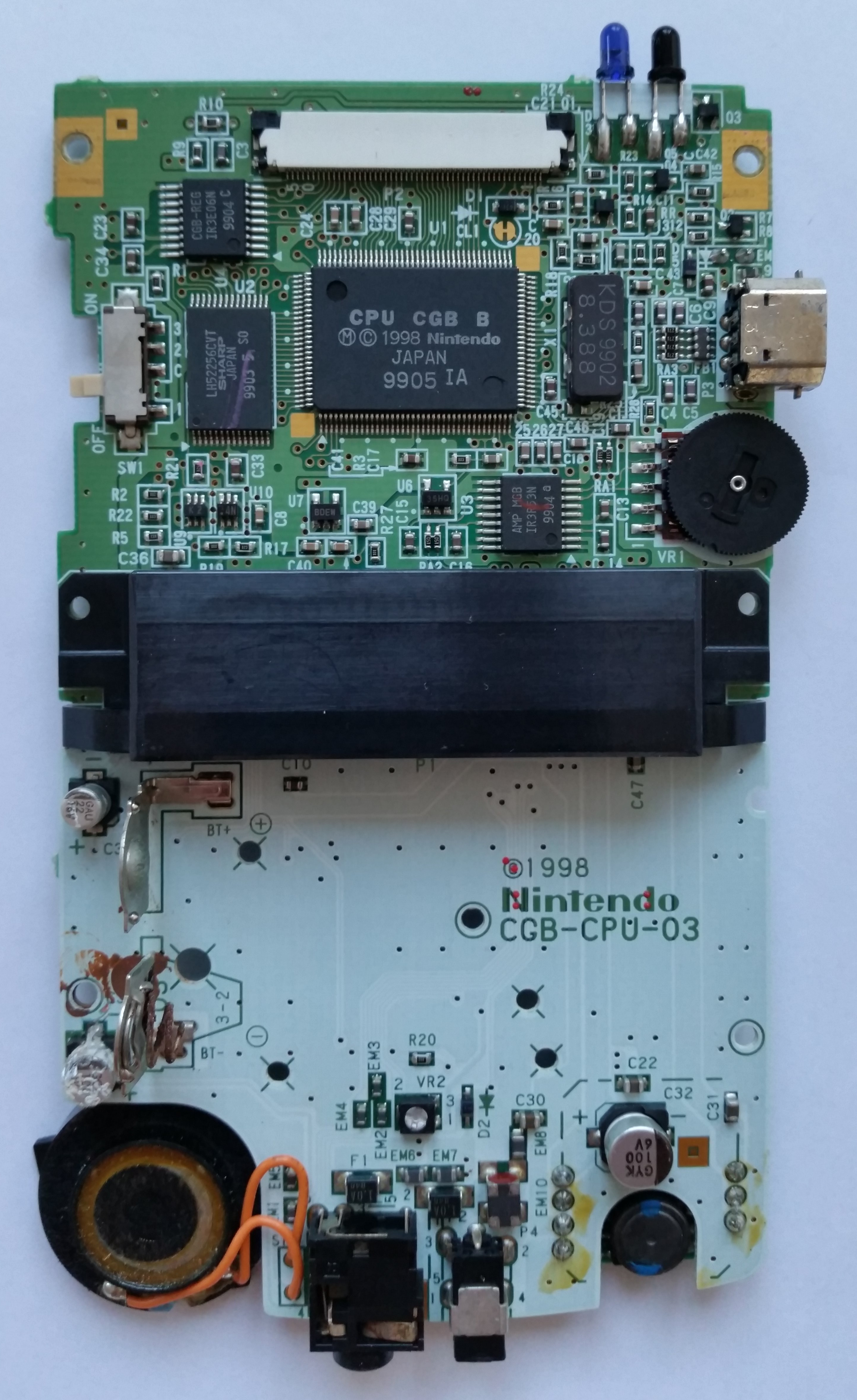

Mainboard

Board type

CGB-CPU-03

Manufacture date

January/1999

Number pair on front

Number pair on back

3-2

Stamp on board

069-0031

Circled letter(s) on board

Extra stamp on front

Extra stamp on back

LCD Panel

Panel label: LQ023B2DD01 92S01341351

Chips

	Chip	Type	Manufacturer	Date	Label
U1	CPU	CPU CGB B	Sharp	Week 5/1999	CPU CGB B Ⓜ © 1998 Nintendo JAPAN 9905 IA
U2	Work RAM	LH52256CVT	Sharp	Week 3/1999	LH52256CVT SHARP JAPAN 9903 5 SO
U3	Amplifier	IR3R53N	Sharp	Week 4/1999	AMP MGB IR3R53N 9904 a
U4	LCD Regulator	IR3E06N	Sharp	Week 4/1999	CGB-REG IR3E06N 9904 C
X1	Crystal	KDS 8.388	Daishinku	Week 2/1999	KDS 9902 8.388

Notes

- Both battery contact springs are rotten away.
    -> Garbage
- Some brown goo was in the battery compartment and beneath the battery
  contact spring on the PCB.
    -> Wasn't able to fully clean the PCB.
- The PCB screw behind the battery spring was destroyed by the brown goo.
    -> Used a small rotating cutter to make a new slit in the screw head.
       Cut into the capacitor too. Was also rotting anyway.
    -> Both, screw and capacitor, are garbage.
- There were some dried up bug larvas inside the device.
- Device does not turn on. No LED.
- Polarization filter got a tiny bit dark after I obtained the device, even though it never was exposed to sunlight.

Misc

CPU works: no
