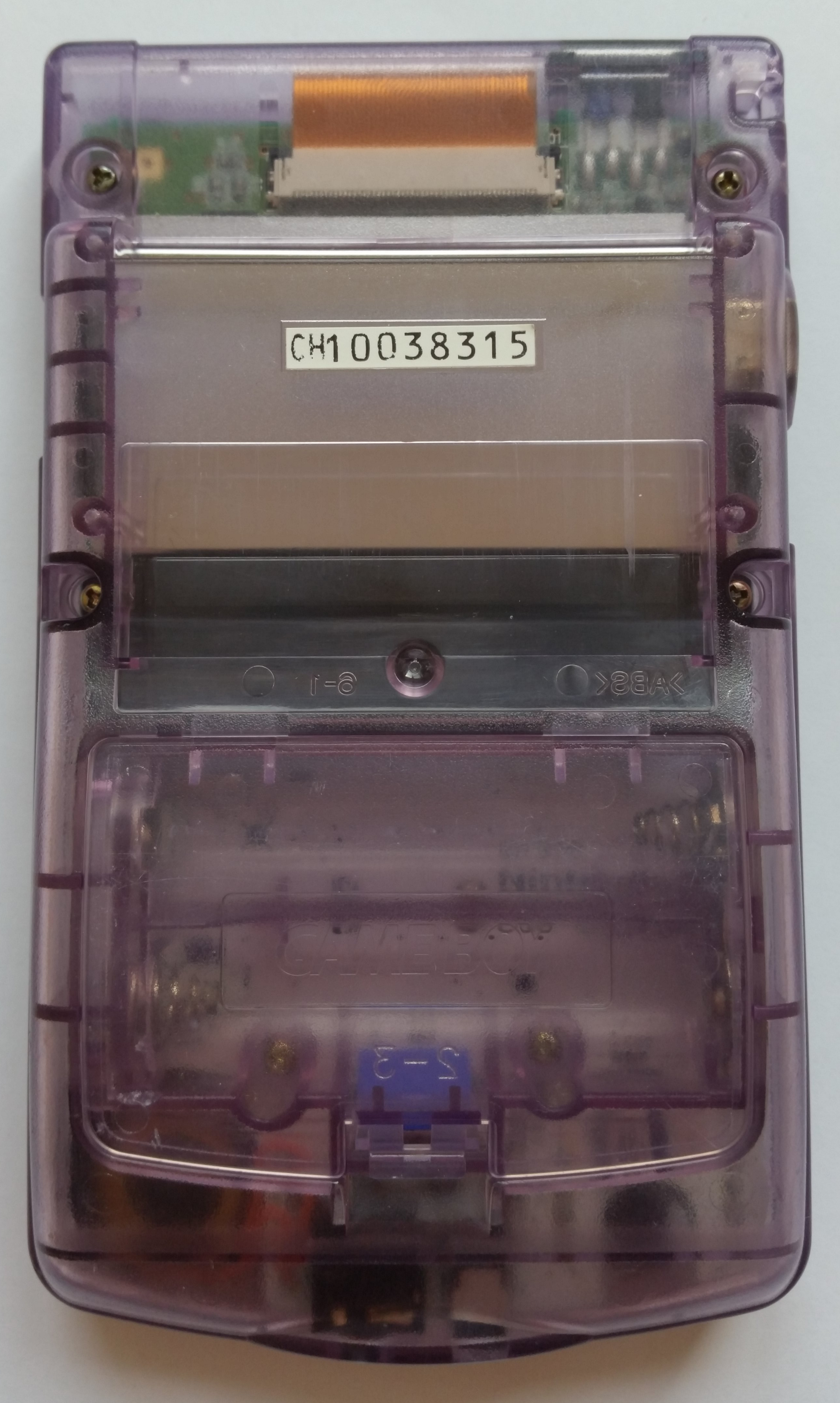

CGB: [iceboy] #3 - CH10038315

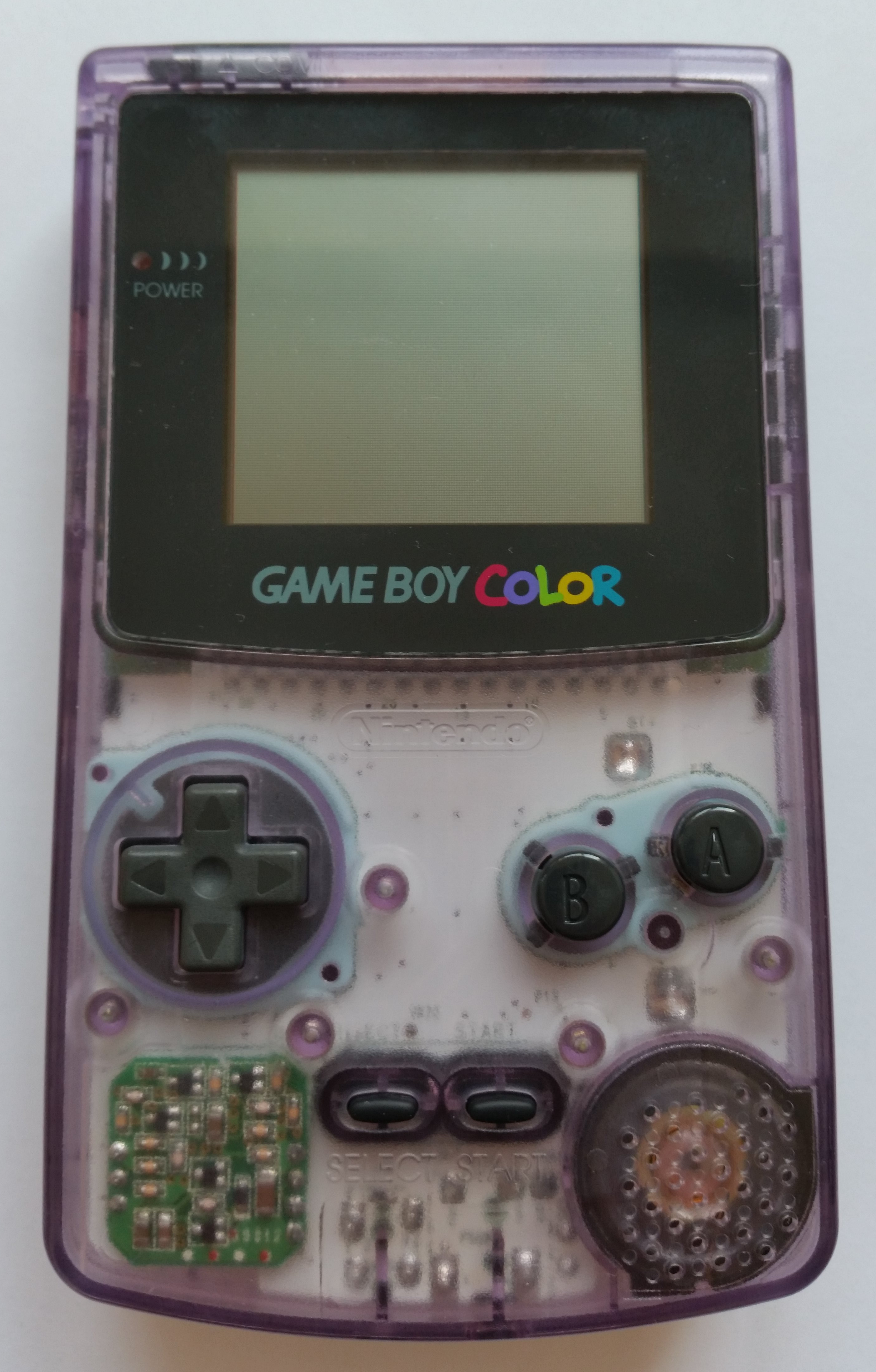

Color: atomic-purple
Release code: C/CGB-JPN-1
Assembly date: December/1998

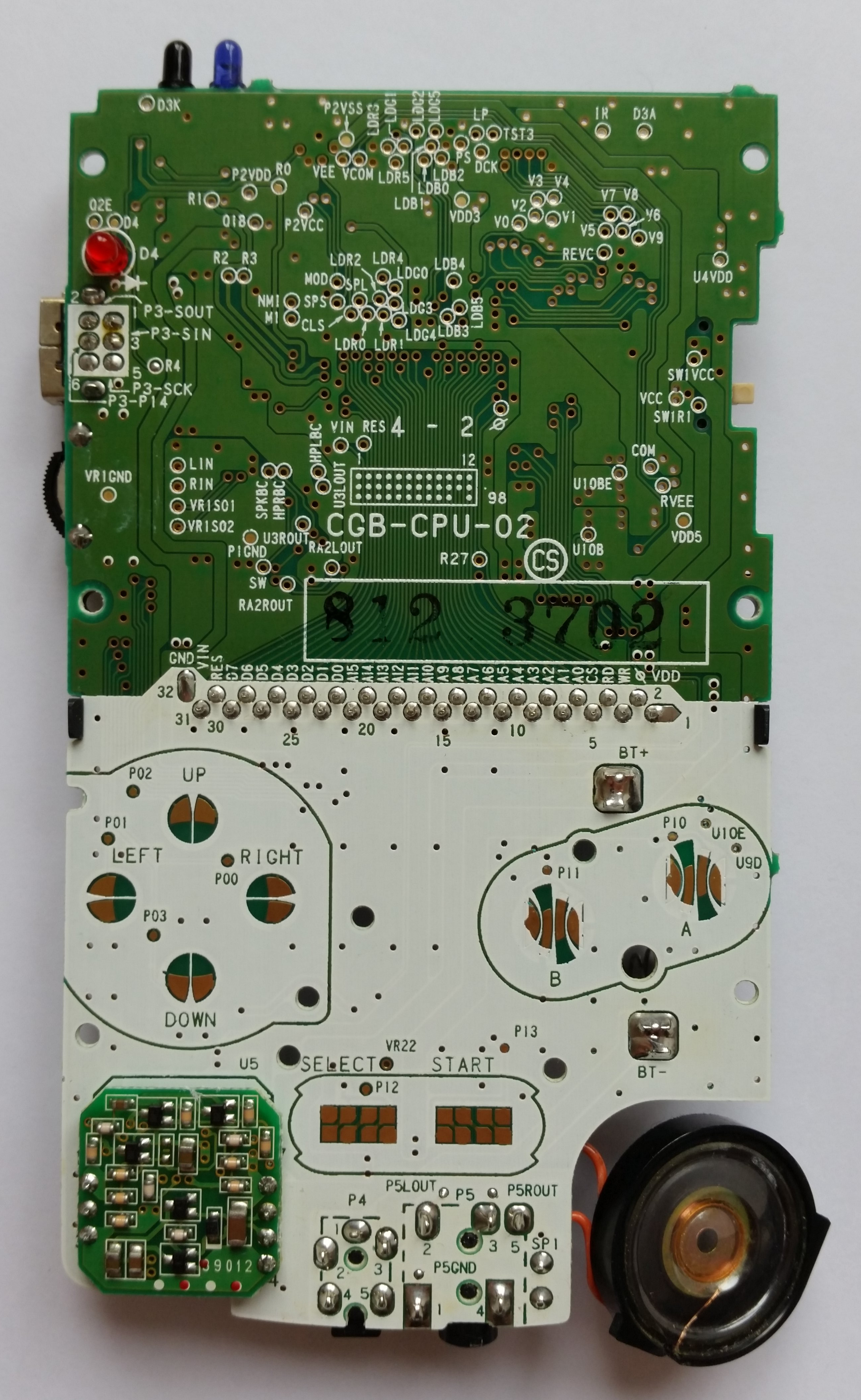

Mainboard

Board type

CGB-CPU-02

Manufacture date

November/1998

Number pair on front

4-2

Number pair on back

4-2

Stamp on board

812.3702

Circled letter(s) on board

Extra stamp on front

Extra stamp on back

LCD Panel

Panel label: ?

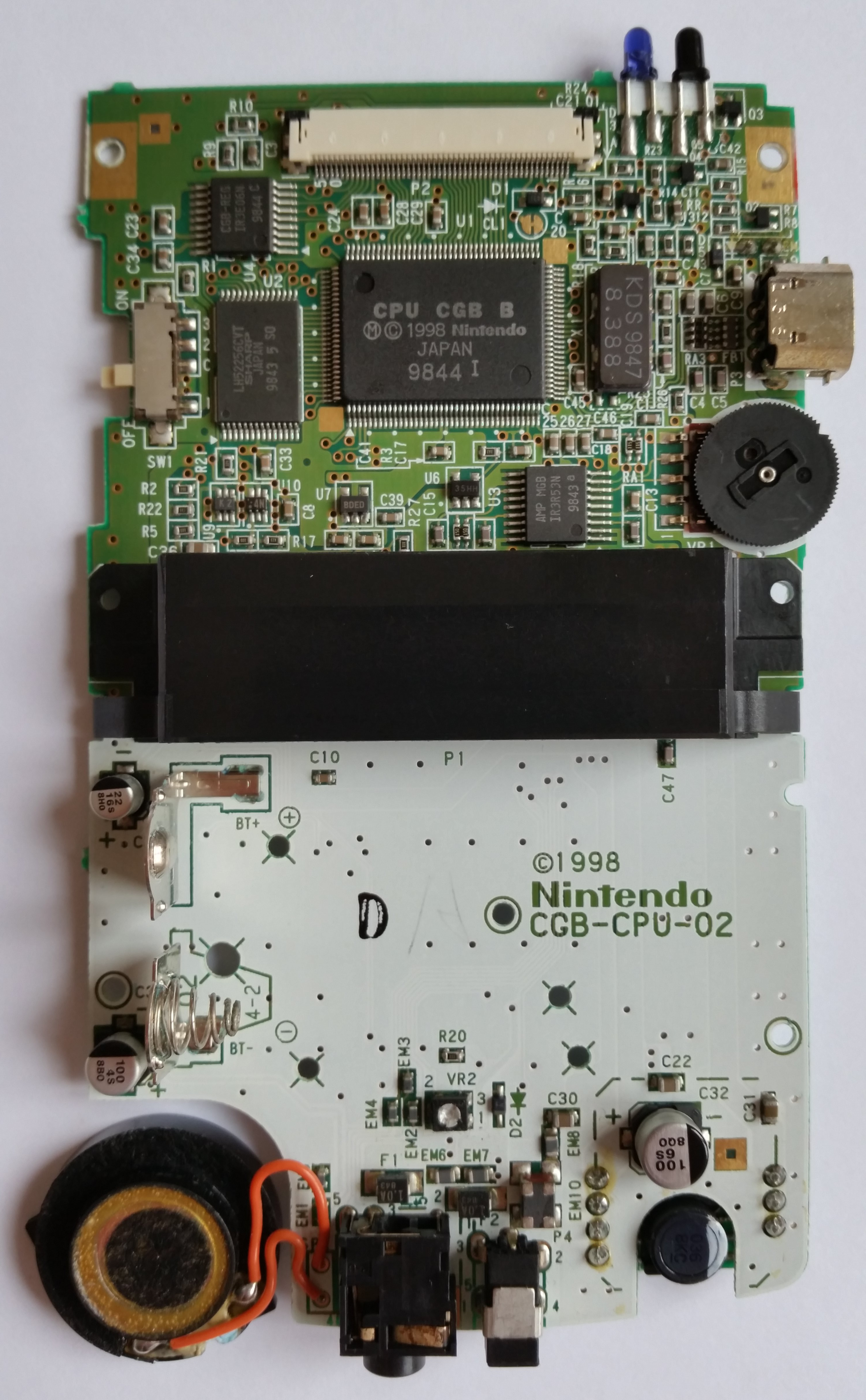

Chips

	Chip	Type	Manufacturer	Date	Label
U1	CPU	CPU CGB B	Sharp	Week 44/1998	CPU CGB B Ⓜ © 1998 Nintendo JAPAN 9844 I
U2	Work RAM	LH52256CVT	Sharp	Week 43/1998	LH52256CVT SHARP JAPAN 9843 5 SO
U3	Amplifier	IR3R53N	Sharp	Week 43/1998	AMP MGB IR3R53N 9843 a
U4	LCD Regulator	IR3E06N	Sharp	Week 44/1998	CGB-REG IR3E06N 9844 C
X1	Crystal	KDS 8.388	Daishinku	Week 47/1998	KDS 9847 8.388

Notes

- Battery contacts were corroded due to leaked batteries.
    -> Milled off blue stuff.
- Sticker on the back is soaked in some gunk. Probably leaked batteries.
    -> Removed sticker.
- Device does not turn on
    -> TODO: investigate

Misc

CPU works: no
