CGB: [iceboy] #2 - CH12525605

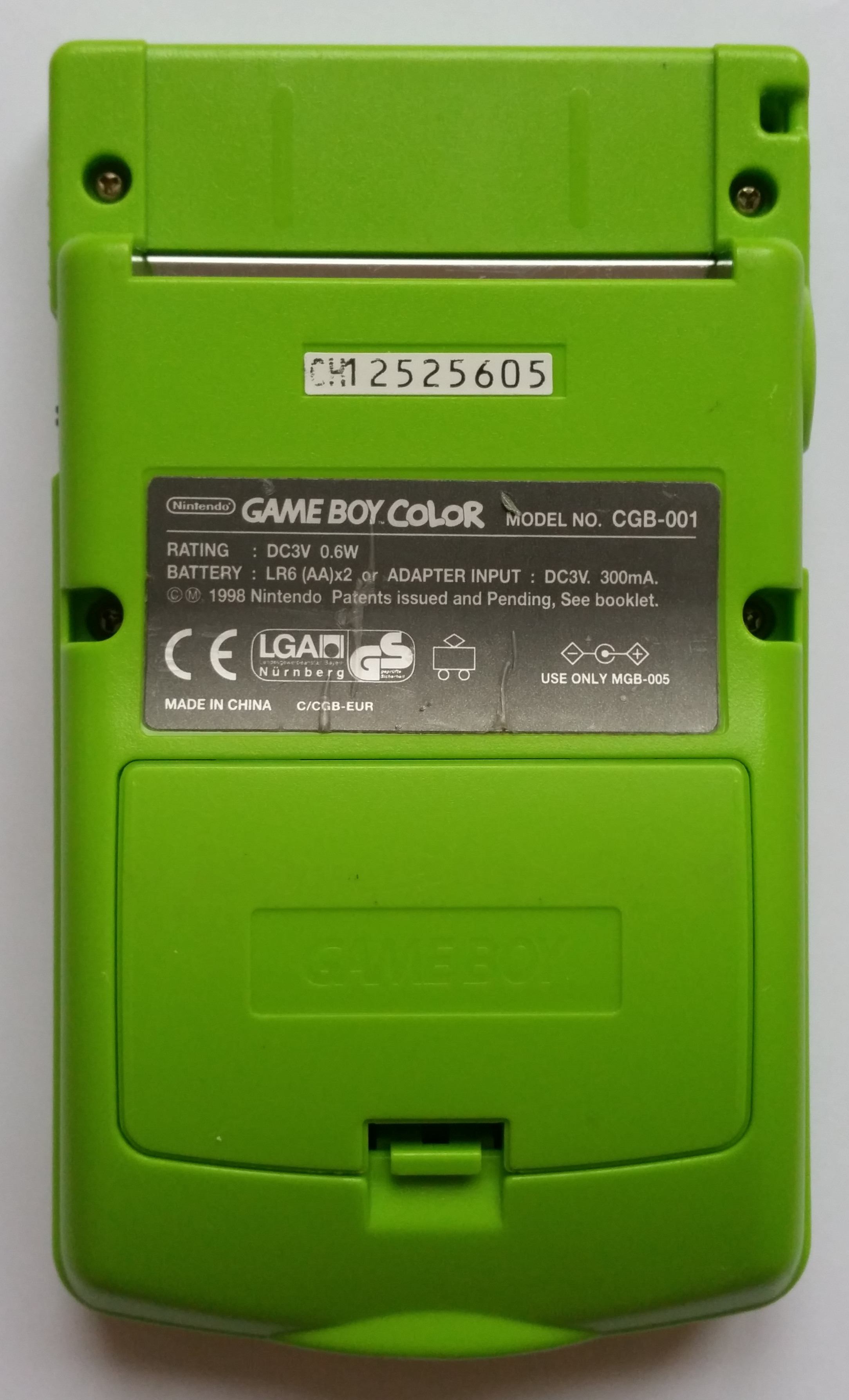

Front side of Game Boy ColorBack side of Game Boy Color

Color
kiwi
Release code
C/CGB-EUR
Assembly date
Week 43/1999

Mainboard

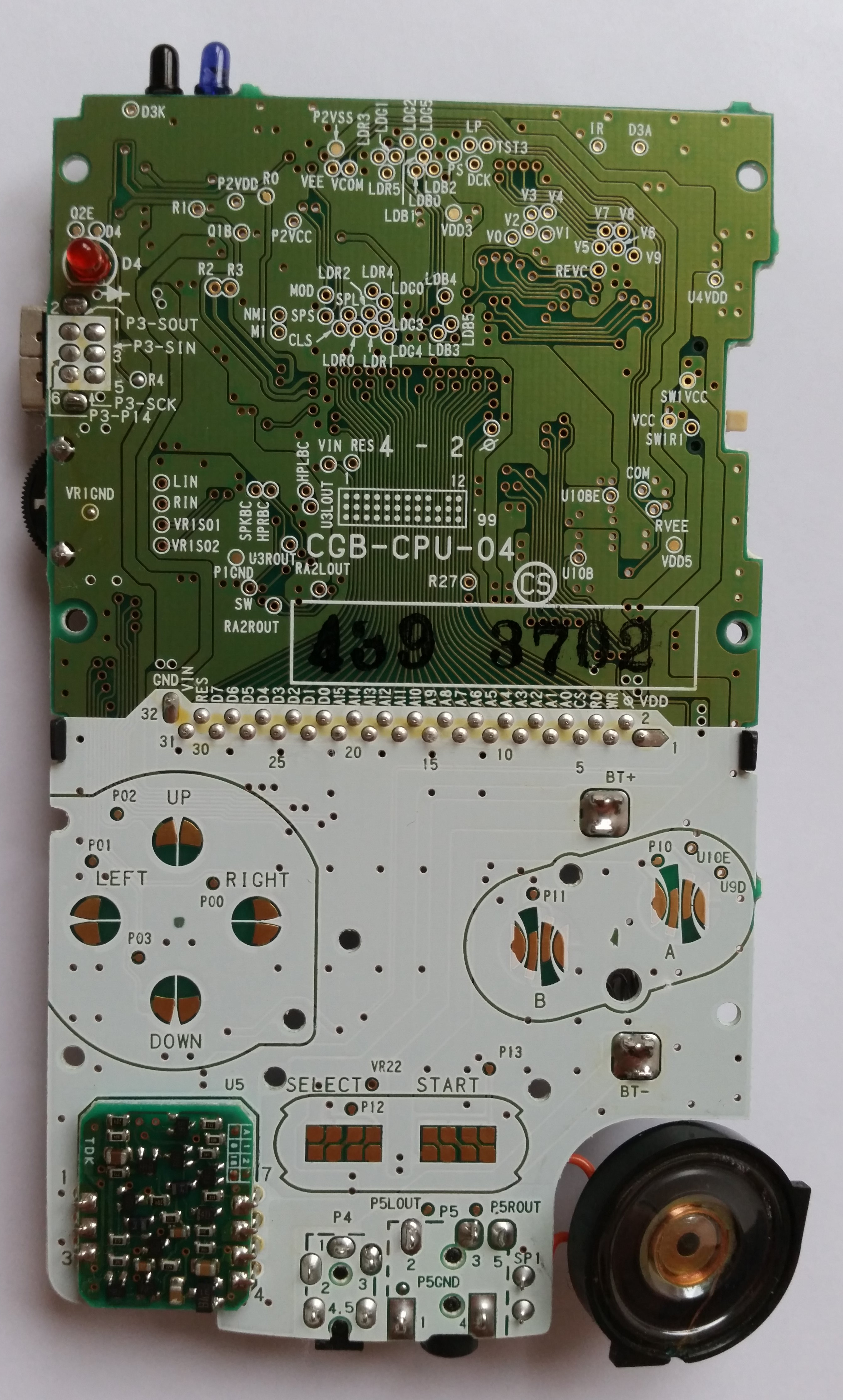

Front side of Game Boy Color circuit boardBack side of Game Boy Color circuit board

Board type
CGB-CPU-04
Manufacture date
October/1999
Number pair on front
4-2
Number pair on back
4-2
Stamp on board
439 3702
Circled letter(s) on board
CS
Extra stamp on front
-
Extra stamp on back
E

LCD Panel

Panel label
?

Chips

 ChipTypeManufacturerDateLabel
U1CPUCPU CGB CSharpWeek 39/1999
CPU CGB C
Ⓜ © 1998 Nintendo
JAPAN
9939 IA
U2Work RAMLH52256CVTSharpWeek 26/1999
LH52256CVT
SHARP
A9926 3 E0
U3AmplifierIR3R53NSharpWeek 37/1999
AMP MGB
IR3R53N
9937 C
U4LCD RegulatorIR3E06NSharpWeek 37/1999
CGB-REG
IR3E06N
9937 C
X1Crystal8388 KSSKinsekiAugust/1999
8388
KSS 9H

Notes

none

Misc

CPU works
yes
