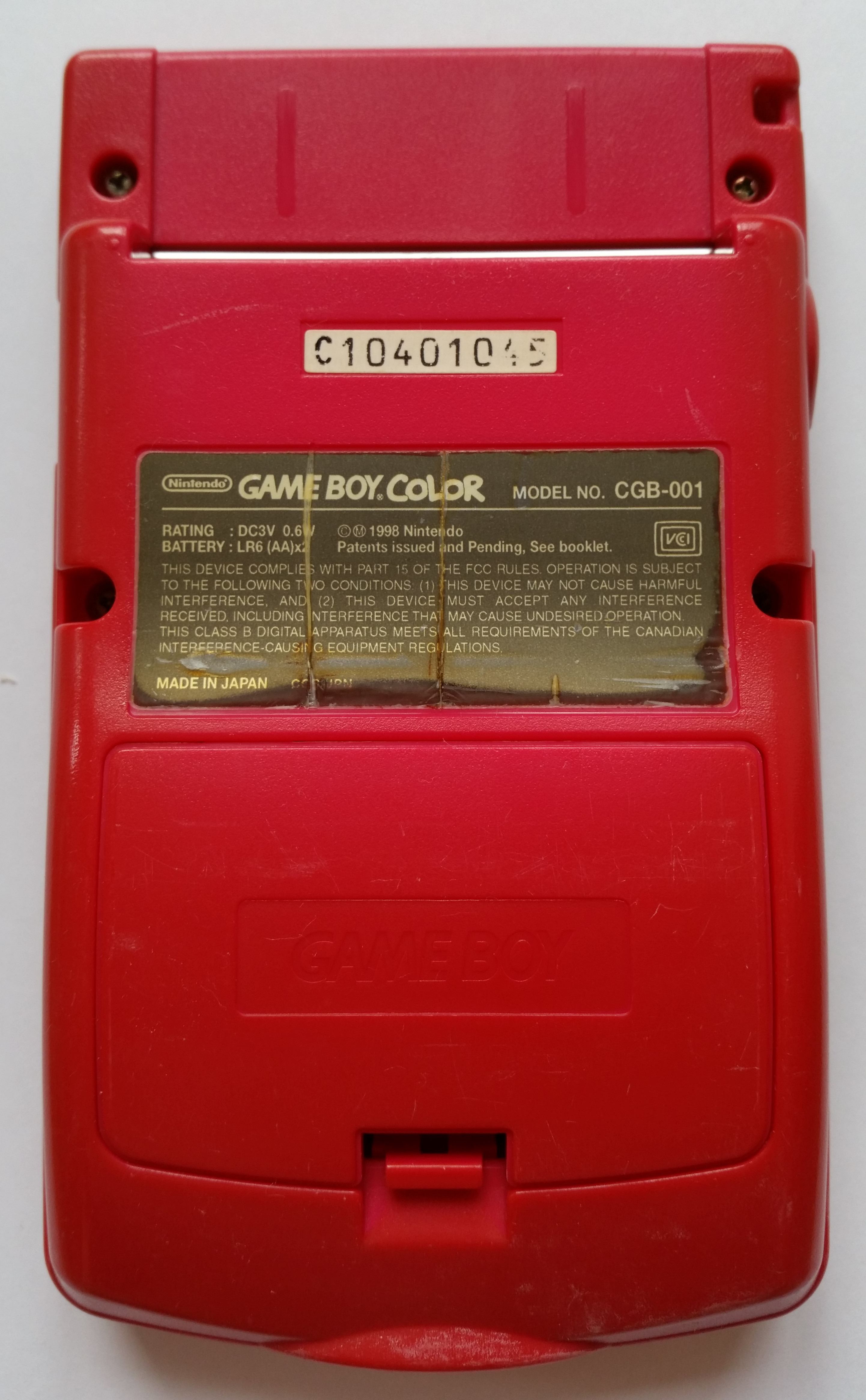

CGB: [iceboy] #15 - C10401045

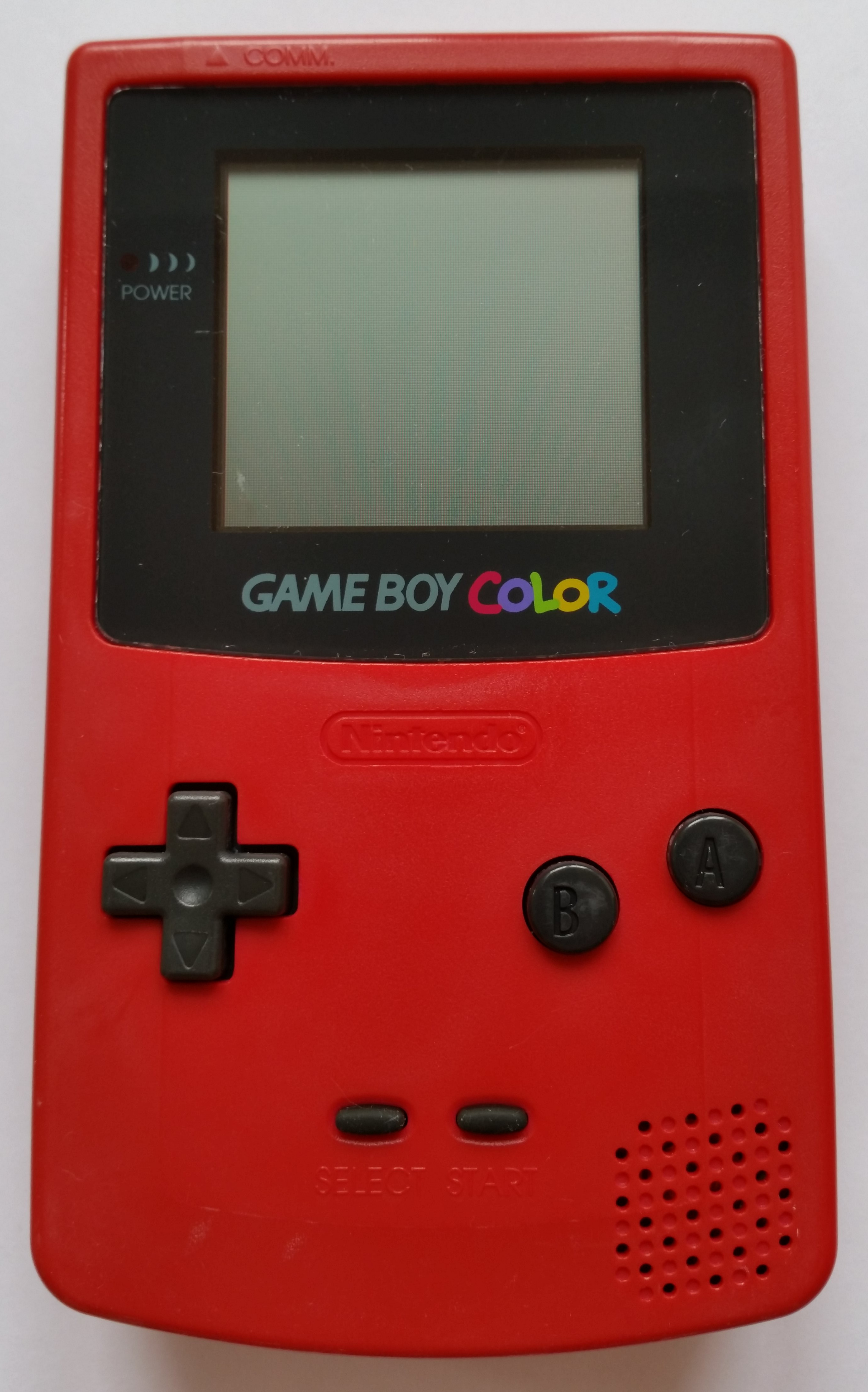

Color: berry
Release code: CGB-JPN
Assembly date: Week 38/1998

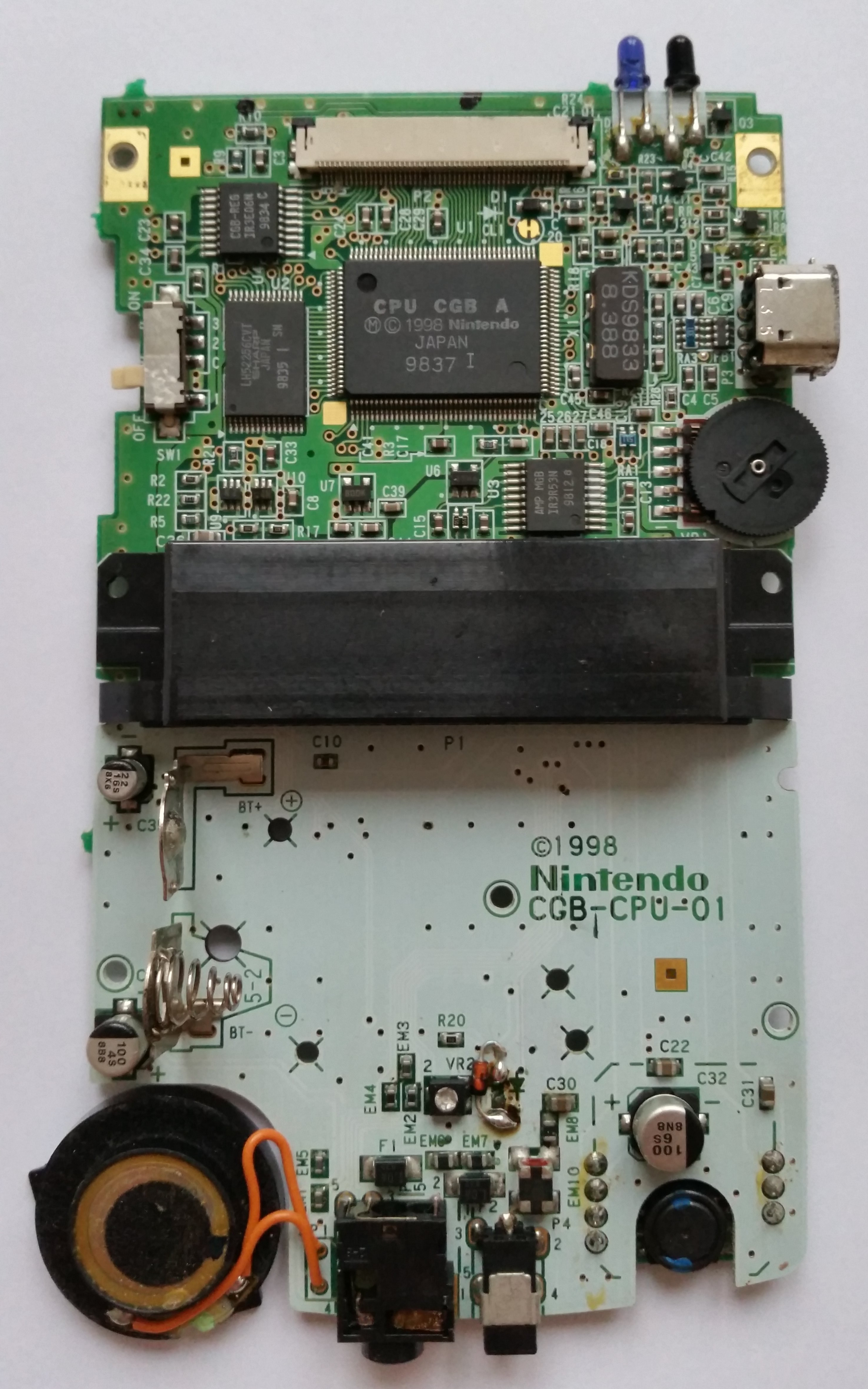

Mainboard

Board type

CGB-CPU-01

Manufacture date

August/1998 - September/1998

Number pair on front

Number pair on back

5-2

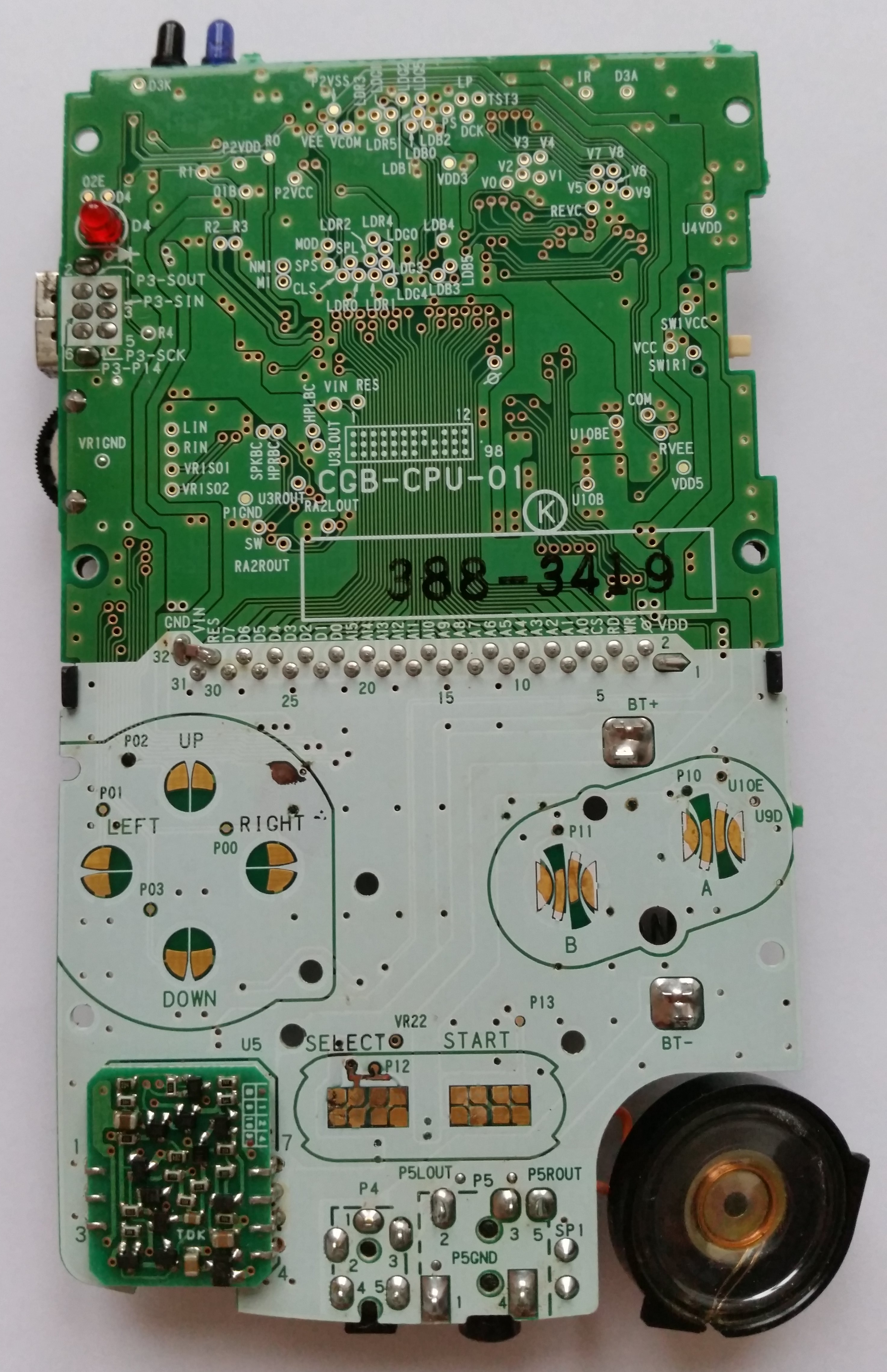

Stamp on board

388-3419

Circled letter(s) on board

Extra stamp on front

Extra stamp on back

LCD Panel

Panel label: LQ023B2DD01 89S00623421

Chips

	Chip	Type	Manufacturer	Date	Label
U1	CPU	CPU CGB A	Sharp	Week 37/1998	CPU CGB A Ⓜ © 1998 Nintendo JAPAN 9837 I
U2	Work RAM	LH52256CVT	Sharp	Week 35/1998	LH52256CVT SHARP JAPAN 9835 1 SN
U3	Amplifier	IR3R53N	Sharp	Week 12/1998	AMP MGB IR3R53N 9812 a
U4	LCD Regulator	IR3E06N	Sharp	Week 34/1998	CGB-REG IR3E06N 9834 C
X1	Crystal	KDS 8.388	Daishinku	Week 33/1998	KDS9833 8.388

Notes

- Some brown oily substance leaked through the bottom part of the device.
  It soaked through the battery compartment, the buttons and some vias
  of the white part of the PCB.
    -> The solder mask broke off from some traces while cleaning the
       substance off of the PCB.
    -> It is still occupying some of the vias.
    -> Diode D2 broke off while trying to clean it. Ripped off the lower
       pad as well. It lost one of its legs, so it wasn't possible to
       solder it back on. I measured the drop off from the original: 0.564V
       Replaced it with 0.58V.
- Only works with DC adapter, not with batteries:
    -> TODO: investigate
- A&B buttons don't work:
    -> TODO: investigate

Misc

CPU works: yes
