CGB: [iceboy] #14 - C10401375

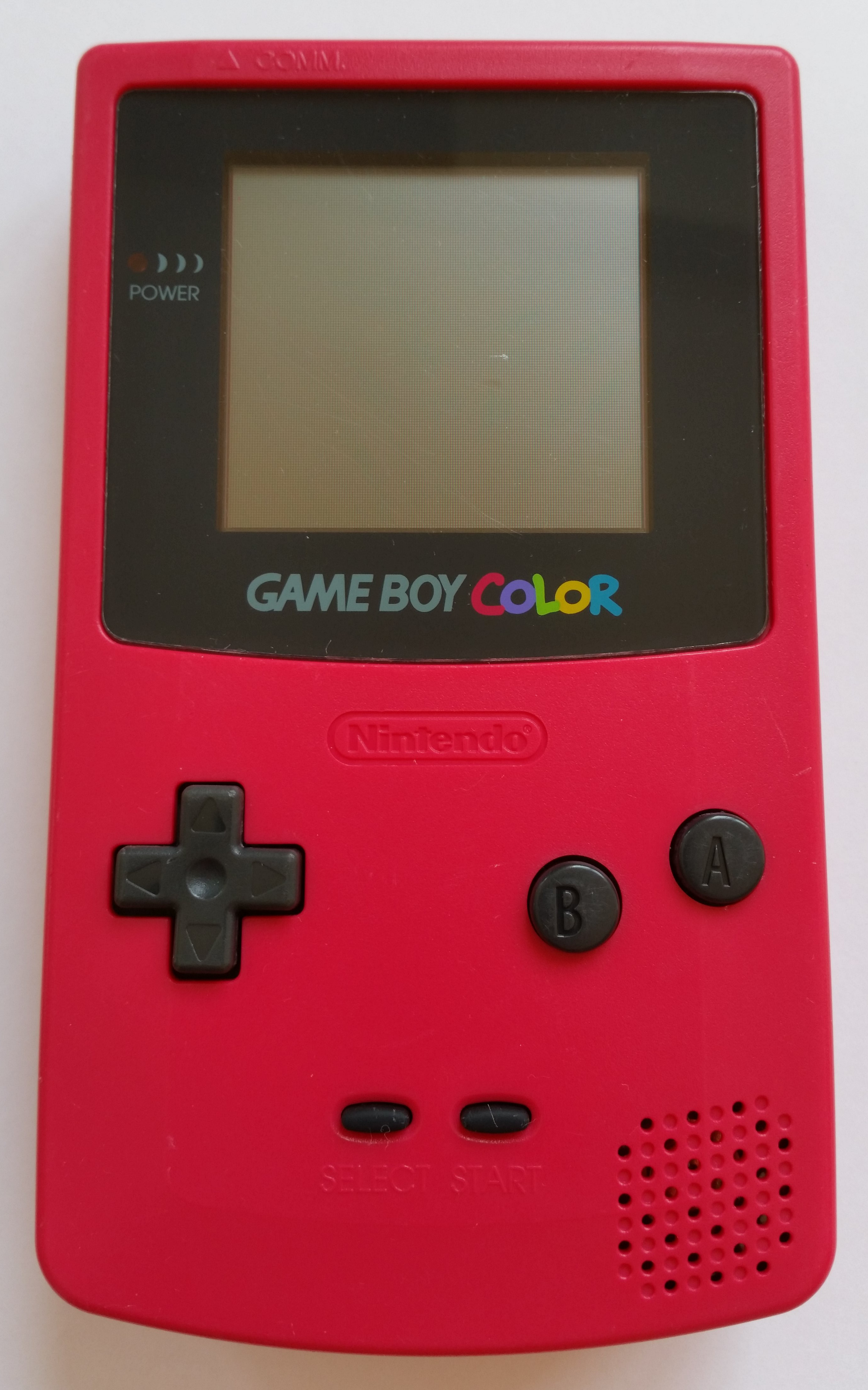

Color: berry
Release code: CGB-JPN
Assembly date: Week 39/1998

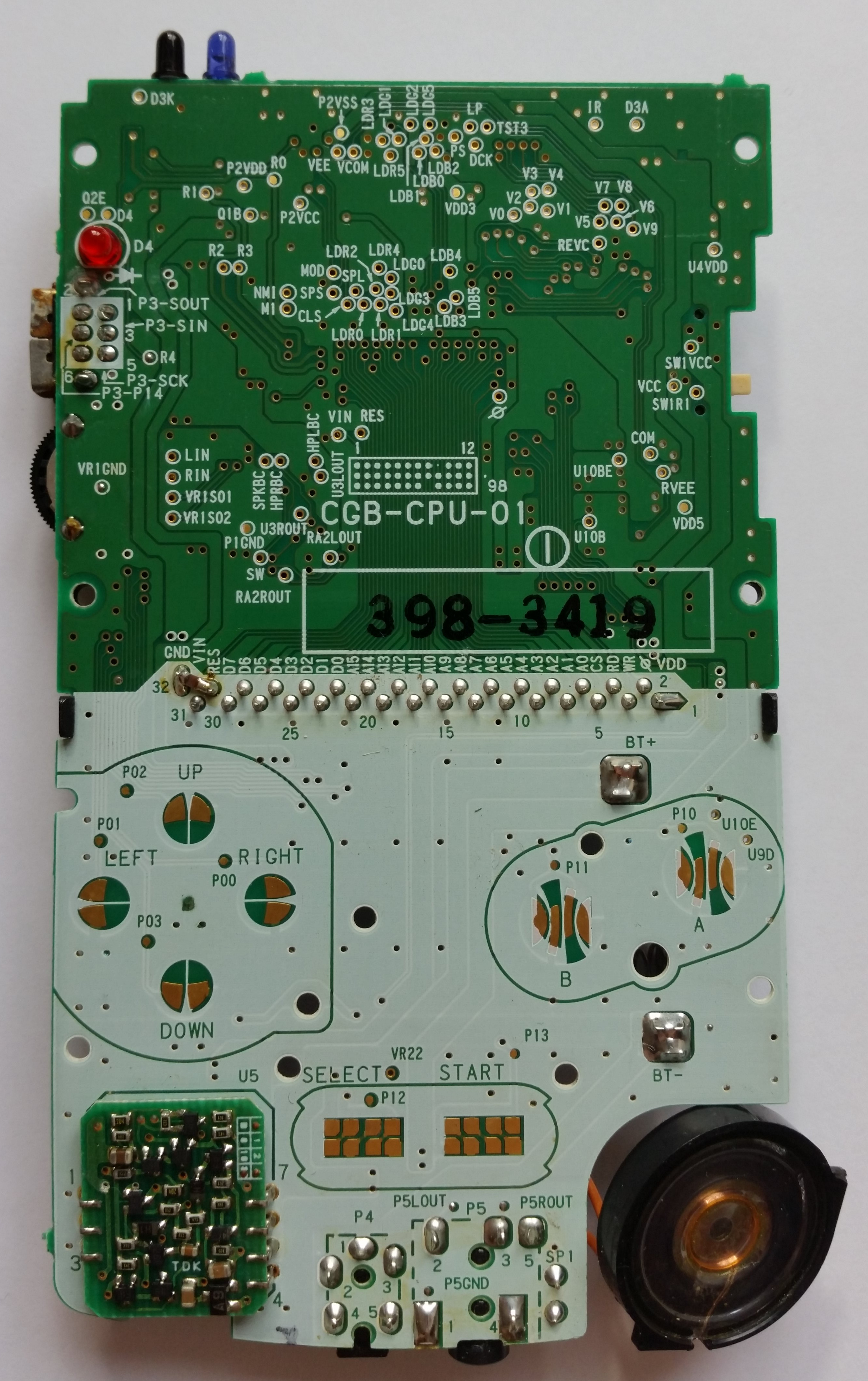

Mainboard

Board type

CGB-CPU-01

Manufacture date

August/1998 - September/1998

Number pair on front

Number pair on back

1-1

Stamp on board

398-3419

Circled letter(s) on board

Extra stamp on front

Extra stamp on back

LCD Panel

Panel label: LQ023B2DD01 89K00016561

Chips

	Chip	Type	Manufacturer	Date	Label
U1	CPU	CPU CGB A	Sharp	Week 37/1998	CPU CGB A Ⓜ © 1998 Nintendo JAPAN 9837 I
U2	Work RAM	LH52256CVT	Sharp	Week 30/1998	LH52256CVT SHARP JAPAN 9830 1 SN
U3	Amplifier	IR3R53N	Sharp	Week 17/1998	AMP MGB IR3R53N 9817 a
U4	LCD Regulator	IR3E06N	Sharp	Week 31/1998	CGB-REG IR3E06N 9831 C
X1	Crystal	KDS 8.388	Daishinku	Week 35/1998	KDS9835 8.388

Notes

- Link port is heavily corroded. Not tested yet if it still works.
- Positive battery contact on PCB is corroded due to leaked batteries.
    -> Milled off blue stuff.
- Device does not turn on. No LED.

Misc

CPU works: no
