CGB: [iceboy] #13 - C10494974

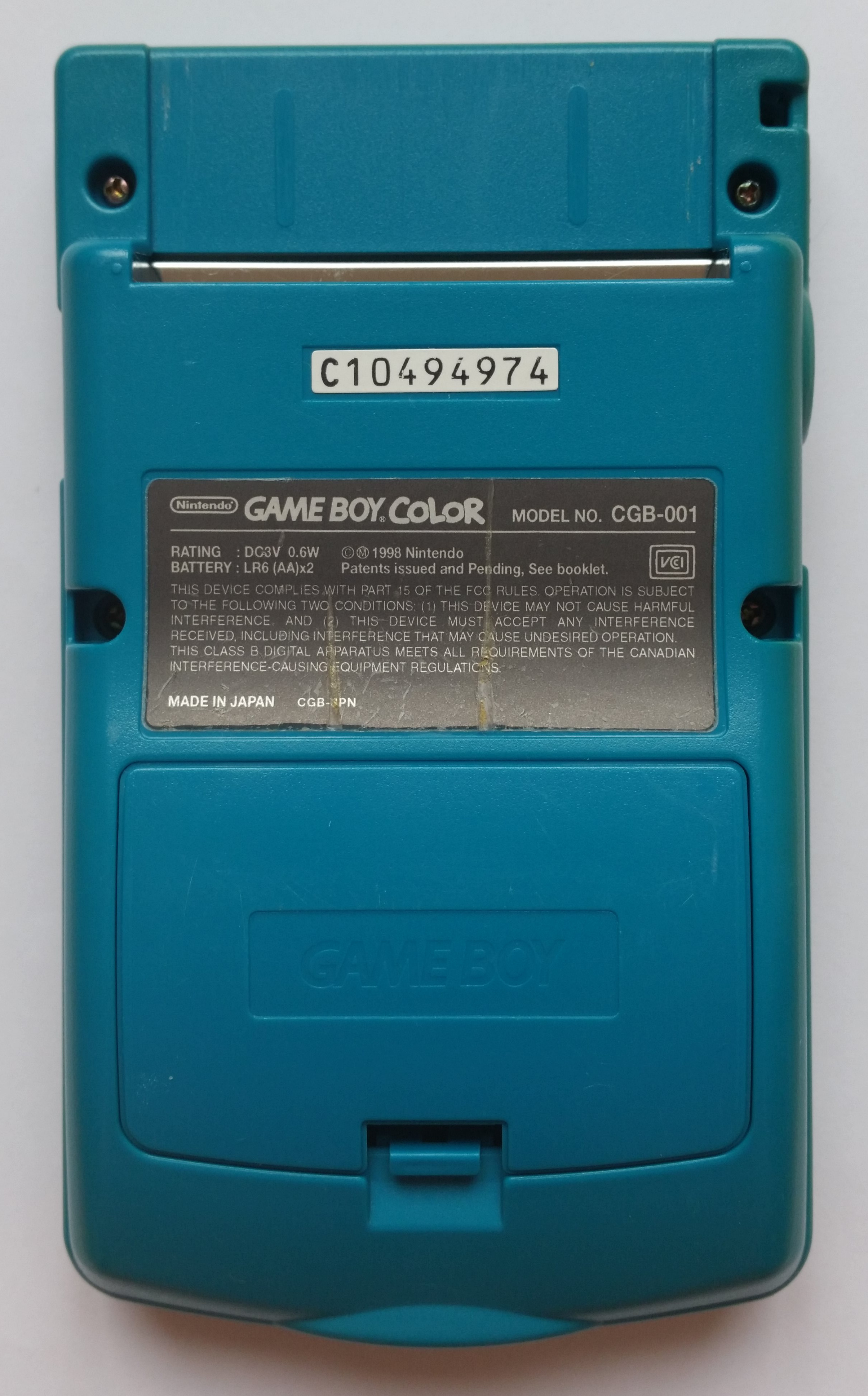

Front side of Game Boy ColorBack side of Game Boy Color

Color
teal
Release code
CGB-JPN
Assembly date
Week 41/1998

Mainboard

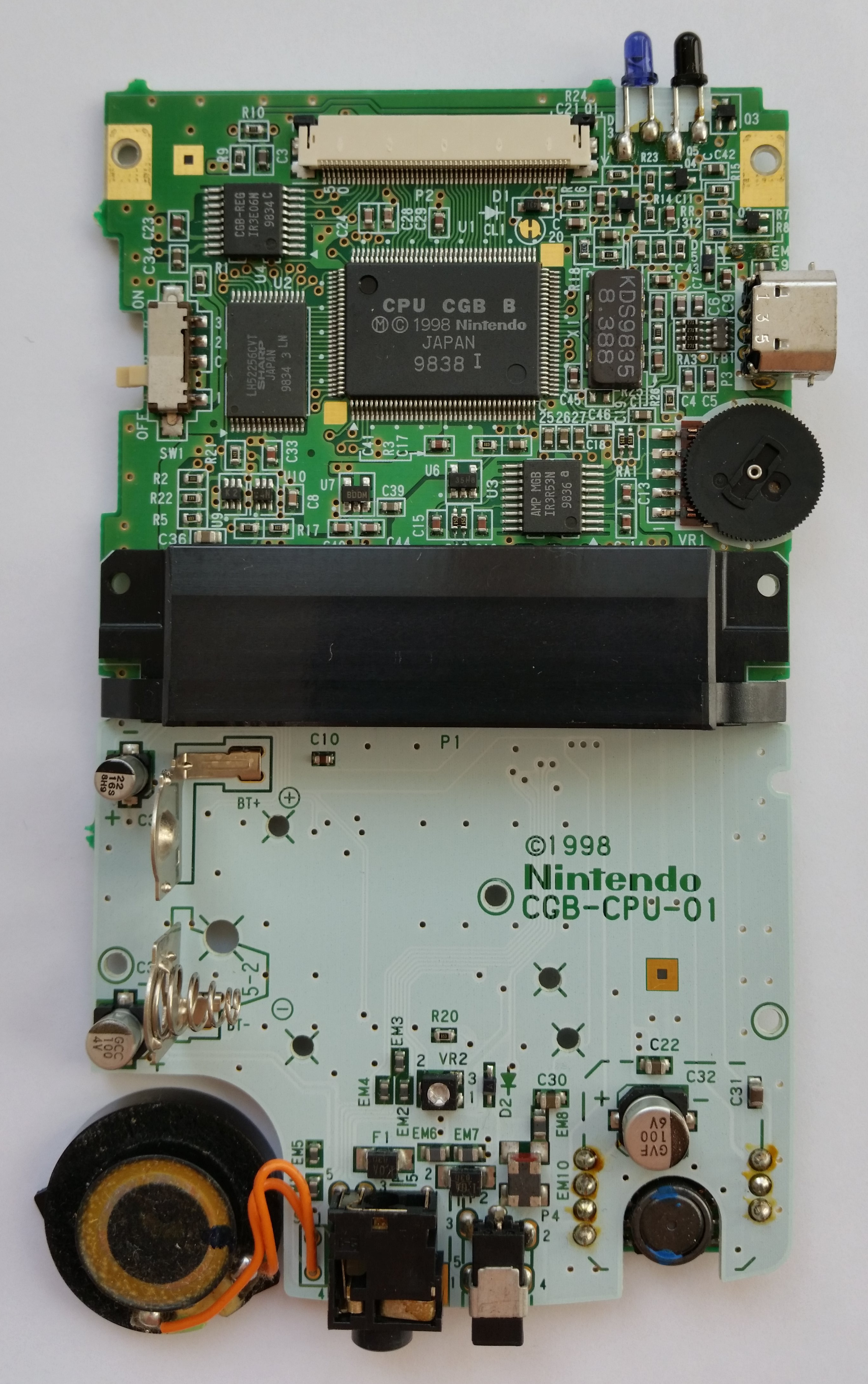

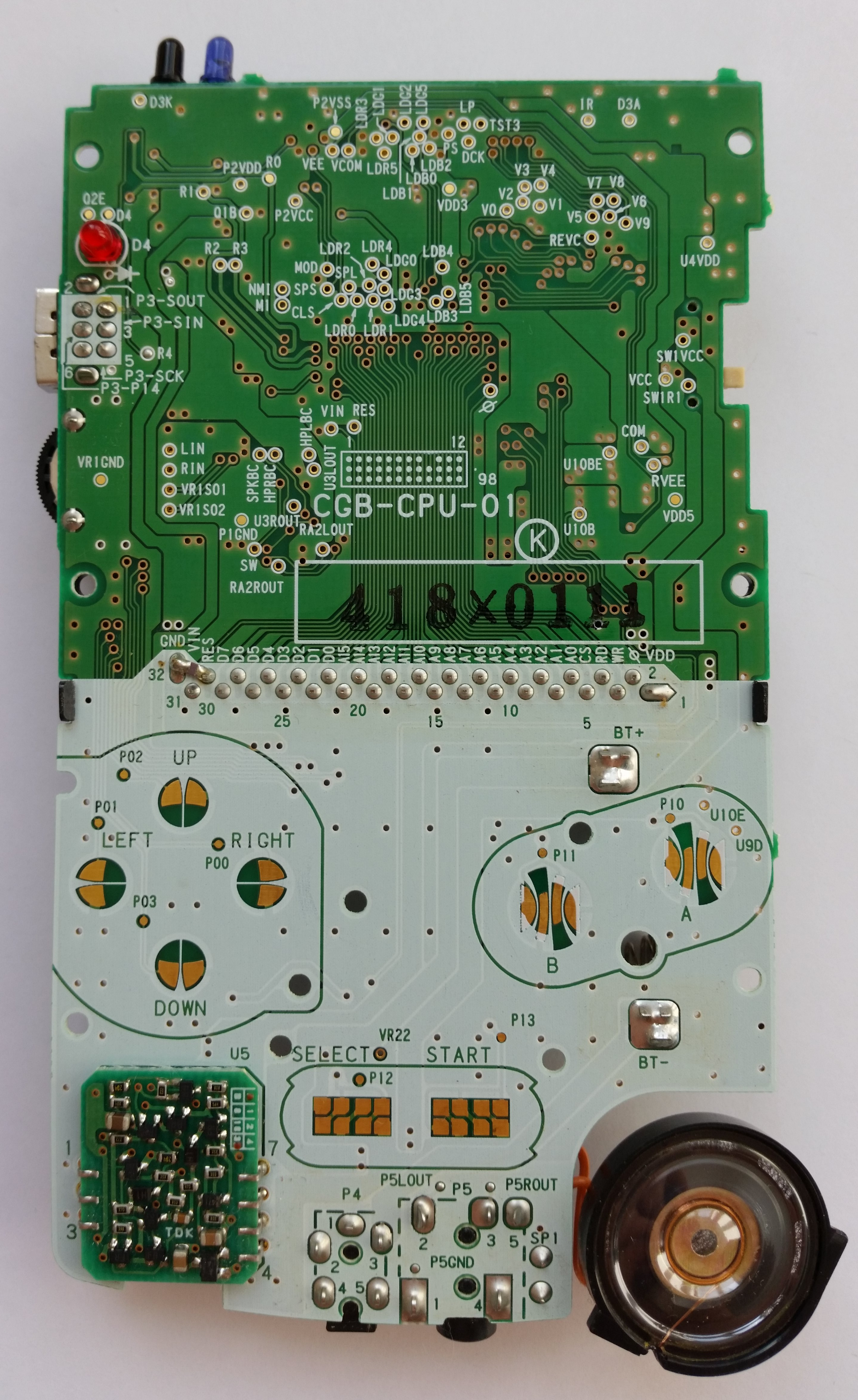

Front side of Game Boy Color circuit boardBack side of Game Boy Color circuit board

Board type
CGB-CPU-01
Manufacture date
September/1998
Number pair on front
-
Number pair on back
5-2
Stamp on board
418×0111
Circled letter(s) on board
K
Extra stamp on front
-
Extra stamp on back
-

LCD Panel

Panel label
LQ023B2DD01 89Y02924581

Chips

 ChipTypeManufacturerDateLabel
U1CPUCPU CGB BSharpWeek 38/1998
CPU CGB B
Ⓜ © 1998 Nintendo
JAPAN
9838 I
U2Work RAMLH52256CVTSharpWeek 34/1998
LH52256CVT
SHARP
JAPAN
9834 3 LN
U3AmplifierIR3R53NSharpWeek 36/1998
AMP MGB
IR3R53N
9836 a
U4LCD RegulatorIR3E06NSharpWeek 34/1998
CGB-REG
IR3E06N
9834 C
X1CrystalKDS 8.388DaishinkuWeek 35/1998
KDS9835
8.388

Notes

none

Misc

CPU works
yes
