CGB: [iceboy] #12 - C10102372

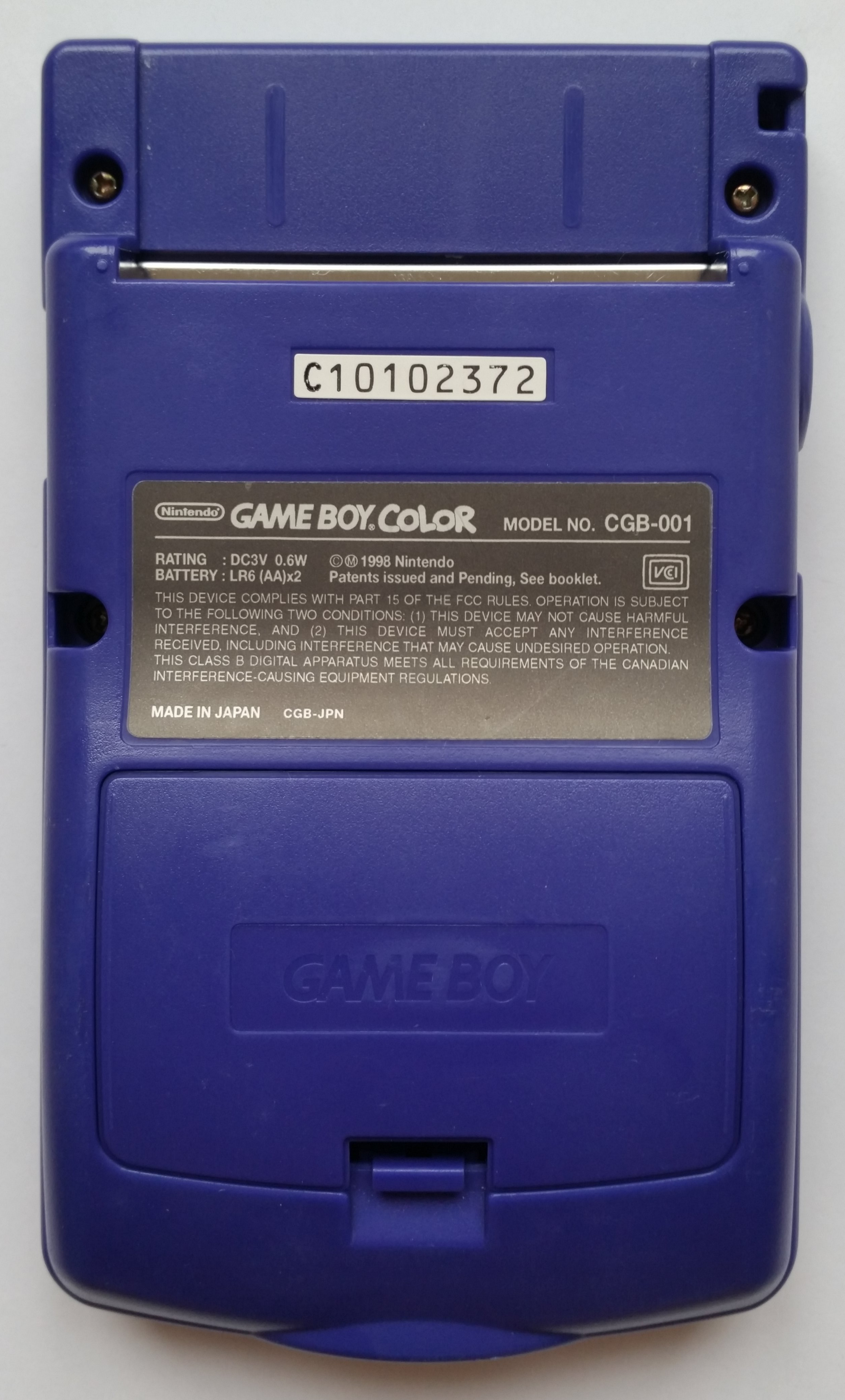

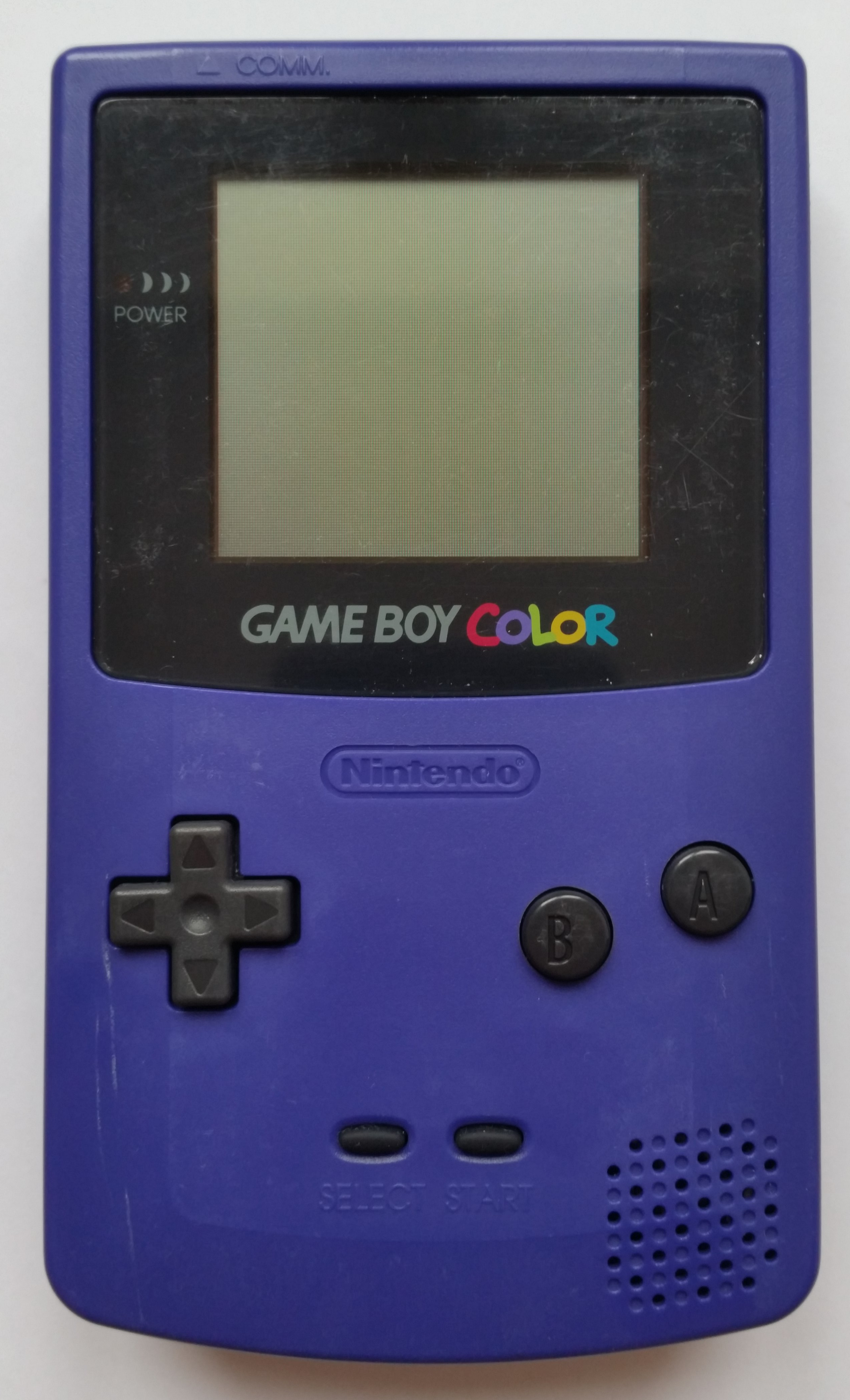

Front side of Game Boy ColorBack side of Game Boy Color

Color
grape
Release code
CGB-JPN
Assembly date
Week 38/1998

Mainboard

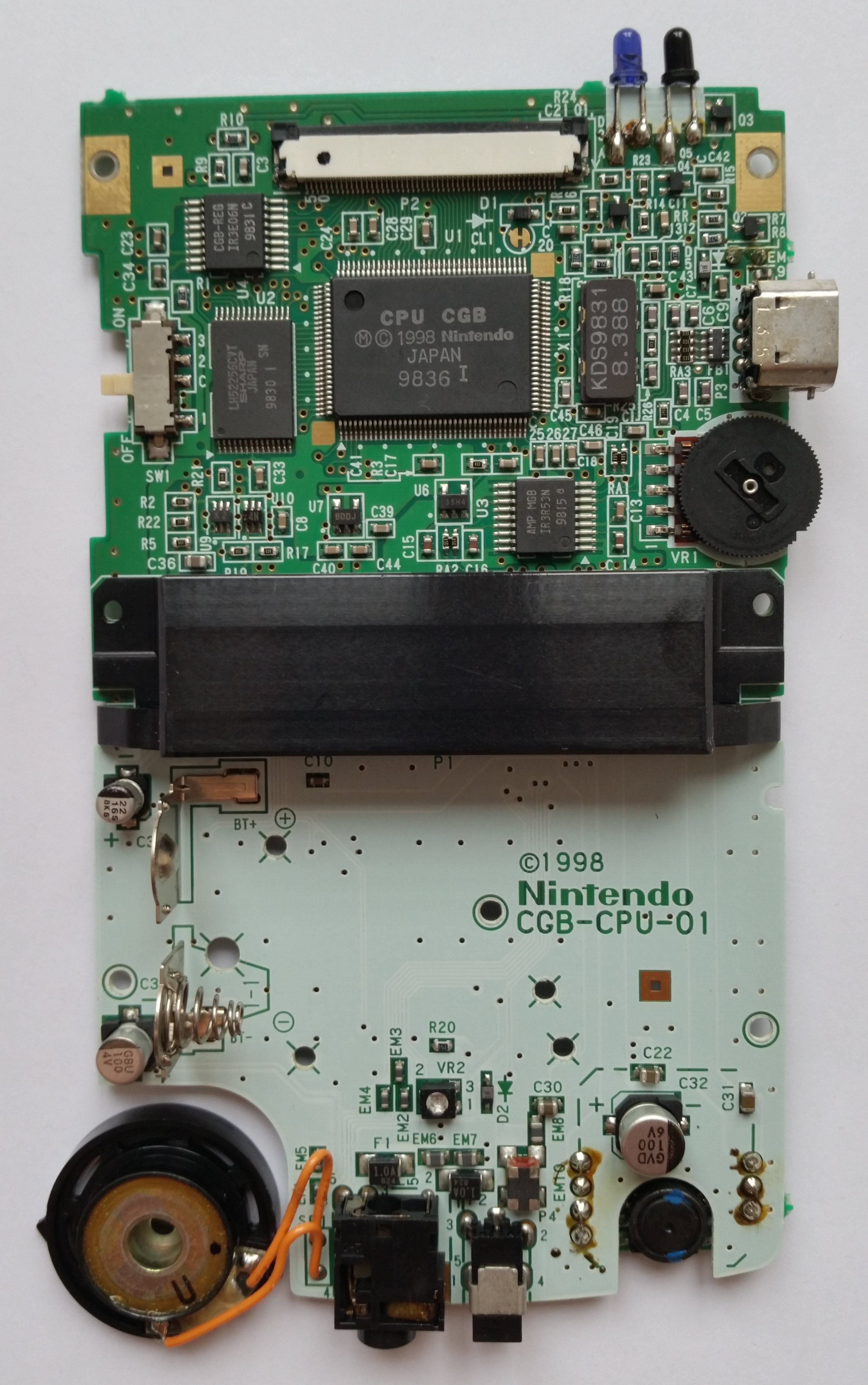

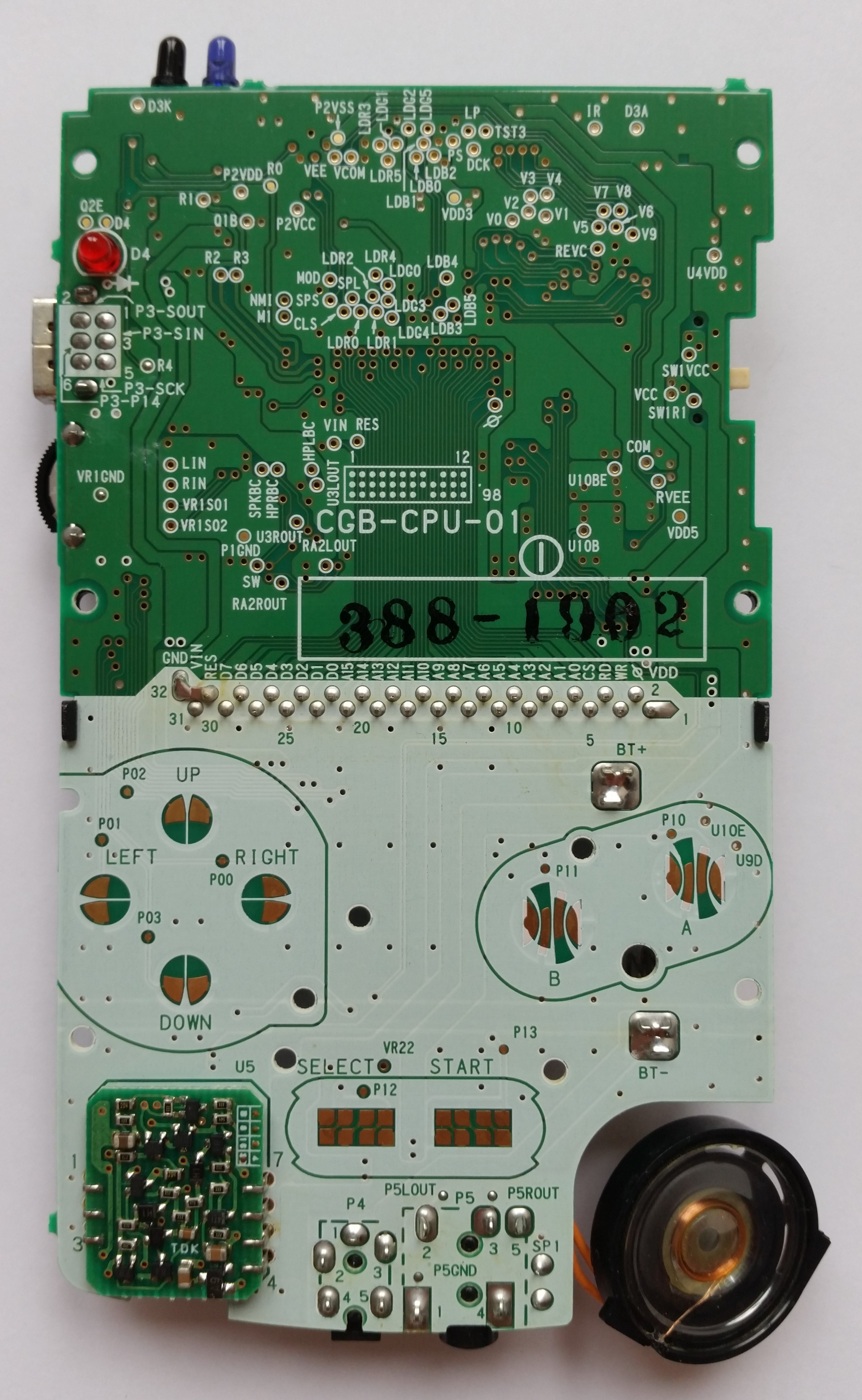

Front side of Game Boy Color circuit boardBack side of Game Boy Color circuit board

Board type
CGB-CPU-01
Manufacture date
August/1998 - September/1998
Number pair on front
-
Number pair on back
1-1
Stamp on board
388-1002
Circled letter(s) on board
I
Extra stamp on front
-
Extra stamp on back
-

LCD Panel

Panel label
-

Chips

 ChipTypeManufacturerDateLabel
U1CPUCPU CGBSharpWeek 36/1998
CPU CGB
Ⓜ © 1998 Nintendo
JAPAN
9836 I
U2Work RAMLH52256CVTSharpWeek 30/1998
LH52256CVT
SHARP
JAPAN
9830 I SN
U3AmplifierIR3R53NSharpWeek 15/1998
AMP MGB
IR3R53N
9815 a
U4LCD RegulatorIR3E06NSharpWeek 31/1998
CGB-REG
IR3E06N
9831 C
X1CrystalKDS 8.388DaishinkuWeek 31/1998
KDS9831
8.388

Notes

- Polarization filter got a little burn and a bubble after I obtained the device, even though it never was exposed to sunlight.

Misc

CPU works
yes
