CGB: [iceboy] #11 - C12583636

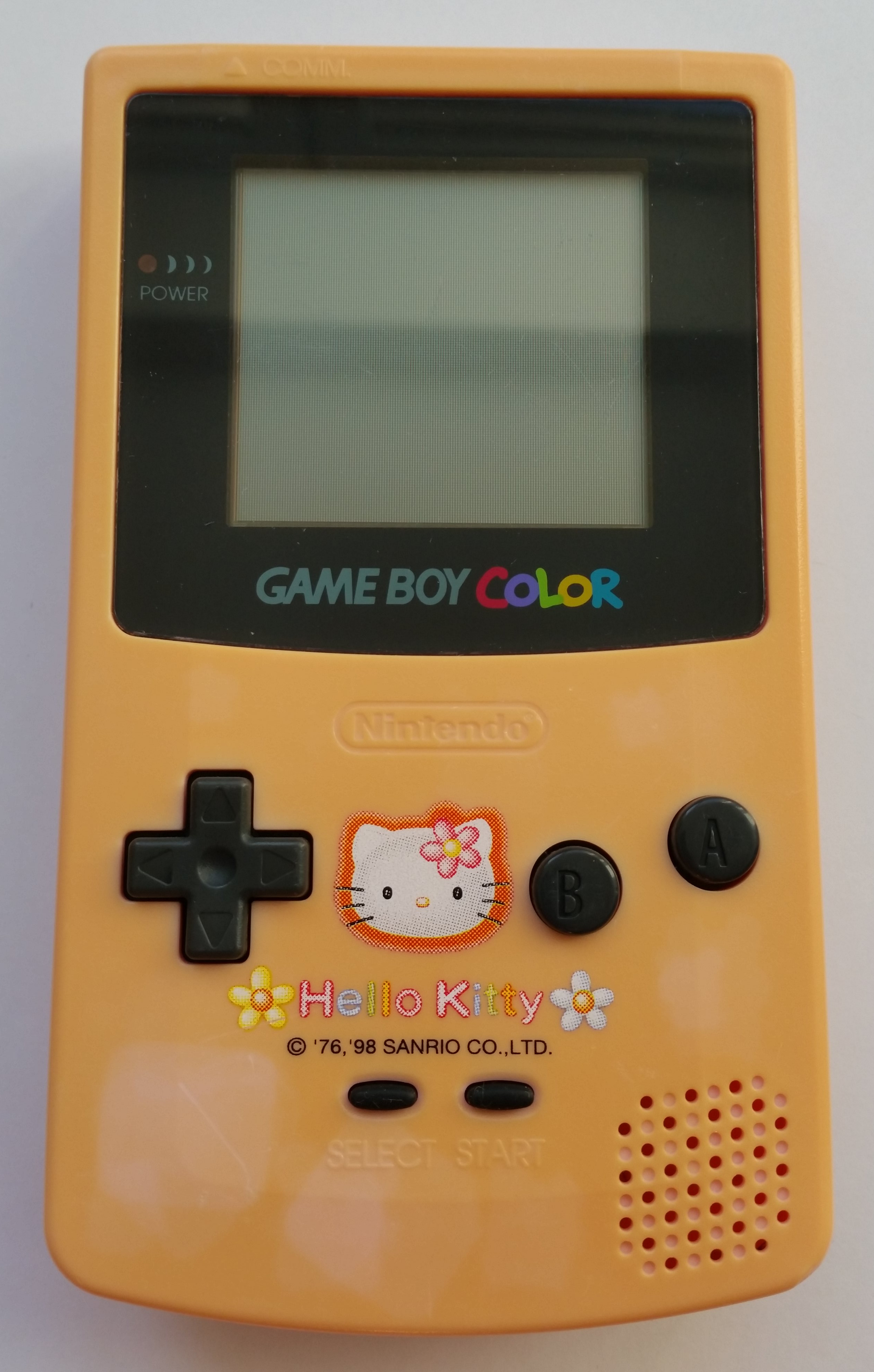

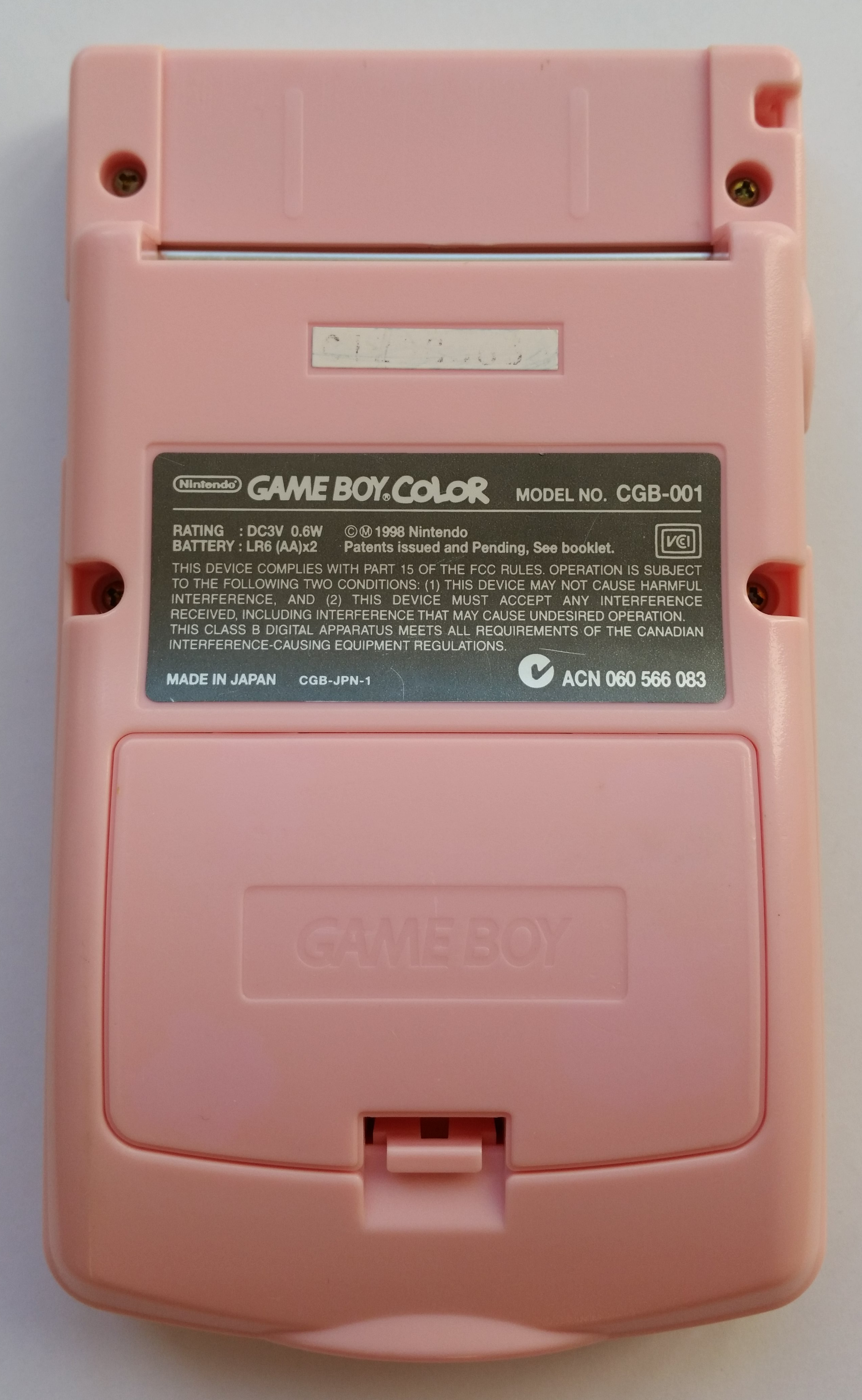

Front side of Game Boy ColorBack side of Game Boy Color

Color
hello-kitty-box1
Release code
CGB-JPN-1
Assembly date
Week 48/1998

Mainboard

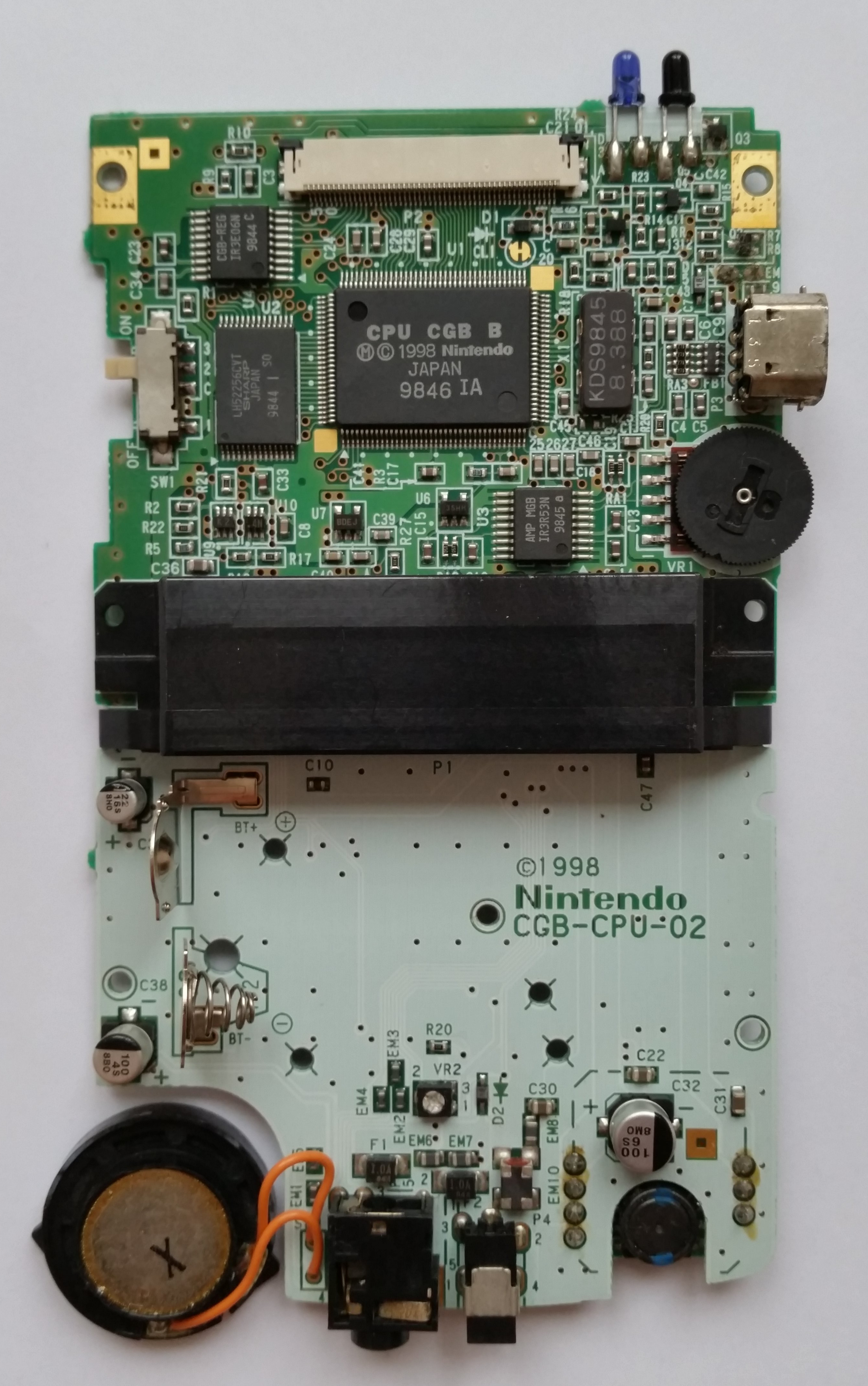

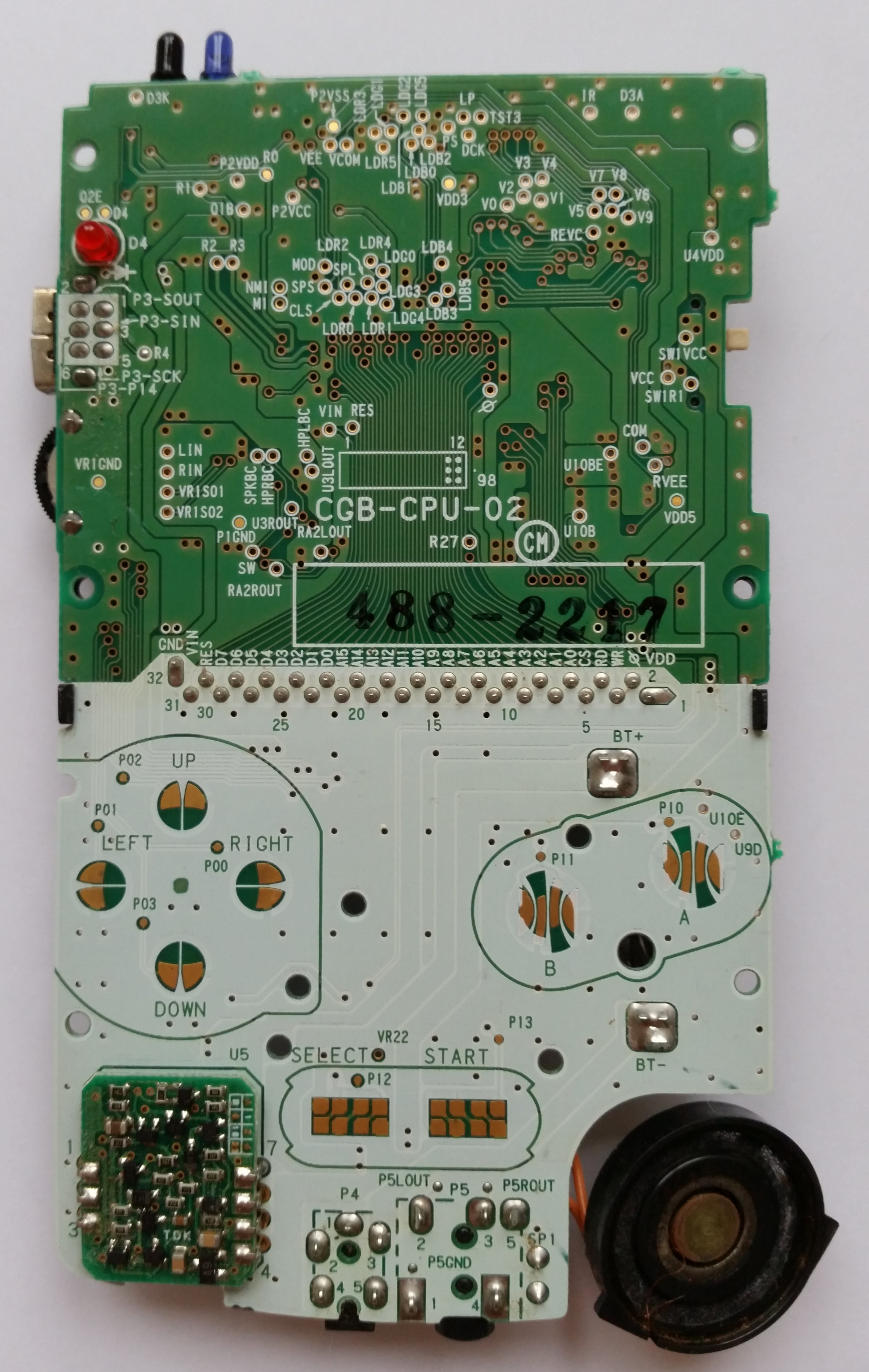

Front side of Game Boy Color circuit boardBack side of Game Boy Color circuit board

Board type
CGB-CPU-02
Manufacture date
October/1998
Number pair on front
-
Number pair on back
1-2
Stamp on board
488-2217
Circled letter(s) on board
CM
Extra stamp on front
-
Extra stamp on back
-

LCD Panel

Panel label
LQ023B2DD01 8YS17122483

Chips

 ChipTypeManufacturerDateLabel
U1CPUCPU CGB BSharpWeek 46/1998
CPU CGB B
Ⓜ © 1998 Nintendo
JAPAN
9846 IA
U2Work RAMLH52256CVTSharpWeek 44/1998
LH52256CVT
SHARP
JAPAN
9844 I SO
U3AmplifierIR3R53NSharpWeek 45/1998
AMP MGB
IR3R53N
9845 a
U4LCD RegulatorIR3E06NSharpWeek 44/1998
CGB-REG
IR3E06N
9844 C
X1CrystalKDS 8.388DaishinkuWeek 45/1998
KDS9845
8.388

Notes

- Speaker membrane was loose and coil was corroded away:
    -> Garbage
    -> Attached replica part
- Power switch does not always make contact

Misc

CPU works
yes
