CGB: [iceboy] #10 - C21579015

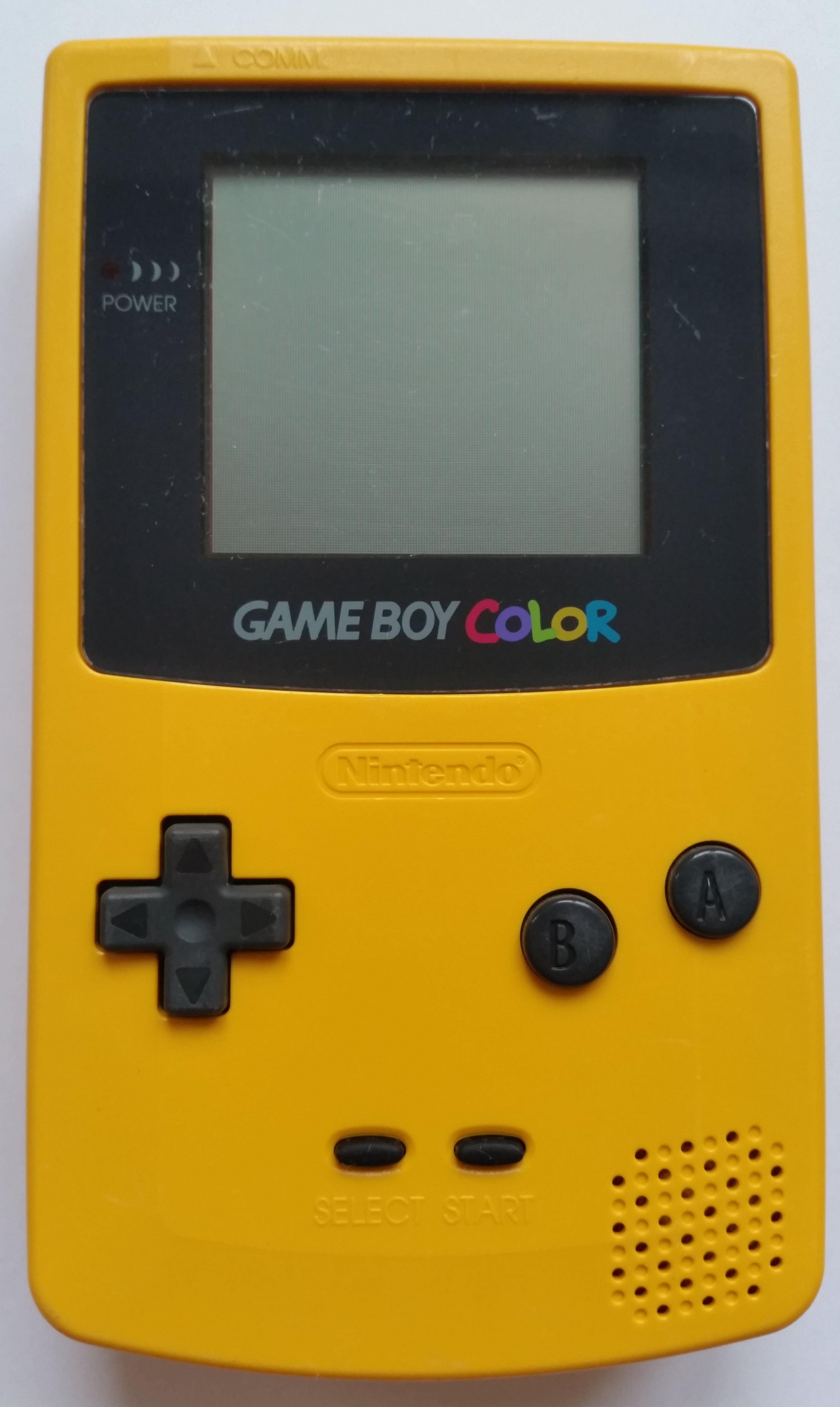

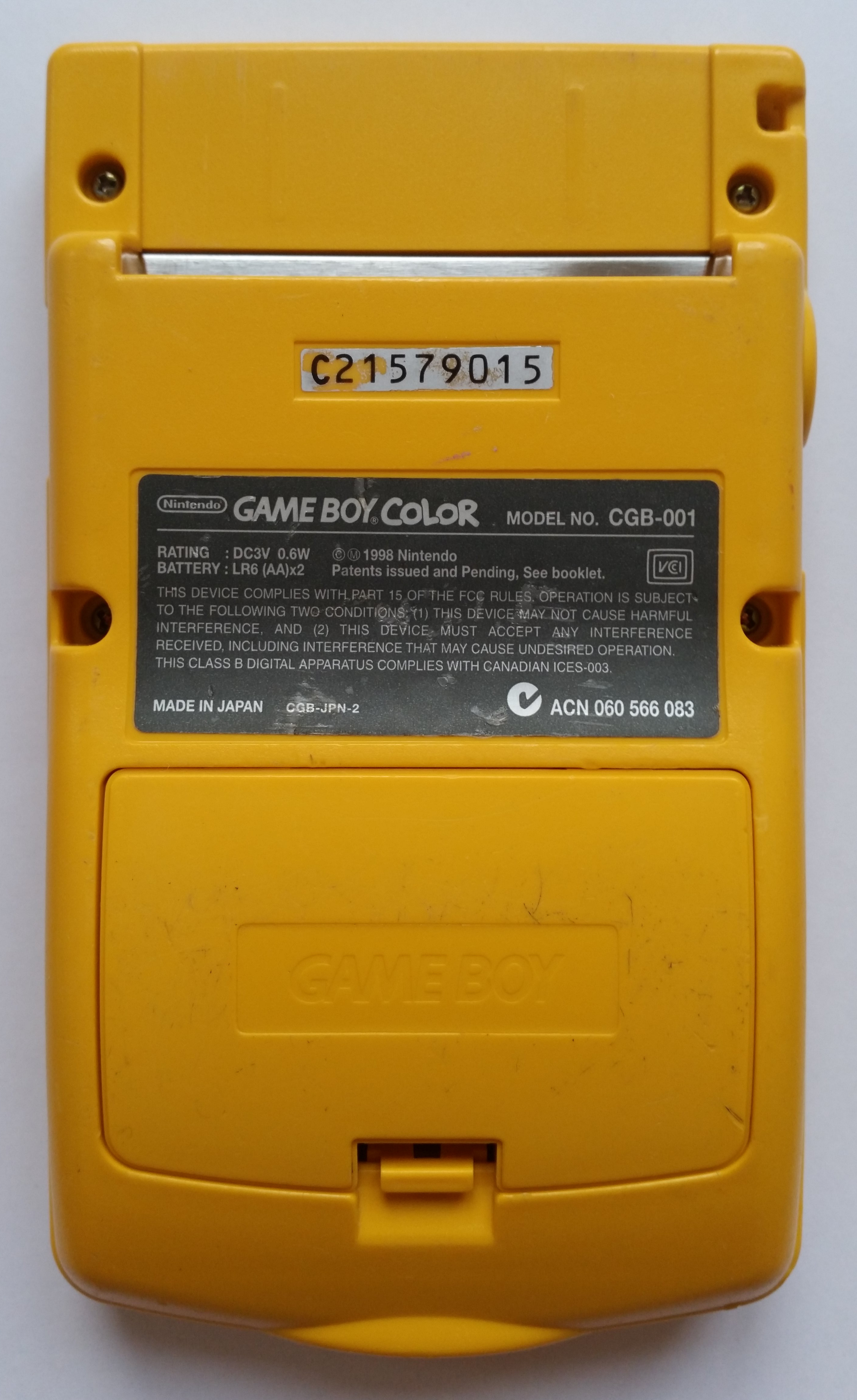

Front side of Game Boy ColorBack side of Game Boy Color

Color
dandelion
Release code
CGB-JPN-2
Assembly date
Week 3/2001

Mainboard

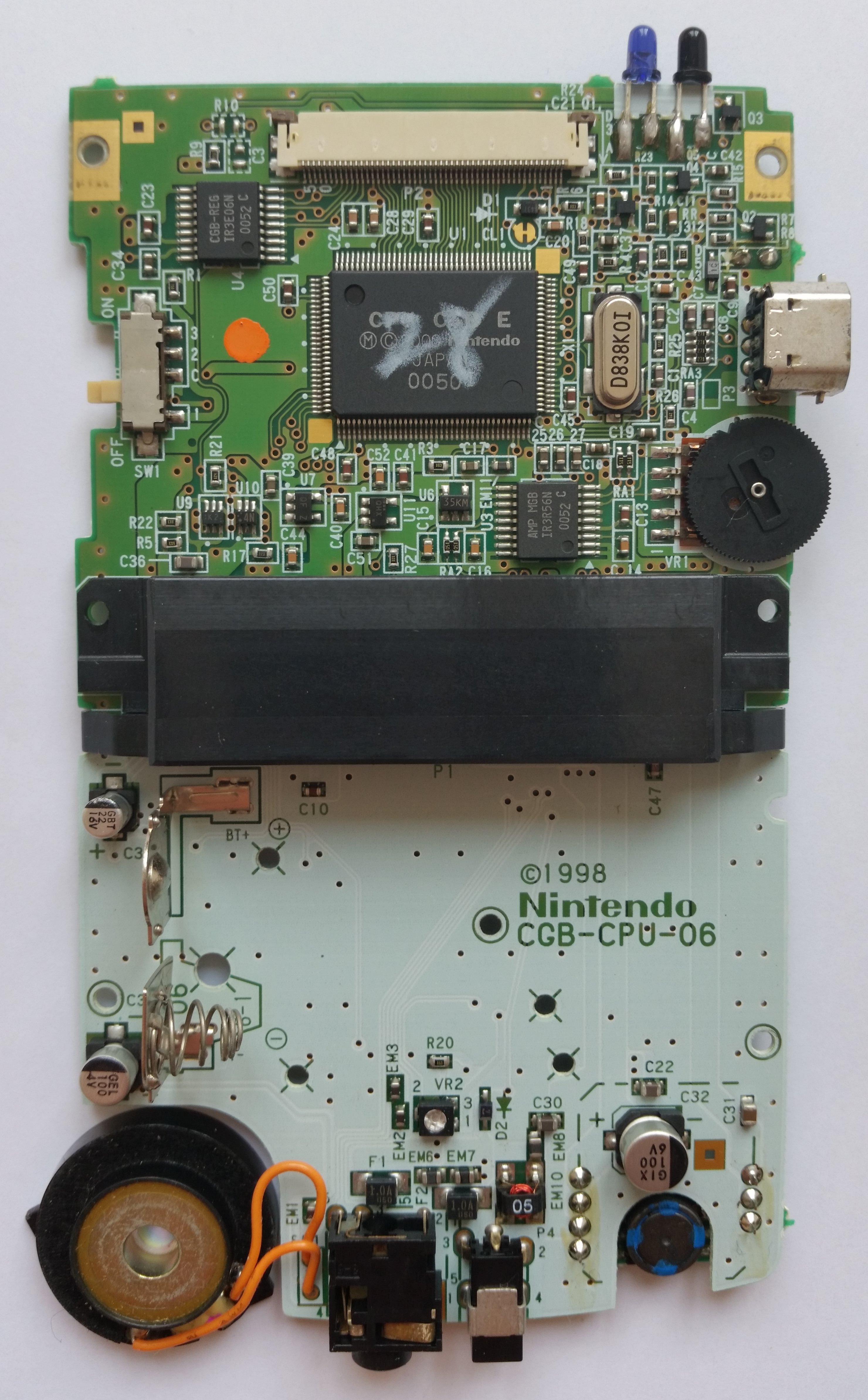

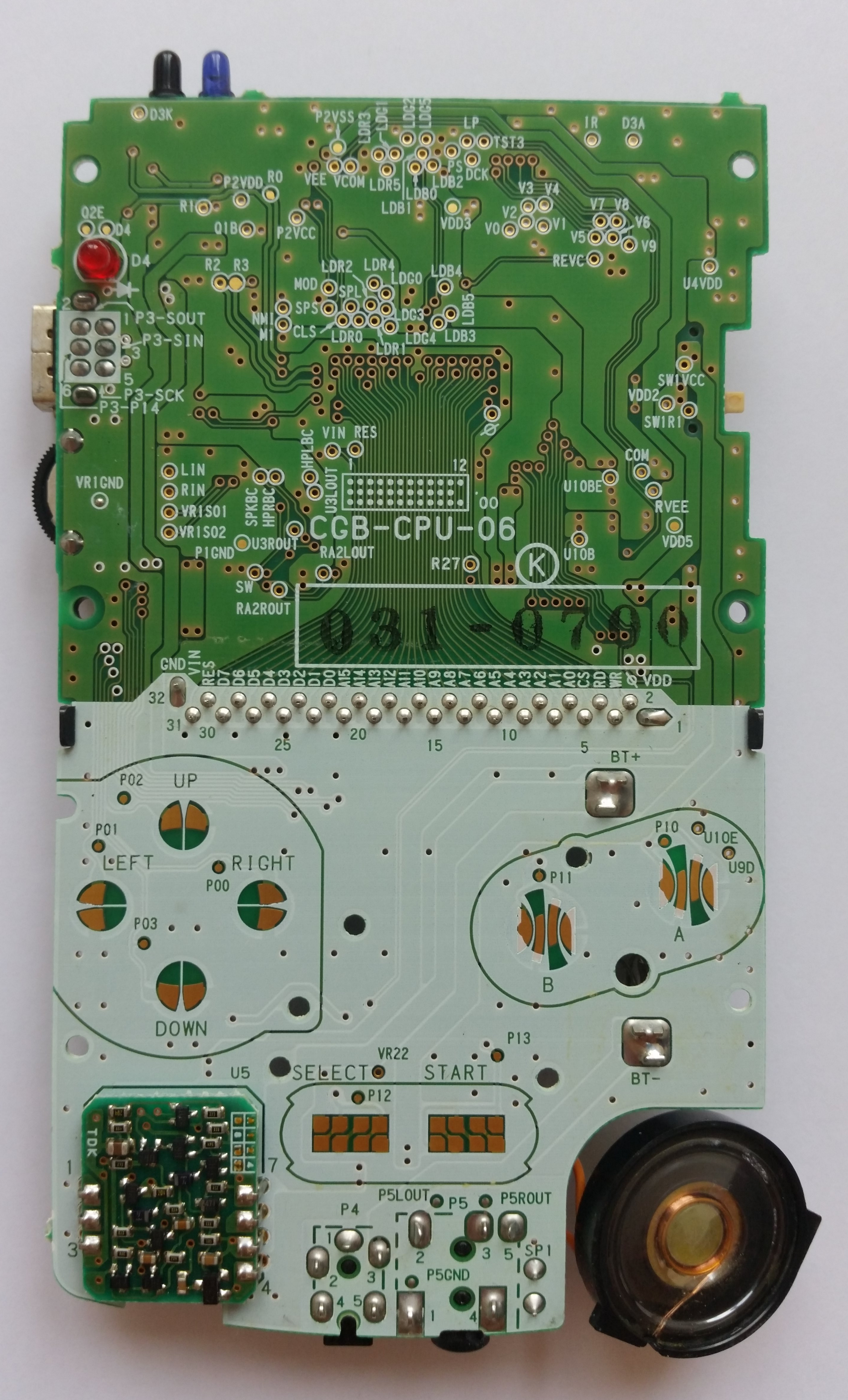

Front side of Game Boy Color circuit boardBack side of Game Boy Color circuit board

Board type
CGB-CPU-06
Manufacture date
December/2000
Number pair on front
-
Number pair on back
6-1
Stamp on board
031-0700
Circled letter(s) on board
K
Extra stamp on front
-
Extra stamp on back
-

LCD Panel

Panel label
???23B2DD01A 11S01265232

Chips

 ChipTypeManufacturerDateLabel
U1CPUCPU CGB ESharpWeek 50/2000
CPU CGB E
Ⓜ © 2000 Nintendo
JAPAN
0050 I
-Work RAMCPU internal
U3AmplifierIR3R56NSharpWeek 52/2000
AMP MGB
IR3R56N
0052 C
U4LCD RegulatorIR3E06NSharpWeek 52/2000
CGB-REG
IR3E06N
0052 C
X1CrystalD838?October/2000
D838K0I

Notes

none

Misc

CPU works
yes
