CGB: [iceboy] #1 - CH12139347

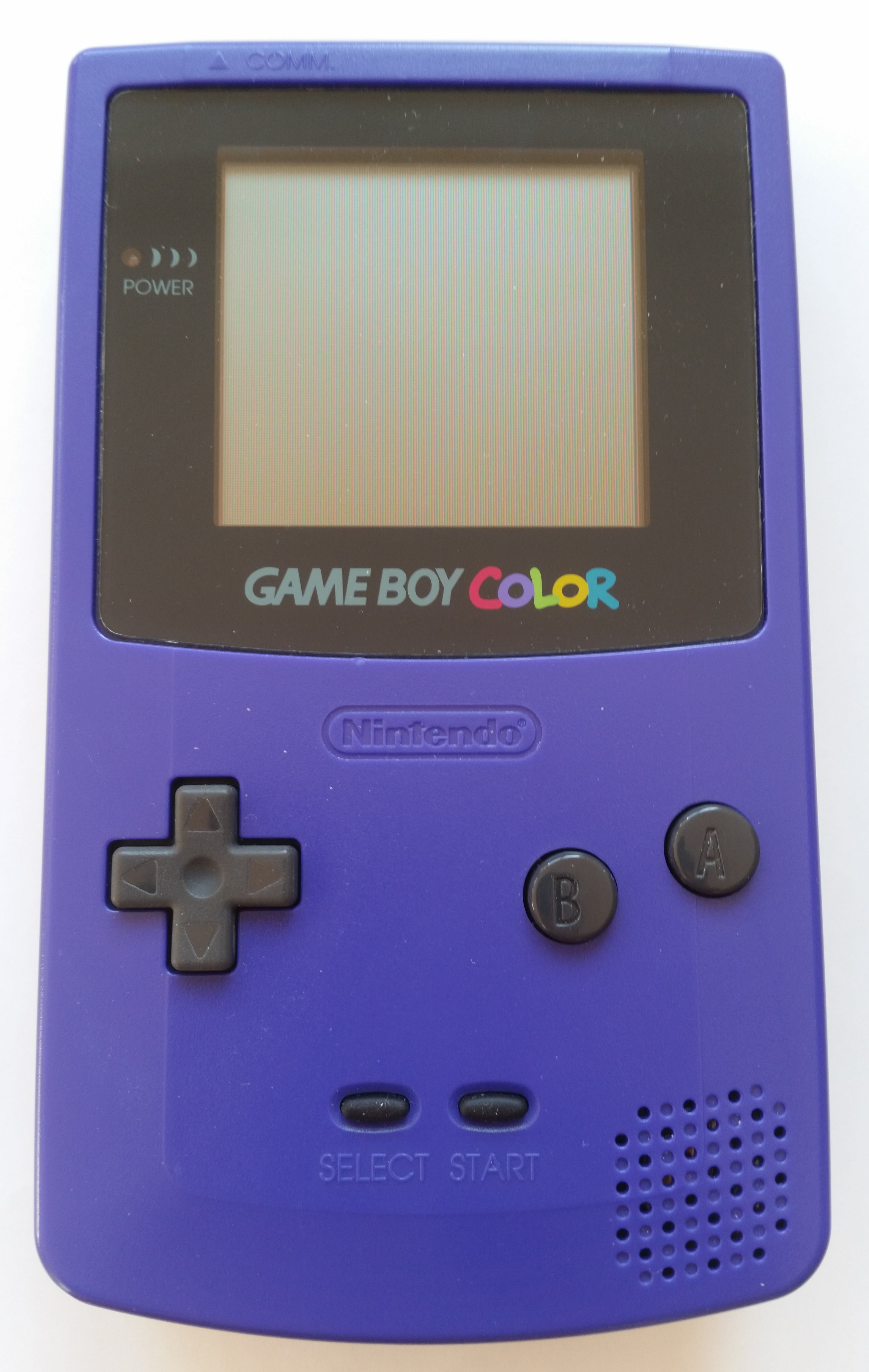

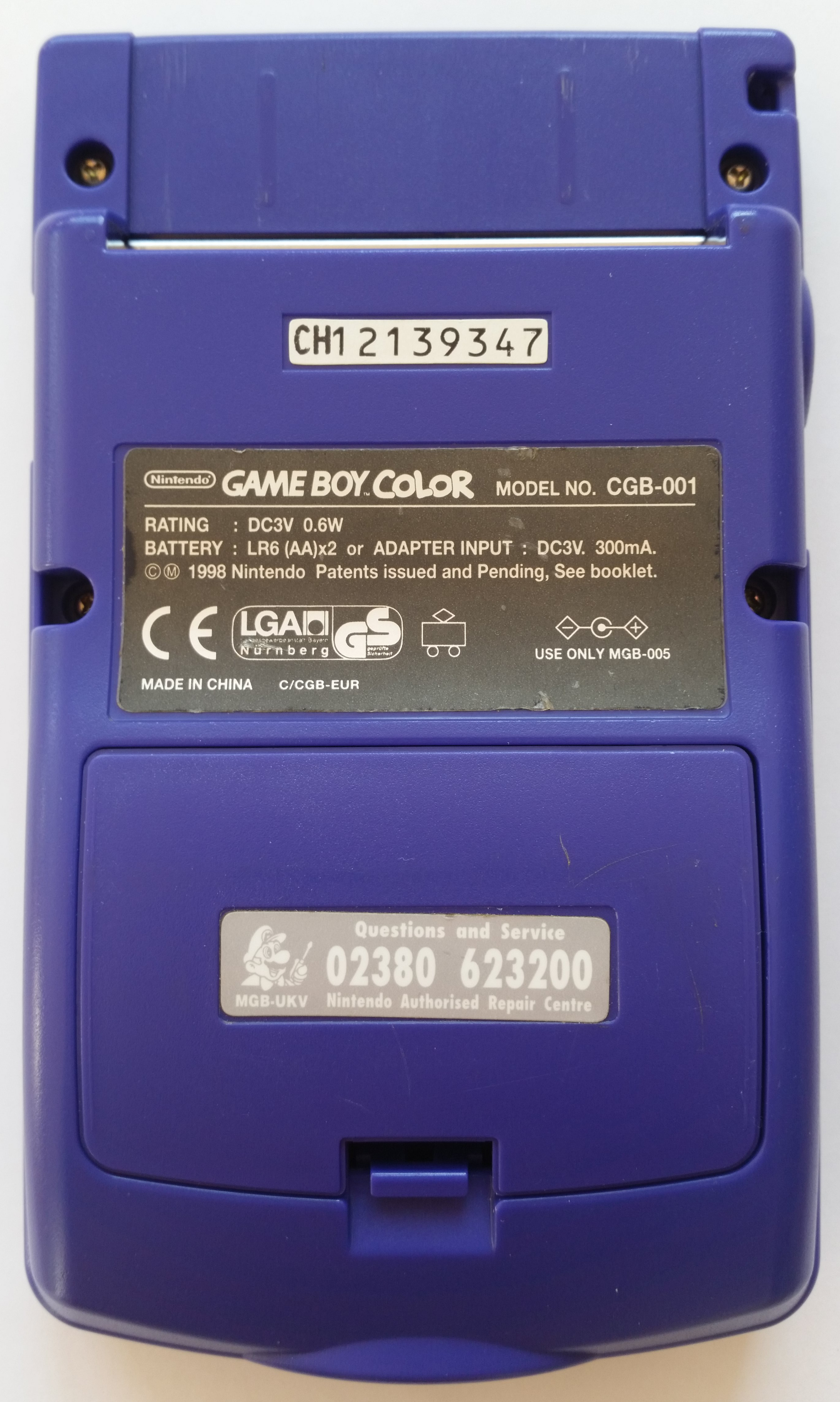

Front side of Game Boy ColorBack side of Game Boy Color

Color
grape
Release code
C/CGB-EUR
Assembly date
Week 40/1999

Mainboard

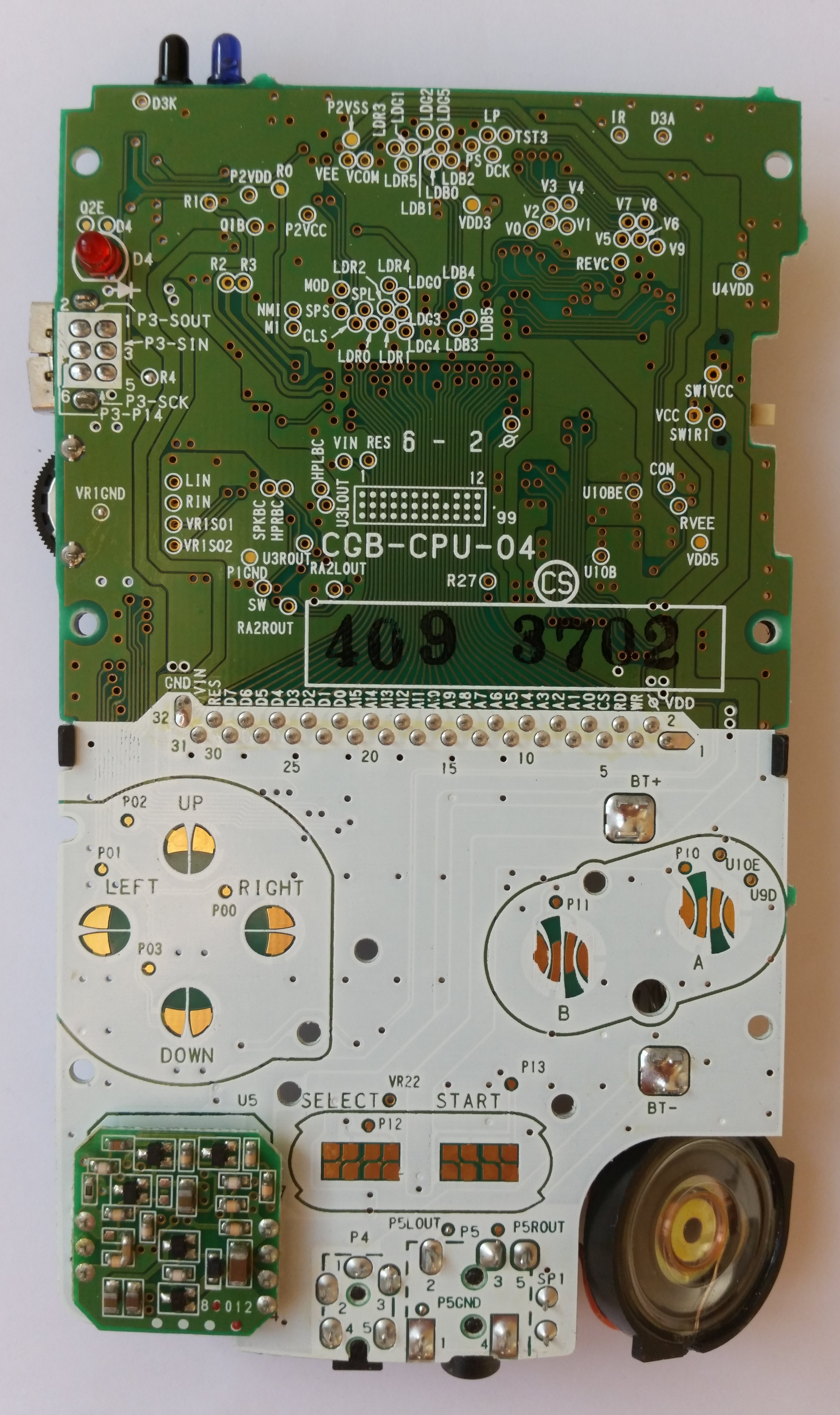

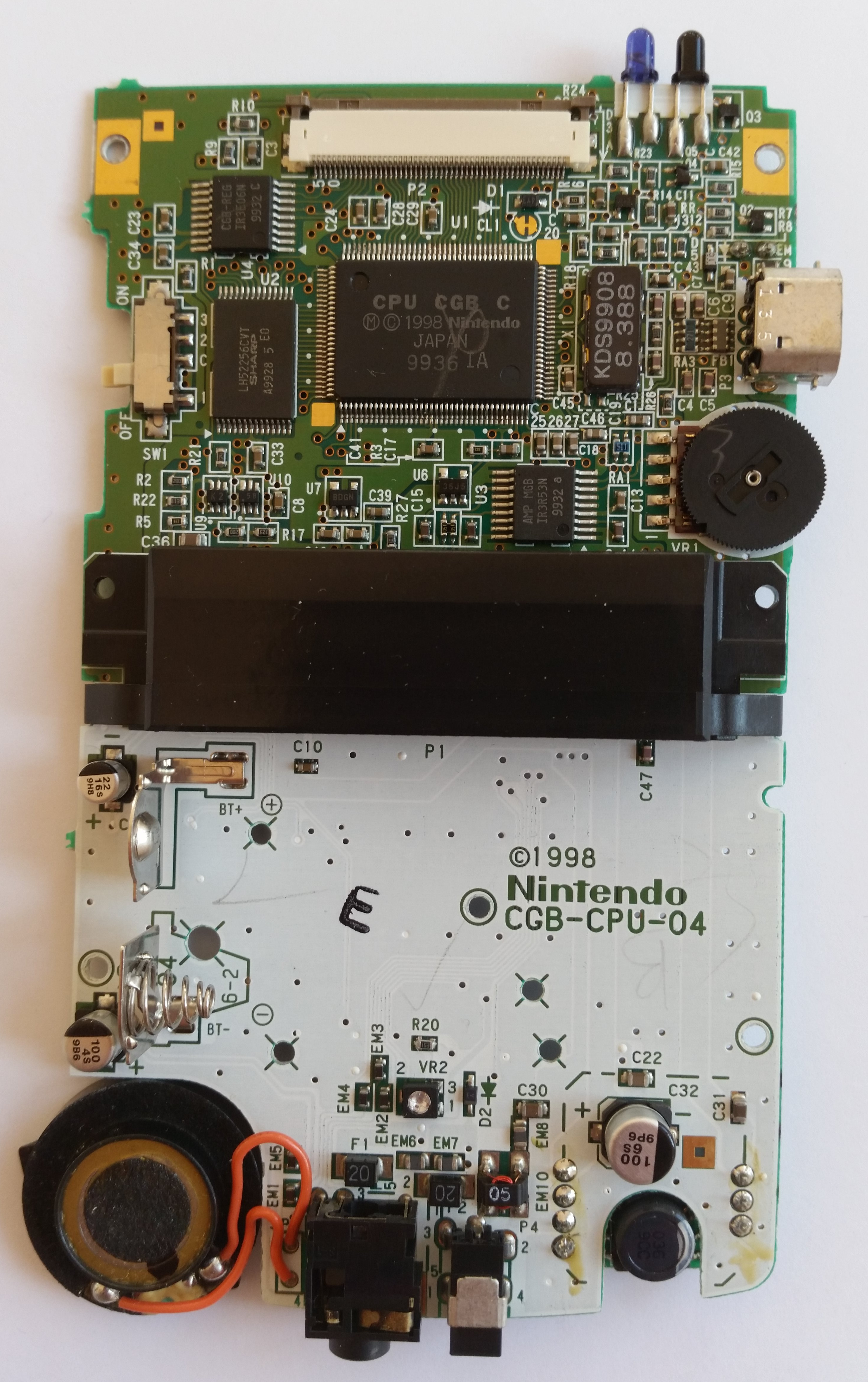

Front side of Game Boy Color circuit boardBack side of Game Boy Color circuit board

Board type
CGB-CPU-04
Manufacture date
September/1999
Number pair on front
6-2
Number pair on back
6-2
Stamp on board
409 3702
Circled letter(s) on board
CS
Extra stamp on front
-
Extra stamp on back
E

LCD Panel

Panel label
?

Chips

 ChipTypeManufacturerDateLabel
U1CPUCPU CGB CSharpWeek 36/1999
CPU CGB C
Ⓜ © 1998 Nintendo
JAPAN
9936 IA
U2Work RAMLH52256CVTSharpWeek 28/1999
LH52256CVT
SHARP
A9928 5 E0
U3AmplifierIR3R53NSharpWeek 32/1999
AMP MGB
IR3R53N
9932 a
U4LCD RegulatorIR3E06NSharpWeek 32/1999
CGB-REG
IR3E06N
9932 C
X1CrystalKDS 8.388DaishinkuWeek 8/1999
KDS9908
8.388

Notes

none

Misc

CPU works
yes
