DMG-ZLE-0: [iceboy] #1 - Legend of Zelda, The - Link's Awakening (UE) (V1.0) [!]

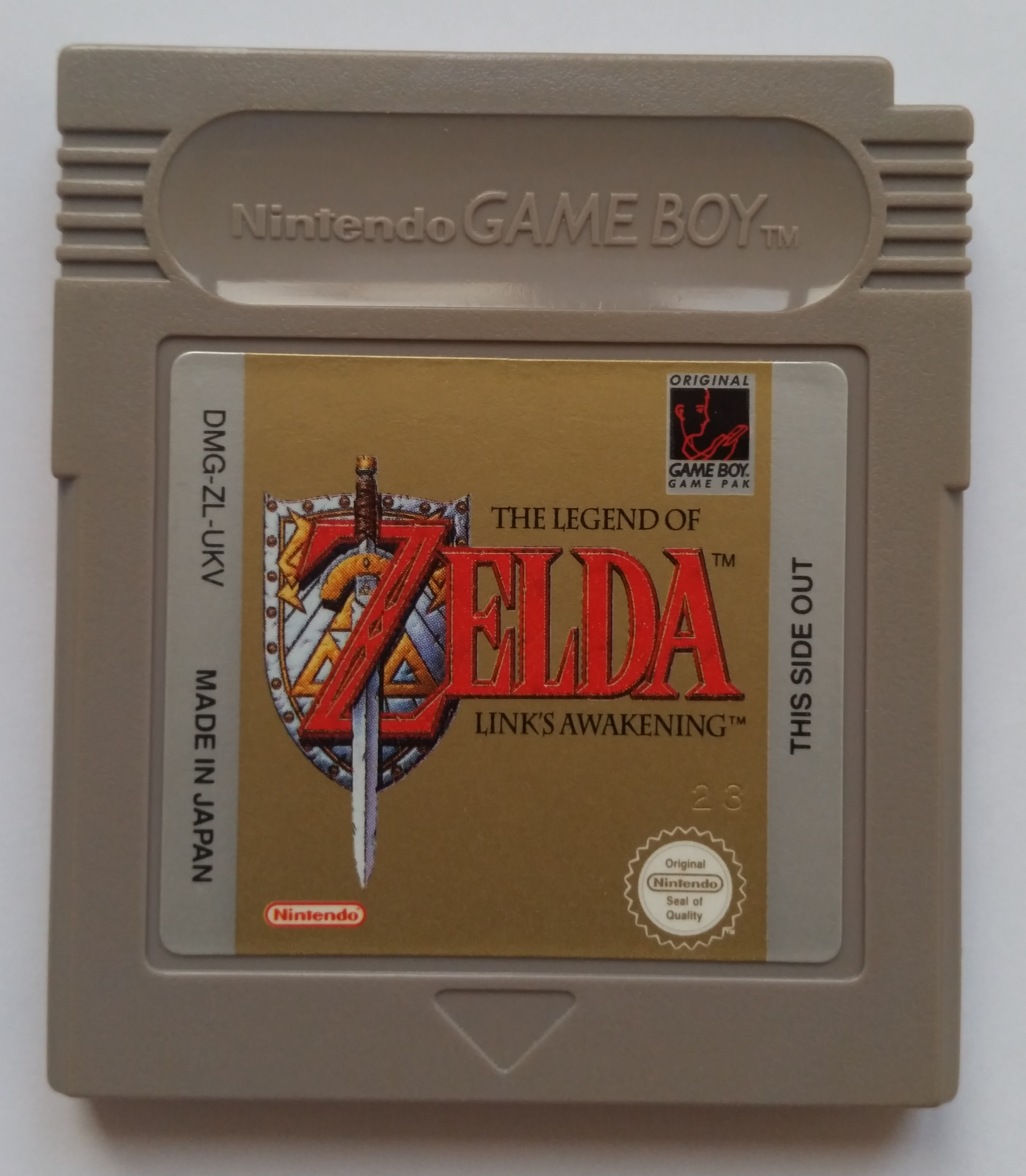

![Front side of Legend of Zelda, The - Link's Awakening (UE) (V1.0) [!] Game Boy cartridge](cart_DMG-ZLE-0_iceboy_1/front.jpg)
- Release
- DMG-ZL-UKV
- Stamp on case
- 23
- Color
- grey
- CGB only shell (has no dent for DMG power slider)
- no
- SGB logo
- no
Board

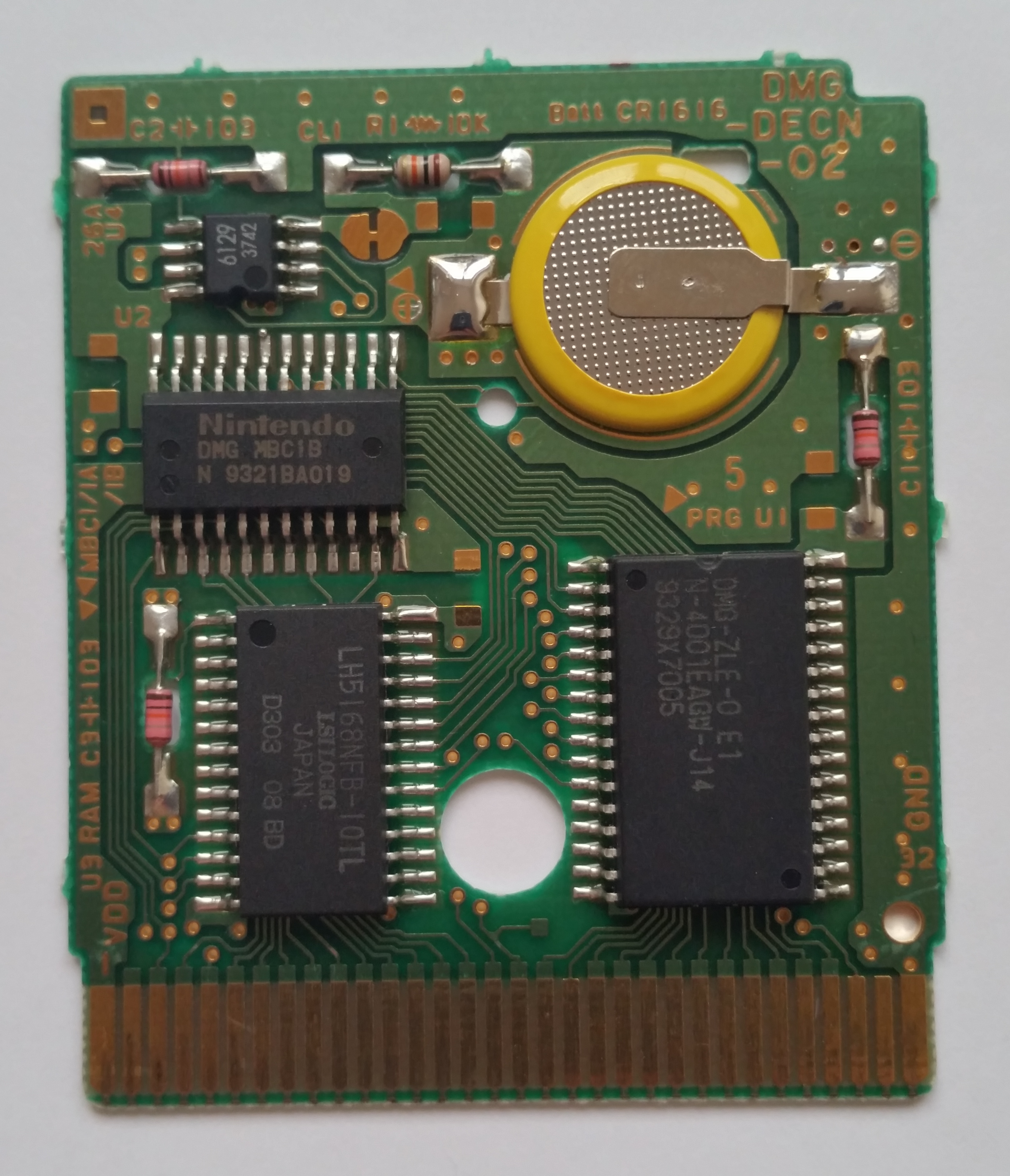

![Front side of Legend of Zelda, The - Link's Awakening (UE) (V1.0) [!] Game Boy cartridge circuit board](cart_DMG-ZLE-0_iceboy_1/pcb_front.jpg)

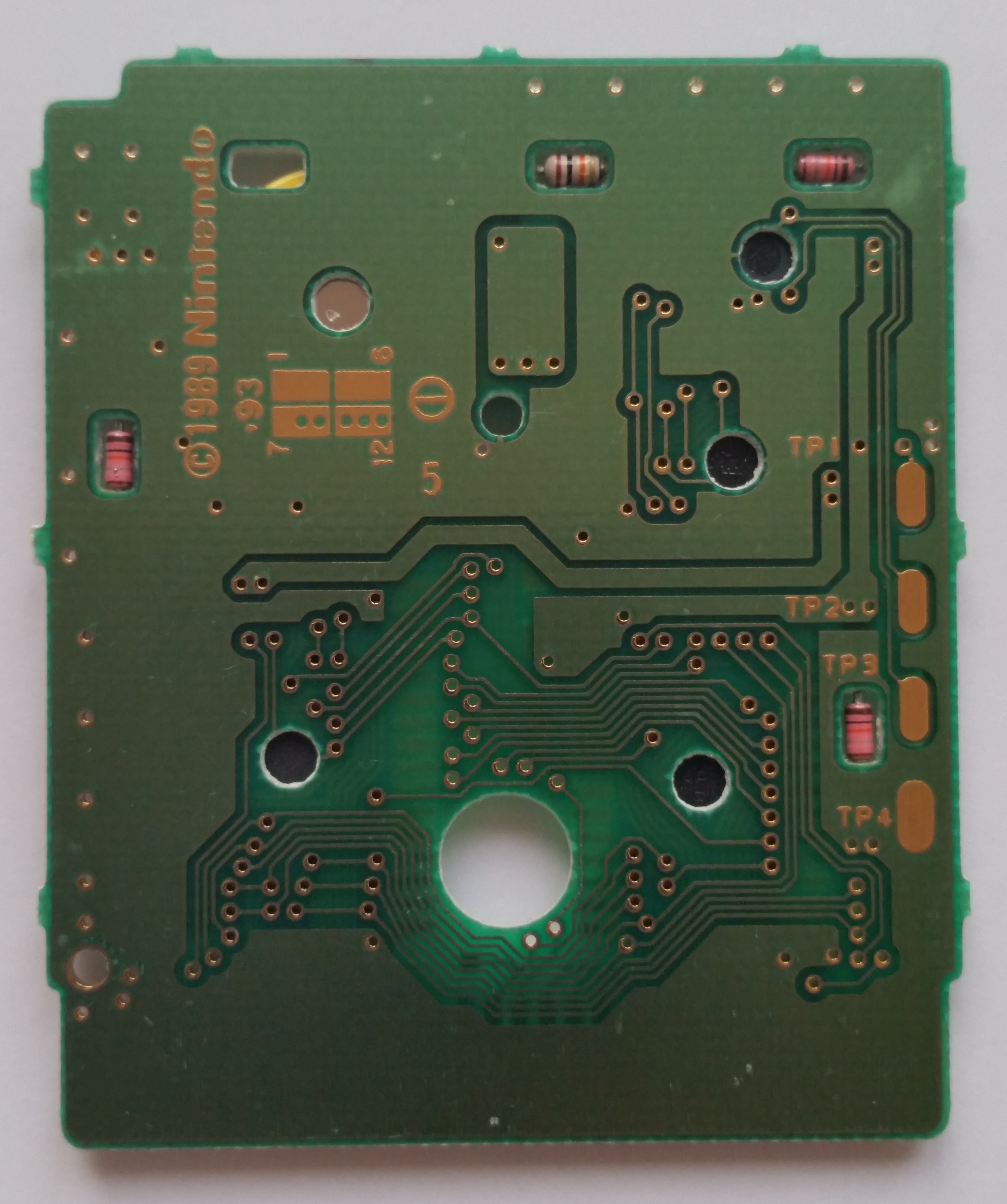

![Back side of Legend of Zelda, The - Link's Awakening (UE) (V1.0) [!] Game Boy cartridge circuit board](cart_DMG-ZLE-0_iceboy_1/pcb_back.jpg)
- Board type
- DMG-DECN-02
- Manufacture date
- July/1993
- Circled letter(s) on board
- I
- Extra label
- 5
- Battery type
- CR1616
- Battery manufacturer
- Maxell
- Battery manufacture date
- June/1993
Chips
| | Chip | Type | Manufacturer | Date | Label |
|---|
| U1 | ROM | N-4001EAGW | ? | Week 29/1993 | DMG-ZLE-0 E1
N-4001EAGW-J14
9329X7005 |
| U2 | Mapper | MBC1B | NEC | Week 21/1993 | Nintendo
DMG MBC1B
N 9321BA019 |
| U3 | RAM | LH5168NFB-10TL | LSI Logic | Week 3/1993 | LH5168NFB-10TL
LSI LOGIC
JAPAN
D303 08 BD |
| U4 | PMIC | BA6129 | ROHM | 1993 | 6129
3742 |
ROM
- Game title
- "ZELDA" (5 bytes)
- Game code
- ""
- CGB support
- incompatible
- Maker code
- ""
- SGB support
- no
- Cartridge type
- mbc1_sram_bat
- ROM size
- 512 kilobytes
- RAM size
- 8 kilobytes
- Destination code
- other
- License code
- 0x01
- ROM version
- 0
- Header complement check
- 0x6c
- Check sum (in header)
- 0x47b7
- Check sum (actual)
- 0x47b7
- MD5 sum
- c4360f89e2b09a21307fe864258ecab7
Notes
- Glued pin back on
- Replaced battery which still had 3.1V but was slightly leaking white stuff
