DMG-ZLD-0: [iceboy] #1 - Legend of Zelda, The - Link's Awakening (G) [!]

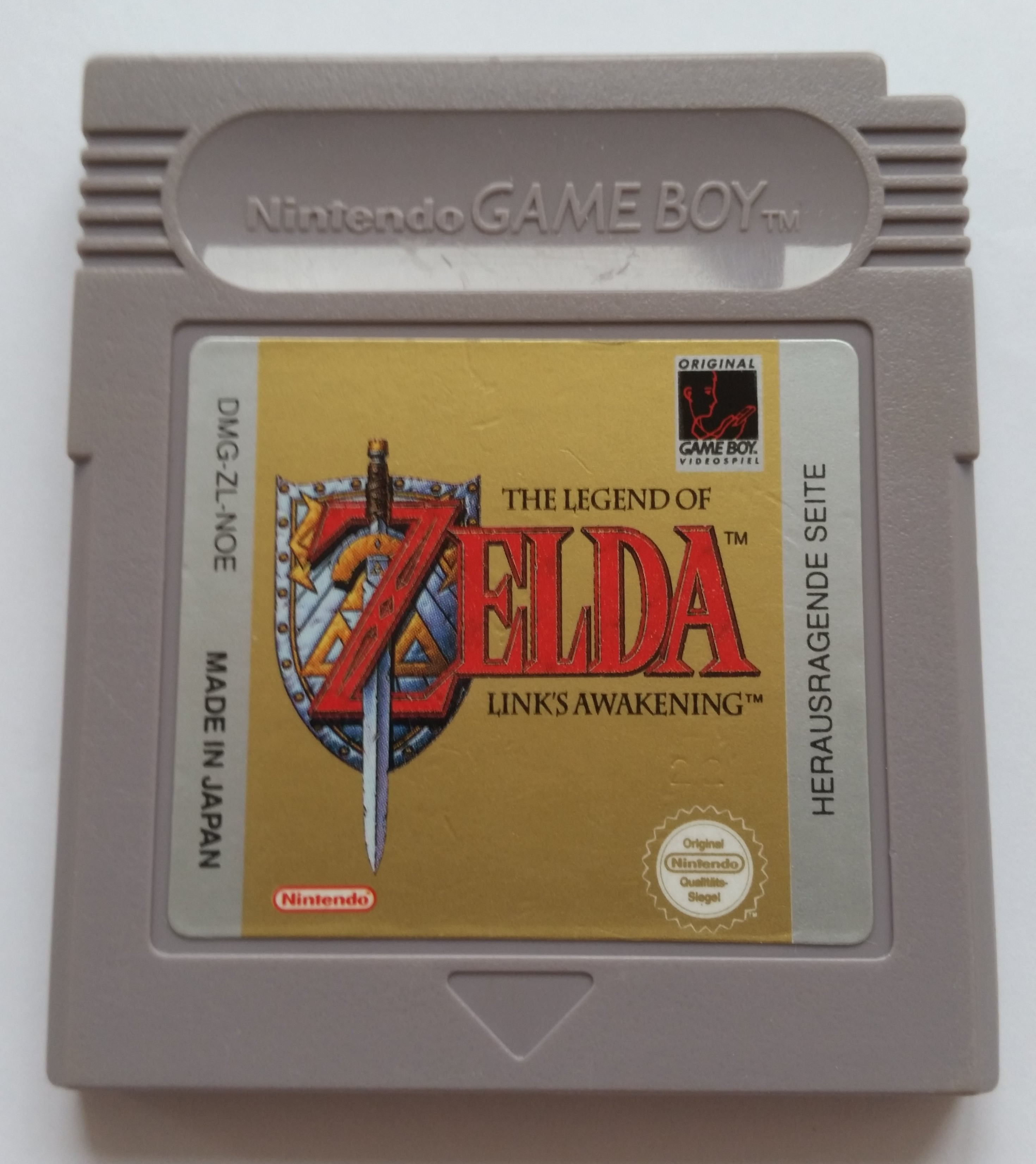

![Front side of Legend of Zelda, The - Link's Awakening (G) [!] Game Boy cartridge](cart_DMG-ZLD-0_iceboy_1/front.jpg)
- Release
- DMG-ZL-NOE
- Stamp on case
- 22
- Color
- grey
- CGB only shell (has no dent for DMG power slider)
- no
- SGB logo
- no
Board
![Front side of Legend of Zelda, The - Link's Awakening (G) [!] Game Boy cartridge circuit board](cart_DMG-ZLD-0_iceboy_1/pcb_front.jpg)

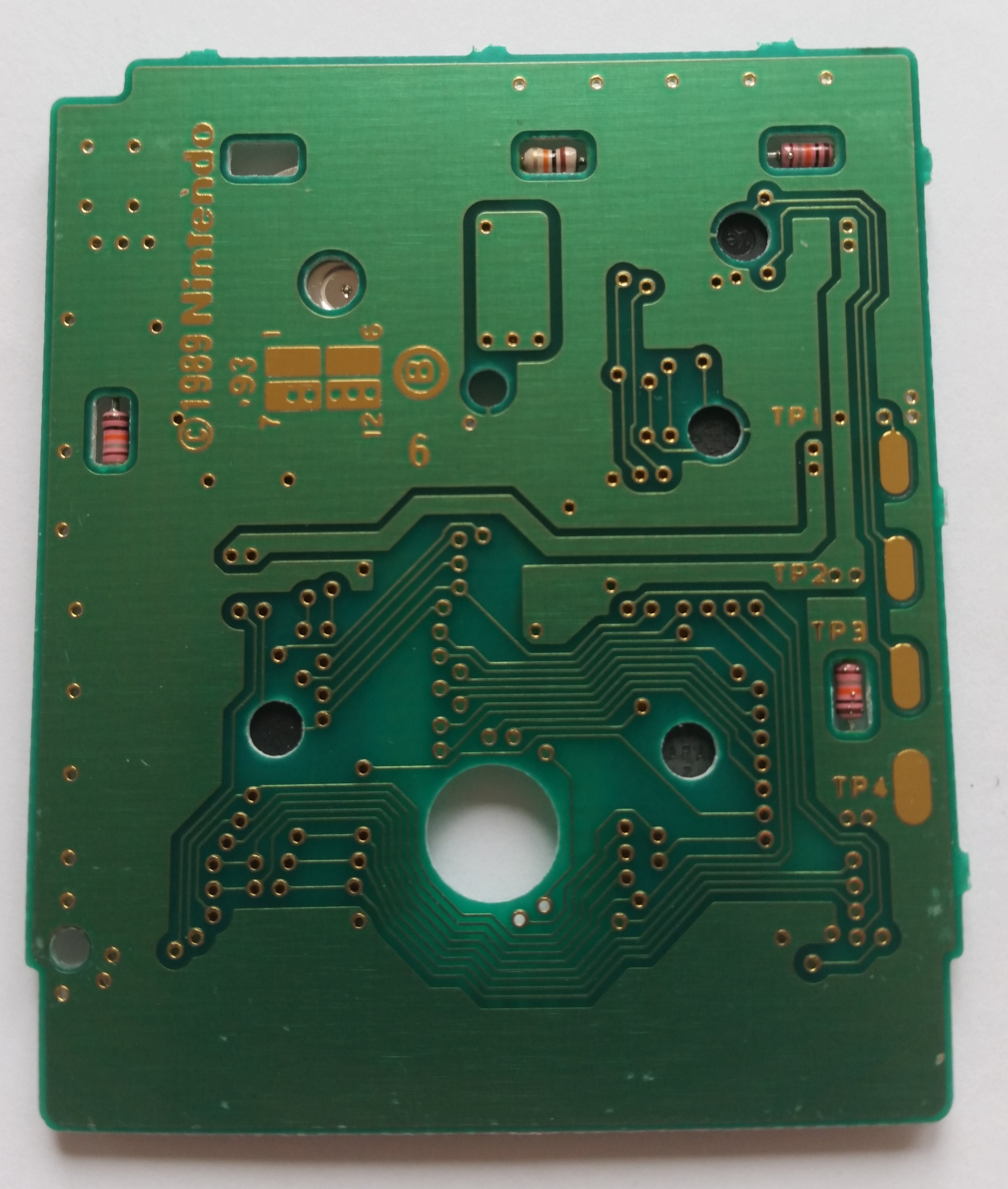

![Back side of Legend of Zelda, The - Link's Awakening (G) [!] Game Boy cartridge circuit board](cart_DMG-ZLD-0_iceboy_1/pcb_back.jpg)
- Board type
- DMG-DECN-02
- Manufacture date
- July/1993
- Circled letter(s) on board
- B
- Extra label
- 6
- Battery type
- CR1616
- Battery manufacturer
- ?
- Battery manufacture date
- April/1993
Chips
| | Chip | Type | Manufacturer | Date | Label |
|---|
| U1 | ROM | ? | Fujitsu | Week 33/1993 | JAPAN
DMG-ZLD-0
3DN BK
9333 R04 |
| U2 | Mapper | MBC1B1 | Sharp | Week 28/1992 | DMG
MBC1B1
Nintendo
S 9228 7 A |
| U3 | RAM | LH5168NFB-10TL | LSI Logic | Week 4/1993 | LH5168NFB-10TL
LSI LOGIC
JAPAN
D304 0B BD |
| U4 | PMIC | BA6129 | ROHM | 1993 | 6129
3747 |
ROM
- Game title
- "ZELDA" (5 bytes)
- Game code
- ""
- CGB support
- incompatible
- Maker code
- ""
- SGB support
- no
- Cartridge type
- mbc1_sram_bat
- ROM size
- 512 kilobytes
- RAM size
- 8 kilobytes
- Destination code
- other
- License code
- 0x01
- ROM version
- 0
- Header complement check
- 0x6c
- Check sum (in header)
- 0x9a48
- Check sum (actual)
- 0x9a48
- MD5 sum
- 8b7af1a8ca96c74301d633e0ce83ba0b
Notes
none
