DMG-AZLP-2: [iceboy] #1 - Legend of Zelda, The - Link's Awakening DX (UE) (V1.2) [S][C][!]

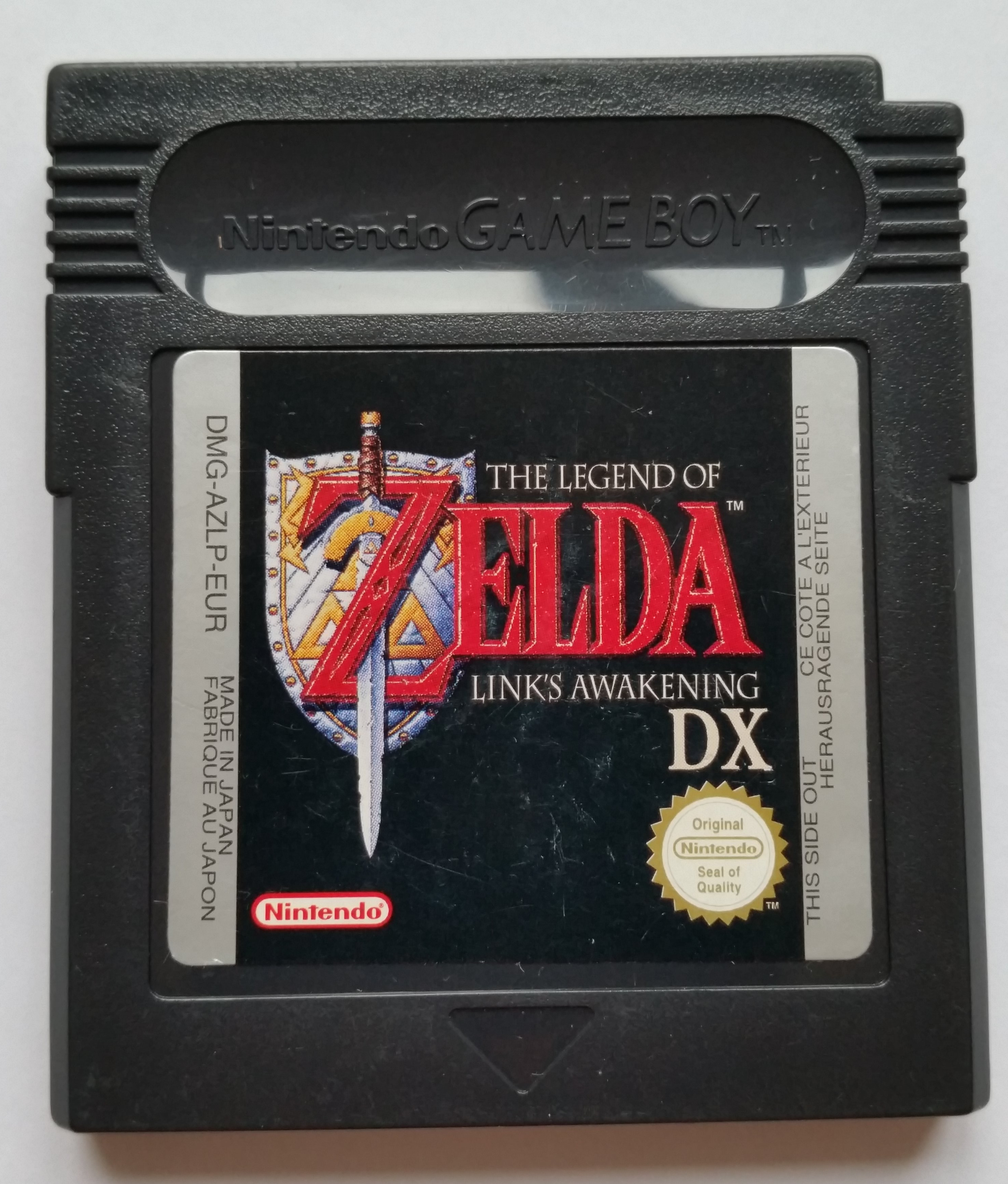

![Front side of Legend of Zelda, The - Link's Awakening DX (UE) (V1.2) [S][C][!] Game Boy cartridge](cart_DMG-AZLP-2_iceboy_1/front.jpg)
- Release
- DMG-AZLP-EUR
- Stamp on case
- 12B
- Color
- black
- CGB only shell (has no dent for DMG power slider)
- no
- SGB logo
- no
Board

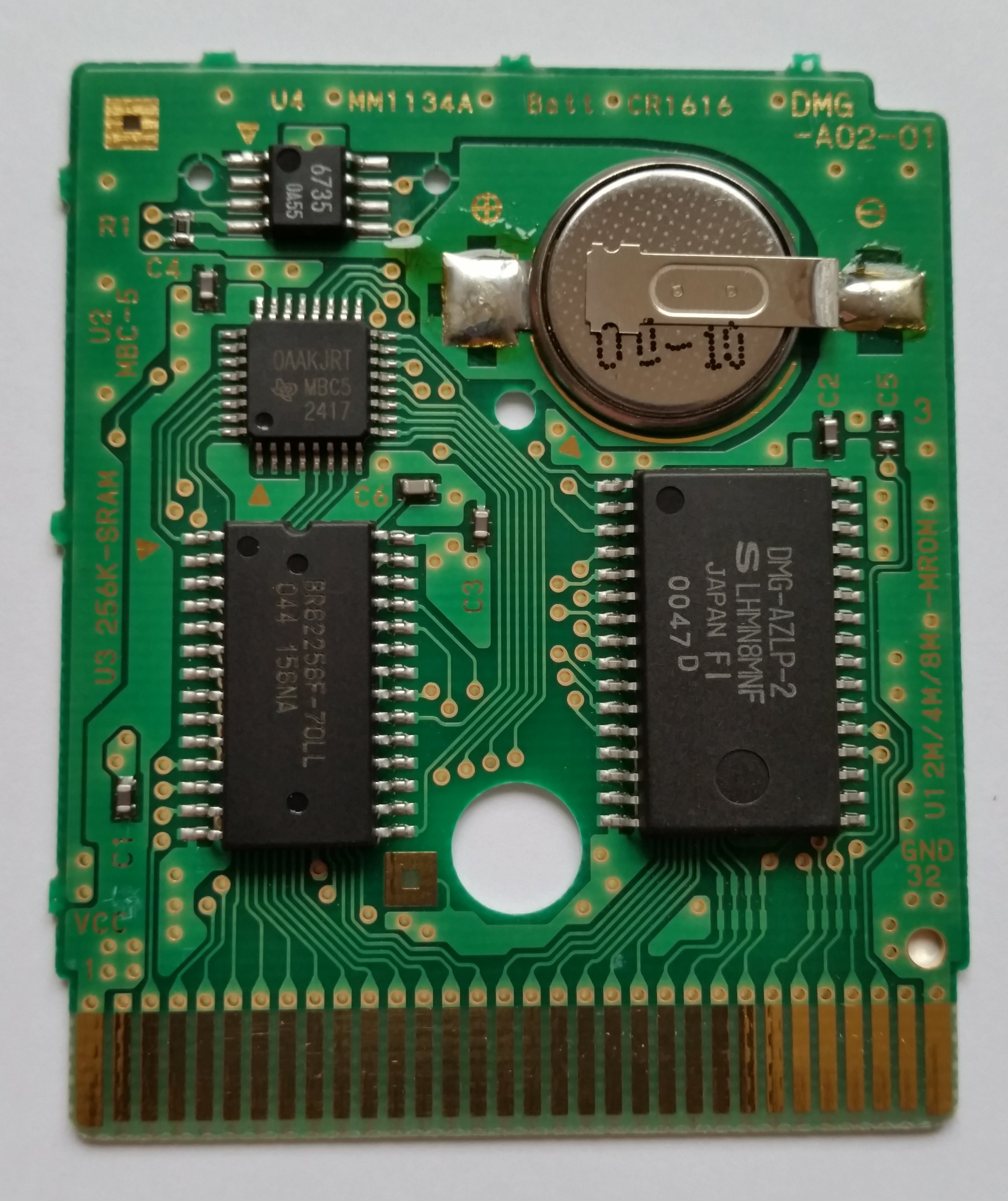

![Front side of Legend of Zelda, The - Link's Awakening DX (UE) (V1.2) [S][C][!] Game Boy cartridge circuit board](cart_DMG-AZLP-2_iceboy_1/pcb_front.jpg)
![Back side of Legend of Zelda, The - Link's Awakening DX (UE) (V1.2) [S][C][!] Game Boy cartridge circuit board](cart_DMG-AZLP-2_iceboy_1/pcb_back.jpg)
- Board type
- DMG-A02-01
- Manufacture date
- October/2000
- Circled letter(s) on board
- A
- Extra label
- 3
- Battery type
- CR1616
- Battery manufacturer
- ?
- Battery manufacture date
- October/2000
Chips
| | Chip | Type | Manufacturer | Date | Label |
|---|
| U1 | ROM | LHMN8M | Sharp | Week 47/2000 | DMG-AZLP-2
S LHMN8MNF
JAPAN F1
0047 D |
| U2 | Mapper | MBC5 | Texas Instruments | 2000 | 0AAKJRT
MBC5
2417 |
| U3 | RAM | BR62256F-70LL | ROHM | Week 44/2000 | BR62256F-70LL
044 156NA |
| U4 | PMIC | BA6735 | ROHM | 2000 | 6735
0A55 |
ROM
- Game title
- "ZELDA" (5 bytes)
- Game code
- "AZLE"
- CGB support
- compatible
- Maker code
- "01"
- SGB support
- yes
- Cartridge type
- mbc5_sram_bat
- ROM size
- 1024 kilobytes
- RAM size
- 32 kilobytes
- Destination code
- other
- License code
- 0x33
- ROM version
- 2
- Header complement check
- 0x0e
- Check sum (in header)
- 0x0135
- Check sum (actual)
- 0x0135
- MD5 sum
- 7351daa3c0a91d8f6fe2fbcca6182478
Notes
none
