DMG-AZLE-1: [iceboy] #1 - Legend of Zelda, The - Link's Awakening DX (UE) (V1.1) [S][C][!]

Front side of Legend of Zelda, The - Link's Awakening DX (UE) (V1.1) [S][C][!] Game Boy cartridge

Release
DMG-AZLE-USA
Stamp on case
11B
Color
black
CGB only shell (has no dent for DMG power slider)
no
SGB logo
no

Board

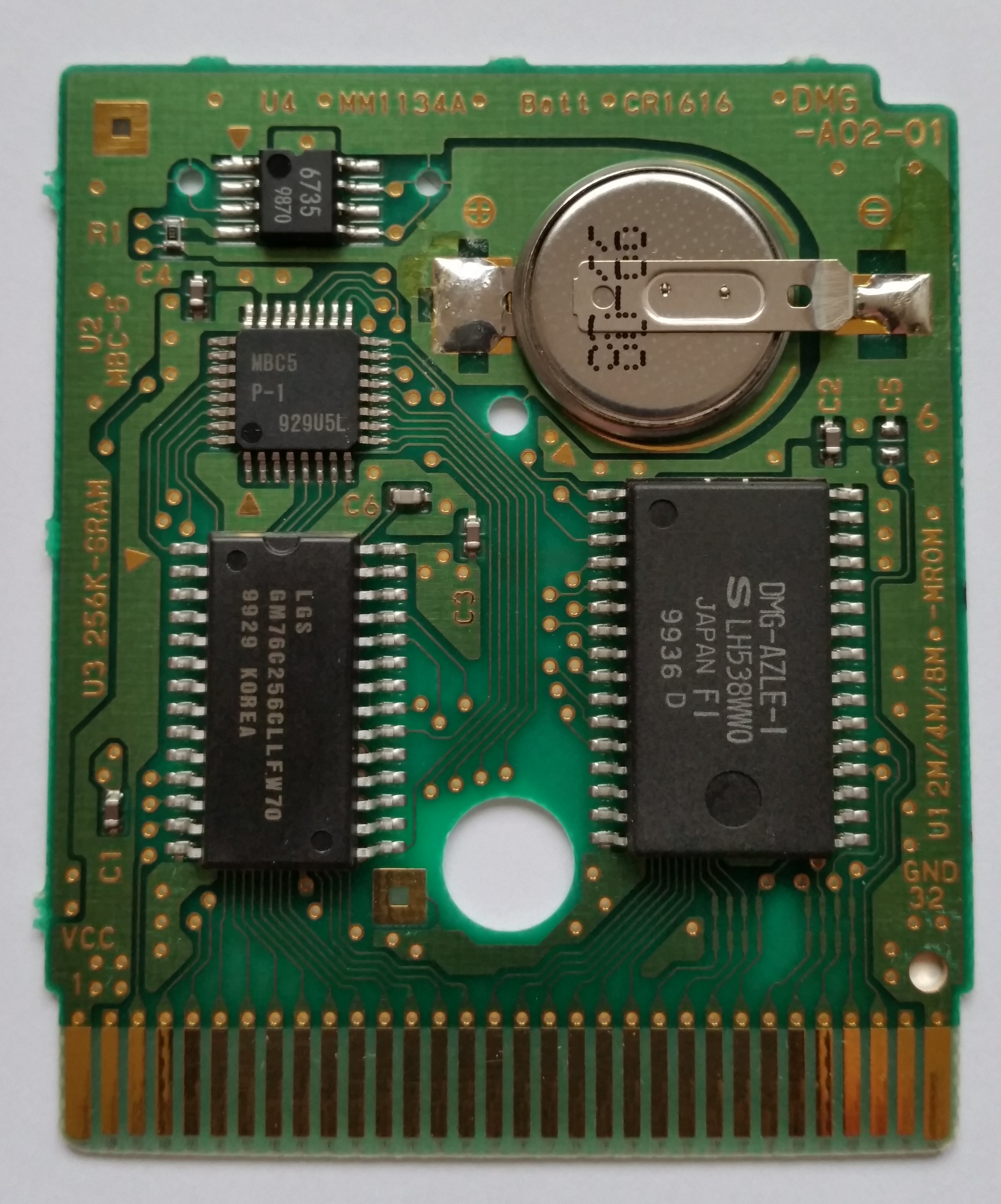

Front side of Legend of Zelda, The - Link's Awakening DX (UE) (V1.1) [S][C][!] Game Boy cartridge circuit boardBack side of Legend of Zelda, The - Link's Awakening DX (UE) (V1.1) [S][C][!] Game Boy cartridge circuit board

Board type
DMG-A02-01
Manufacture date
August/1999
Circled letter(s) on board
I
Extra label
6
Battery type
CR1616
Battery manufacturer
?
Battery manufacture date
August/1999

Chips

 ChipTypeManufacturerDateLabel
U1ROMLH538WSharpWeek 36/1999
DMG-AZLE-1
S LH538WW0
JAPAN F1
9936 D
U2MapperMBC5?Week 29/1999
MBC5
P-1
929U5L
U3RAMGM76C256CLLFW70Lucky GoldStarWeek 29/1999
LGS
GM76C256CLLFW70
9929 KOREA
U4PMICBA6735ROHM1999
6735
9870

ROM

Game title
"ZELDA" (5 bytes)
Game code
""
CGB support
compatible
Maker code
"01"
SGB support
yes
Cartridge type
mbc5_sram_bat
ROM size
1024 kilobytes
RAM size
32 kilobytes
Destination code
other
License code
0x33
ROM version
1
Header complement check
0x3b
Check sum (in header)
0x2735
Check sum (actual)
0x2735
MD5 sum
ccbb56212e3dbaa9007d389a17e9d075

Notes

none
