CGB-B86P-0: [iceboy] #1 - Hamtaro - Ham-Hams Unite! (E) (M5) [C][!]

Front side of Hamtaro - Ham-Hams Unite! (E) (M5) [C][!] Game Boy cartridge

Release
CGB-B86P-EUR
Stamp on case
00
Color
clear
CGB only shell (has no dent for DMG power slider)
yes
SGB logo
no

Board

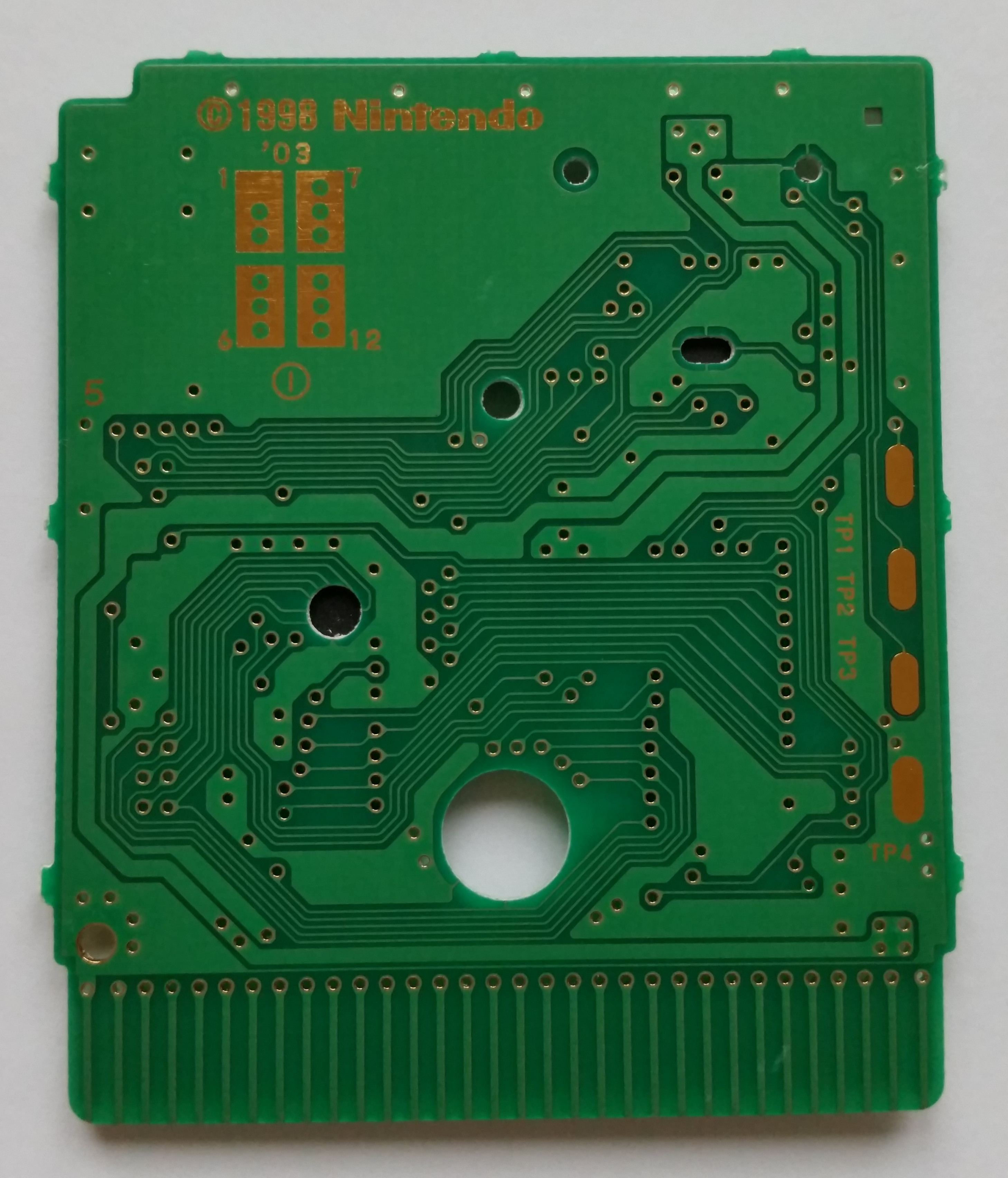

Front side of Hamtaro - Ham-Hams Unite! (E) (M5) [C][!] Game Boy cartridge circuit boardBack side of Hamtaro - Ham-Hams Unite! (E) (M5) [C][!] Game Boy cartridge circuit board

Board type
DMG-A08-10
Manufacture date
January/2003
Circled letter(s) on board
I
Extra label
5
Battery type
CR1616
Battery manufacturer
?
Battery manufacture date
October/2002

Chips

 ChipTypeManufacturerDateLabel
U1ROMMX23C3203-12A2MacronixWeek 47/2002
S024723-M
MX23C3203-12A2
CGB-B86P-0 H2
2G518000
U2MapperMBC5ROHMWeek 44/2002
MBC-5
BU3650K
244 H18
U3RAMBR6265BF-10SLROHMWeek 47/2002
BR6265BF-10SL
247 127N
U4PMICBA6735ROHM2002
6735
2A56

ROM

Game title
"HAMUTARO2" (9 bytes)
Game code
"B86P"
CGB support
exclusive
Maker code
"01"
SGB support
no
Cartridge type
mbc5_sram_bat
ROM size
4096 kilobytes
RAM size
8 kilobytes
Destination code
other
License code
0x33
ROM version
0
Header complement check
0xdb
Check sum (in header)
0xb715
Check sum (actual)
0xb715
MD5 sum
06157785417d6fe5c73388eb573981dc

Notes

- Battery was loose; spot welds were broken off.
    -> Battery that was shipped with the game was manufactured by Camelion and has the stamp J71
    -> Previous owner wrapped the PCB in sticky tape to hold the battery in place.
    -> Judging by the weld marks, it looked like the battery was the original one, but comapring it to
       the picture on ebay, it wasn't. The dirt and scratch marks on the sticker are matching. So it
       was a picture of the same cartridge, but with different battery.
    -> Battery in the picture on ebay had different stamp: 02-10
    -> Battery (J71) still had 3.2V, but I replaced it due to it not being welded to the fins.
    -> Original battery must have been drained, otherwise it wouldn't make sense that the seller
       replaced it like that.
