CGB-AZ8P-0: [iceboy] #1 - Legend of Zelda, The - Oracle of Ages (E) (M5) [C][!]

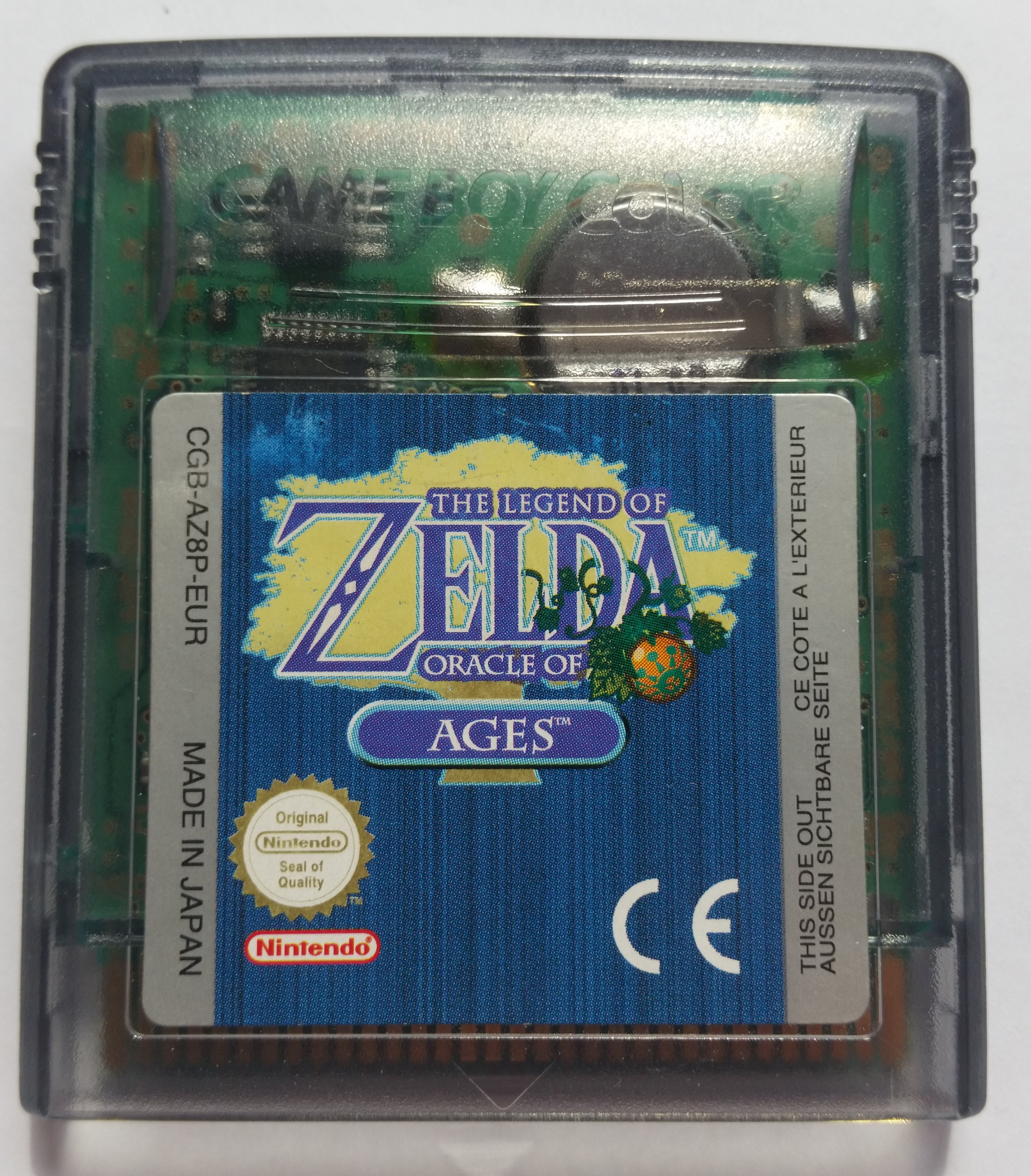

![Front side of Legend of Zelda, The - Oracle of Ages (E) (M5) [C][!] Game Boy cartridge](cart_CGB-AZ8P-0_iceboy_1/front.jpg)
- Release
- CGB-AZ8P-EUR
- Stamp on case
- 19
- Color
- clear
- CGB only shell (has no dent for DMG power slider)
- yes
- SGB logo
- no
Board

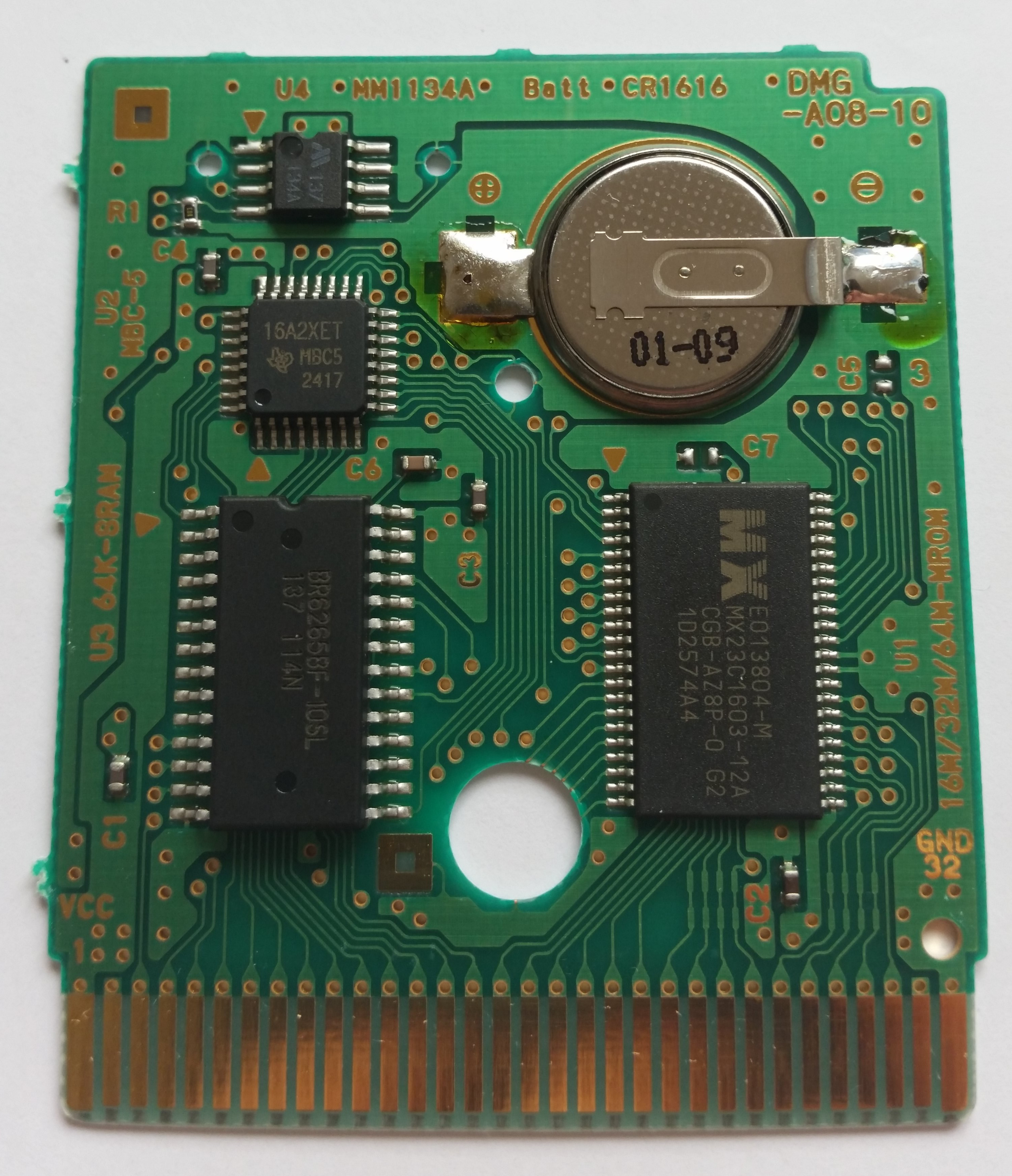

![Front side of Legend of Zelda, The - Oracle of Ages (E) (M5) [C][!] Game Boy cartridge circuit board](cart_CGB-AZ8P-0_iceboy_1/pcb_front.jpg)

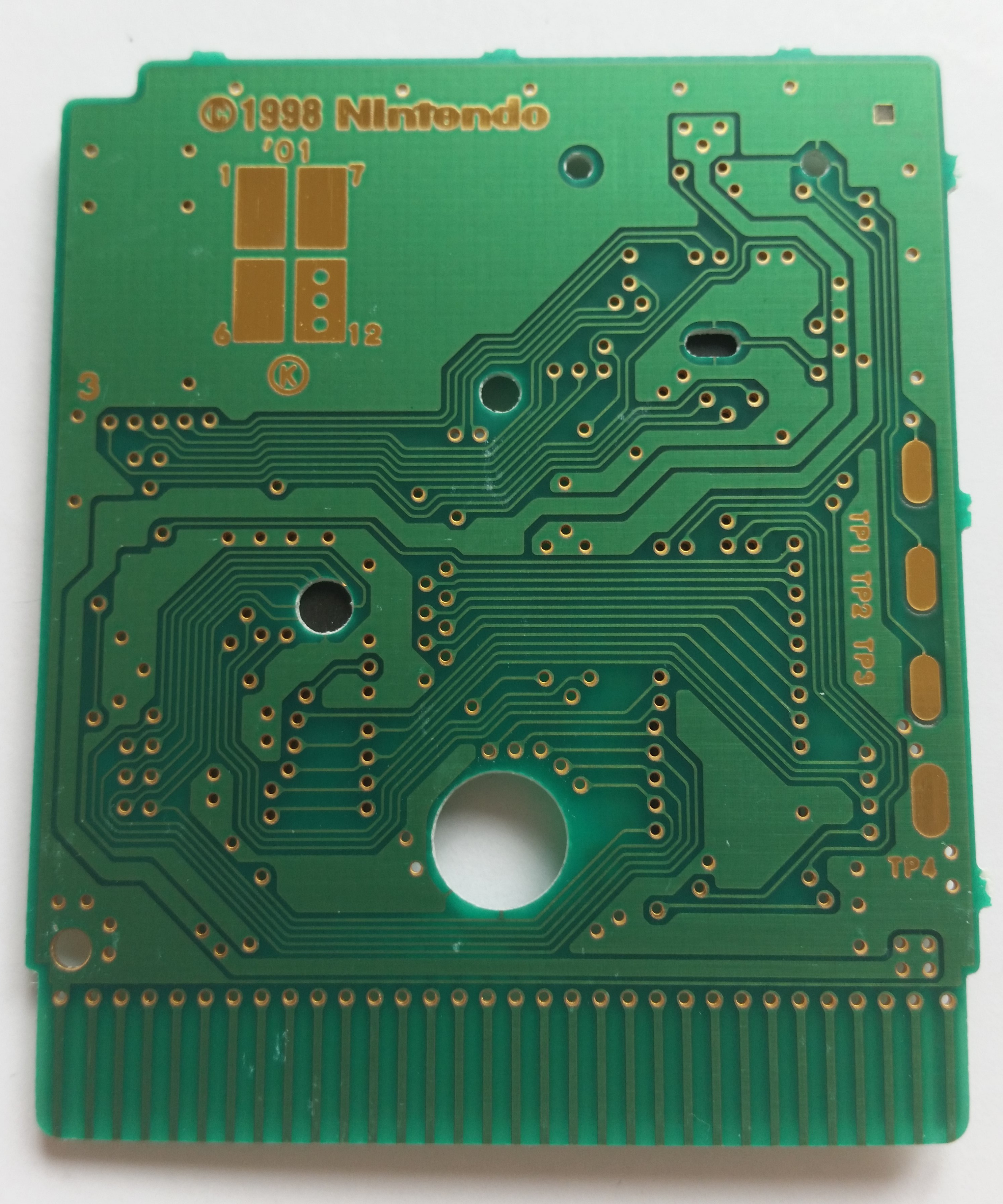

![Back side of Legend of Zelda, The - Oracle of Ages (E) (M5) [C][!] Game Boy cartridge circuit board](cart_CGB-AZ8P-0_iceboy_1/pcb_back.jpg)
- Board type
- DMG-A08-10
- Manufacture date
- September/2001
- Circled letter(s) on board
- K
- Extra label
- 3
- Battery type
- CR1616
- Battery manufacturer
- ?
- Battery manufacture date
- September/2001
Chips
| | Chip | Type | Manufacturer | Date | Label |
|---|
| U1 | ROM | MX23C1603-12A | Macronix | Week 38/2001 | E013804-M
MX23C1603-12A
CGB-AZ8P-0 G2
1D2574A4 |
| U2 | Mapper | MBC5 | Texas Instruments | 2001 | 16A2XET
MBC5
2417 |
| U3 | RAM | BR6265BF-10SL | ROHM | Week 37/2001 | BR6265BF-10SL
137 114N |
| U4 | PMIC | MM1134A | Mitsumi | Week 37/2001 | 137
134A |
ROM
- Game title
- "ZELDA NAYRU" (11 bytes)
- Game code
- "AZ8P"
- CGB support
- exclusive
- Maker code
- "01"
- SGB support
- no
- Cartridge type
- mbc5_sram_bat
- ROM size
- 2048 kilobytes
- RAM size
- 8 kilobytes
- Destination code
- other
- License code
- 0x33
- ROM version
- 0
- Header complement check
- 0x2d
- Check sum (in header)
- 0xa664
- Check sum (actual)
- 0xa664
- MD5 sum
- 825de040ea4dff66661693f8712b1bdb
Notes
none
