AGS: [iceboy] #3 - XJH10361368

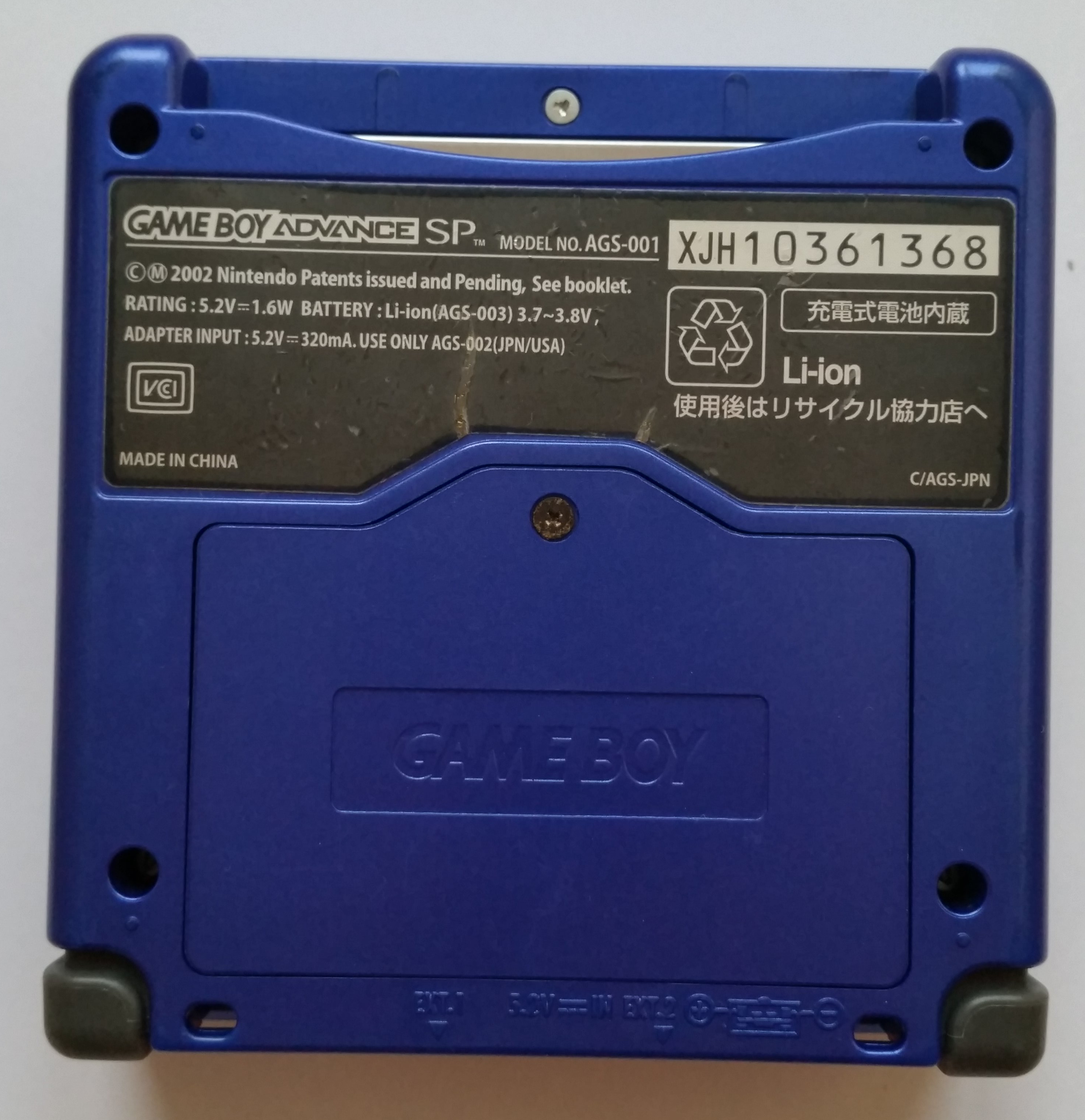

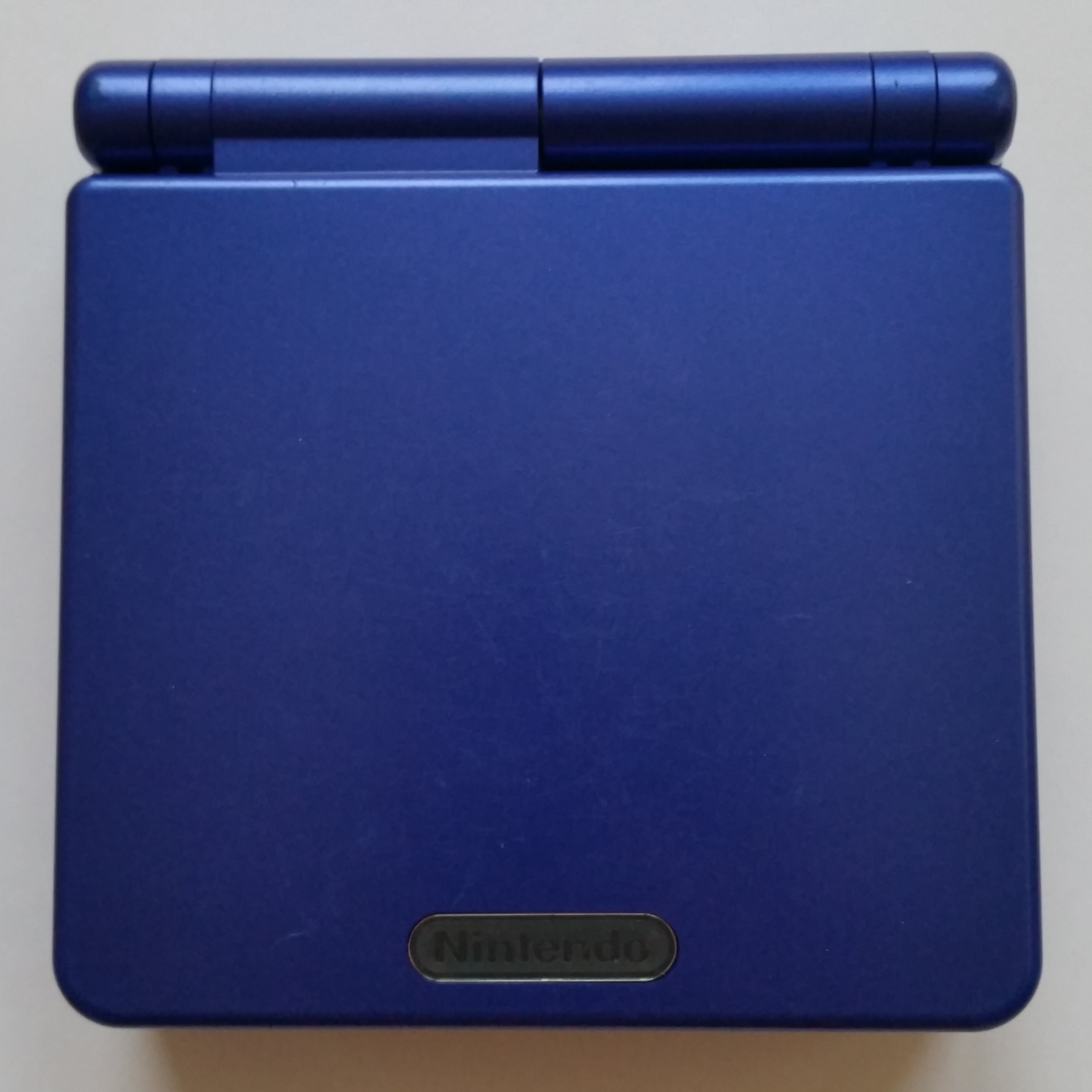

Front side of Game Boy Advance SPTop side of Game Boy Advance SPBottom side of Game Boy Advance SP

Color
cobalt
Model
AGS-001
Release code
C/AGS-JPN

Mainboard

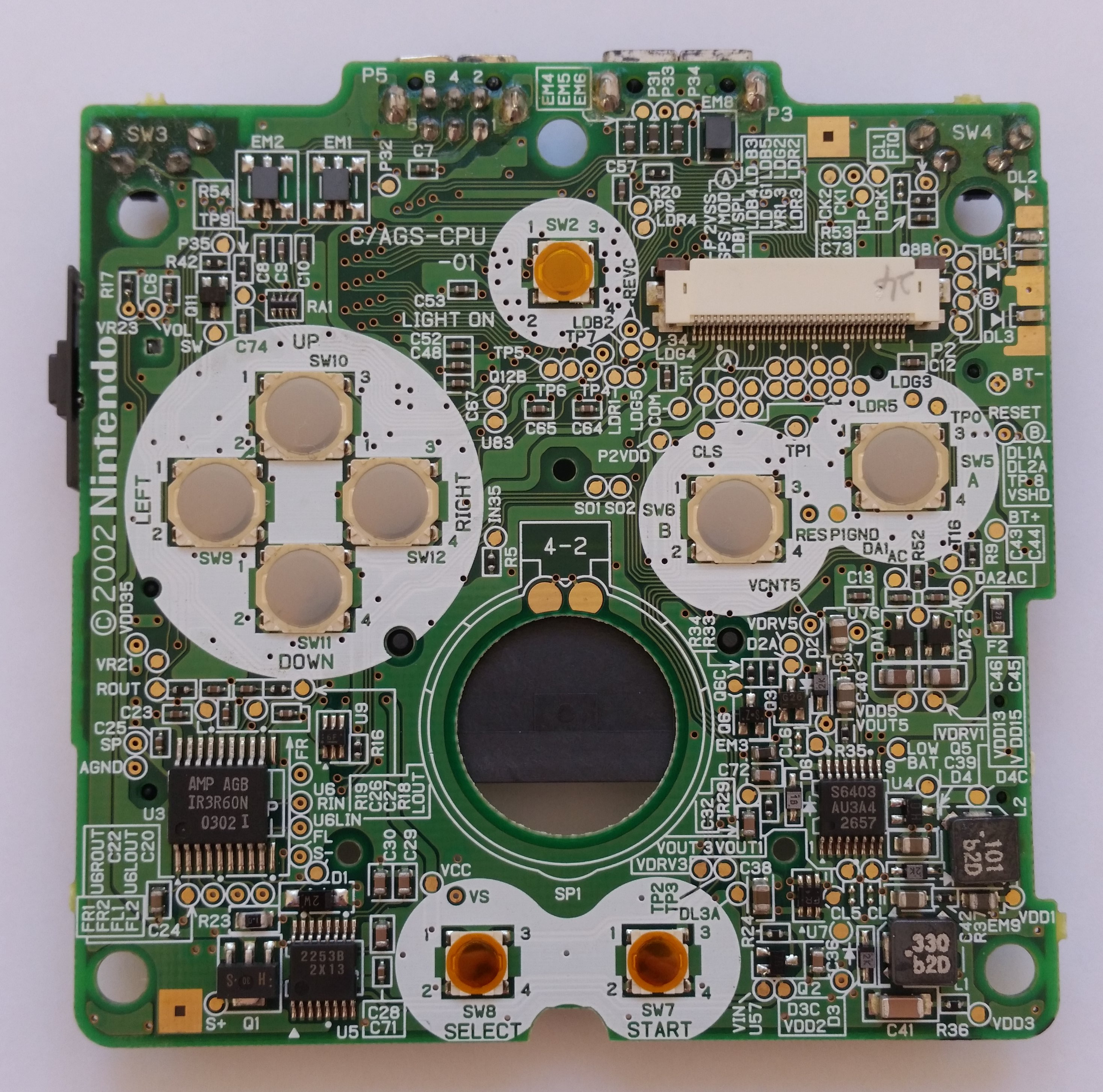

Front side of Game Boy Advance SP circuit boardBack side of Game Boy Advance SP circuit board

Board type
C/AGS-CPU-01
Manufacture date
February/2003
Number pair on board
4-2
Stamp on board
0933702
Sticker on board
-
Circled letter(s) on board
CS
Stamp on speaker
1
3027

LCD Panel

Sticker on panel
LQ029B2DB51A 32E00091922
Stamp on panel
-
Label on cable
CH0004T

Chips

 ChipTypeManufacturerDateLabel
U1CPUCPU AGB BSharpWeek 5/2003
CPU AGB B
Ⓜ © 2002 Nintendo
JAPAN ARM
0305 mB
U2Work RAM82D12160-10FNFujitsuWeek 46/2002
JAPAN
82D12160
-10FN
0246 M01N
U3AmplifierIR3R60NSharpWeek 2/2003
AMP AGB
IR3R60N
0302 I
U4?S6403?2003
S6403
AU3A4
2657
U5Battery controller2253B??
2253B
2X13
-PMIC
X1CrystalKDSI 4.194DaishinkuWeek 4/2003
KDSI 0304
4.194

Notes

none

Misc

CPU works
yes
